SkyRC PC3020 12-24S 3000W Dual Output Lithium Battery Charger, Active PFC, CAN Port, 100-240V AC

SkyRC

$899.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Plug type US EU UK AU

Version PC3020-1 (12-22S)

Quantity

View full details

Overview

The SkyRC PC3020 is a dual-output lithium battery charger designed for high-voltage lithium battery packs, supporting 12S to 24S (model dependent). It features universal AC input (100V to 240V, 50/60Hz), Active PFC, and a color display for real-time charging information.

Key Features

Dual independent outputs: Dual Output Lithium Battery Charger (PC3020 series).
Universal AC input: 100V ~ 240V, 50/60Hz.
Output power (by input voltage): 100V-120V: 1500W; 176V-290V: 3000W.
Active PFC: Designed to correct AC input voltage for enhanced stability; stated 90% conversion efficiency. (Chart indicates DC output power: without PFC 70%, with PFC 93%.)
Display & control: 2.8-inch 320x240 color display with a 130° angled design; shows real-time voltage, current, capacity, and percentage.
LiHV support: Adjustable 4.25V to 4.50V.
CAN port: Supports CAN communication for CAN-enabled smart batteries (12-24S CAN-enabled LiPo/LiHV packs referenced).
Safety protections: Short-circuit protection, reverse polarity safeguard, over-temperature protection, capacity protection, time-out protection, cut-off protection, over-voltage protection, flame-retardant chassis.
Compliance marks shown: CE, FC, RoHS.

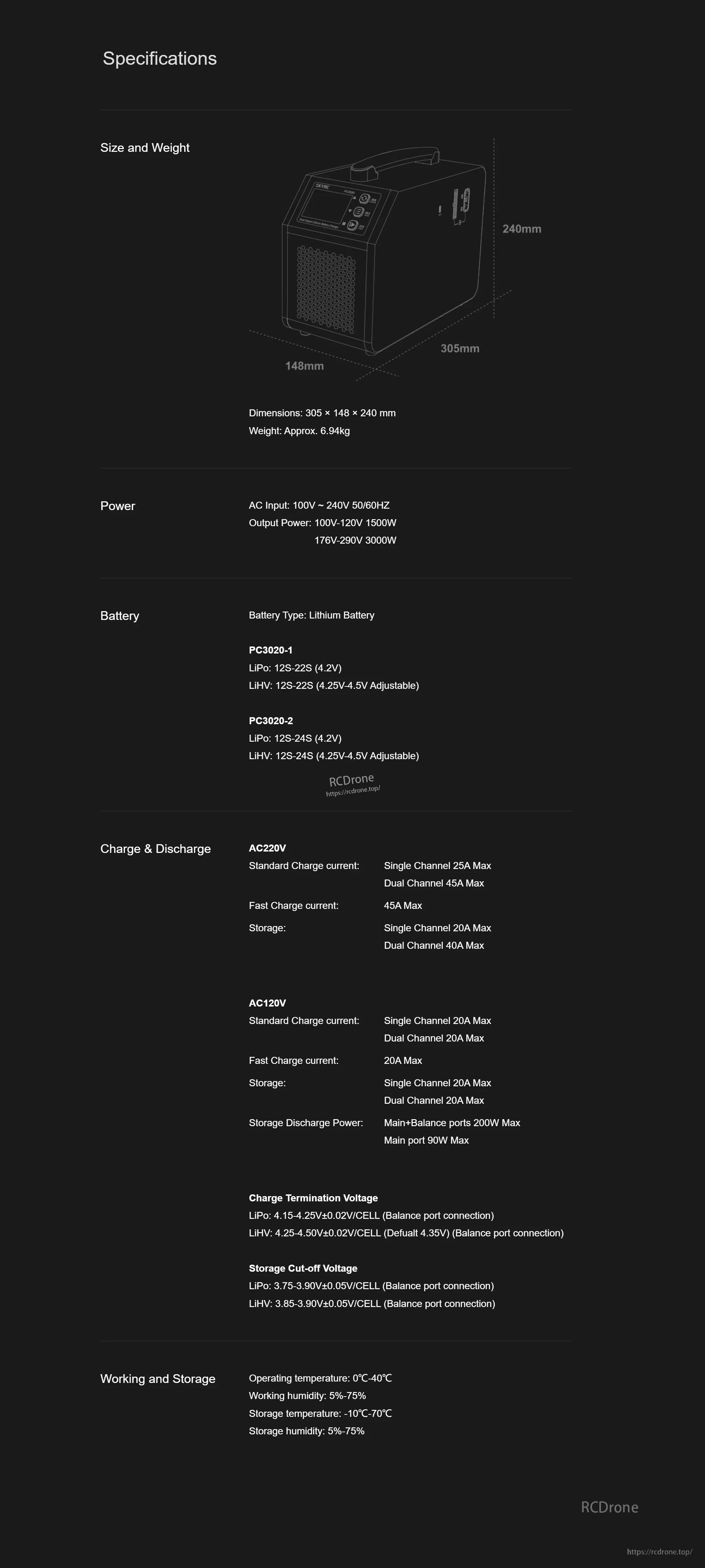

Specifications

Dimensions	305 x 148 x 240 mm
Weight	Approx. 6.94kg
AC Input	100V ~ 240V 50/60HZ
Output Power	100V-120V 1500W 176V-290V 3000W
Battery Type	Lithium Battery
Battery Support (PC3020-1)	LiPo: 12S-22S (4.2V) LiHV: 12S-22S (4.25V-4.5V Adjustable)
Battery Support (PC3020-2)	LiPo: 12S-24S (4.2V) LiHV: 12S-24S (4.25V-4.5V Adjustable)
Charge & Discharge (AC220V) - Standard Charge Current	Single Channel 25A Max Dual Channel 45A Max
Charge & Discharge (AC220V) - Fast Charge Current	45A Max
Charge & Discharge (AC220V) - Storage	Single Channel 20A Max Dual Channel 40A Max
Charge & Discharge (AC120V) - Standard Charge Current	Single Channel 20A Max Dual Channel 20A Max
Charge & Discharge (AC120V) - Fast Charge Current	20A Max
Charge & Discharge (AC120V) - Storage	Single Channel 20A Max Dual Channel 20A Max
Storage Discharge Power	Main+Balance ports 200W Max Main port 90W Max
Charge Termination Voltage	LiPo: 4.15-4.25V±0.02V/CELL (Balance port connection) LiHV: 4.25-4.50V±0.02V/CELL (Defualt 4.35V) (Balance port connection)
Storage Cut-off Voltage	LiPo: 3.75-3.90V±0.05V/CELL (Balance port connection) LiHV: 3.85-3.90V±0.05V/CELL (Balance port connection)
Operating Temperature	0c-40c
Working Humidity	5%-75%
Storage Temperature	-10c-70c
Storage Humidity	5%-75%

Applications

Charging and storage preparation for high-voltage LiPo and LiHV battery packs (12S-24S, model dependent)
Workflows requiring dual-channel charging for compatible lithium battery systems
Use cases requiring CAN-enabled charging/monitoring with compatible smart batteries

For compatibility questions (battery type, connectors, or selecting between PC3020-1 and PC3020-2), contact support at https://rcdrone.top/ or support@rcdrone.top.

Details

SkyRC PC3020 12-24S 3000W Dual Output Lithium Battery Charger

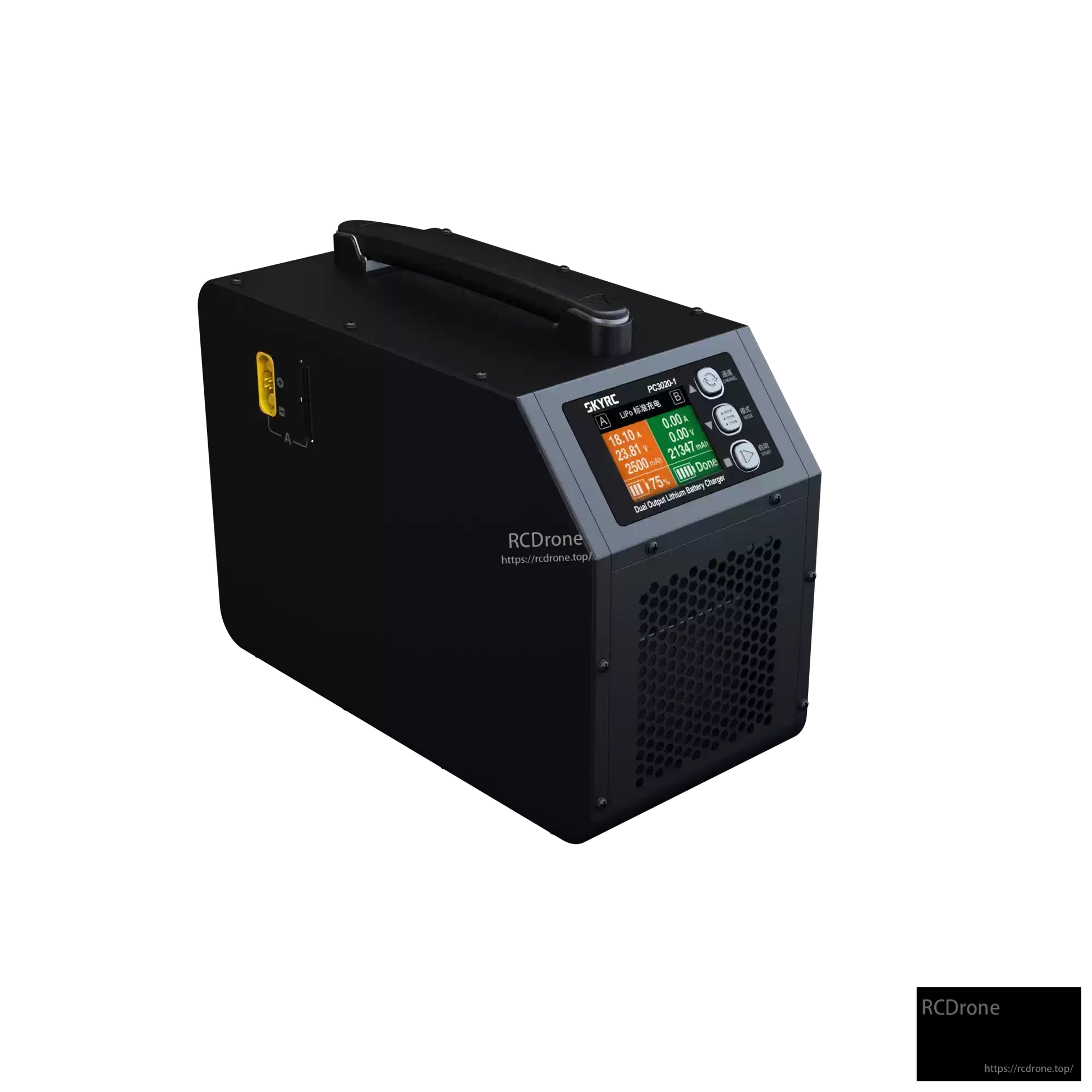

The SkyRC PC3020 dual output lithium battery charger pairs a clear color display with high-power 3000W, 12–24S charging support.

The SkyRC PC3020 dual-output lithium charger is designed with multiple protection features and a flame-retardant chassis, with CE/FCC/RoHS marks displayed.

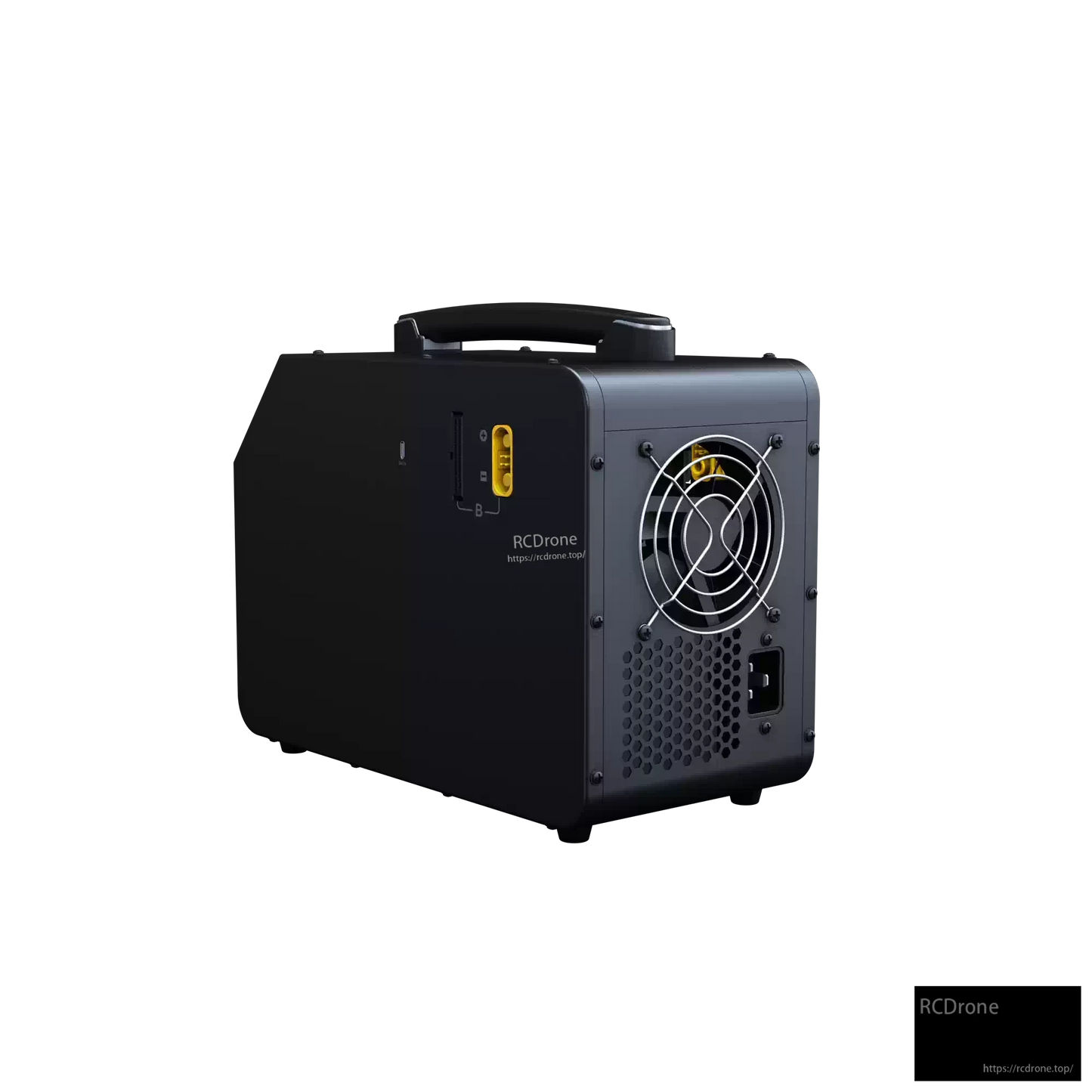

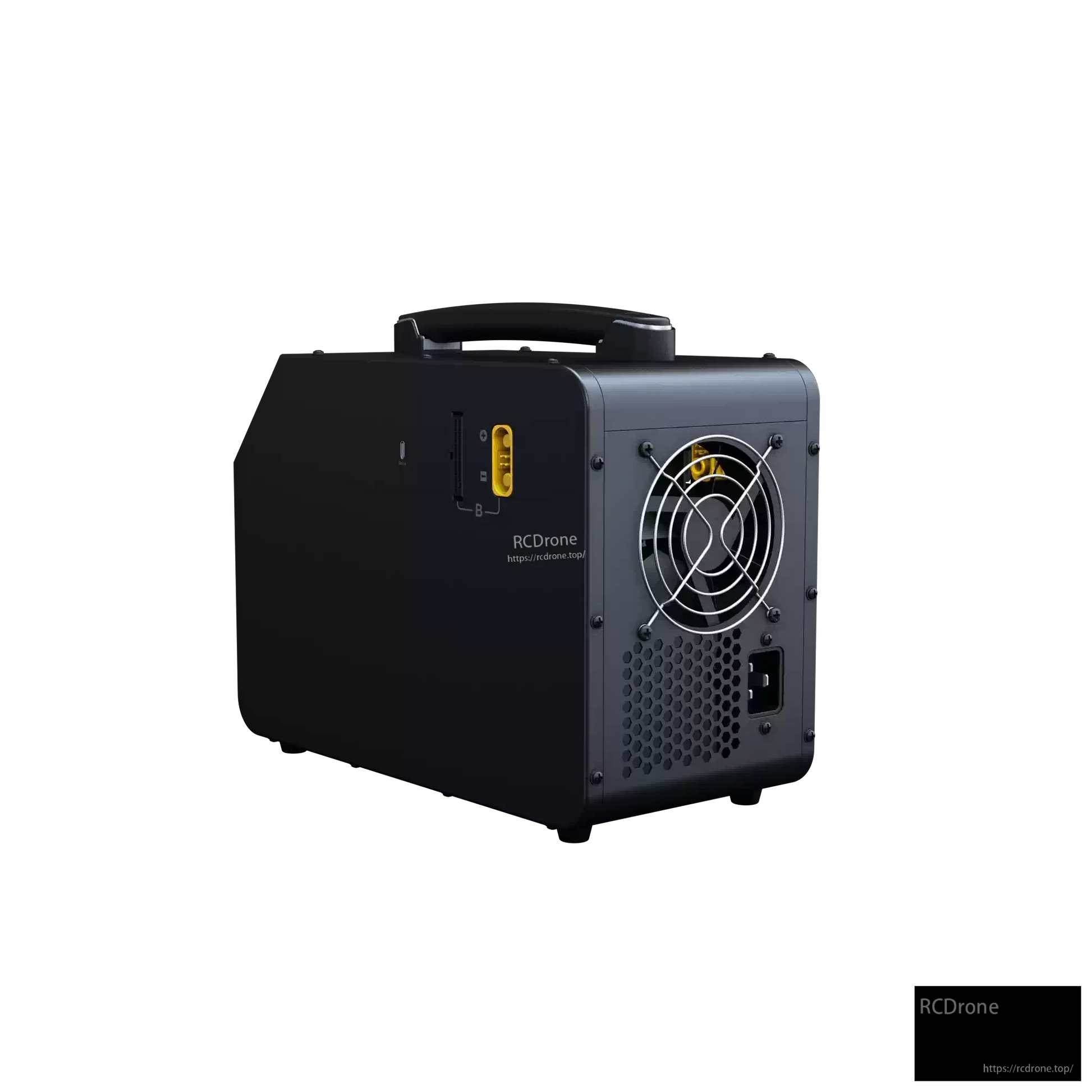

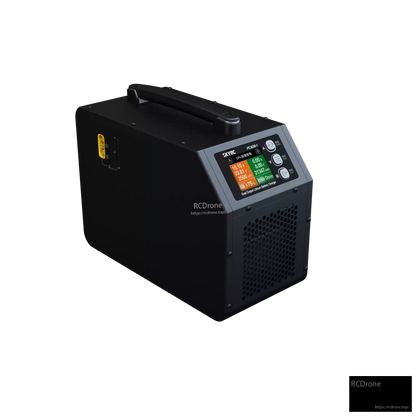

SkyRC PC3020 uses a fan-cooled enclosure and universal 100–240V AC input for flexible charging setups worldwide.

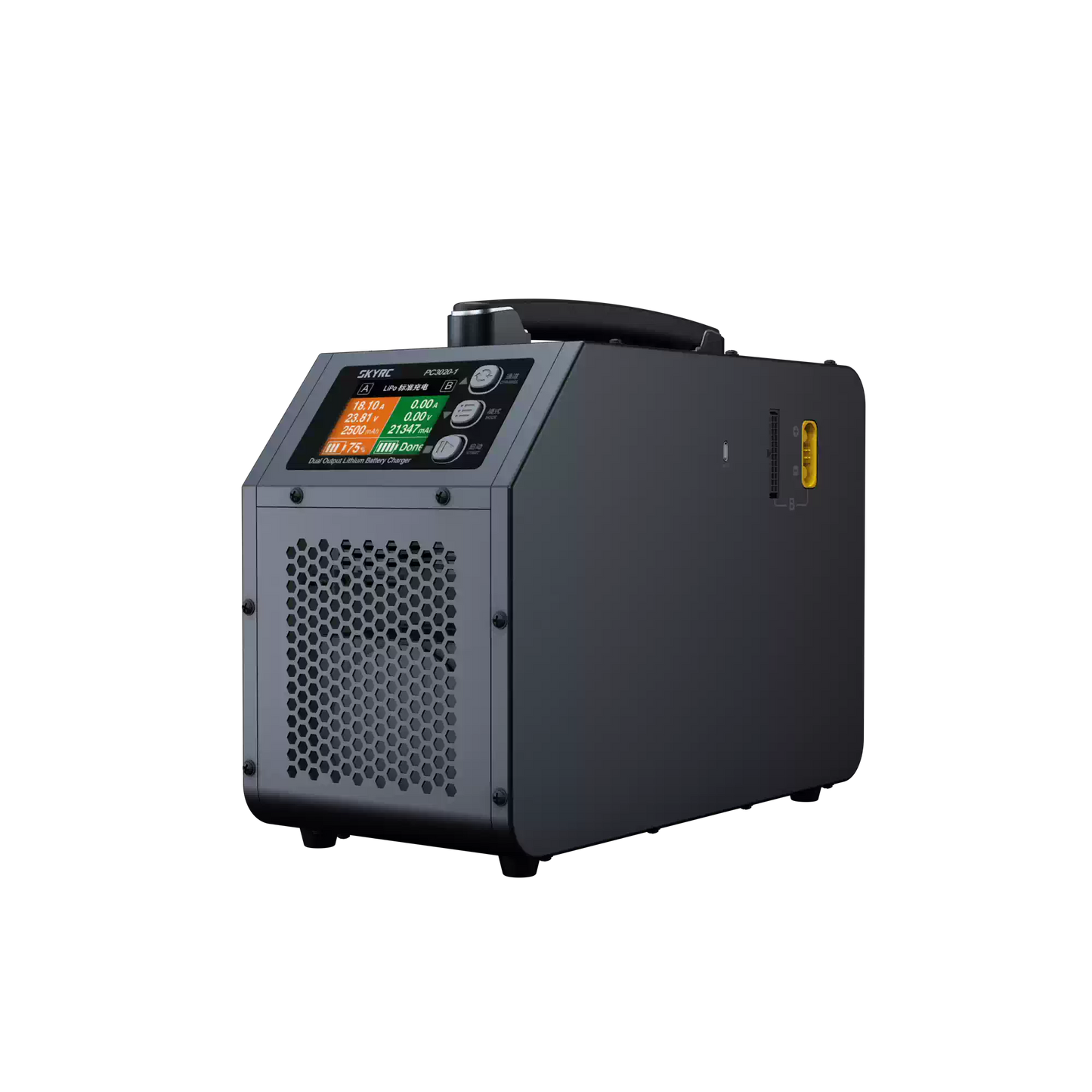

The SkyRC PC3020 dual-output lithium battery charger features an easy-to-read color screen and storage charge mode for battery care.

The SkyRC PC3020 series is a dual-output charger offered in PC3020-1 (supports 12–22S) and PC3020-2 (supports 12–24S) versions for CAN smart batteries and standard lithium packs.

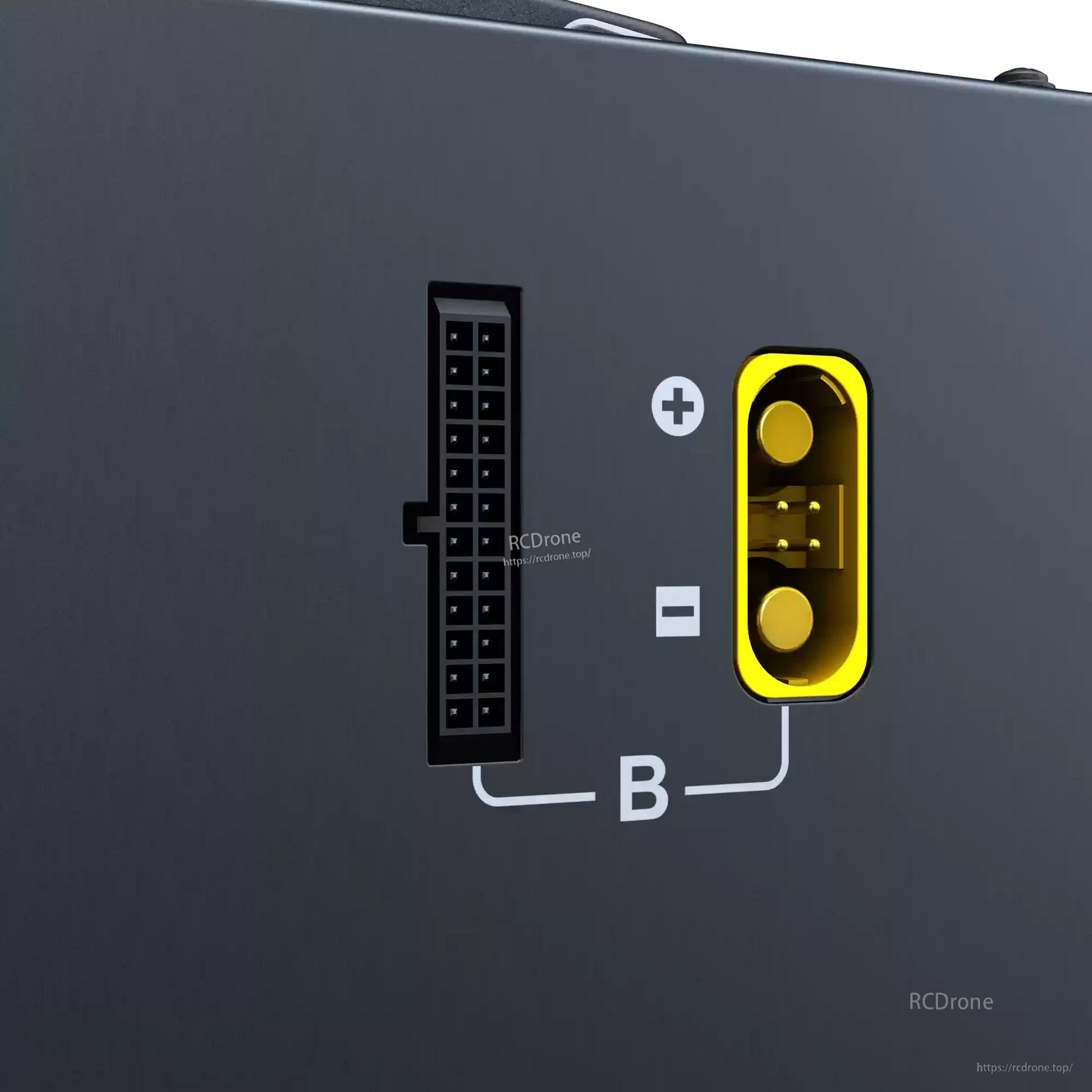

The SkyRC PC3020 charger supports LiPo and LiHV profiles with an adjustable 4.25–4.50V setting and a built-in CAN port for smart battery communication.

The SkyRC PC3020 uses a bright, angled color display to show real-time voltage, current, capacity, and charge progress, with active PFC for stable AC input.
