SkyRC Q200neo 4-Port AC/DC Smart Battery Charger 200W AC / 400W DC, 10A x4, 1-6S LiPo

Overview

The SkyRC Q200neo is a 4-port AC/DC smart battery charger designed for charging and managing multiple battery chemistries simultaneously. It supports LiPo/LiHV/LiFe/LiIon (1-6S), NiMH/NiCd (2-15S), and Pb (3S/6S/12S), with up to 10A charge current per port and dual input for home (AC) or field (DC) use.

Key Features

• 4 independent charging channels: Charge current 0.1-10A x 4; charge power DC 100W x 4 (400W total), AC 200W total
• Dual AC/DC input: AC input voltage 100-240V; DC input voltage 10-30V
• USB-C PD output: 20W USB-C Power Delivery with QC3.0 and PD profiles (details in Specifications)
• Smart control: Connect via Type-C or Bluetooth and control with Charger Master on PC or smartphone
• DC power supply mode: Adjustable output voltage/current up to 100W (single port)
• Balancing: Balance current up to 800mA max (LiPo/LiFe/LiIon/LiHV); advertised voltage equalization optimization ±0.02V
• Safety protections: Short-circuit, over-temperature, capacity, time-out, cut-off, and over-voltage protection; V0 flame-retardant case material (PC-ABS V0)
• Multi-language interface: English, Dutch, Chinese, French, Japanese

Specifications

Important Note

Do not set the DC output to connect the battery. As long as the voltage at the battery end is higher than the set voltage, the charger will be damaged immediately.

What’s Included

• 1x SkyRC Q200neo Smart Charger

Applications

• Charging and balancing LiPo/LiHV/LiFe/LiIon packs (1-6S)
• Charging NiMH/NiCd battery packs (2-15S) and Pb batteries (3S/6S/12S)
• Multi-battery charging for RC models, FPV, and other hobby electronics using supported chemistries

For compatibility questions (battery types/cell count, charging leads, input power setup) or after-sales support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

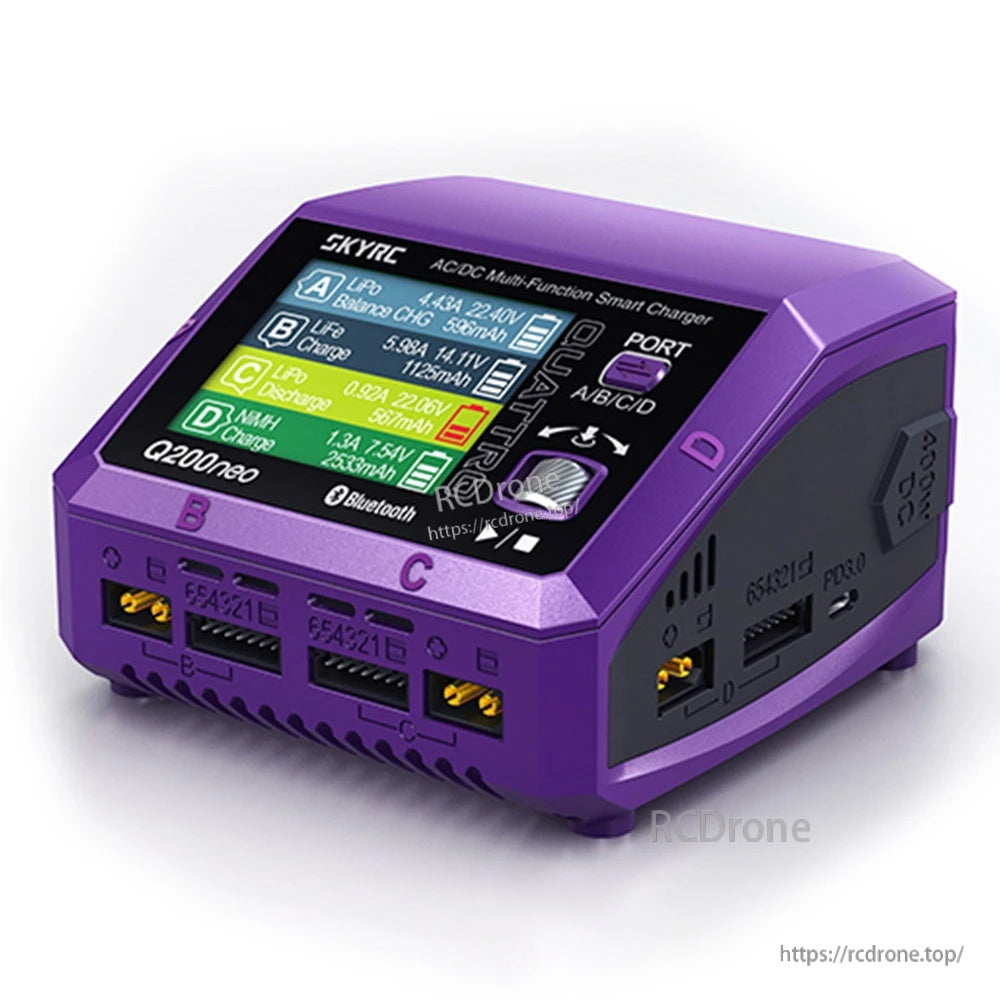

The SkyRC Q200neo combines a clear color screen with four labeled charge ports and a front control dial for quick setup.

The SkyRC Q200neo is a 4-port AC/DC smart charger with a color status display, up to 10A per port, and 20W USB-C PD output.

The SkyRC Q200neo charger uses AC/DC dual input with a front display that lists 200W AC and 400W DC power output.

The SkyRC Q200neo combines four independent charging ports with AC/DC dual input in a compact footprint.

The SkyRC Q200neo is presented as a 4-port AC/DC smart charger with a color touchscreen and support for multiple battery chemistries.

The SkyRC Q200neo combines dual AC/DC input and smart power distribution to manage four charging ports from one compact unit.

The SkyRC Q200neo includes a 20W PD 3.0 USB-C port for rapid power delivery and an internal cooling fan to help manage heat during charging.

SkyRC Q200neo adds multi-language support and boosts DC charging to 400W and discharging to 25W compared with the Q200.

SkyRC Q200neo combines a 4-port charging layout with universal voltage support and built-in protections like short-circuit, over-temperature, and time-out safety.
