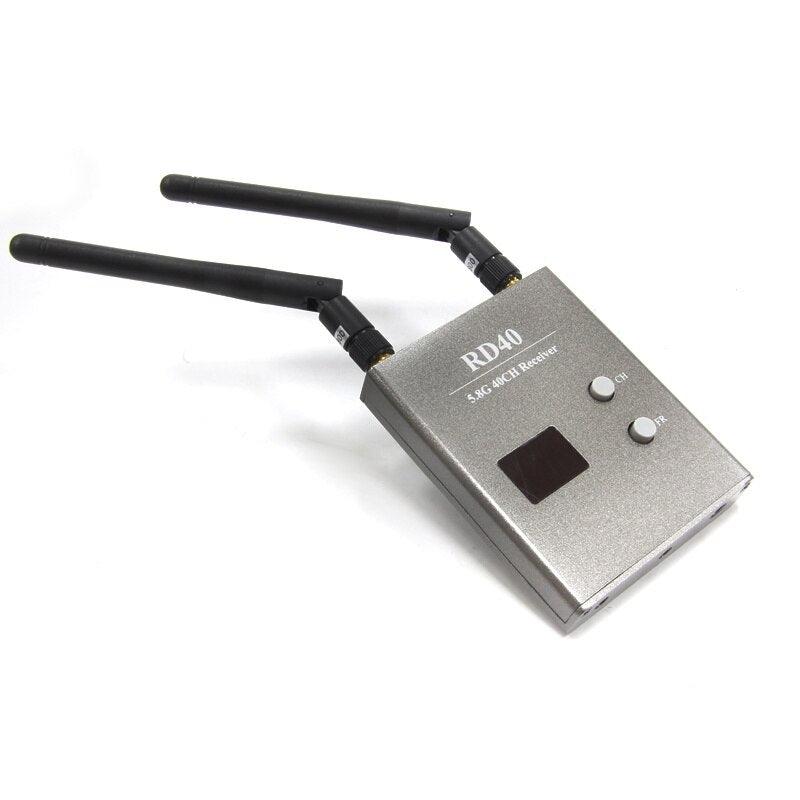

Skyzone RD40 Receiver - 5.8GHZ 48Channel RD40 Raceband Dual Diversity Receiver With A/V and Power Cables For Rc racing drone Quadcopter VS RC832

Skyzone RD40 Receiver SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: fpv receiver

Tool Supplies: Grinded

Technical parameters: Value 2

Size: As description

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Transmitters

Origin: Mainland China

Model Number: RD40

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Skyzone 5.8GHZ 48 Channel RD40 Raceband Dual Diversity Receiver With A/V and Power Cables For Rc racing drone VS RC832





Package Included:

1 x RD40 Receiver

1 x AV Cable

1 x Power Cable

2 x Antenna



Description:

Brand Name: Skyzone

Item Name: RD40 Diversity Receiver

Frequency: ISM 5.8GHz 40CH

Connector: RP-SMA

Sensitivity: -90dBm

Power Supply Voltage: DC 7-24V

Current: 280mA

RF Input Matching: 50ohm

Video Output Level: 1.0Vp_p 75Ω

Audio Output Level: 1.0Vp_p 10KΩ

Dimension: 80 x 65 x 15mm

Weight: 100g



Features:

40 channels, 5 frequency b,and wireless receiving.

Two buttons for channel and b,and exchange individually.

Two number display, timely locate the current receiving frequency

and b,and

When power on, storage memory shows channel and frequency of the

last time.

Two-way video and audio signal output ( video: PAL, NTSC,CECAM ;

Audio: 6.5MHz)

Wide dynamic power supply ( 7-24v)

Two-way high senstivity receivers, make your signals more stable.

With specific indicator shows the current working state





Frequency: CH and FR form

FR1 or (A): 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M

FR2 or (B): 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M

FR3 or (E): 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M

FR4 or (F): 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M

FR5 or (R): 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M



Function:

1.Channel control and LED display.

When power on,press CH, RX1 and RX2 channel Change, and shows on

CH-LED display.

So Channel and digi-display loop from 1-8.

2.Frenquency control and LED display

When power on,press FR, RX1 and RX2 frenquency Change, and shows on

FR-LED display.

So Frenquency and digi-display loop from 1-5.
