Skyzone RX5803 Receiver SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Battery
Technical parameters: Value 2
Size: As description
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Receivers
Origin: Mainland China
Model Number: RX5803
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore
Skyzone RX5803 5.8G 48CH Raceband A/V Receiver Module for FPV Racer Racing Drone Transmissions

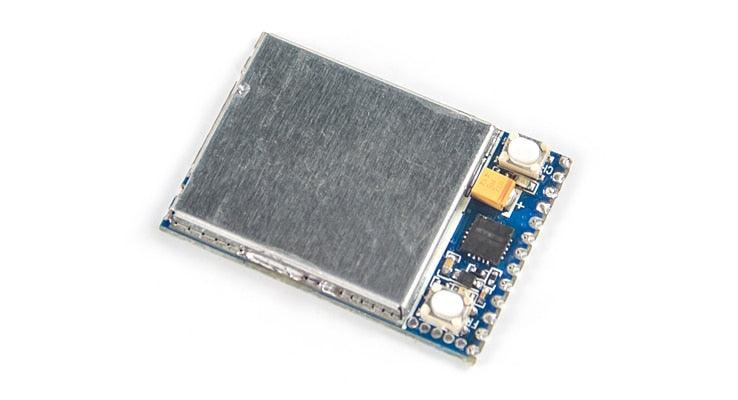

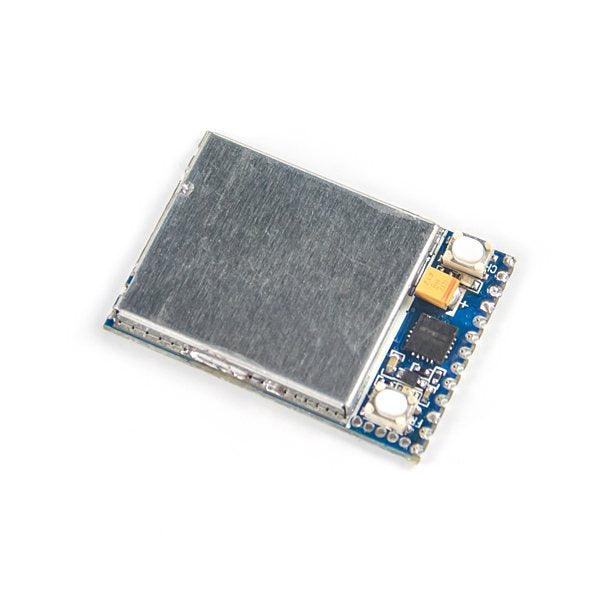

The RX5803 from Skyzone is an FM A/V receiver demodulated module that works in the ISM band of 5725-5865mHz. This receiver module adopts sigle chip design which has intergrated VCO, PLL, broadband FM video demodulation and FM sound demodulation.
The RX5803 is of small size and low power consumption. It will just occupy a small part of your FPV multirotor.
Simple to use. Just need to power on, plug in the audio and video cables, and connect to the antenna, then you will receive the A/V signal.
Features:
- 5.8G broadband FM audio and video synchronization reception.
- Small size: 35*24*3.5 mm
- 5V 170mA Low power consumption.
- High reception sensitivity: -95dBm
- Built-in frequency phase - locked loop high stability.
- Low clutter leak: Complies with CE, FCC requirements.
- Direct output analog audio, video signal.
- 48 channel reception

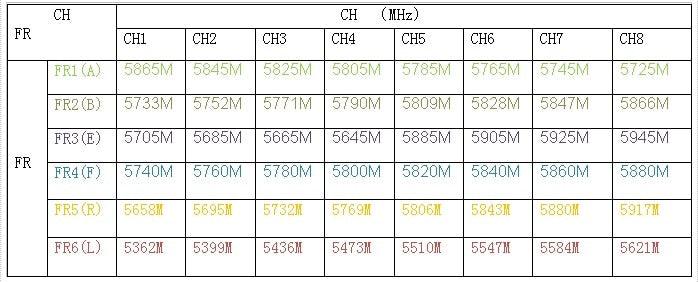

Frequency range:
![Skyzone RX5803 Receiver - 5.8G 48CH Raceband A/V Receiver Module for FPV Racer Racing Drone Transmissions - RCDrone](http://rcdrone.top/cdn/shop/products/HTB1sYOkgqSWBuNjSsrbq6y0mVXaY.jpg?v=1684072717&width=1445)
![Skyzone RX5803 Receiver - 5.8G 48CH Raceband A/V Receiver Module for FPV Racer Racing Drone Transmissions - RCDrone](http://rcdrone.top/cdn/shop/products/HTB1WV2YgCtYBeNjSspaq6yOOFXaZ.jpg?v=1684072719&width=1445)
![Skyzone RX5803 Receiver - 5.8G 48CH Raceband A/V Receiver Module for FPV Racer Racing Drone Transmissions - RCDrone](http://rcdrone.top/cdn/shop/products/HTB1MBWjgAOWBuNjSsppq6xPgpXae.jpg?v=1684072720&width=1445)
![Skyzone RX5803 Receiver - 5.8G 48CH Raceband A/V Receiver Module for FPV Racer Racing Drone Transmissions - RCDrone](http://rcdrone.top/cdn/shop/products/HTB13seLgrSYBuNjSspfq6AZCpXaC.jpg?v=1684072722&width=1445)
