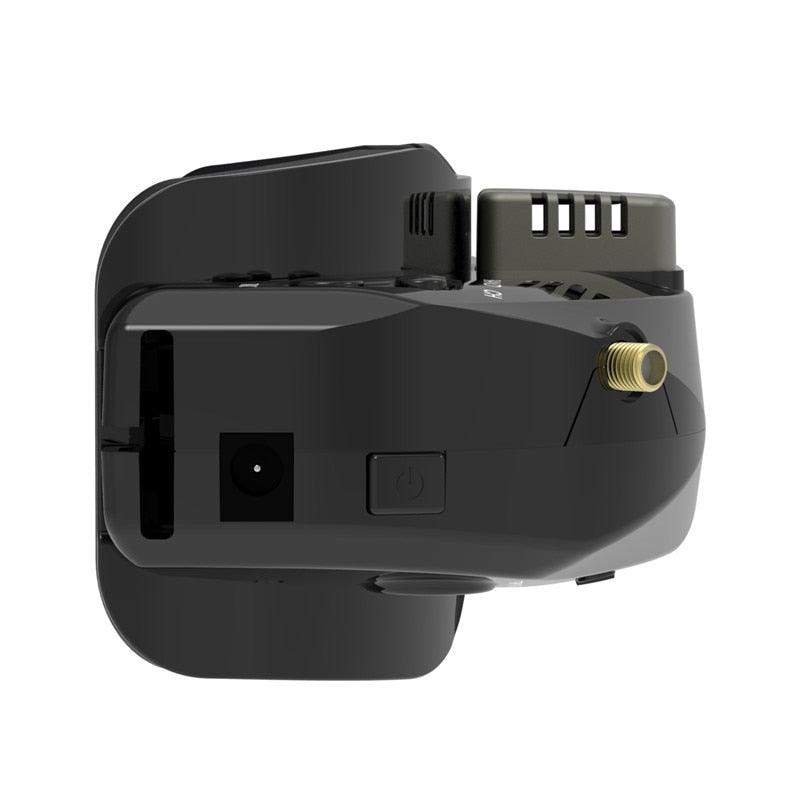

SKYZONE SKY02O FPV Goggles SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 14+y
Origin: Mainland China
Model Number: SKY02O
Material: Composite Material
Certification: CE
Brand: SKYZONE
Features
SteadyView Receiver, 2 signal into 1, make image more stable and clear in challenging condition
Intuitive interface, colorful UI with 2 languages
640*400 OLED screen, high contrast ratio
Support 4 preset screem settings and 3 customized settings for different condition of flight
Easy to access, with IO port on the bottom
Specification
Model : SKY02O
Screen: OLED
Resolution : 640*400
FOV: 29°
IPD: 59-69mm
Aspect Ratio : 16:10
Receiver : 5.8Ghz 48CH SteadyView Receiver Built-in
DVR: MJPEG 30FPS
Head Tracker : 3-axis Accelerometer, 3-axis gyroscop
Voltage Input Range : 2-6S LiPo
Language : Chinese/English
Dimentions : 167*70*79mm
Weight : 210g
Package Included
1 x SKY02O FPV Goggles Set
1 x Patch antenna
1x Ommi antenna
Skyzone Sky02O FPV Goggles feature a high-resolution 6.4-inch OLED screen with rich settings and a new user interface, as well as a head tracker for improved immersion.
The SteadyView receiver combines two signals to produce a single, stabilized and enhanced image, resulting in improved clarity and stability.
Operating System (OSD) features a transparent OLED display with adjustable luminance, offering a wide tracking range and tangential correction for correct head-tracking. Additionally, it includes a page navigation system, sleep channel function, and pan-tracking range.
Features Standard Bright mode, multi-screen settings, and four preset options, as well as three customizable settings to suit different flying conditions for the SKY02O.
The SKYZONE SKY02O FPV goggles feature an OLED screen with a resolution of 640x400 pixels, providing vivid colors, high contrast ratio, and reduced distortion for pilots to enjoy more detailed views.
SKY02O FPV Goggles Feature an OLED Screen with a Resolution of 640x400, Aspect Ratio of 16:10, and a Wide Field of View (FOV) of 29 degrees. The receiver operates on a frequency of 5.8 GHz using SteadyView technology. A built-in DVR captures video at MJPEG 30FPS, and the head tracker includes a 3-axis accelerometer and 3-axes gyroscope. Power requirements are 2.65V Lipo input. The goggles support both Chinese and English languages, measure 16.7cm x 7cm x 7.9cm in size, and weigh approximately 210g.
