Source ONE V0.1 / V0.2 5inch FPV Frame Kit SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Shock Absorber

Tool Supplies: Grinded

Technical parameters: Value 3

Remote Control Peripherals/Devices: Receivers

RC Parts & Accs: Fuel Tanks

Model Number: Source ONE 5inch 225mm

Material: Carbon Fiber

Four-wheel Drive Attributes: Slot

For Vehicle Type: Airplanes

Brand Name: Readytosky



Source ONE V0.1 Frame



1. Wheelbase: 225mm

2. Structure: X-type split

3. Weight: 123G

4. Thickness: Arm 4mm, bottom plate 3mm, splint 3mm, other accessories 2.0mm

5. Paddle: 5 inch paddle

6. Flight control hole distance: 30.5*30.5mm, 20*20mm

7. Camera installation width: 28mm

  (Swift and other 28MM size series)

8. Internal height: about 30mm

9. Motor: Supports motors such as 2204/2205 2207/2306/2405/2307/2308/2506

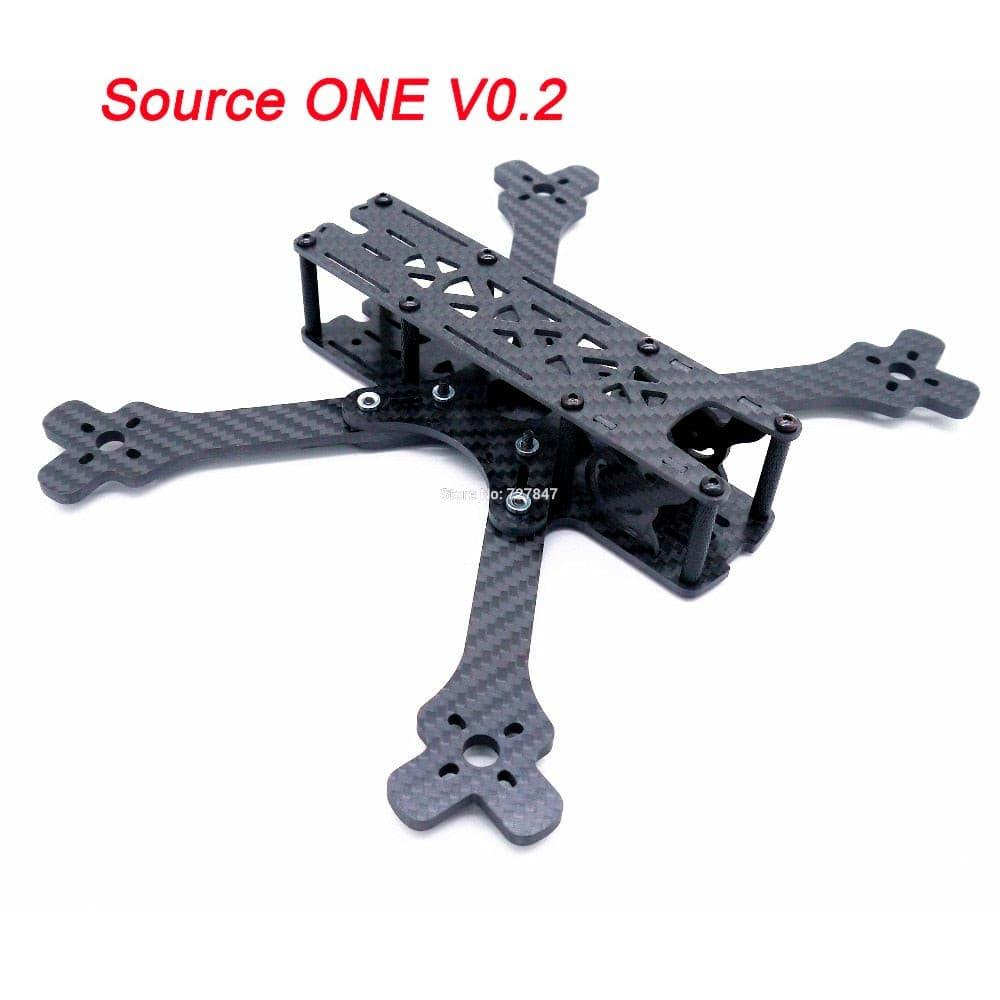

Source ONE V0.2 Frame



1. Wheelbase: 225mm

2. Structure: X-type split

3. Weight: 131G

4. Thickness: Arm 4mm, bottom plate 3mm, splint 3mm, other accessories 2.0mm

5. Paddle: 5 inch paddle

6. Flight control hole distance: 30.5*30.5mm, 20*20mm

7. Camera installation width: 28mm

(Swift and other 28MM size series)

8. Internal height: about 30mm

9. Motor: Support 2204/2205 2207/2306/2405/2307/2308/2506 and other motors



1 X  Source ONE V0.1 / V0.2  225mm  Frame Kit ( send as your choice)

1 x battery belt
