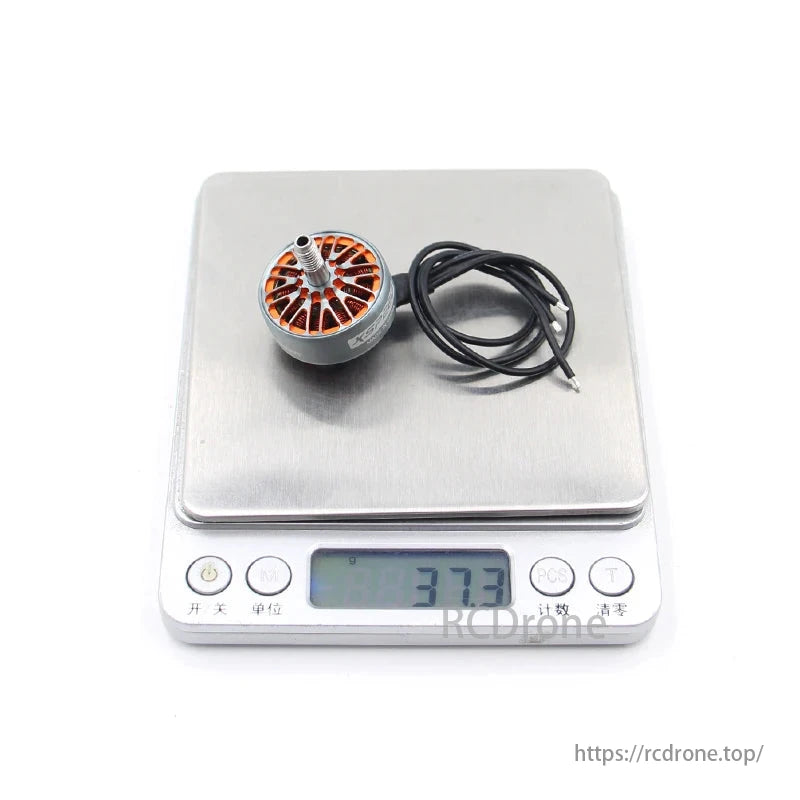

  • Brushless motor on scale, displaying weight of 37.3 grams.

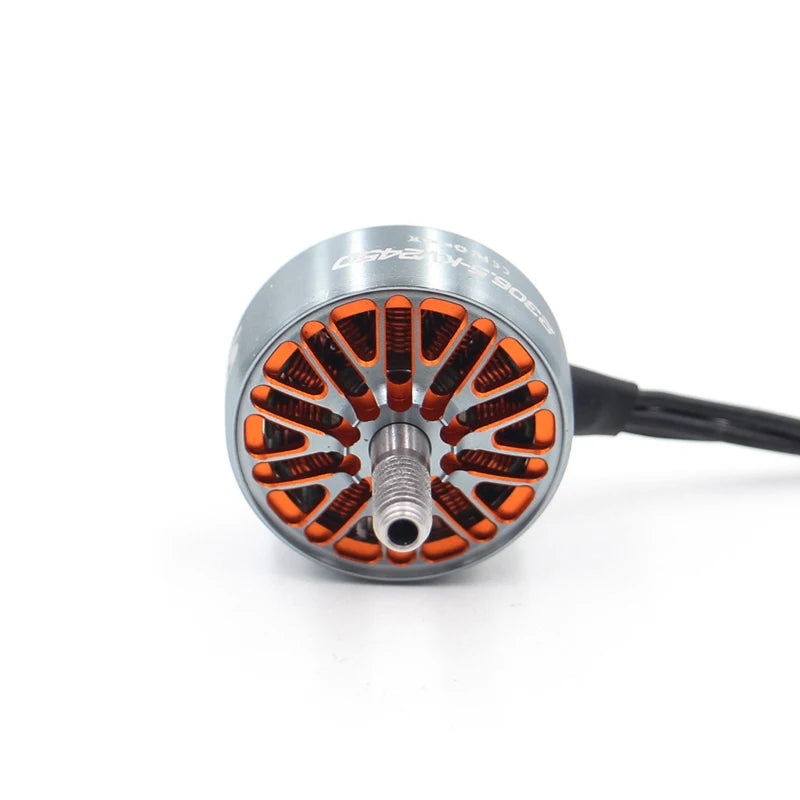

  • SPARKHOBBY XSPEED 2306.5 Pro brushless motor, 1700KV/2450KV, for 5-6 inch FPV drones, silver with orange coils.

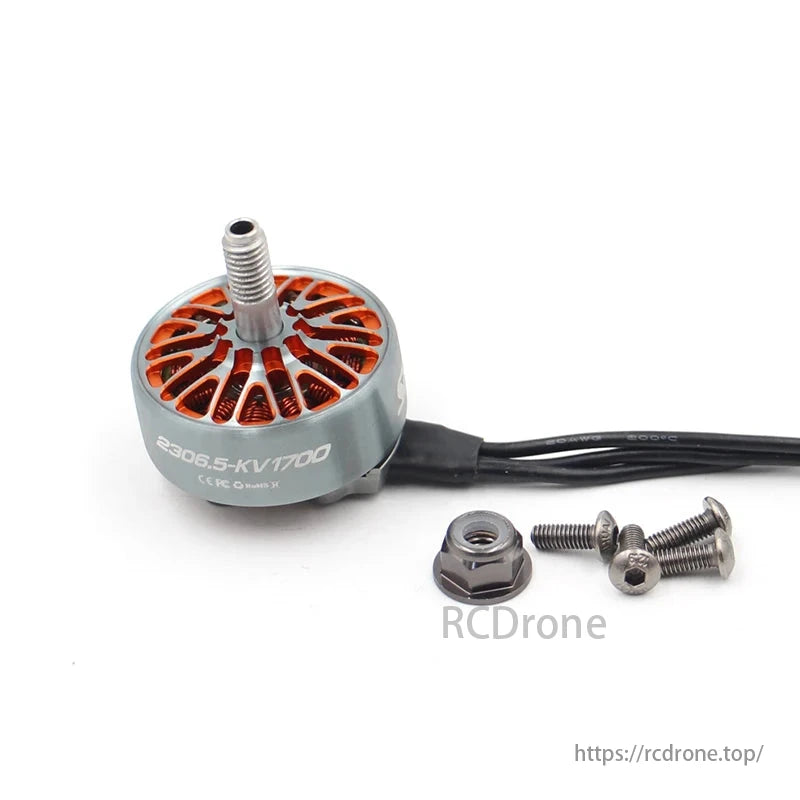

  • SPARKHOBBY XSPEED 2306.5 Pro 1700KV brushless motor for 5-6 inch FPV drones, includes screws and wiring.

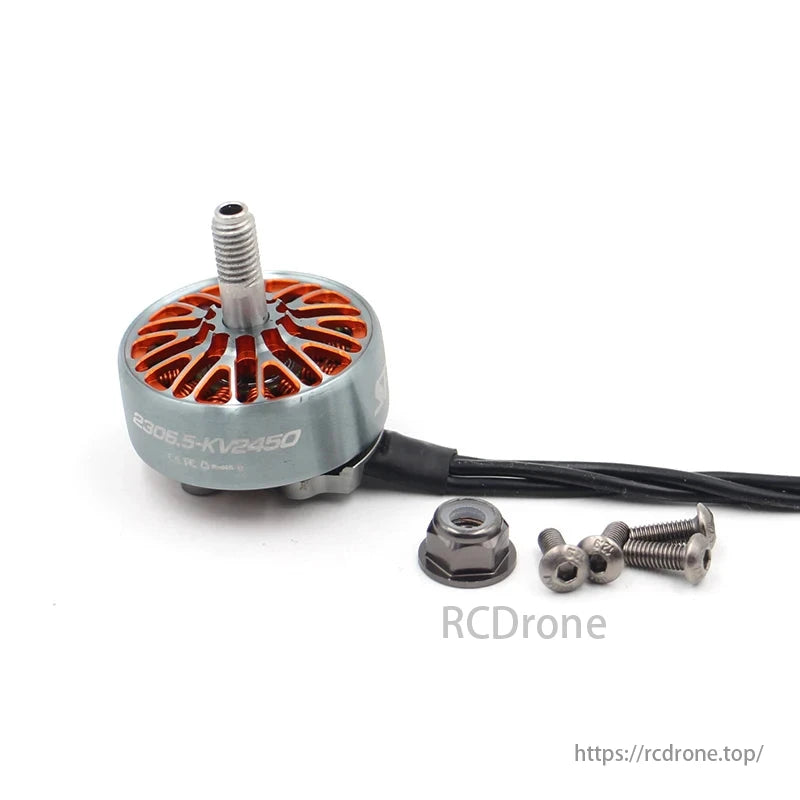

  • SPARKHOBBY XSPEED 2306.5 Pro brushless motor for 5-6 inch FPV drones, 1700KV/2450KV, 3-6S, with screws and nut.
  • SPARKHOBBY XSPEED 2306.5 Pro motor for FPV drones, offering high performance and durability.
1 10

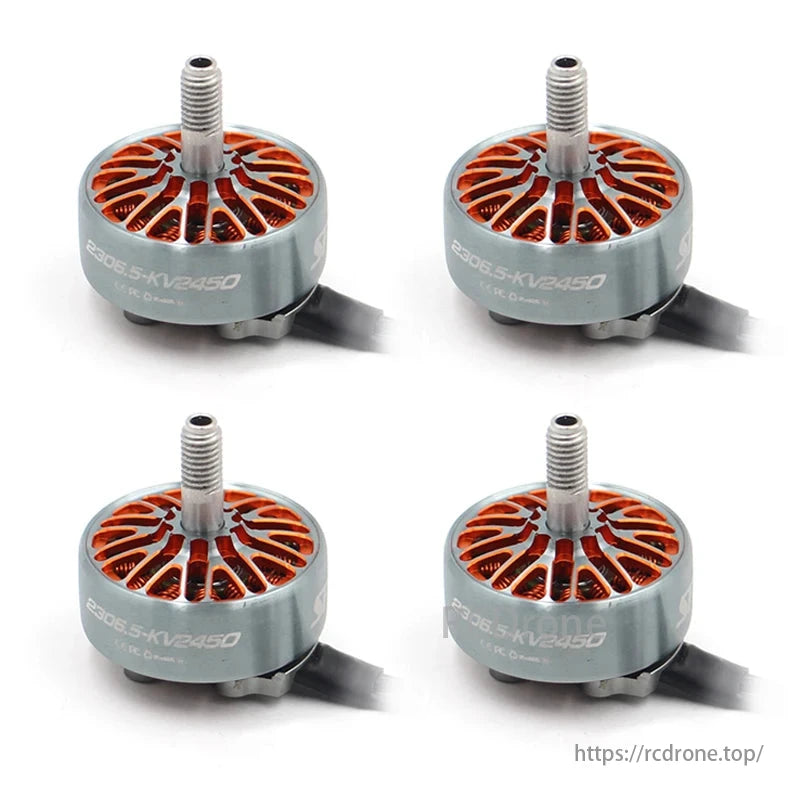

SPARKHOBBY XSPEED 2306.5 Pro 1700KV / 2450KV 3–6S Brushless Motor for 5–6 Inch FPV Racing Drones

SPARKHOBBY XSPEED 2306.5 Pro 1700KV / 2450KV 3–6S Brushless Motor for 5–6 Inch FPV Racing Drones

Sparkhobby

$43.11 USD
$43.11 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The SPARKHOBBY XSPEED 2306.5 Pro Brushless Motor is engineered for high-performance FPV racing drones, available in 1700KV (4–6S) and 2450KV (3–4S) variants. Designed to power 5–6 inch propellers, it delivers strong thrust, responsive control, and superior efficiency. With a high-temperature Class H winding, excellent heat dissipation structure, and durable 5mm shaft, it's a perfect choice for freestyle and competitive builds.

Specifications

Parameter 1700KV Version 2450KV Version
Model 2306.5 2306.5
KV Rating 1700KV 2450KV
Rated Voltage (Lipo) 4–6S 3–4S
Configuration 12N14P 12N14P
Dimensions Φ29.7 × H18.7mm Φ29.7 × H18.7mm
Internal Resistance 77mΩ 52mΩ
Maximum Power 1100W 730W
Peak Current 45A 45A
Weight (with cable) 37.3g 37.3g
Lead Wire 24AWG × 190mm 24AWG × 190mm
Prop Shaft Diameter M5 M5

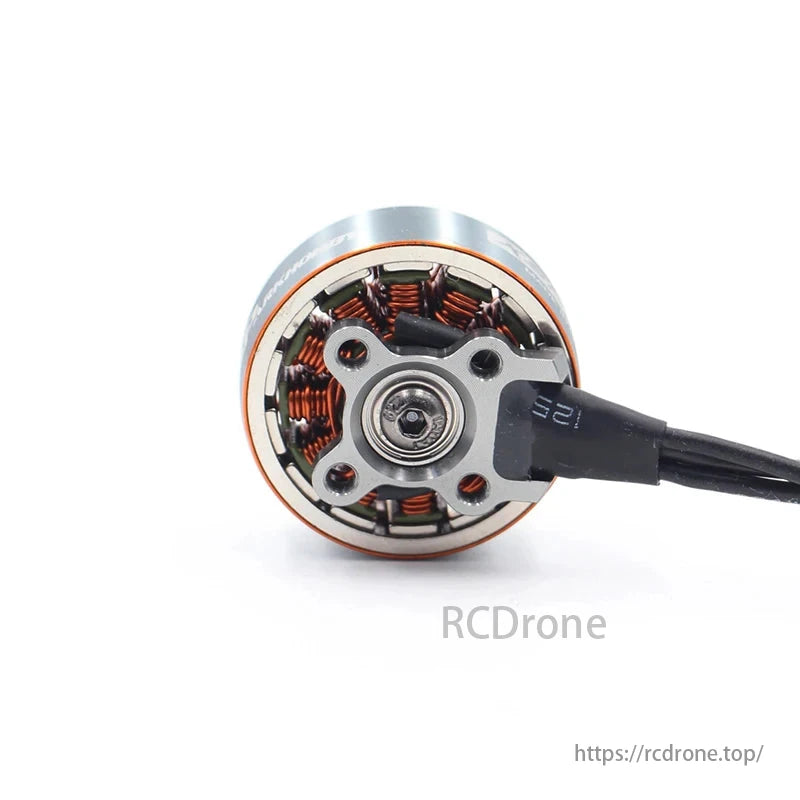

Mounting Hole Pattern 16×16mm, M3 16×16mm, M3
Recommended Propellers GF6042, GF5152, GF51466, GF51499 GF6042, GF5152, GF51466, GF51499

Key Features

  • Powerful race-level output with up to 1100W (1700KV)

  • Class H (220°C) enamelled winding for high heat resistance

  • Durable outer shell and optimized rotor design for efficient cooling

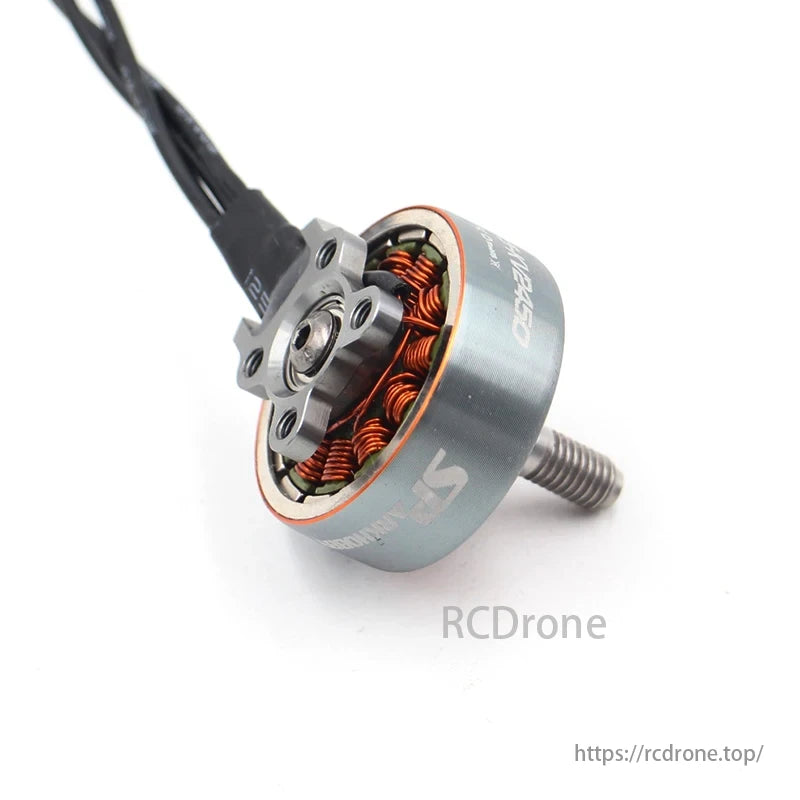

  • Integrated base partition to protect the coil from screw damage

  • Long, high-current silicone wires for flexible installation

  • Compatible with a wide range of 5–6 inch propellers

Package Options

  • 1 × SPARKHOBBY 2306.5 1700KV Brushless Motor

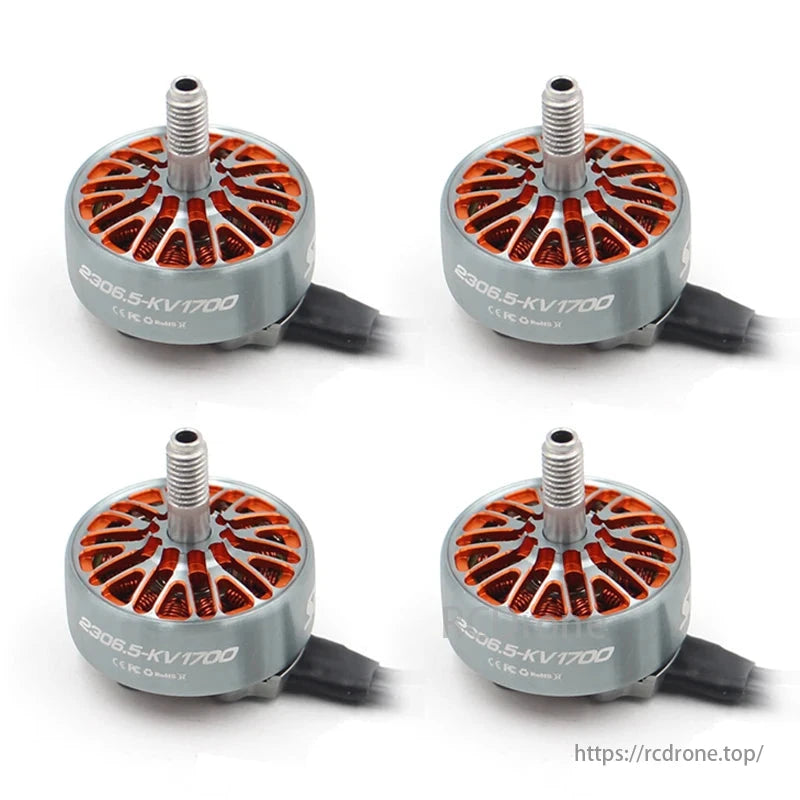

  • 4 × SPARKHOBBY 2306.5 1700KV Brushless Motors

  • 1 × SPARKHOBBY 2306.5 2450KV Brushless Motor

  • 4 × SPARKHOBBY 2306.5 2450KV Brushless Motors

XSPEED 2306.5 Motor, A high-performance motor with good heat dissipation and durability, suitable for freestyle and competitive builds.XSPEED 2306.5 Motor, High-temperature winding, excellent heat dissipation, and durable shaft make it suitable for freestyle and competitive builds.XSPEED 2306.5 Motor, The SPARKHOBBY XSPEED 2306.5 Pro Brushless Motor is engineered for high-performance FPV racing drones.XSPEED 2306.5 Motor, A high-quality motor with good heat dissipation and durability suitable for freestyle and competitive builds.XSPEED 2306.5 Motor, A high-performance motor with good heat dissipation and durability suitable for freestyle and competitive builds.XSPEED 2306.5 Motor, The Sparkhobby 2306.5 brushless motor has two versions: 1700KV and 2450KV, offering high power output, heat resistance, and compatibility with various propellers.XSPEED 2306.5 Motor, This Sparkhobby motor has high power output, heat resistance, and efficient cooling, suitable for racing and compatible with various propellers.XSPEED 2306.5 Motor, High-performance brushless motor with up to 1100W output and various specifications for different models and packages.XSPEED 2306.5 Motor, Designed for small propellers, this engine provides strong thrust, responsive control, and high efficiency.XSPEED 2306.5 Motor, Delivers strong thrust, responsive control, and superior efficiency for 5-6 inch propellersXSPEED 2306.5 Motor, Powers small propellers, delivering strong thrust, good control, and high efficiency.XSPEED 2306.5 Motor, Payment via PayPal, VISA; ships in 3 days. Return defects in 3 days. Contact before negative feedback; positive feedback appreciated.
