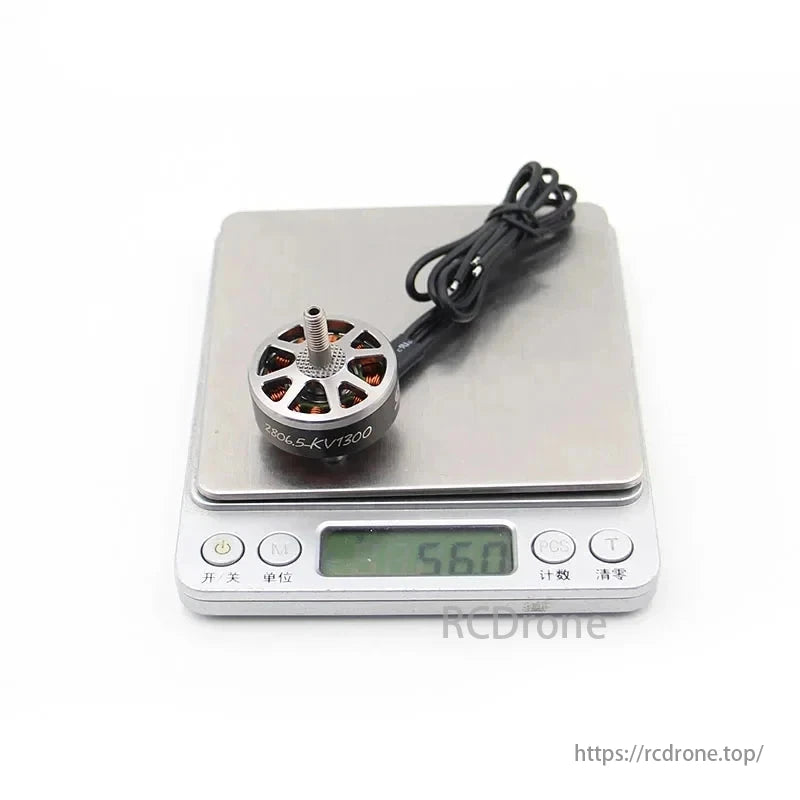

  • SPARKHOBBY XSPEED 2806.5 1300KV Brushless Motor, SPARKHOBBY XSPEED 2806.5 1300KV motor, 5.6g, perfect for 7-inch FPV freestyle and cinewhoop X8 drones.
1 6

SPARKHOBBY XSPEED 2806.5 1300KV Brushless Motor 4–6S 5mm Shaft for 7 Inch FPV Freestyle Cinewhoop X8 Drones

SPARKHOBBY XSPEED 2806.5 1300KV Brushless Motor 4–6S 5mm Shaft for 7 Inch FPV Freestyle Cinewhoop X8 Drones

Sparkhobby

$17.72 USD
$26.58 USD $17.72 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Product Description

The SPARKHOBBY XSPEED 2806.5 1300KV brushless motor is engineered for high-thrust 7-inch FPV drones, including long-range, freestyle, and X8 cinewhoop setups. Built with a powerful 12N14P stator configuration, 5mm hollow shaft, and rated for 4–6S LiPo, this motor delivers excellent thrust-to-efficiency balance while maintaining smooth and quiet performance.

Specifications

Parameter Value
Brand SPARKHOBBY
Model XSPEED 2806.5 1300KV
Stator Size 28mm × 6.5mm
Configuration 12N14P
Shaft Diameter 5mm (Hollow)
Motor Dimensions φ34.5 × 35.1mm
Weight 47g (with 150mm wire)
Input Voltage 4–6S LiPo
Idle Current @10V 1.2A
Internal Resistance 58mΩ
Max Continuous Power (6S) 1020W
Max Current (5S) 48A
Max Thrust 2200g
Best Efficiency Range 2–6A (>86%)
Mounting Hole Pattern M3 19×19mm
Recommended Propeller Gemfan 7037-3
Suggested Power Setup 6S LiPo

Key Features

  • High-efficiency motor with excellent power-to-weight ratio

  • Optimized for 7-inch propellers and 6S setups

  • CNC aluminum construction with durable 5mm hollow shaft

  • Ideal for FPV freestyle, long-range, and X8 cinewhoop builds

Package Included

  • Option 1: SPARKHOBBY 2806.5 1300KV Brushless Motor × 1

  • Option 2: SPARKHOBBY 2806.5 1300KV Brushless Motor × 4

SPARKHOBBY XSPEED 2806.5 1300KV Brushless Motor, A motor with a powerful stator config, 5mm hollow shaft, and 4-6S LiPo rating provides good thrust efficiency and quiet operation.
SPARKHOBBY XSPEED 2806.5 1300KV Brushless Motor, SPARKHOBBY RSPEED V3 2806.5 motor features 3-6S voltage, 11.1V operation, 14800rpm, ≤1.8A current, 0.068Ω resistance, 0.022mH inductance, 1350W power, 1300KV, 18# wire, 56g weight.

SPARKHOBBY RSPEED V3 2806.5 motor: 3-6S voltage, 11.1V operating, 14800rpm speed, ≤1.8A current, 0.068Ω resistance, 0.022mH inductance, 1350W power, 1300KV KV value, 18# wire, 56g weight.

SPARKHOBBY XSPEED 2806.5 1300KV Brushless Motor, A high-efficiency motor with excellent power-to-weight ratio, optimized for 7-inch propellers and 6S setups, ideal for FPV freestyle and long-range builds.SPARKHOBBY XSPEED 2806.5 1300KV Brushless Motor, SPARKHOBBY XSPEED 2806.5 motor engineered for high-thrust FPV drones with long-range, freestyle, and X8 cinewhoop setups.SPARKHOBBY XSPEED 2806.5 1300KV Brushless Motor, A high-efficiency motor with excellent power-to-weight ratio for FPV freestyle, long-range, and X8 cinewhoop builds.SPARKHOBBY XSPEED 2806.5 1300KV Brushless Motor, The SPARKHOBBY XSPEED motor is designed for high-thrust 7-inch FPV drones.SPARKHOBBY XSPEED 2806.5 1300KV Brushless Motor, The SPARKHOBBY XSPEED motor is designed for high-thrust FPV drones with 7-inch propellers.SPARKHOBBY XSPEED 2806.5 1300KV Brushless Motor, This motor has a powerful configuration, hollow shaft, and is rated for 4-6S LiPo, delivering good thrust-efficiency balance with smooth and quiet performance.
