Specifications
Model |
|
|||
Receiver |
|
|||
Weight |
|
|||
VTX | None (Standard molded mount, compatible with O3 Air Unit) | |||
Camera | None (Compatible with 20mm width lens) | |||
Frame | SpeedyBee Bee25 Standard Version | |||
Wheelbase | 120mm | |||
Main Control | STM32F405 | |||
ESC | 35A 8bit ESC (with BlueJay firmware) | |||
Motor | 1404-V2-4600KV | |||
Gyroscope | ICM 42688-P | |||
Bluetooth | Supported, for FC tuning and Meteor LED | |||
Meteor LED | Standard with 88 LED beads | |||
OSD Chip | AT7456E | |||
Black Box | 8MB | |||
Propeller | HQprop DT63mm-3 blades | |||
Battery Connector | XT30 | |||
Maximum Supported Battery Size | Vertical:64(L)*31(W)*40(H)mm Horizontal:75(L)*31(W)*40(H)mm | |||
Voltage Input | 4S Lipo 16.8V (Recommended: 650mAh-1100mAh) |
Details
All in the “Palm” of Hand
More Freedom, More Flexibility
allows install and remove entire VTX module.

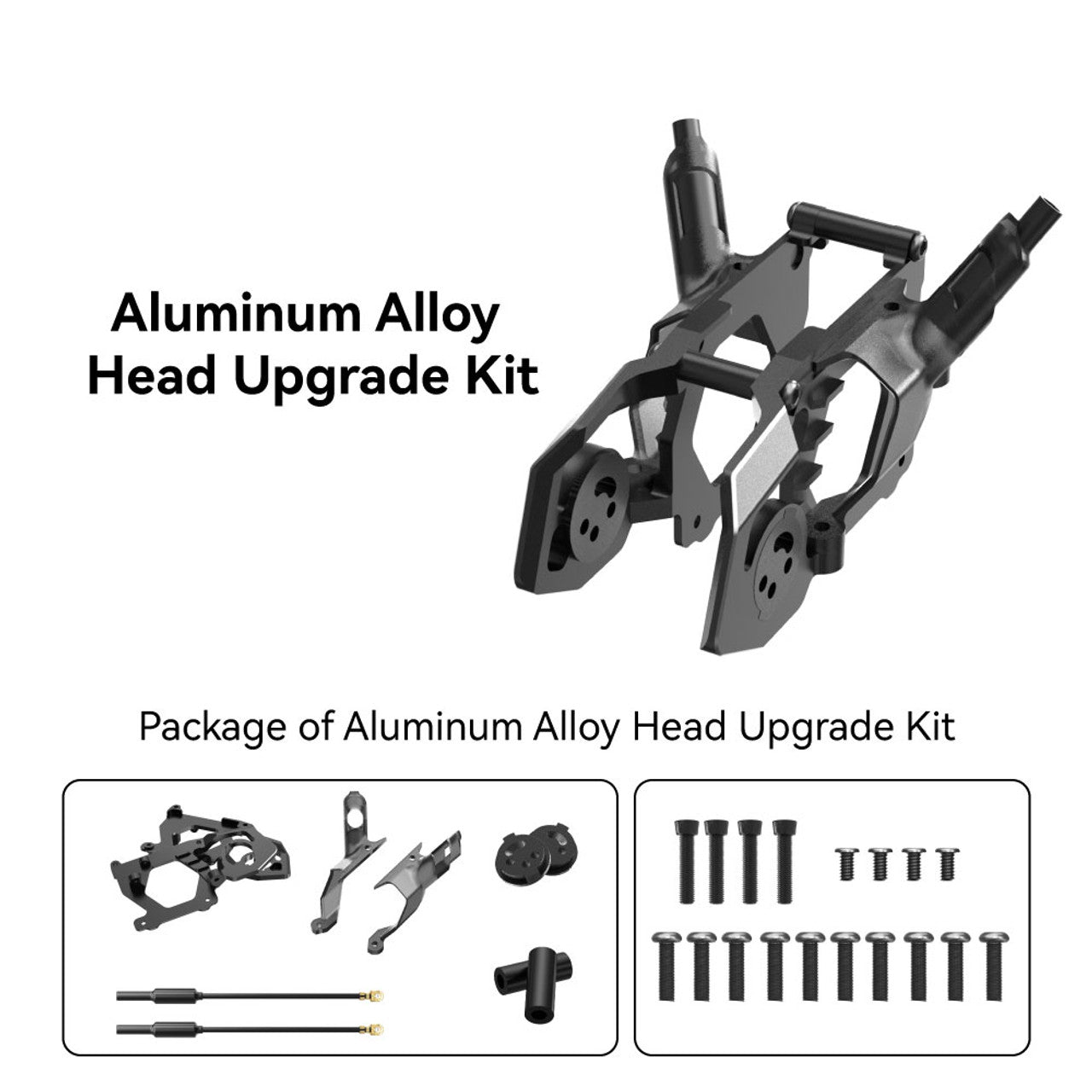

dissipation aluminum alloy head for added strength
and crash resistance, meeting different flying needs.
aluminum alloy head needs to be purchased separately.
Quick Replacement
and Large/Small T-Type Antennas.
Compatible with 181 GPS or GPS Within 18*18*8mm Size.
Fly with Delight!
Stable and Reliable
Smoother flights, Smoother experience!
Convenient and Quick
and adjust LED effects via SpeedyBee APP
and Binding Button, User-friendly Design.
SpeedyBee APP guides you step-by-step for takeoff.
Plus, you can use the APP for one-click settings,
switching flight modes, and installing GPS.
During visual flight,you can easily observe the status of the drone. It automatically detects the drone's status and provides LED indications, Including Error Alerts,
Return-to-Home Status, Low Voltage Alerts, Lost Drone Alerts, etc.
Performance to Empower
Smoother Flight, Longer Endurance!
Built for Perfection!
Integrated Injection-Molded Protection Ring.
Flight Tests to Effectively Protects the Drone.
allowing for self-printing and DIY creation.

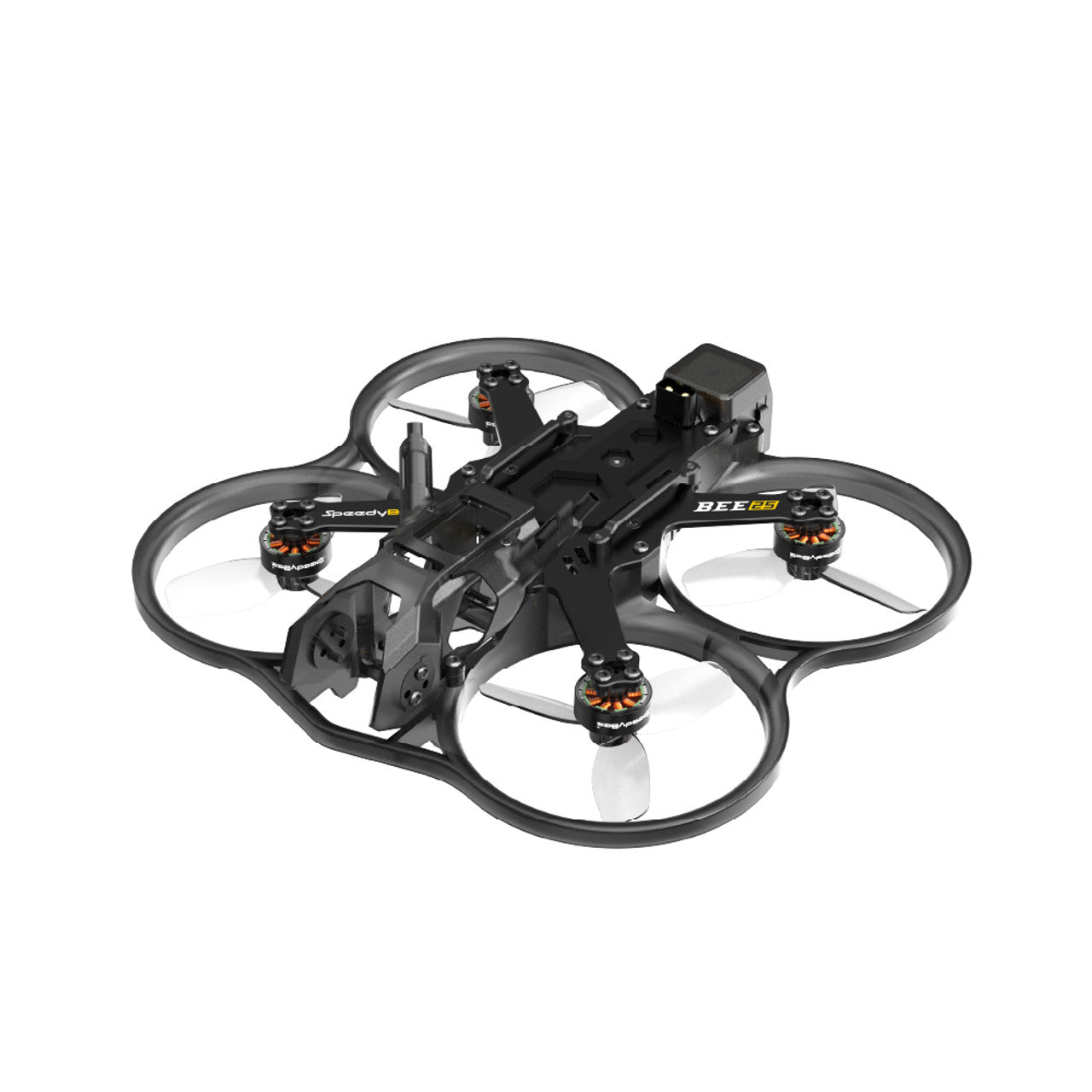

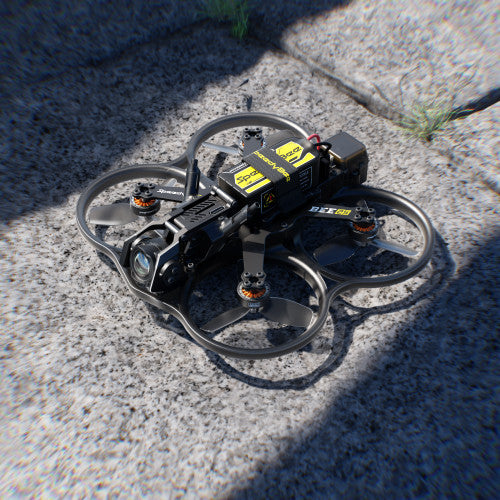

The SpeedyBee Bee25 4S HD O3 Air Unit is a 2.5 inch FPV drone that features: * Specifications Model: Bee25 Power (PNP Version) * VTX: Standard molded mount; compatible with 03 Air Unit * Camera: None (Compatible with 2Omm width lens) * Frame: SpeedyBee Bee25 Standard Version * Wheelbase: 120mm * Motor: 1404-V2-4600KV * Gyroscope: ICM 42688-P * Bluetooth: Supported, for FC tuning and Meteor LED * OSD Chip: AT7456E * Black Box: 8MB * Propeller: HQprop DT63mm-3 blades

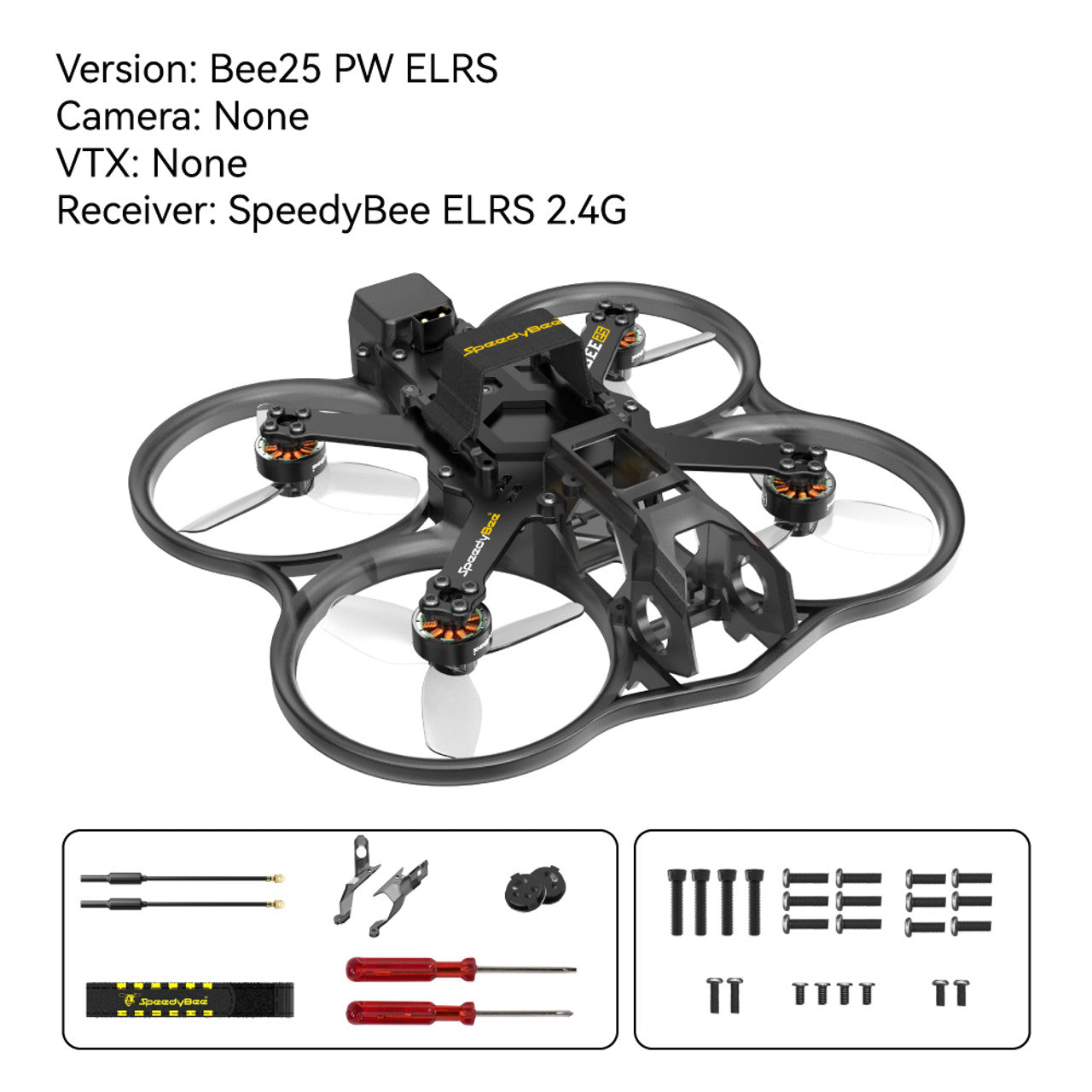

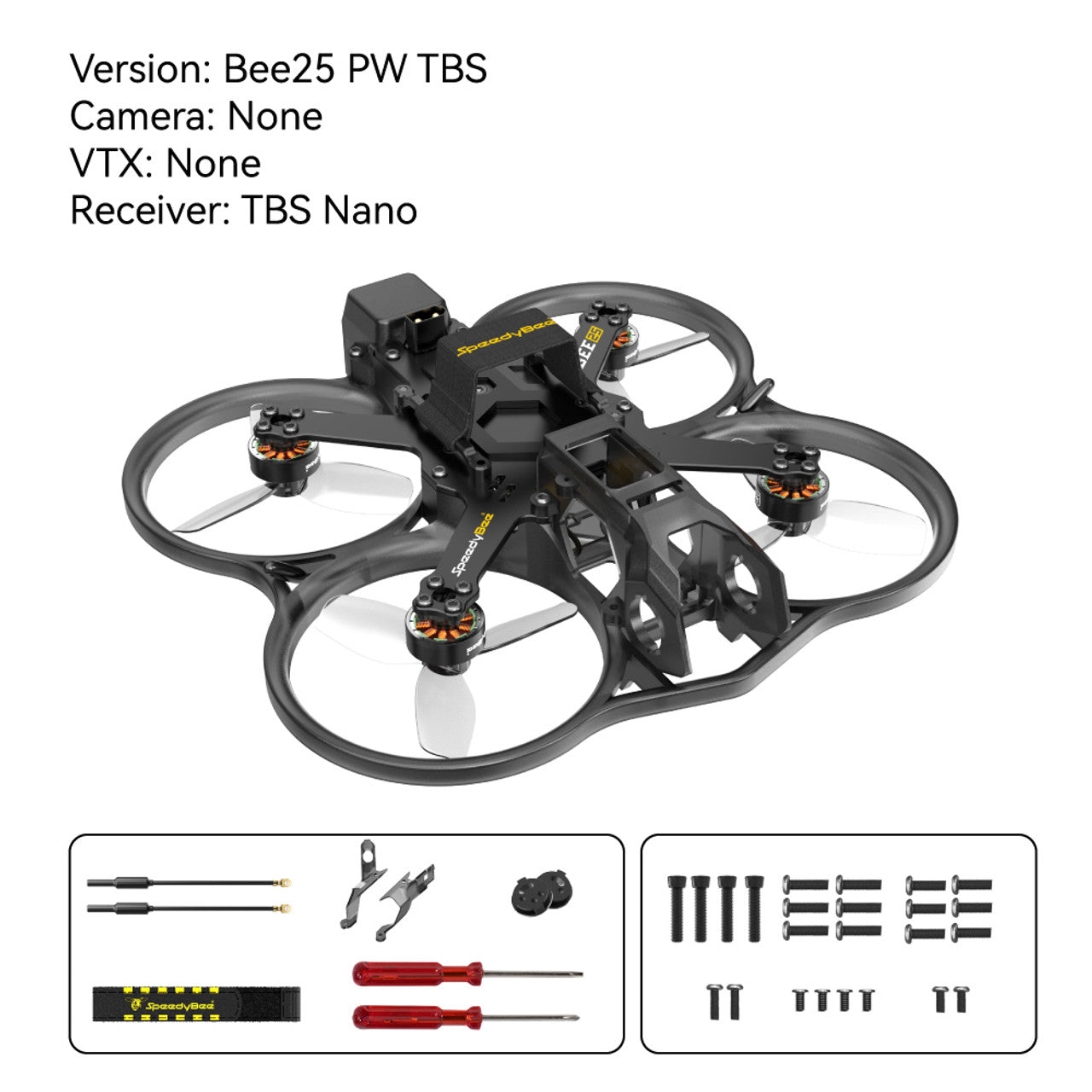

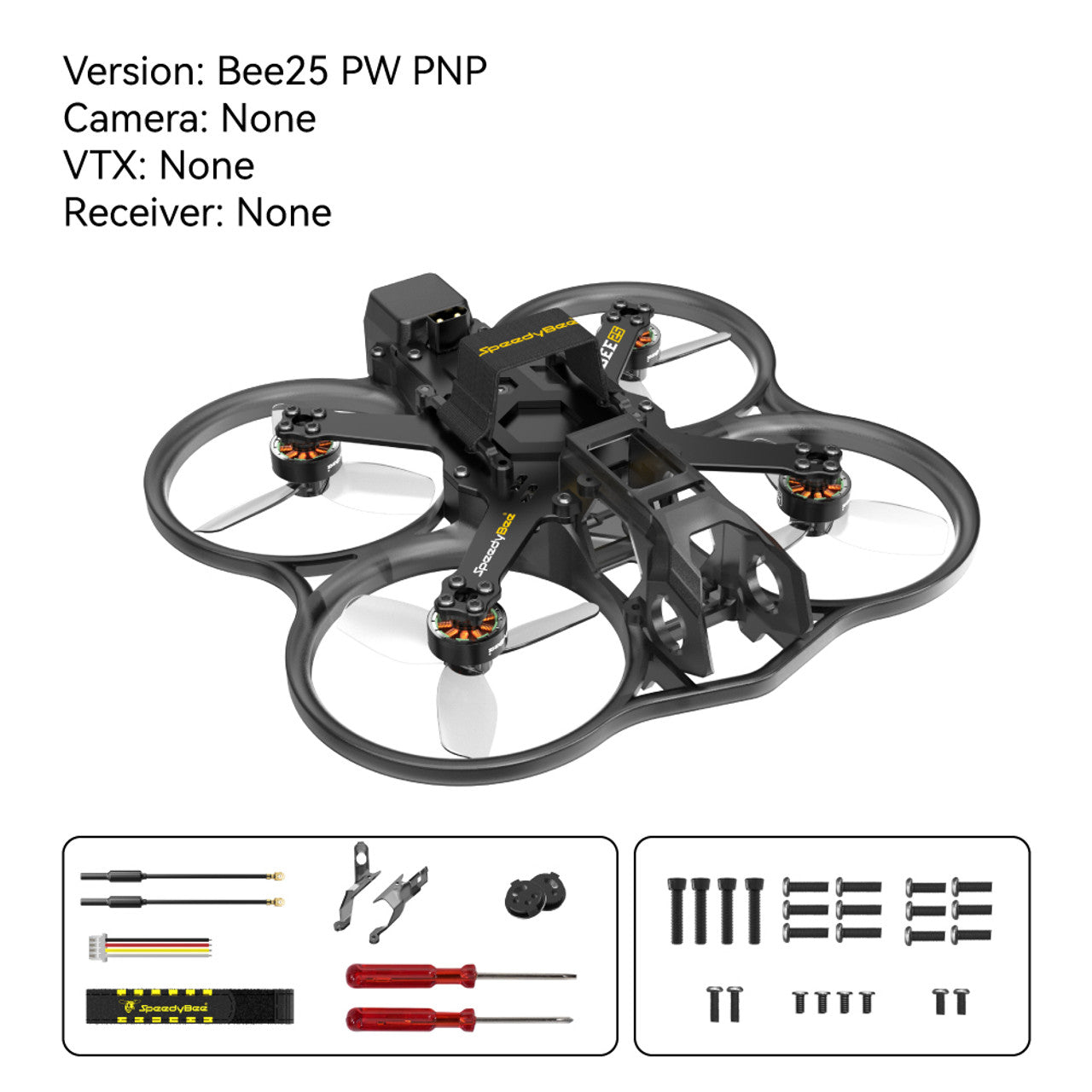

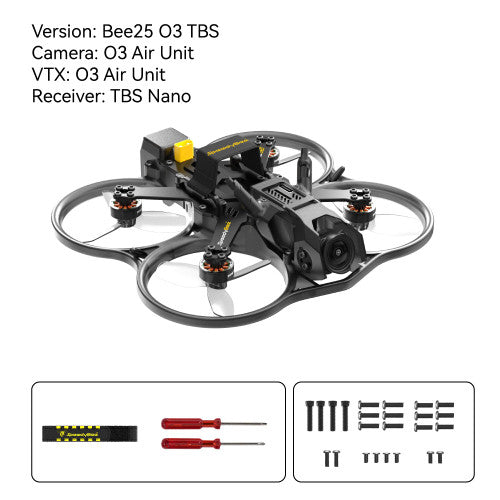

SpeedyBee Bee25 4S HD O3 Air Unit 2.5 inch FPV Drone features include dimensions of 168mm, optional package Bee25 Power ELRS Version, antennas and antenna mounts, camera dampening (left & right) with silicone, EEEvead TTTT TT Bee 25 Power ELRS Version screwdriver, screw pack, Bee25 Power TBS Version, antennas and antenna mounts, camera dampening (left & right) with silicone, CEFet strap, TITT TT screwdriver, Bee25 Power TBS Version screw pack, Bee25 Power PNP Version, antennas and antenna mounts, camera dampening (left & right) with silicone, Rye ME EE strap, IITT TT Bec25 Power PNP Version screwdriver, lpin cable screw pack, aluminum alloy nose upgrade kit, antennas and antenna mounts (left & right), TITT TTTTTTTTTT Bee25 aluminum alloy heat sink, camera dampening (left and right) with silicone, aluminum column screw pack, 68338 strap.
