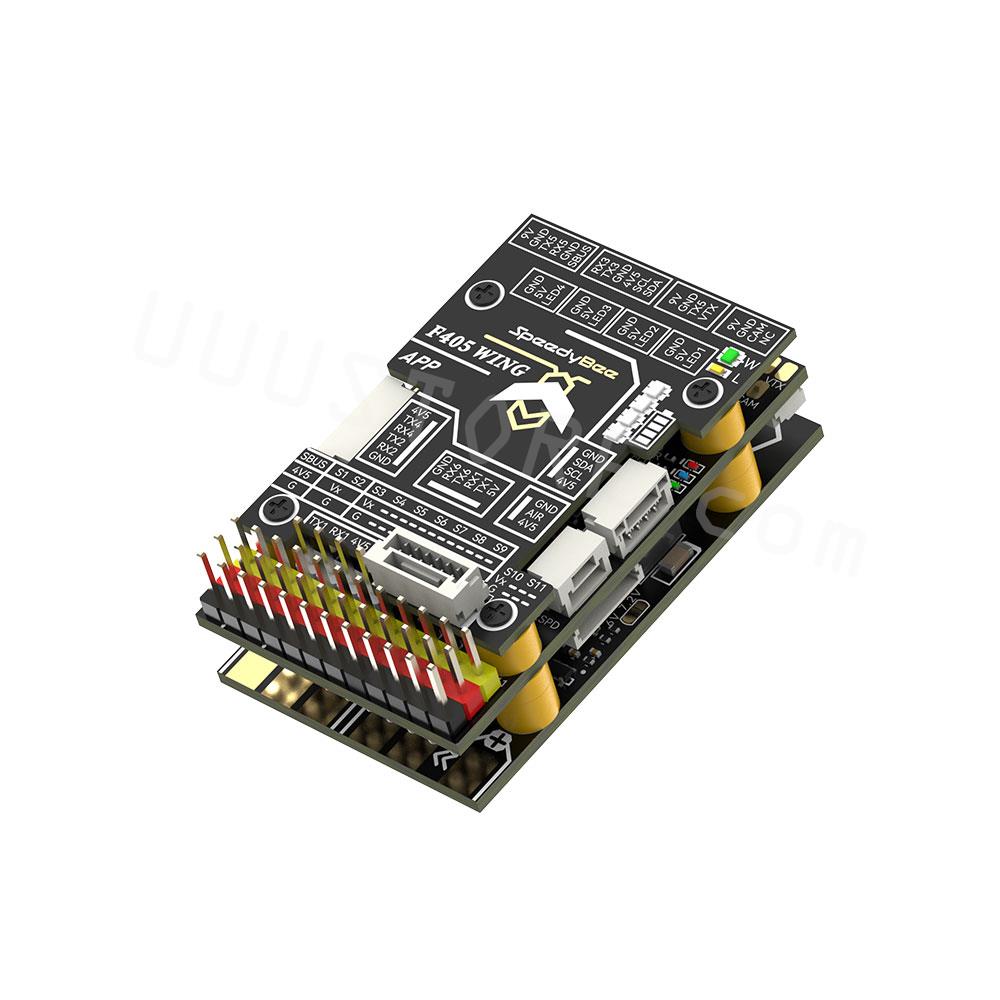

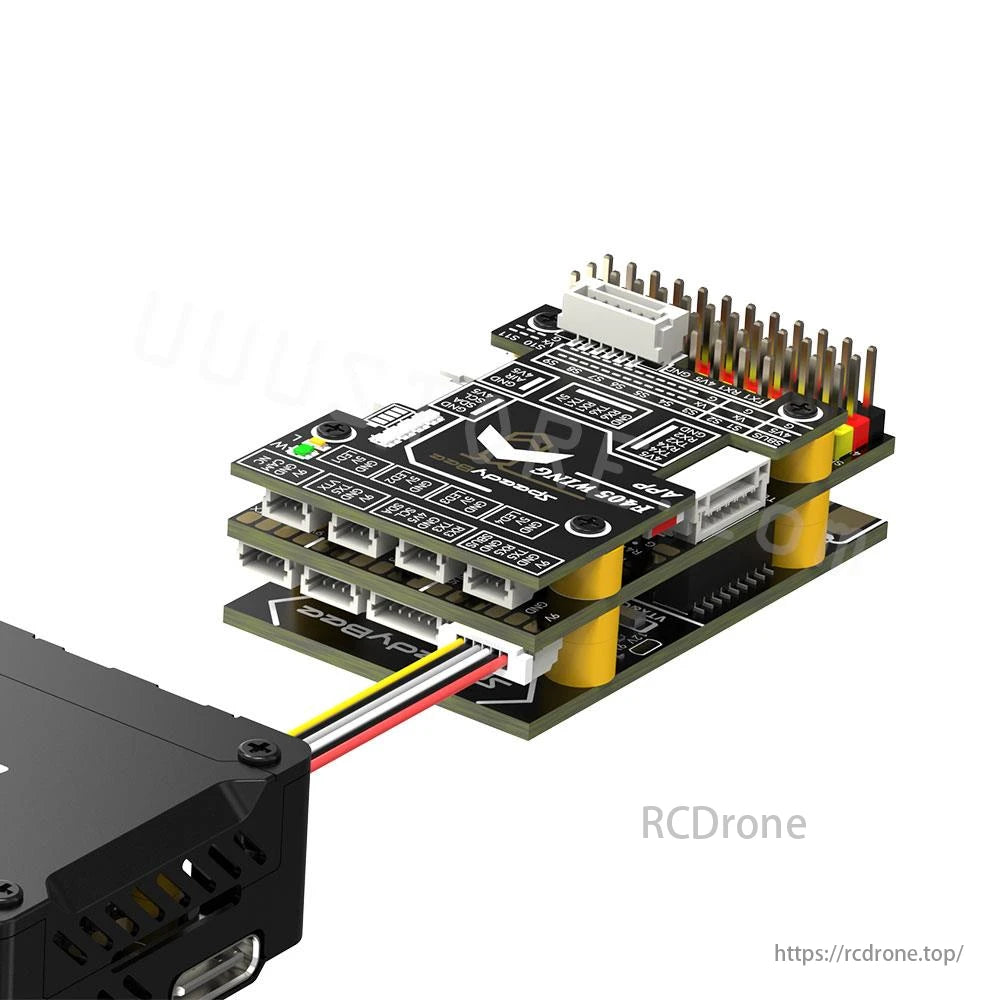

SpeedyBee F405 WING APP ArduPilot INAV 2-6S Flight Controller SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembly Category
Technical parameters: KV1100
Size: 54 x 36 x 13 mm
Remote Control Peripherals/Devices: ESC
Recommend Age: 12+y
RC Parts & Accs: Motor Components
Quantity: 1 pcs
Origin: Mainland China
Model Number: SpeedyBee F405 WING
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters
Brand Name: uuustore
Product Name |

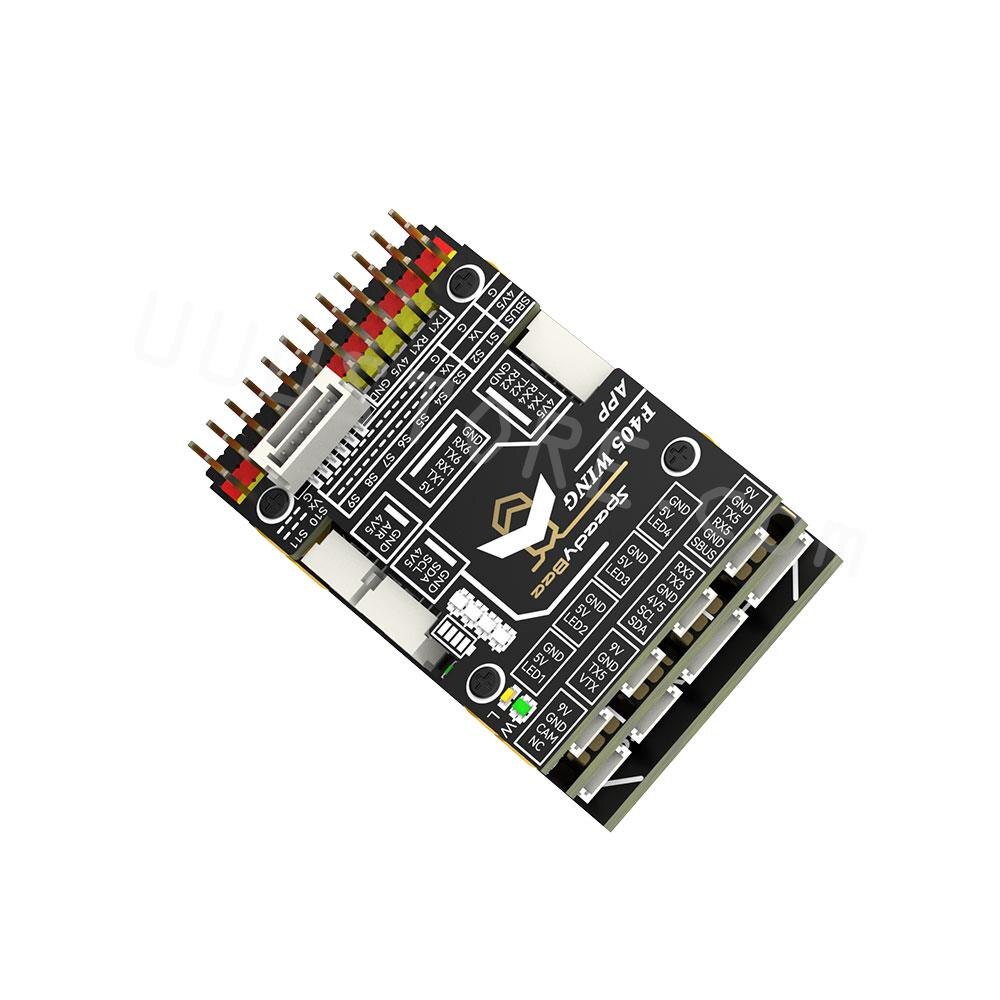

SpeedyBee F405 WING FC board |
MCU |
STM32F405,168MHz,1MB Flash |
IMU(Gyro&Accelerometer) |
ICM-42688-P |
Barometer |
SPL006-001 |
OSD Chip |
AT7456E |
Blackbox |
MicroSD Card Slot |
UART |
6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection)) |
I2C |
1x Used for magnetometer, digital airspeed sensor |
ADC |
4x (VBAT, Current, RSSI, Analog AirSpeed) |
PWM |
12x (11+1“LED”pad) |
ELRS/CRSF receiver |
Supported,connected to UART1 |
SBUS |
Built in inverter for SBUS input (UART2-RX) |
LED |
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB |
RSSI |
Supported,Named as RS . |
Supported FC Firmware |
INAV:SpeedyBeeF405WING(default)ArduPilot: SpeedyBeeF405WING |
Product Name |

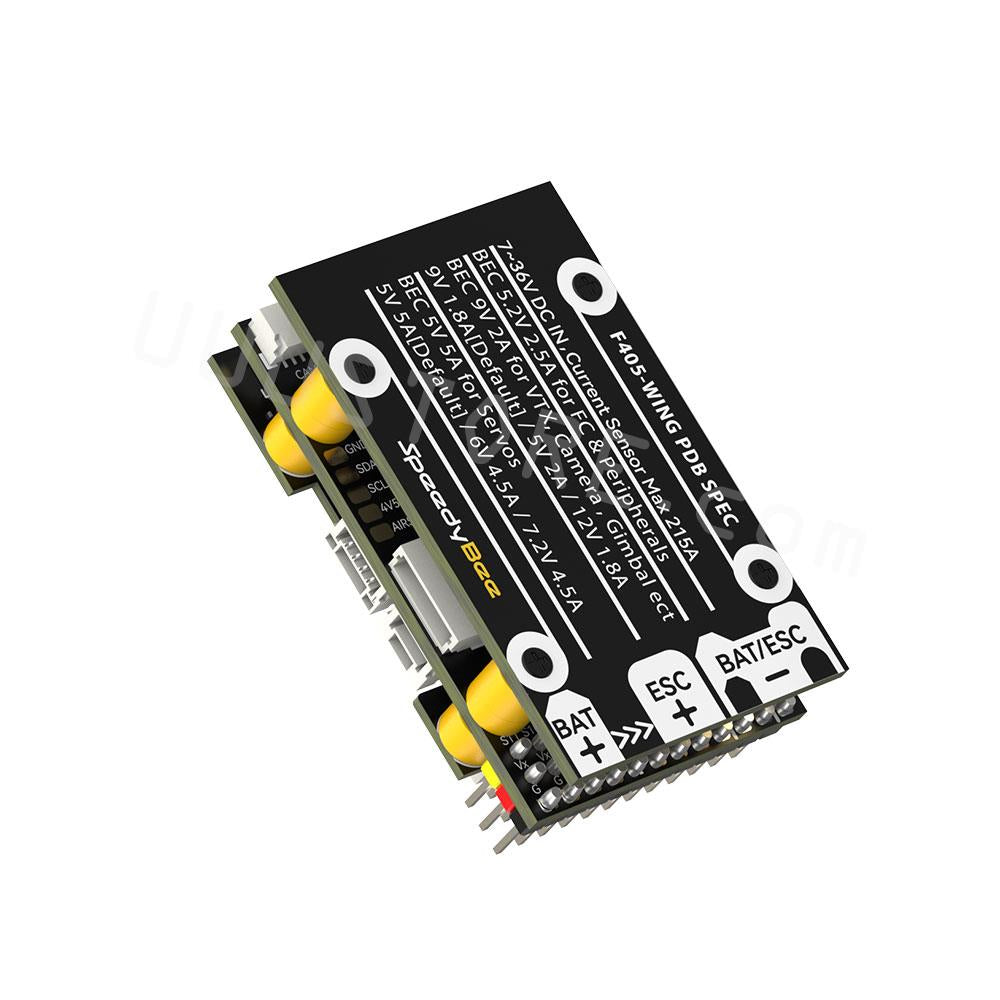

SpeedyBee F405 WING PDB board |
Input voltage range |
7~36V (2~6S LiPo) |
Battery Voltage Sensor |
Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot) |
Battery Current Sensor |
90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot) |
TVS Protective diode |
Yes |
FC BEC output |
Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip |
VTX BEC output |
Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera. |
Servo BEC output |
Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos. |
Product Name |
SpeedyBee F405 WING Wireless board |
Wireless Configuration (long press BOOT button for 6 seconds to switch modes) |
BLE mode, connect to Speedybee APP |
Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc. |
|
Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner |
|
LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) |
4x WS2812 LED strip connectors, adjustable colors and flashing modes |
4x WS2812 LED strip connectors, adjustable colors and flashing modes |
|
On-board battery level indicator |
4x RGB indicator LED for battery level display by number of lights |
CAM SpeedyBzz F40s WING APP Diot Co. GND SDA 4V5 SCL TX4 RX4 4v5 TX2 Rxz GND GND AIR 4V5, 63 4v5, 58 59 S10 S11 HRSPD ardupilot = INAV Dual firmware Wireless Easy installation, support for INAV Support CRSF telemetry 4x LED strip F405 all pins break out design, stable data displayed plugs; lighting operation by
Supports wireless configuration via Speedybee and QGroundcontrol apps . no more tedious drivers or data cables: and convenient configuration, allowing you to focus on the joy of flying.
with BLE, Wi-Fi, and classic Bluetooth; there is always a way to connect . with 5152 4V5 45 854 55186 S7 58 S1o SSpo . miks 29.00 210 3168503 '664.00'
comes with Gx LED plugs so you can light up your plane with no headache . comes with digital VTX, receiver, camera, analog VTx, and GPS .
INAV for handling FPV flight easily; Ardupilot for advanced capabilities Stabilize your flight, automatic take-off; Wing Racing, Formation Flying-_ whether 're a beginner or an expert;, this flight controller can fulfill all your flying dreams .
X 19 2 4 6 2 Full MCU pin breakout; no more interface selection issues . GPS module UART 4 Telemetry module or other peripheral 5 On-board Wireless controller Up to 6 UART ports for easy expansion . you can connect various external modules, from GPS to Digital VTX .
this flight controller is suitable for a variety of fixed-wing planes, including conventional layout planes . up to 11 PWM outputs can be configured for motor and servo control . "please refer to the instructions for detailed output settings: + 3) 3 snas 1S zS #S SS SA+ aND 85 8 3 9
multi-layer PCB design for cool and stable operation without interference . designed with separate layers for with larger heat dissipation power supply,FC,and function areas .
use a fixed-wing plane with VTOL, out a new flying stylel . use Ardupilot's QStabilize, QLoiter, and QRTL modes . customize and define as you wish: try UUUSTORFr 375137b2 .
ELRSITBS receiver plugs into flight controller's UARTI port and allows lua script in OpenTX/EdgeTX to display telemetry data . #For elrs or TBS control system, an opentx/edgetx compatible remote controller is required .
short press the BOO button to switch different effects and make your plane more visible in the sky .
FC comes to helpl Built with a 4-level LED battery indicator; quick to check the left power for Lipo: You can fly anywhere worry-free even without your lipo checker .
speedybee speedyBee SpeedyBee FPVa 78098 586868 Analog board x spacoybce xiputyizg . x1 4pin dupont single-head Double-sided tape for isolating cable(150mm)
