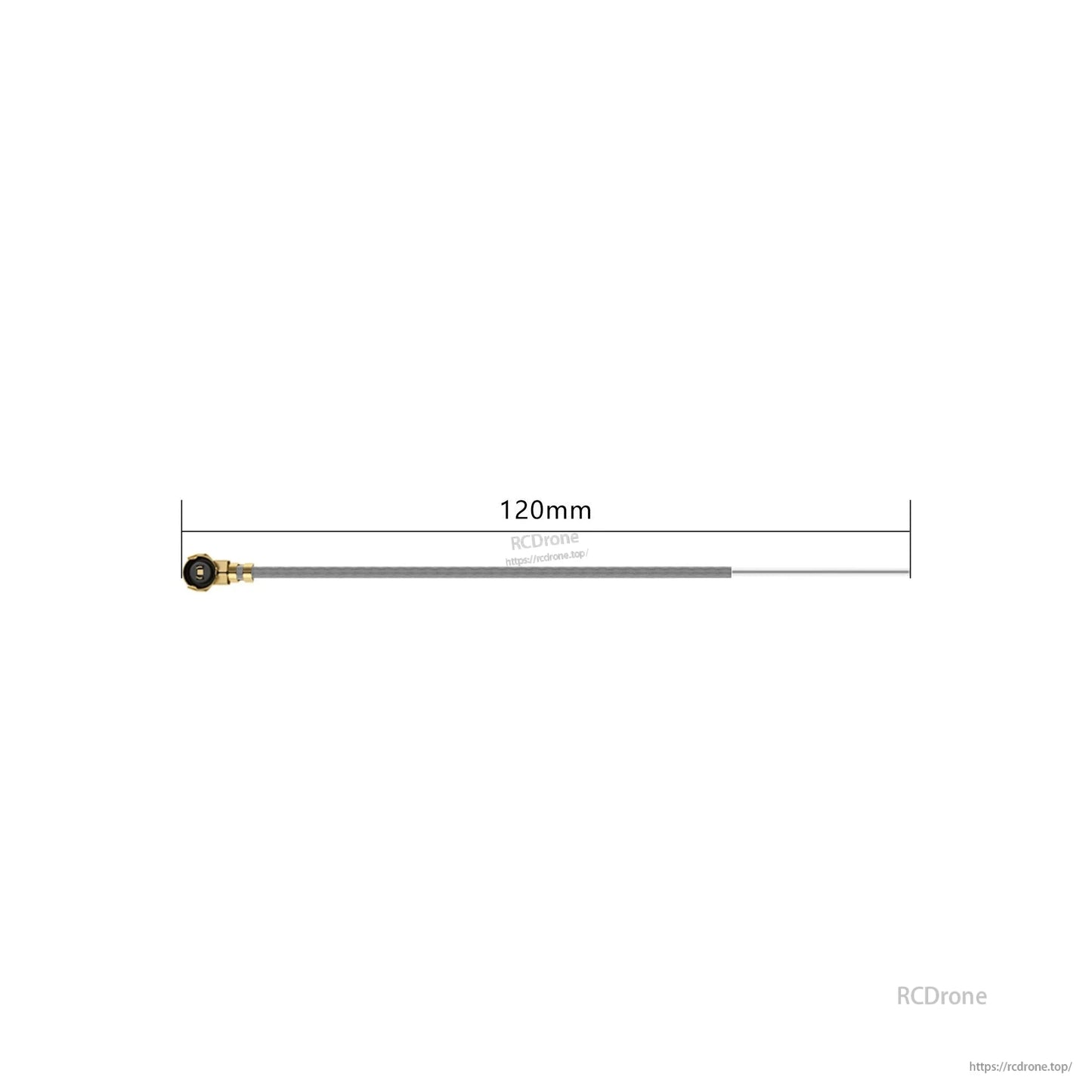

  • GEPRC IPEX 2.4G Antenna, GEPRC 2.4G IPEX antenna with 120mm coax cable lead and small gold IPEX connector
1 9

GEPRC IPEX 2.4G Antenna (5pcs) Antenna RG1.13 Cable, IPEX1/IPEX4, 2.4GHz 1.5dBi SWR ≤2.0

GEPRC IPEX 2.4G Antenna (5pcs) Antenna RG1.13 Cable, IPEX1/IPEX4, 2.4GHz 1.5dBi SWR ≤2.0

GEPRC

$14.49 USD
$14.49 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
OPTIONS
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The GEPRC IPEX 2.4G Antenna (5PCS) is a 2.4GHz antenna designed for simple setup and stable signal, featuring RG1.13 silver-plated RF cable and IPEX connector options (IPEX1 / IPEX4).

Key Features

  • Premium IPEX connectors for lower impedance and improved transmission efficiency.
  • Each antenna is tested with a spectrum analyzer to meet SWR standards.
  • Installation note: secure the antenna with glue after installation.

Specifications

Model GEPRC IPEX 2.4G antenna
Center Frequency 2.4GHz
Bandwidth 2400MHz~2500MHz
Polarization horizontal
Gain 1.5dbi
SWR ≤2.0
RF Cable RG1.13 Silver-plated wire
Connector IPEX1 / IPEX4
Length Display 60mm; 50mm; 60mm; 120mm
Connector dimensions (unit not stated) IPEX1: 3.0, 2.62, 4.0, 2.1; IPEX4: 2.1, 0.6, 2.55, 1.82

Whats Included

  • GEPRC IPEX 2.4G Antenna 5 pcs

For installation or connector compatibility questions, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

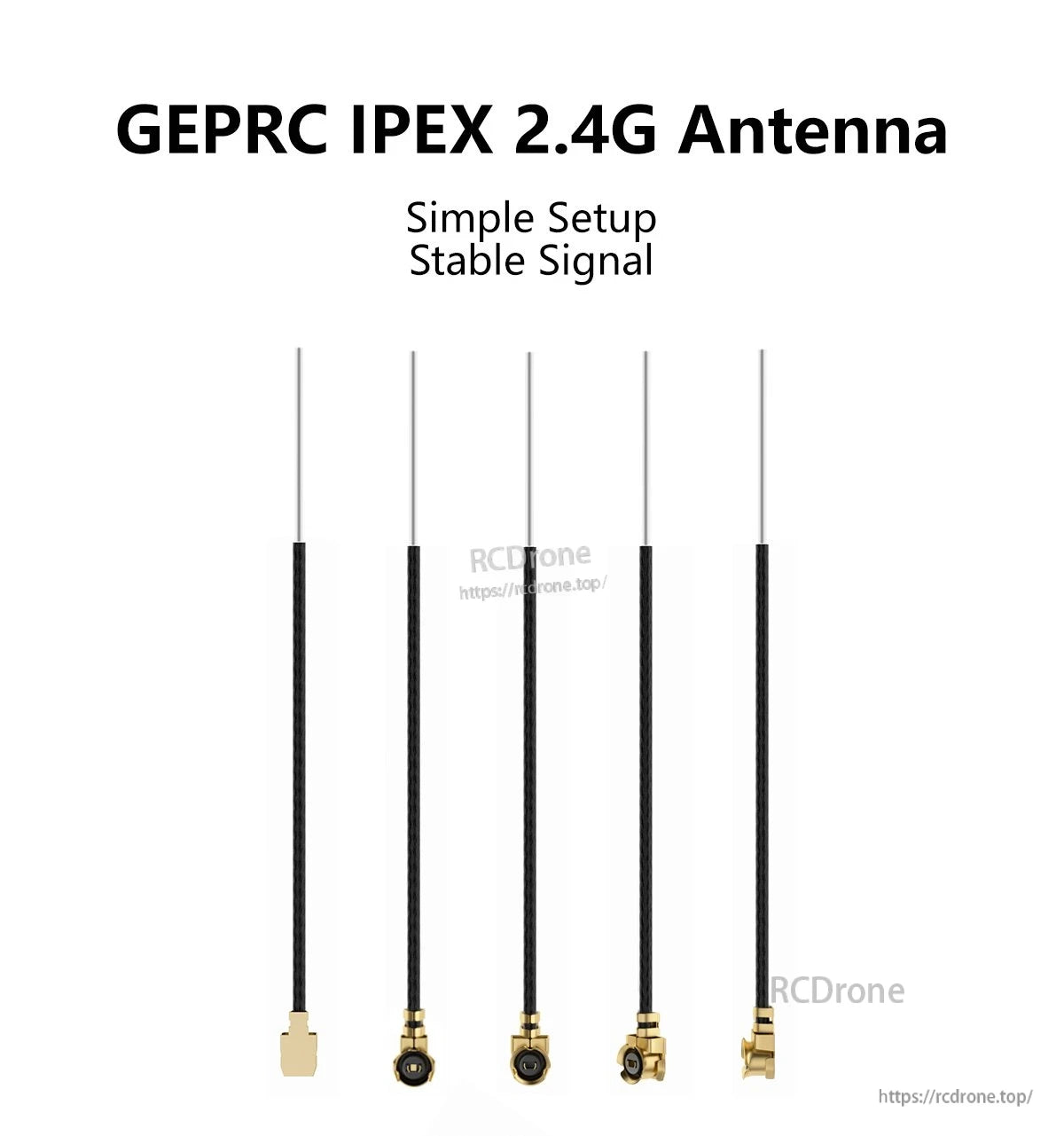

GEPRC IPEX 2.4G Antenna, GEPRC 2.4G IPEX antenna with black coax lead and gold micro connector, shown in multiple connector angles

The GEPRC IPEX 2.4G antenna uses a compact IPEX micro connector and slim coax lead for clean routing in tight builds.

GEPRC IPEX 2.4G antenna pigtail cables with gold IPEX/U.FL connectors and black coax leads

GEPRC IPEX 2.4G antenna pigtails use compact IPEX/U.FL connectors for clean, space-saving RF hookups.

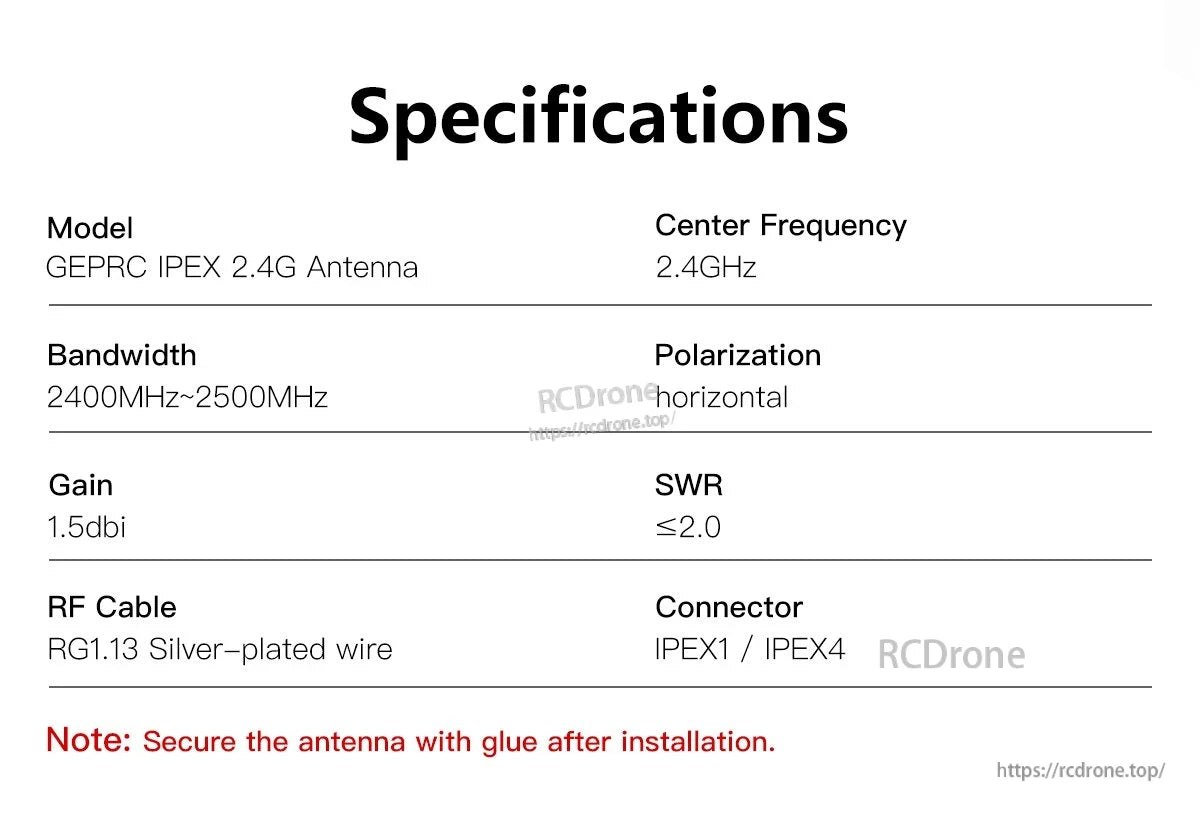

GEPRC IPEX 2.4G antenna specifications listing 2.4GHz center frequency, 2400–2500MHz bandwidth and IPEX1/IPEX4 connector

GEPRC IPEX 2.4G antenna is specified for 2.4GHz use with 2400–2500MHz bandwidth and an IPEX1/IPEX4 connector.

GEPRC IPEX 2.4G Antenna, GEPRC 2.4GHz antenna connector comparison showing IPEX1 vs IPEX4 plugs with key dimension drawings

GEPRC 2.4G antenna connector options are compared with IPEX1 and IPEX4 plug dimensions to help ensure the right fit.

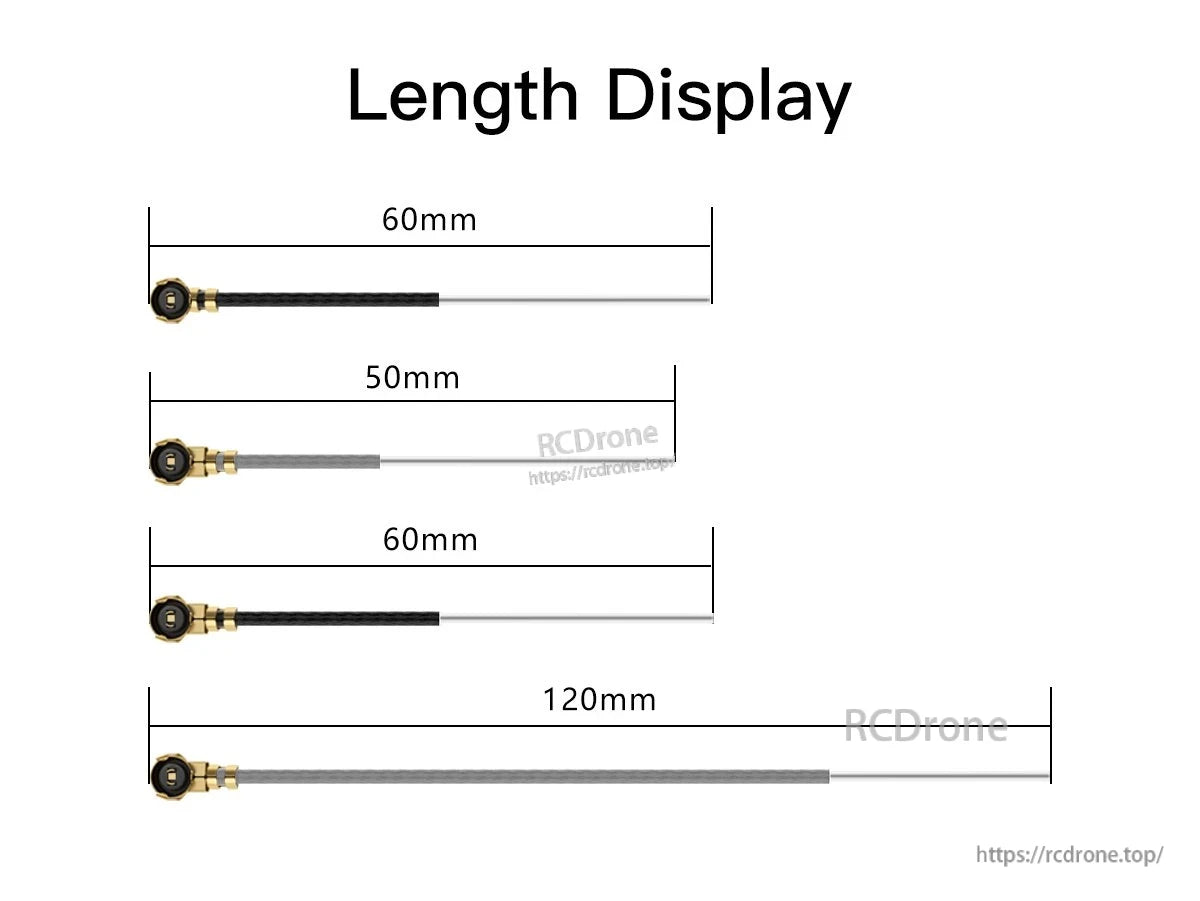

GEPRC IPEX 2.4G antenna length display with IPEX connector and cable options labeled 50mm, 60mm, and 120mm

GEPRC IPEX 2.4G antenna lead length options (50mm, 60mm, and 120mm) help match your receiver placement and routing.
