BrotherHobby Avenger 5210 V5 CW Motor 295KV/365KV, 24N28P, 6-12S, M5 Thread, 241g (75cm wire)

BrotherHobby

$85.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

KV 295 365

Quantity

View full details

Overview

The BrotherHobby Avenger 5210 V5 is a CW motor offered in 295KV or 365KV options, designed for multi-rotor power systems that use 6-12S LiPo setups. It features a 24N28P configuration, 7075 aluminum alloy components, an M5 prop adapter shaft thread, and a listed weight of 241g with 75cm SR wires.

Key Features

Rotation direction: Forward (CW)
SUS420 heat treated steel shaft
Aviation grade 7075 aluminum caps (hard anodized); hollow-carved design for weight saving and heat dissipation
TU1 grade enameled wire; high full slot ratio; low internal resistance
Ultra-thin non-oriented silicon steel sheet; high permeability and low eddy loss
N52H arc magnet; consistent air gap; stable magnetic circuit
Premium high precision bearings (noted as withstanding greater axial load)
Notes shown for folding blades: easy to install; convenient to carry

Specifications

Model	Avenger 5210 V5
KV	295KV / 365KV
Base casing	Al 7075
Bell cap	Al 7075
Stator (height)	10mm
Configuration	24N28P
Rotor	N52H arc magnets
Bearings	16x8x5
Shaft	SUS420
Prop adapter shaft thread	M5
No. of Cells (LiPo)	6-12S
Bolt pattern	M4 (30x30mm)
Wire	16#; 75cm length
Weight	241g with 75cm SR wires

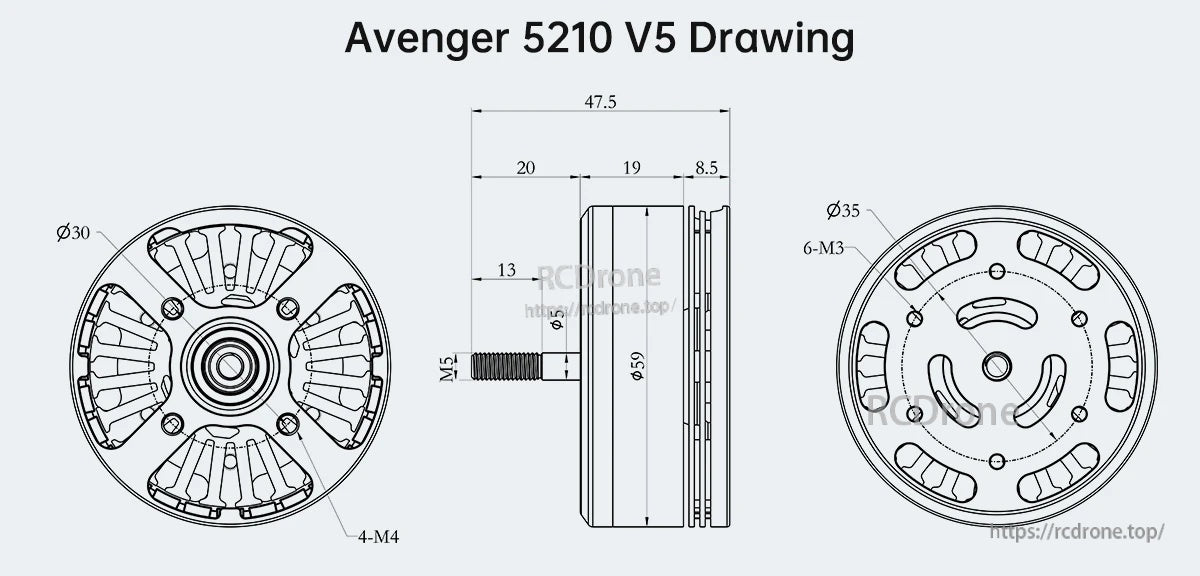

Drawing / Mounting Dimensions (as provided)

Drawing title: Avenger 5210 V5 Drawing
Diameters/holes shown: 6 (6-M3), 35 (6-M3), 30, 59, 5
Thread shown: M5
Hole patterns shown: 4-M4 and 6-M3
Length dimensions shown (two sources): 47.5mm (drawing image) and 48.5mm (test-report drawings)
Other length dimensions shown (two sources): 8.5mm (drawing image) and 9.5mm (test-report drawings); also 20mm, 19mm, 13mm

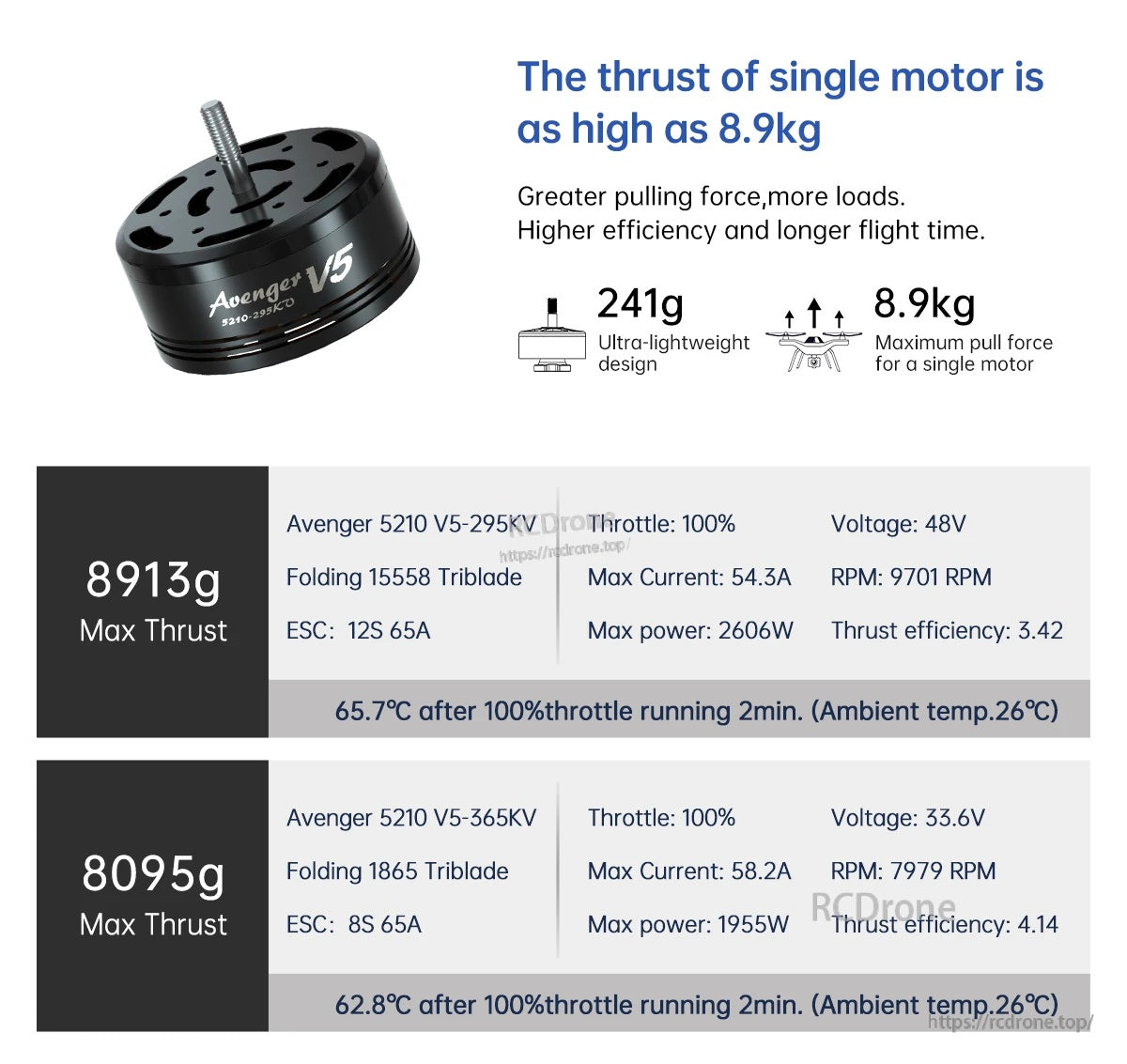

Performance Highlights (as provided)

Maximum pull force stated: 8.9kg
295KV test summary (Folding 15558 Triblade, ESC: 12S 65A): Throttle 100%, Voltage 48V, Max Current 54.3A, RPM 9701 RPM, Max power 2606W, Thrust efficiency 3.42
365KV test summary (Folding 1865 Triblade, ESC: 8S 65A): Throttle 100%, Voltage 33.6V, Max Current 58.2A, RPM 7979 RPM, Max power 1955W, Thrust efficiency 4.14
Max thrust stated: 8913g (295KV) and 8095g (365KV)
Temperature notes shown: 65.7C after 100% throttle running 2min (Ambient temp. 26C) and 62.8C after 100% throttle running 2min (Ambient temp. 26C)

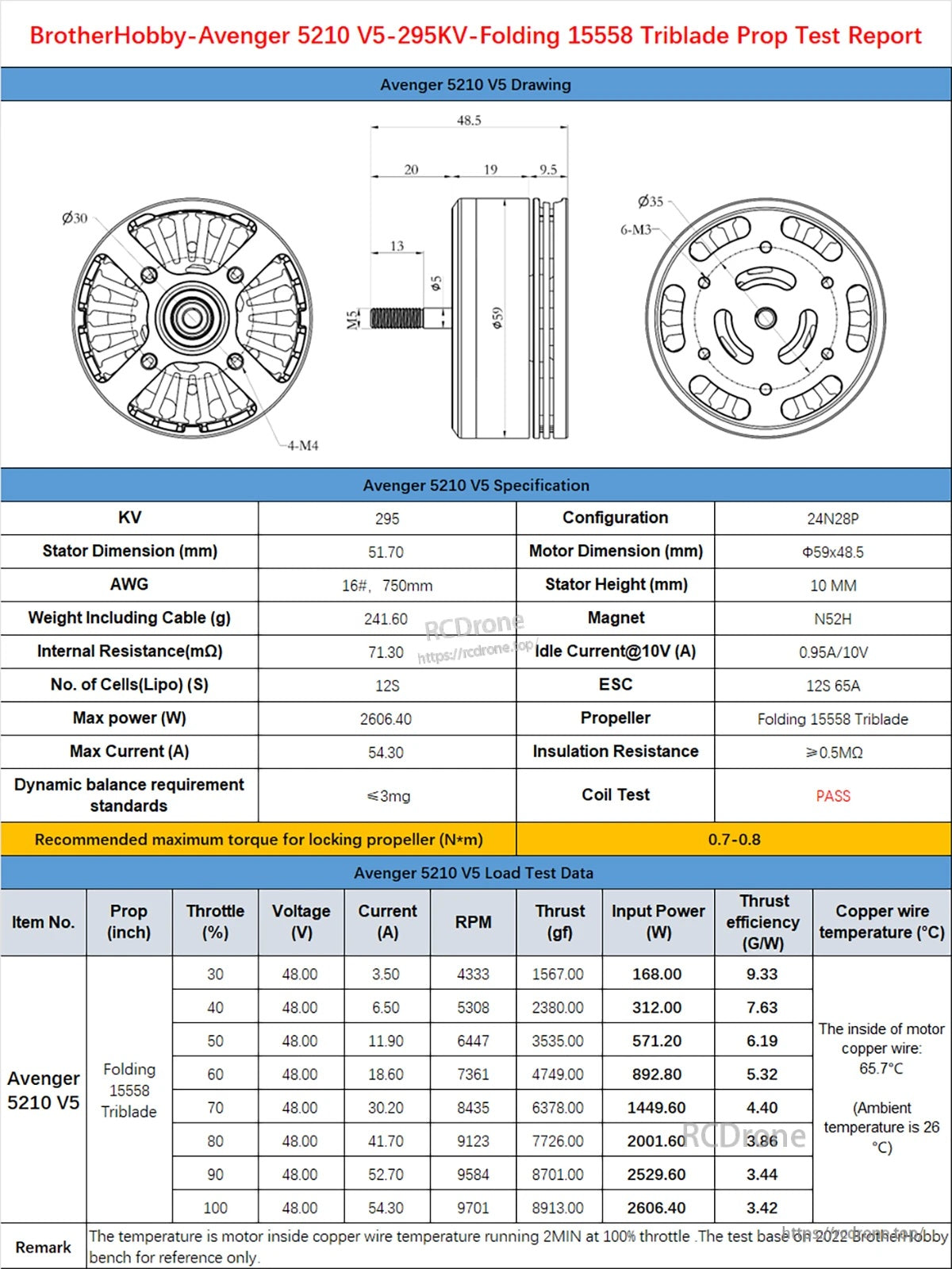

Test Report: Avenger 5210 V5-295KV + Folding 15558 Triblade

Specification

KV	295	Configuration	24N28P
Stator Dimension (mm)	51.70	Motor Dimension (mm)	59x48.5
AWG	16#; 750mm	Stator Height (mm)	10 MM
Weight Including Cable (g)	241.60	Magnet	N52H
Internal Resistance (m)	71.30	Idle Current@10V (A)	0.95A/10V
No. of Cells (Lipo) (S)	12S	ESC	12S 65A
Max power (W)	2606.40	Propeller	Folding 15558 Triblade
Max Current (A)	54.30	Insulation Resistance	>= 0.5M
Dynamic balance requirement standards	<= 3mg	Coil Test	PASS
*Recommended maximum torque for locking propeller (Nm)**			0.7-0.8

Load Test Data

Throttle (%)	Voltage (V)	Current (A)	RPM	Thrust (gf)	Input Power (W)	Thrust efficiency (G/W)
30	48.00	3.50	4333	1567.00	168.00	9.33
40	48.00	6.50	5308	2380.00	312.00	7.63
50	48.00	11.90	6447	3535.00	571.20	6.19
60	48.00	18.60	7361	4749.00	892.80	5.32
70	48.00	30.20	8435	6378.00	1449.60	4.40
80	48.00	41.70	9123	7726.00	2001.60	3.86
90	48.00	52.70	9584	8701.00	2529.60	3.44
100	48.00	54.30	9701	8913.00	2606.40	3.42

Copper wire temperature noted: 65.7C (ambient temperature 26C). Temperature note: motor inside copper wire temperature after running 2MIN at 100% throttle; test bench for reference only.

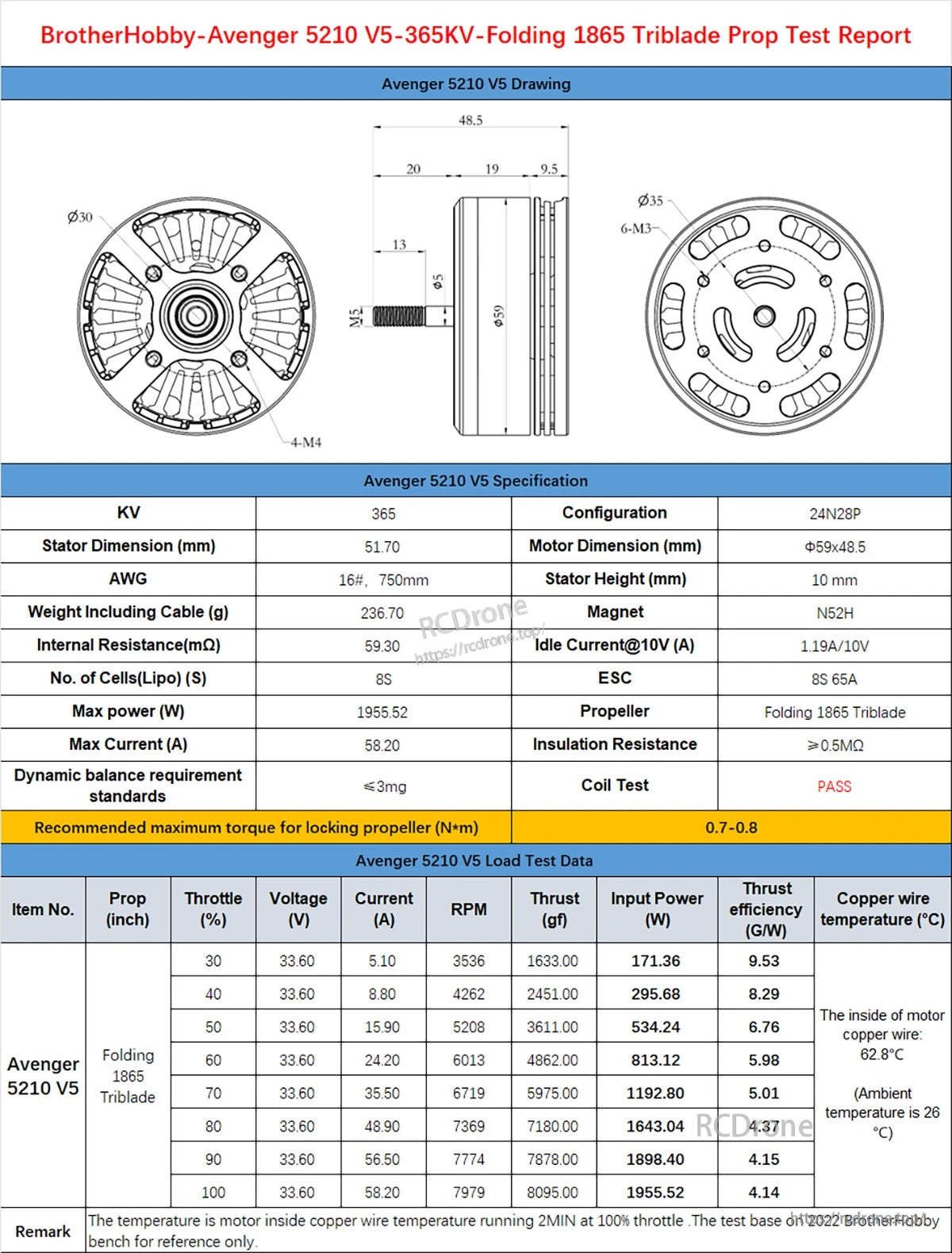

Test Report: Avenger 5210 V5-365KV + Folding 1865 Triblade

Specification

KV	365	Configuration	24N28P
Stator Dimension (mm)	51.70	Motor Dimension (mm)	59x48.5
AWG	16#; 750mm	Stator Height (mm)	10 mm
Weight Including Cable (g)	236.70	Magnet	N52H
Internal Resistance (m)	59.30	Idle Current@10V (A)	1.19A/10V
No. of Cells (Lipo) (S)	8S	ESC	8S 65A
Max power (W)	1955.52	Propeller	Folding 1865 Triblade
Max Current (A)	58.20	Insulation Resistance	>= 0.5M
Dynamic balance requirement standards	<= 3mg	Coil Test	PASS
*Recommended maximum torque for locking propeller (Nm)**			0.7-0.8

Load Test Data

Throttle (%)	Voltage (V)	Current (A)	RPM	Thrust (gf)	Input Power (W)	Thrust efficiency (G/W)
30	33.60	5.10	3536	1633.00	171.36	9.53
40	33.60	8.80	4262	2451.00	295.68	8.29
50	33.60	15.90	5208	3611.00	534.24	6.76
60	33.60	24.20	6013	4862.00	813.12	5.98
70	33.60	35.50	6719	5975.00	1192.80	5.01
80	33.60	48.90	7369	7180.00	1643.04	4.37
90	33.60	56.50	7774	7878.00	1898.40	4.15
100	33.60	58.20	7979	8095.00	1955.52	4.14

Copper wire temperature noted: 62.8C (ambient temperature 26C). Temperature note: motor inside copper wire temperature after running 2MIN at 100% throttle; test bench for reference only.

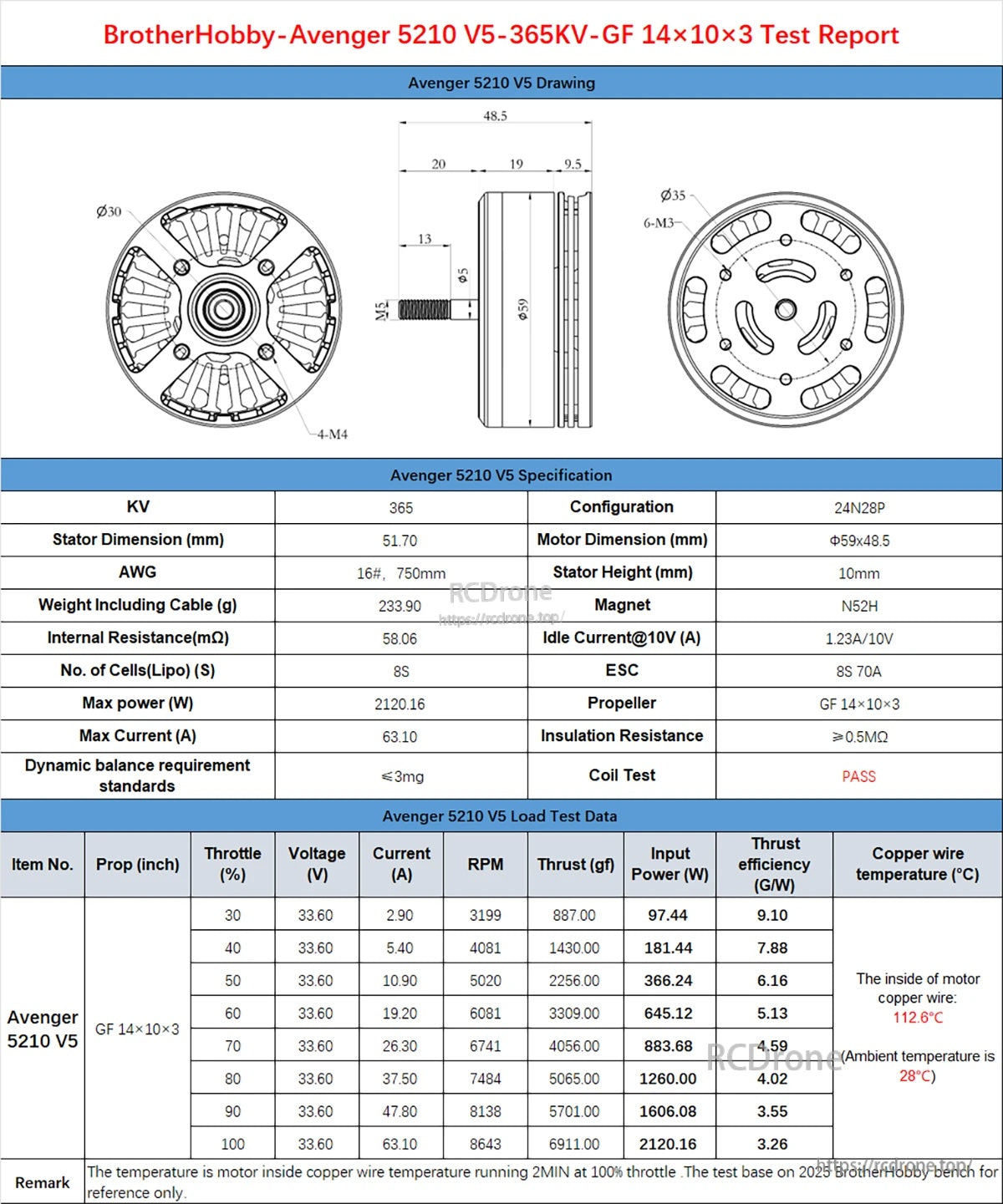

Test Report: Avenger 5210 V5-365KV + GF 14x10x3

Specification

KV	365	Configuration	24N28P
Stator Dimension (mm)	51.70	Motor Dimension (mm)	59x48.5
AWG	16#; 750mm	Stator Height (mm)	10mm
Weight Including Cable (g)	233.90	Magnet	N52H
Internal Resistance (m)	58.06	Idle Current@10V (A)	1.23A/10V
No. of Cells (Lipo) (S)	8S	ESC	8S 70A
Max power (W)	2120.16	Propeller	GF 14x10x3
Max Current (A)	63.10	Insulation Resistance	>= 0.5M
Dynamic balance requirement standards	<= 3mg	Coil Test	PASS

Load Test Data

Throttle (%)	Voltage (V)	Current (A)	RPM	Thrust (gf)	Input Power (W)	Thrust efficiency (G/W)
30	33.60	2.90	3199	887.00	97.44	9.10
40	33.60	5.40	4081	1430.00	181.44	7.88
50	33.60	10.90	5020	2256.00	366.24	6.16
60	33.60	19.20	6081	3309.00	645.12	5.13
70	33.60	26.30	6741	4056.00	883.68	4.59
80	33.60	37.50	7484	5065.00	1260.00	4.02
90	33.60	47.80	8138	5701.00	1606.08	3.55
100	33.60	63.10	8643	6911.00	2120.16	3.26

Copper wire temperature noted: 112.6C (ambient temperature 28C). Temperature note: motor inside copper wire temperature after running 2MIN at 100% throttle; test bench for reference only.

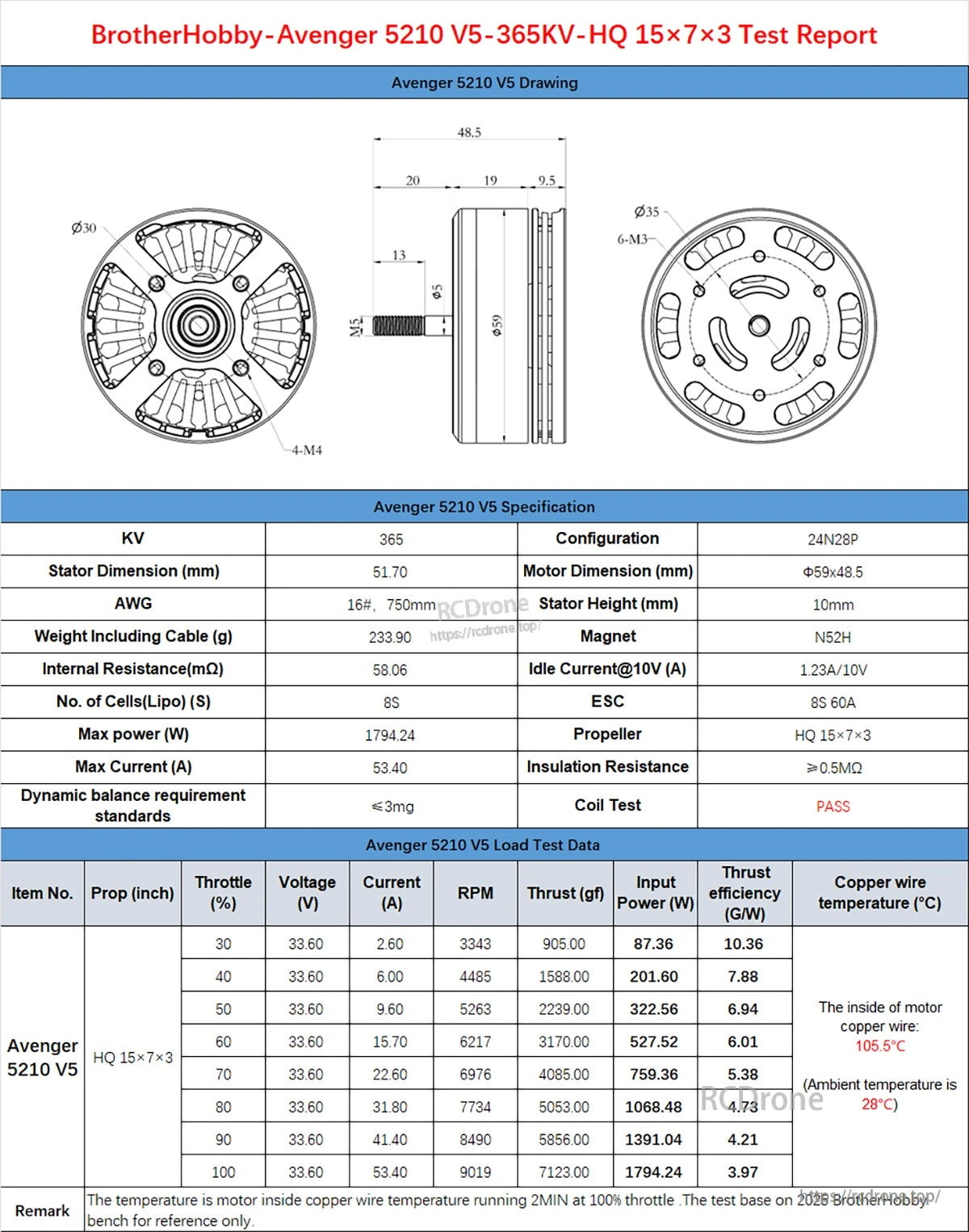

Test Report: Avenger 5210 V5-365KV + HQ 15x7x3

Specification

KV	365	Configuration	24N28P
Stator Dimension (mm)	51.70	Motor Dimension (mm)	59x48.5
AWG	16#; 750mm	Stator Height (mm)	10mm
Weight Including Cable (g)	233.90	Magnet	N52H
Internal Resistance (m)	58.06	Idle Current@10V (A)	1.23A/10V
No. of Cells (Lipo) (S)	8S	ESC	8S 60A
Max power (W)	1794.24	Propeller	HQ 15x7x3
Max Current (A)	53.40	Insulation Resistance	>= 0.5M
Dynamic balance requirement standards	<= 3mg	Coil Test	PASS

Load Test Data

Throttle (%)	Voltage (V)	Current (A)	RPM	Thrust (gf)	Input Power (W)	Thrust efficiency (G/W)
30	33.60	2.60	3343	905.00	87.36	10.36
40	33.60	6.00	4485	1588.00	201.60	7.88
50	33.60	9.60	5263	2239.00	322.56	6.94
60	33.60	15.70	6217	3170.00	527.52	6.01
70	33.60	22.60	6976	4085.00	759.36	5.38
80	33.60	31.80	7734	5053.00	1068.48	4.73
90	33.60	41.40	8490	5856.00	1391.04	4.21
100	33.60	53.40	9019	7123.00	1794.24	3.97

Copper wire temperature noted: 105.5C (ambient temperature 28C). Temperature note: motor inside copper wire temperature after running 2MIN at 100% throttle; test bench for reference only.

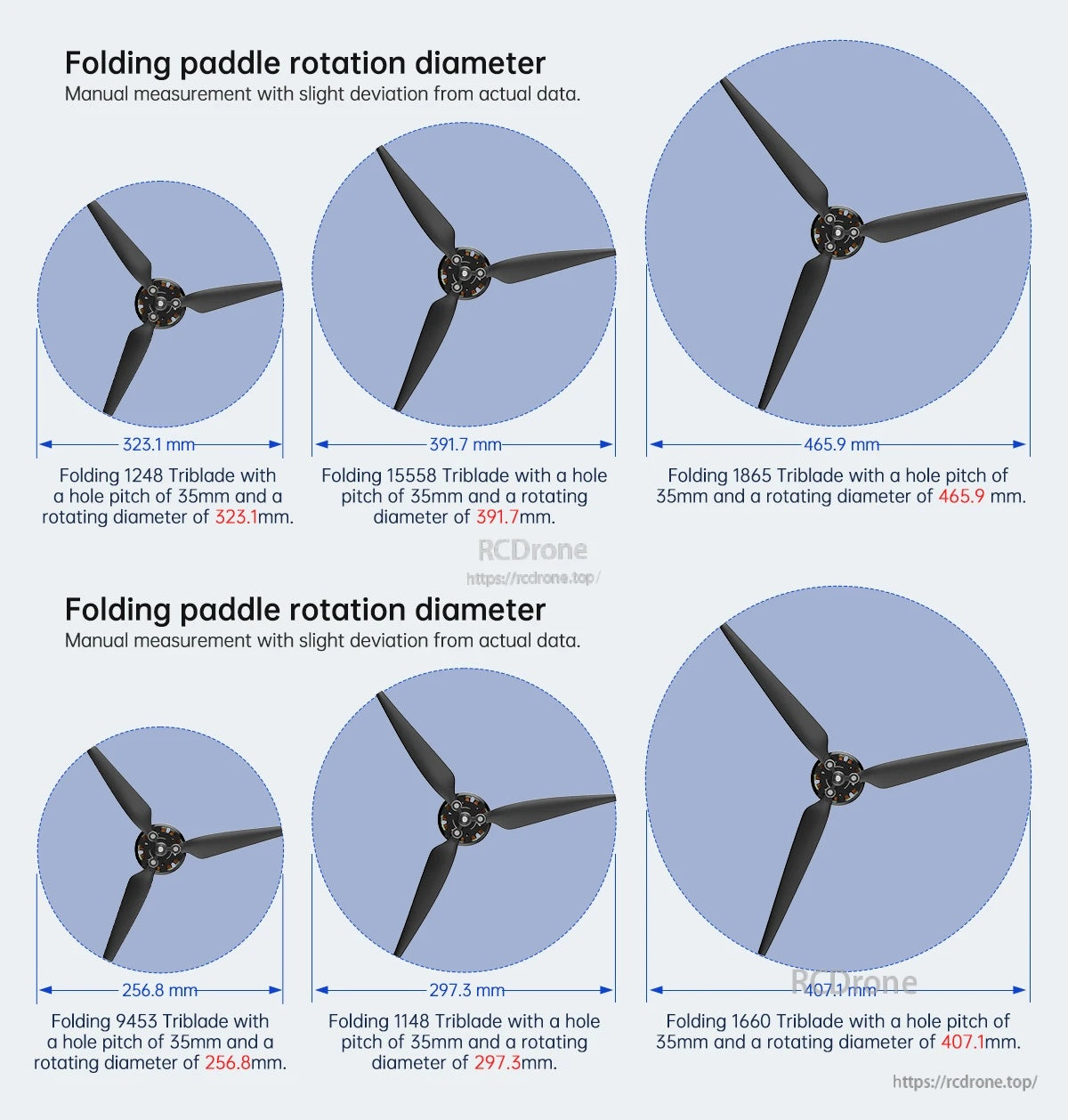

Folding Paddle Rotation Diameter (manual measurement note provided)

Folding 1248 Triblade: hole pitch 35mm; rotating diameter 323.1mm
Folding 15558 Triblade: hole pitch 35mm; rotating diameter 391.7mm
Folding 1865 Triblade: hole pitch 35mm; rotating diameter 465.9mm
Folding 9453 Triblade: hole pitch 35mm; rotating diameter 256.8mm
Folding 1148 Triblade: hole pitch 35mm; rotating diameter 297.3mm
Folding 1660 Triblade: hole pitch 35mm; rotating diameter 407.1mm

Whats Included

Motor
Folding propeller
Propeller connector
Screws
Spacers
Flange nut
External thread cylindrical groove
Spring

Support

For compatibility checks (KV selection, 6-12S LiPo matching, propeller/adapter fitment) and spare parts availability, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

BrotherHobby Avenger 5210 V5 295KV/365KV Motor(CW)

The Avenger 5210 V5 motor is labeled with KV options 295/365 and is shown paired with a two-blade prop for quick setup.

BrotherHobby Avenger 5210 V5 CW motor specs list up to 8.9kg (8913g) maximum thrust at 100% throttle with 48V testing.

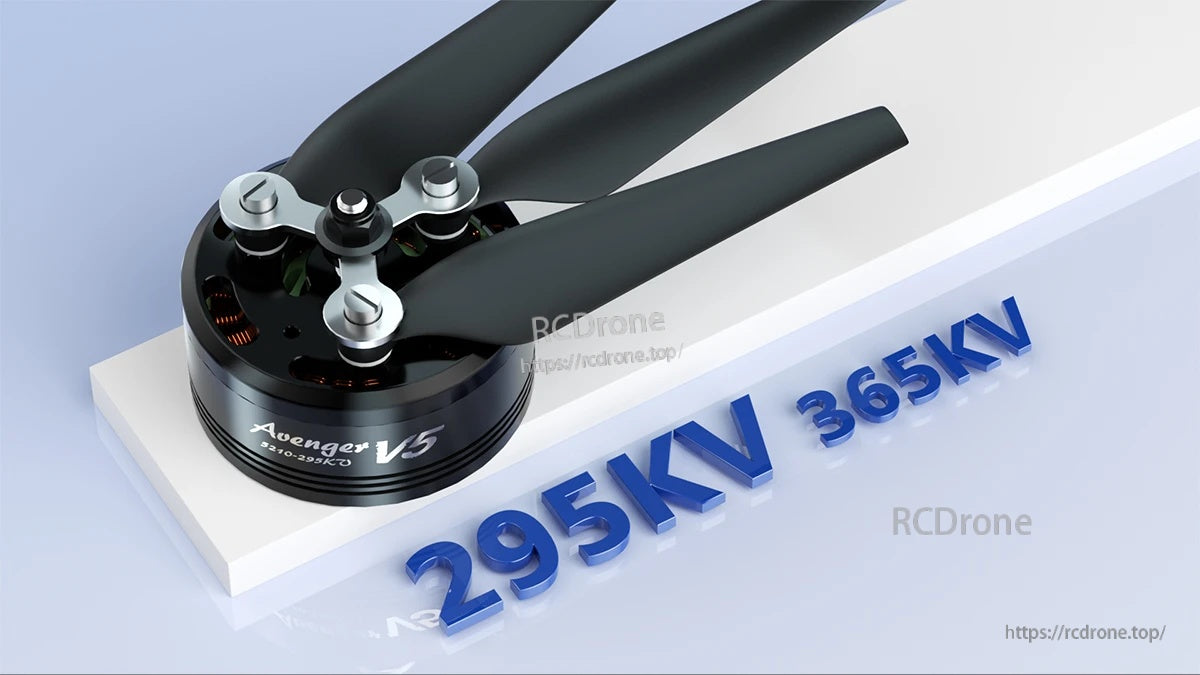

BrotherHobby Avenger 5210 V5 motor is offered in 295KV or 365KV windings for matching your prop and power setup.

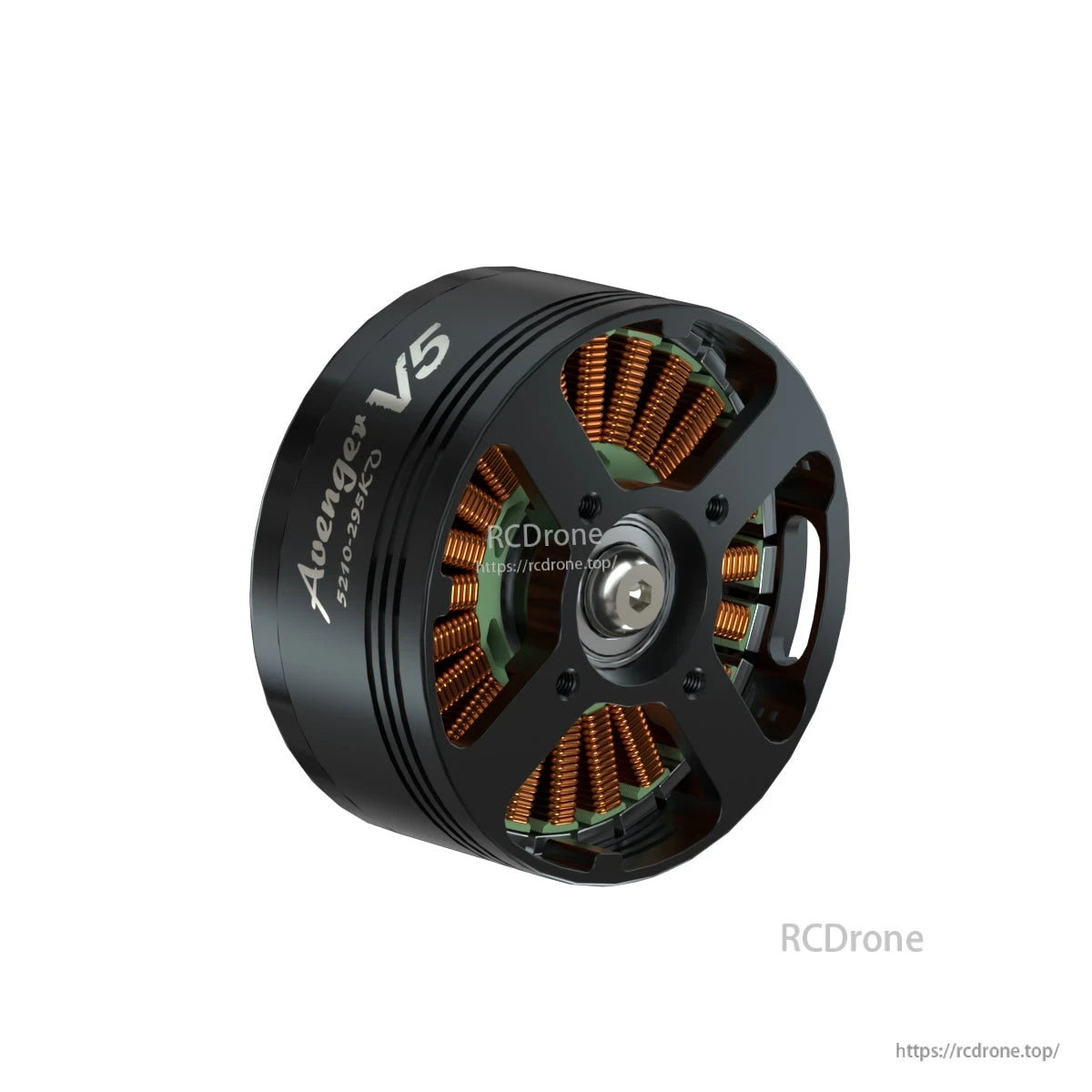

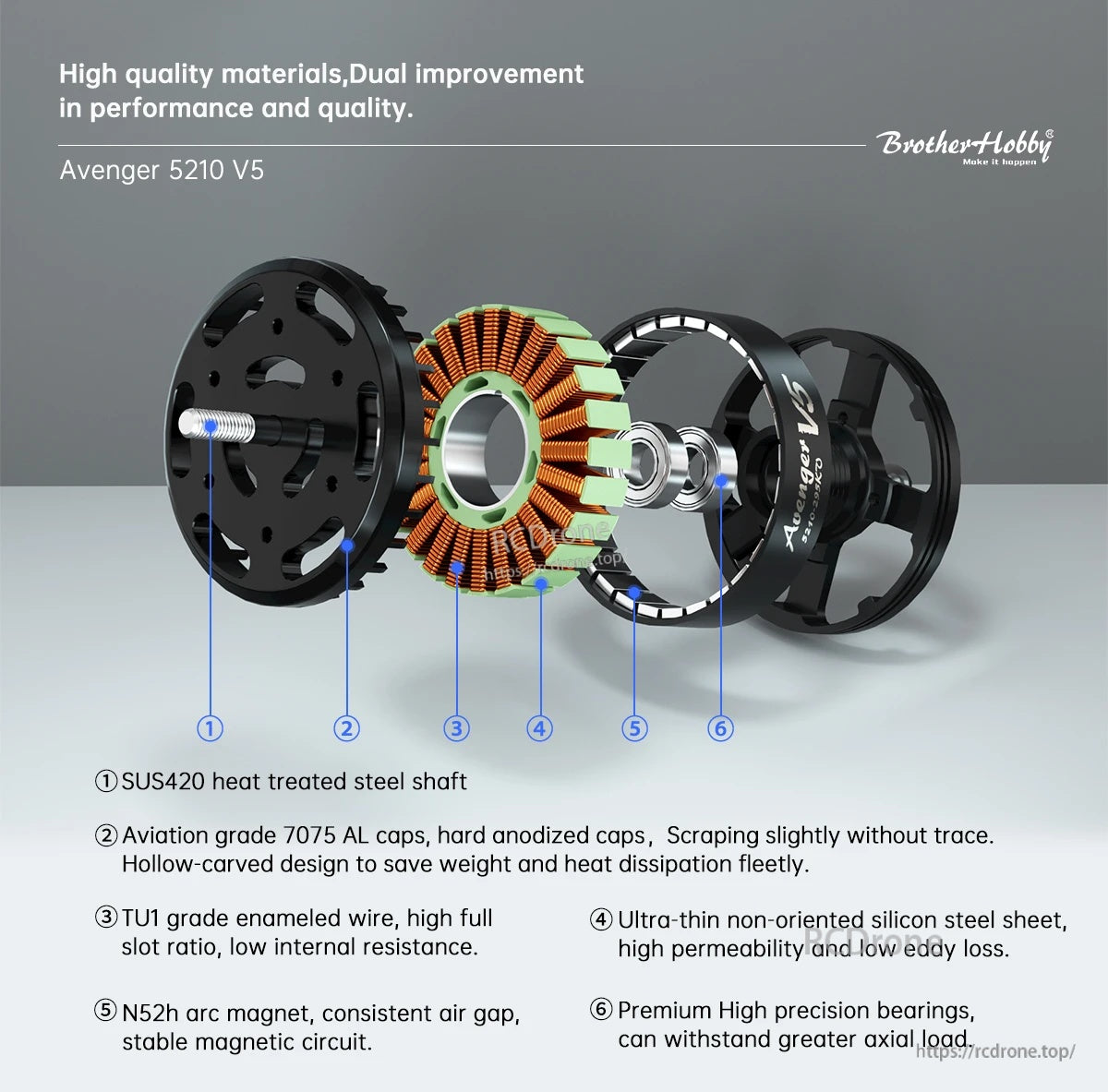

The Avenger 5210 V5 motor uses a SUS420 steel shaft, 7075 aluminum caps, N52H arc magnets, and high-precision bearings for a durable build.

Avenger 5210 V5 motor dimensions include a 47.5 mm overall length and M3/M4 mounting hole patterns for fit checks.

Folding propeller rotation diameters are listed for several tri-blade sizes with a 35 mm hole pitch, including 1248, 1555, 1865, 9435, 1187, and 1407.

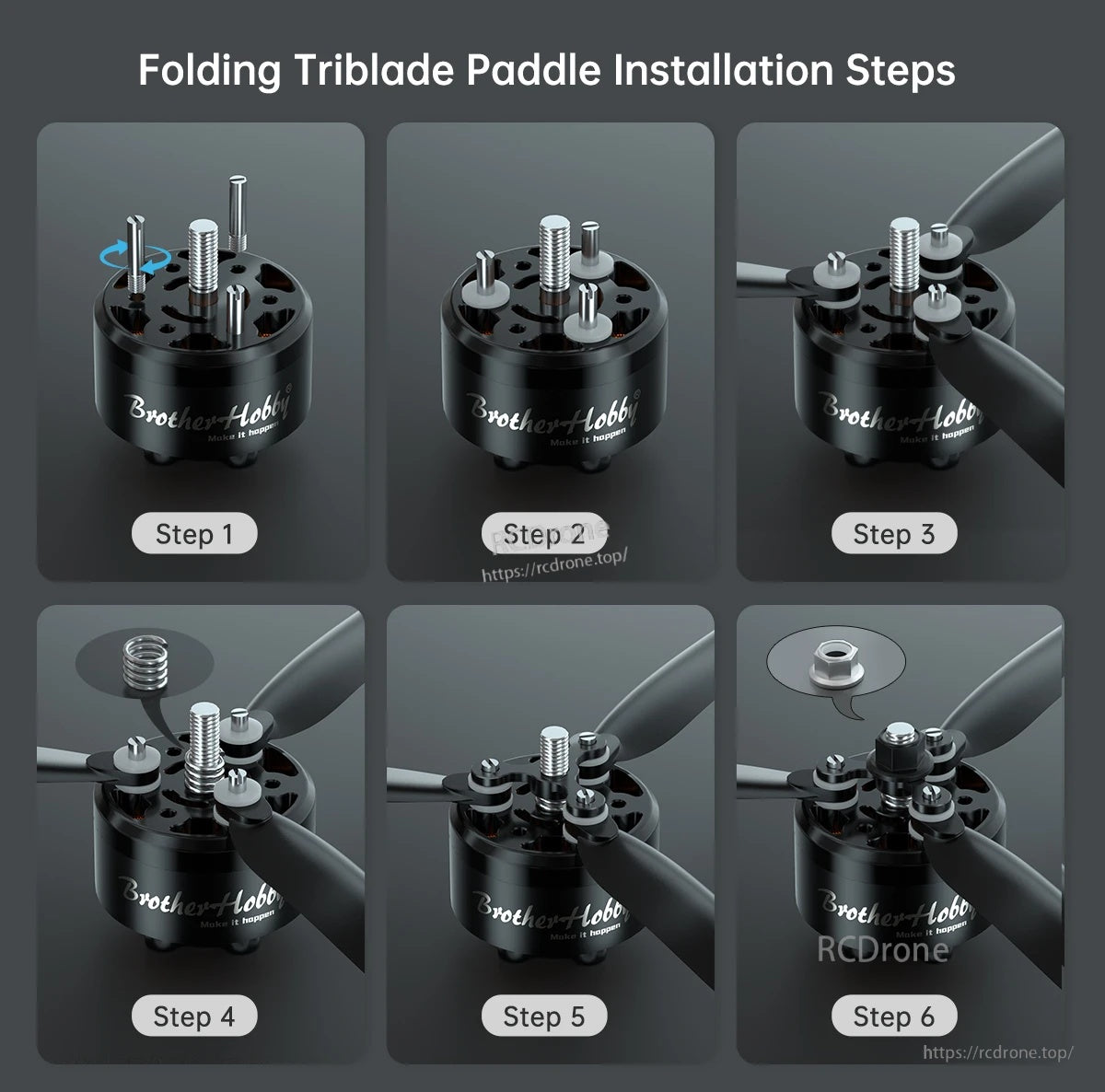

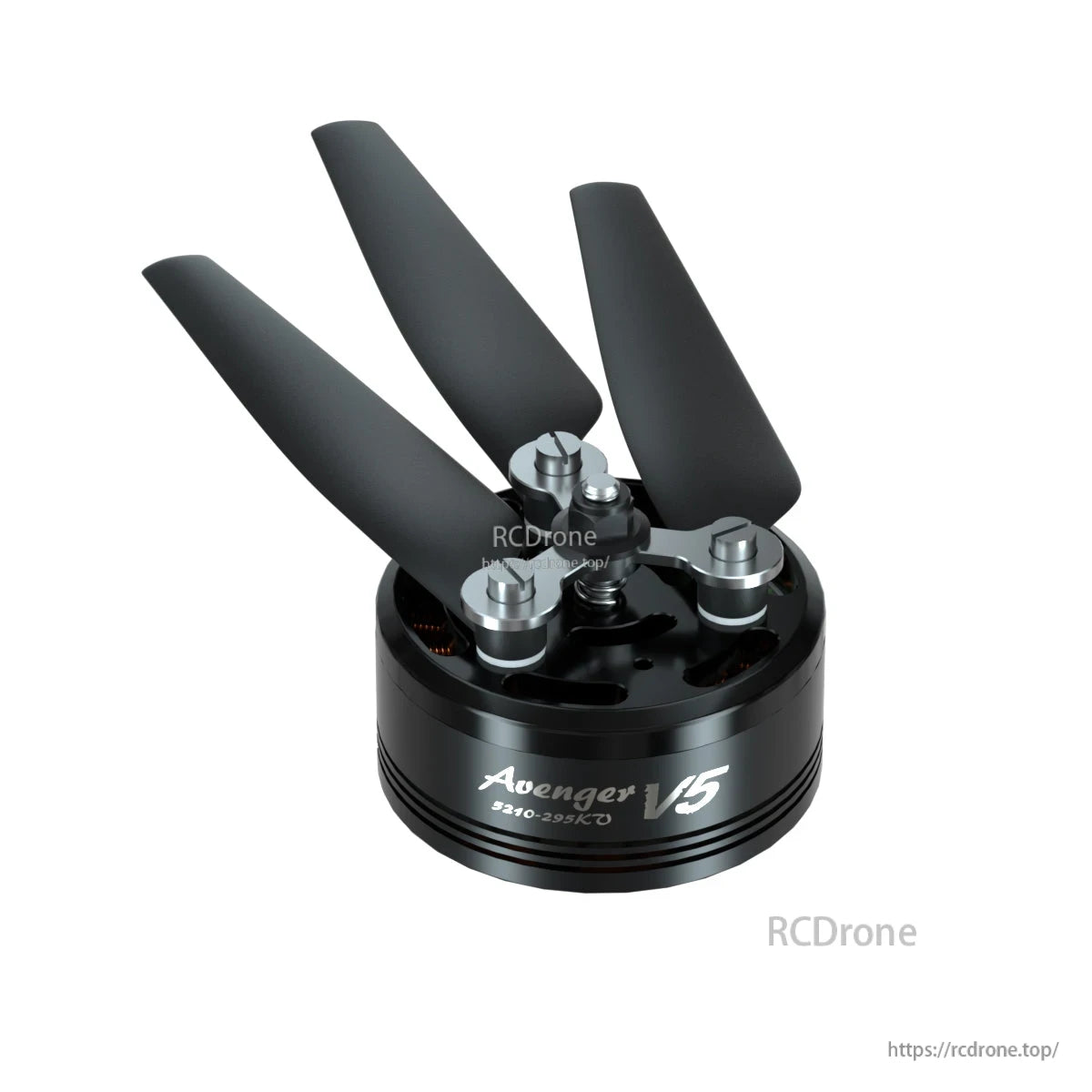

The BrotherHobby Avenger 5210 V5 CW motor uses a straightforward folding triblade prop setup with the hardware stacked in the correct order for a secure fit.

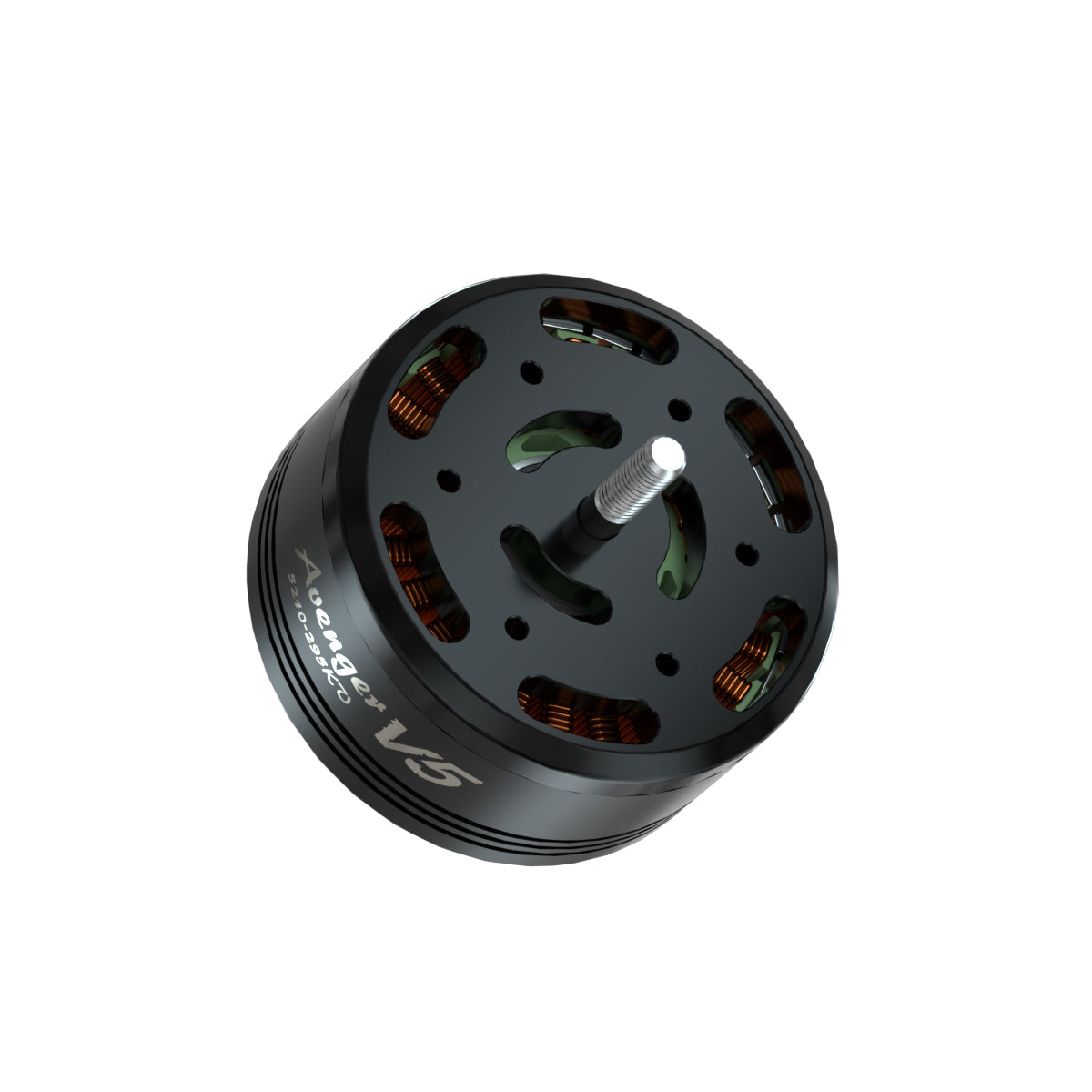

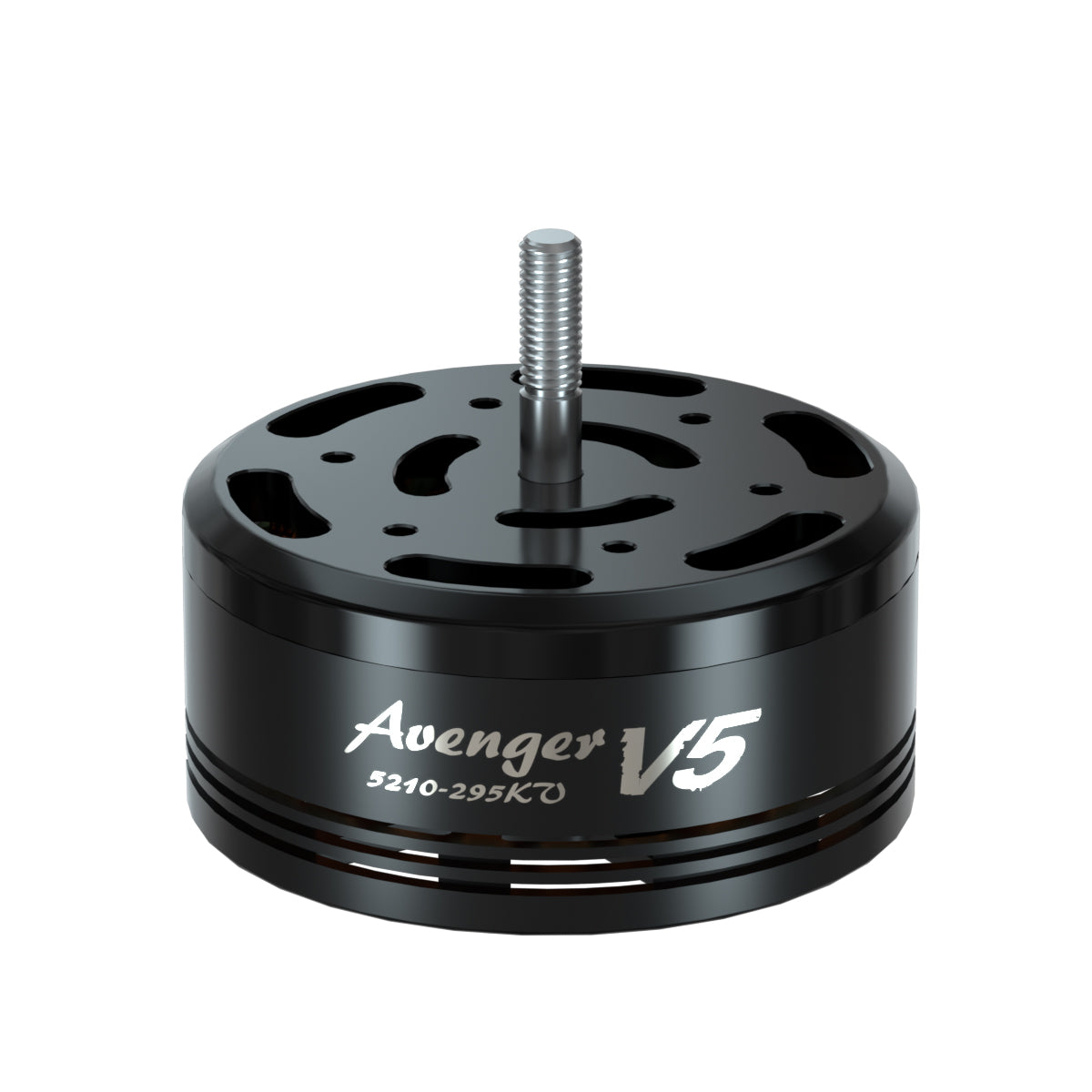

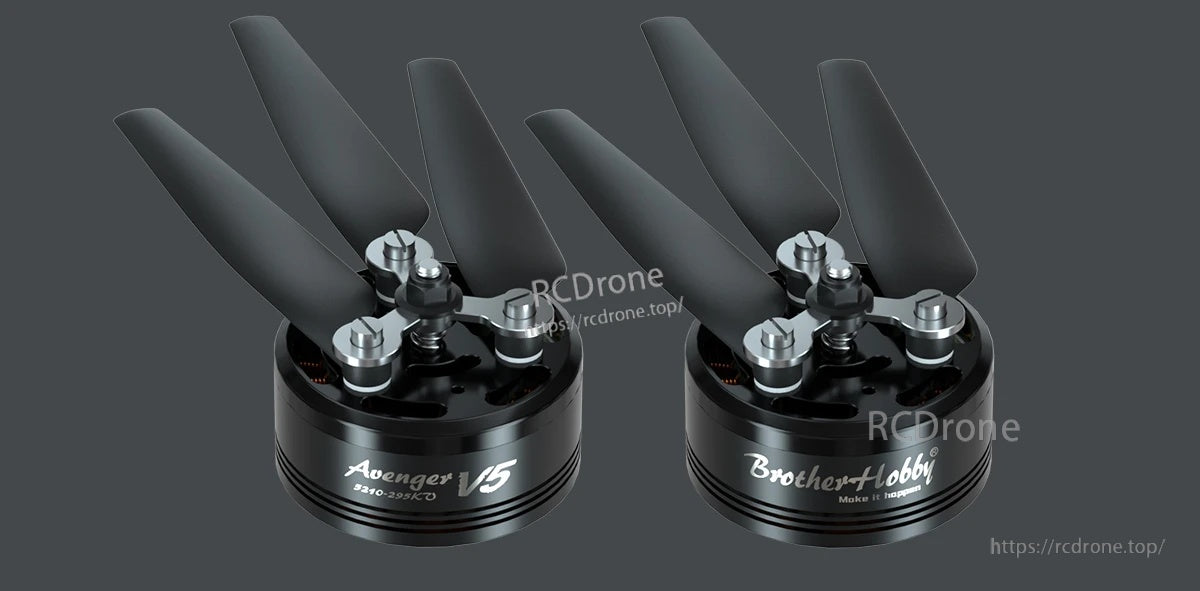

The BrotherHobby Avenger V5 motor features a compact can design with a standard prop-nut top mount for quick prop changes.

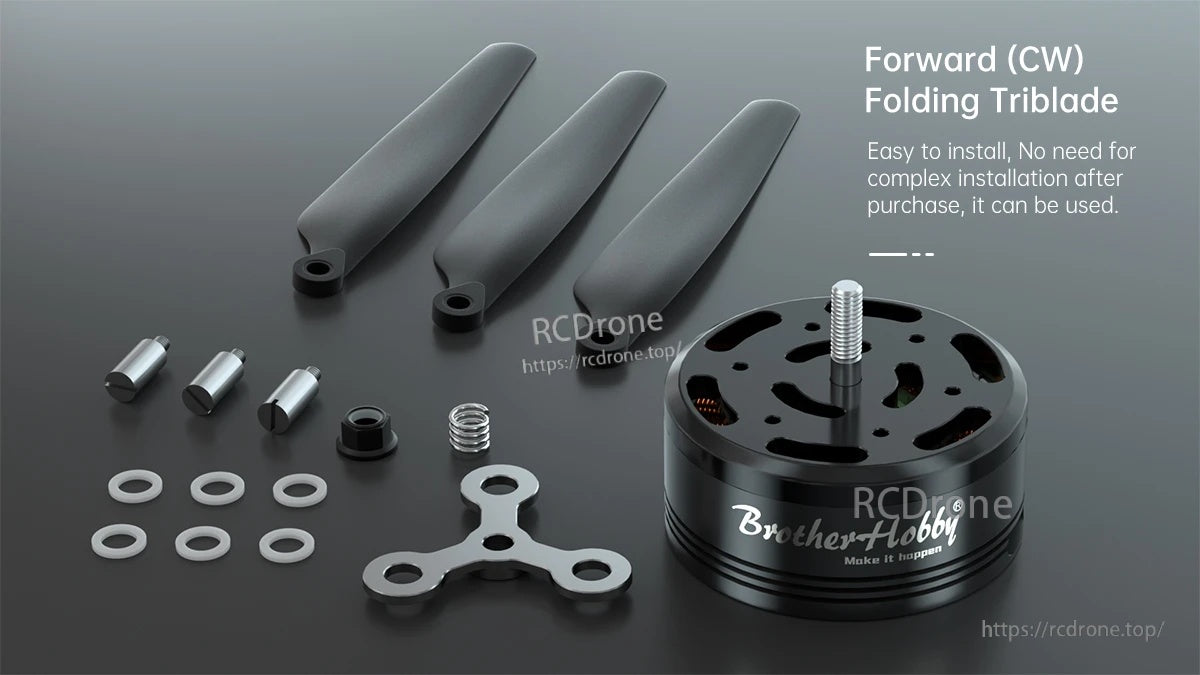

The BrotherHobby Avenger 5210 V5 CW motor is paired with a forward (CW) folding triblade prop and the included screws, washers, and hub parts for installation.

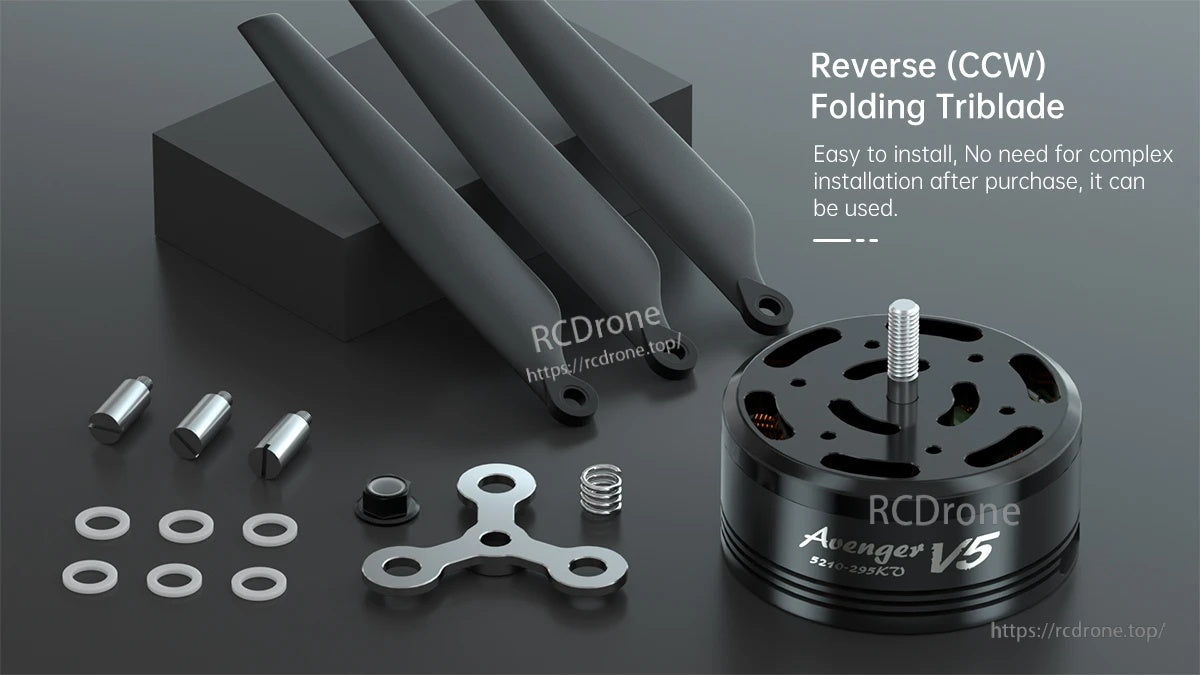

The Avenger V5 brushless motor is shown with a CCW folding triblade prop set and mounting hardware for quick installation.

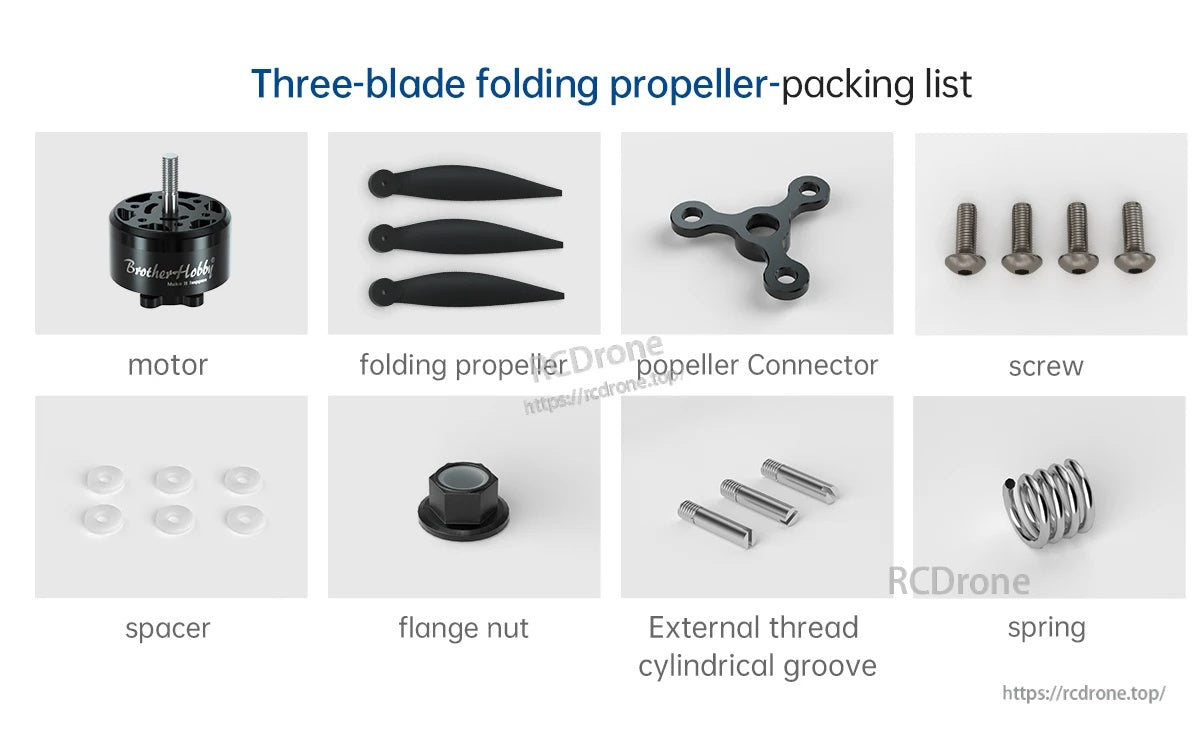

The packing list includes the motor, folding propeller blades, propeller connector, screws, spacers, a flange nut, external-thread pins, and a spring.

The BrotherHobby Avenger 5210 V5 motor spec sheet lists a 298KV rating, 12S setup, 10 mm shaft, and 15x55E triblade prop test data.

BrotherHobby Avenger 5210 V5 365KV CW motor details include a 52×10 stator, 24N28P configuration, 10 mm shaft, and folding 1865 triblade prop test results.
