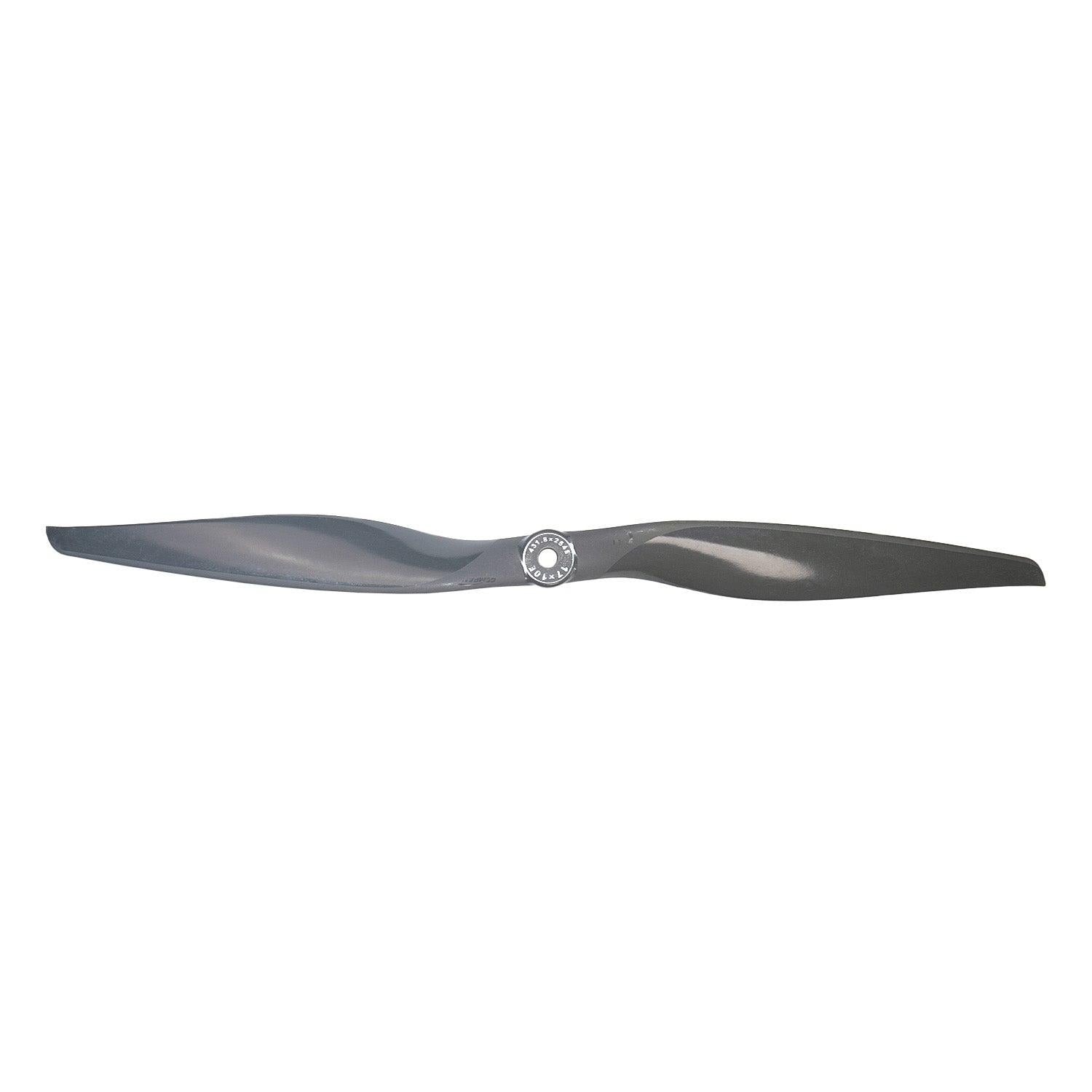

• Single Gemfan Vortex 17x10 propeller, straight-on view showing blade shape and reinforced center hub

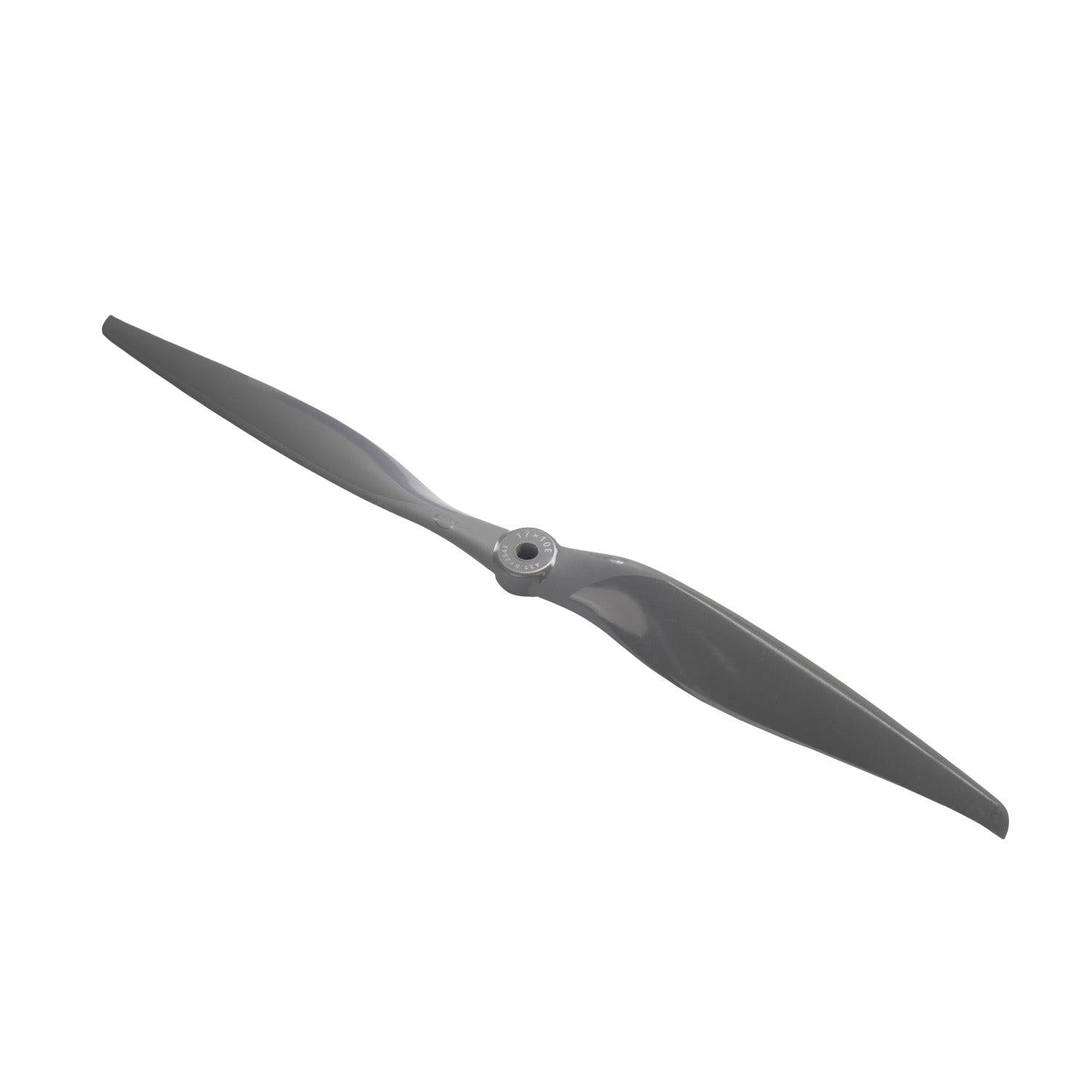

  • Gemfan Vortex 17x10 electric propeller in glass fiber nylon with 6.35mm bore, single blade on white

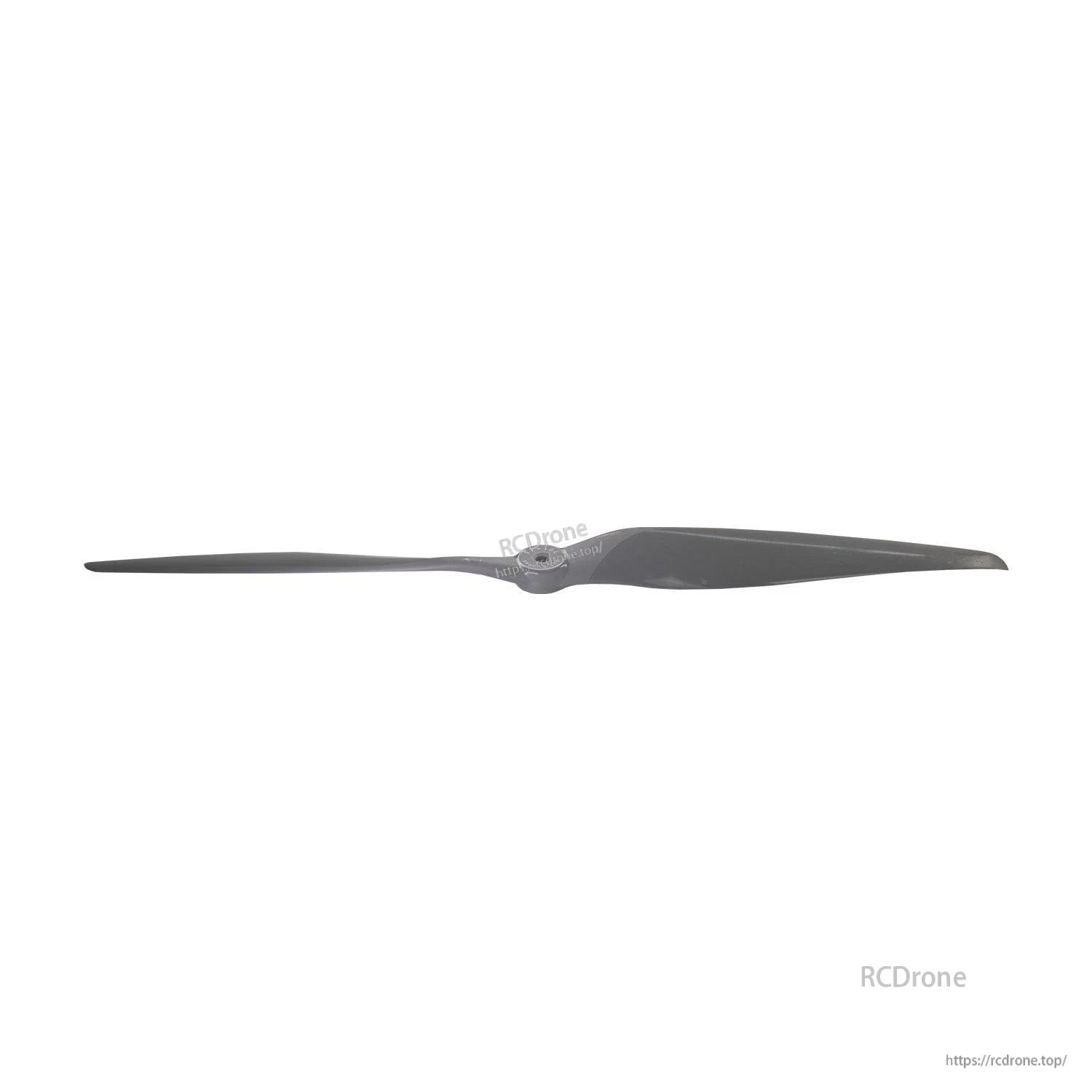

  • Side profile of the 17x10 propeller showing thin airfoil and hub thickness across the center

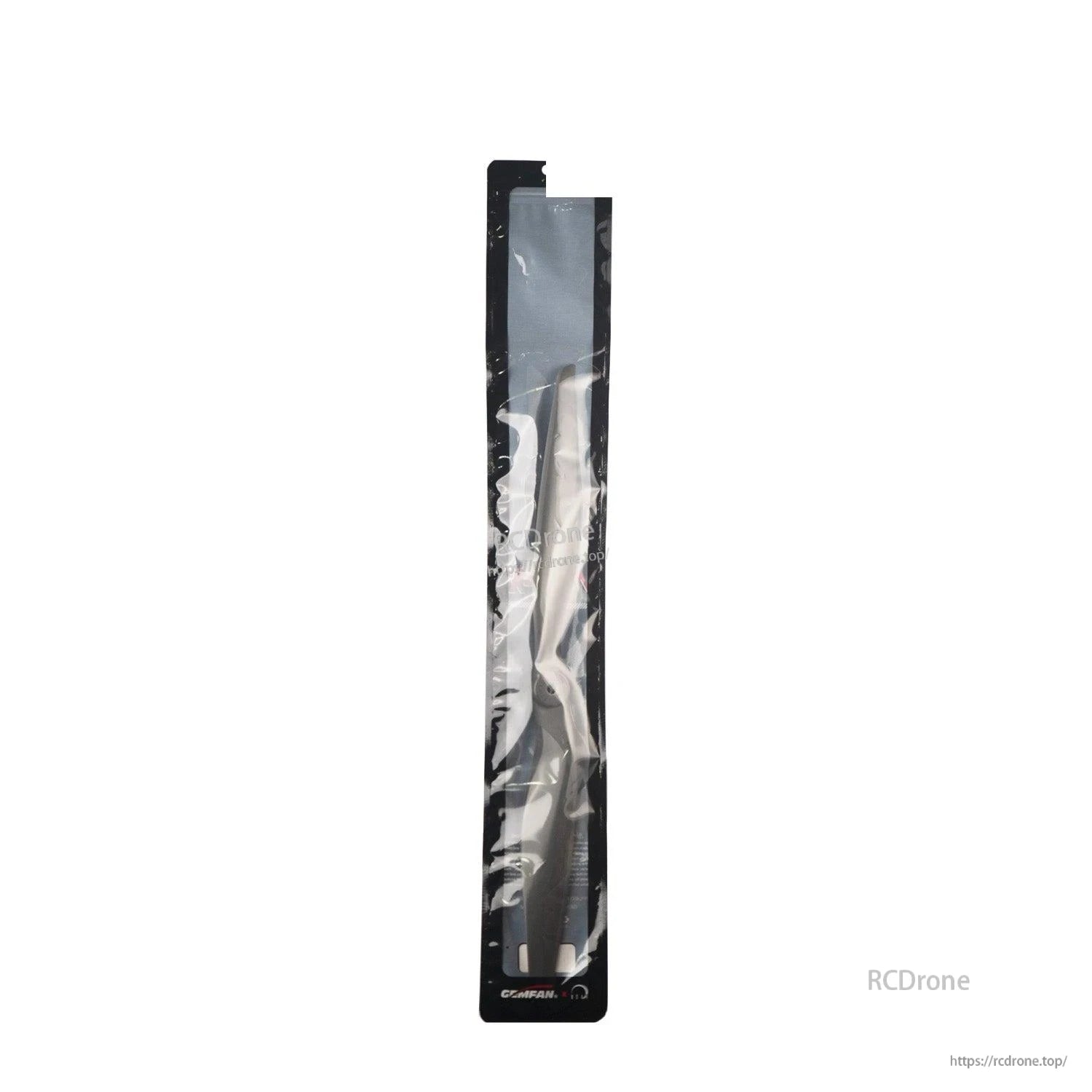

  • Retail package bag with Gemfan propeller inside, tall sealed sleeve on white background
  • Performance chart graphic for Gemfan Vortex propeller with plotted curves and table data (text in Chinese)

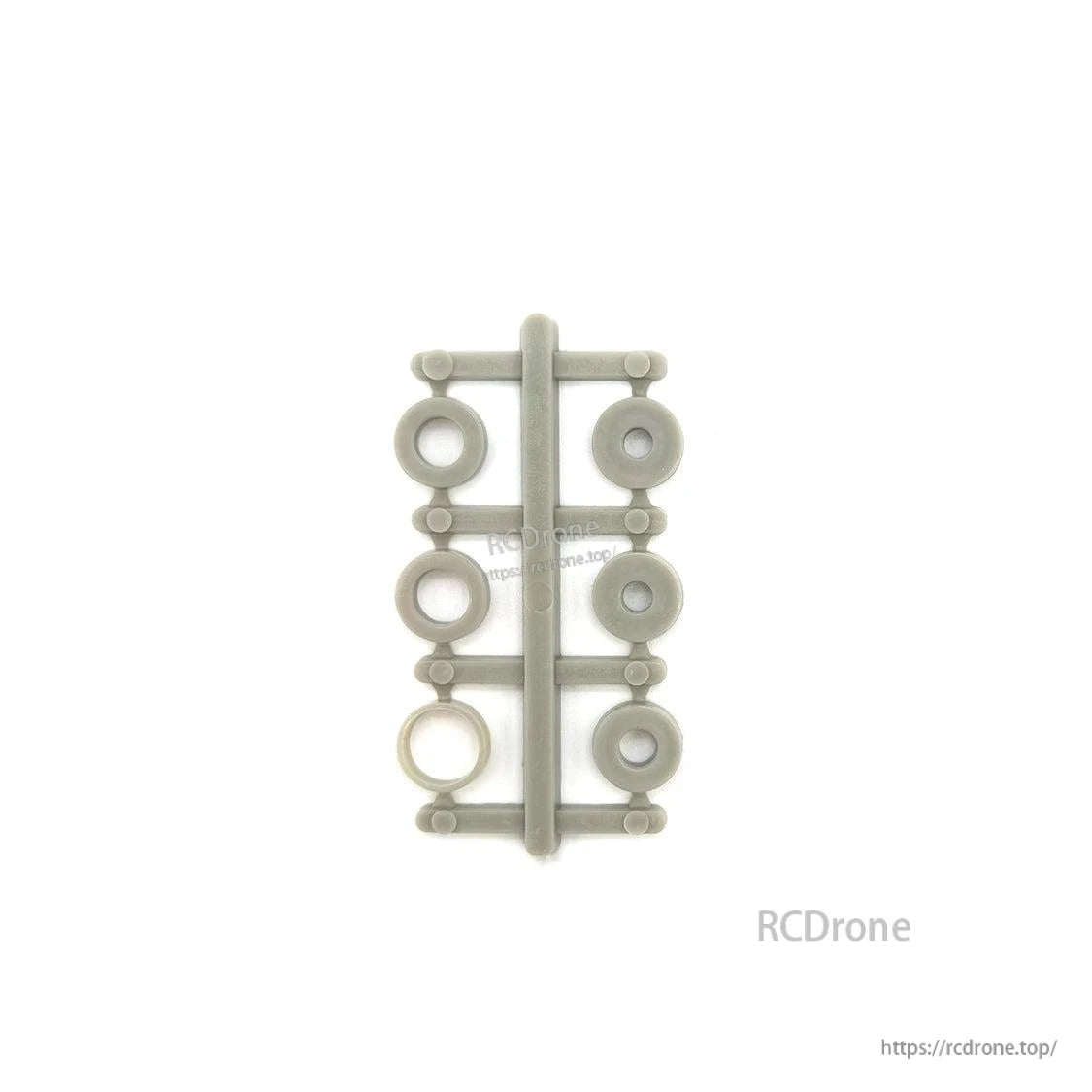

  • Set of included spacer/adapter rings for propeller hub, shown on sprue in gray plastic

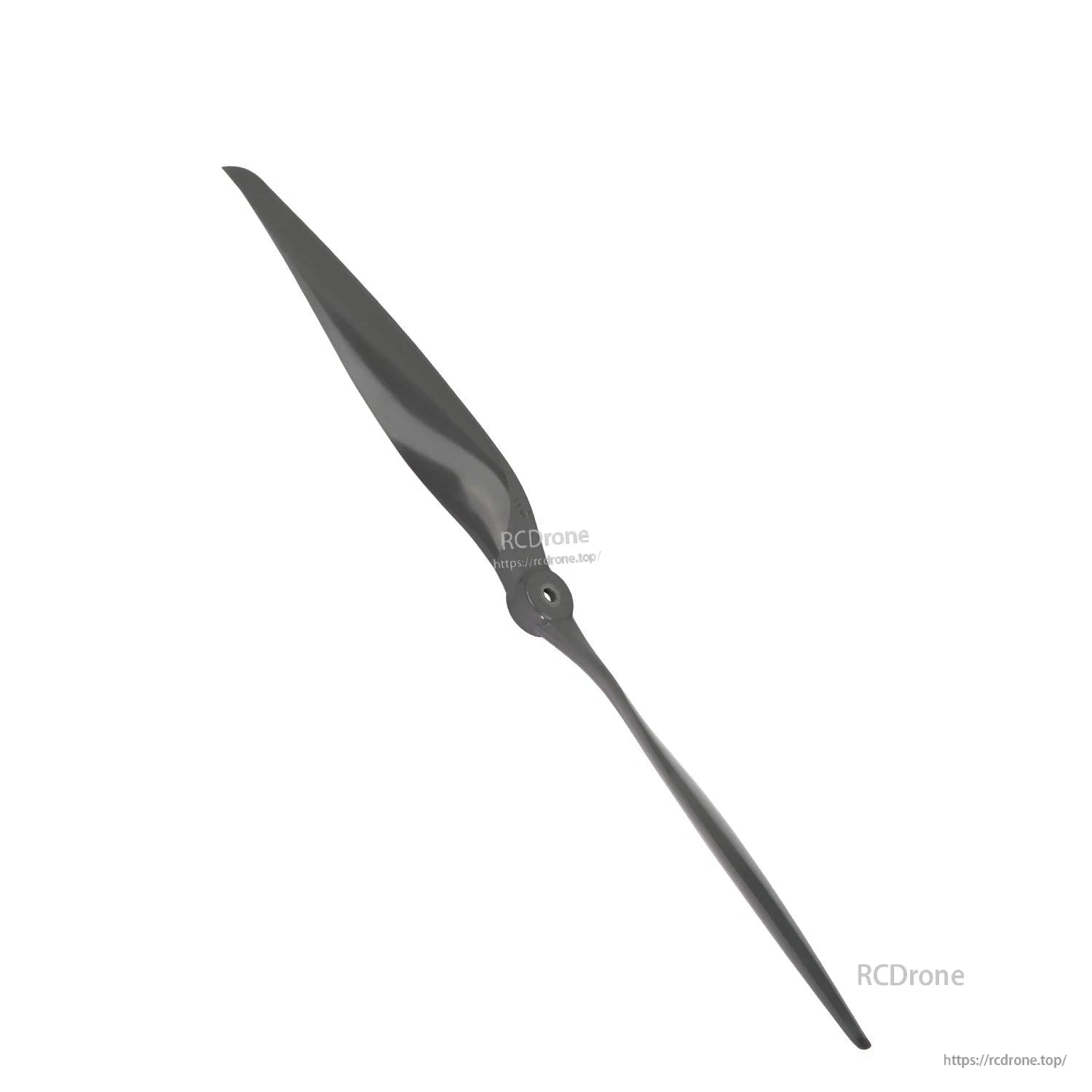

  • Angled view of the 17x10 propeller showing blade twist and hub hole alignment
  • Propeller shown inside clear retail sleeve packaging, alternate view with header card and branding

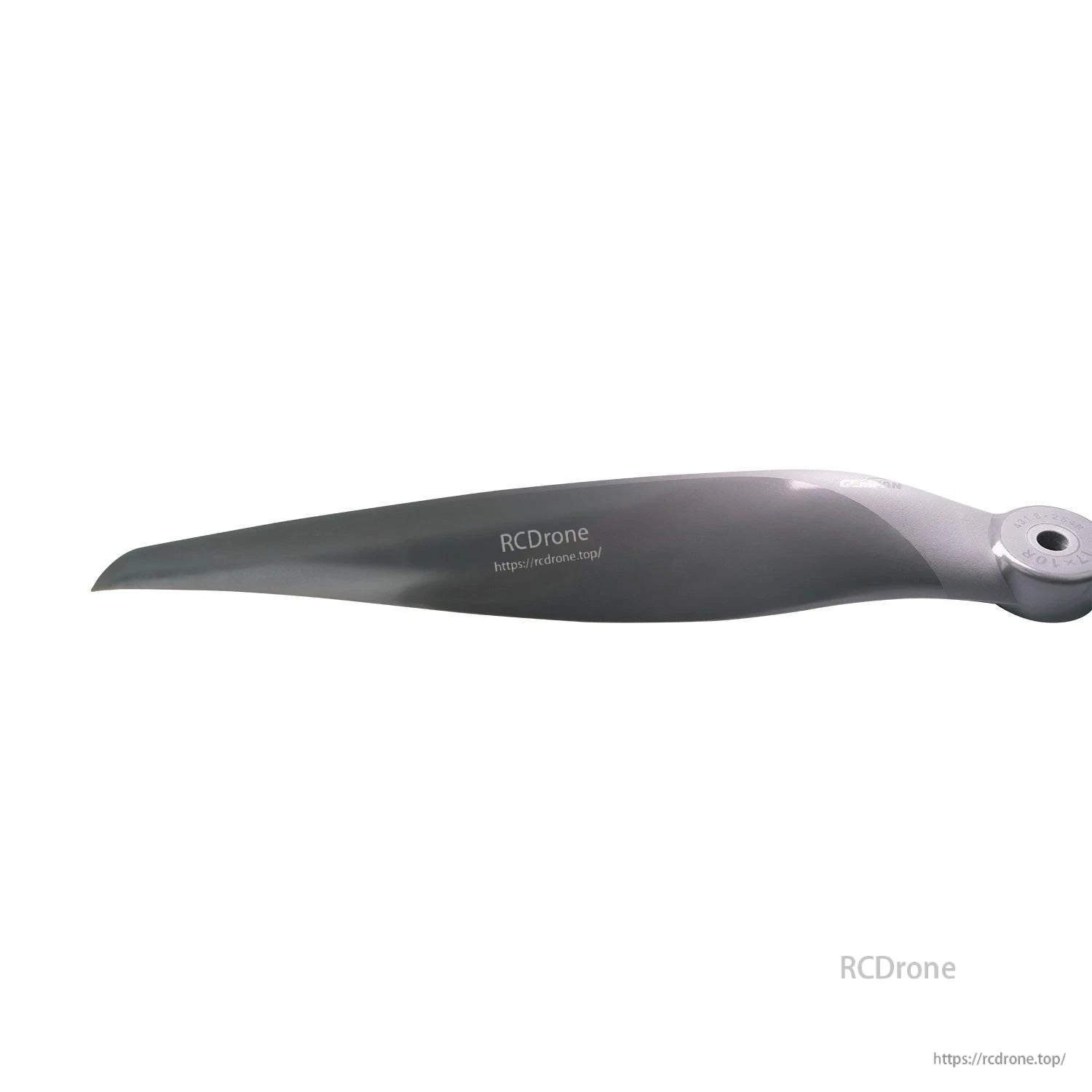

  • Close-up of propeller blade section showing leading edge shape and surface finish near the hub

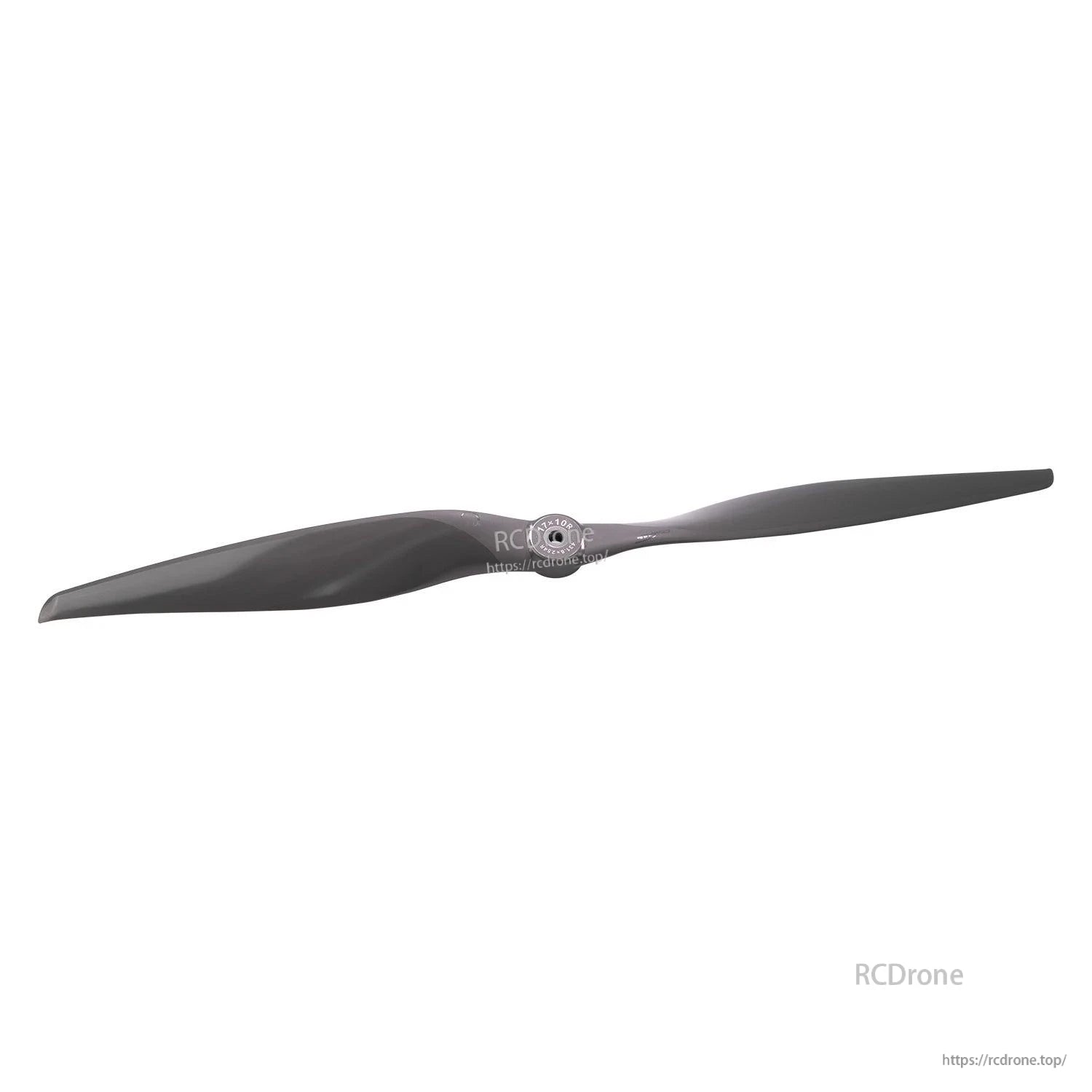

  • Opposite-side view of the 17x10 propeller showing blade curvature and hub from the rear
1 10

Gemfan Vortex 17x10E/17x10R Electric Glass Fiber Nylon Propeller, 6.35mm Bore (1pc/bag)

Gemfan Vortex 17x10E/17x10R Electric Glass Fiber Nylon Propeller, 6.35mm Bore (1pc/bag)

Gemfan

$16.99 USD
$16.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Types
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Gemfan Vortex 17x10E/17x10R is an electric glass fiber nylon propeller with a 17 in blade diameter and 10 in pitch. It is supplied as 1 piece per bag.

Key Features

  • Model: 17x10E / 17x10R
  • Center bore: 6.35 mm / 0.25 in
  • Hub size: 20 mm diameter, 10.2 mm thickness
  • Weight reference: 20.8 g (single blade); 51.34 g (with packaging)

Specifications

Propeller model 17x10E / 17x10R
Material Glass fiber nylon (electric)
Blade diameter 17 in
Blade pitch 10 in
Hub diameter 20 mm
Hub thickness 10.2 mm
Center bore diameter 6.35 mm / 0.25 in
Blade weight (single) 20.8 g
Product weight (with packaging) 51.34 g

Static Test Data (Reference)

  • Test setup label: GemFan & Xoar Vortex 17x10, 6360 190kv
  • Voltage: 44.4 V
Throttle (%) 10 20 30 40 50 60 70 80 90 100
Current (A) 1.26 2.6 4.26 6.63 8.9 11.66 16.02 21.97 31.04 34.19
Thrust (g) 316 840 1344 1964 2497 3009 3801 4586 5941 6340
Efficiency (g/W) 5.6 7.3 7.1 6.7 6.3 5.8 5.4 4.7 4.3 4.2

Test data is provided as a reference for a static bench setup; results will vary with motor, ESC, battery, airframe, and operating conditions.

What’s Included

  • Gemfan Vortex 17x10E or 17x10R propeller (1 piece/bag)

For compatibility checks (E/R selection, shaft/bore fit, hub mounting), contact support@rcdrone.top or visit https://rcdrone.top/.

Details

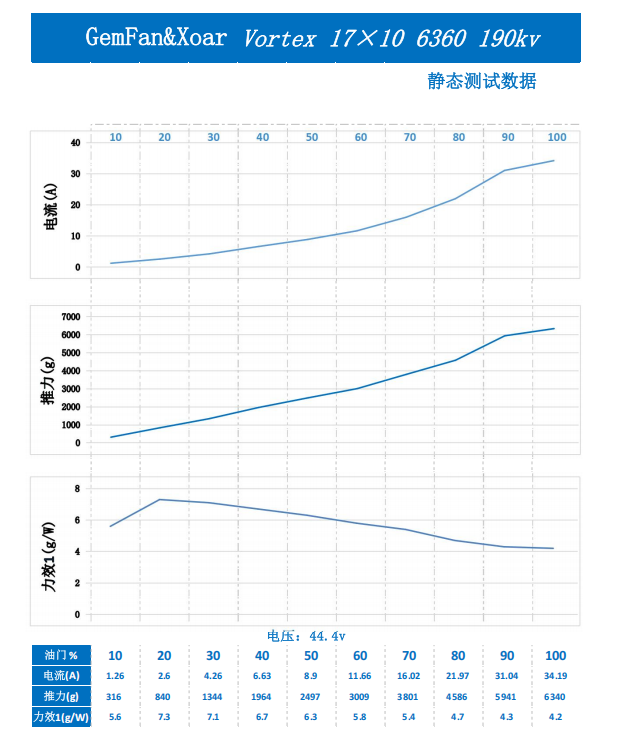

Static bench test charts for Gemfan Vortex 17x10 propeller on 6360 190KV at 44.4V (current, thrust, efficiency)

Reference static test data at 44.4V (6360 190KV) summarizes current draw, thrust, and efficiency across the throttle range for the Vortex 17x10 prop.
