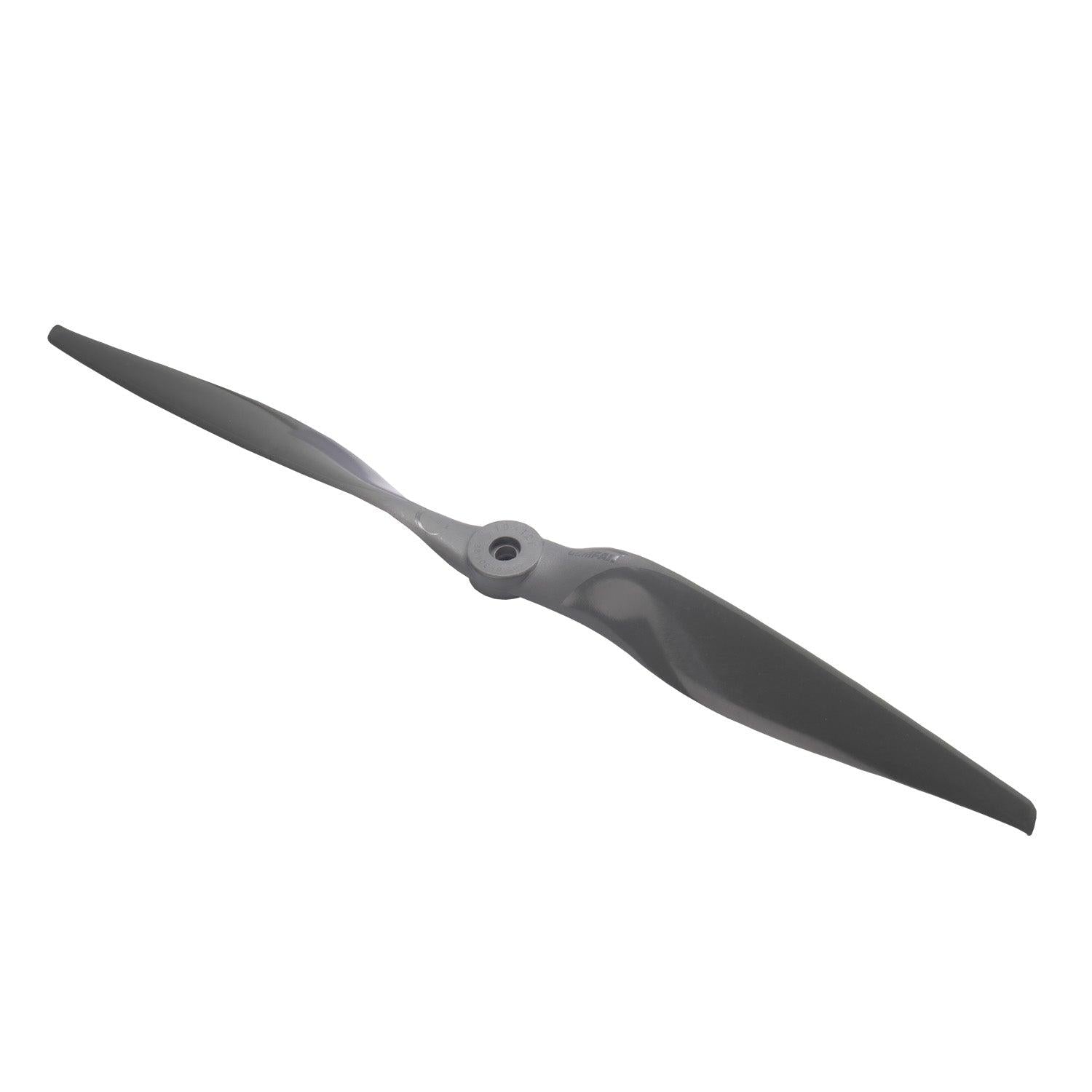

Gemfan VORTEX 19x10E / 19x10R Electric Propeller, Glass-Fiber Nylon, 6.35mm Bore, 1pc/Bag

Gemfan

$22.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Types 19x10e 19X10R

Options 1Bag 4Bags

Quantity

View full details

Overview

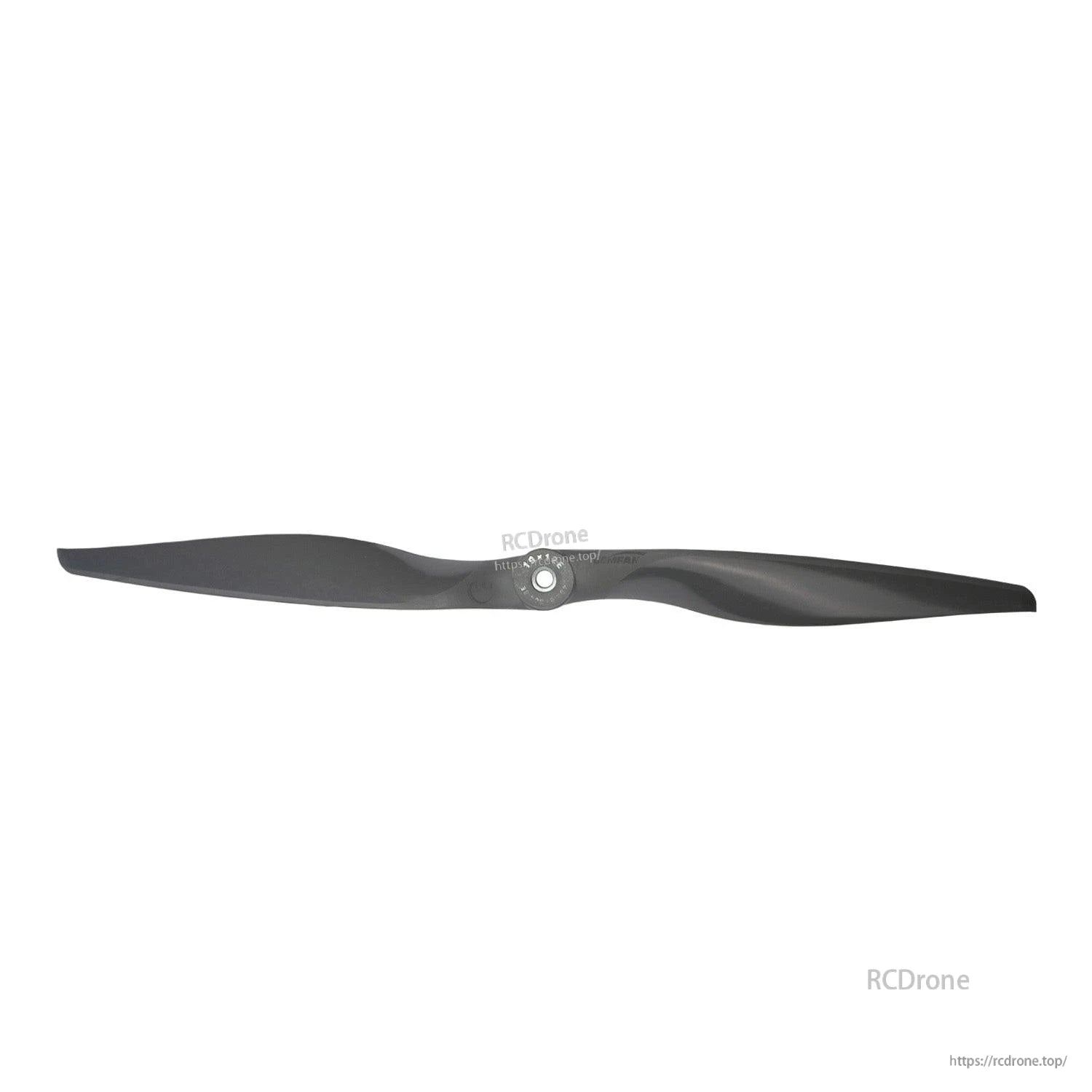

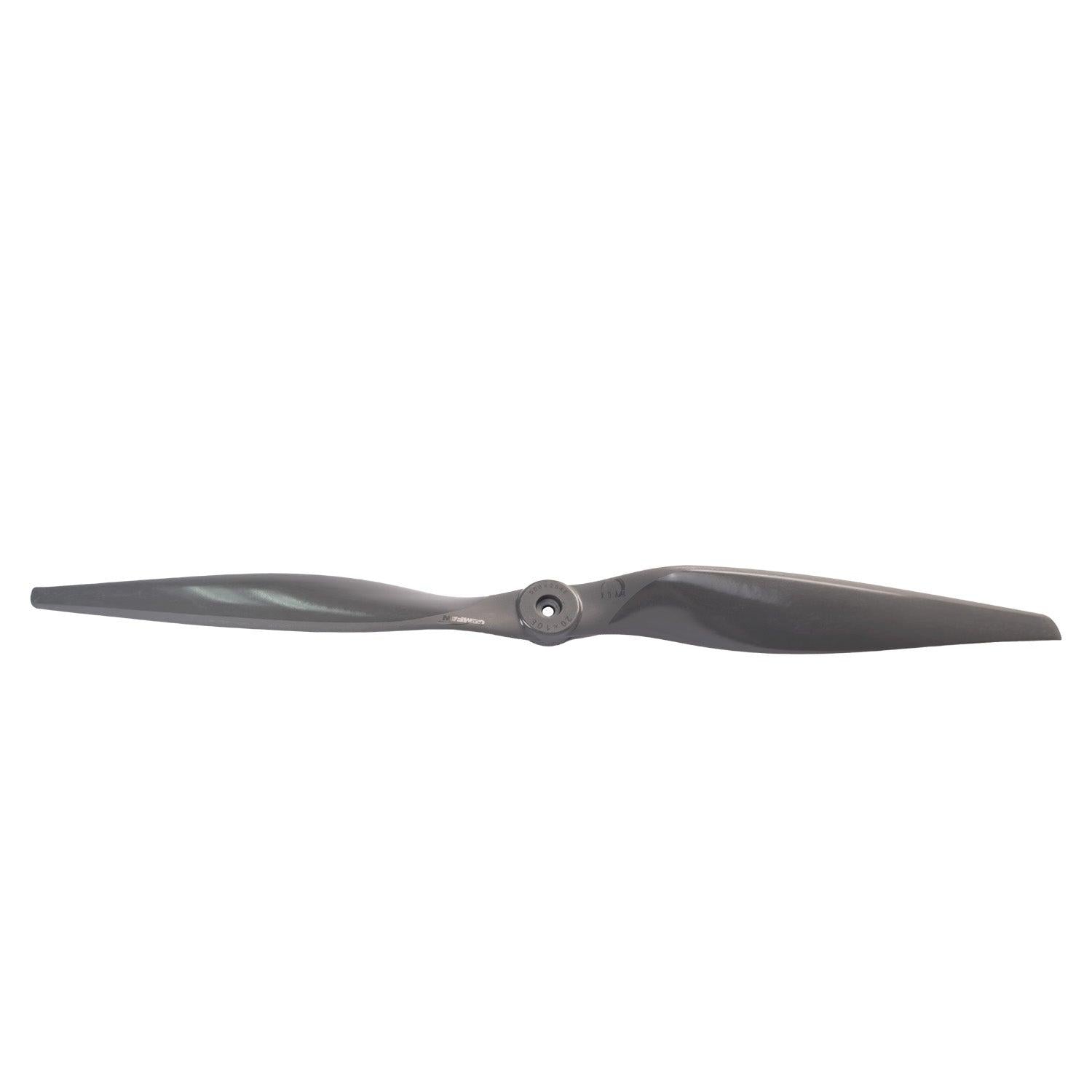

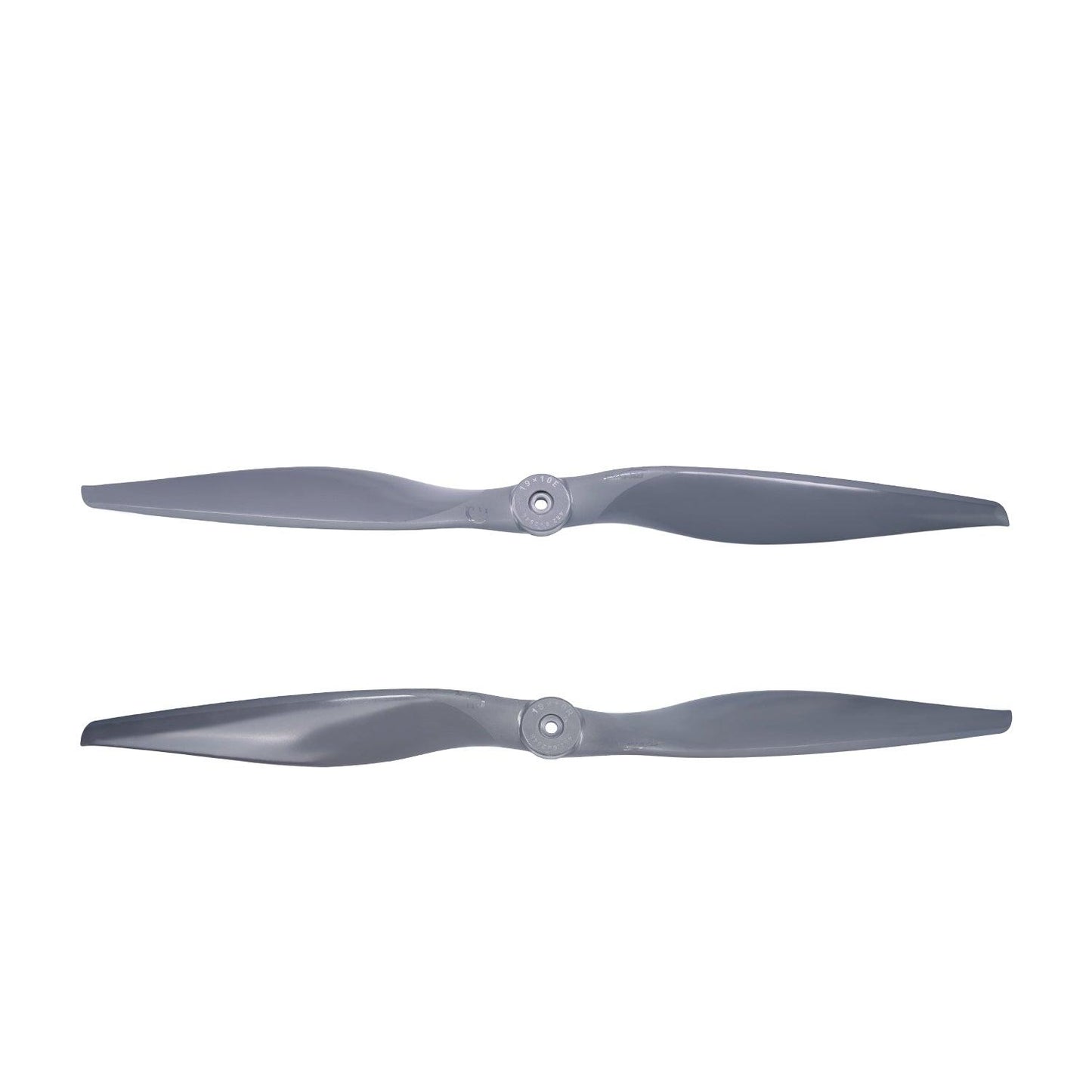

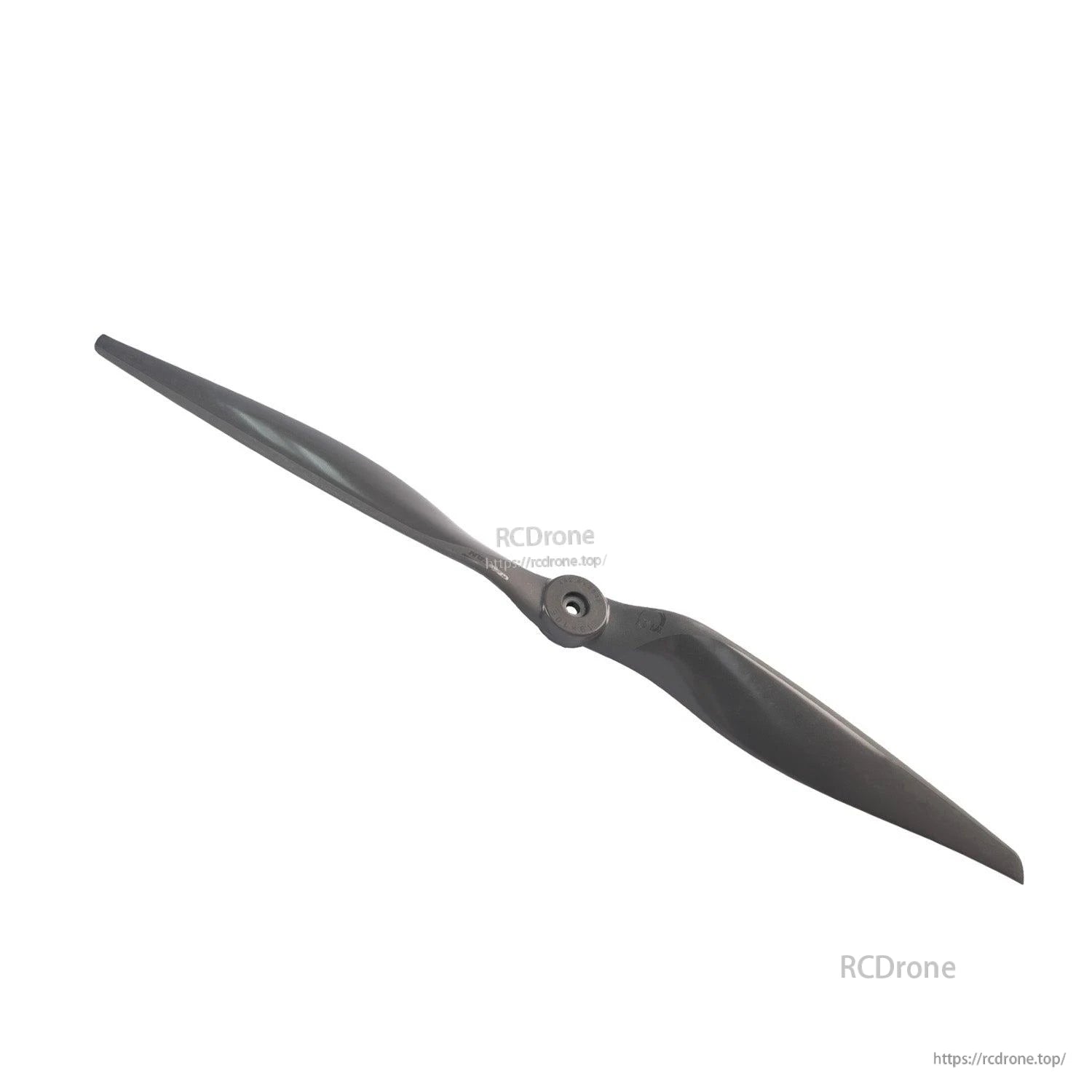

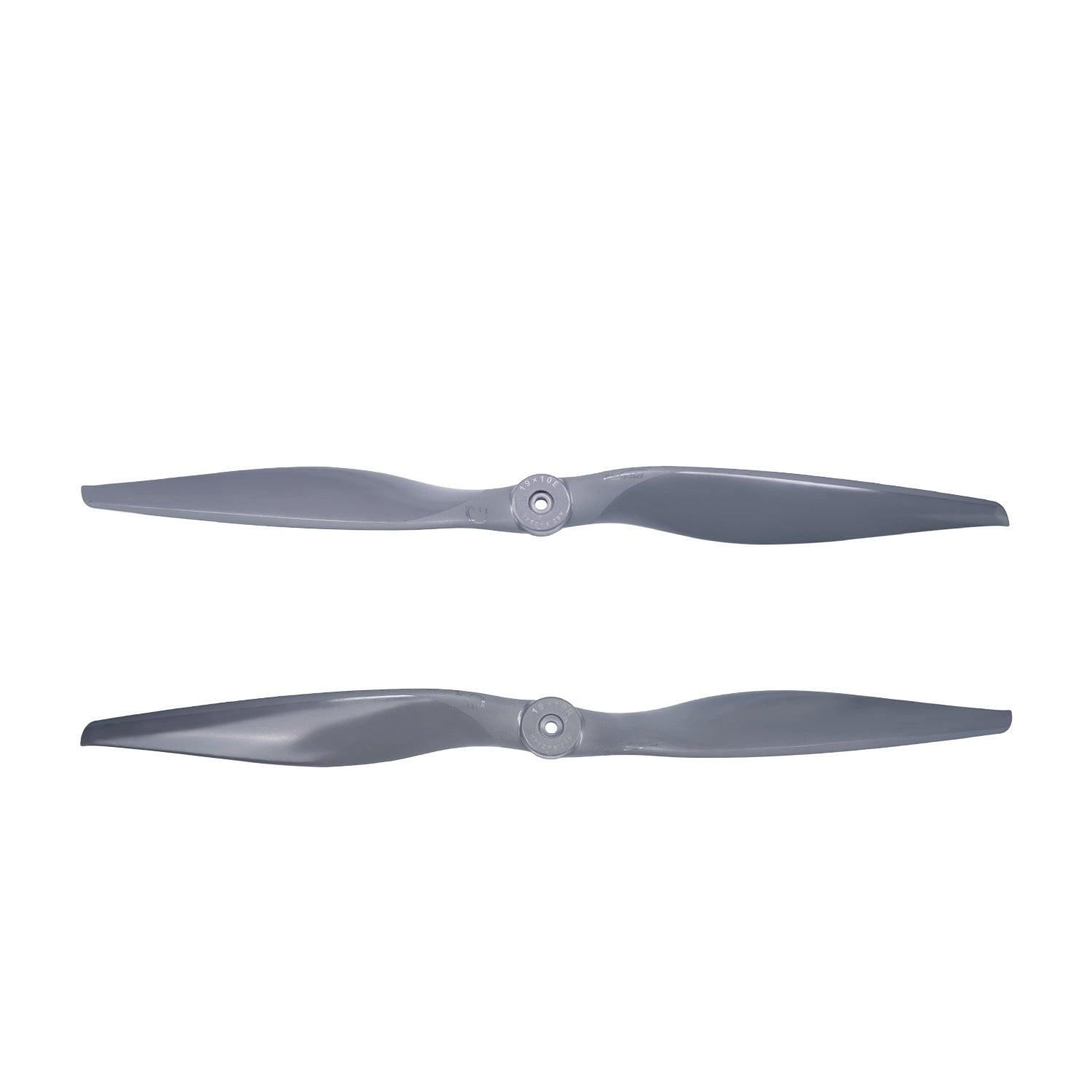

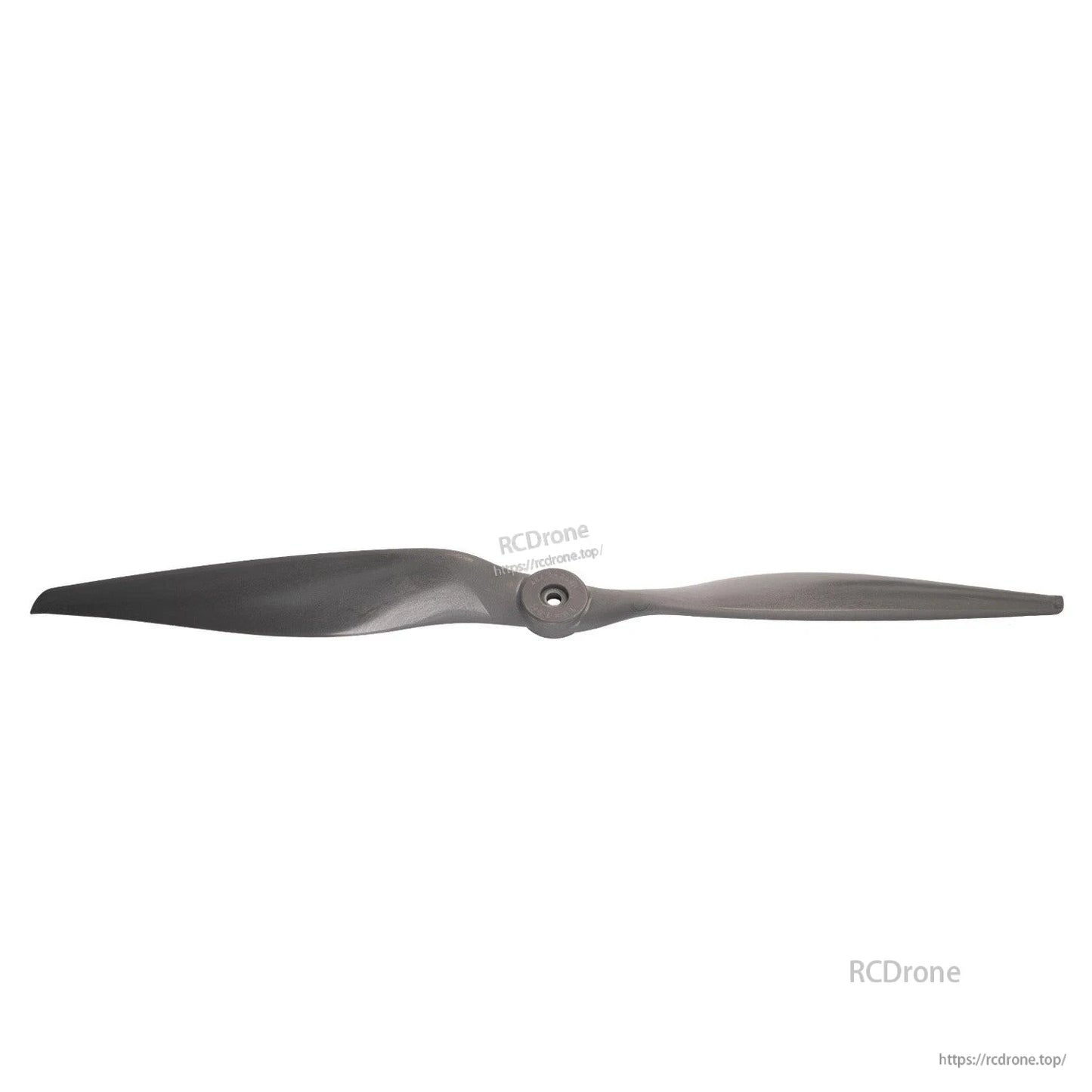

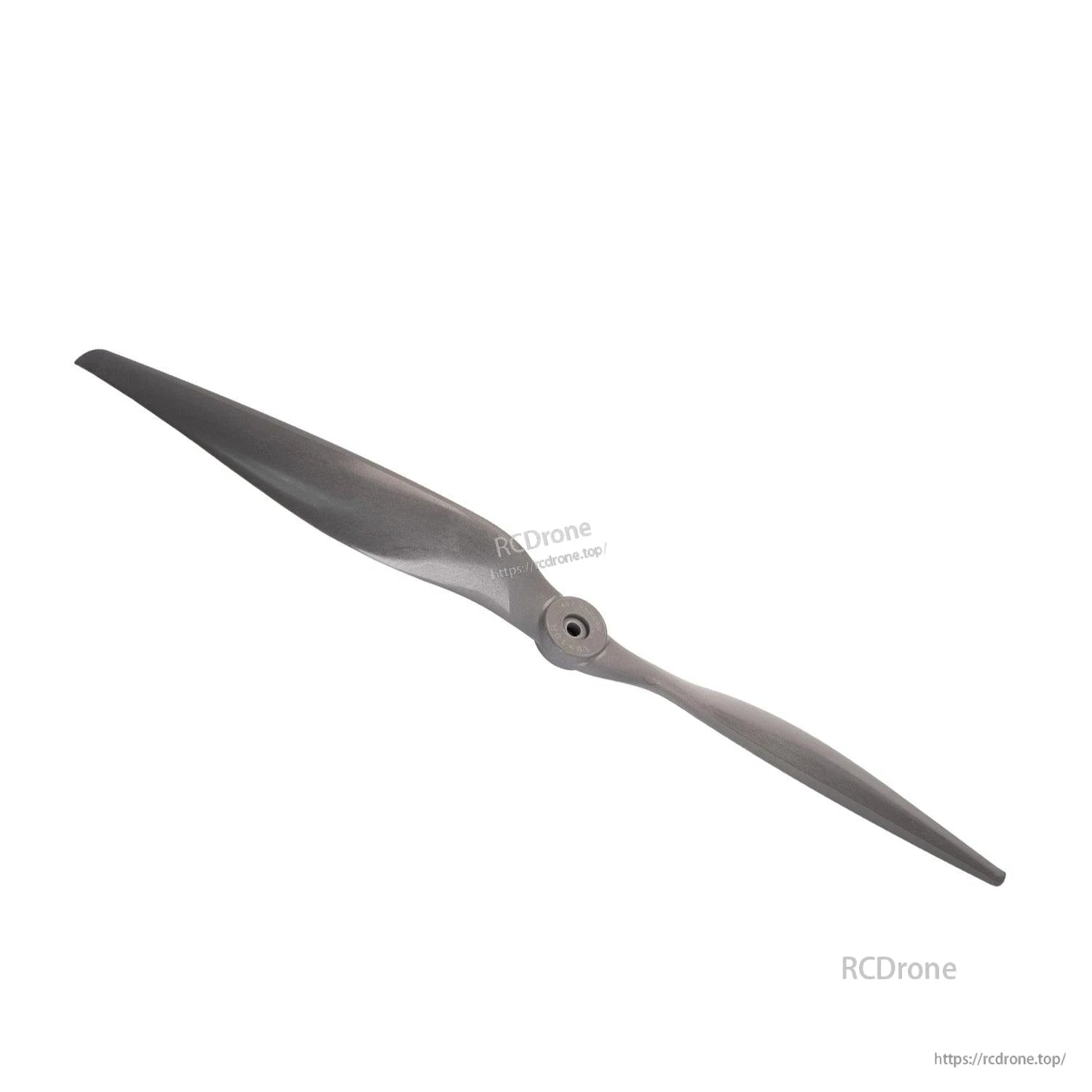

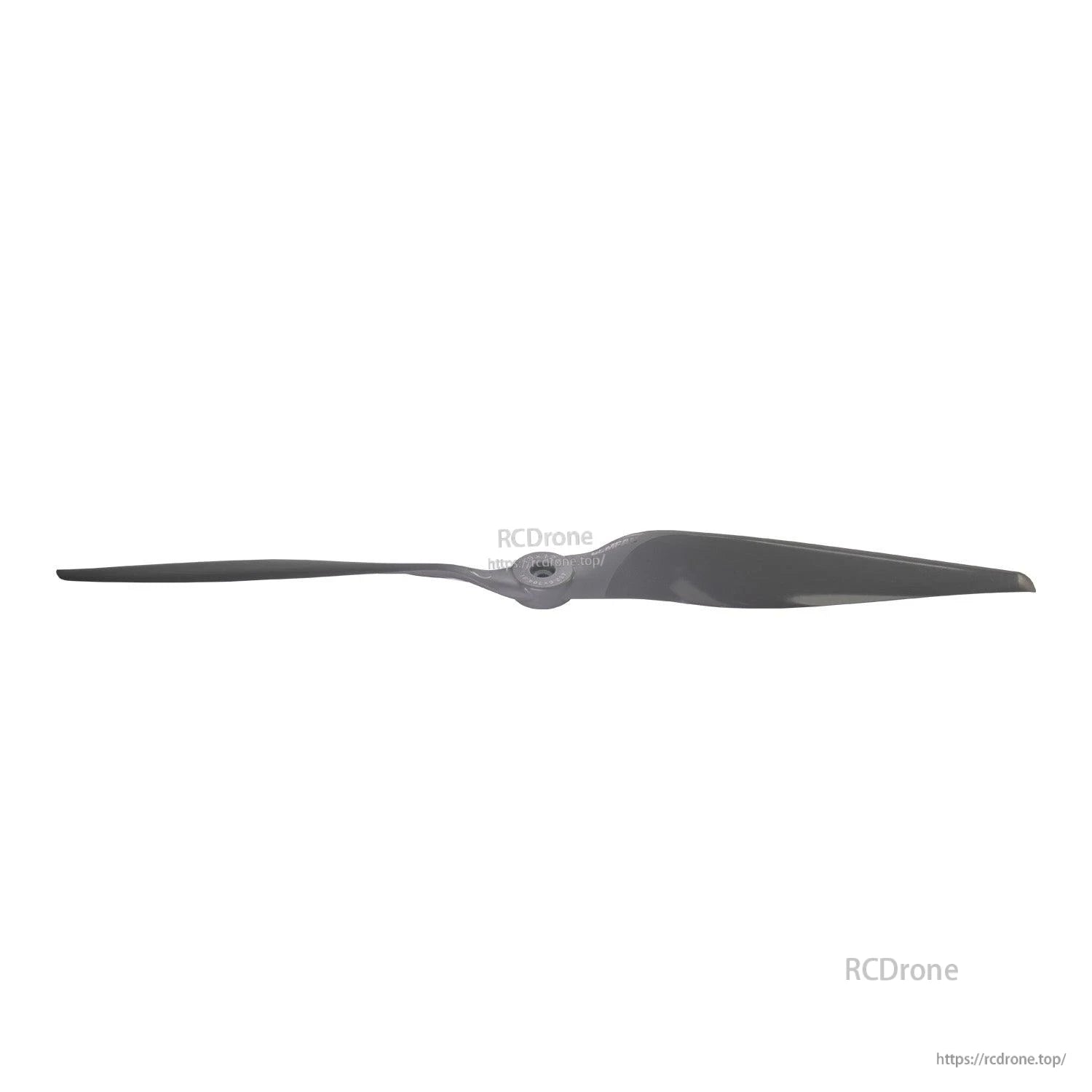

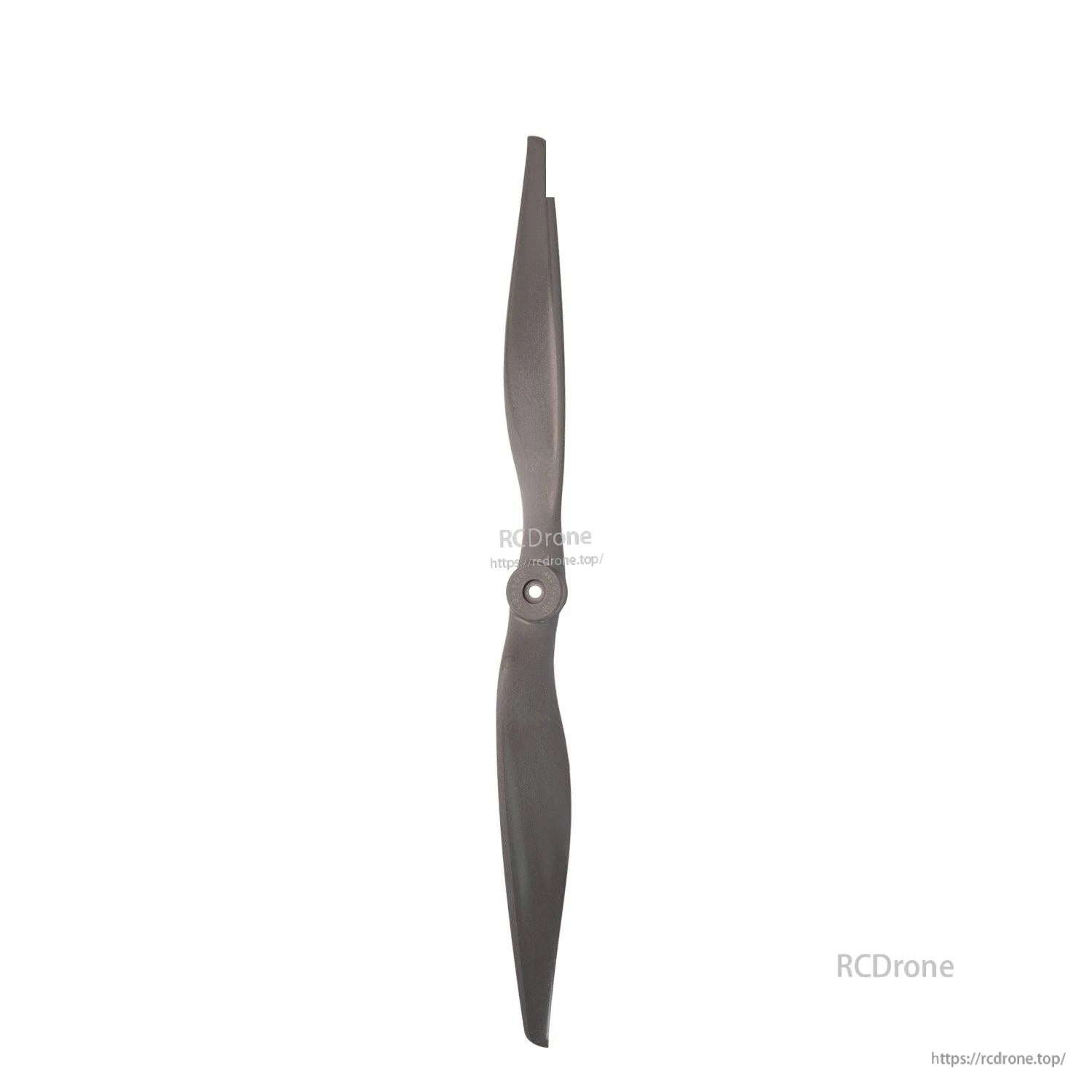

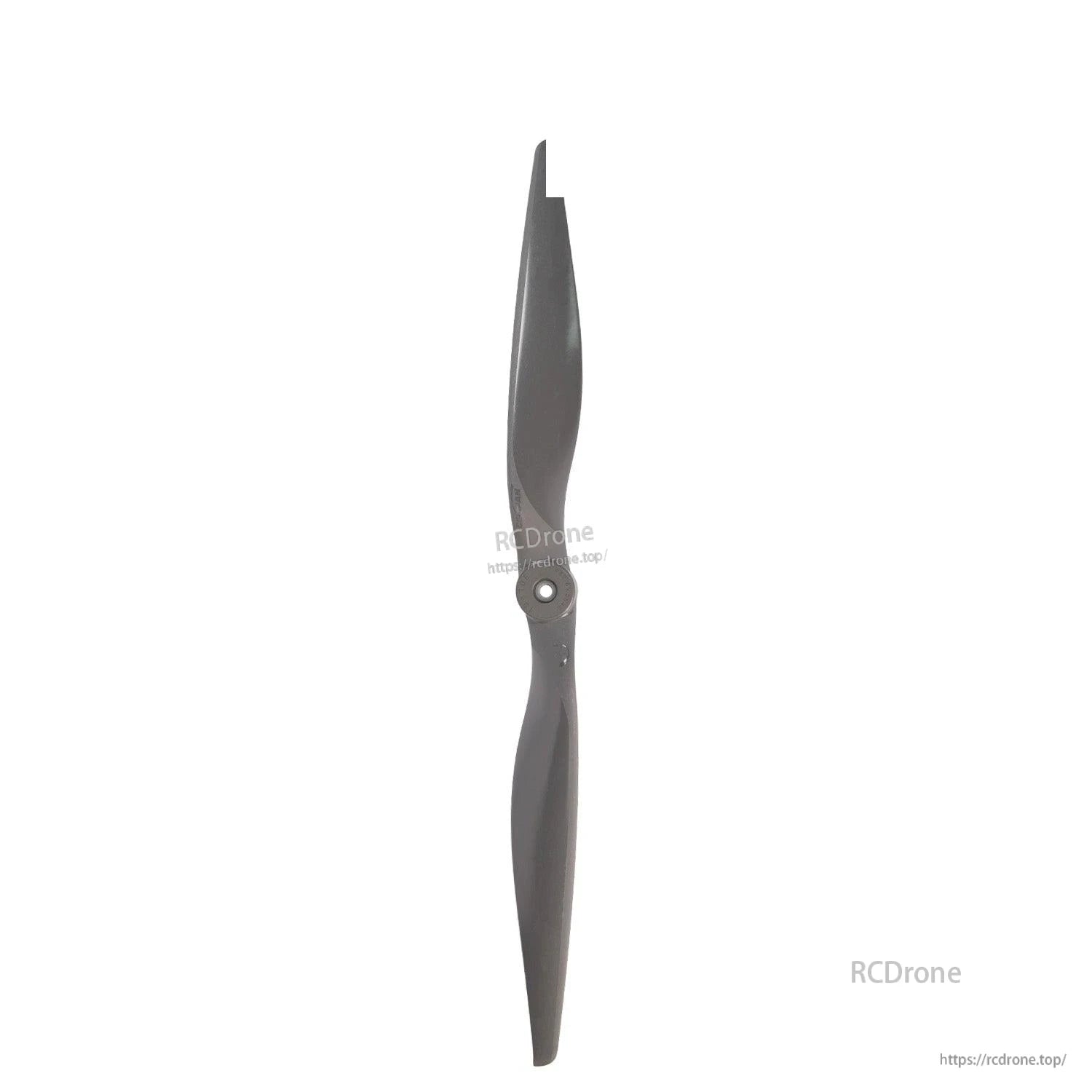

Gemfan VORTEX propeller in 19x10E or 19x10R (Dark Gray), made from glass-fiber nylon for electric propulsion setups. Key dimensions include a 19 in diameter, 10 in pitch, and a 6.35 mm (0.25 in) center bore.

Key Features

Model options: 19X10E or 19X10R
19 in diameter and 10 in pitch
31.5 mm hub diameter with 12.7 mm hub thickness
6.35 mm / 0.25 in center bore
Single blade weight: 83.75 g

Specifications

Series	VORTEX
Model	19X10E / 19X10R
Color	Dark Gray
Material	Glass-fiber nylon
Propeller diameter	19 in
Propeller pitch	10 in
Hub diameter	31.5 mm
Hub thickness	12.7 mm
Center bore diameter	6.35 mm / 0.25 in
Single blade weight	83.75 g
Product weight (with packaging)	96.64 g

What’s Included

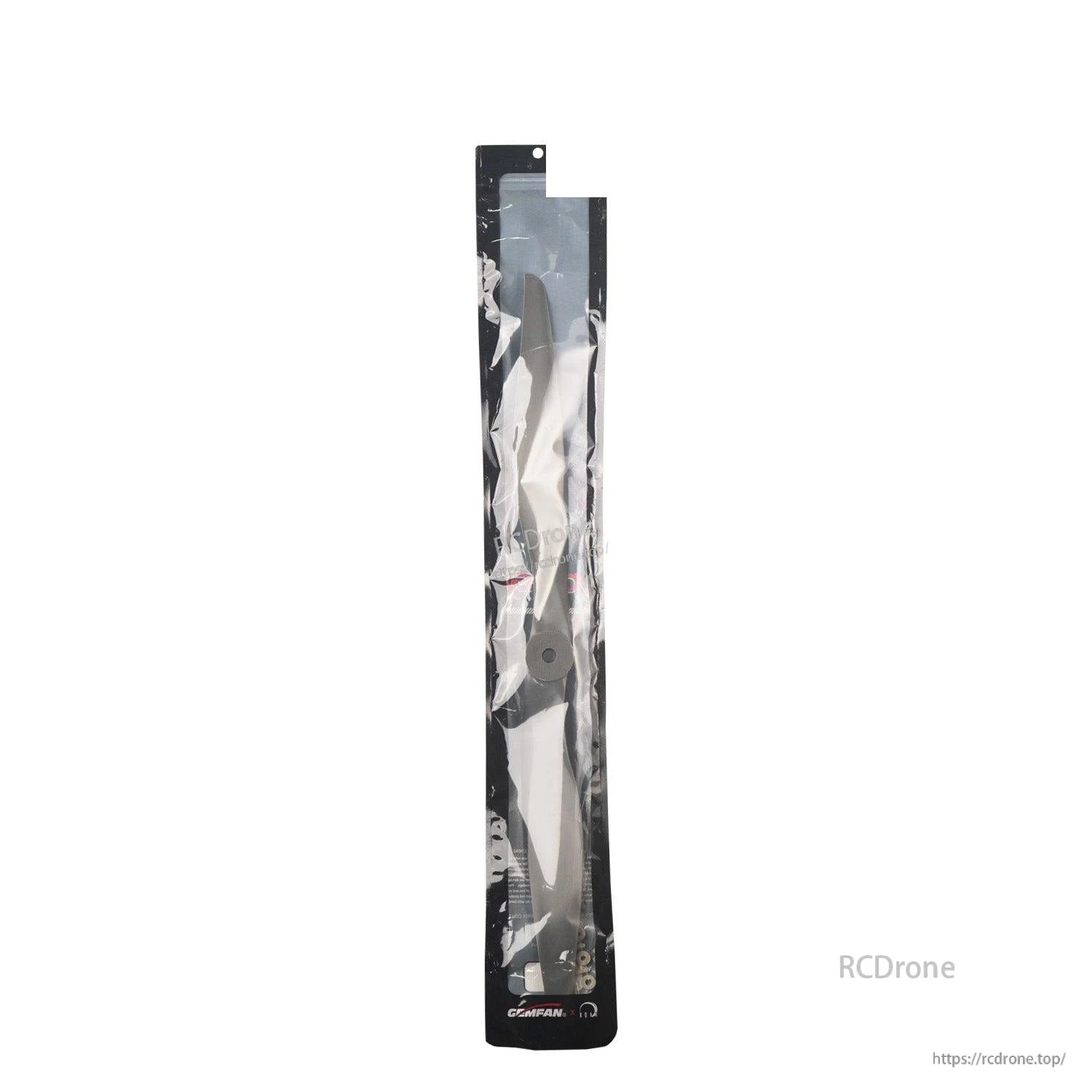

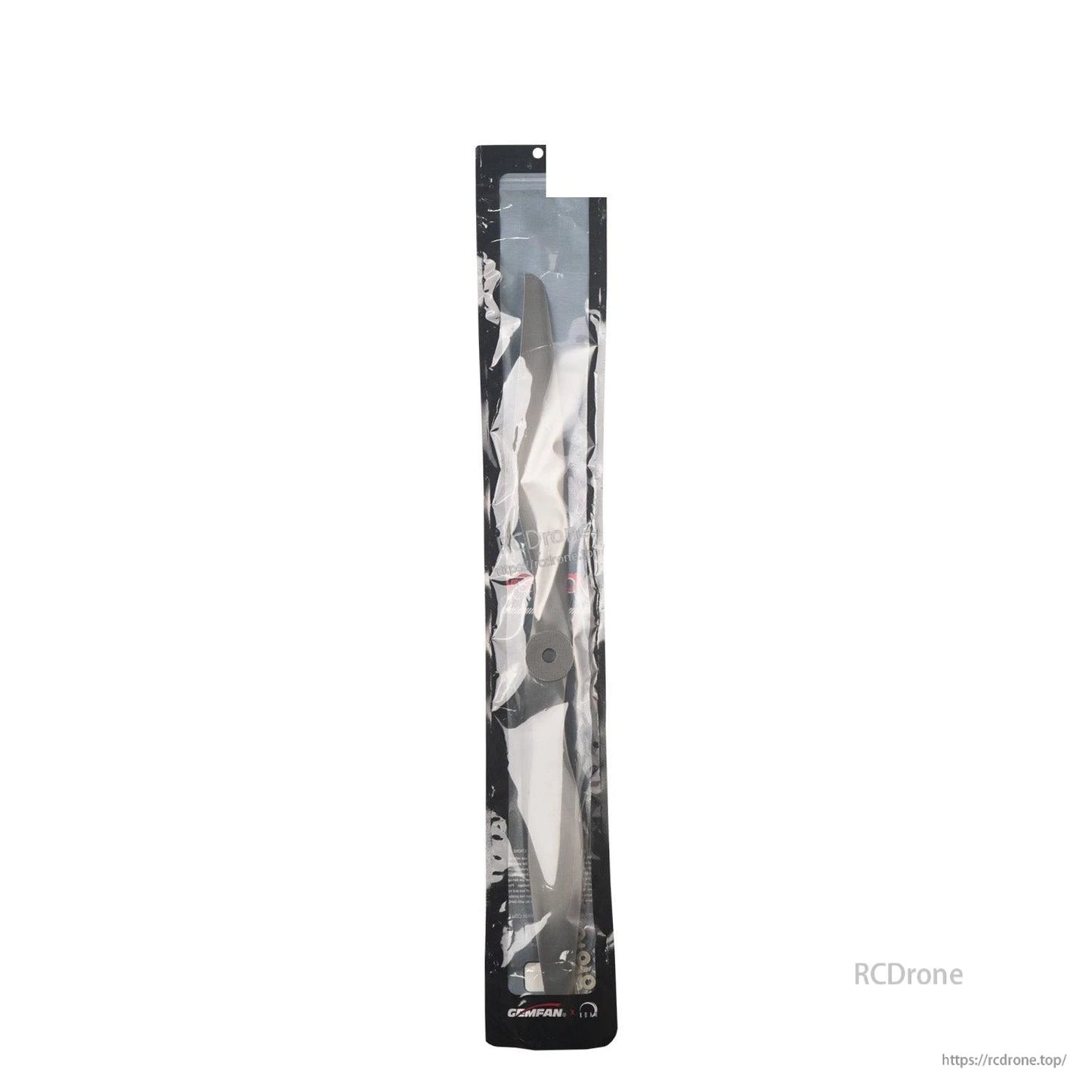

1 pcs 19X10E or 19X10R propeller (1 pc/bag)

For compatibility and ordering support, contact support@rcdrone.top or visit https://rcdrone.top/.

Static Test Data (Reference)

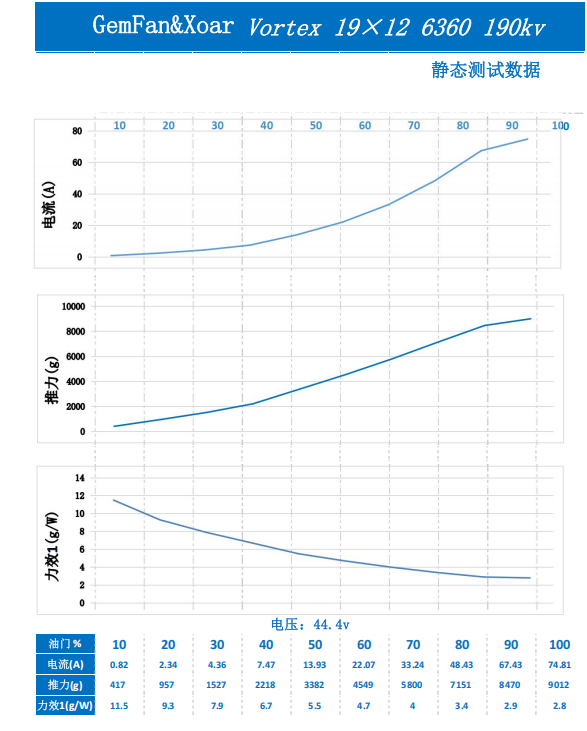

The following static test data is shown for: GemFan&Xoar Vortex 19x12 with 6360 190kv at 44.4 V.

Throttle (%)	10	20	30	40	50	60	70	80	90	100
Current (A)	0.82	2.34	4.36	7.47	13.93	22.07	33.24	48.43	67.43	74.81
Thrust (g)	417	957	1527	2218	3382	4549	5800	7151	8470	9012
Efficiency (g/W)	11.5	9.3	7.9	6.7	5.5	4.7	4.0	3.4	2.9	2.8
