Gemfan VORTEX 20x10 Electric Propeller, Glass Fiber Nylon (20X10E/20X10R) Dark Gray, 1pc/bag

Gemfan

$25.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Types 20X10E 20X13E 20X10R 20X13R

Options 1Bag 4Bags

Quantity

View full details

Overview

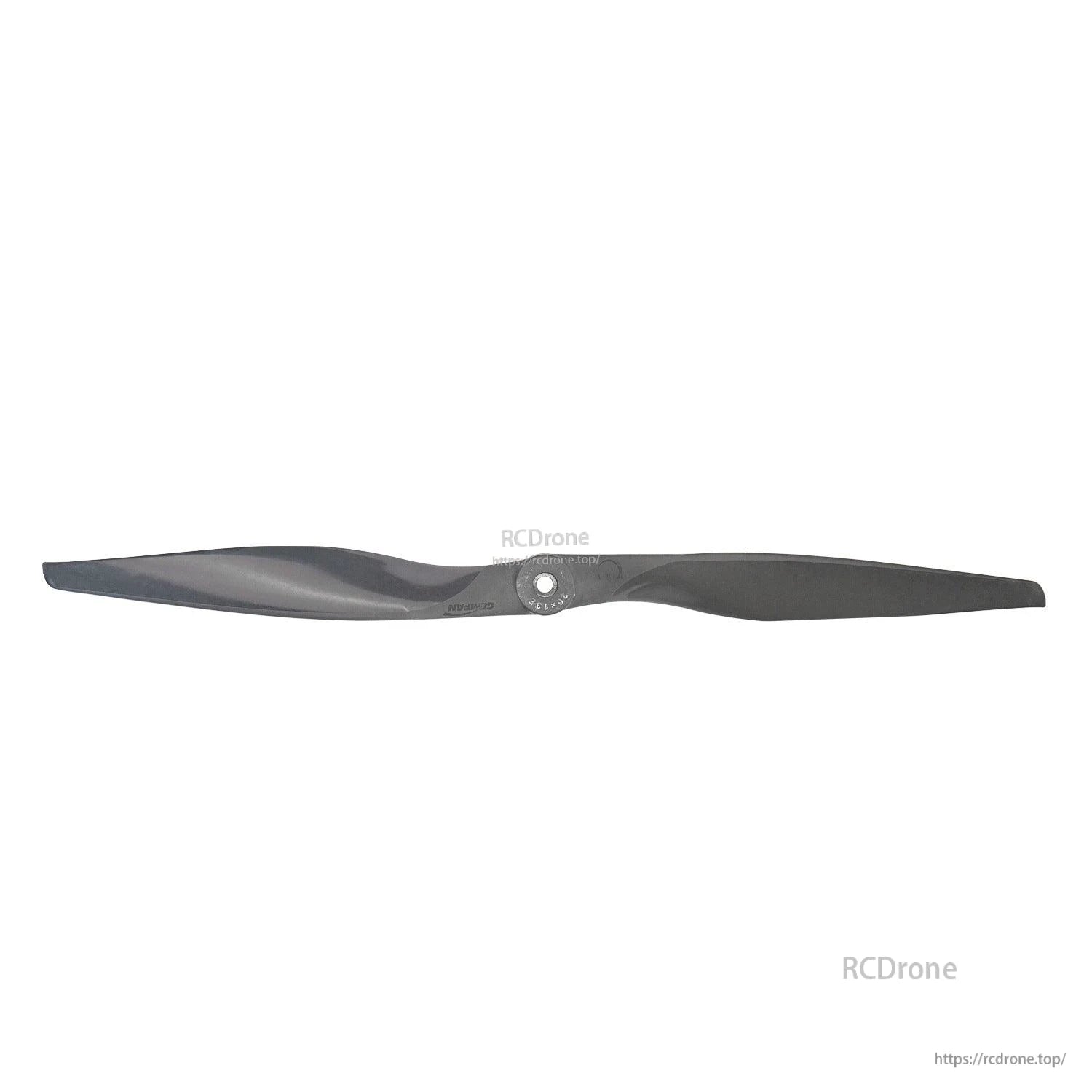

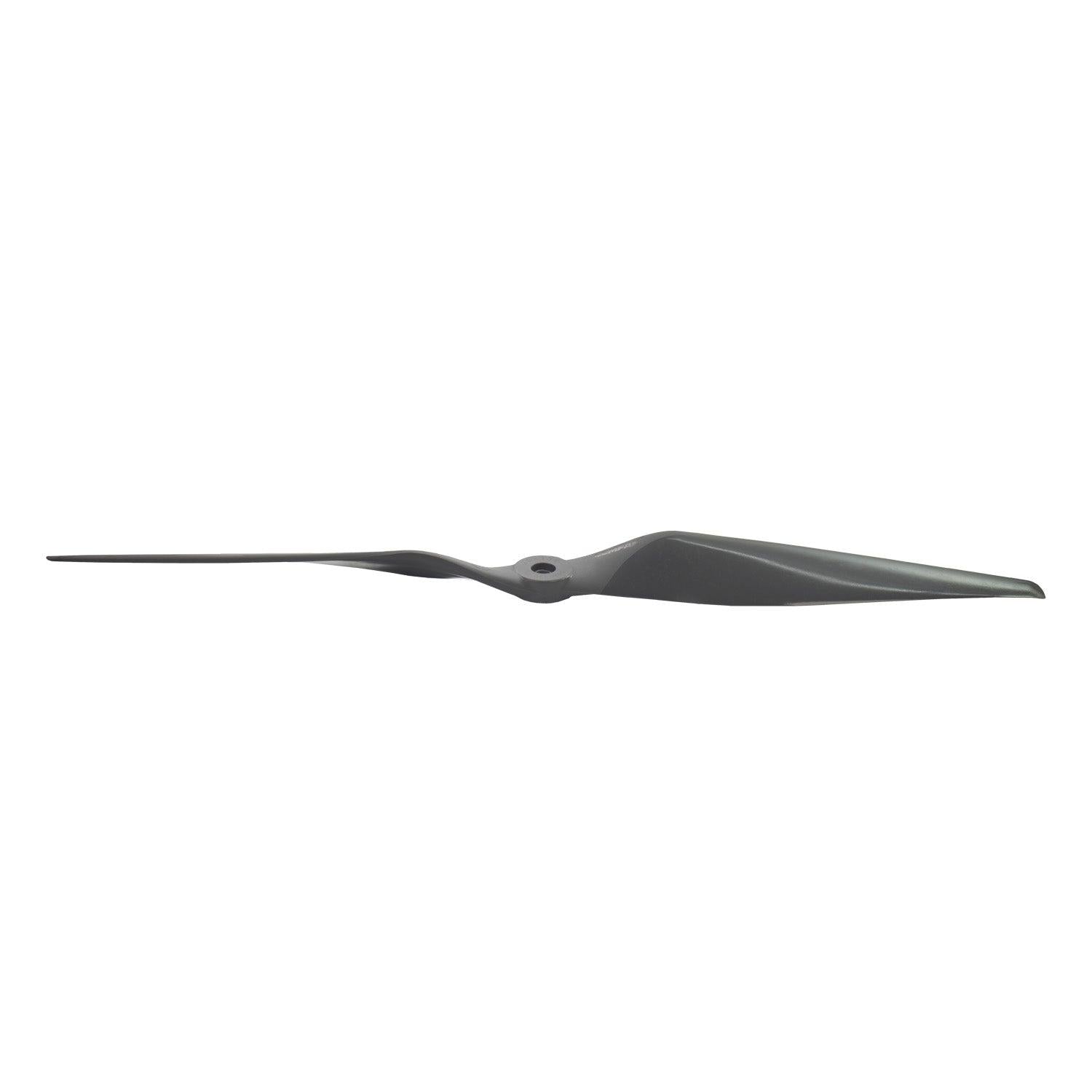

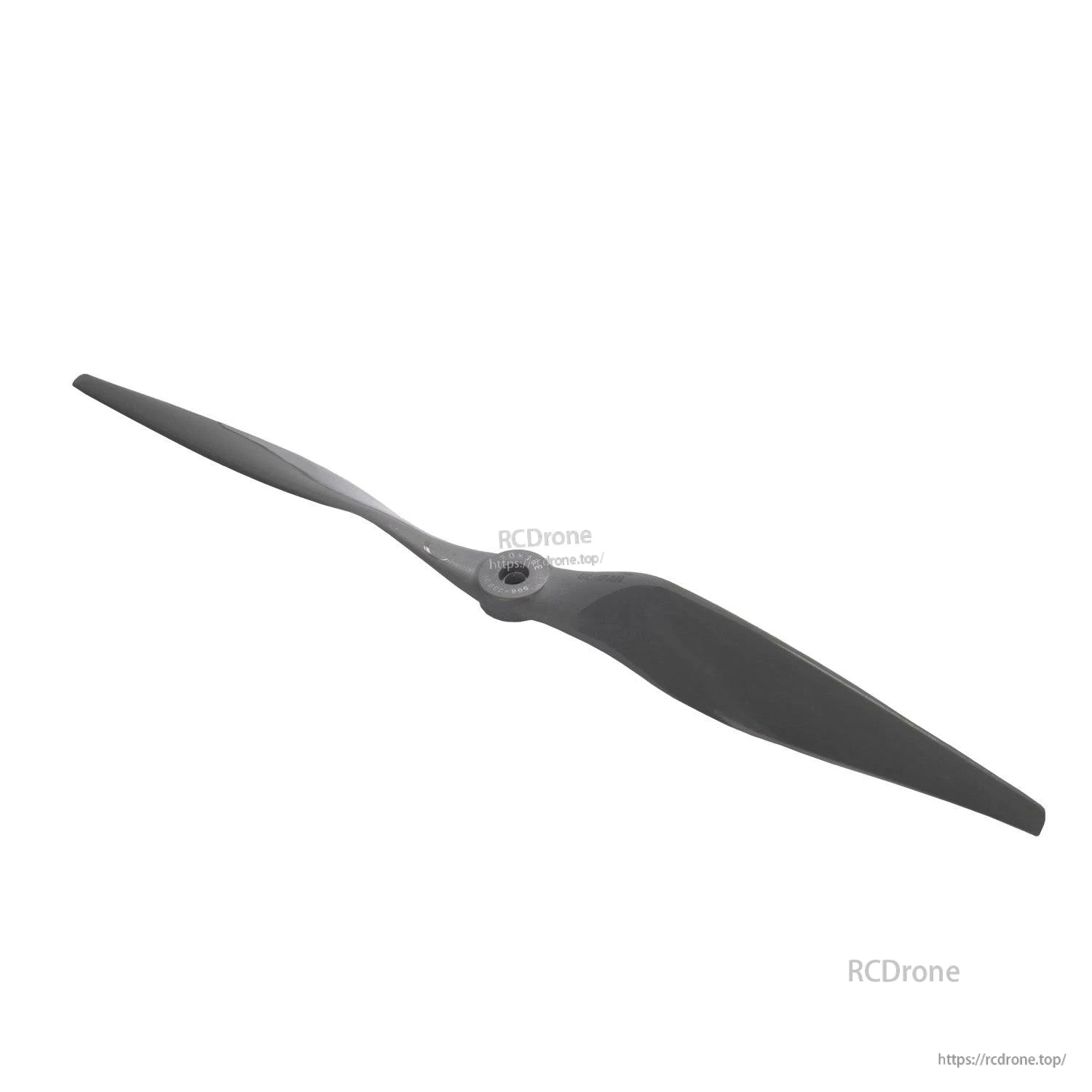

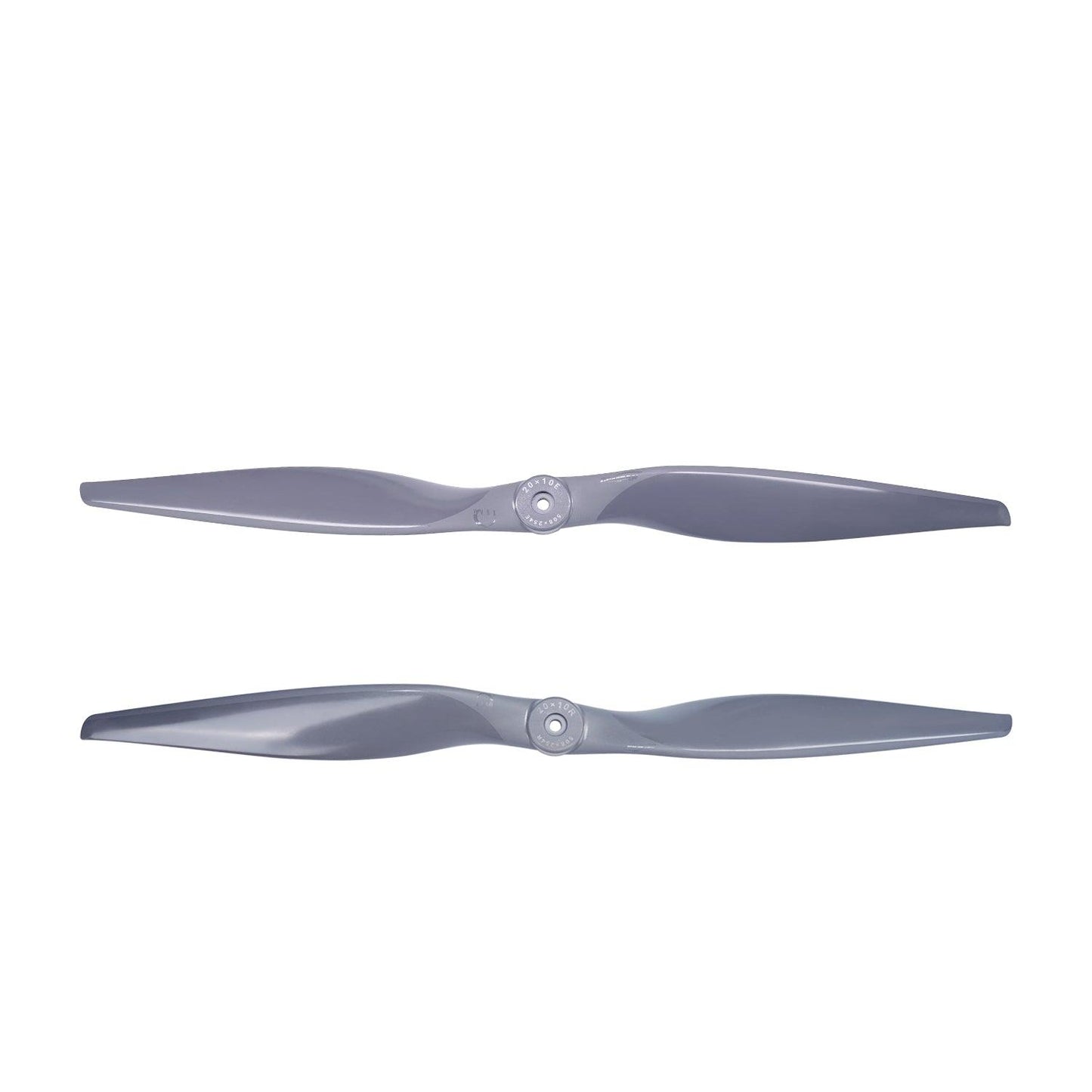

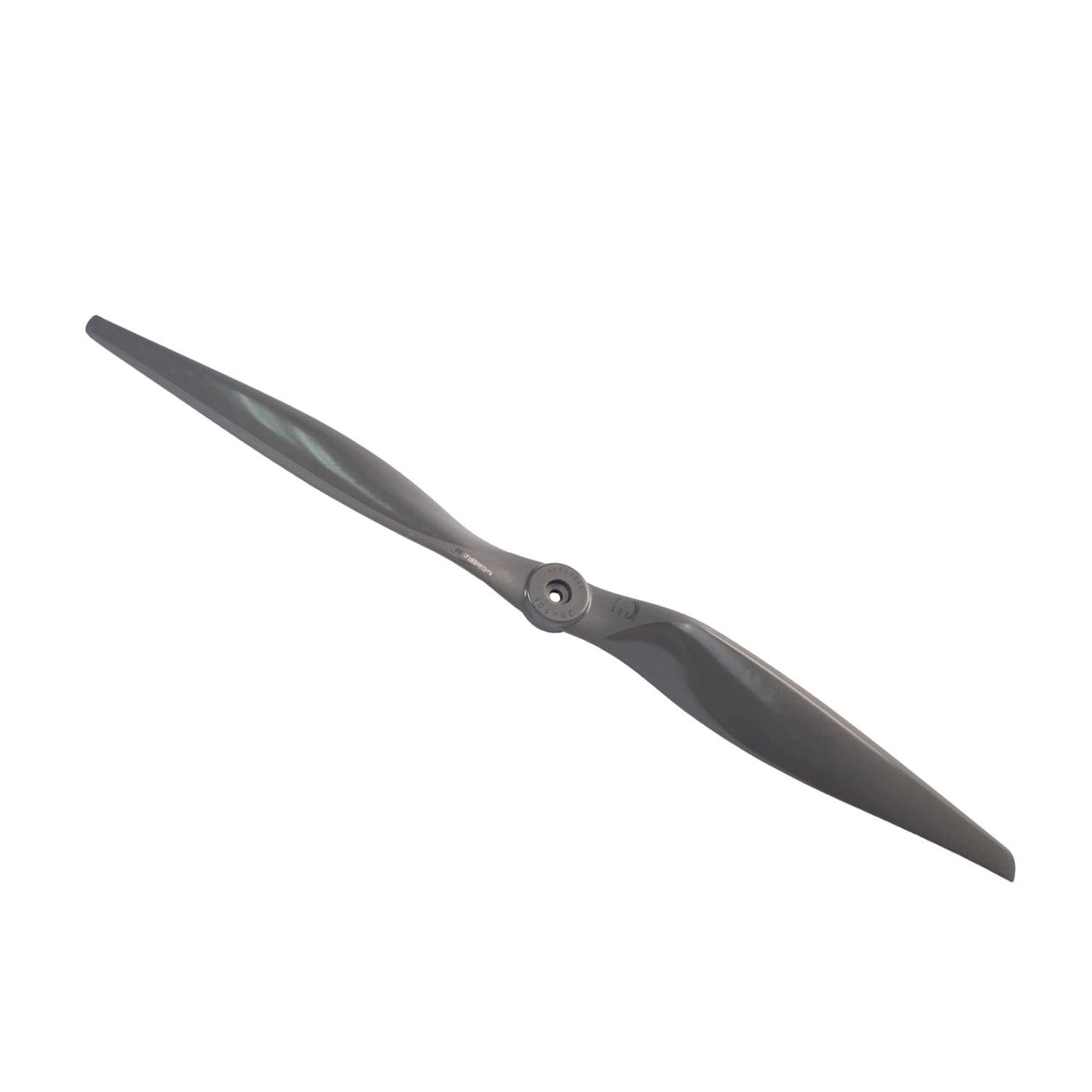

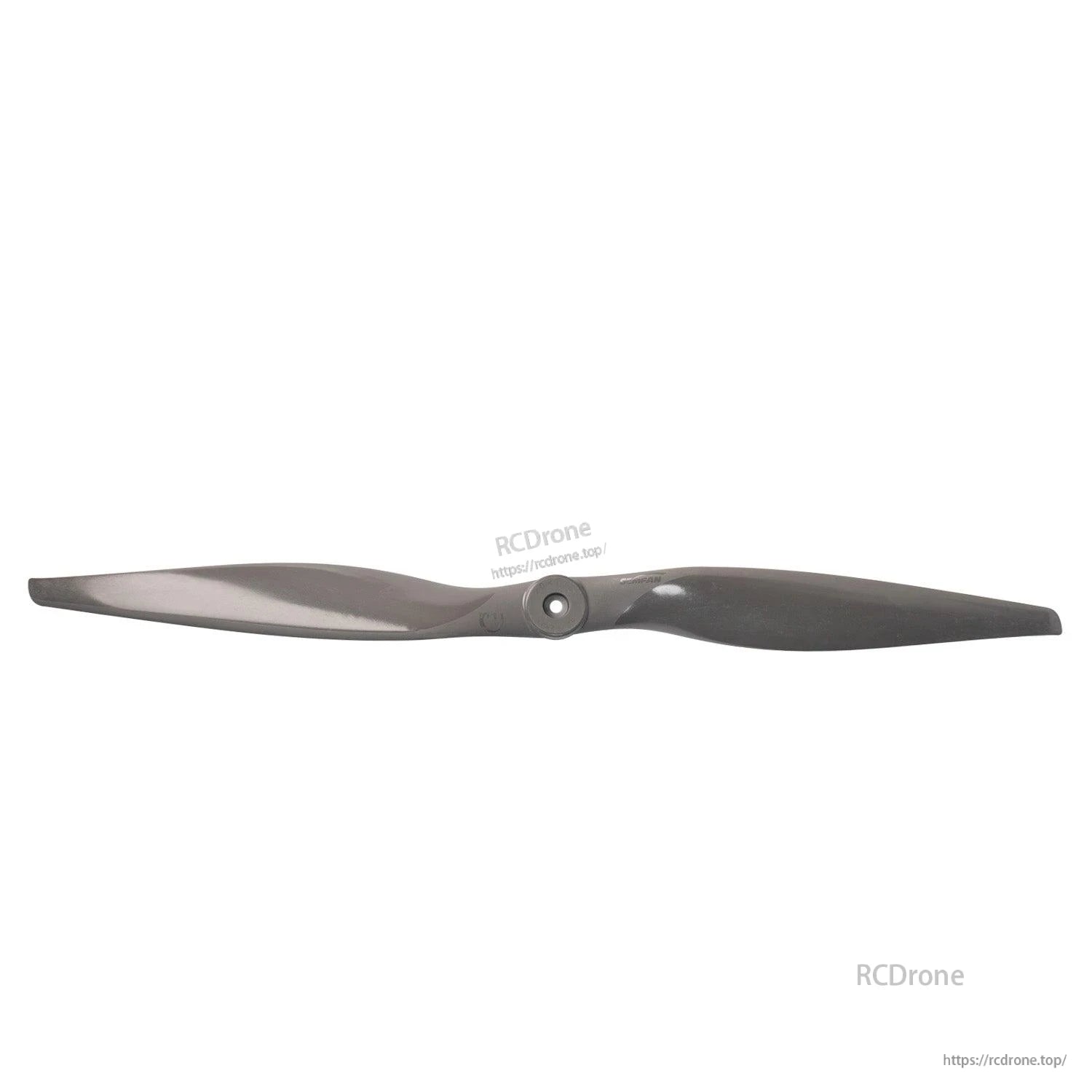

Gemfan VORTEX 20X10E / 20X10R is a 20-inch electric propeller made from glass fiber nylon, supplied in dark gray. It is offered in two versions: 20X10E and 20X10R.

Key Features

20 x 10 in size (20-inch diameter, 10-inch pitch)
Material: glass fiber nylon
Color: dark gray
Center bore: 6.35 mm / 0.25 in

Specifications

Model	VORTEX 20X10E / 20X10R
Propeller diameter	20 in
Propeller pitch	10 in
Hub diameter	31.5 mm
Hub thickness	13.2 mm
Center bore diameter	6.35 mm / 0.25 in
Single blade weight	96.4 g

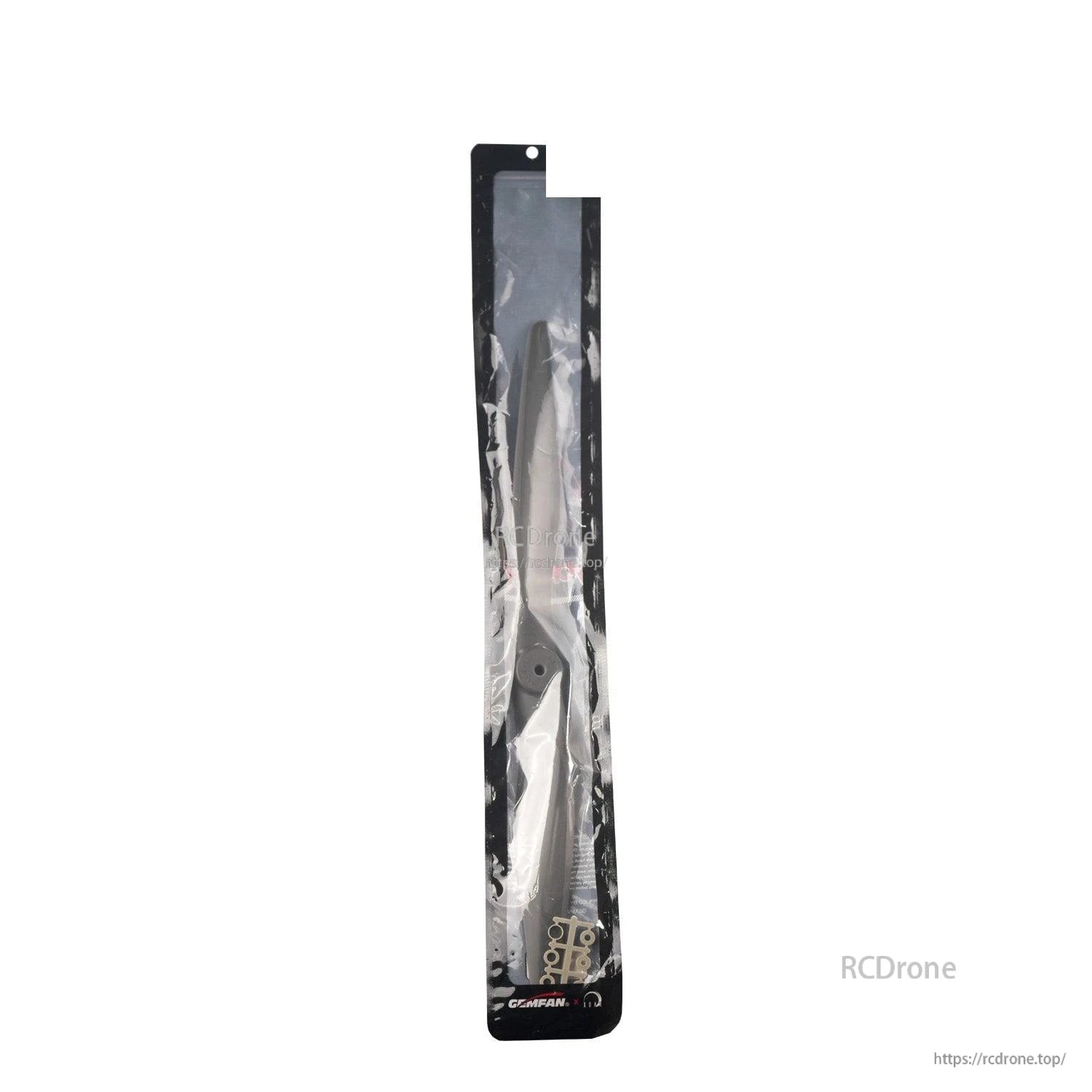

Product weight (with packaging)	103.3 g

For availability questions about the 20X10E vs 20X10R option, contact support at https://rcdrone.top/ or email support@rcdrone.top.

Test Data (Reference)

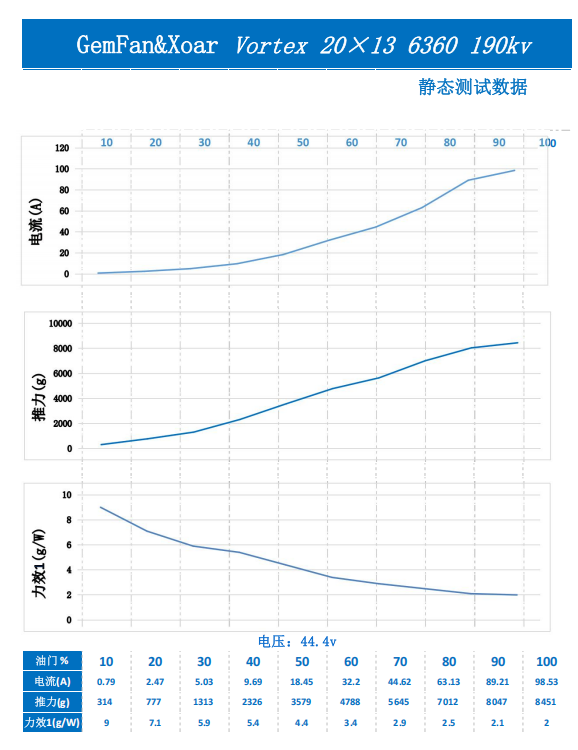

The provided test chart is labeled: GemFan&Xoar Vortex 20x13, 6360, 190KV, Static test data, Voltage: 44.4V.

Throttle (%)	10	20	30	40	50	60	70	80	90	100
Current (A)	0.79	2.47	5.03	9.69	18.45	32.2	44.62	63.13	89.21	98.53
Thrust (g)	314	777	1313	2326	3579	4788	5645	7012	8047	8451
Efficiency (g/W)	9	7.1	5.9	5.4	4.4	3.4	2.9	2.5	2.1	2
