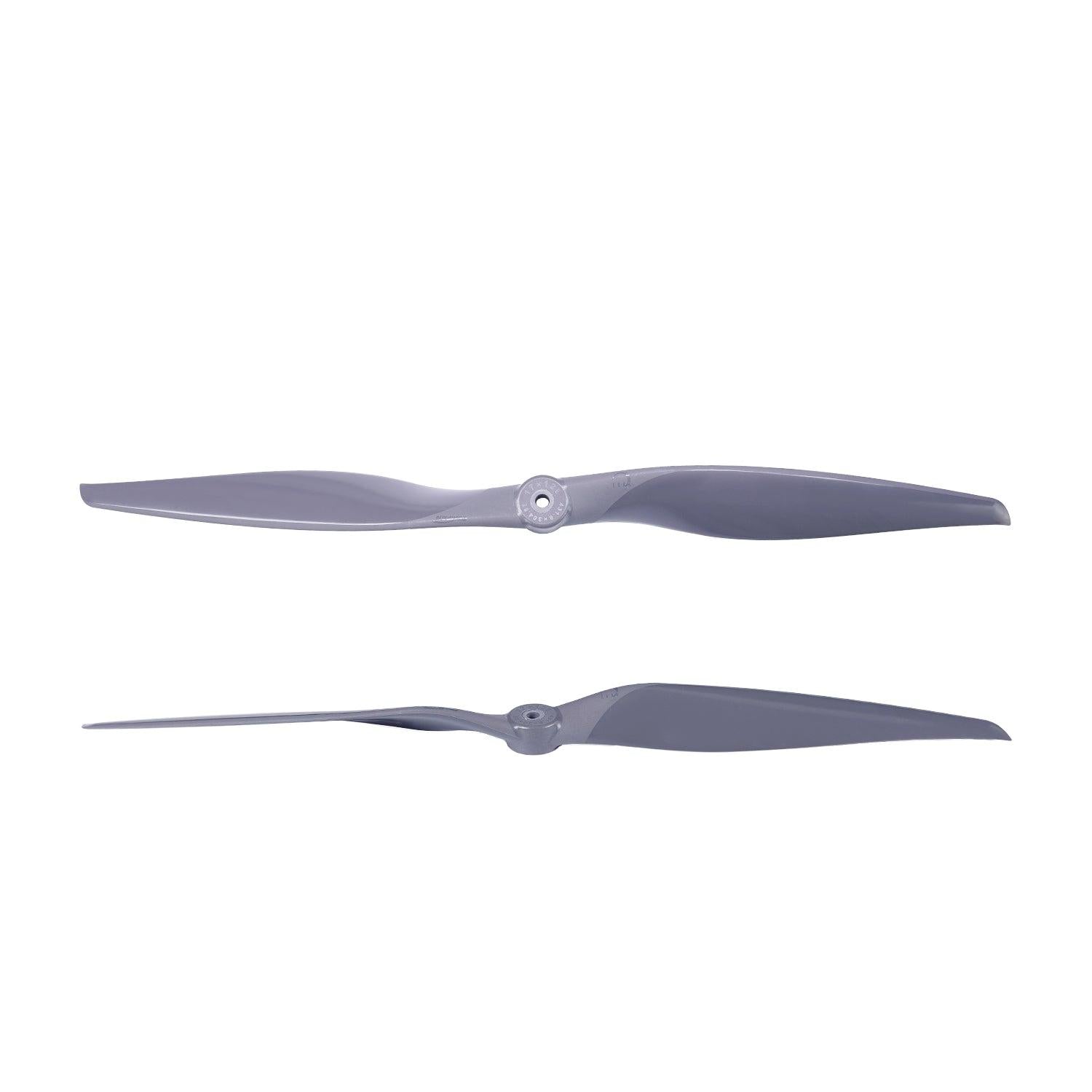

• Gemfan Vortex 17x12E electric propeller, 6.35mm bore, two-blade full view on white background

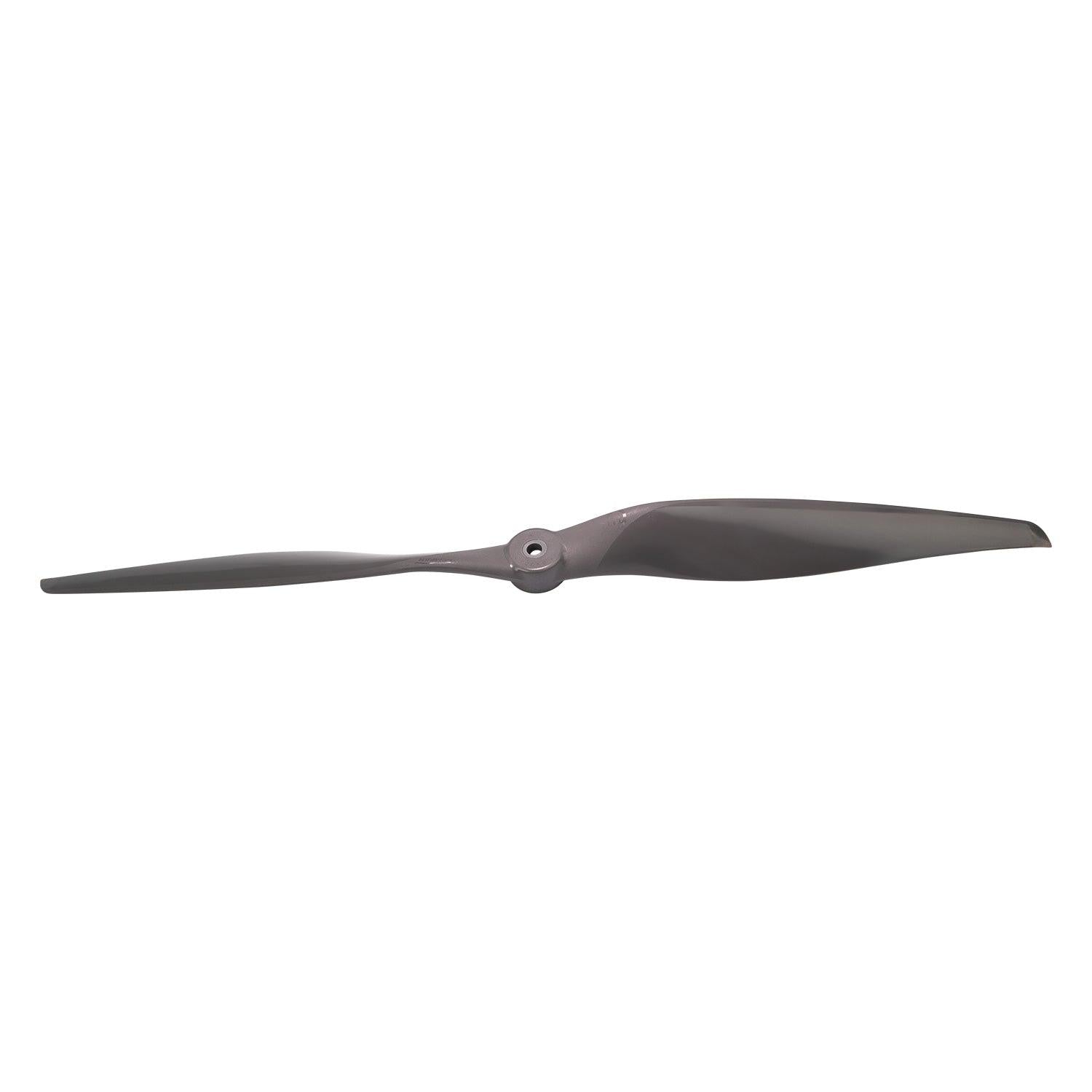

  • 17x12E two-blade propeller side profile showing blade pitch and hub center hole

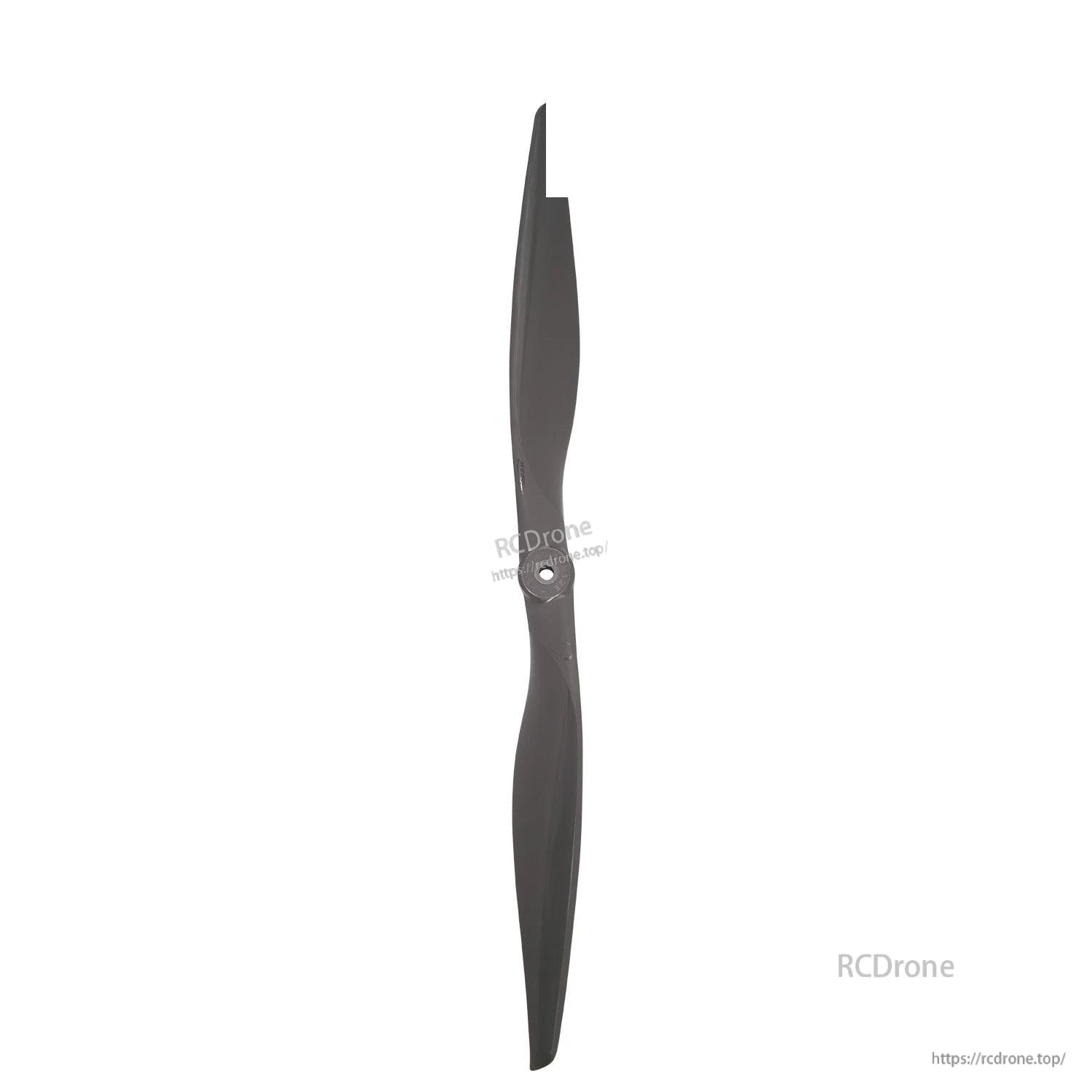

  • Full-length propeller vertical view showing both blades and center hub opening

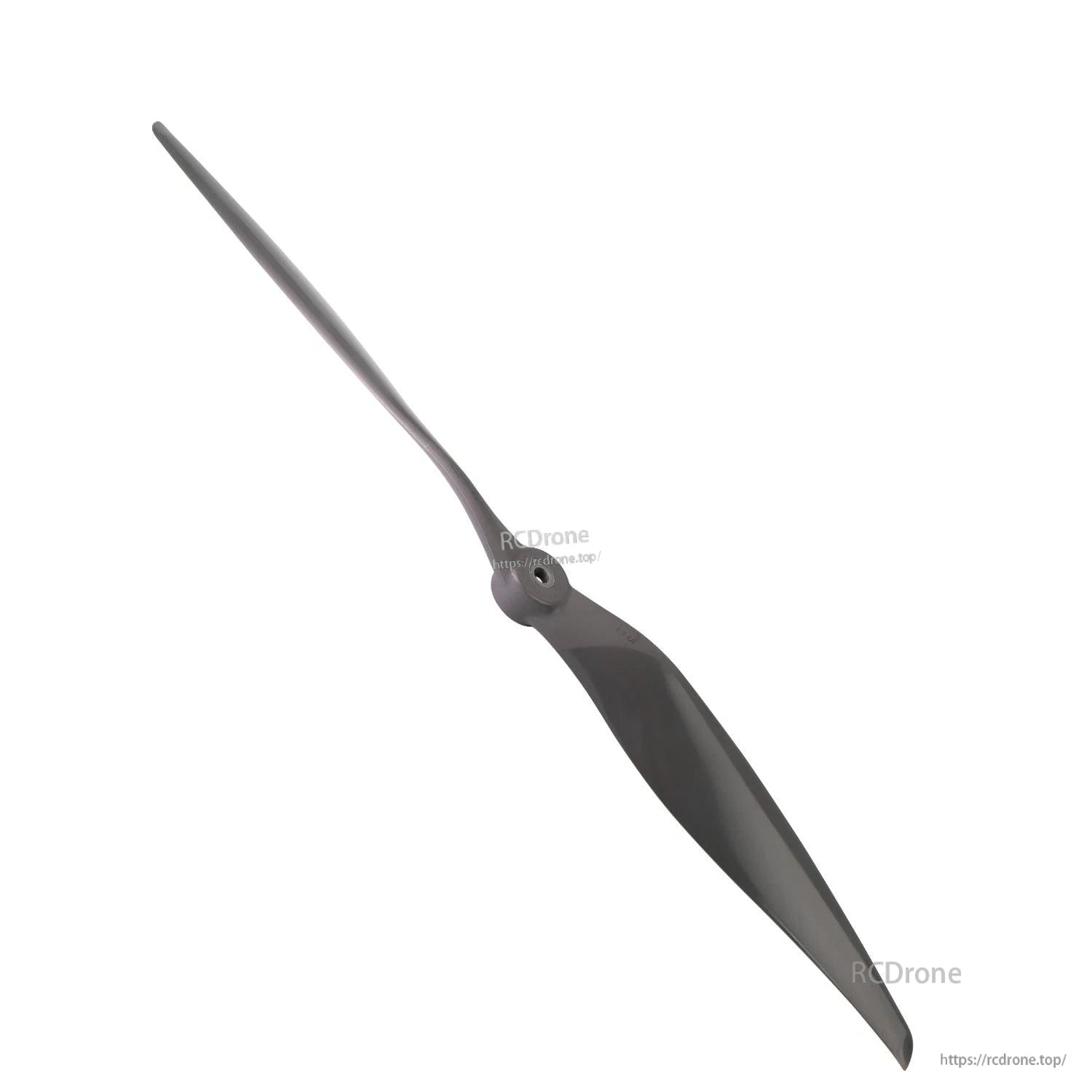

  • Angled view of two-blade propeller highlighting curved blade shape and hub thickness

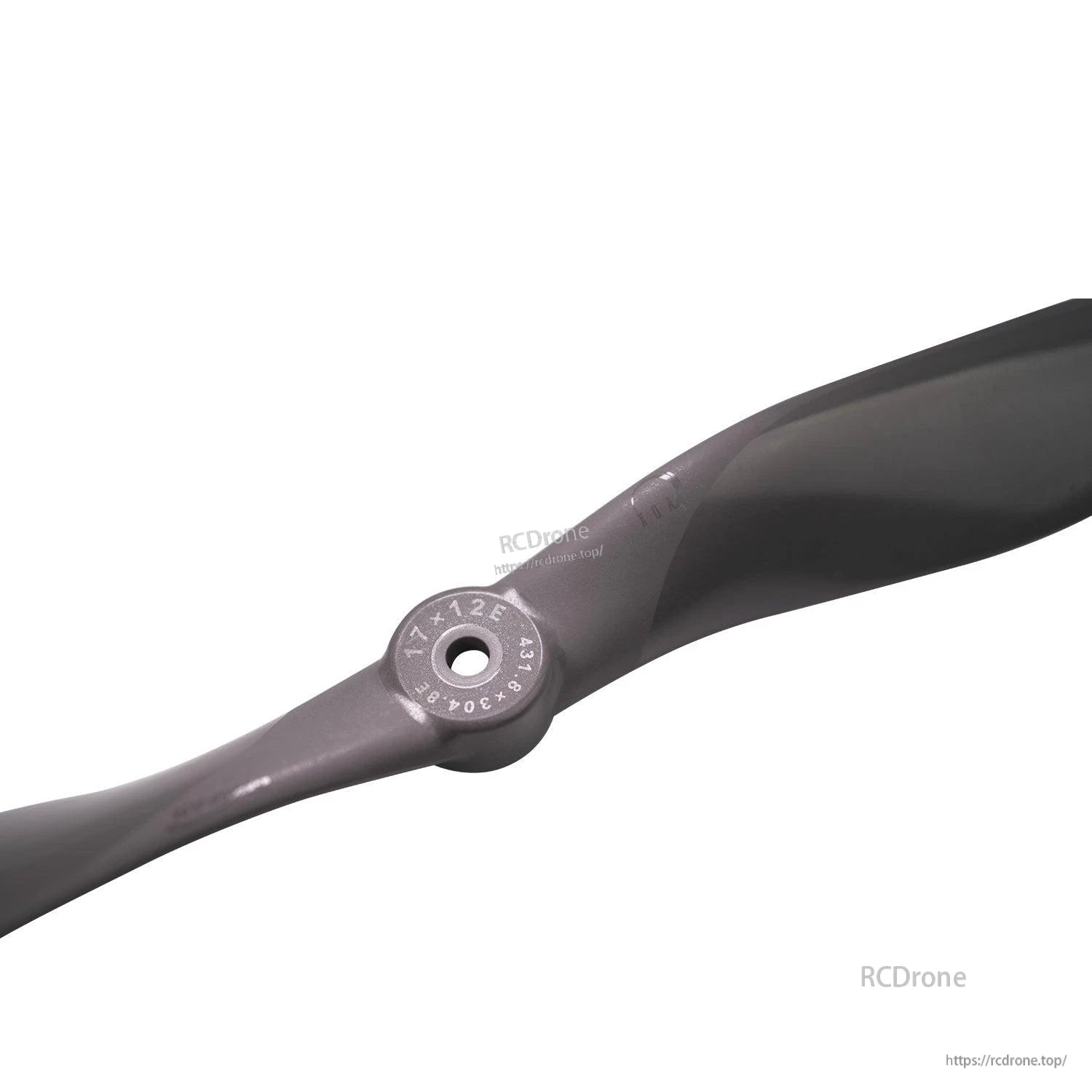

  • Close-up of prop hub with 17x12E size marking and 6.35mm center bore opening

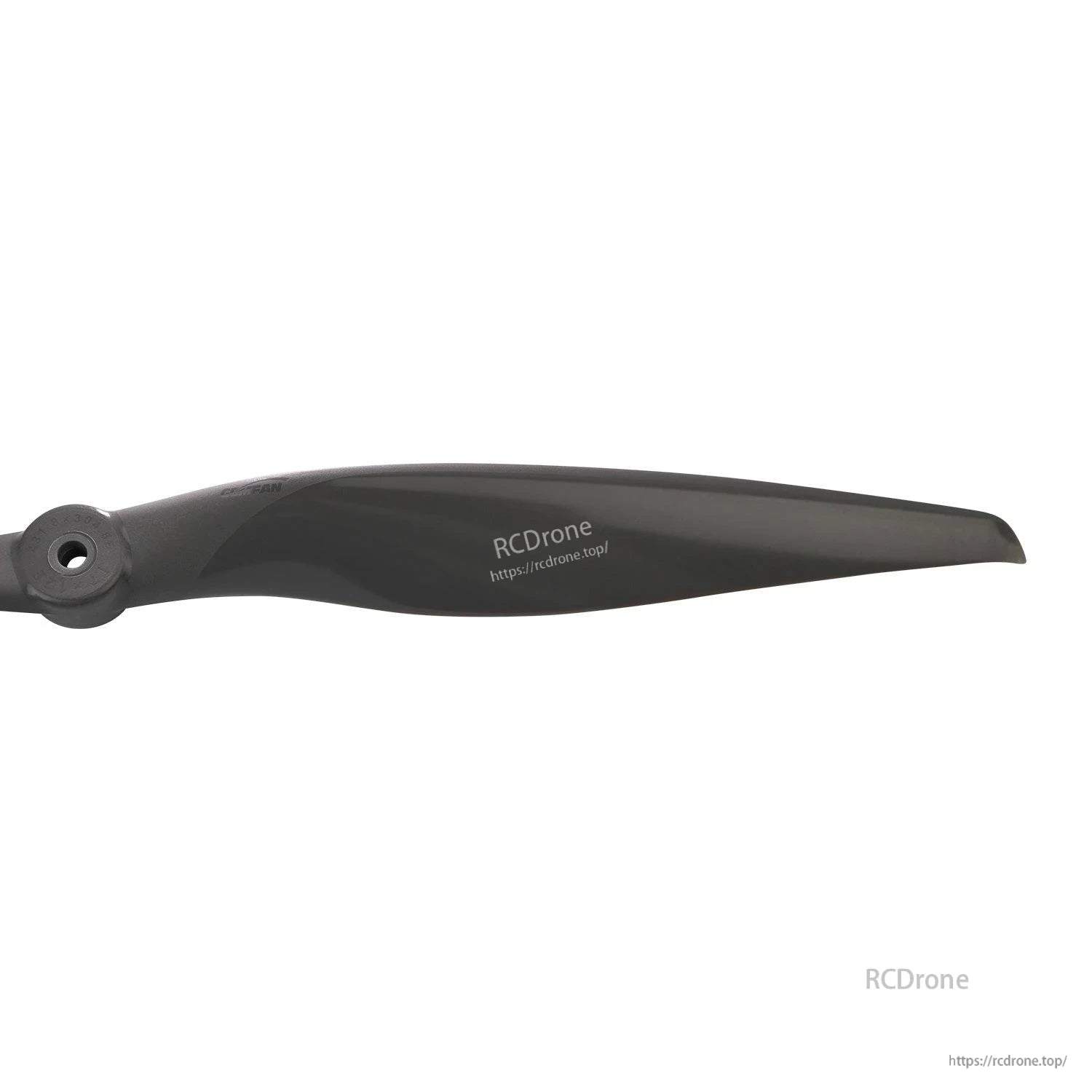

  • Blade close-up showing leading edge and tip profile of the two-blade propeller

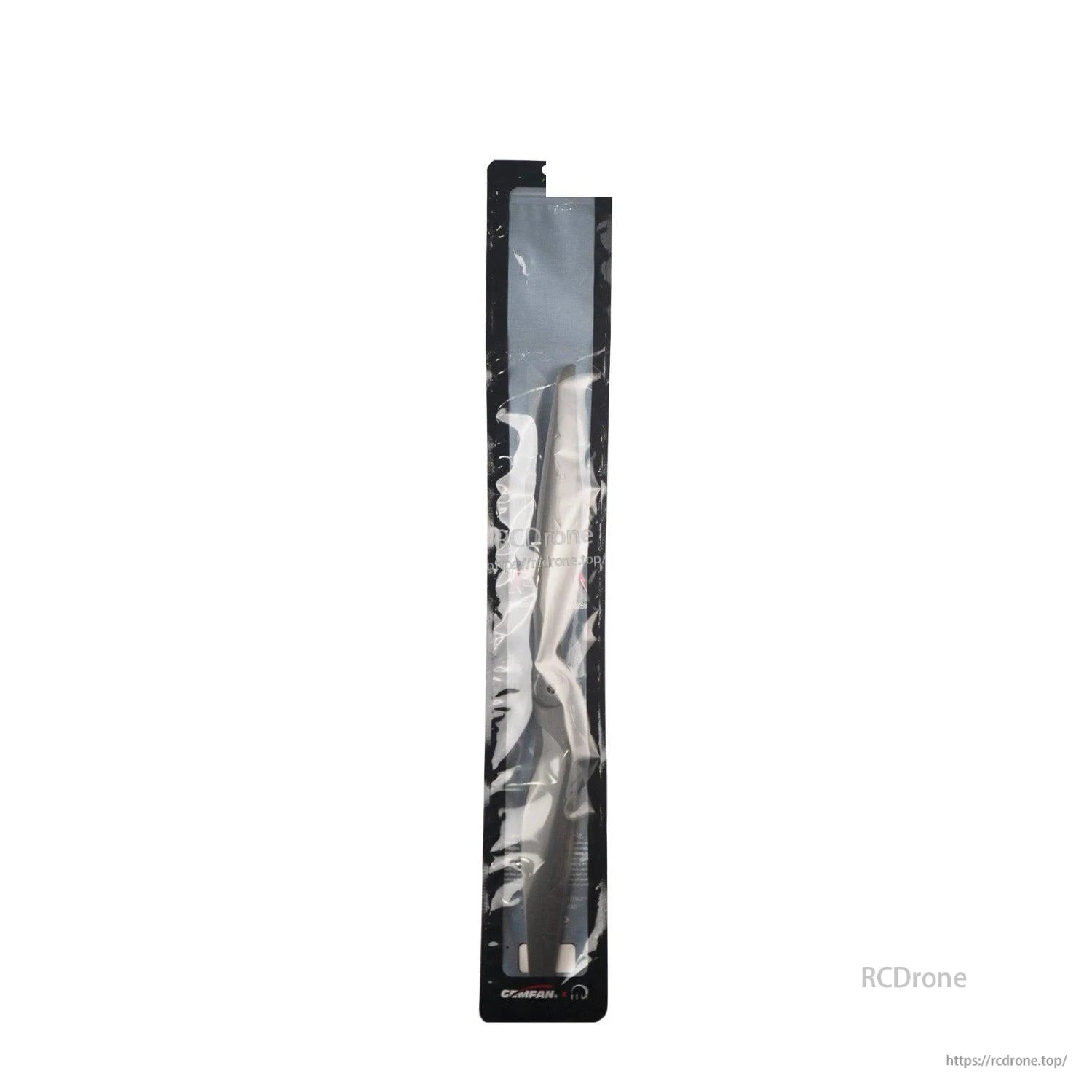

  • Retail package bag with single Gemfan propeller visible inside, 1 piece per bag
1 7

Gemfan Vortex 17×12E Electric Glass Fiber Nylon Propeller 17x12, 6.35mm Bore (1 piece/bag)

Gemfan Vortex 17×12E Electric Glass Fiber Nylon Propeller 17x12, 6.35mm Bore (1 piece/bag)

Gemfan

$16.99 USD
$16.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The Gemfan Vortex 17×12E is an electric propeller made from glass fiber nylon, supplied as 1 piece per bag. It is designed for RC electric aircraft applications where a 17-inch diameter and 12-inch pitch prop is required.

Key Features

  • Model: 17X12E
  • Electric propeller
  • Material: glass fiber nylon
  • Single propeller packaging (1 piece/bag)

Specifications

Blade Diameter 17 in
Blade Pitch 12 in
Hub Diameter 25.5 mm
Hub Thickness 14.3 mm
Center Bore Diameter 6.35 mm / 0.25 in
Blade Weight (Single) 60.5 g
Product Weight (with packaging) 71.9 g

What’s Included

  • Gemfan Vortex 17×12E electric glass fiber nylon propeller (1 piece/bag)

Applications

  • RC electric fixed-wing aircraft and other electric power setups using a 17×12E prop size

For compatibility questions (shaft/bore fit, hub clearance, and recommended setup), contact support@rcdrone.top or visit https://rcdrone.top/.
