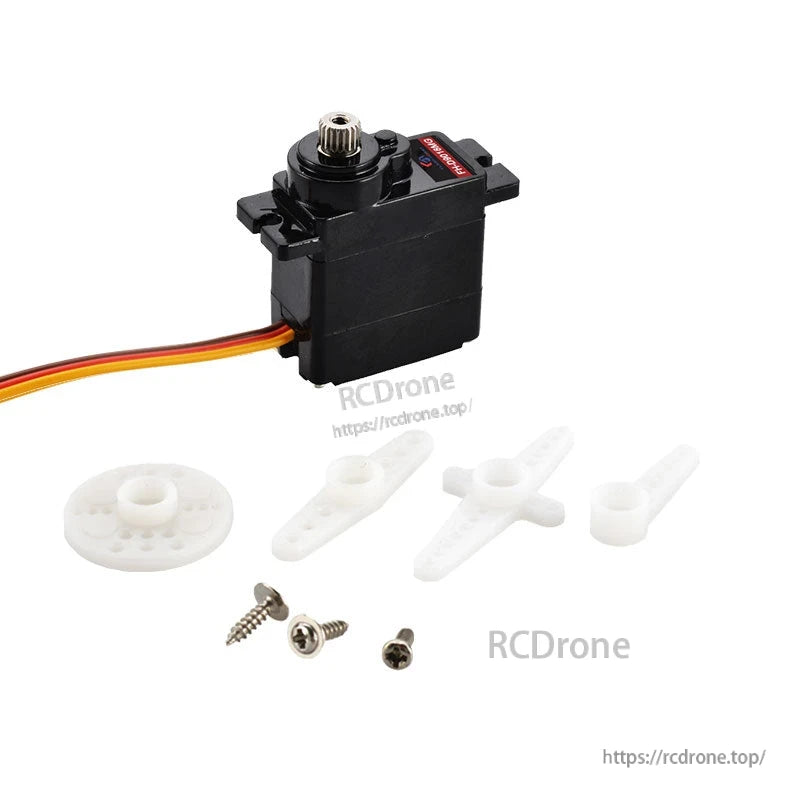

  • Flashhobby FH-9025MG micro servo with metal output spline, 3-wire lead, servo horns, and mounting screws
1 2

Flashhobby FH-9025MG Micro Servo 4.8-6.0V Digital Coreless PWM 1520us 120° Travel 25g

Flashhobby FH-9025MG Micro Servo 4.8-6.0V Digital Coreless PWM 1520us 120° Travel 25g

Flashhobby

$19.00 USD
$19.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Flashhobby FH-9025MG Micro Servo is a micro servo designed for PWM control with a 1520 μsec neutral pulse. It operates from 4.8V to 6.0V and supports up to 120°±10° operating travel (180°±10° limit angle) for RC and hobby control applications.

Key Features

  • Pulse Width Modulation (PWM) control: 1520 μsec
  • Digital control amplifier
  • IC drive
  • Coreless motor
  • Rated operation travel: 120°±10° (limit angle: 180°±10°)
  • Cycle life: >120000 times

Specifications

Model FH-9025MG
Control system Pulse Width Modulation (PWM) Control 1520 μsec
Operation voltage range 4.8V ~ 6.0V
Operation temperature range -10°C ~ +50°C
Cycle life >120000 times
Operation travel 120°±10°
Limit angle 180°±10°
Direction / pulse travel Re-clock wise / Pulse Travel 800→2000 μsec
Drive type IC Drive
Motor type Coreless
Potentiometer type Potentiometer
Amplifier type Digital Control
Dimensions 36*15.2*32.9 mm
Weight 25±1 g (without servo horn)

For compatibility and setup questions (PWM range, receiver/flight controller output, horn fitment), contact support@rcdrone.top or visit https://rcdrone.top/.

What’s Included

  • FH-9025MG micro servo
  • Servo horns (multiple styles)
  • Mounting screws

Applications

  • RC model aircraft
  • FPV models
  • Robotics and RC vehicles/boats requiring micro servo actuation

Details

Flashhobby FH-9025MG Micro Servo

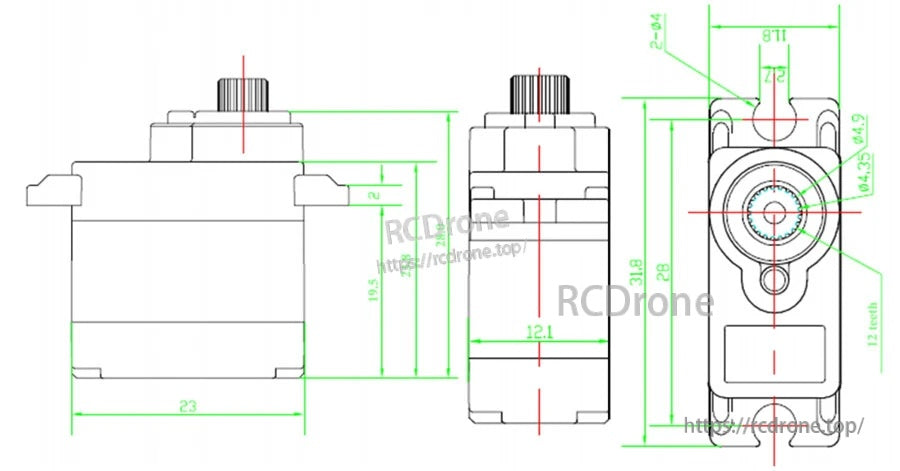

The FH-9025MG micro servo’s dimensioned layout helps confirm fit and mounting clearance in compact RC builds.

Flashhobby FH-9025MG Micro Servo

The Flashhobby FH-9025MG micro servo includes multiple horn styles and mounting screws for easy linkage setup.

Flashhobby FH-9025MG Micro Servo

Flashhobby FH-9025MG micro servo features a compact black case, metal output spline, and a 3-wire lead for easy RC installation.

Flashhobby FH-9025MG Micro Servo

The Flashhobby FH-9025MG micro servo is suited for a range of RC builds, including robots, cars, planes, and boats.
