Flashhobby M20DHW 20.5KG 7.4V Iron Core Servo
Flashhobby M20DHW 20.5KG 7.4V Iron Core Servo
Flashhobby
Regular price
$119.00 USD
Regular price
Sale price
$119.00 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Flash Hobby is China manufacturer & supplier who mainly produces M20DHW Iron Core Servo with many years of experience. Hope to build business relationship with you.
●Suggested Retail Price: US$23.69

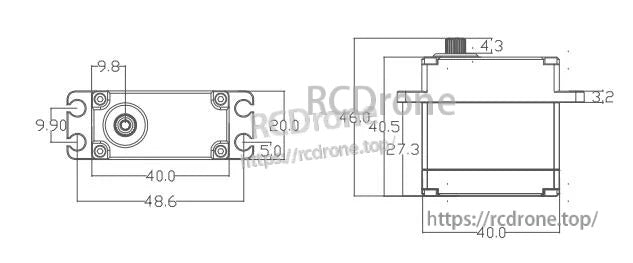

●Size: 40x20x40.50mm

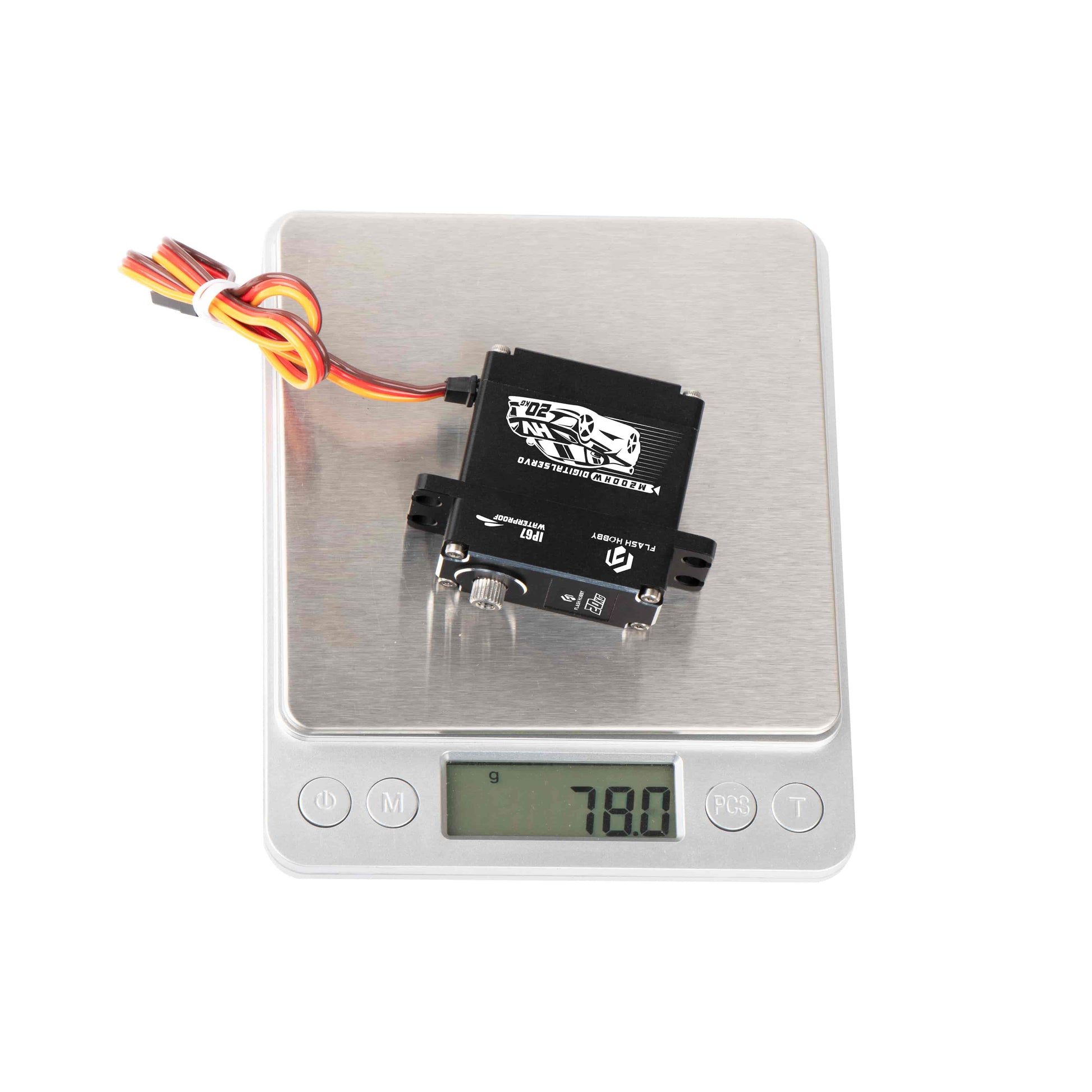

●Weight: 78g(without servo horn)
●Gear: Metal
●Torque/Speed: 15.5kg-cm/0.21sec/60°5.0V
18.4kg-cm/0.17sec/60°6.0V
20.5kg-cm/0.14sec/60°7.0V
●Motor Type: Iron Core Motor
●Signal Type: Digital Control
●Case Material: CNC AL6081 Aluminum Case

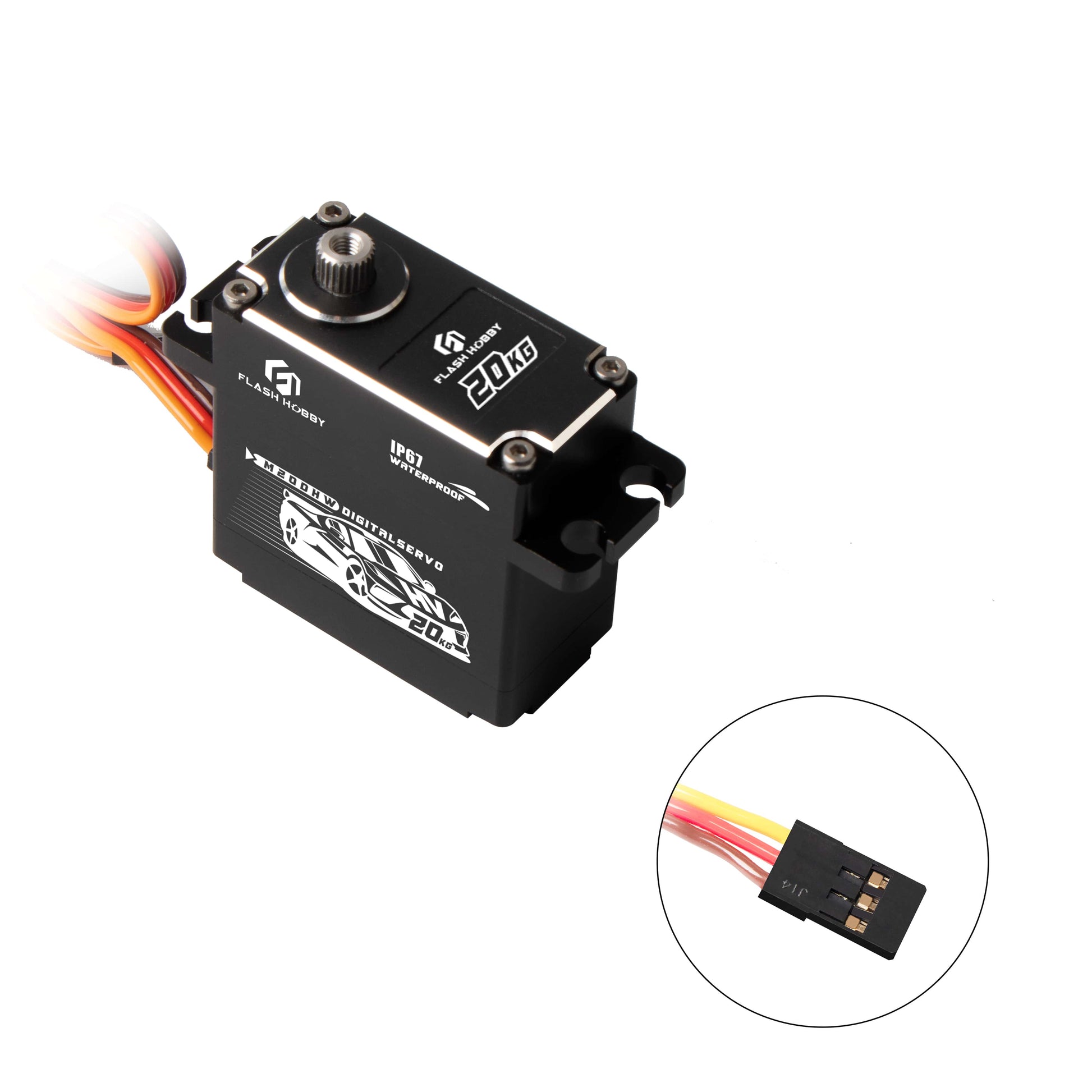

●Connector Wire Length: 300MM JR Plug
●Suggested Retail Price: US$23.69
●Size: 40x20x40.50mm
●Weight: 78g(without servo horn)
●Gear: Metal
●Torque/Speed: 15.5kg-cm/0.21sec/60°5.0V
18.4kg-cm/0.17sec/60°6.0V
20.5kg-cm/0.14sec/60°7.0V
●Motor Type: Iron Core Motor
●Signal Type: Digital Control
●Case Material: CNC AL6081 Aluminum Case
●Connector Wire Length: 300MM JR Plug
Factory Direct Sale Quality M20DHW Iron Core Servo with Low Price Manufacturers and Suppliers. Flash Hobby is a M20DHW Iron Core Servo manufacturer and supplier in China.
FEATURE:
High Performance Digital Standard ServoHigh Precision Steel Gear
High Quality Iron Core motor
Full CNC AL6082 Aluminium Hulls and Structure
Dual Ball Bearing
Super Long Life
Waterproof
| Control System | PWM Control （1500usec in the central point） | ||
| Operation Voltage Range | 4.8V -7.4V | ||
| Operation Temperature Range | -20C°~ +60C° | ||
| Circle | >80000 times without load | ||
| Operation Travel | 60° ±1 | ||
| Limit angle |
180°± 1 OR 270°± 1 For Selection |
||
| Direction | Re-clock wise/ Pulse Travel 500— 2500 psec | ||
| Diver type | Mos Drive | ||
| Motor Type | DC Motor | ||
| Potentiometer Type | Direct Drive | ||
| Amplifier Type | Digital Control | ||
| Dimensions | 40x20x40.50mm | ||
| Weight: | 78g （without servo horn） | ||
| Test Voltage: | At 5V | At 6V | At 7.4V |
| Standing Torque: | 15.5kg-cm | 18.4kg-cm | 20.5kg-cm |
| Speed: | 0.21sec/60° | 0.175sec/60° | 0.14sec/60° |
| Idle Current; | 270mA | 320mA | 360mA |
| Running Current; | 1900mA | 2300mA | 2800mA |
| Dead band width: | 2 usee | 2 usee | 2 usee |
| Ball Bearing; | 2BB | ||
| Gear Material ; | Metal Gear | ||
| Case Material ; | Aluminum Case | ||
| Connector Wire Length ; | 300MMJR Plug | ||
| Connector Wire Gauge ; | 22AWG | ||
| Wire Info（Brown） | Negative | ||
| Wire Info （Red） | Positive | ||
| Wire Info （Yellow） | S Sinqle | ||
