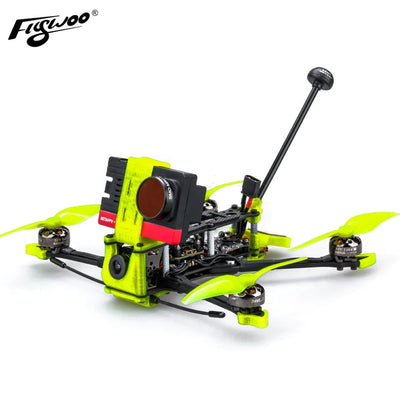

Flybee 16 HDZero 2S Ultralight FPV Drone 45.7g – GOKU F405 ELRS AIO V2, ROBO 1003 14800KV

Overview

The Flybee 16 HDZero 2S Ultralight FPV Drone is a compact “toothpick” micro-class FPV drone designed for HD VTX setups (compatible with DJI O4, Walksnail, and HDZero). It is built to fly through narrow indoor spaces and complex outdoor areas with a lightweight frame and efficient power system.

Key Features

• Ultra-lightweight: 45.7g (also described as “under 50g”).
• Toothpick design for portability and tight-space flight.
• Reverse thrust power (stated to boost stability and endurance).
• Quick-release battery: lock/latch-style battery compartment for fast, secure changes.
• Three-point shock absorption to help filter vibrations for stable footage.
• Downward interlocking transmission design (stated to reduce module shake with FC and use propeller heat dissipation).
• Crash-protected motors: motor corner guards (with TPU sleeves) and TPU motor mounts for impact protection.
• Anti-shake design: through-hole design stated to reduce module shake for stable flights.
• Easy data access: Type-C port provided for data retrieval.
• Detachable camera bracket compatible with Flywoo 14mm and 18mm camera brackets.
• Efficient cooling: downward VTX design stated to disperse heat during HD transmission and keep signal stable.
• HD VTX compatibility statement for the Flybee 16/20 series: Flywoo O3 Lite, O4, Walksnail, and HDZero.
• HD footage statement for the Flybee 16/20 series: 1080P – 4K/60FPS HD footage.

Flight Controller / AIO (as stated)

• High Performance F405 BGA Flight Control
• F405 BGA chip
• ELRS 2.4G Full UART
• Real 12A
• 12A 4-in-1 ESC
• 5* UART serial ports
• I2C port for compass
• 8MB BlackBox

Specifications

Power Setup (as stated)

• Propeller options mentioned for the Flybee 16/20 series: 1611-3 props / 2015-2 props
• Motor: ROBO 1003 14800KV
• Battery range mentioned: 2S 550mAh to 2S 1000mAh

What’s Included

• 1 x Flybee 16 HDZero 2S Ultralight FPV Drone
• 1 x 2S 550mah battery TPU mount
• 1 x 2S 750mah battery TPU mount
• 1 x 2S 1000mah battery TPU mount
• 8 x 1611-4 props
• 1 x screwdriver
• 1 x hardware set
• Also listed in the package graphic: 550/750 mAh Battery TPU Mount V2, shock absorbing balls, bottom sponge pad, L-shaped wrench, nylon studs, locknut, gasket, screw pack, clip, upgrade cable for HD-Zero

Applications

• Indoor tight-space FPV flight
• Outdoor flying in complex areas
• Aerial photography / HD FPV practice (depending on the installed HD system)

FAQ

• What is the “FLY” series? The FLY series is a 2S drone series. Members include Flylens 75 / Flylens 85 / Flytimes 85 / Flybee 16 / Flybee 20.
• How to choose between Flybee 16 and 20? Flybee 16 is a 1.6 inch drone, Flybee 20 is a 2.0 inch drone. Choose Flybee 20 for more power; choose Flybee 16 for extremely small size and easy shuttling.
• How to get CLI and STL files? Use the FLYWOO Support Center.

For product support and after-sales service, contact https://rcdrone.top/ or email support@rcdrone.top.

Details

The Flybee 16/20 ultralight toothpick FPV drone is listed at under 50 g and uses a GOKU F405 HD 20A AIO stack.

The Flybee micro FPV platform pairs a compact frame with a quick-release battery latch, motor corner guards, and a vibration-damping mount layout.

The Flybee 16/20 design includes Type‑C data access, a detachable camera bracket, an anti‑shake frame layout, TPU motor protection, and downward VTX cooling.

The F405 BGA flight controller stack includes a 12A 4-in-1 ESC, ELRS 2.4G full UART support, 5 UART ports, an I2C port, and 8MB BlackBox storage.

The Flybee 16 2S micro FPV setup pairs ROBO 1003 14800KV motors with 1611-3 or 2015-2 props and supports 2S 550–1000mAh batteries.

Flybee 16 supports multiple HD VTX choices, including O3 Lite, O4, Walksnail, and HDZero, for flexible digital FPV setups.

The Flybee 16 HDZero kit includes 1611-3 propellers, a 550 2S battery TPU mount, screwdriver and L-shaped wrench, plus spare hardware and pads.
