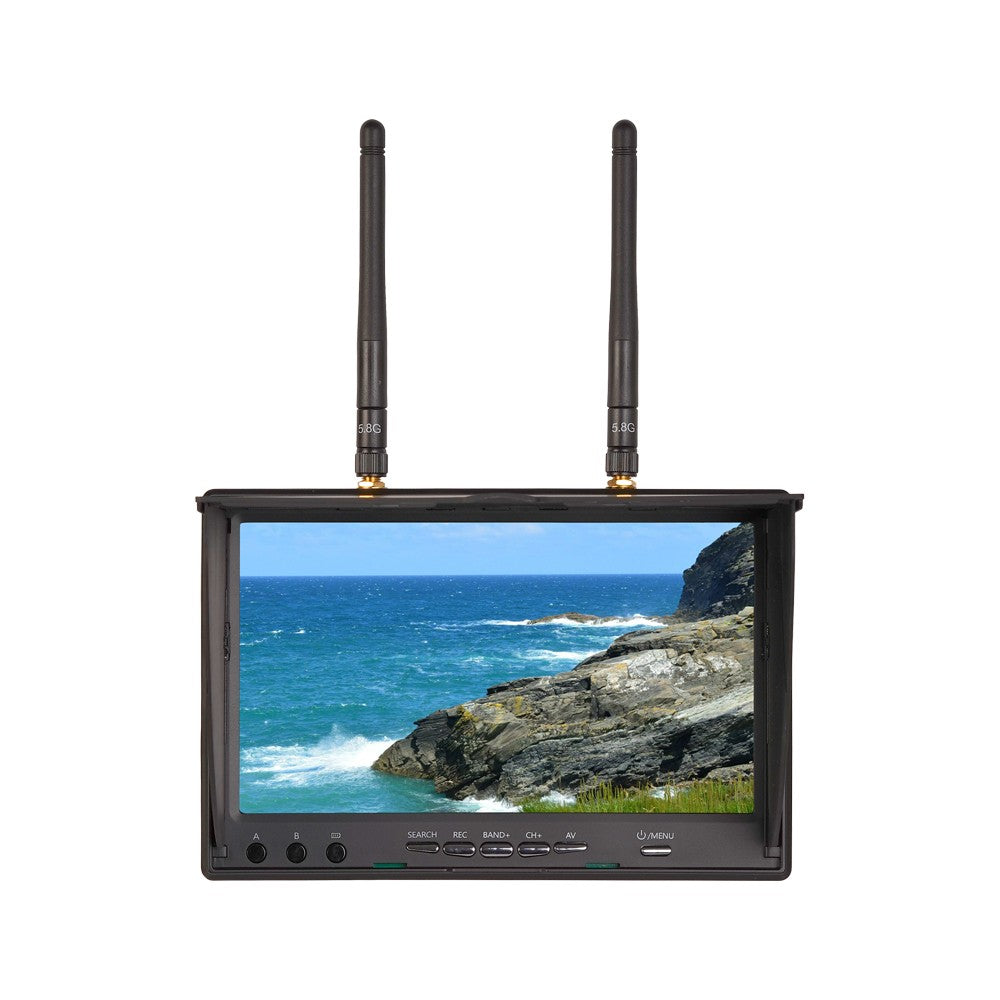

• Foxeer LCD5802D 7" FPV Monitor, Foxeer LCD5802D 7-inch FPV monitor with dual 5.8G antennas and front control buttons

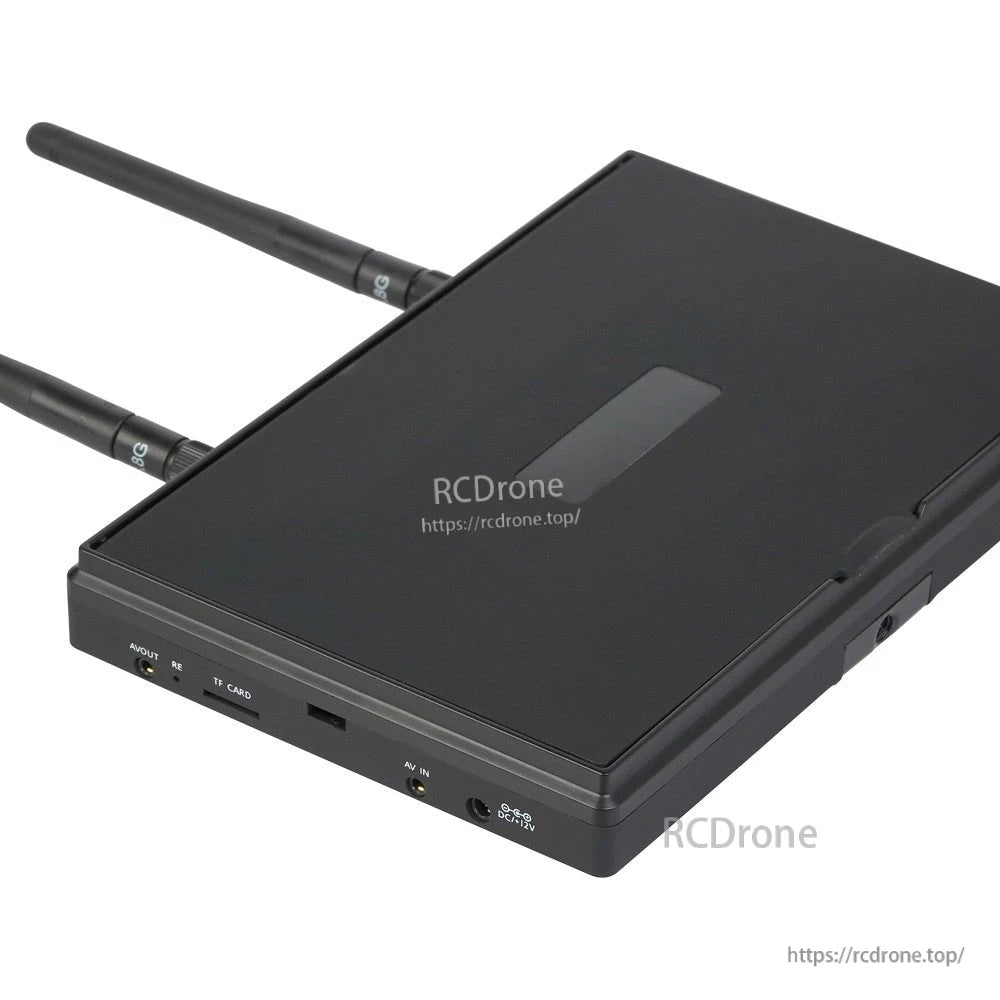

  • Foxeer LCD5802D 7" FPV Monitor, Foxeer LCD5802D 7-inch FPV monitor back view with dual antennas, AV in/out ports, TF card slot, and DC 7–12V input

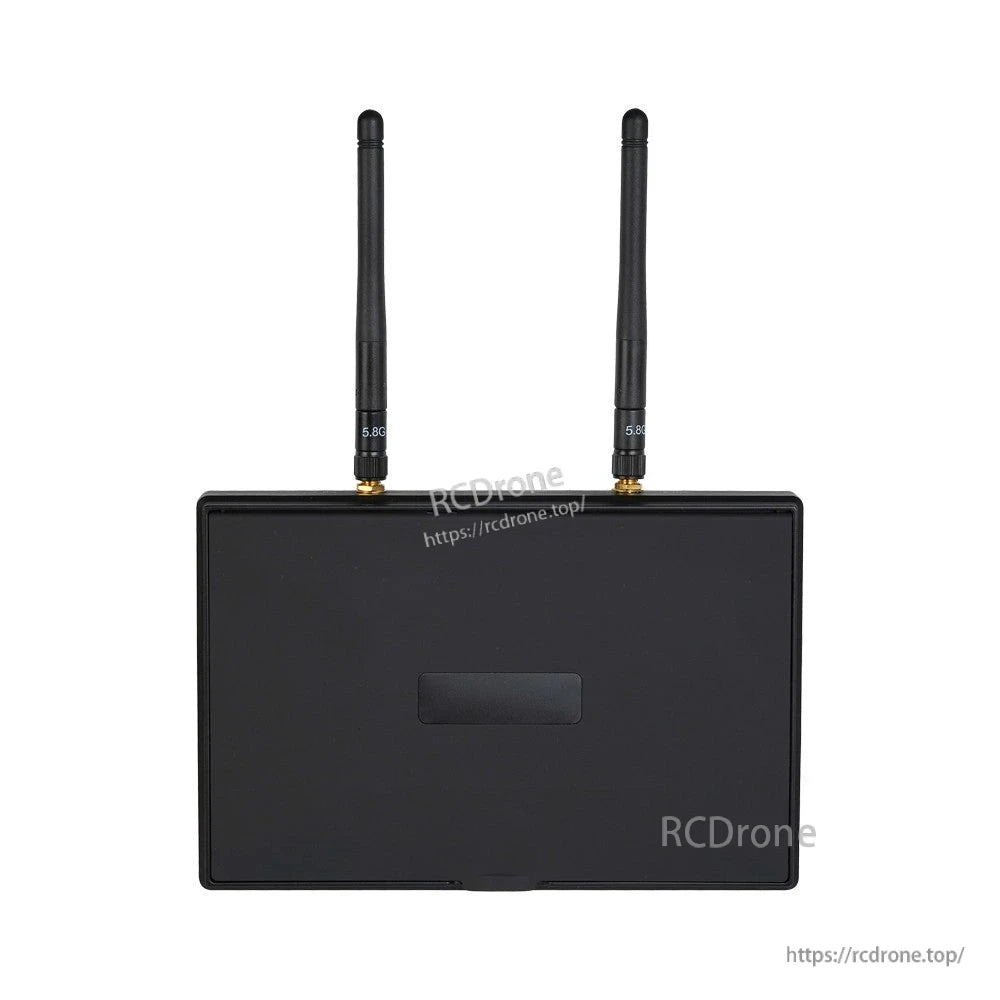

  • Foxeer LCD5802D 7" FPV Monitor, Back view of Foxeer LCD5802D 7-inch FPV monitor with dual 5.8GHz antennas mounted on top

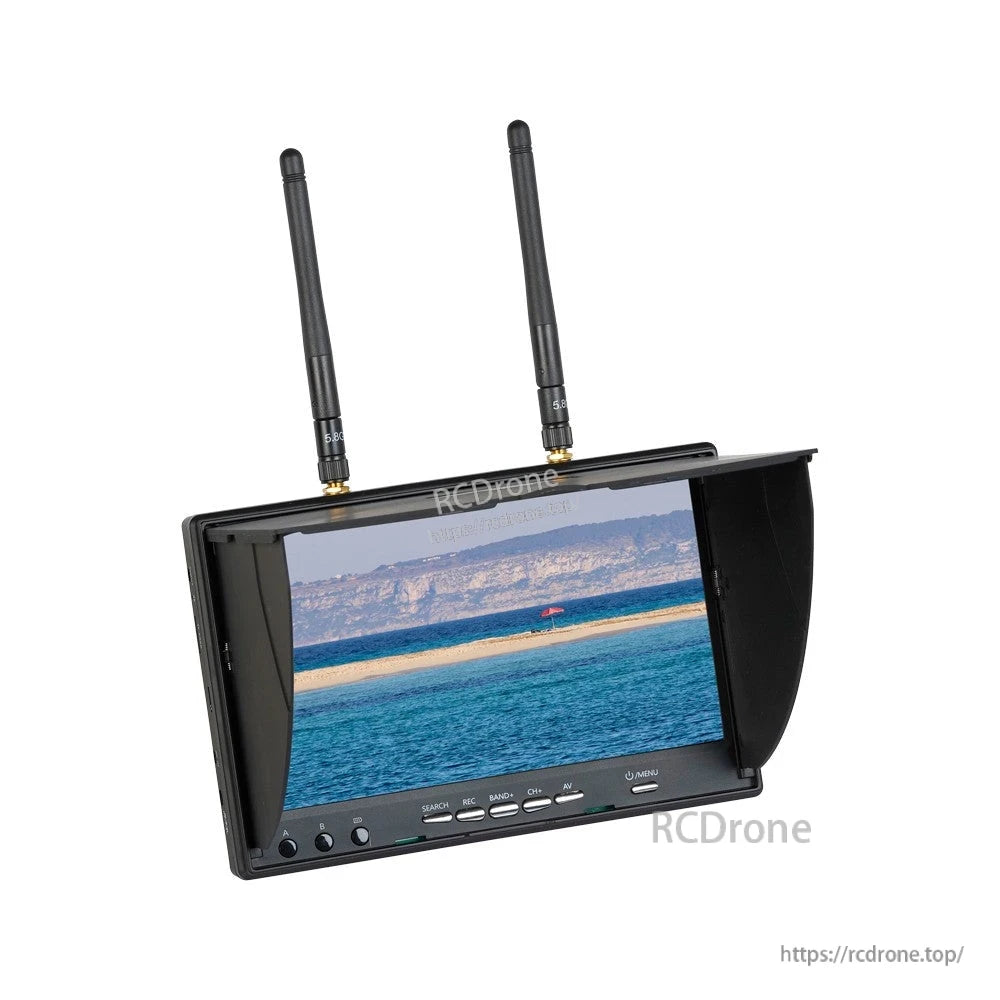

  • Foxeer LCD5802D 7" FPV Monitor, Foxeer LCD5802D 7-inch FPV monitor with sun hood, dual antennas, and front control buttons

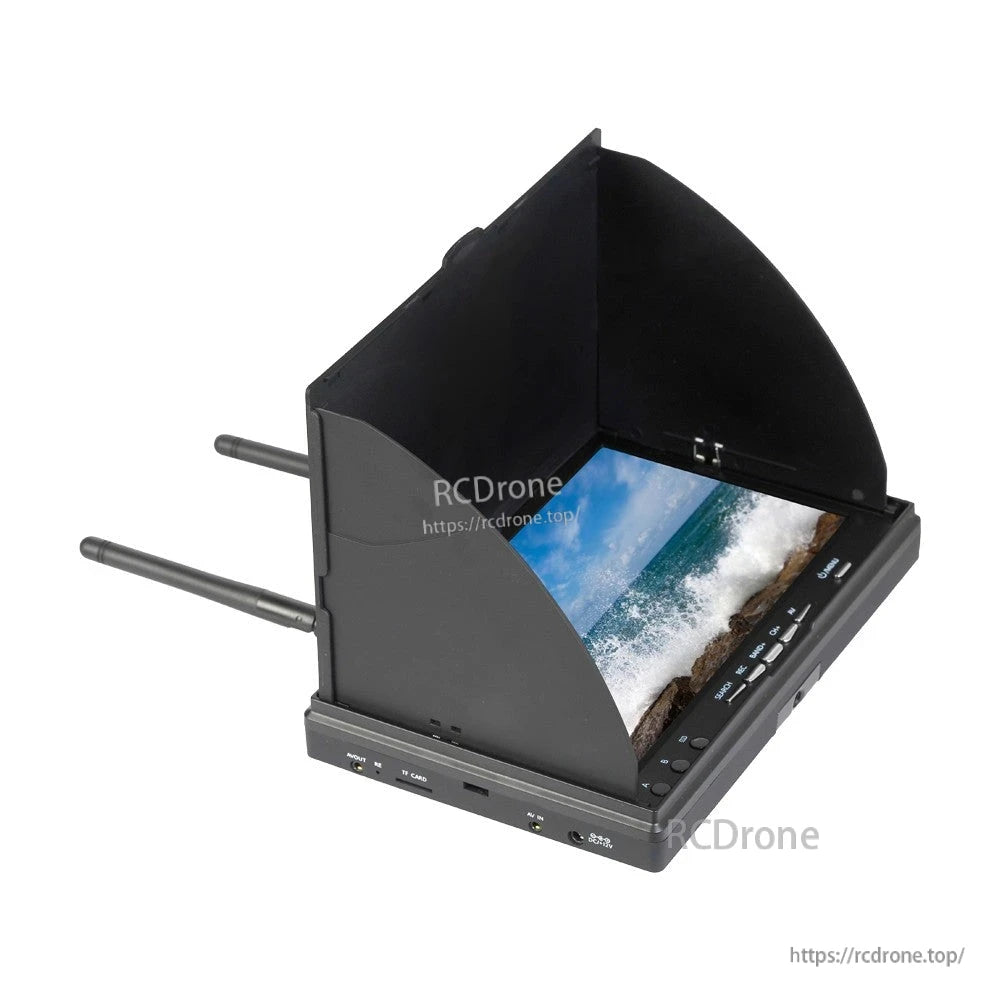

  • Foxeer LCD5802D 7" FPV Monitor, Foxeer LCD5802D 7-inch FPV monitor with sun hood, dual antennas, and front ports for AV in/out and TF card

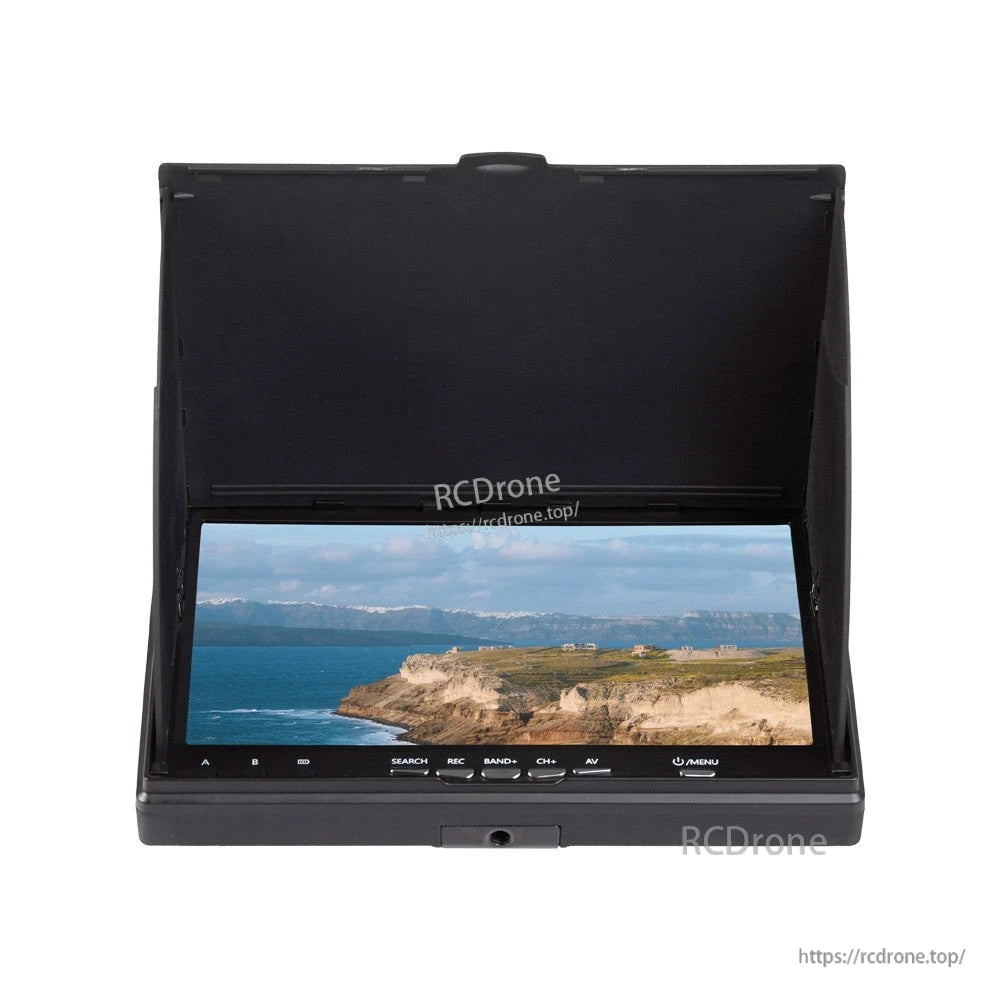

  • Foxeer LCD5802D 7" FPV Monitor, Foxeer LCD5802D 7-inch FPV monitor with flip-up sun hood, wide screen display, and front control buttons
1 7

Foxeer LCD5802D 7" FPV Monitor DVR, 5.8G 40CH Built-in Dual Receiver, 2000mAh Battery, Sunshield

Foxeer LCD5802D 7" FPV Monitor DVR, 5.8G 40CH Built-in Dual Receiver, 2000mAh Battery, Sunshield

Foxeer

$222.60 USD
$222.60 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Foxeer LCD5802D is a 7-inch 5.8G 40-channel FPV monitor with built-in receiver and DVR. It features a sunshield for glare reduction, one-key auto search, and a built-in 2000mAh/7.4V battery.

Key Features

  • 7" LCD monitor
  • Built-in high sensitivity selected dual receiver, 40 channels, DVR
  • Sunshield to avoid the glare of sunlight
  • Auto Search: one key auto search the best signal channel
  • Supports up to 32G TF card
  • Antenna connector type: RP-SMA male

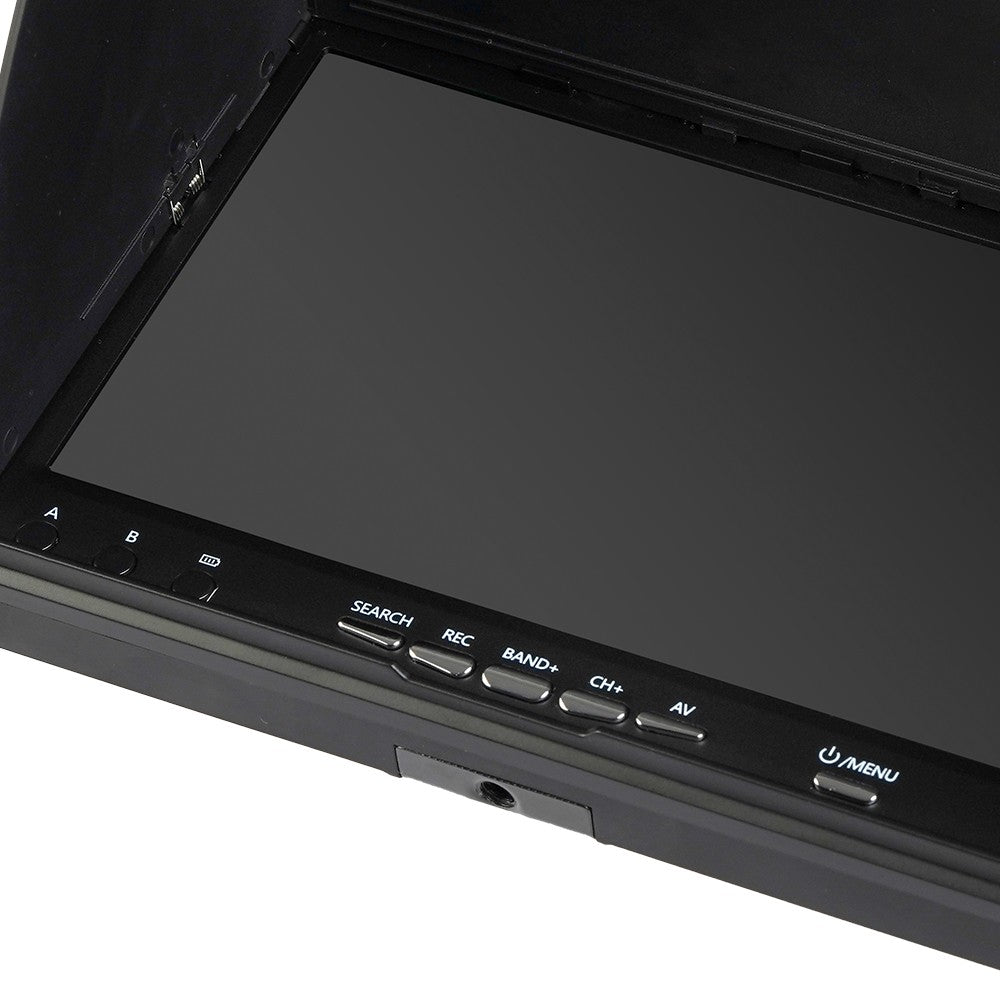

  • Buttons/controls labeled: SEARCH, REC, BAND+, CH+, AV, MENU
  • Ports/labels shown: ANT A, AVOUT, TF CARD, AV IN, DC7-16V

For setup help or compatibility questions (channels, antennas, power), contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Model Foxeer LCD5802D 7" Monitor
Resolution 800*480
Brightness 600cd/m2
View Angle 140/120 degree (Horizontal/Vertical)
Channel 40CH
Frequency 5.8G
Battery 2000mAH/7.4V
Battery (runtime text) Built-in 3~4 hours 2000mAh Battery
Sensitivity -90dBm
Antenna Type RPSMA male
Working Voltage DC 7~16V
Power Consumption Max 650mA @ 12V
Battery charging current 850mA @12V Max
Working temperature -10°C ~ +65°C
Size 180mm x 120mm x 50mm (Note: Sunshield height: 28mm)
TF card support Up to 32G TF Card

5.8G Channel Frequencies

Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 5865 5845 5825 5805 5785 5765 5745 5725
Band B 5733 5752 5771 5790 5809 5828 5847 5866
Band E 5705 5685 5665 5645 5885 5905 5925 5945
Band F 5740 5760 5780 5800 5820 5840 5860 5880
Band R 5658 5695 5732 5769 5806 5843 5880 5917

What’s Included

  • 1* Monitor
  • 2* 5.8G Antenna
  • 2* AV cable
  • 1* Charger

Applications

  • 5.8G analog FPV video viewing and DVR recording with a standalone 7" monitor

Details

Foxeer 7" LCD5802D Monitor DVR 5.8G 40CH Built in Receiver

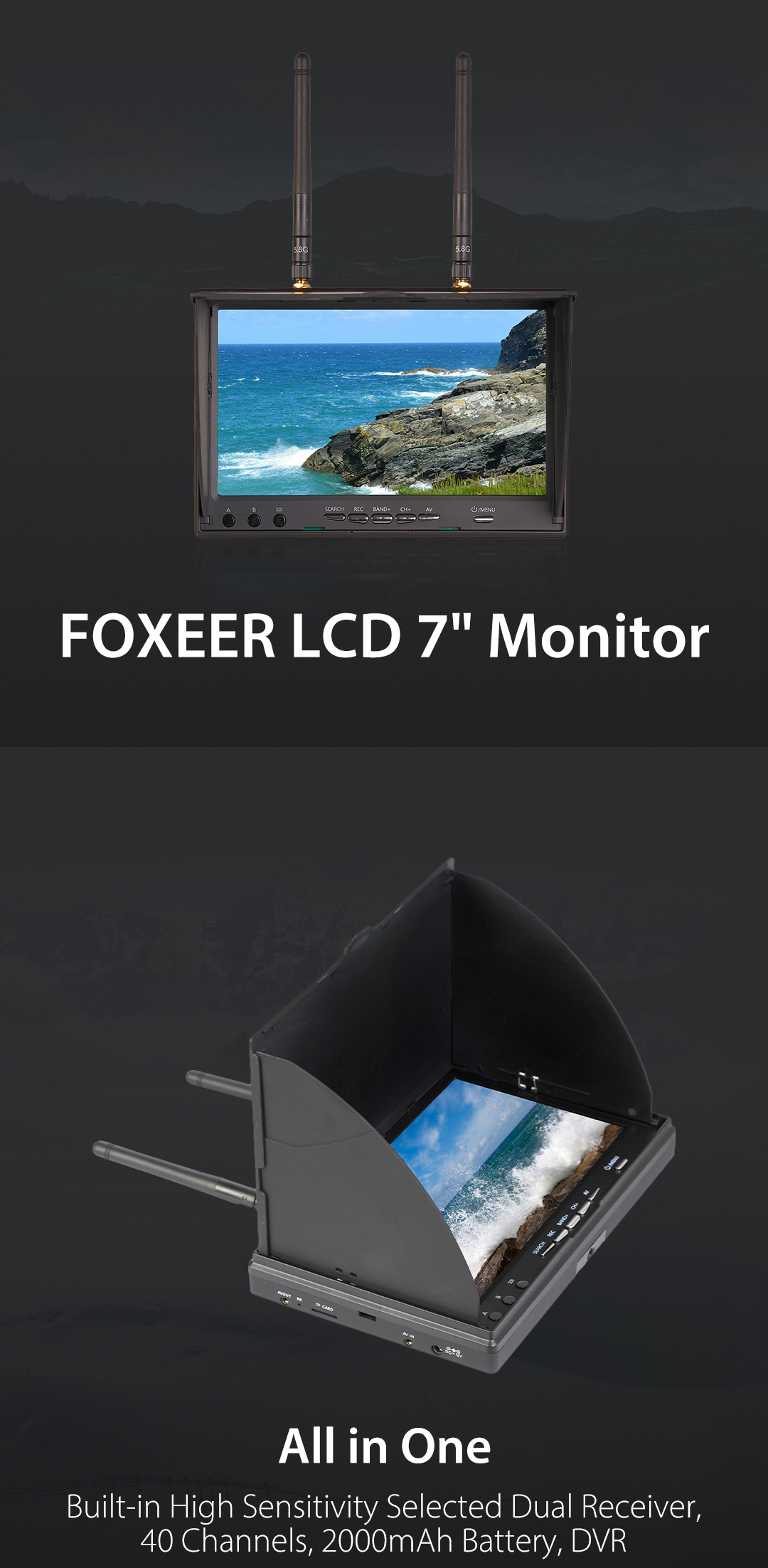

The Foxeer 7-inch FPV monitor includes dual antennas, a fold-up sunshade, and onboard DVR with a built-in dual receiver.

Foxeer 7" LCD5802D Monitor DVR 5.8G 40CH Built in Receiver

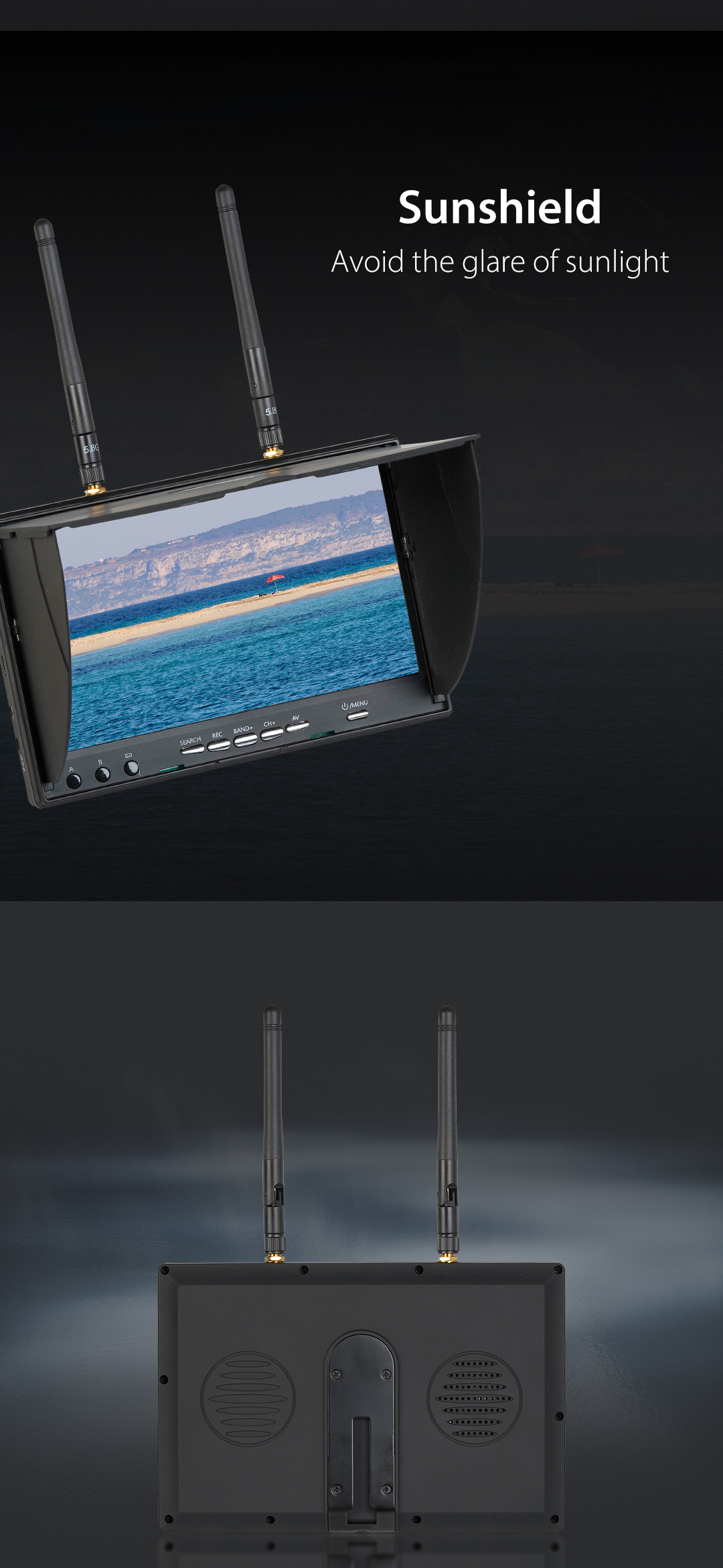

The included sunshield helps reduce glare for clearer outdoor FPV viewing, with dual antennas mounted on top.

Foxeer 7" LCD5802D Monitor DVR 5.8G 40CH Built in Receiver

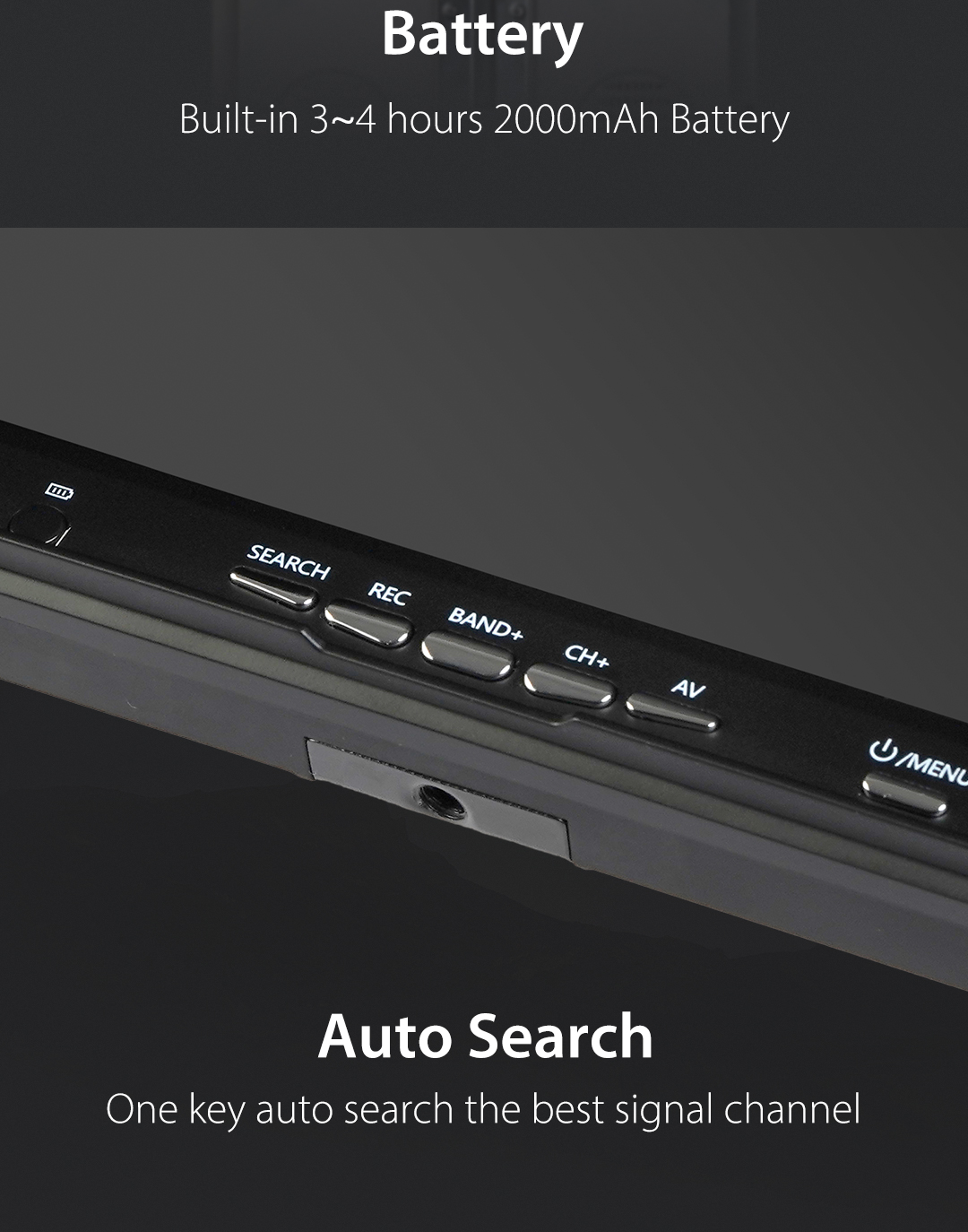

The Foxeer LCD5802D 7-inch FPV monitor includes one-key auto search and a built-in 2000mAh battery rated for 3–4 hours.

Foxeer 7" LCD5802D Monitor DVR 5.8G 40CH Built in Receiver

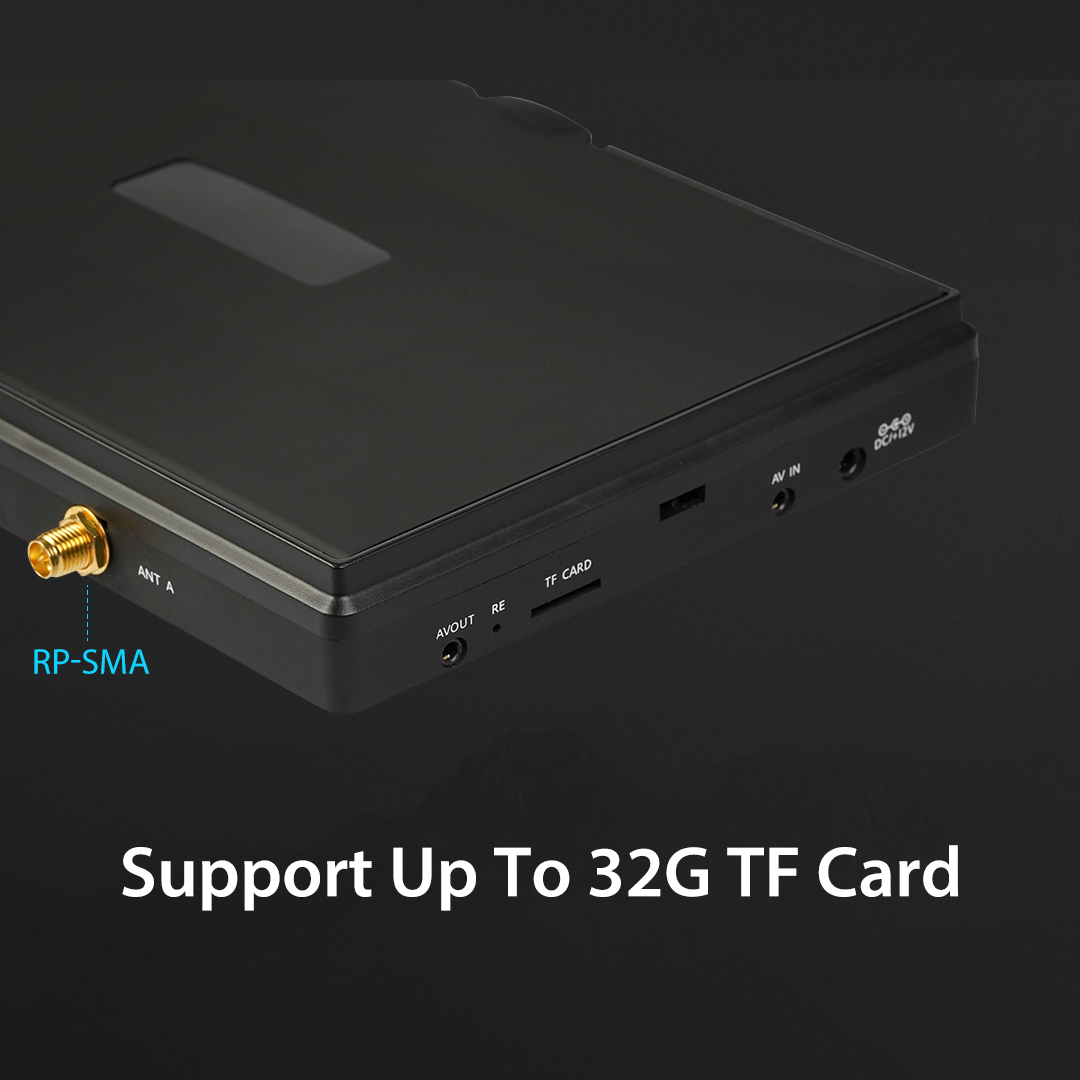

The Foxeer LCD5802D monitor includes an RP-SMA antenna connector, AV in/out ports, and a TF card slot supporting up to 32GB.
