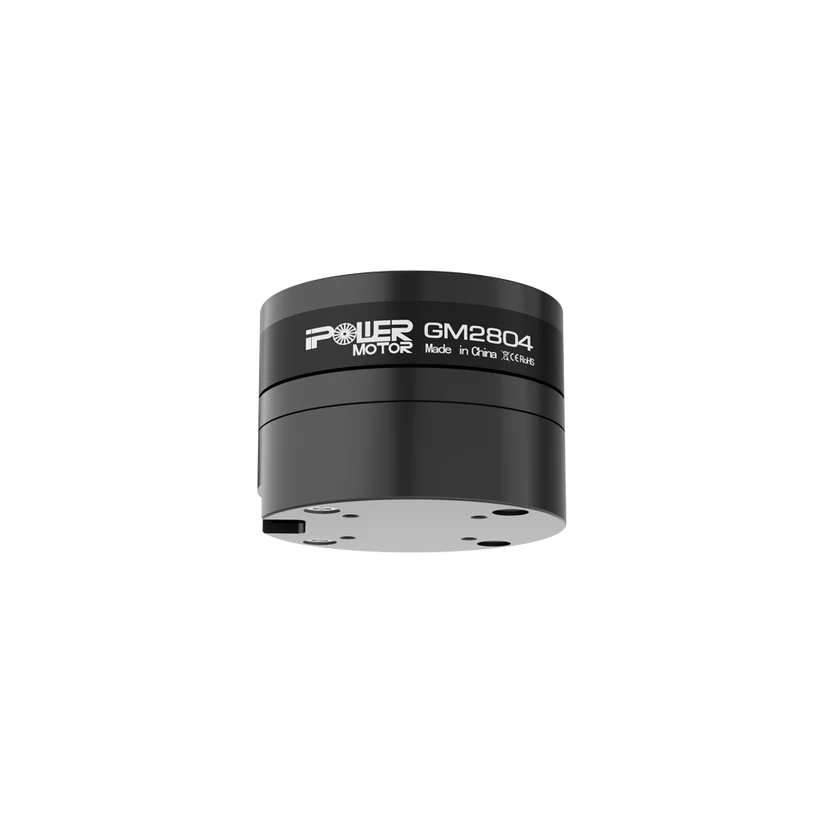

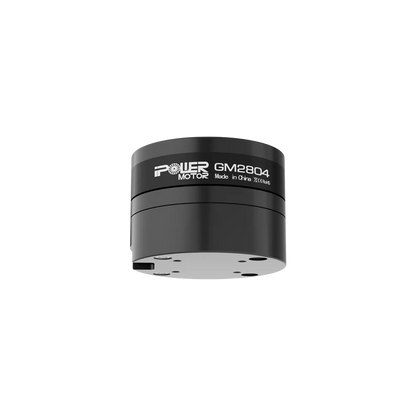

iFlight GM2804 Gimbal Motor GM2804-100T, Hollow Shaft 8 mm OD, 12N/14P, PH3P, ≤25 W
iFlight GM2804 Gimbal Motor GM2804-100T, Hollow Shaft 8 mm OD, 12N/14P, PH3P, ≤25 W
iFlight
Regular price
$28.32 USD
Regular price
Sale price
$28.32 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
The iFlight GM2804 is a gimbal motor designed for 3-axis camera stabilizing systems, suitable for UAV-mounted gimbals and handheld camera stabilizers.
Key Features
- 12N/14P motor configuration
- Hollow shaft design (specified OD/ID tolerances below)
- PH3P connector, 60±3 mm lead, #24 AWG cable
- Rated test points provided for no-load and load operation at 10 V
Specifications
| Model | GM2804 |
| Motor outer diameter | 35±0.05 mm |
| Configuration | 12N/14P |
| Motor height | 15±0.2 mm |
| Hollow shaft (OD) | 8-0.008/-0.012 mm |
| Hollow shaft (ID) | 6.5+0.05/0 mm |
| Wire length | 60±3 mm |
| Cable | #24 AWG |
| Motor weight | 42.3±0.2 g |
| Wire plug | PH3P connector |
| No-load current | 0.09±0.05 A |
| No-load voltage | 10 V |
| No-load RPM | 1602~1771 RPM |
| Load current | 0.8 A |
| Load voltage | 10 V |
| Load torque | 250-350 g·cm |
| Motor internal resistance | 9 Ω ±5% (resistance varies with temperature) |
| High voltage test | DC500V 1 mA @ 2 sec |
| Rotor housing runout | ≤0.1 mm |
| Steering (axle extension) | Clockwise |
| High temperature test | Keep at 60 °C for 100 hours; motor works normally after 24 hours at room temperature |
| Low temperature test | Keep at -20 °C for 100 hours; motor works normally after 24 hours at room temperature |
| Maximum power | ≤25 W |
| Working current | 2-3S |
| Working temperature / humidity | -20~60 °C; 10~90%RH |
What’s Included
- 1 x iPower GM2804-100T Gimbal Motor
For compatibility checks (connector, shaft size, and controller pairing) or bulk inquiries, contact support@rcdrone.top or visit https://rcdrone.top/.
