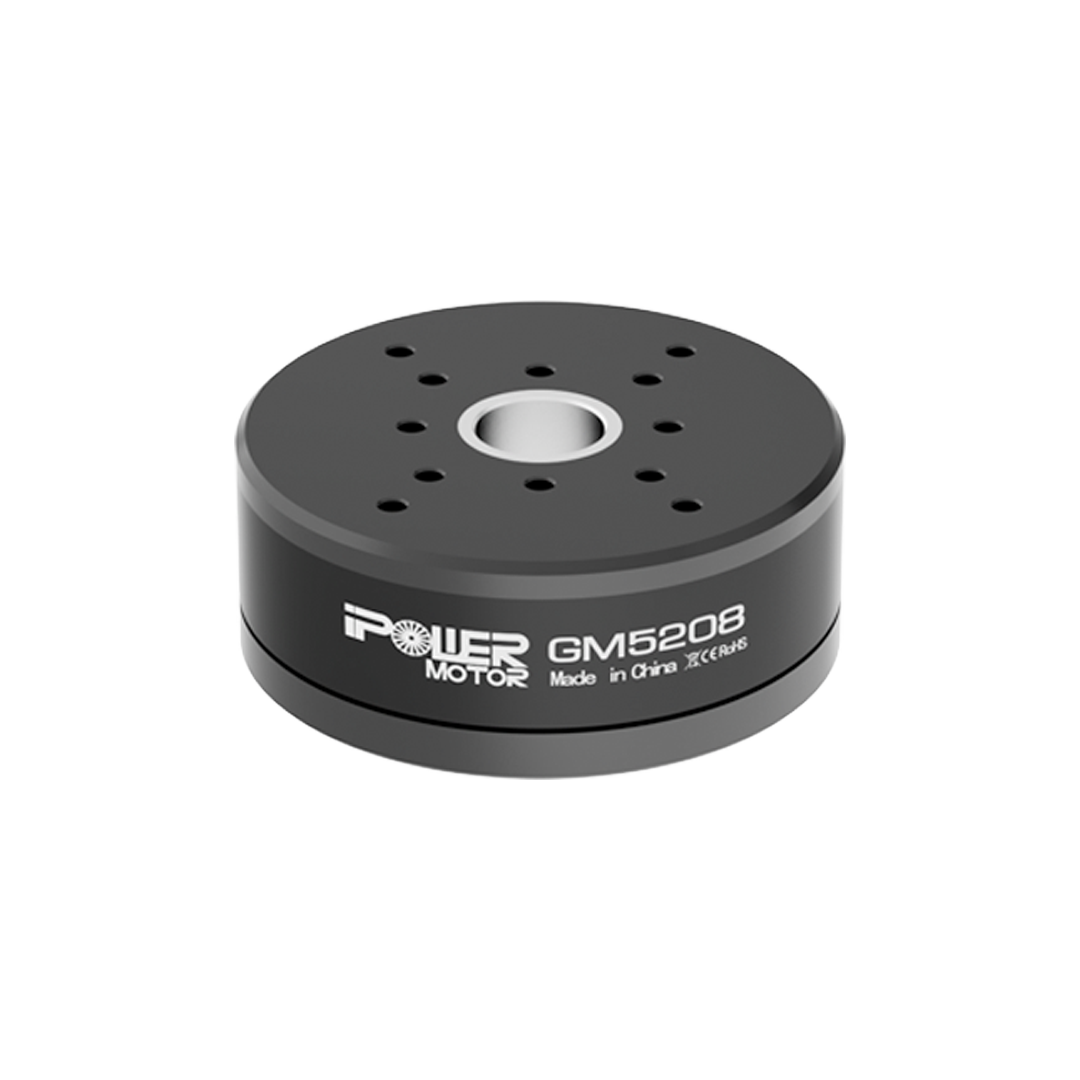

• iFlight GM5208-24 Brushless Gimbal Motor, GM5208 brushless gimbal motor in black, round housing with center bore and multiple mounting holes
  • iFlight GM5208-24 Brushless Gimbal Motor, GM5208 brushless gimbal motor with round black housing, top mounting holes, and centered shaft opening
1 2

iFlight GM5208-24 Brushless Gimbal Motor (GM52 Series) 24N/22P, 3-5S, 59.5mm OD, 204g

iFlight GM5208-24 Brushless Gimbal Motor (GM52 Series) 24N/22P, 3-5S, 59.5mm OD, 204g

iFlight

$55.37 USD
$55.37 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The iFlight GM5208-24 is a brushless direct-drive gimbal motor (GM52 series) designed for camera stabilization setups, including DSLR-sized cameras such as CANON 5D MARKII / MARKIII, and for large-scale multi-rotor platforms lifting Red Epic & DSLR sized gear. The stabilization principle uses BLDC direct-drive motors, similar in concept to gimbals based on hobby servos.

Key Features

  • Brushless direct-drive gimbal motor design for camera stabilization
  • 24N/22P configuration
  • Hollow shaft design (specified OD/ID tolerances)
  • 2.5 mm Dupont connector, #24 AWG cable, 610 ±3 mm wire length
  • Specified no-load and load performance at 20 V, plus environmental and electrical test ratings

Specifications

Model GM5208-24
Motor outer diameter Dia. 59.5 ±0.05 mm
Configuration 24N/22P
Motor height 31.2 ±0.2 mm
Hollow shaft (OD) Dia. 15 -0.008/-0.012 mm
Hollow shaft (ID) Dia. 12.6 +0.05/0 mm
Wire length 610 ±3 mm
Cable AWG #24
Motor weight 204 ±0.5 g
Wire plug 2.5 mm Dupont connector
No-load current 0.09 ±0.1 A
No-load volts 20 V
No-load RPM 396~436 RPM
Load current 1 A
Load volts 20 V
Load torque 1800-2500 g·cm
Motor internal resistance 13.7 ohm ±5% (resistance varies with temperature)
High voltage test DC500V 10 mA @ 1 sec
Rotor housing runout <= 0.1 mm
Steering (axle extension) Clockwise
High temperature test Keep at 60 °C for 100 hours; motor can work normally after 24 hours at room temperature
Low temperature test Keep at -20 °C for 100 hours; motor can work normally after 24 hours at room temperature
Maximum power <= 40 W
Working voltage 3-5S
Working temperature / humidity -20~60 °C; 10~90% RH

What’s Included

  • 1 x GM5208-24 gimbal motor
  • 1 x Screw bag

Applications

  • Brushless gimbal stabilization for DSLR-sized cameras (including CANON 5D MARKII / MARKIII)
  • Large-scale multi-rotor platforms lifting Red Epic & DSLR sized gear
