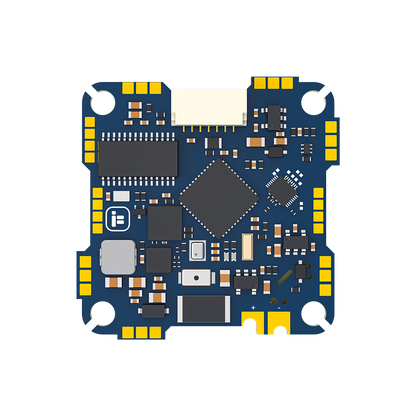

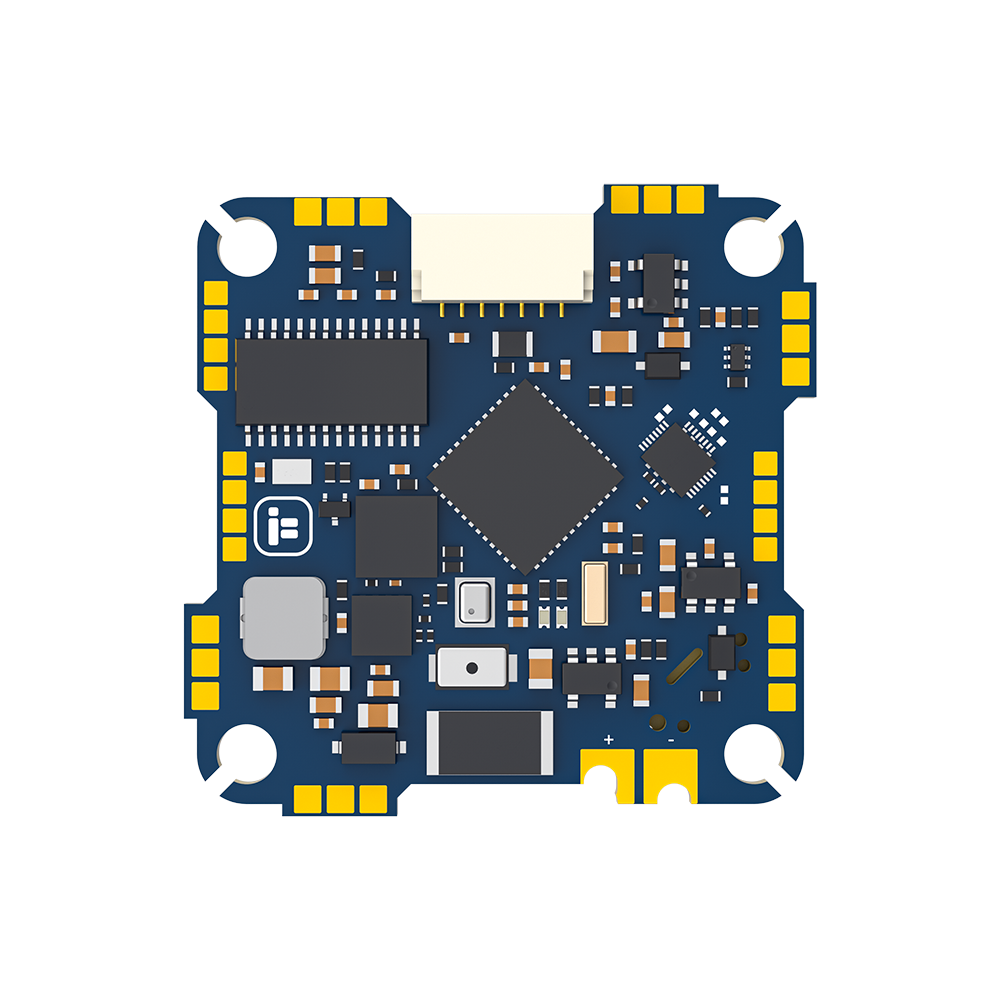

• iFlight Defender 25 AIO flight controller board with 20A ESC, JST connector, solder pads, and 4 mounting holes

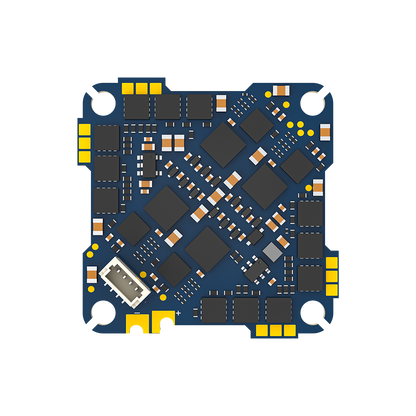

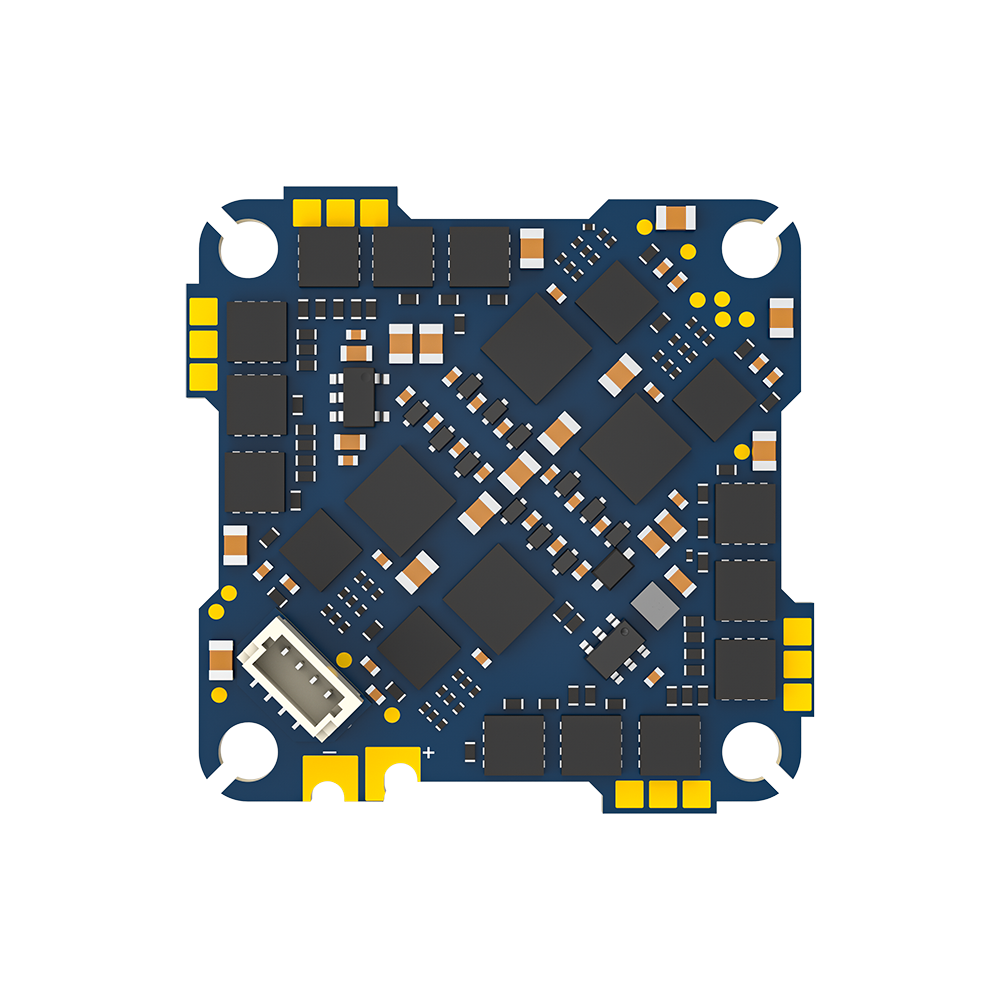

  • iFlight Defender 25 F411 analog AIO flight controller and 20A ESC board with JST plug and solder pads

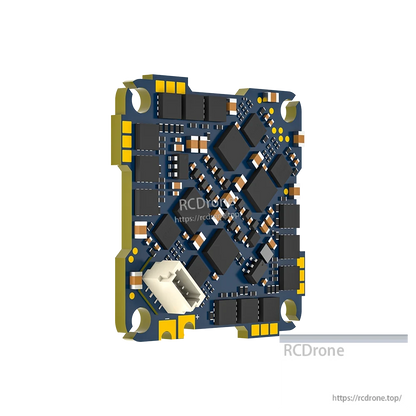

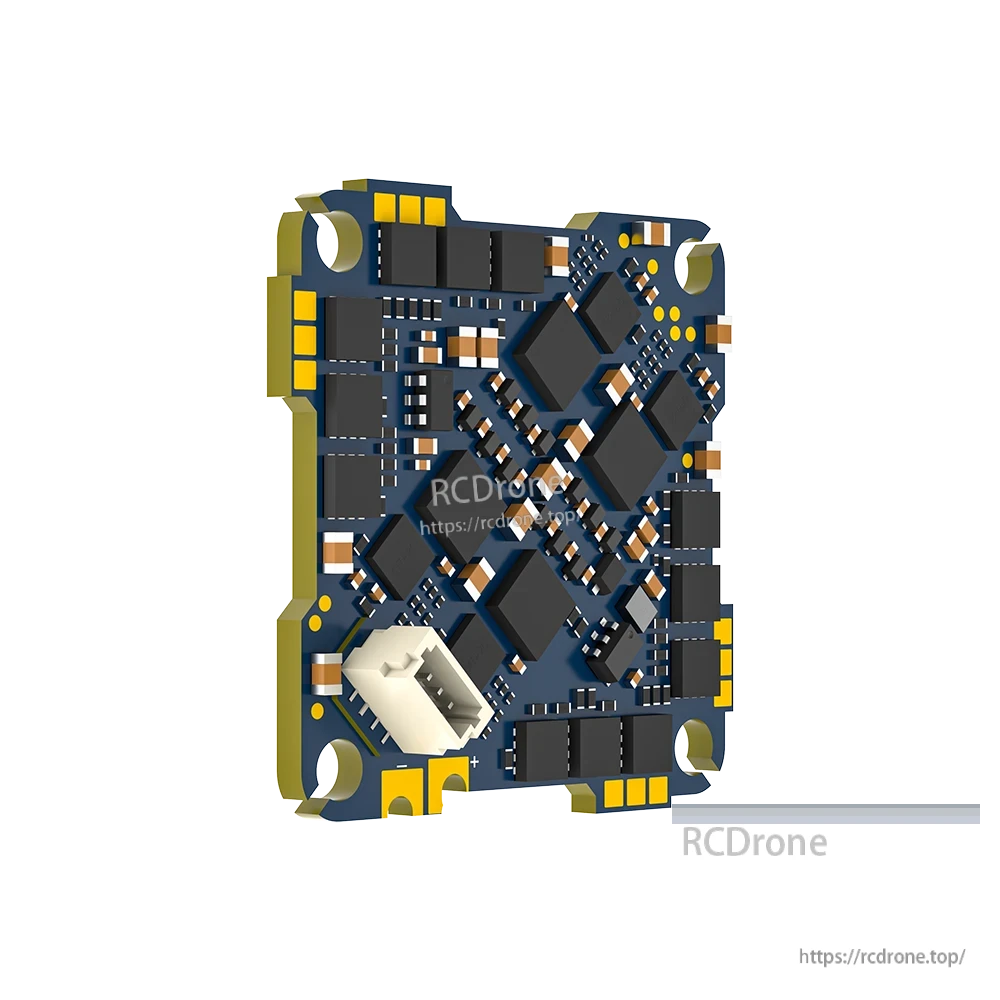

  • iFlight Defender 25 AIO flight controller and 20A ESC board with mounting holes, solder pads, and plug connector

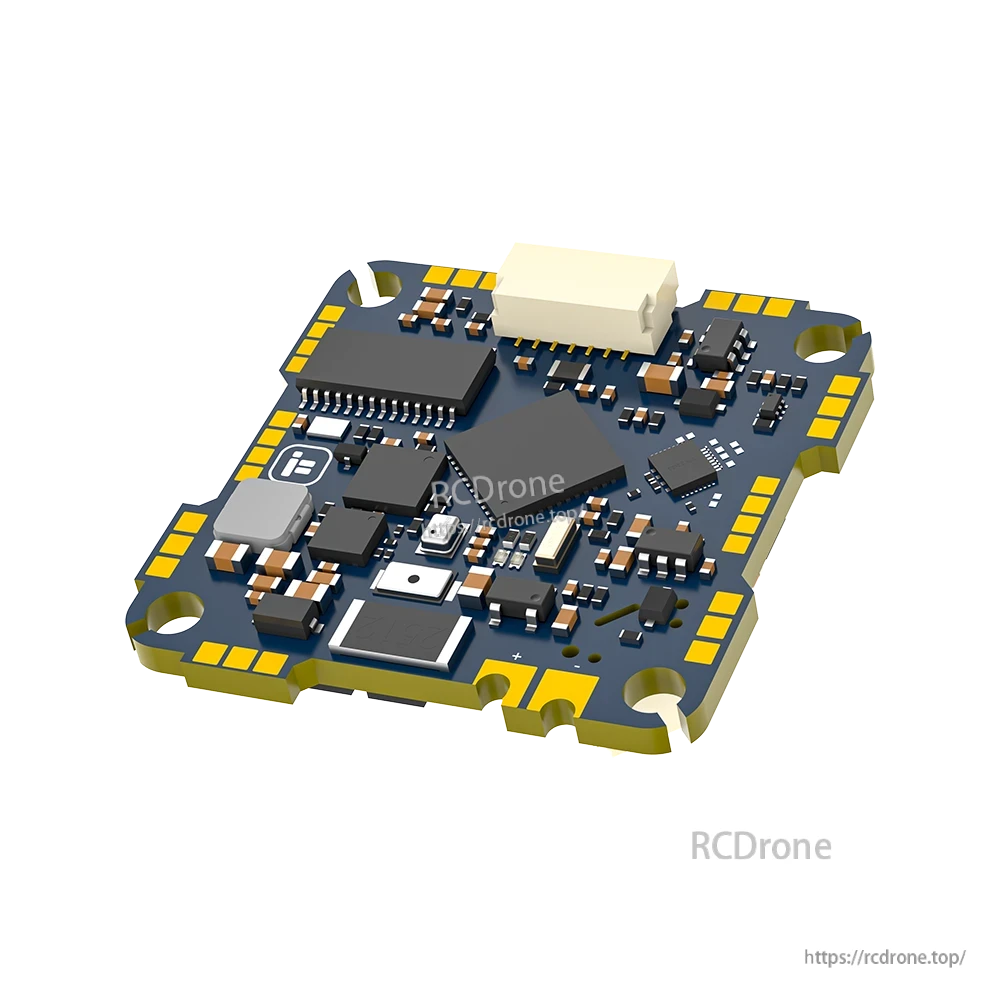

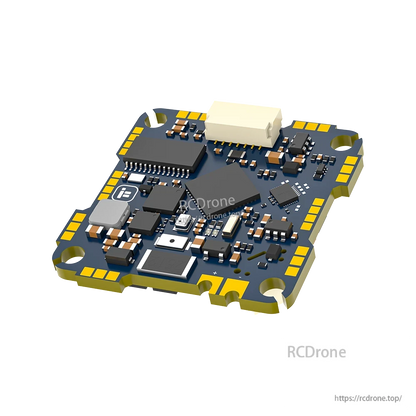

  • iFlight Defender 25 F411 analog AIO flight controller board with onboard ESC and white plug connector
1 4

iFlight Defender 25 F411 Analog AIO Flight Controller + 20A ESC (2-4S), ICM42688, 8MB Blackbox

iFlight Defender 25 F411 Analog AIO Flight Controller + 20A ESC (2-4S), ICM42688, 8MB Blackbox

iFlight

$95.30 USD
$95.30 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The iFlight Defender 25 F411 Analog AIO is an analog AIO flight controller (FC) with integrated ESC, designed for the Defender 25 Analog. It is a compact, lightweight all-in-one board intended to simplify wiring—solder motor wires and install.

Key Features

  • Designed for Defender 25 Analog only
  • STM32F411 MCU with ICM42688 gyro
  • 8MB blackbox and barometer support
  • Integrated ESC rated 20A (25A peak for 10 seconds), 2–4S input
  • Bluejay Q-H-50 (8bit ESC) firmware

Specifications

Flight Controller (FC)

MCU STM32F411
Gyro ICM42688
Connector Micro
Blackbox 8MB
INA pad n uart2
Barometer Yes
Weight 7.5g±0.1g
Mounting pattern 25.5*25.5mm/φ3mm
Dimensions 30.5*30.5mm
FC Firmware IFLIGHT_F411_PRO (BF4.4.2)

ESC

Output current 20A, peak value 25A (10 seconds)
Current sensor yes
Telemetry no
ESC Firmware Bluejay Q-H-50 (8bit ESC)
Input voltage 2-4S

What’s Included

  • 1 x Defender 25 BLITZ F411 Analog AIO
  • 4 x M2 silicon grommets

Note

iFlight product is for fun purposes only and does not support autonomous flight.

If compatibility help is needed before purchase, contact https://rcdrone.top/ or support@rcdrone.top.
