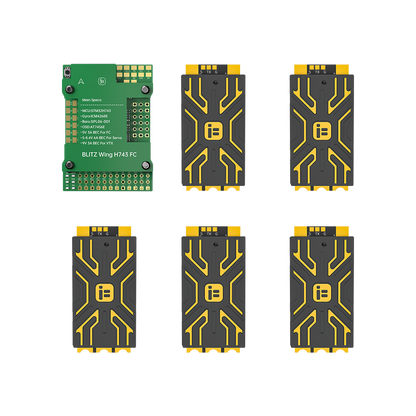

• iFlight BLITZ Wing H743 FC board with main specs label alongside five BLITZ ESC modules in black and yellow

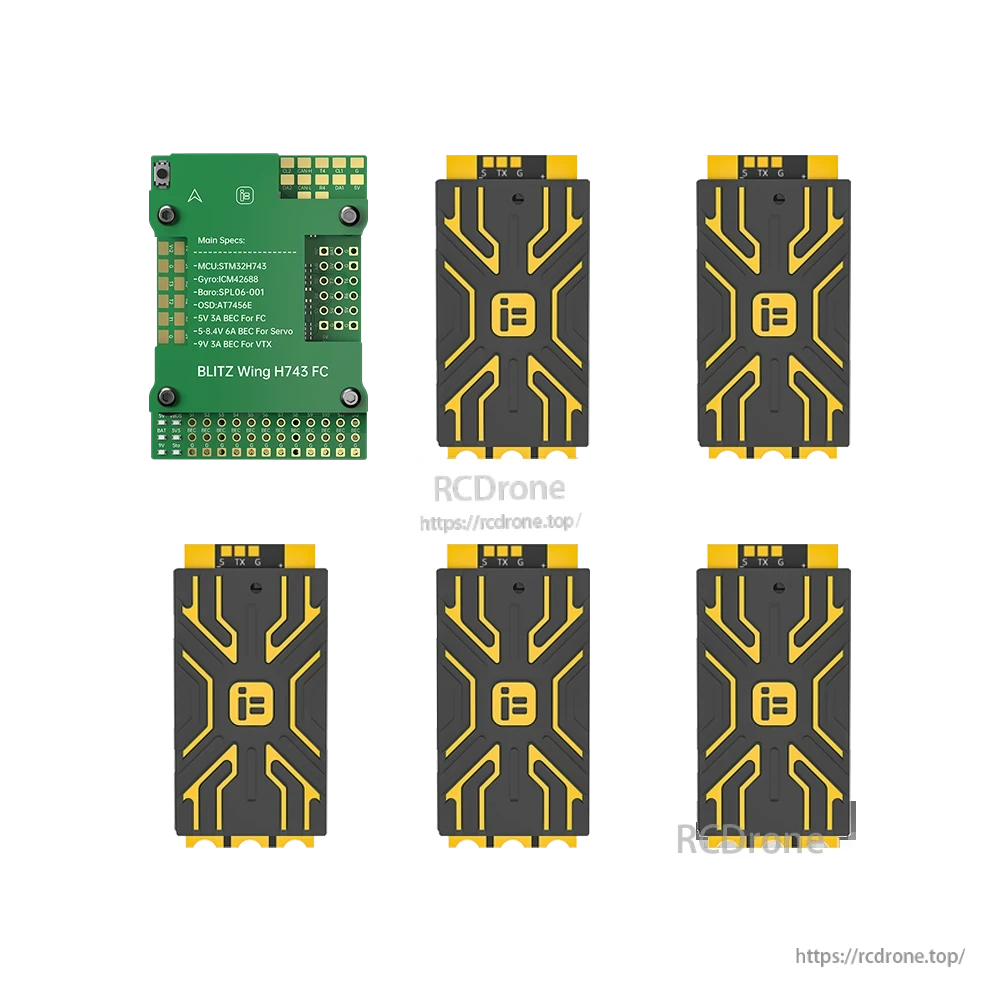

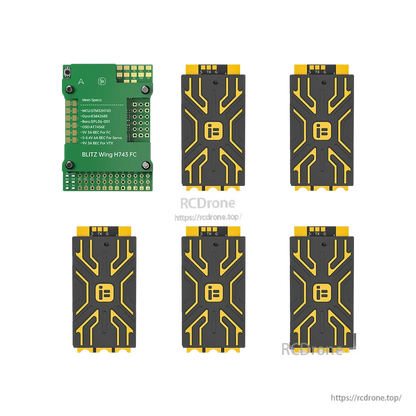

  • iFlight BLITZ Wing H743 flight controller board with main specs text and five BLITZ ESC modules
1 2

iFlight BLITZ Wing H743 Combo Set Fixed-Wing Flight Controller + 5x BLITZ E80 80A BLHeli32 ESC

iFlight BLITZ Wing H743 Combo Set Fixed-Wing Flight Controller + 5x BLITZ E80 80A BLHeli32 ESC

iFlight

$349.59 USD
$349.59 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The iFlight BLITZ Wing H743 Combo Set is a fixed-wing UAV flight controller and ESC bundle for model aircraft, designed for use with Betaflight, INAV, and Ardupilot. It integrates power distribution, onboard current sensing, MicroSD BlackBox logging, and switchable dual analog camera inputs, and pairs with five BLITZ E80 BLHeli32 single ESCs for 2–8S power systems.

Changelog (Barometer)

  • January 14, 2025: Barometer changed from DPS310 to SPA06-001.
  • Sept. 9, 2025: Barometer changed from SPA06-001 to SPL06-003.

Key Features

  • Up to 5 groups of ESC power supply soldering pads
  • Switchable dual analog camera inputs (remote-controlled switching)
  • Independent servo power BEC: 5–8.4V 6A
  • STM32H743 main MCU
  • Onboard MicroSD card slot for data recording (BlackBox)
  • Onboard current meter for real-time current monitoring
  • Supports external airspeed sensor
  • Smartaudio / IRC Tramp VTX protocol support
  • WS2812 LED strip support and beeper pad

Specifications

BLITZ Wing H743 Flight Controller

MCU STM32H743
Gyro ICM42688P
Barometer SPA06-001 (see changelog for SPL06-003 update)
OSD AT7456E
BlackBox MicroSD card
UARTs 8
I2C SDA / SLA pads
LED Strip WS2812ledStrip: Yes
Beeper Beeper pad: Yes
Camera Input Switchable dual camera inputs
Switchable Outputs 5V / 7.4V / 8.4V outputs
Input Voltage 7–36V DC IN (2–8S)
Mount Pattern 30.5*30.5mm / φ4
Dimensions 36.9*52mm
Weight 35g
BF Firmware Target IFLIGHT_BLITZ_Wing_H743
INAV Firmware IFLIGHT_BLITZ_Wing_H743
Ardupilot Firmware BlitzWingH743
BEC 5V 2.5A / 9V 2.5A / 5–8.4V 6A
PDB Current Resistance 100A continuous, 160A peak (10 seconds)
Power (Continuous) 33.6V*100A = 3360W
Power (Peak) 33.6*160A = 5376W
Current Measurement Range 0–176A

FC Wiring Suggestion

  • UART1: VTX HD/Analog
  • UART2: Receiver
  • UART4: GPS
  • UART2, UART5, UART6, UART7: Free
  • Power rails suggested: 5V BEC for FC, 9V BEC for VTX, 5–8.4V 6A BEC for servo

BLITZ E80 Single ESC (BLHeli32)

Product Name BLITZ E80 Single ESC
Input Voltage 2–8S
Max. Continuous Current 80A
Max. Burst Current 100A
MCU G071
BEC No
Firmware BLHeli32
Current Sensor Yes
Telemetry Supported
Target IFLIGHT_BLITZ_G2
Dimensions L40 x W17 x W10mm
Weight 14.5g (±2)
Protocol DShot DShot150/300/600/MultiShot/OneShot PWM Drive

ESC Highlights / Support

  • 80A, 8 layers 4OZ copper PCB
  • NTMFS5C430NL MOSFET (top grade, as stated)
  • 1 * 3528 LED for power-on display
  • 11 pieces TDK MLCC Low ESR capacitors (total capacitance stated as 240UF in ESC description and 420UF in ESC highlights)
  • Current sensor, telemetry output, motor timing, brake on stop
  • MCU detail stated: 32bit 48mHz G071 MCU

What’s Included

  • 1 x BLITZ Wing H743 Flight Controller
  • 1 x silicon grommets
  • 5 x BLITZ E80 Single ESC - With CNC
  • 1 x Power cables & ESC signal wires

For installation and configuration support, contact https://rcdrone.top/ or email support@rcdrone.top.
