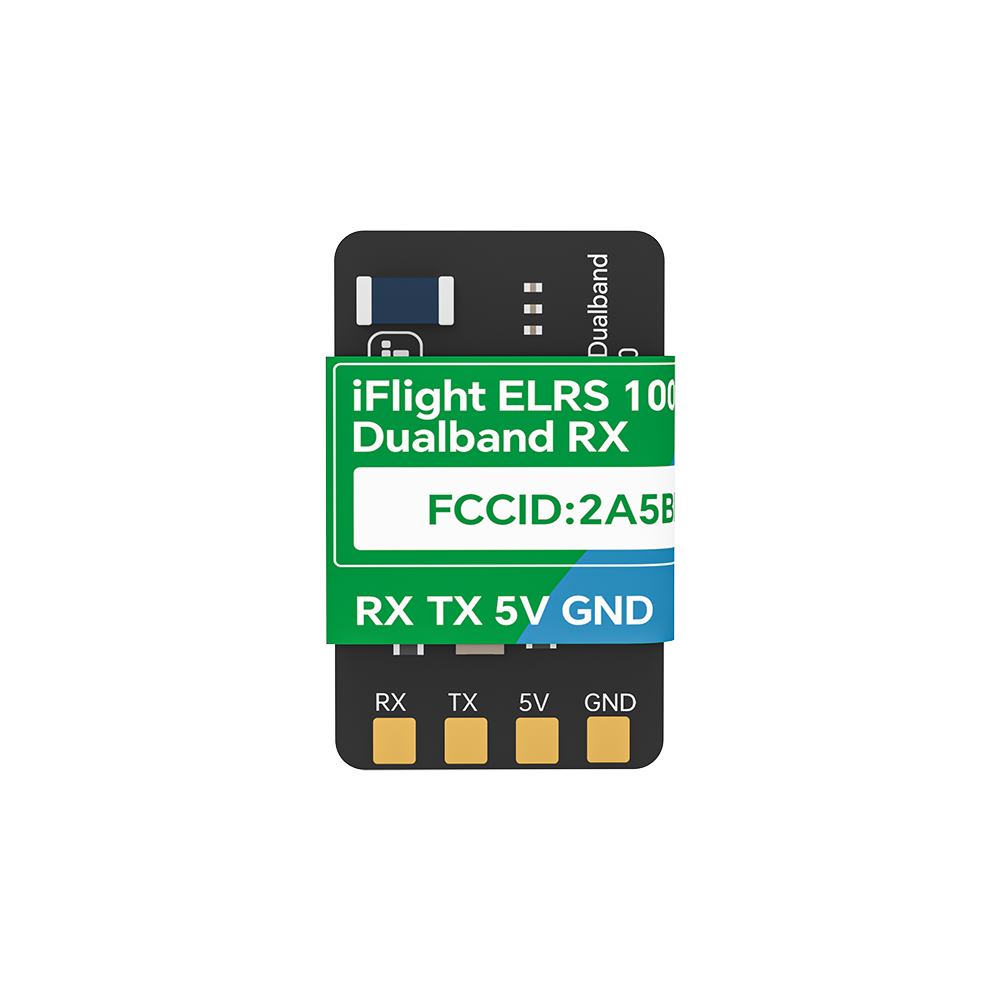

  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, iFlight ELRS 100 dualband ExpressLRS receiver board with RX, TX, 5V and GND solder pads
  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, ExpressLRS dualband receiver board with BOOT button, GND/5V/TX/RX pads, and 70mm T-antenna

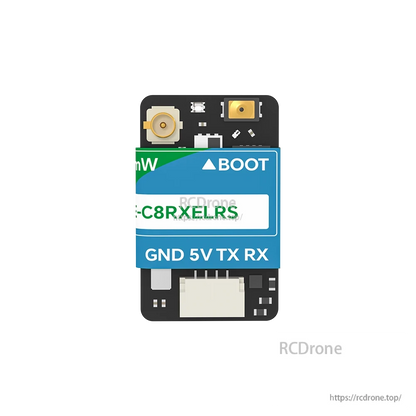

  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, iFlight ExpressLRS dualband receiver module with BOOT button and labeled GND 5V TX RX connection pads

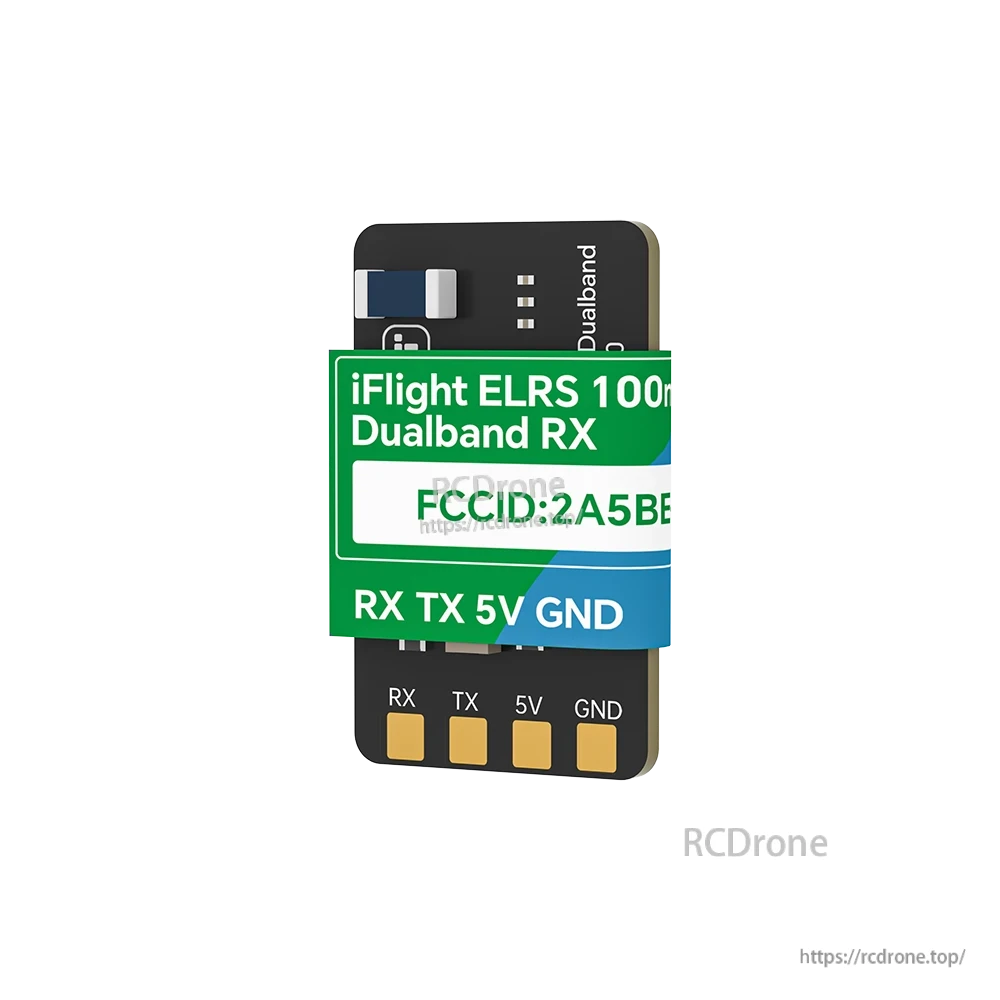

  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, iFlight ELRS Dualband receiver module with solder pads labeled RX, TX, 5V and GND

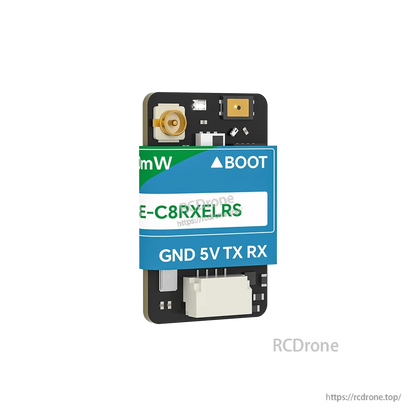

  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, iFlight ExpressLRS dualband receiver board with BOOT button, antenna connector, and GND 5V TX RX pins
  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, ExpressLRS 2.4GHz/900MHz 100mW diversity receiver board with dual antenna ports and GND 5V TX RX pads
  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, iFlight ExpressLRS dualband receiver module with solder pads labeled RX, TX, 5V, and GND
  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, ExpressLRS dual-band diversity receiver module with two antenna ports and GND/5V/TX/RX labeled connector
  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, iFlight ExpressLRS dual-band receiver module with RX, TX, 5V and GND solder pads

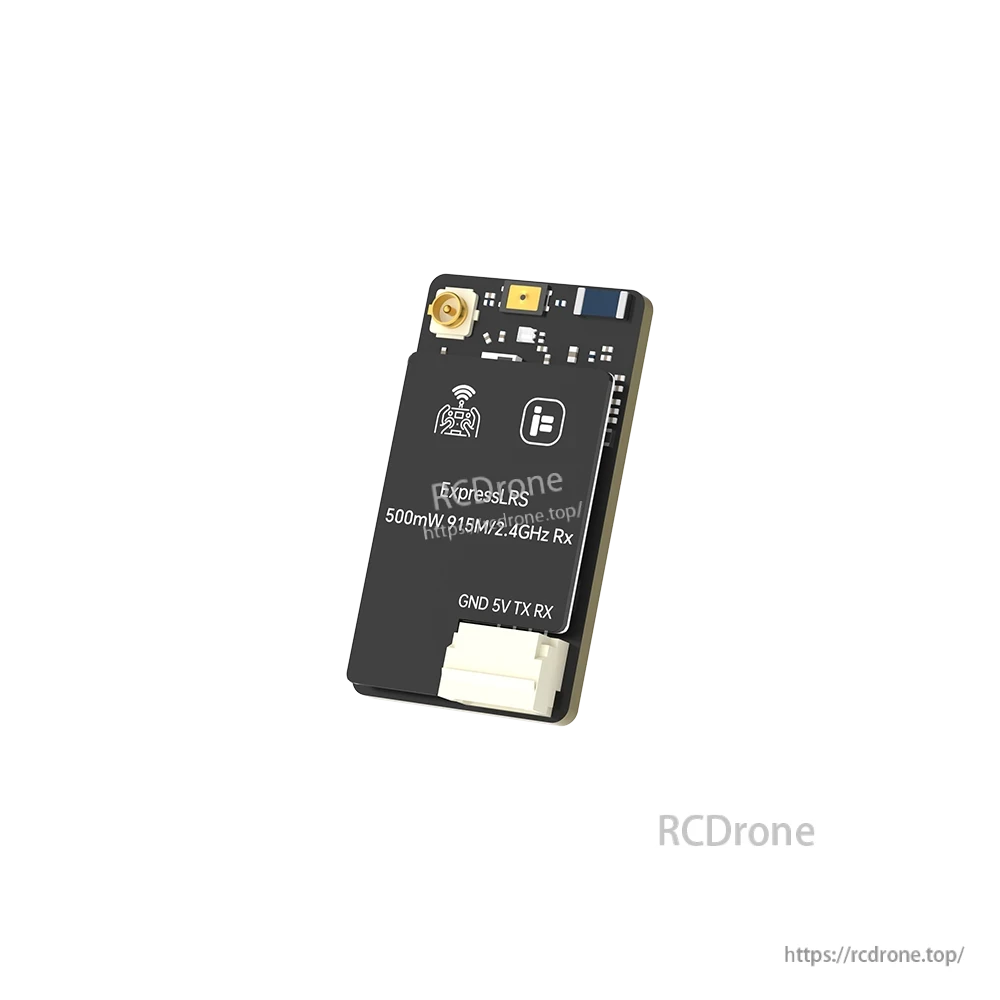

  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, ExpressLRS 915MHz/2.4GHz dual-band receiver module with antenna port and 4-pin GND 5V TX RX connector

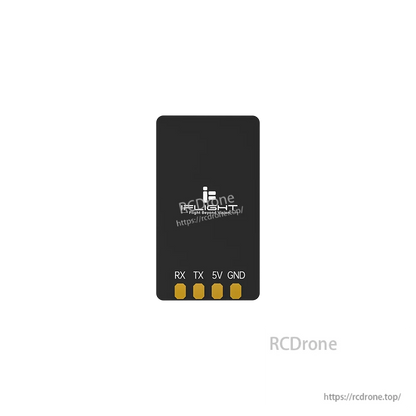

  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, iFlight ExpressLRS receiver module with RX, TX, 5V and GND solder pads on a compact black board

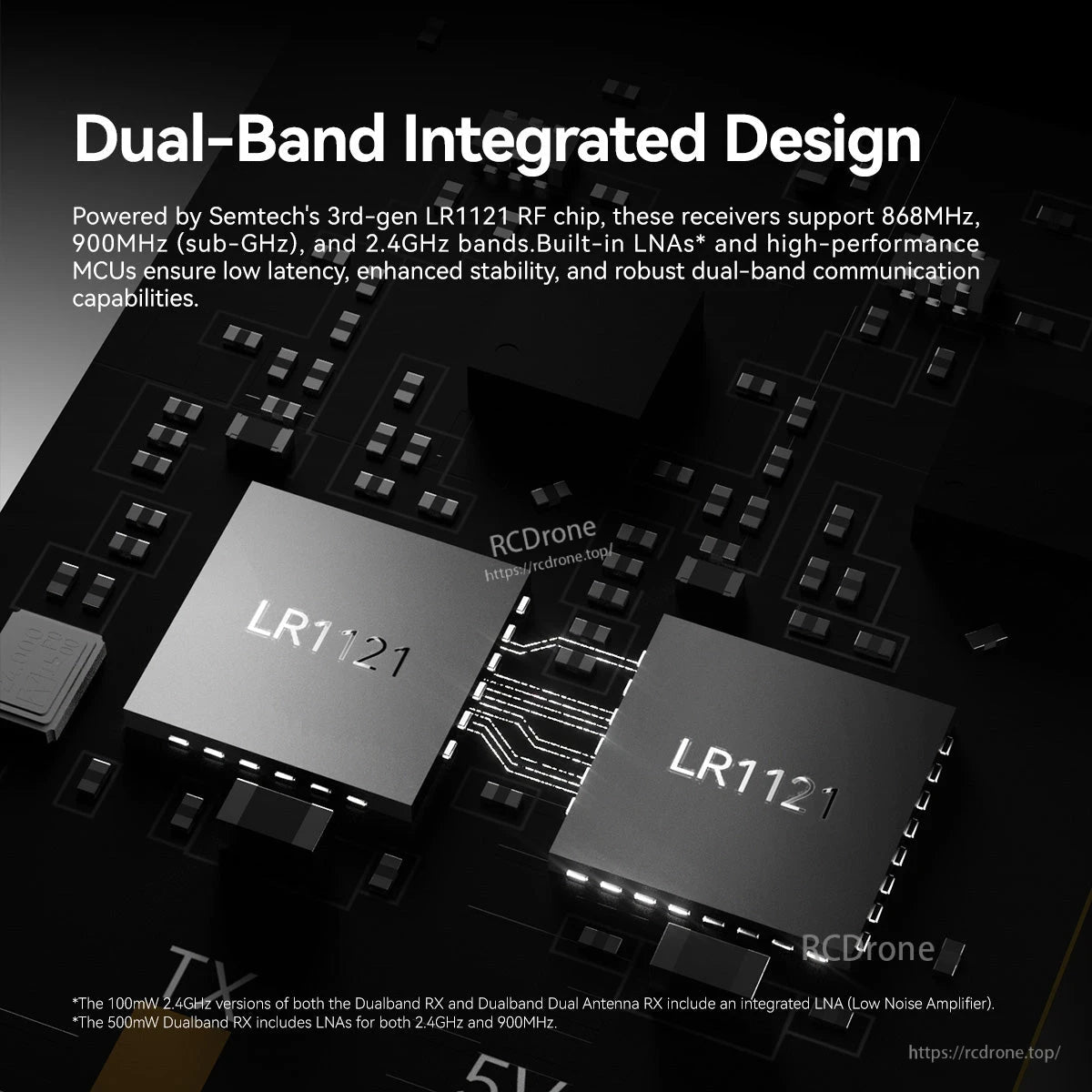

  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, Dual-band ExpressLRS receiver graphic featuring Semtech LR1121 RF chip with 868/900MHz and 2.4GHz band support
  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, iFlight ExpressLRS dualband receiver board with BOOT button, GND/5V/TX/RX pads and 220mm T antenna
  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, ExpressLRS dualband receiver board with 4-pin GND/5V/TX/RX connector and 70mm T antenna
  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, ExpressLRS dualband receiver board with 220mm antenna, labeled 500mW 900MHz/2.4GHz and GND 5V TX RX pins
  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, iFlight ExpressLRS 100mW dualband diversity receiver board with two 70mm antennas

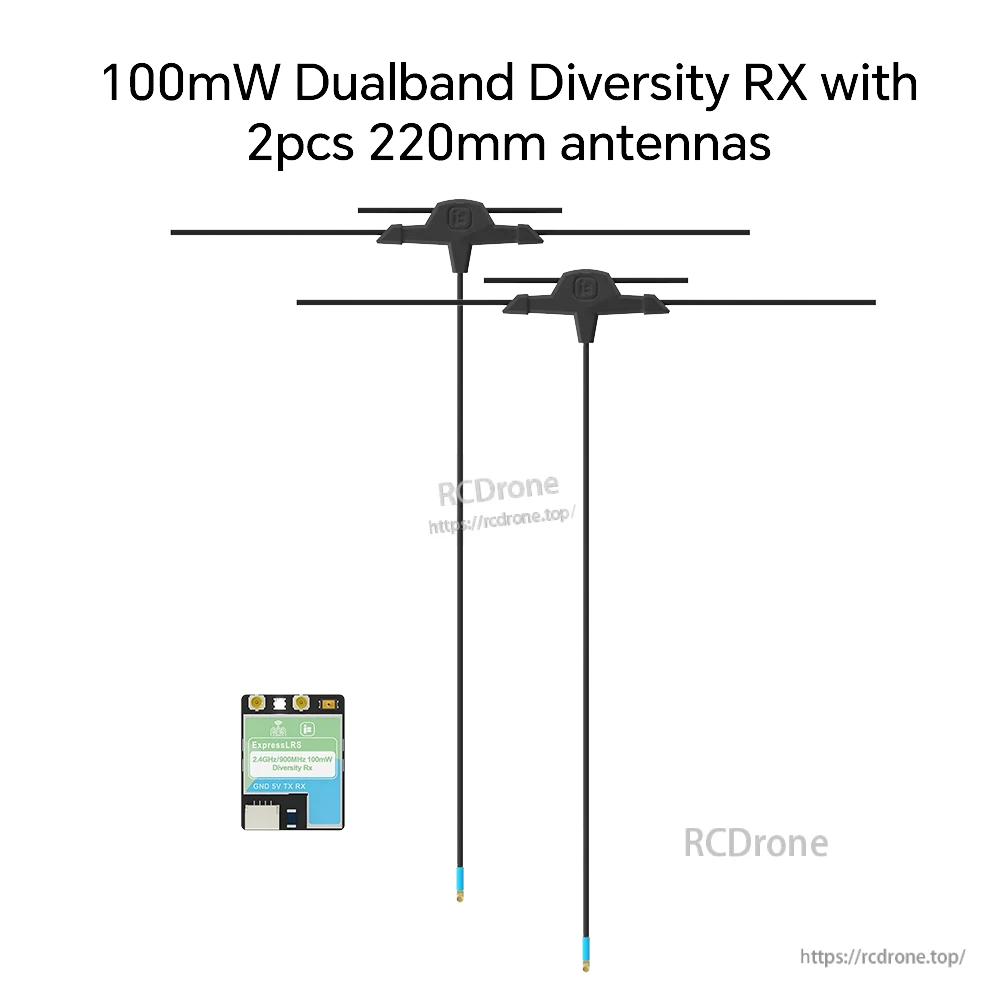

  • iFlight ExpressLRS 100mW ELRS Dualband Receiver, ExpressLRS 100mW dualband diversity receiver board with two 220mm T antennas and GND/5V/TX/RX pads
1 18

iFlight ExpressLRS 100mW ELRS Dualband Receiver (2.4GHz/868MHz/900MHz) TCXO LR1121 ELRS 3.5.3

iFlight ExpressLRS 100mW ELRS Dualband Receiver (2.4GHz/868MHz/900MHz) TCXO LR1121 ELRS 3.5.3

iFlight

$28.32 USD
$28.32 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Band Option
Receiver Antenna
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The iFlight ExpressLRS 100mW ELRS Dualband Receiver is an ExpressLRS receiver with dualband support across 2.4GHz, 868MHz, and 900MHz, and includes a TCXO (temperature-compensated crystal oscillator) for improved frequency stability. It is designed for compact integration and supports single-antenna or dual-antenna (diversity) configurations depending on the receiver option selected.

Key Features

  • TCXO technology to minimize frequency deviation for stable performance.
  • Multi-band operation: 2.4GHz, 868MHz, and 900MHz (model dependent).
  • Compact form factor for space-sensitive builds.

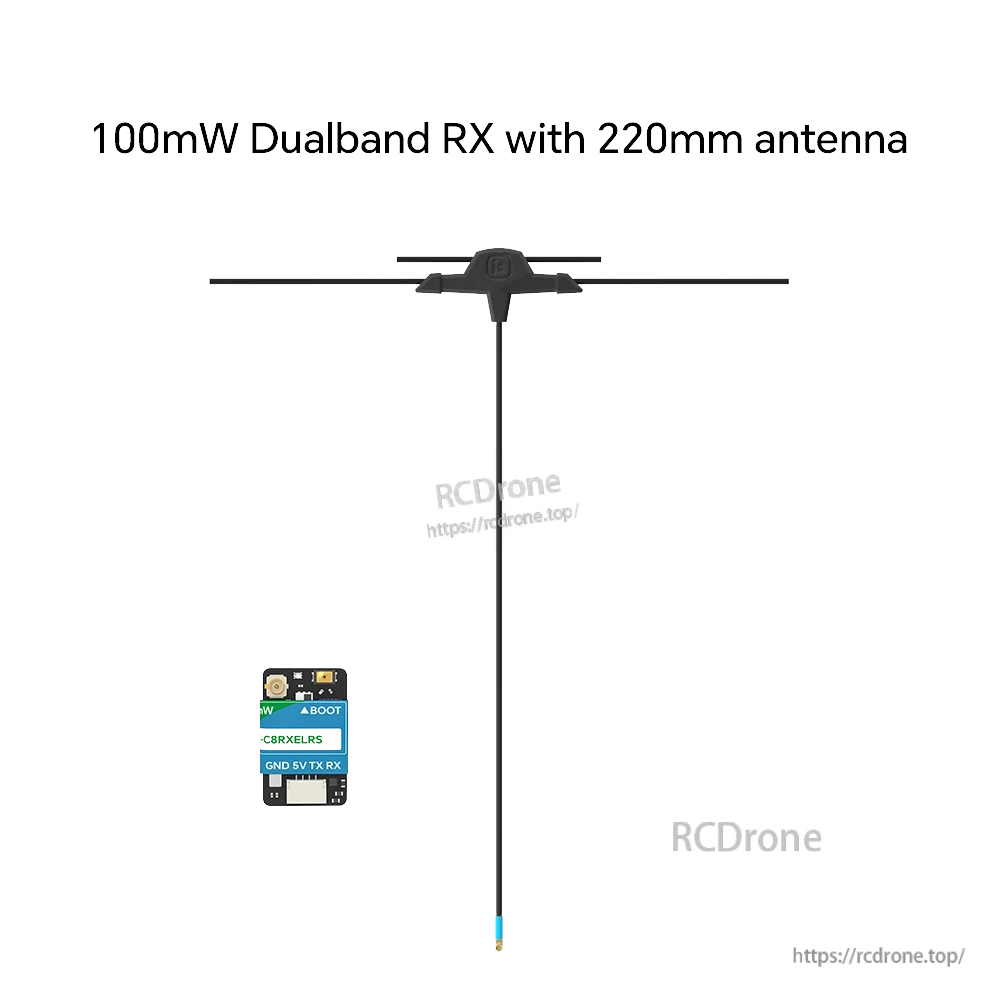

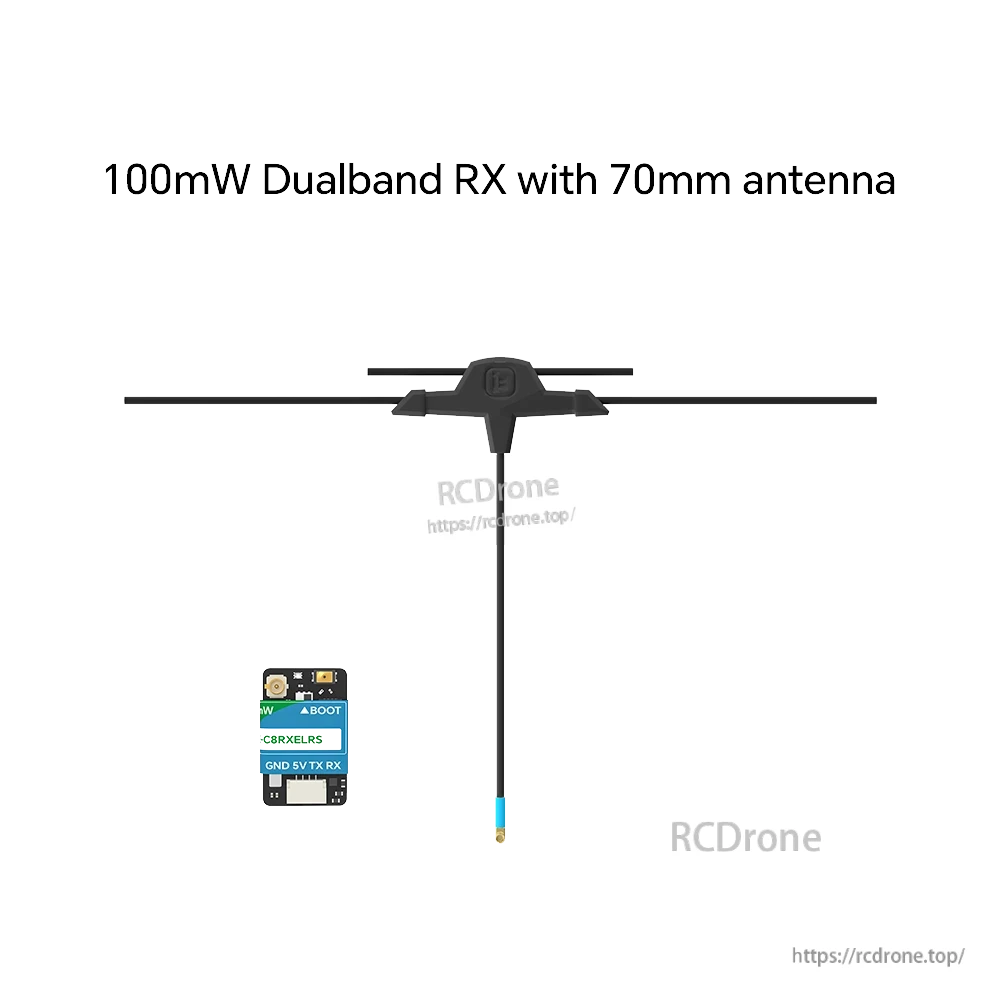

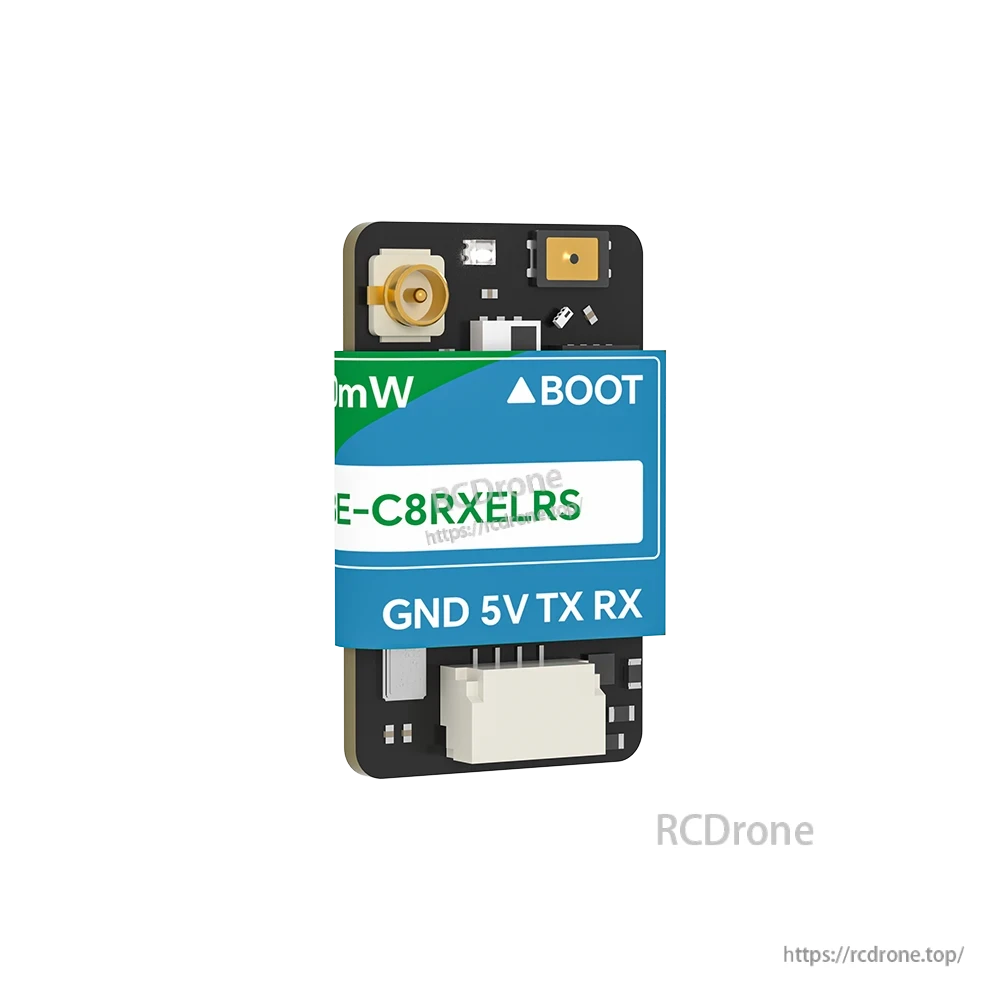

  • 100mW Dualband RX (single antenna): SUR 0.8 connector.

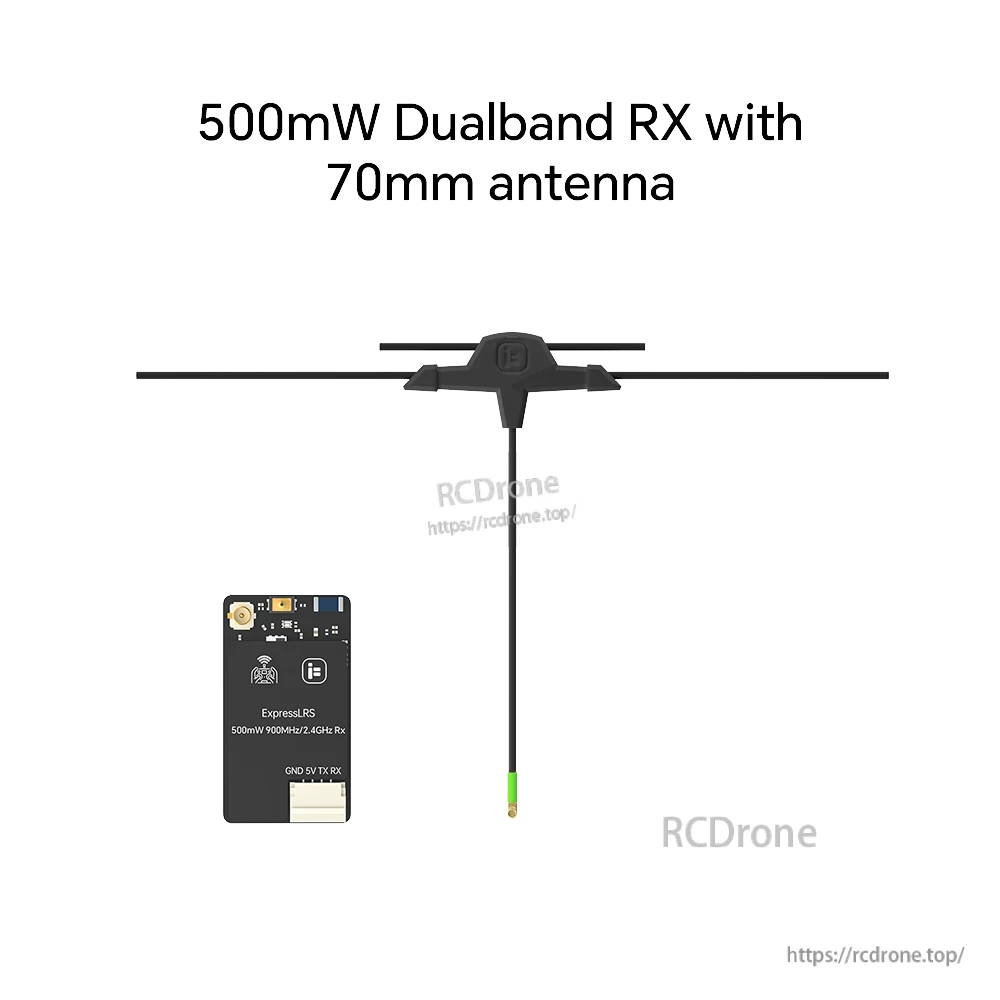

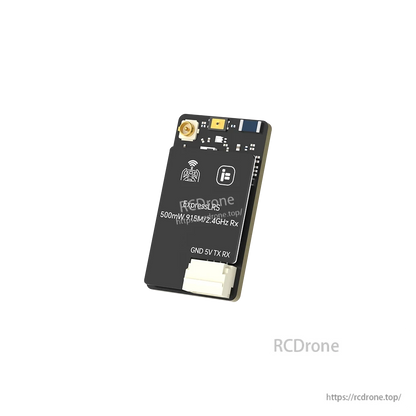

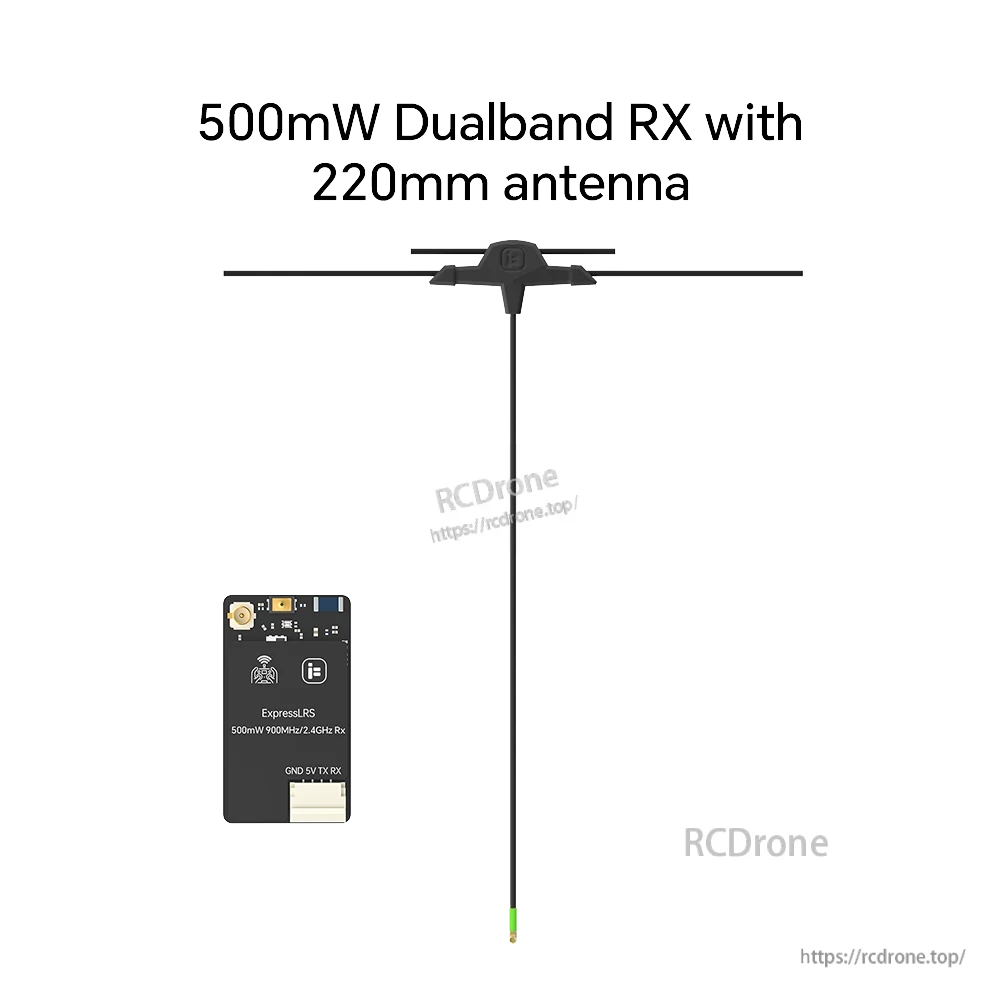

  • 500mW Dualband RX (single antenna): aluminum heat sink, SH1.0 connector, telemetry power up to 500mW.
  • 100mW Dualband Diversity RX: supports GemX, Gemini, and True Diversity RF modes; shielded design; SH1.0 connector. (GemX requires a high-frequency transmitter module supporting GemX mode.)

Specifications

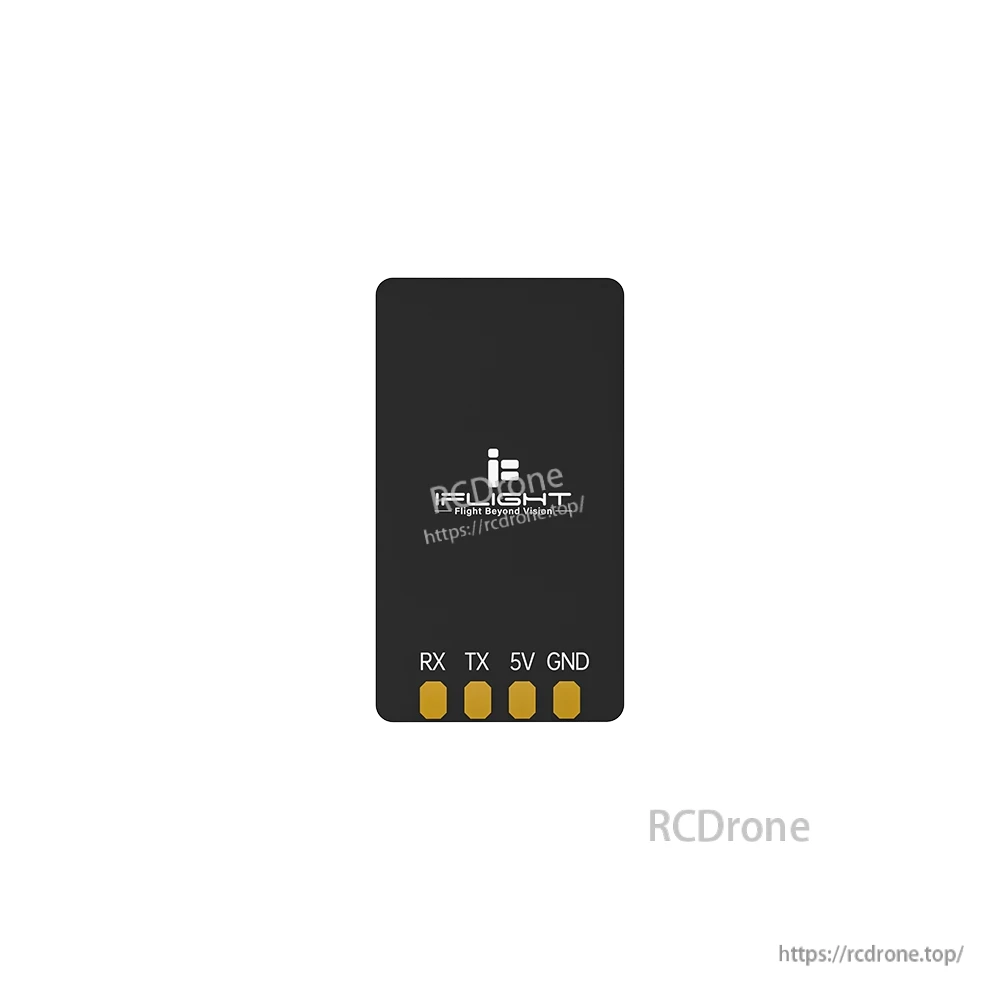

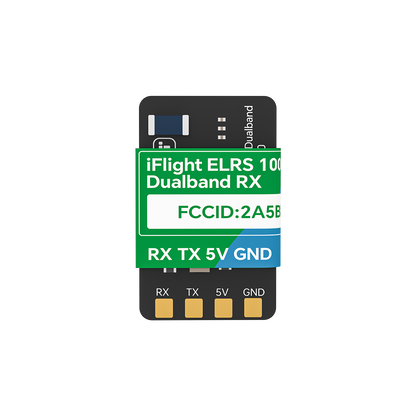

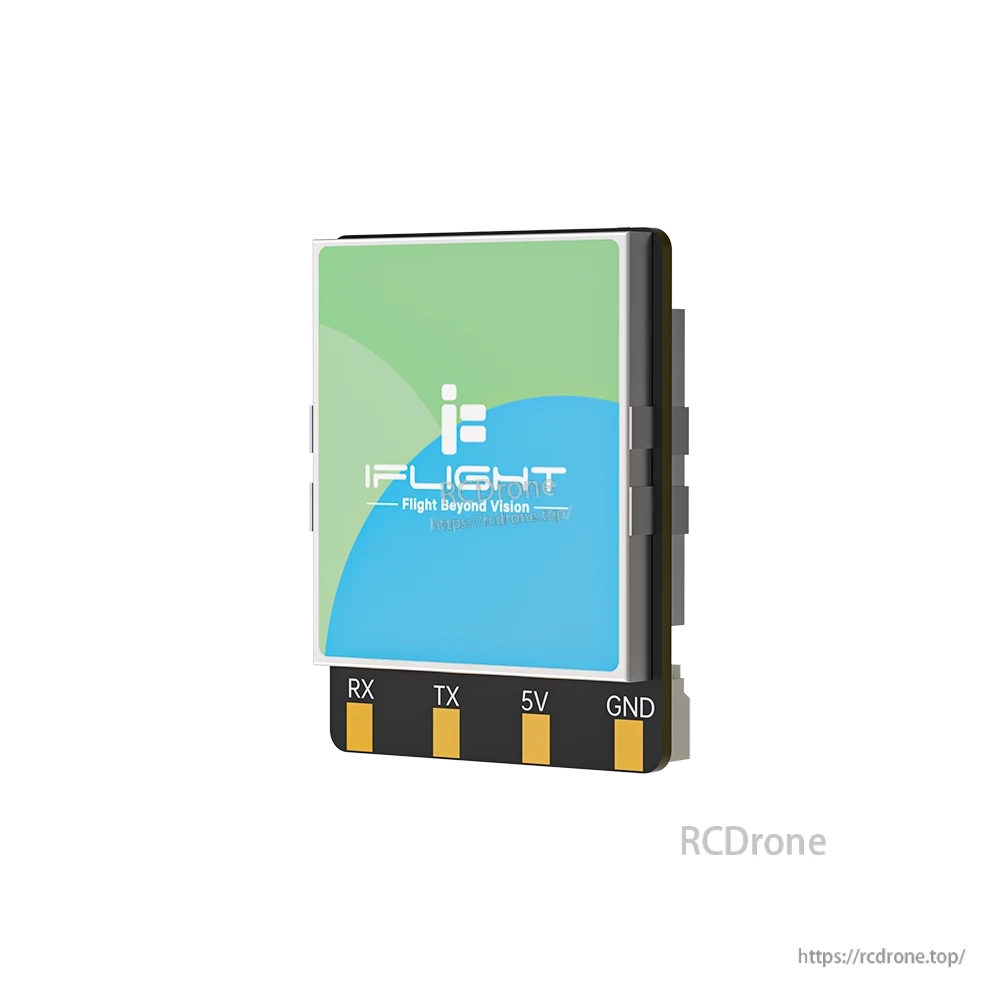

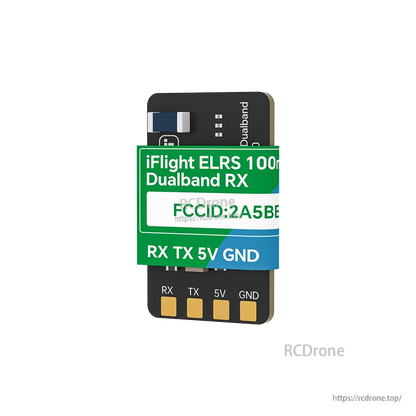

ELRS 100mW Dualband RX

MCU ESP32 C3
RF LR1121
Frequency Bands 2.4GHz, 868MHz, 900MHz
Receiver Type Single antenna
Telemetry power 100mW (20dBm)
LNA N/A (868/900MHz) / YES (2.4G)
Dimension 18*11mm (±0.2)
Weight 0.8g (±0.5g)
Lua Script iF DB 100mW RX
TCXO Yes
Firmware Version ELRS 3.5.3

ELRS 500mW Dualband RX

MCU ESP32 C3
RF LR1121
Frequency Bands 2.4GHz, 868MHz, 900MHz
Receiver Type Single antenna
Telemetry power 100-500mW (20-27dBm)
LNA YES
Dimension 14*25*4.3mm (±0.5)
Weight 1.9g (±0.5g)
Lua Script iF DB 500mW RX
TCXO Yes
Firmware Version ELRS 3.5.3

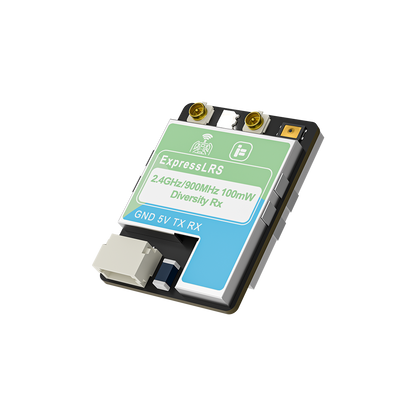

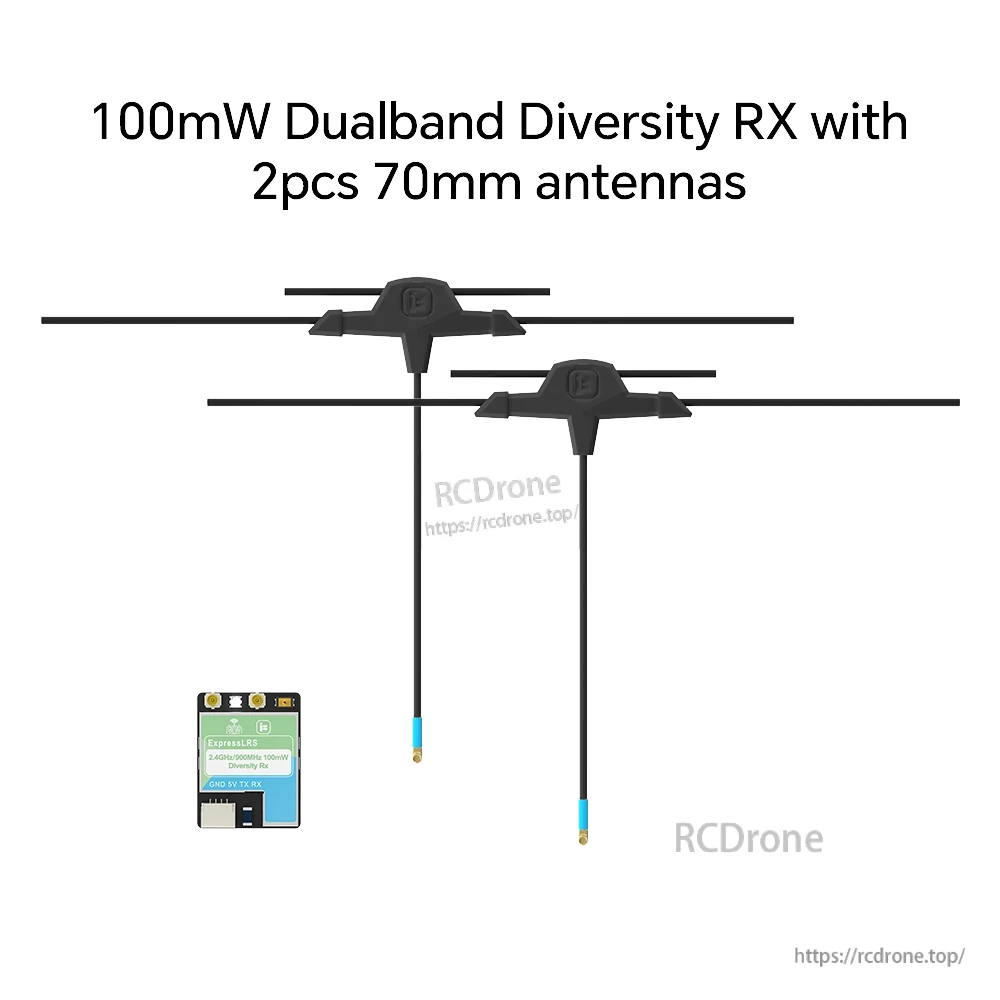

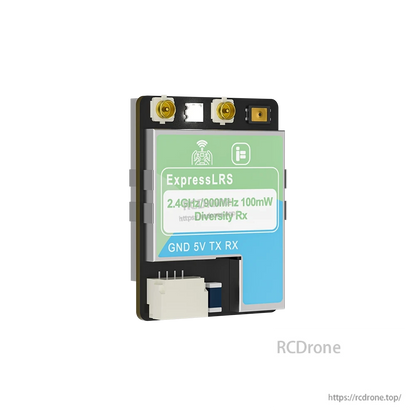

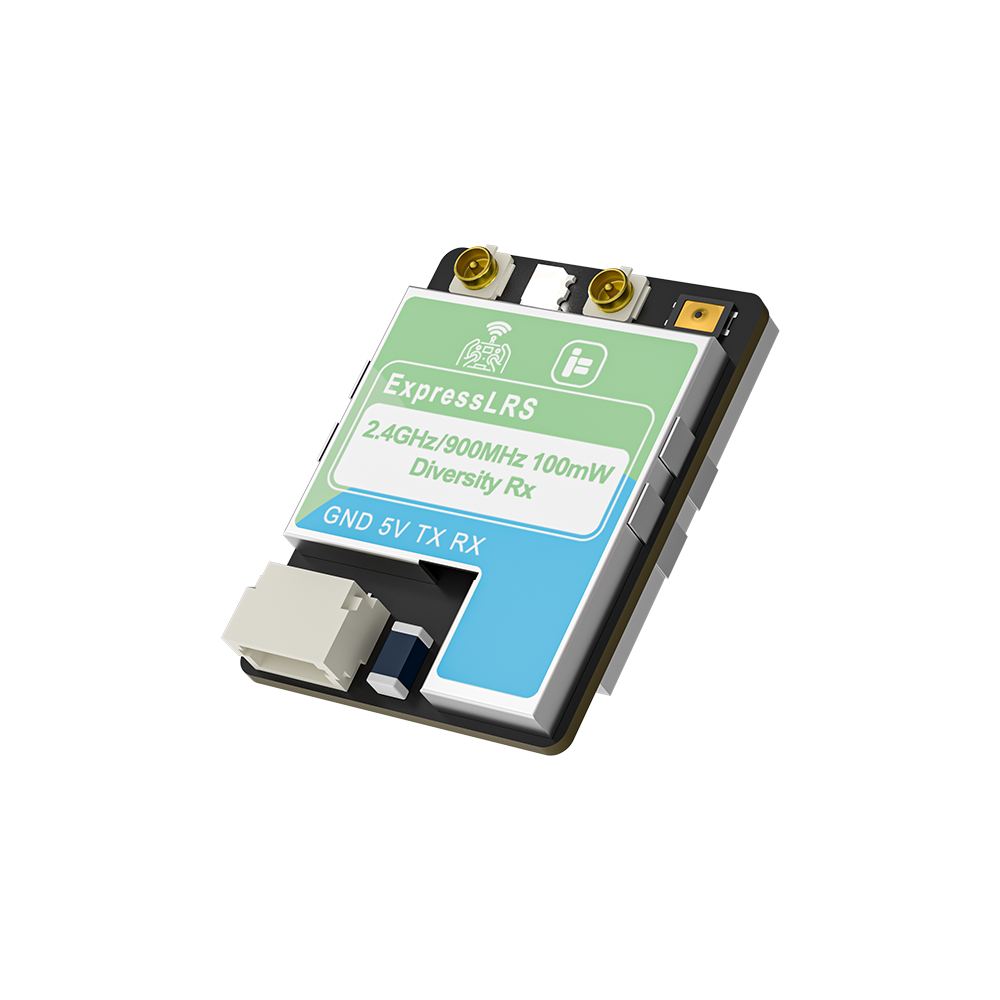

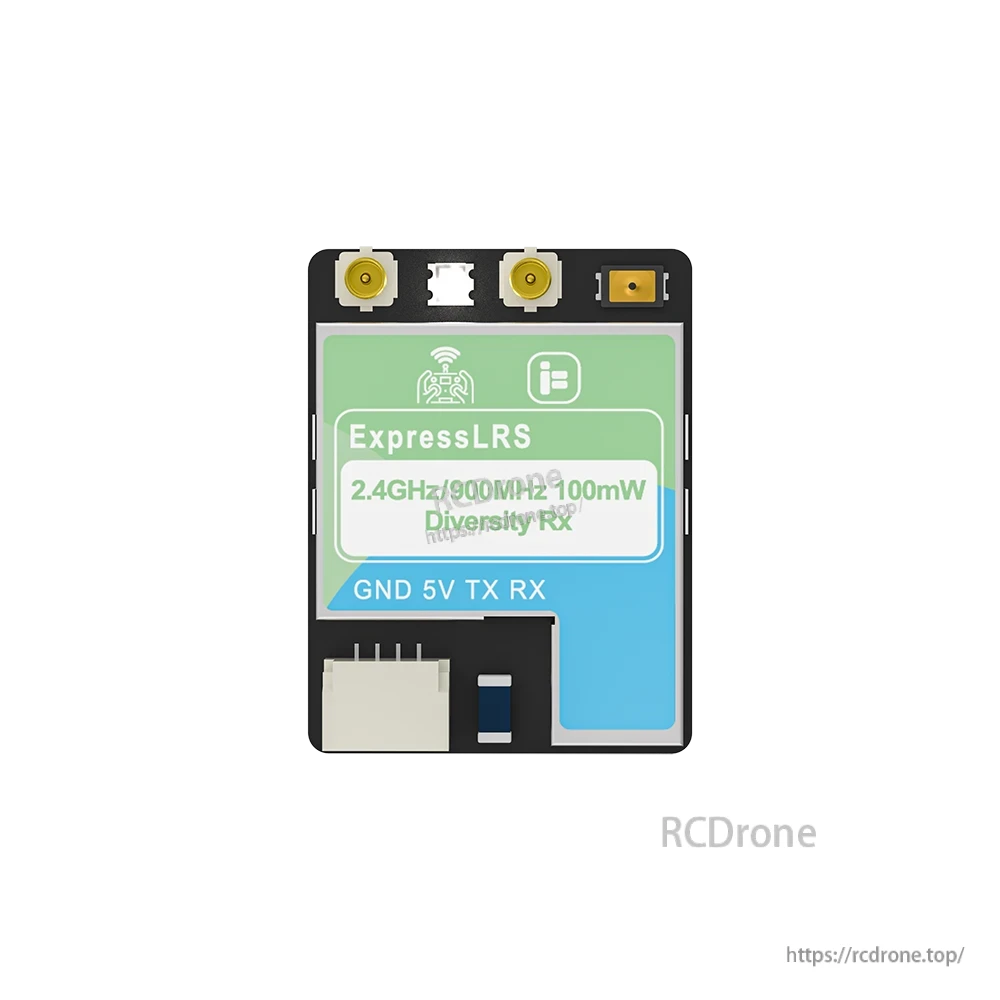

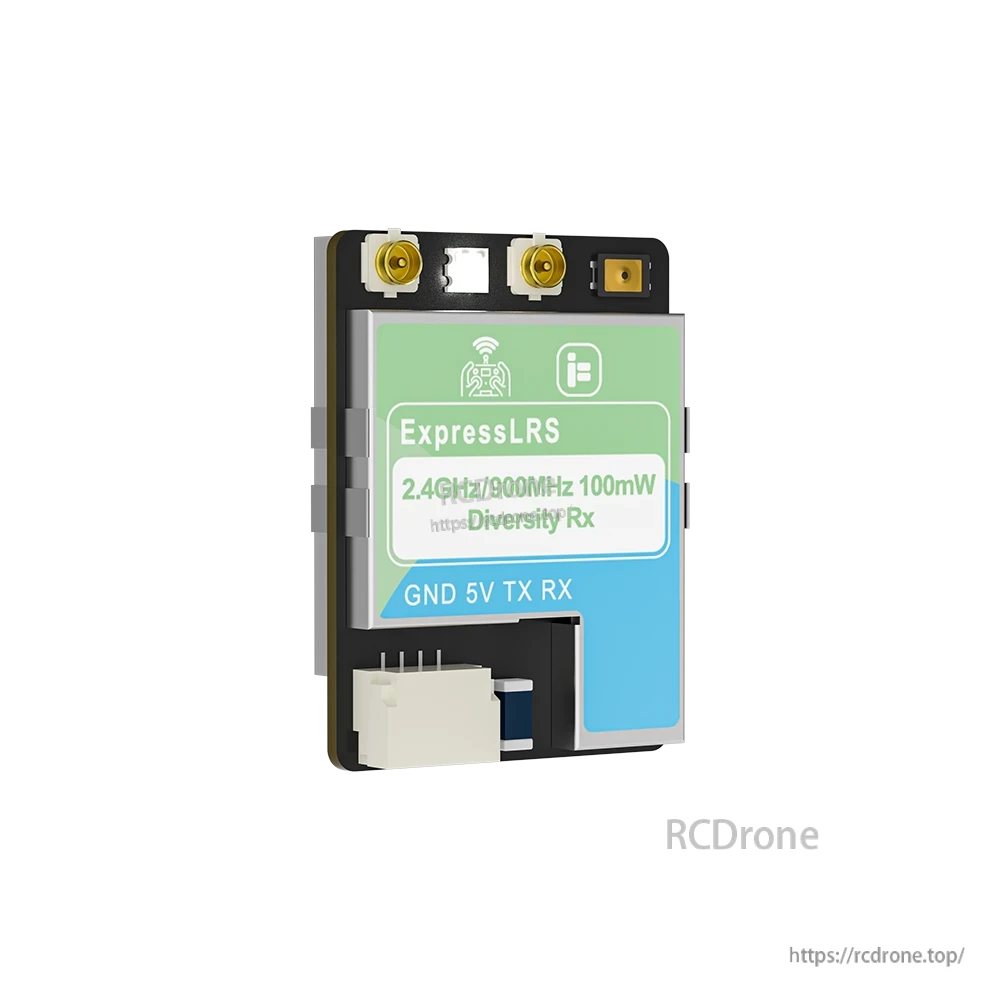

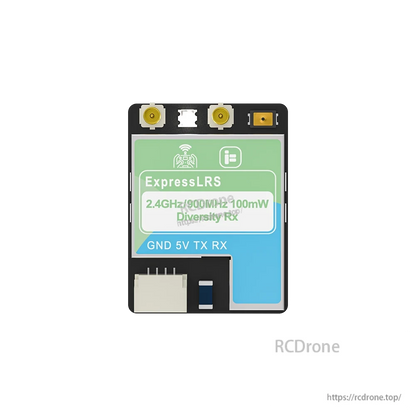

ELRS 100mW Dualband Diversity RX

MCU ESP32-Pico D4
RF LR1121
Receiver Type GemX
Telemetry power 100mW (20dBm)
LNA N/A (868/900MHz) / YES (2.4G)
Dimension 24.3*18.5*6.5mm (±0.5)
Weight 4.9g (±0.5g)
Lua Script iF GemX 100mW RX
TCXO Yes
Firmware Version ELRS 3.5.3

Applications

  • FPV freestyle and long-range builds
  • Aerial photography platforms

Installation Notes

  • Install the antenna away from conductive or magnetic components (carbon, metal, motors).
  • Update/flash the latest firmware as needed for your ExpressLRS ecosystem.

Band Notes

  • The 2400MHz band supports packet rate up to 500Hz.
  • For background information on ExpressLRS long-range performance, refer to the official ExpressLRS documentation: https://www.expresslrs.org/2.0/info/long-range/

What’s Included

  • 1 x ExpressLRS Dualband Receiver
  • 1 x Antenna (Optional)
  • 2 x Antenna (Optional)

For pre-purchase compatibility questions (connectors, antenna options, or selecting the correct receiver variant), contact support@rcdrone.top or visit https://rcdrone.top/.
