iFlight Borg Mini F7 FPV Stack with Borg Mini 60A 4-in-1 ESC, 20x20, 4-8S FC / 2-6S ESC
iFlight Borg Mini F7 FPV Stack with Borg Mini 60A 4-in-1 ESC, 20x20, 4-8S FC / 2-6S ESC
iFlight
Regular price
$90.15 USD
Regular price
Sale price
$90.15 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview

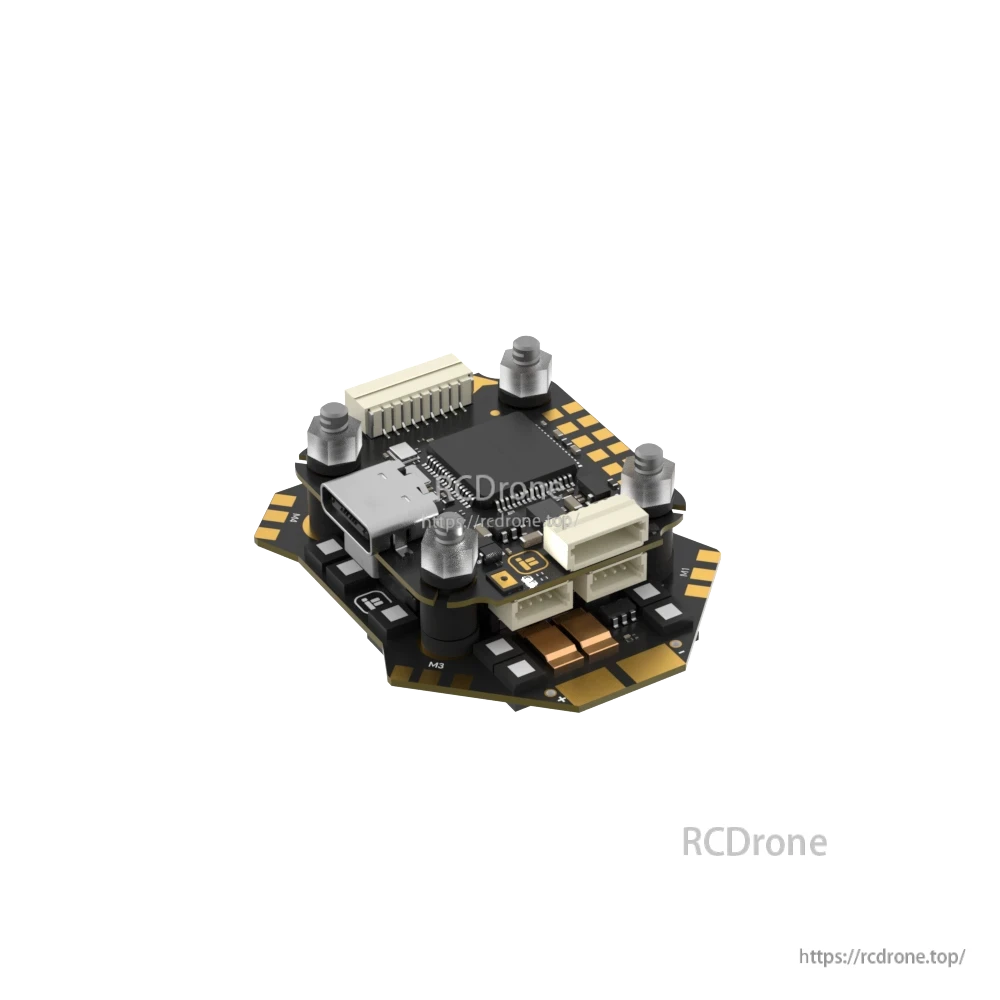

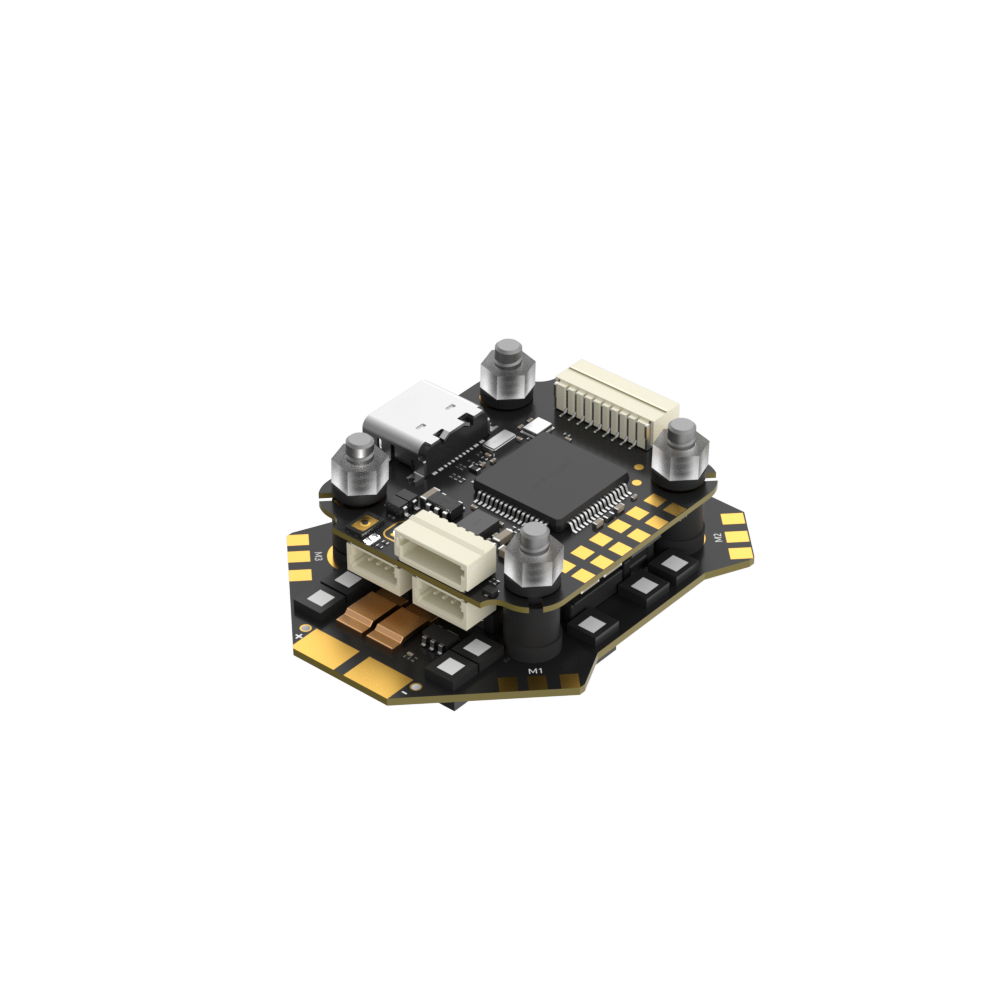

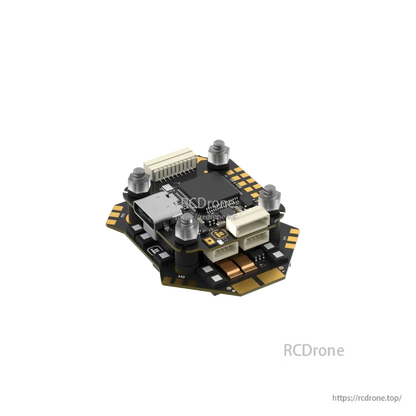

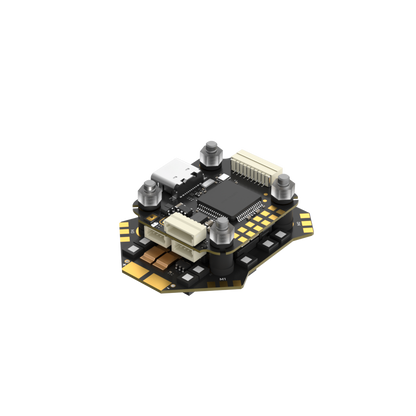

The iFlight Borg Mini F7 Stack combines the Borg F7 Mini flight controller and the Borg Mini 60 4-in-1 ESC for racing FPV builds. The flight controller supports 4S to 8S (LIHV supported) input and includes a 12V BEC with VTX power switching, using FPC cables for ESC connection and SH1.0 connectors for other interfaces.
Key Features
- FC input voltage: 4-8S (LIHV supported)
- Integrated BEC: 5V 2.5A and 12V 2A (12V with VTX switch)
- FPC cable connection to ESC; SH1.0 connectors for other interfaces
- VTX protocol support: DJI MSP / SmartAudio / IRC Tramp / HDZero
- ESC supports telemetry and bidirectional DSHOT
Specifications

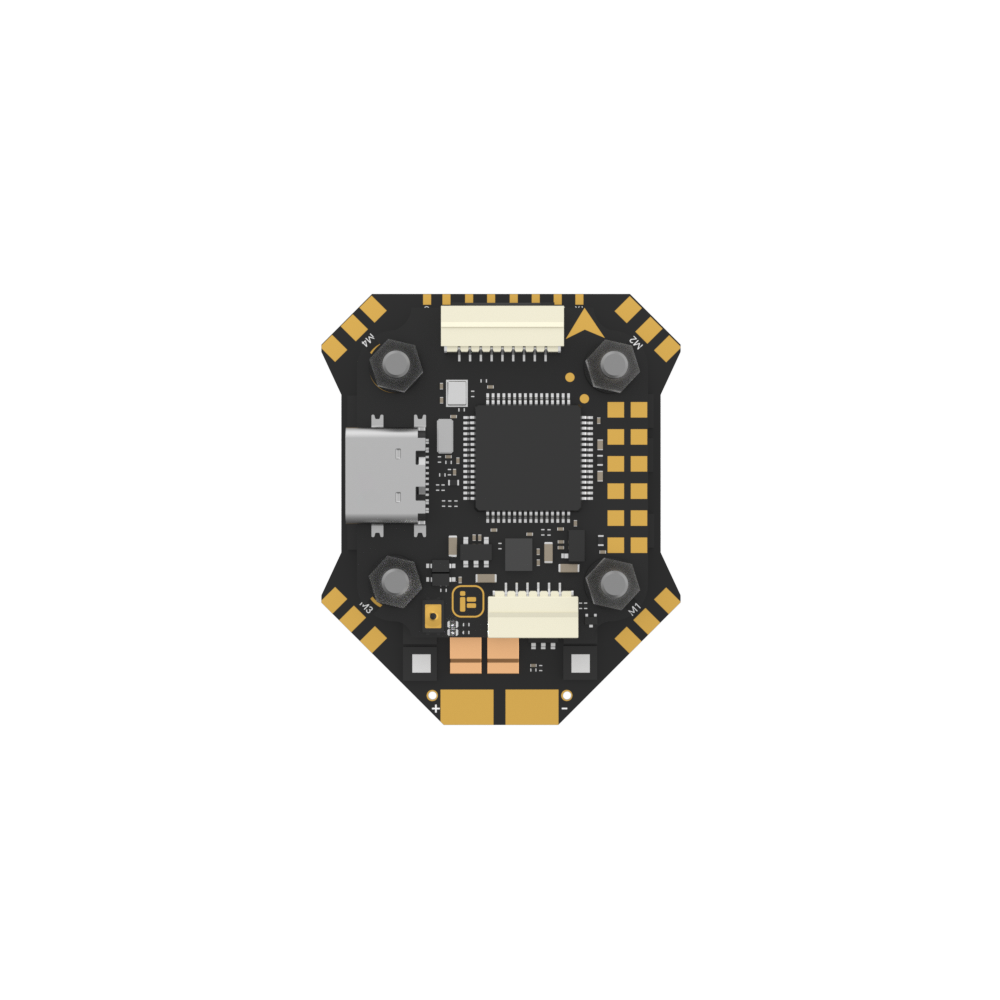

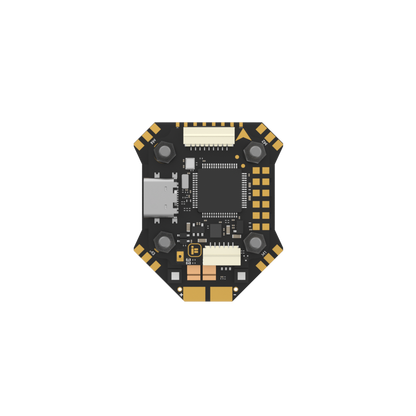

Borg Mini F7 Flight Controller
| Input voltage | 4-8S (LIHV supported) |
| MCU | STM32F722RET6 |
| Gyro | ICM42688 |
| Barometer | SPA06-003 |
| OSD chip | AT7456E (LGA) |
| Flash | 32MB (Blackbox flash) |
| UARTs | 6 |
| Motor outputs | 4 |
| I2C serial | Not supported |
| VTX protocol | DJI MSP / SmartAudio / IRC Tramp / HDZero |
| LED controller | Yes |
| Beeper pad | Yes |
| Betaflight firmware target | IFLIGHT_BLITZ_F722 |
| Mount pattern | 20 x 20 mm / Φ4 mm |

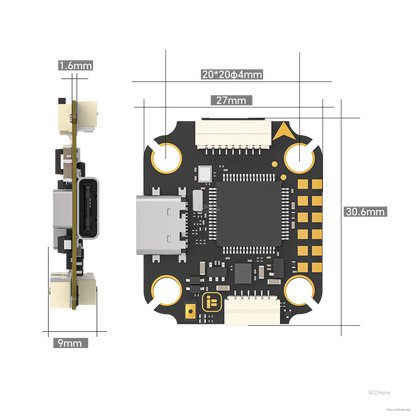

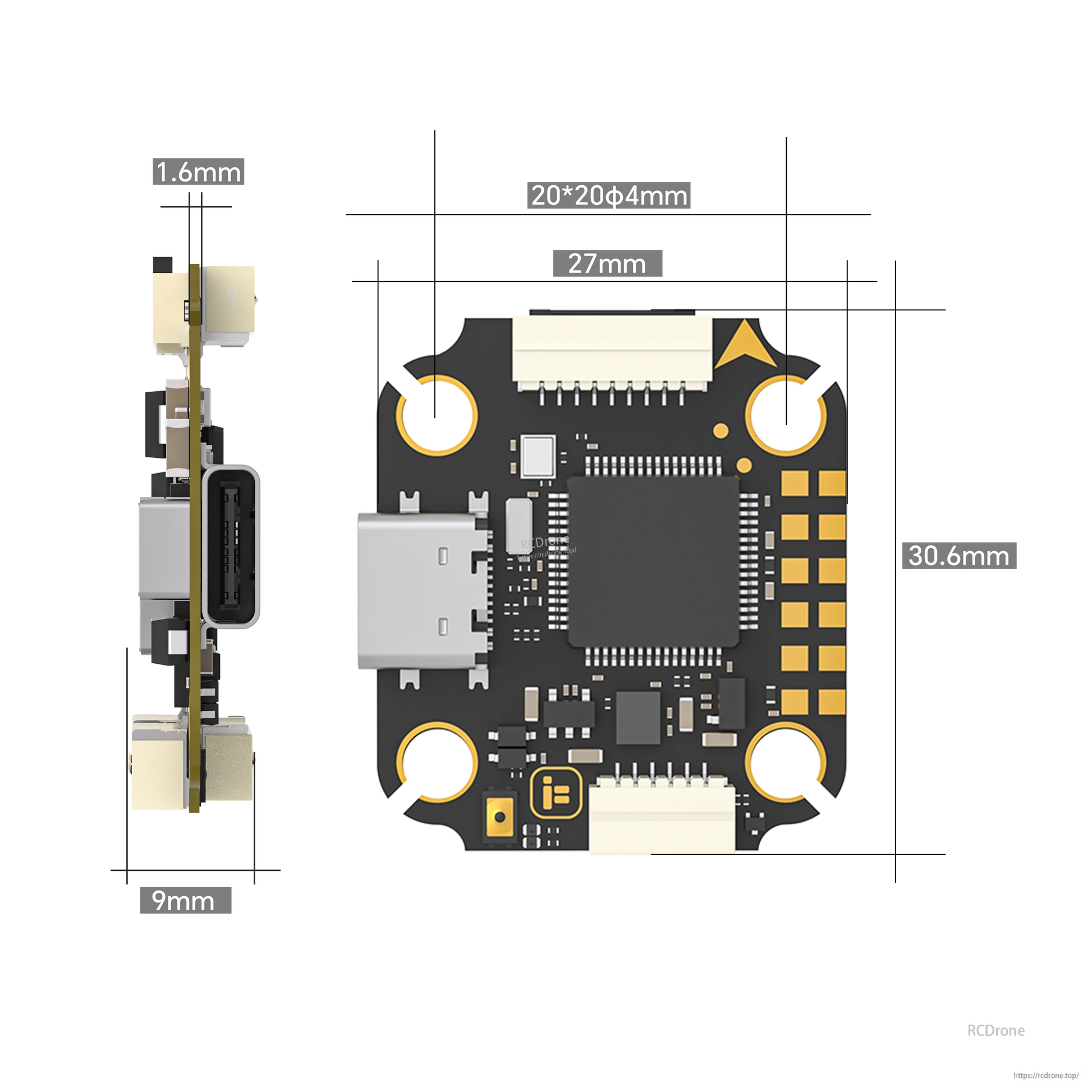

| Dimensions | 27 x 30.6 mm ±1 |
| Total weight | 17.1 g ±1 (FC + ESC) |
| BEC | 5V 2.5A, 12V 2A (12V with VTX switch) |
Borg Mini 60 ESC (4-in-1)
| Product name | Borg Mini 60 ESC |
| Input voltage | 2-6S (LIHV supported) |
| Max. continuous current | 60A |
| Max. burst current | 65A (10s) |
| MCU | STM32G071N |
| Driver | FD6288 |
| Firmware | BL32 (32bit ESC) |
| Target | IFLIGHT_BLITZ_G3 32.9 |
| Current sensor | Yes |
| BEC | N/A |
| Telemetry | Supported |
| Bidirectional DSHOT | Supported |

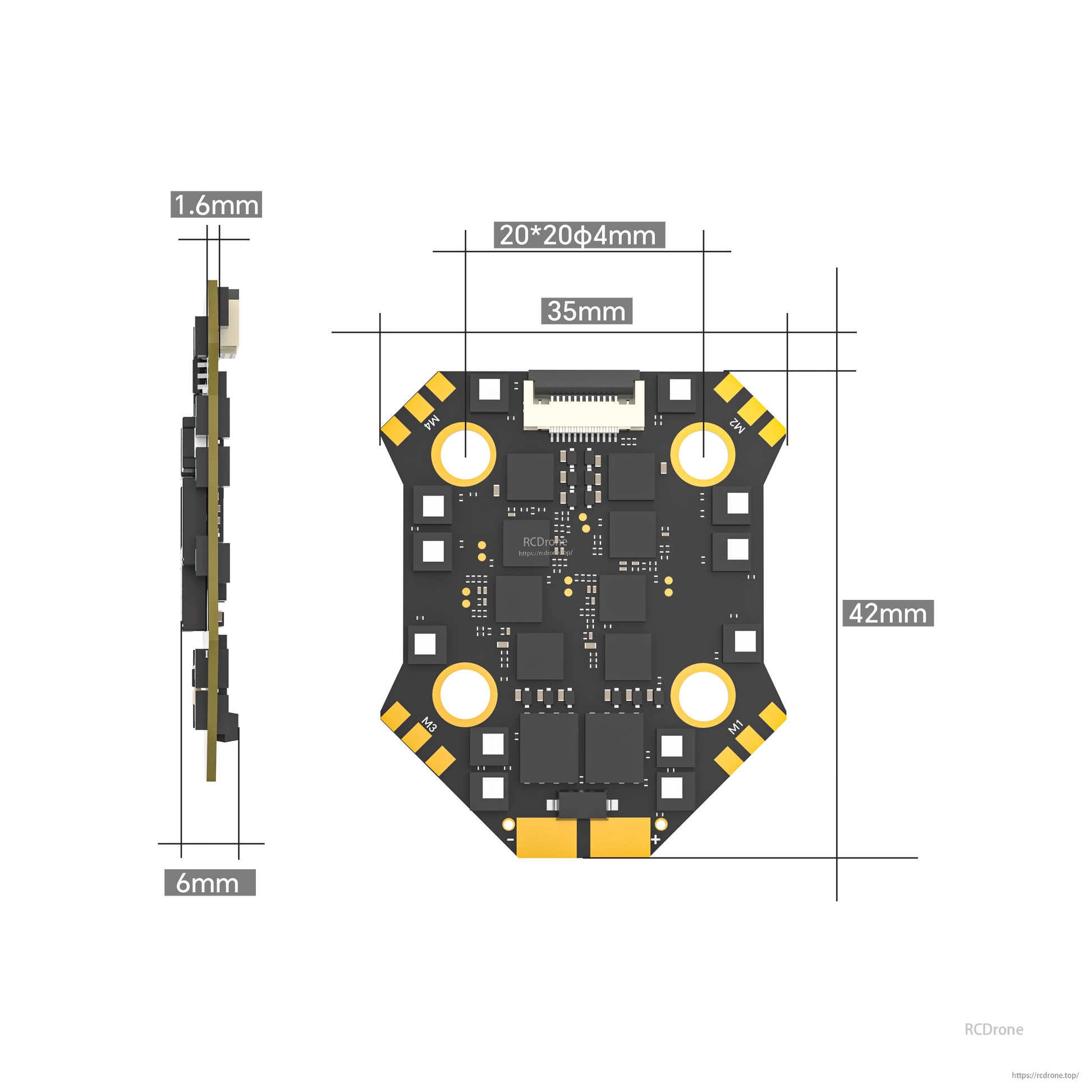

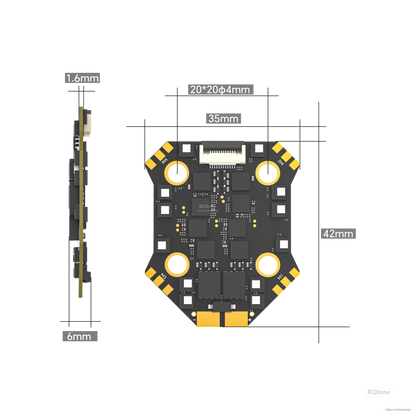

| Dimensions | 42 x 35 mm ±1 |
| Mounting holes | 20 x 20 mm / Φ4 mm |
| Protocol | DShot150/300/600, MultiShot, OneShot etc. |
Wiring Suggestion
- UART 1: VTX HD / Analog
- UART 2: Receiver
- UART 3: GPS or other sensors that require a serial port
- UART 4: GPS
- UART 5: GPS or other sensors that require a serial port
- UART 6: ESC telemetry
What’s Included
- 1 x Borg Mini F7 Flight Controller
- 1 x Borg Mini 60 ESC
- 1 x Cable set
- 5 x silicon grommets
For compatibility questions or build support, contact support@rcdrone.top or visit https://rcdrone.top/.
Note
iFlight product is for fun purposes only and does not support autonomous flight.
