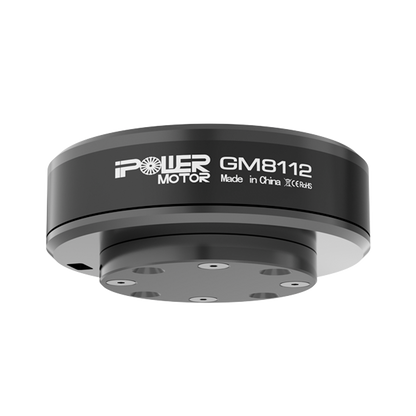

• iFlight GM8112-80T Brushless Gimbal Motor, Black GM8112 brushless gimbal motor with iPower branding and round mounting base with bolt holes
  • iFlight GM8112-80T Brushless Gimbal Motor, GM8112 brushless gimbal motor with black iPower housing and bottom mounting plate with screw holes
1 2

iFlight GM8112-80T Brushless Gimbal Motor with AS5048A Encoder, Hollow Shaft, 6000-9000 g·cm

iFlight GM8112-80T Brushless Gimbal Motor with AS5048A Encoder, Hollow Shaft, 6000-9000 g·cm

iFlight

$195.76 USD
$195.76 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The iFlight GM8112-80T gimbal motor with encoder is a brushless direct-drive gimbal motor intended for large cameras (Red Epic / DSLR class) and multi-rotor lift platforms. It uses an included AS5048A encoder (aluminum case) for position feedback in gimbal stabilization systems.

Key Features

  • Brushless gimbal motor design for direct-drive camera stabilization
  • Hollow-shaft construction (specified OD/ID tolerances below)
  • Includes AS5048A encoder with aluminum case
  • Clockwise steering (axle extension direction)

Specifications

Model GM8112
Motor outer diameter 89.5±0.05 mm
Configuration 36N/42P
Motor height 33.4±0.2 mm (included with encoder housing)
Hollow shaft OD 25 -0.008/-0.012 mm
Hollow shaft ID 22 +0.05/+0.1 mm
Wire length 610±3 mm
Cable AWG #24
Motor weight 446±1 g
Wire plug 2.5 mm Dupont connector
No-load current 0.3±0.1 A
No-load voltage 22 V
No-load RPM 380~420 RPM
Load current 2 A
Load voltage 20 V
Load torque 6000-9000 g·cm
Motor internal resistance 4.2 Ω ±5% (resistance varies with temperature)
High voltage test DC500V 1mA @ 2 sec
Rotor housing runout ≤0.1 mm
Steering (axle extension) Clockwise
High temperature test Keep at 60°C for 100 hours, and the motor can work normally after 24 hours at room temperature
Low temperature test Keep at -20°C for 100 hours, and the motor can work normally after 24 hours at room temperature
Maximum power ≤80 W
Working current 3-5S
Working temperature / humidity -20~60°C; 10~90% RH

What’s Included

  • 1 x iPower GM8112 gimbal motor
  • 1 x AS5048A encoder with aluminum case

Applications

  • Brushless direct-drive camera gimbals
  • Large-camera stabilization (Red Epic / DSLR class)
  • Multi-rotor aerial platforms requiring high-torque gimbal motors

For compatibility questions (controllers, wiring, encoder integration) or after-sales support, contact https://rcdrone.top/ or email support@rcdrone.top.
