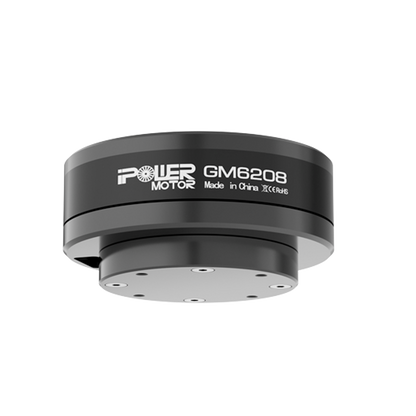

• iFlight GM6208-150T Brushless Gimbal Motor, GM6208 brushless gimbal motor with black cylindrical housing and mounting plate, labeled iPower Motor

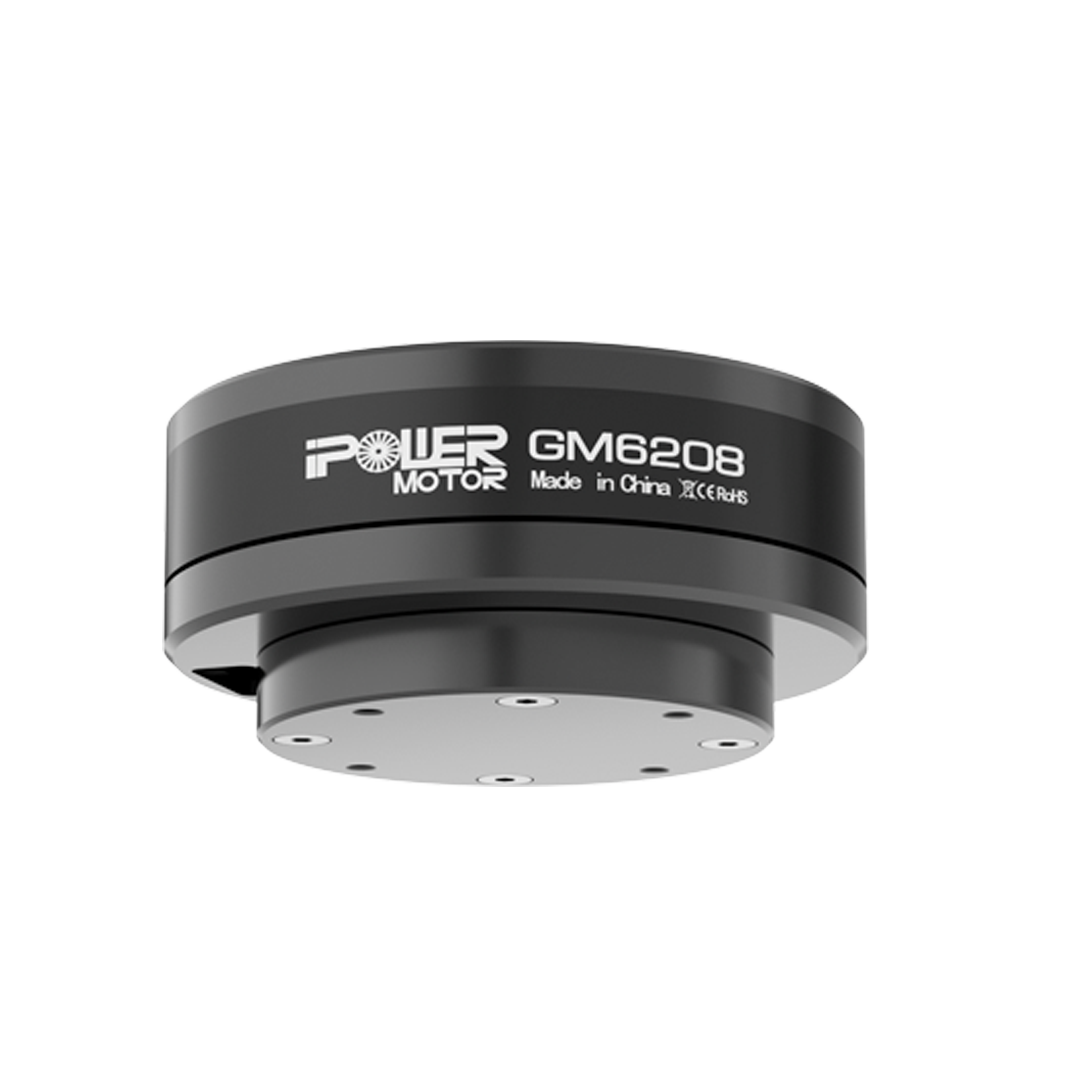

  • iFlight GM6208-150T Brushless Gimbal Motor, iFlight GM6208 brushless gimbal motor in black housing with flat mounting base and GM6208 label
1 2

iFlight GM6208-150T Brushless Gimbal Motor w/ AS5048A Encoder, 69.5mm OD, 24N/28P, 3-5S

iFlight GM6208-150T Brushless Gimbal Motor w/ AS5048A Encoder, 69.5mm OD, 24N/28P, 3-5S

iFlight

$75.43 USD
$75.43 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The iFlight GM6208-150T is a brushless gimbal motor with encoder for camera stabilization setups, suitable for DSLR-sized cameras including CANON 5D MARK II / MARK III, and for large multi-rotor platforms lifting RED Epic & DSLR-sized gear. It uses a brushless direct-drive stabilization principle similar in concept to servo-based gimbals.

Key Features

  • Brushless direct-drive gimbal motor design
  • Integrated AS5048A encoder (aluminum case included)
  • Hollow shaft design for pass-through routing
  • 24N/28P motor configuration

Specifications

Model GM6208
Motor outer diameter 69.5 ±0.05 mm
Configuration 24N/28P
Motor height 32 ±0.2 mm (included with encoder housing)
Hollow shaft (OD) 25 -0.01/-0.015 mm
Hollow shaft (ID) 22 +0.05/+0 mm
Wire length 610 ±3 mm
Cable AWG #24
Motor weight 265 ±0.5 g
Wire plug 2.5 mm Dupont connector
No-load current 0.08 ±0.1 A
No-load voltage 20 V
No-load RPM 209 to 231 RPM
Load current 1.2 A
Load voltage 20 V
Load torque 2600 to 3600 g·cm
Motor internal resistance 32 ohm ±5% (resistance varies with temperature)
High voltage test DC 500 V, 1 mA @ 2 sec
Rotor housing runout ≤0.1 mm
Steering (axle extension) Clockwise
High temperature test 60 °C for 100 hours; motor works normally after 24 hours at room temperature
Low temperature test -20 °C for 100 hours; motor works normally after 24 hours at room temperature
Maximum power ≤25 W
Working current 3-5S
Working temperature -20 to 60 °C; 10 to 90% RH

What’s Included

  • 1 x GM6208 150T Brushless Gimbal Motor
  • 1 x AS5048A Encoder with aluminum case

Applications

  • Brushless gimbal stabilization for DSLR-sized camera payloads
  • Large multi-rotor camera platforms requiring direct-drive gimbal motors

For installation and compatibility questions, contact support at https://rcdrone.top/ or email support@rcdrone.top.
