iFlight GM6208-150T Combo Set: 3x GM6208 150T Gimbal Motors + Alexmos 32BIT BGC + Cables
iFlight GM6208-150T Combo Set: 3x GM6208 150T Gimbal Motors + Alexmos 32BIT BGC + Cables
iFlight
Regular price
$490.71 USD
Regular price
Sale price
$490.71 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
The iFlight GM6208-150T Combo Set is a 3-axis camera stabilizing (gimbal) hardware kit for building UAV-mounted or handheld camera stabilizers. The included controller is positioned as a next-generation stabilizing solution intended to replace the previous 8-bit SimpleBGC controller while keeping 100% backward compatibility and adding new functionality.
Key Features
- Combo set includes 3x GM6208 150T gimbal motors, an Alexmos 32BIT BGC set (without aluminum case), and a connecting cable set
- Controller board size: 50 × 50 mm
- Mounting pattern: 45 mm hole spacing with 3 mm mounting holes
- Controller power input: 3S to 6S
- Maximum motor current (controller): 1.5 A
- 5V output for external devices: up to 1 A
Specifications
Controller (board)
| Board size | 50 × 50 mm |
| Mounting hole distance | 45 mm |
| Mounting hole diameter | 3 mm |
| Power supply voltage | 3S to 6S |
| Maximum motor current | 1.5 A |
| 5V output current (external devices) | Up to 1 A |

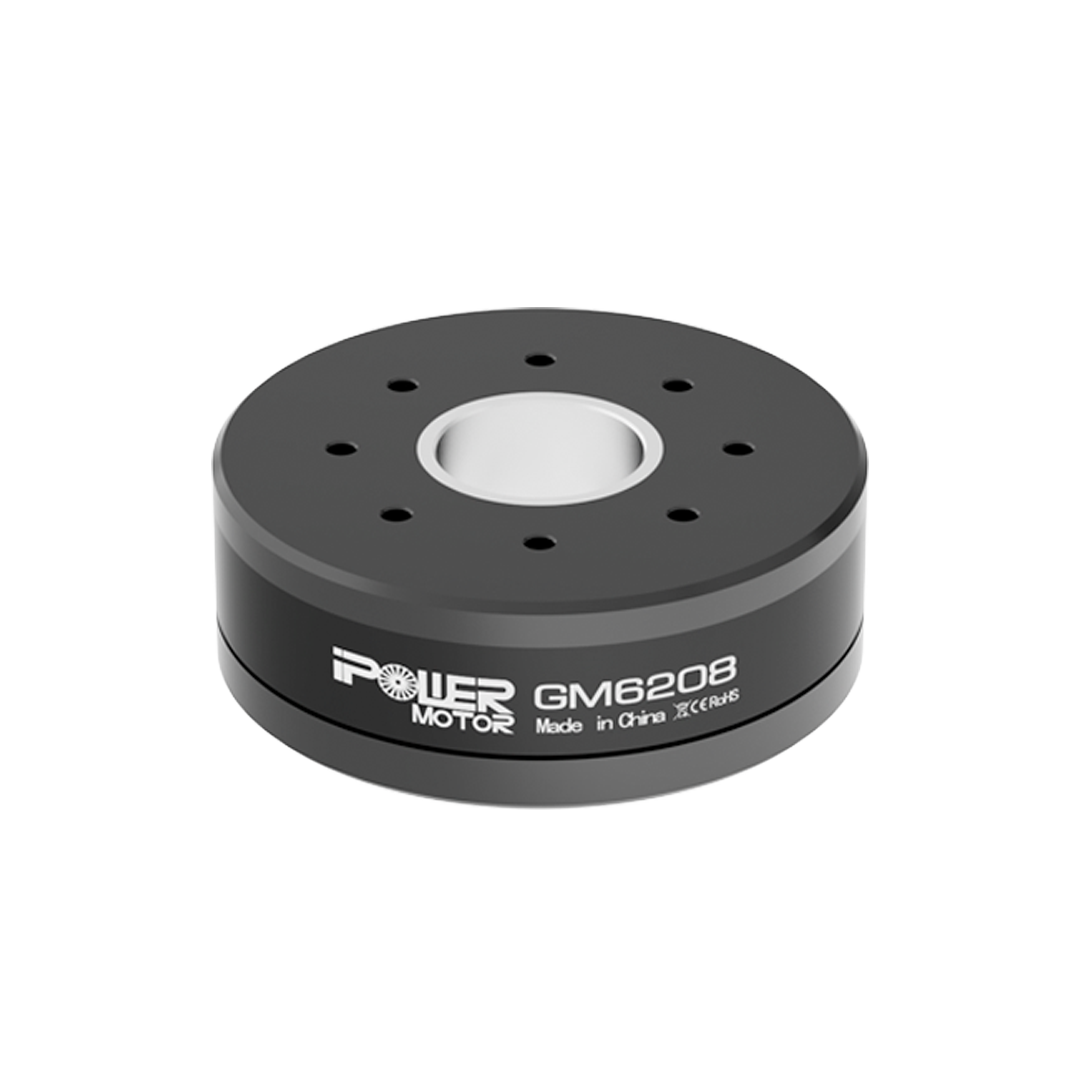

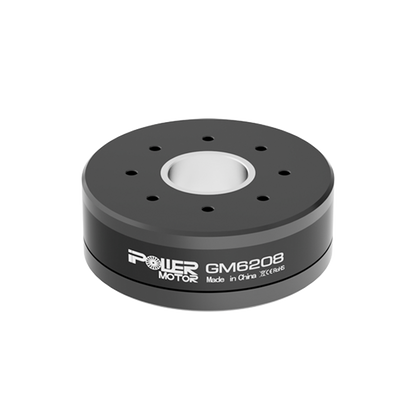

GM6208 Motor
| Model | GM6208 |
| Motor out diameter | 69.5 ± 0.05 mm |
| Configuration | 24N/28P |
| Motor height | 24 ± 0.2 mm (included with encoder housing) |
| Hollow shaft (OD) | 25 -0.01/-0.015 mm |
| Hollow shaft (ID) | 22 +0.05/+0 mm |
| Wire length | 610 ± 3 mm |
| Cable AWG | #24 |
| Motor weight | 249 ± 0.5 g |
| Wire plug | 2.5 mm Dupont connector |
| No-load current | 0.08 ± 0.1 A |
| No-load volts | 20 V |
| No-load RPM | 209–231 RPM |
| Load current | 1.2 A |
| Load volts | 20 V |
| Load torque | 2600–3600 g |
| Motor internal resistance | 32 Ω ± 5% (resistance varies with temperature) |
| High voltage test | DC 500 V, 1 mA @ 2 sec |
| Rotor housing runout | ≤ 0.1 mm |
| Steering (axle extension) | Clockwise |
| High temperature test | Keep at 60 °C for 100 hours; motor works normally after 24 hours at room temperature |
| Low temperature test | Keep at -20 °C for 100 hours; motor works normally after 24 hours at room temperature |
| Maximum power | ≤ 25 W |
| Working current | 3–5S |
| Working temperature | -20 to 60 °C; 10–90% RH |
What’s Included
- 3 × GM6208 150T gimbal motor
- 1 × Alexmos 32BIT BGC set (without aluminum case)
- 1 × Connecting cables set
Applications
- Building high-quality 3-axis camera stabilizing systems for UAV mounting
- Building handheld camera stabilizers
For compatibility checks and pre-sales questions, contact support at support@rcdrone.top or visit https://rcdrone.top/.
