Overview
MAD HAVOC 32x10.5in is a polymer folding propeller for multirotor/UAV platforms, designed for endurance flight with an optimized moment of inertia for more sensitive responsive reaction. The propeller is made of composite carbon fiber and engineering plastic for an ultralight and solid structure, and features an upward wingtip design intended to reduce airflow interference for lower vibration/noise and higher efficiency.
Key Features
- 32x10.5in folding propeller structure; easy to fold and spread
- Composite carbon fiber + engineering plastic construction
- Upward wingtip design to reduce airflow interference (less vibration/noise; higher efficiency)
- Propeller lock mechanism (designed and proved to ensure safety flight)
- Mounting holes position designed to suit most motors
- Superior dynamic balanced
- Best matching with MAD motors (thrust/efficiency matching)
For compatibility questions (motor mounting, hardware fitment, or prop selection), contact support@rcdrone.top or visit https://rcdrone.top/.

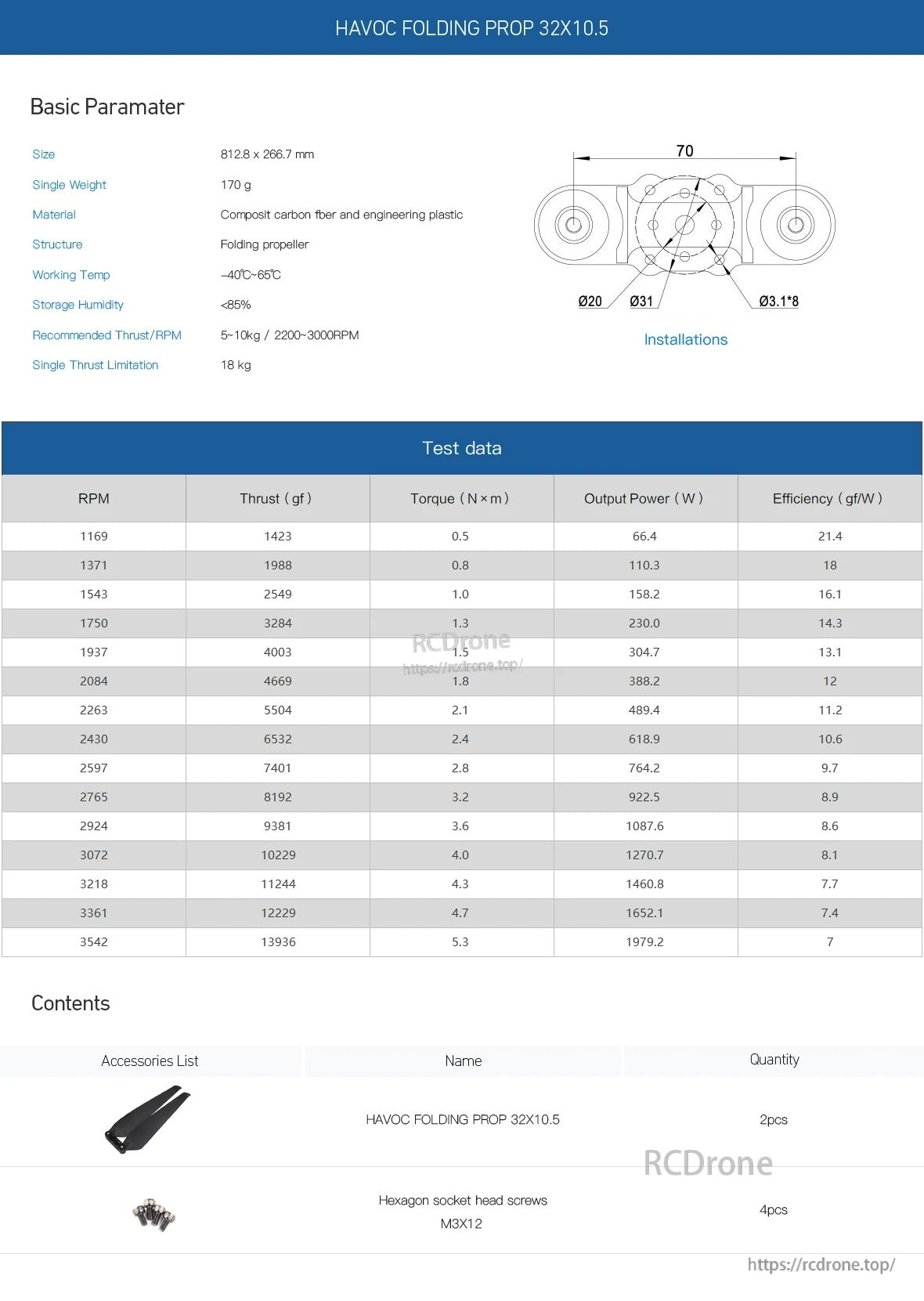

Specifications
| Model | HAVOC FOLDING PROP 32x10.5 |
| Size | 812.8 x 266.7 mm |
| Single Weight | 170 g |
| Material | Composite carbon fiber and engineering plastic |
| Structure | Folding propeller |
| Working Temp | -40°C to 65°C |
| Storage Humidity | <85% |
| Recommended Thrust / RPM | 5-10 kg / 2200-3000 RPM |
| Single Thrust Limitation | 18 kg |
| Installation (diagram values) | 70; Ø20; Ø31; Ø3.1*8 |
Test Data
| RPM | Thrust (gf) | Torque (N*m) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 1169 | 1423 | 0.5 | 66.4 | 21.4 |
| 1371 | 1988 | 0.8 | 110.3 | 18 |
| 1543 | 2549 | 1.0 | 158.2 | 16.1 |
| 1750 | 3284 | 1.3 | 230.0 | 14.3 |
| 1937 | 4003 | 1.5 | 304.7 | 13.1 |
| 2084 | 4669 | 1.8 | 388.2 | 12 |
| 2263 | 5504 | 2.1 | 489.4 | 11.2 |
| 2430 | 6532 | 2.4 | 618.9 | 10.6 |
| 2597 | 7401 | 2.8 | 764.2 | 9.7 |
| 2765 | 8192 | 3.2 | 922.5 | 8.9 |
| 2924 | 9381 | 3.6 | 1087.6 | 8.6 |
| 3072 | 10229 | 4.0 | 1270.7 | 8.1 |
| 3218 | 11244 | 4.3 | 1460.8 | 7.7 |
| 3361 | 12229 | 4.7 | 1652.1 | 7.4 |
| 3542 | 13936 | 5.3 | 1979.2 | 7 |
What’s Included
- HAVOC FOLDING PROP 32x10.5: 2 pcs
- Hexagon socket head screws M3x12: 4 pcs
Applications
- Endurance multirotor/UAV flight setups
- Mapping
- Route inspection
- Aerial photography
Details
The MAD HAVOC 32x10.5in folding propeller uses an upward wingtip design intended to reduce airflow interference and noise.
The MAD HAVOC 32x10.5in polymer folding propeller is designed for endurance flight, with uses like mapping, routing inspection, and aerial photography.
The MAD HAVOC folding propeller lock mechanism includes plates, screws, and washers to secure the blades during operation.
MAD HAVOC 32x10.5 folding propellers come as a 2-piece set with M4x12 hex socket head screws, with key dimensions and test data listed for setup.
