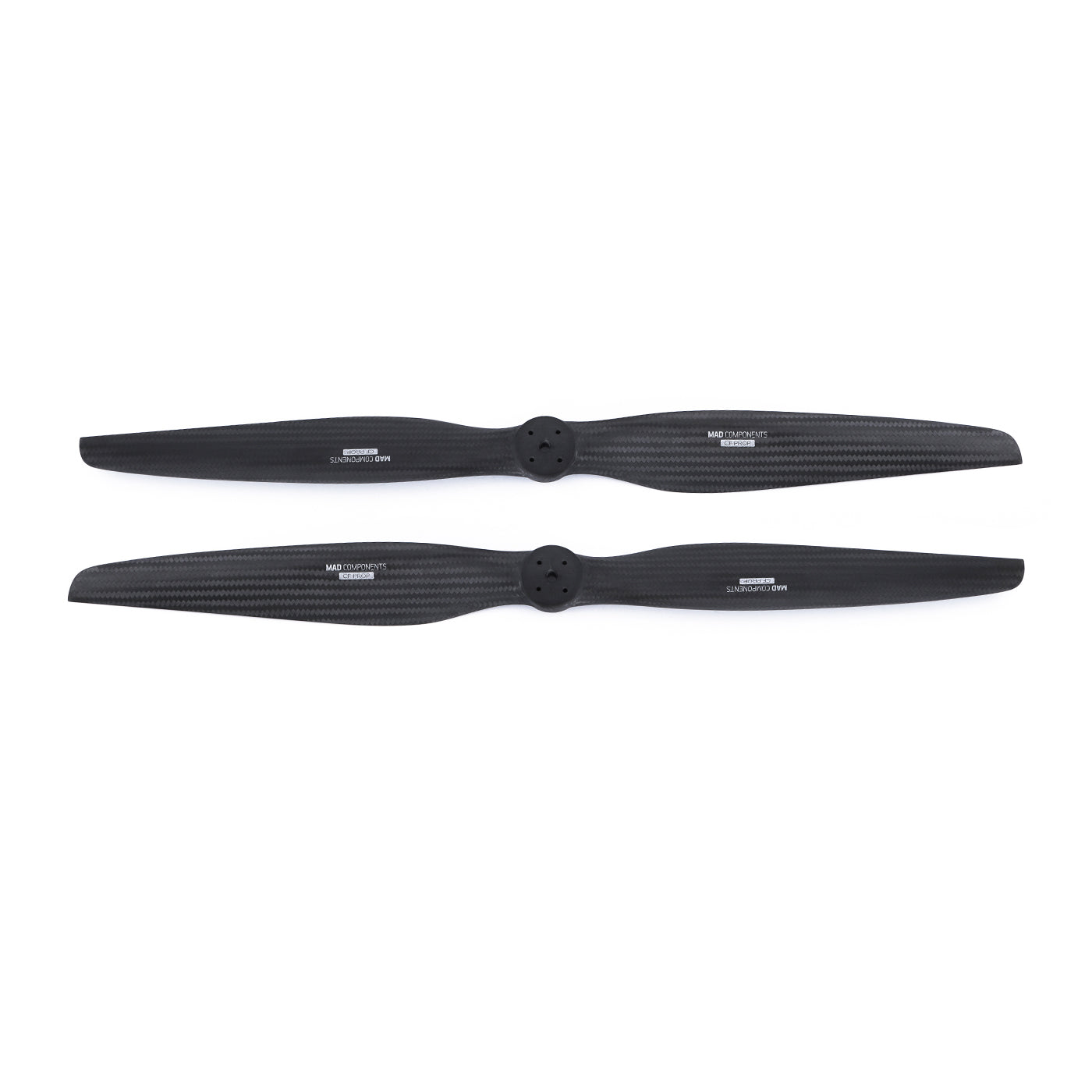

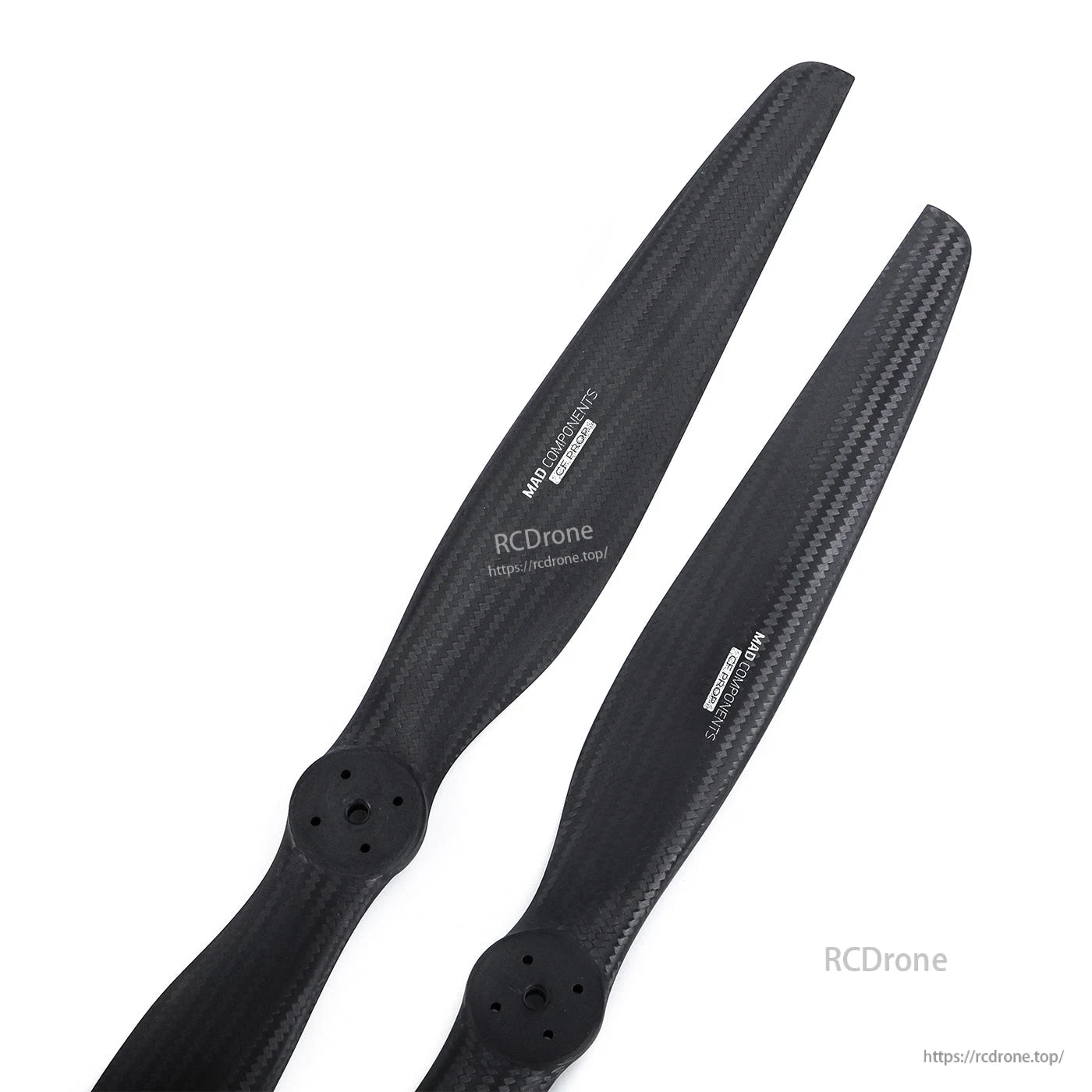

MAD FLUXER 34.1x11.4in eVTOL Carbon Fiber Propeller (CCW) 130g, 25kg Thrust Limit
MAD FLUXER 34.1x11.4in eVTOL Carbon Fiber Propeller (CCW) 130g, 25kg Thrust Limit
MAD
Regular price
$358.50 USD
Regular price
Sale price
$358.50 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
MAD FLUXER 34.1 x 11.4 eVTOL propeller with an integrated structure design and an optimized eVTOL prop profile. The smaller prop surface helps reduce air resistance during cruise, while the larger prop pitch is designed to draw more thrust. Reinforced installation positions improve durability and operational safety; recommended pairing is with MAD brushless motors.
Key Features
- Integrated structure design
- Optimized eVTOL prop profile for reduced cruise air resistance
- Larger pitch for higher thrust output
- Faster response and startup
- Reinforced prop installation positions for improved durability
- Surface treatment: polished/matt

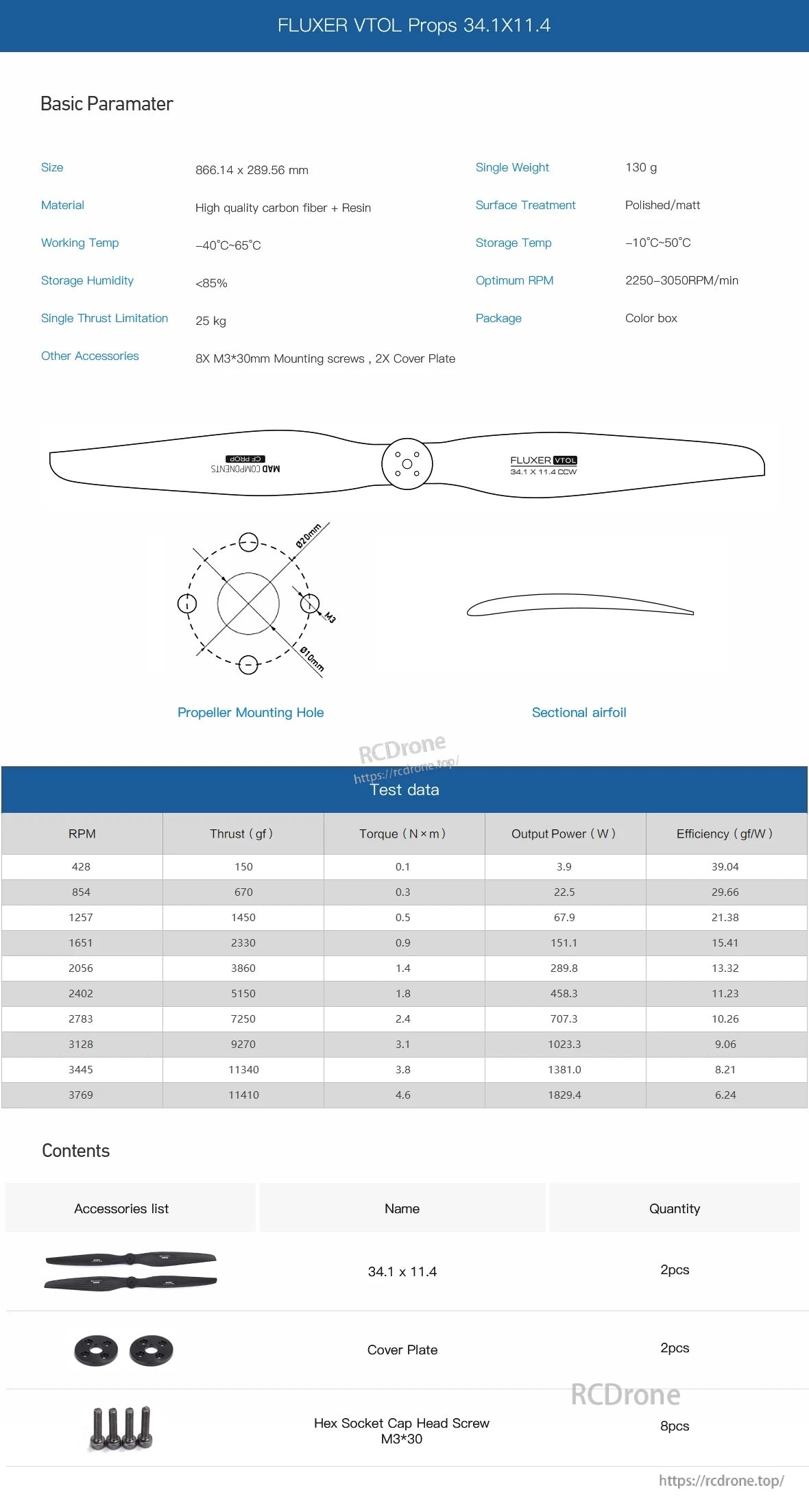

Specifications
| Series / Marking | FLUXER VTOL Props 34.1 x 11.4 |
| Rotation | CCW |
| Size | 866.14 x 289.56 mm |
| Material | High quality carbon fiber + Resin |
| Single weight | 130 g |
| Working temperature | -40°C to 65°C |
| Storage temperature | -10°C to 50°C |
| Storage humidity | <85% |
| Optimum RPM | 2250-3050 RPM/min |
| Single thrust limitation | 25 kg |

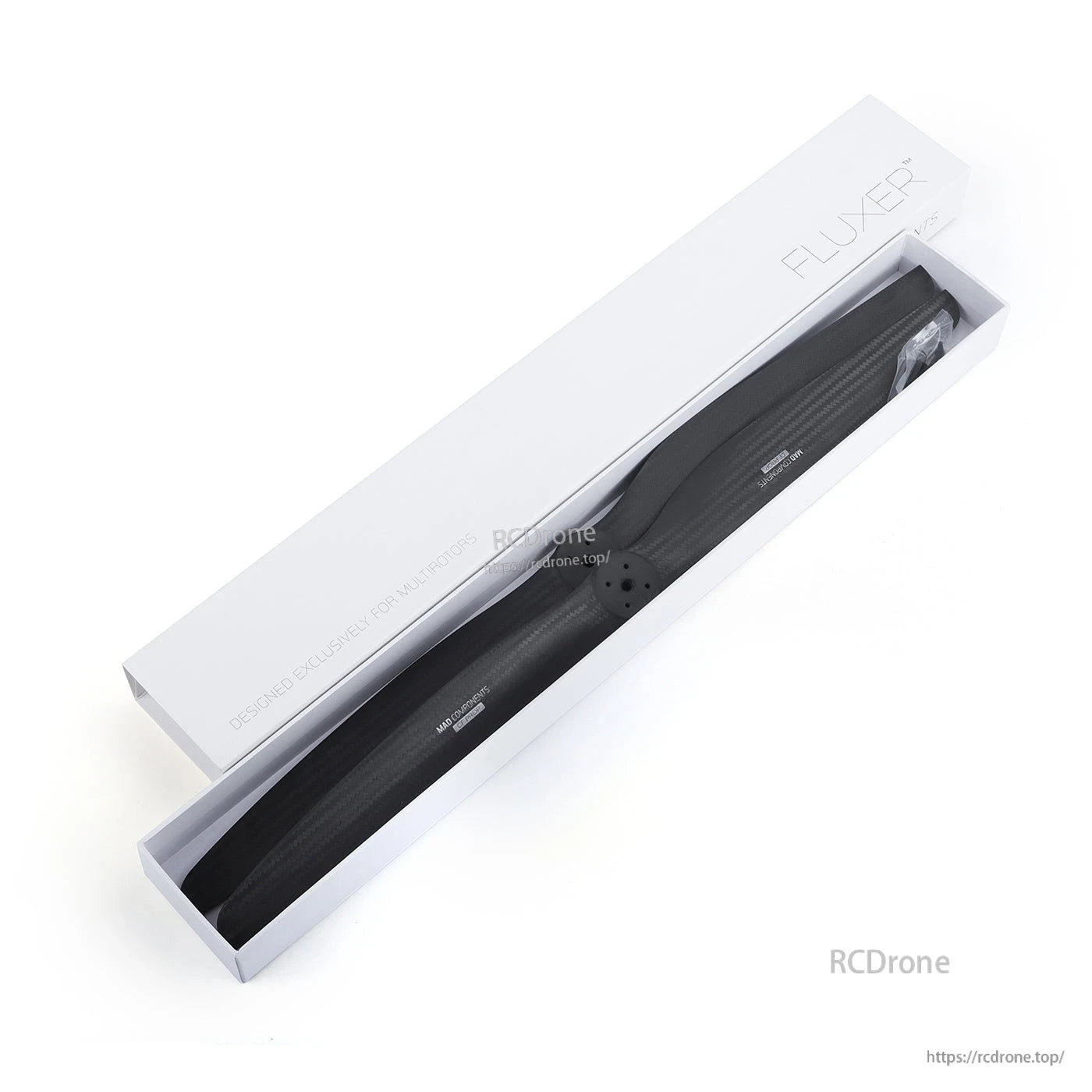

| Package | Color box |
| Other accessories | 8 x M3*30mm mounting screws, 2 x cover plate |

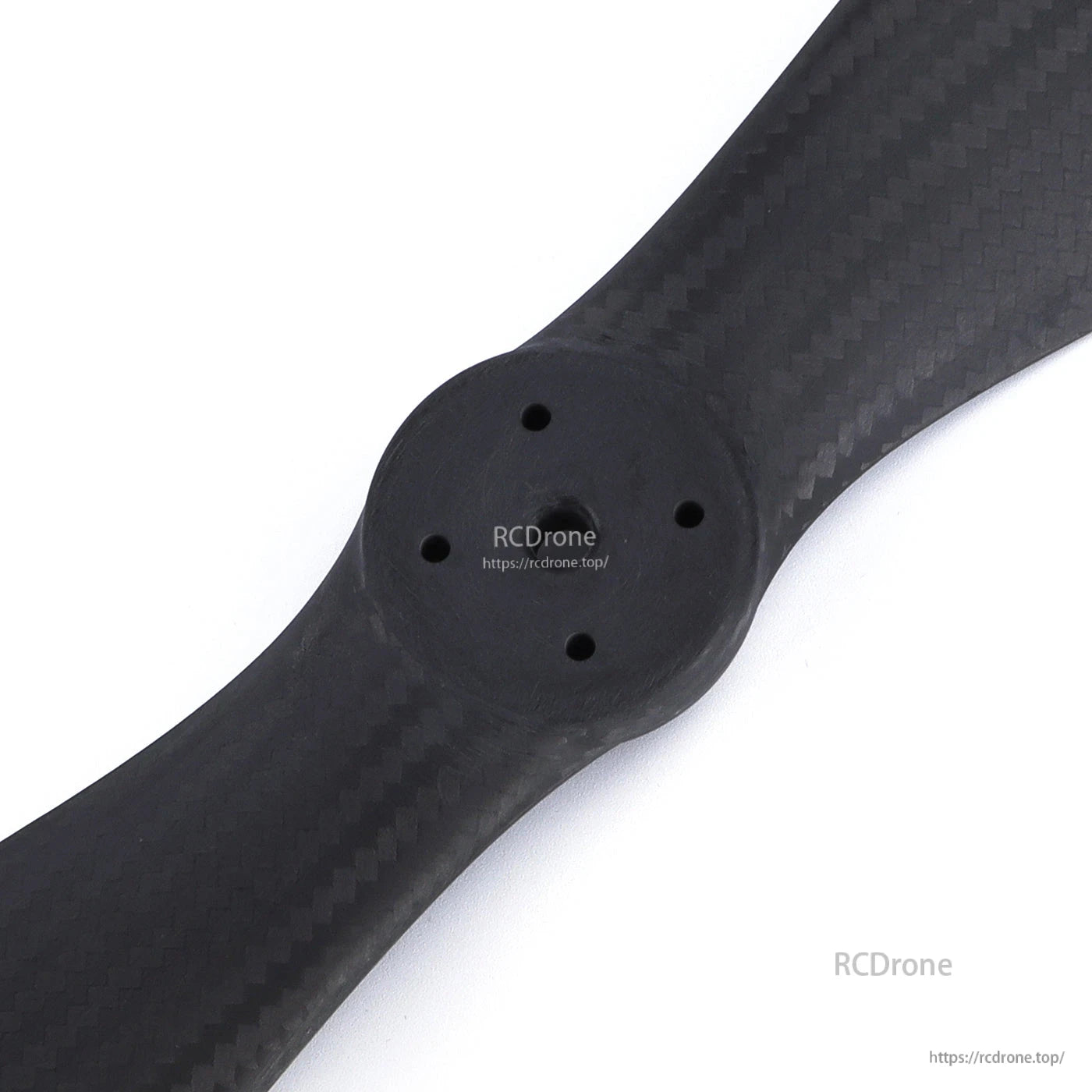

Propeller Mounting Hole
| Mounting pattern | 4-Φ8 mm holes |
| Reference diameters | Φ100 mm, Φ60 mm |
Test Data
| RPM | Thrust (gf) | Torque (N*m) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 428 | 150 | 0.1 | 3.9 | 39.04 |
| 854 | 670 | 0.3 | 22.5 | 29.66 |
| 1257 | 1450 | 0.5 | 67.9 | 21.38 |
| 1651 | 2330 | 0.9 | 151.1 | 15.41 |
| 2056 | 3860 | 1.4 | 289.8 | 13.32 |
| 2402 | 5150 | 1.8 | 458.3 | 11.23 |
| 2783 | 7250 | 2.4 | 707.3 | 10.26 |
| 3128 | 9270 | 3.1 | 1023.3 | 9.06 |
| 3445 | 11340 | 3.8 | 1381.0 | 8.21 |
| 3769 | 11410 | 4.6 | 1829.4 | 6.24 |

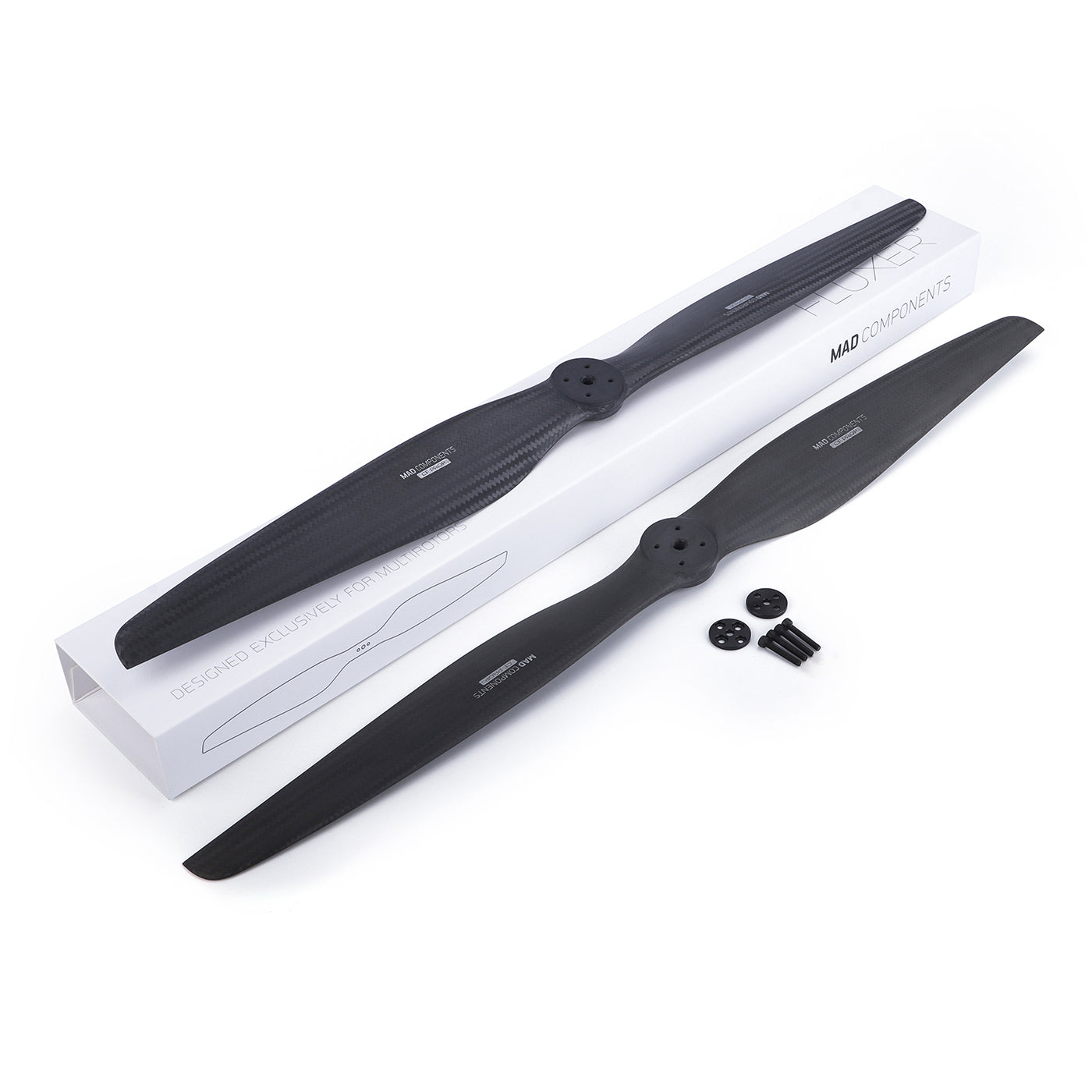

What's Included
- 34.1 x 11.4 propellers: 2 pcs
- Cover plate: 2 pcs
- Hex socket cap head screw M3*30: 8 pcs
Description
Applications
- eVTOL / VTOL aircraft propulsion systems
- Multi-rotor platforms requiring 34.1 x 11.4 prop specification
For compatibility checks (motor pairing, mounting pattern, or rotation selection), contact support@rcdrone.top or visit https://rcdrone.top/.
Details
The FLUXER 34.1×11.4 carbon fiber eVTOL propeller comes with a mounting hole layout plus cover plates and screws for installation.
