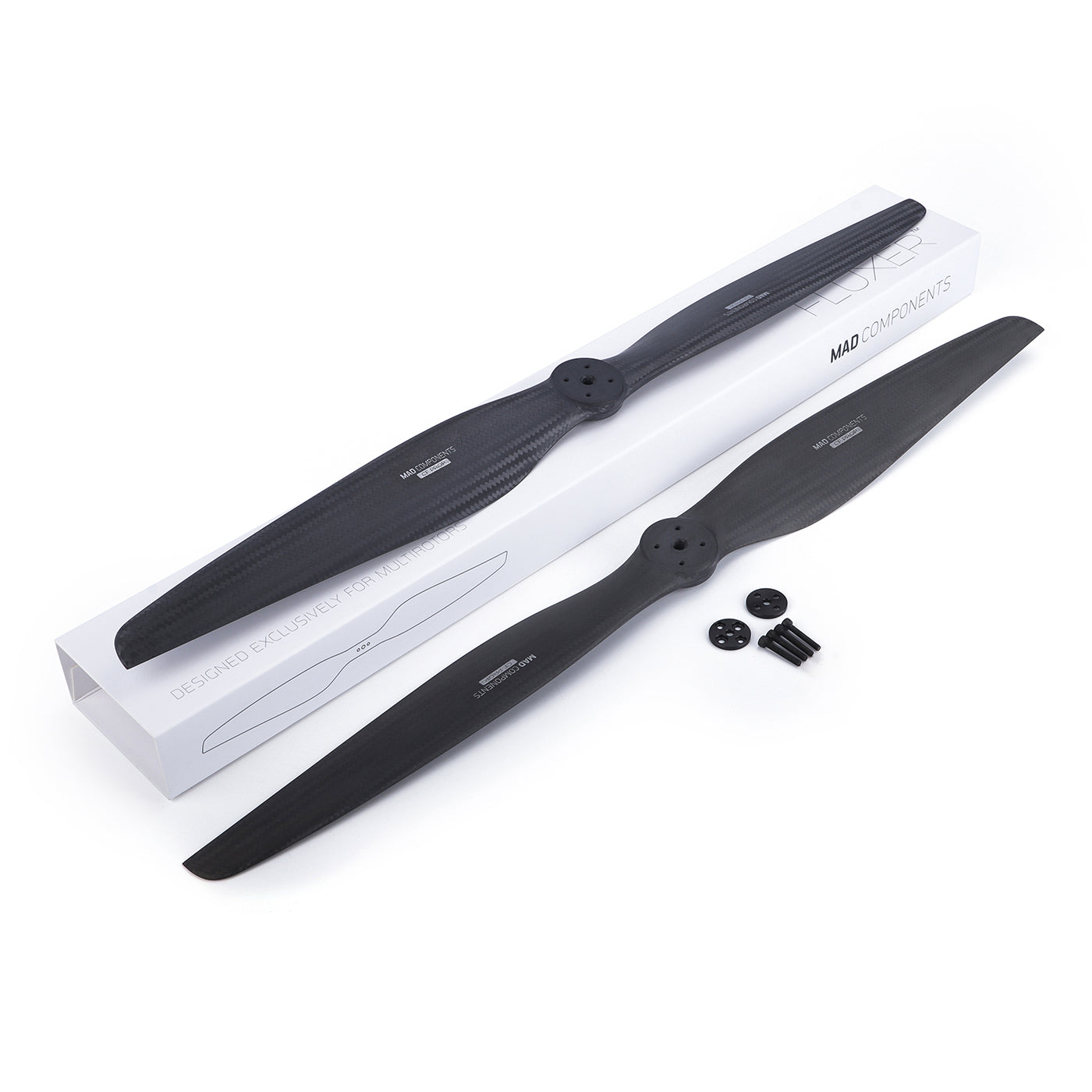

• MAD FLUXER VTOL 34.1x15.2 Carbon Fiber Propeller, MAD FLUXER VTOL carbon fiber propeller blades with mounting hardware shown on MAD Components box

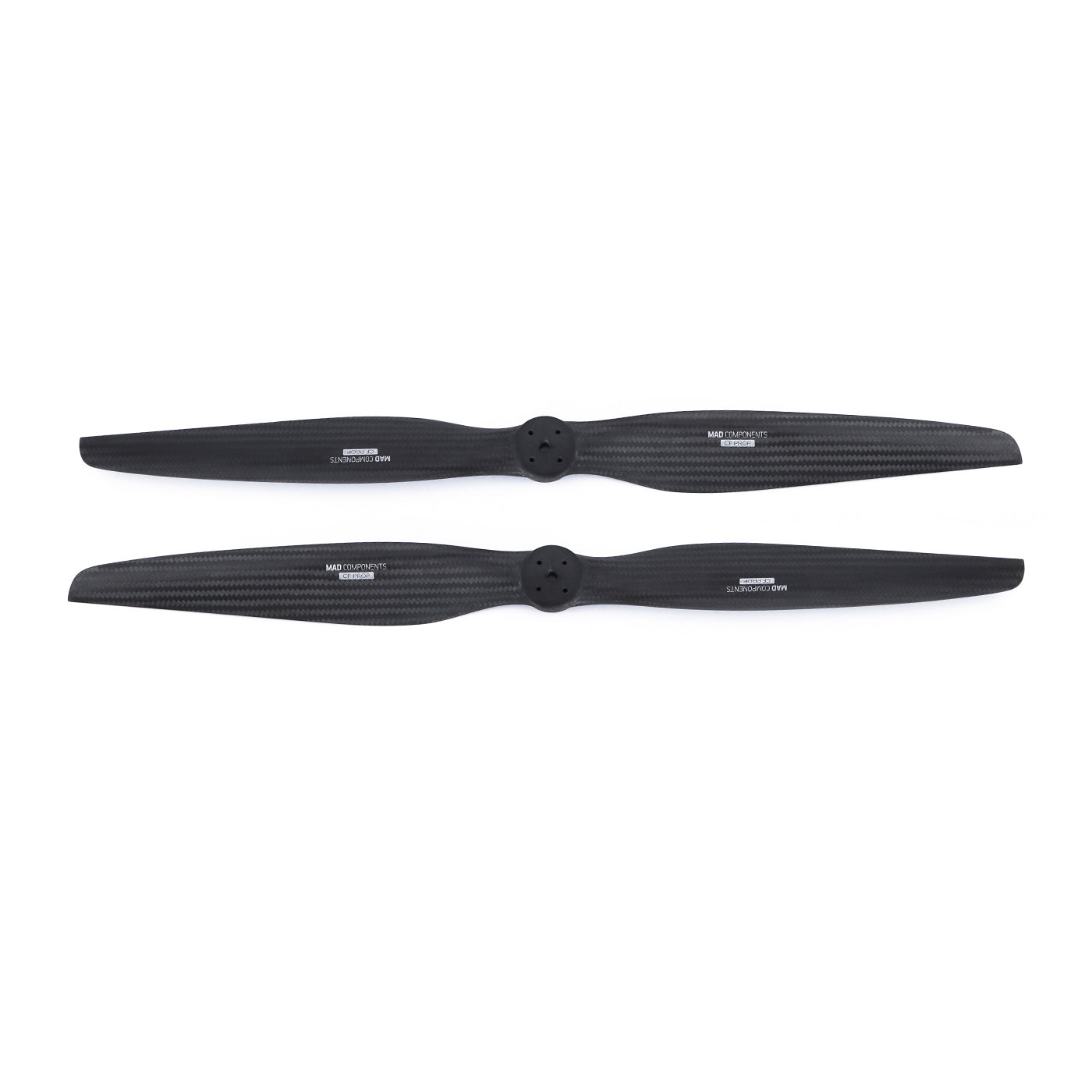

  • MAD FLUXER VTOL 34.1x15.2 Carbon Fiber Propeller, Pair of MAD FLUXER VTOL carbon fiber propellers with black woven finish and center mounting hub

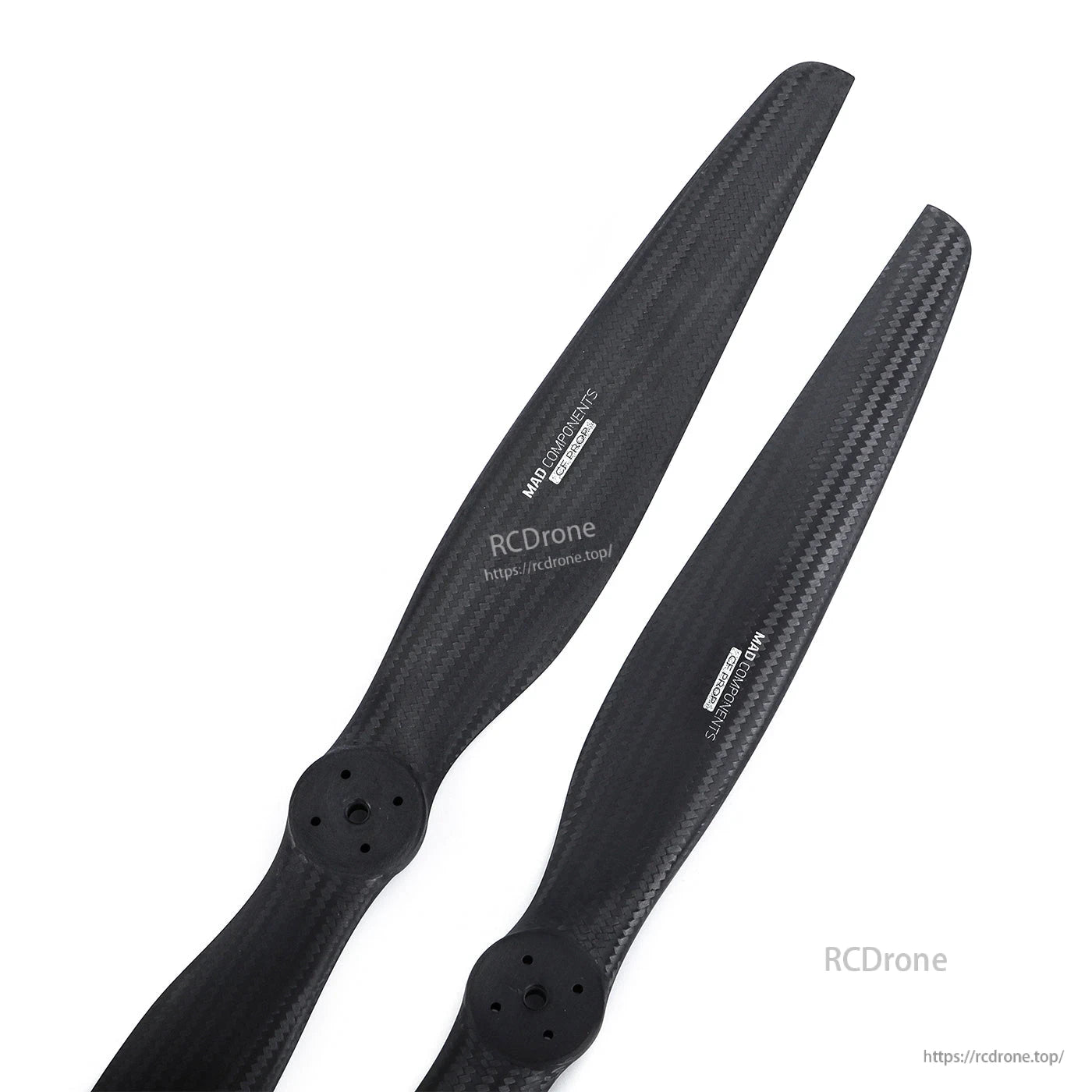

  • MAD FLUXER VTOL 34.1x15.2 Carbon Fiber Propeller, Pair of MAD FLUXER VTOL carbon fiber propeller blades with woven finish and multi-hole mounting hub

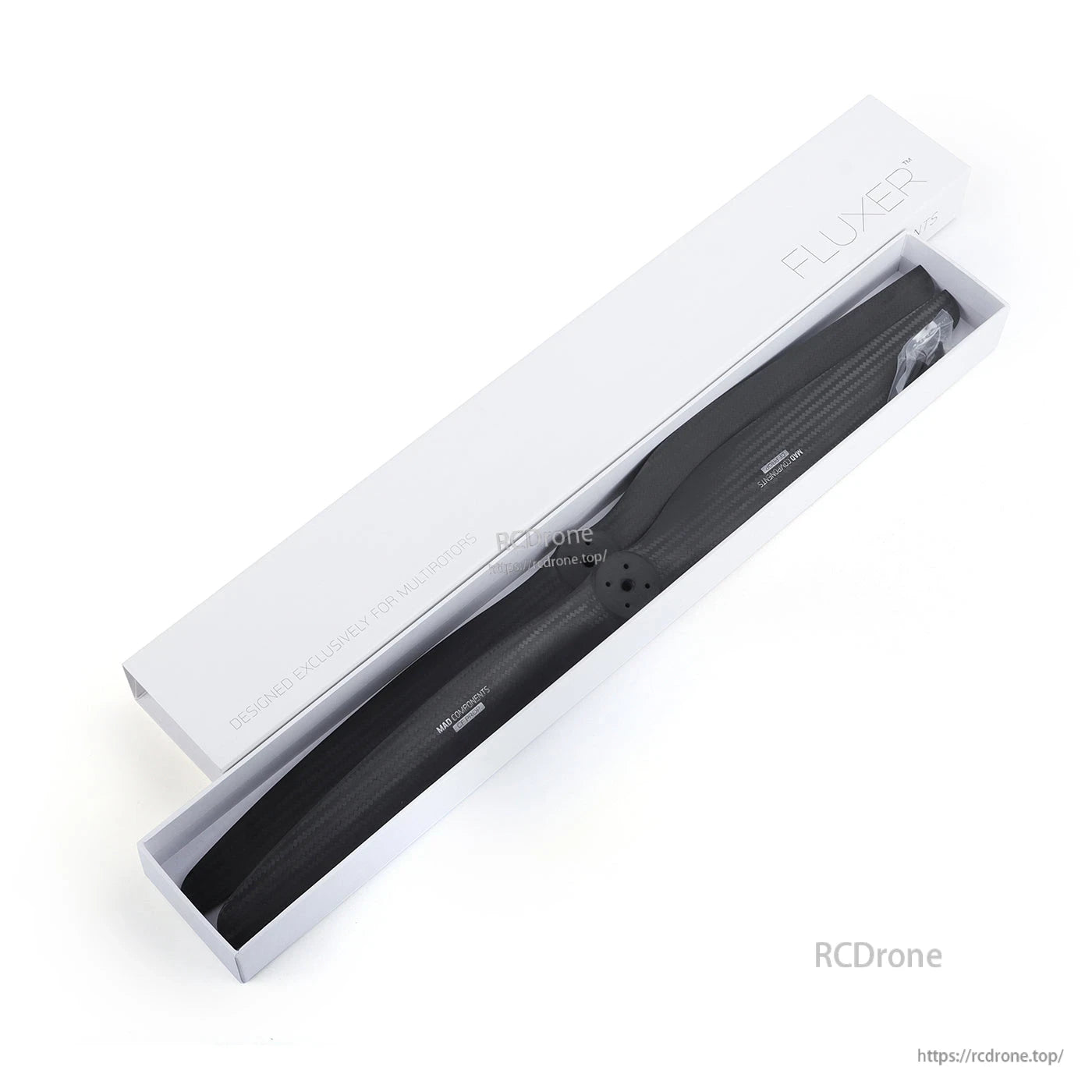

  • MAD FLUXER VTOL 34.1x15.2 Carbon Fiber Propeller, Fluxer two-blade carbon fiber VTOL propeller packaged in a long white box

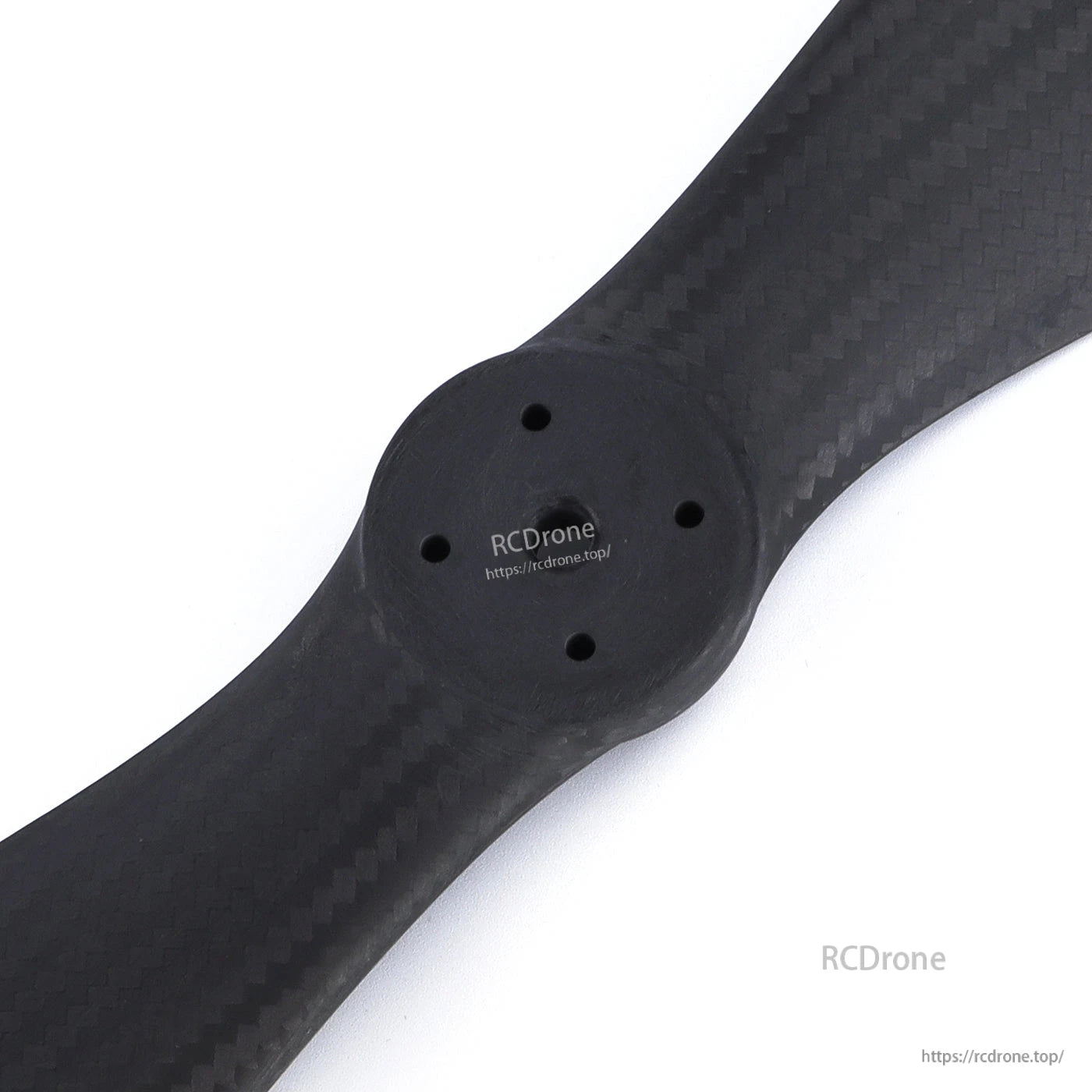

  • MAD FLUXER VTOL 34.1x15.2 Carbon Fiber Propeller, Carbon fiber VTOL propeller with woven finish and five mounting holes around the hub
1 5

MAD FLUXER VTOL 34.1x15.2 Carbon Fiber Propeller (866.14x386.08mm) 140g, M3*30 screws

MAD FLUXER VTOL 34.1x15.2 Carbon Fiber Propeller (866.14x386.08mm) 140g, M3*30 screws

MAD

$373.50 USD
$373.50 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Holes Position
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The MAD FLUXER VTOL 34.1x15.2 carbon fiber propeller uses an integrated structure design and an optimized eVTOL prop profile with a smaller prop surface to reduce air resistance during cruise. A larger prop pitch is designed to draw more thrust, with faster response and startup. The prop installation positions are strengthened for improved durability, and it is designed to pair with MAD brushless motors.

Key Features

  • Integrated structure design
  • Optimized eVTOL prop profile for lower cruise air resistance
  • Larger pitch for higher thrust
  • Strengthened installation positions for durability
  • Carbon fiber + resin construction

Specifications

Model FLUXER VTOL Props 34.1 x 15.2
Size 866.14 x 386.08 mm
Material High quality carbon fiber + resin
Single weight 140 g
Surface treatment Polished/matt
Working temperature -40C to 65C
Storage temperature -10C to 50C
Storage humidity <85%
Optimum RPM 2250-3050 RPM/min
Single thrust limitation 25 kg
Package Color box
Other accessories 8 x M3*30 mm mounting screws; 2 x cover plate

Test Data

RPM Thrust (gf) Torque (N*m) Output Power (W) Efficiency (gf/W)
624 670 0.3 19.1 35.28
1168 2390 1.0 126.8 18.85
1737 5570 2.4 430.2 12.94
2133 8540 3.6 806.6 10.59

Whats Included

  • 34.1 x 15.2 propeller: 2 pcs
  • Cover plate: 2 pcs
  • Hex socket cap head screw M3*30: 8 pcs

For compatibility checks (motor matching, mounting requirements, or setup questions), contact support@rcdrone.top or visit https://rcdrone.top/.

Details

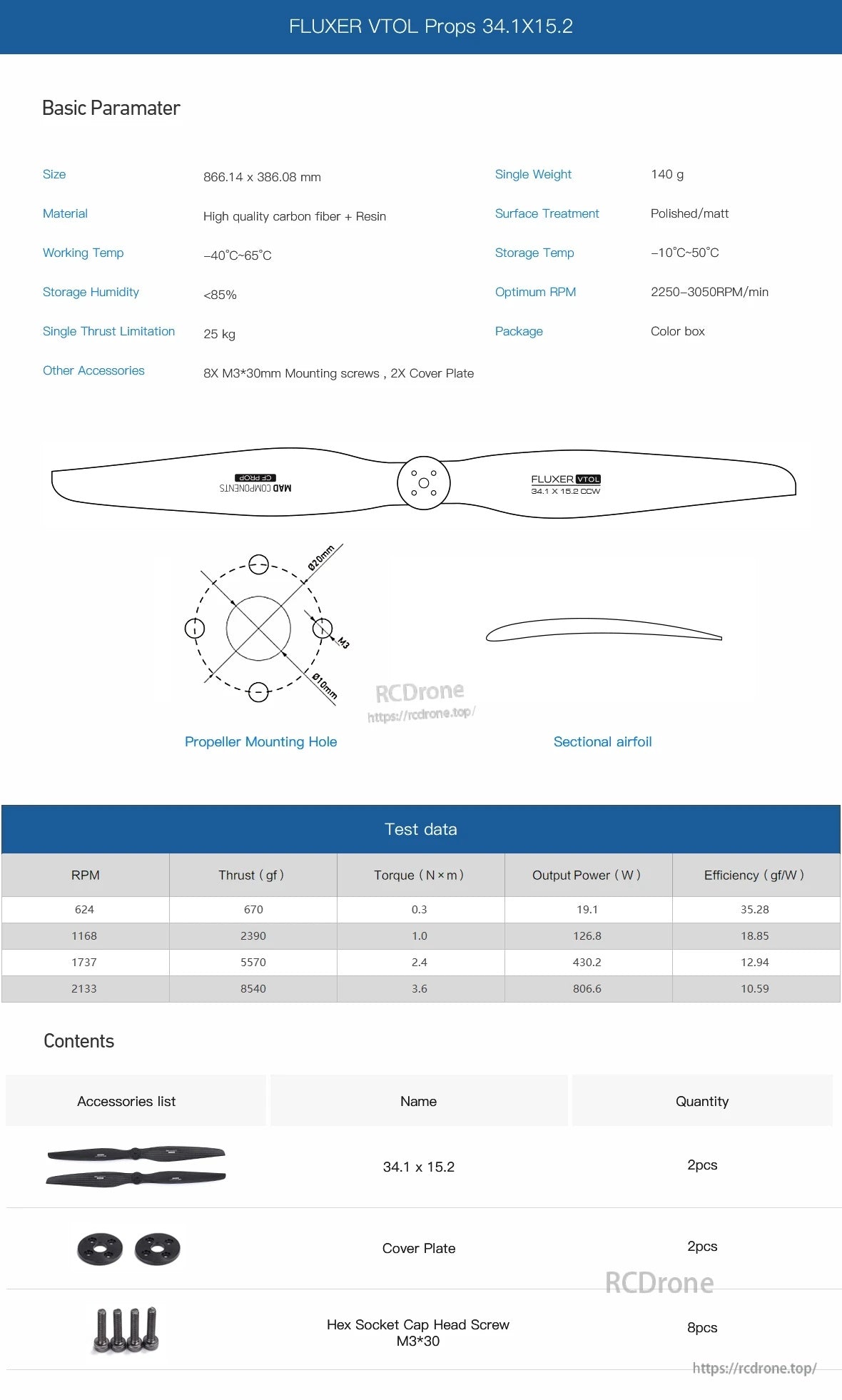

MAD 34.1x15.2 inch FLUXER EVTOL carbon fiber Propeller

The MAD FLUXER VTOL 34.1x15.2 propeller set includes 2 carbon fiber blades with matching cover plates and hex socket cap screws for installation.
