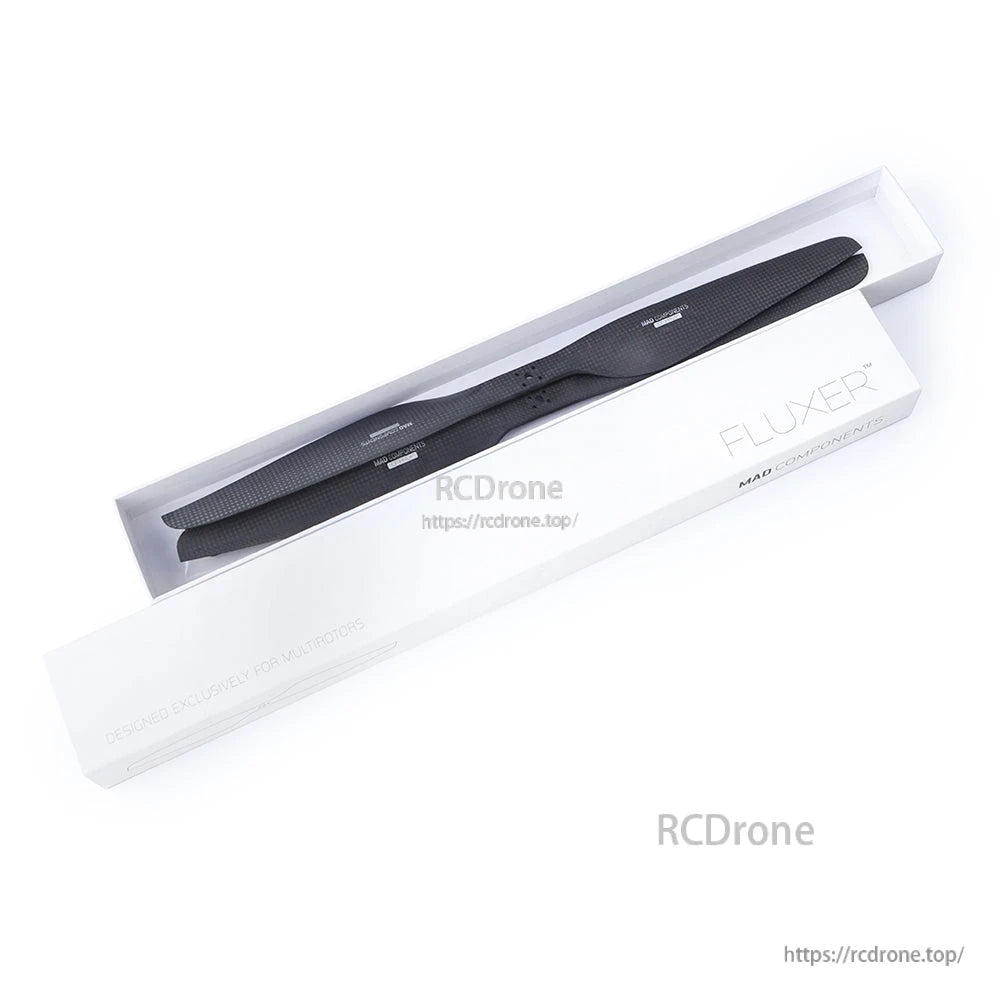

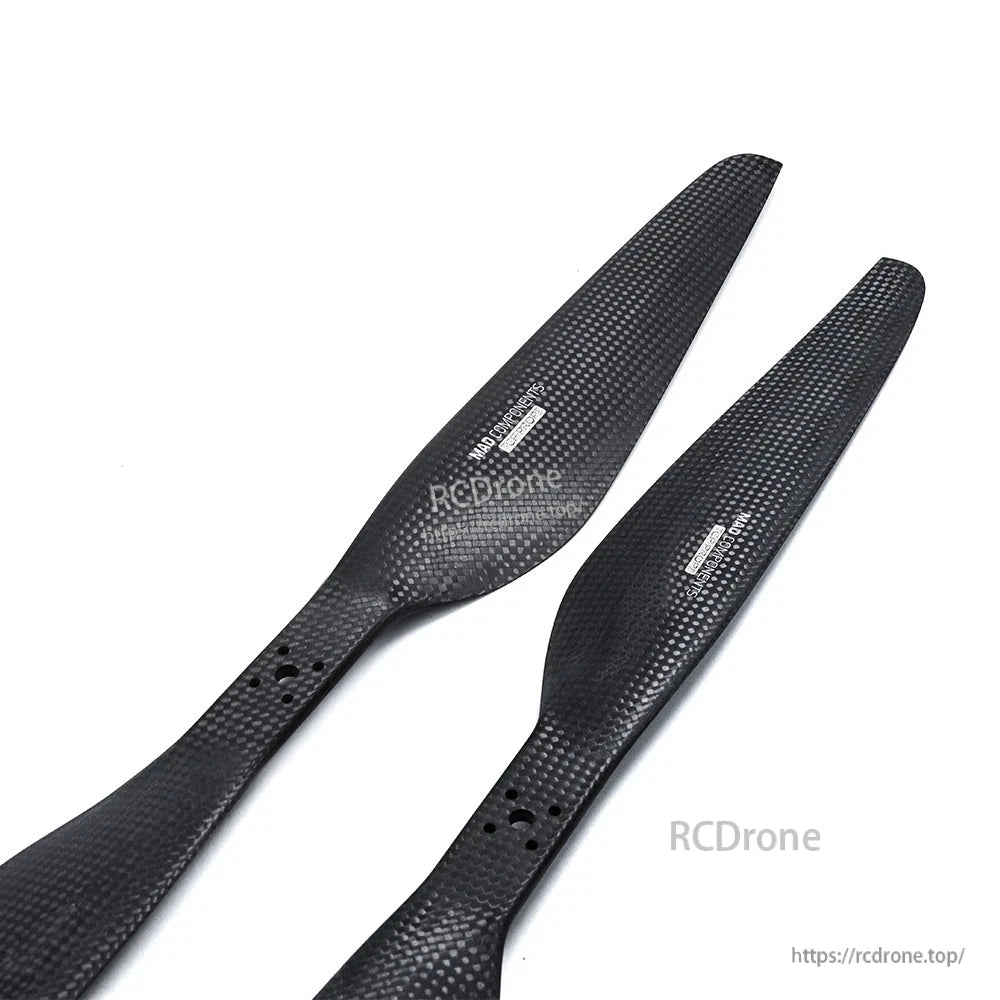

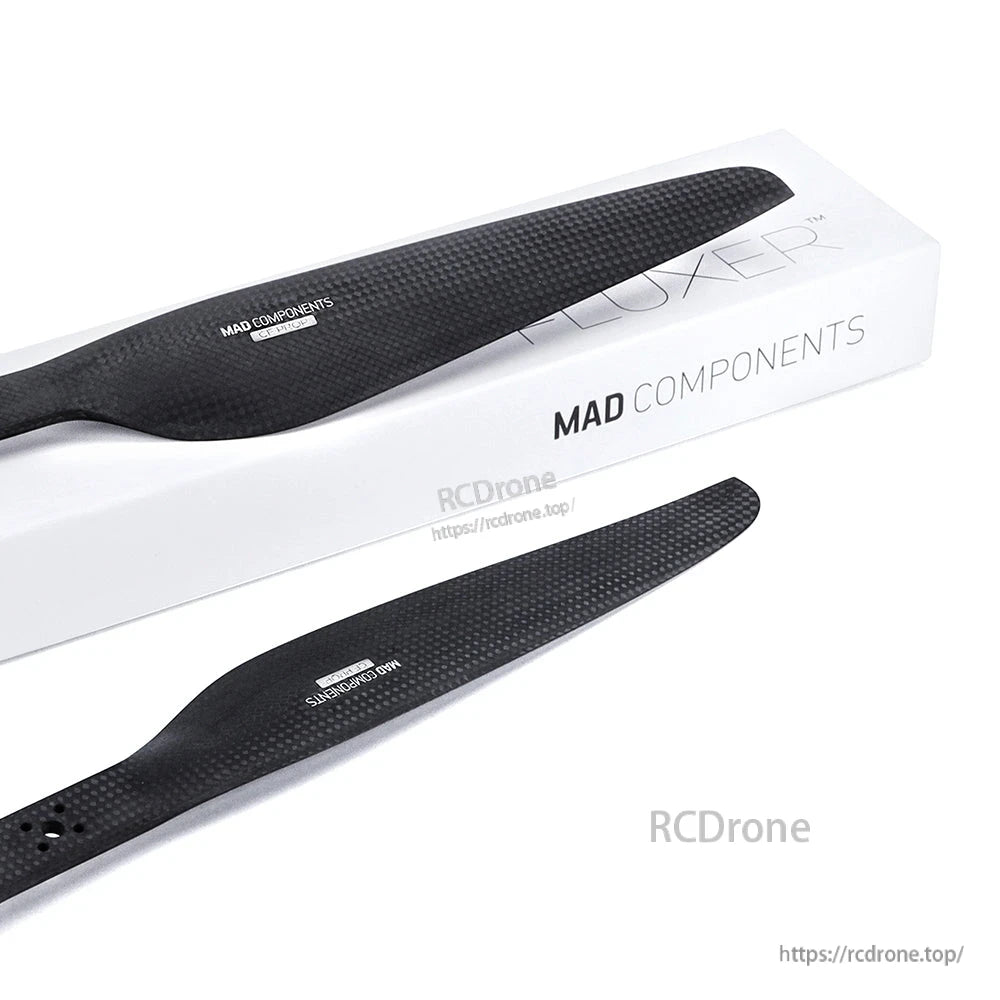

MAD FLUXER Pro Matt 29x8.7in Carbon Fiber Drone Propeller Pair (CW/CCW), 10mm Hub Bore

MAD

$356.85 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Holes position D10-D20(M3*4) customize

Quantity

View full details

Overview

MAD FLUXER Pro Matt 29x8.7in drone propellers are carbon fiber propellers designed for low-RPM high-performance operation. The blades use uni-directional and bi-directional carbon fiber prepreg with a balsa wood core, with a matt finish over woven carbon fiber prepreg.

Key Features

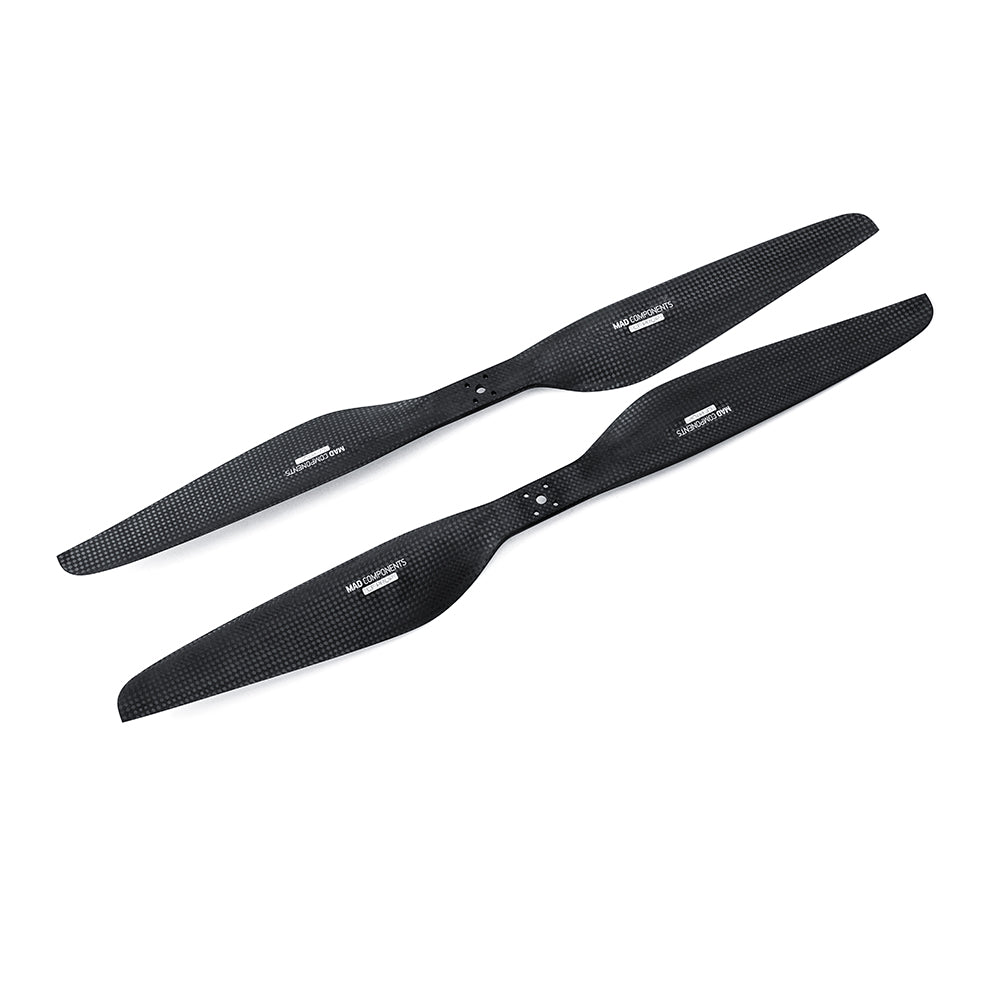

One pair: 29x8.7in CW + CCW
Polished/matt surface treatment
Optimized for low-RPM performance (optimum RPM range provided below)

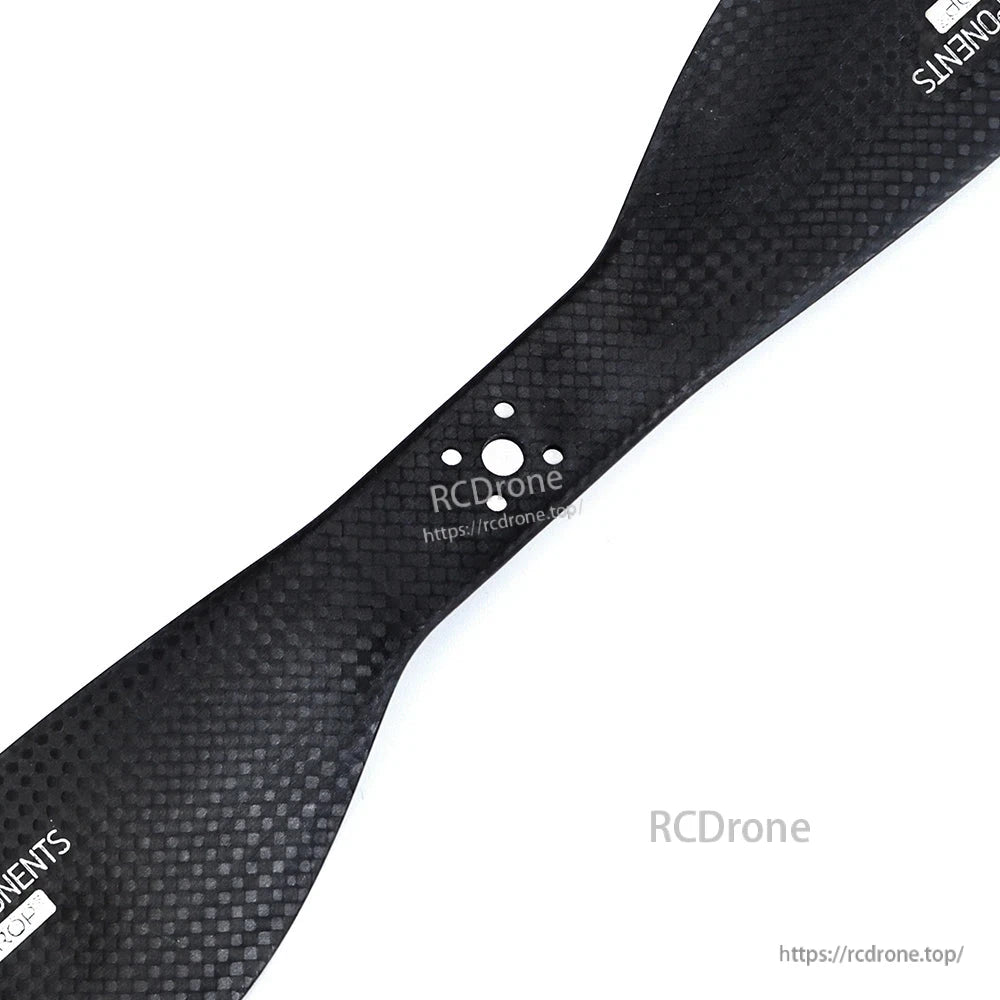

10mm mounting (hub) hole with M3 mounting pattern

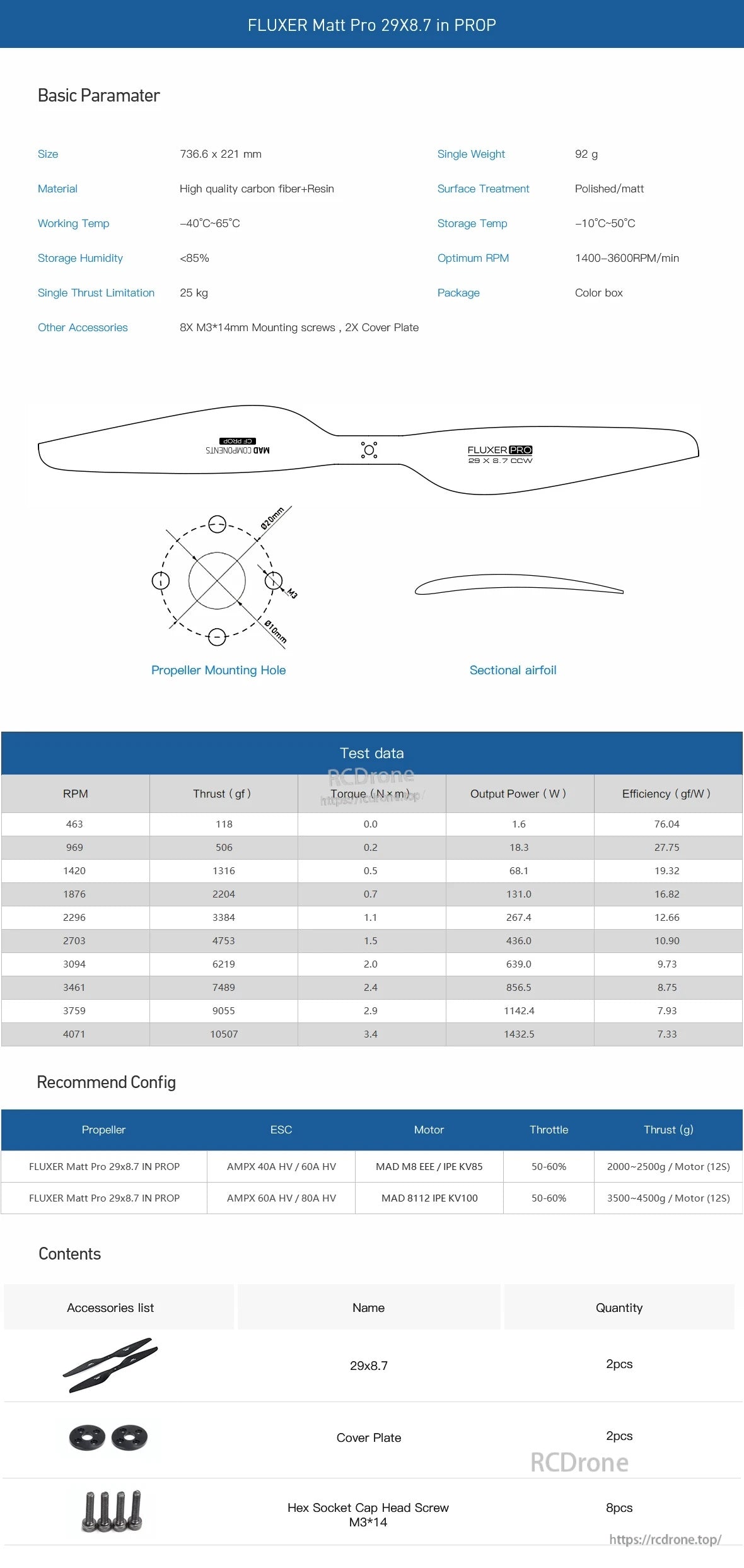

Specifications

Model	FLUXER Matt Pro 29x8.7 in PROP
Size	736.6 x 221 mm
Material	High quality carbon fiber + resin (balsa wood core)
Single weight	92 g
Surface treatment	Polished/matt
Working temperature	-40 C to 65 C
Storage temperature	-10 C to 50 C
Storage humidity	<85%
Optimum RPM	1400-3600 RPM/min
Single thrust limitation	25 kg
Mounting hole (hub bore)	10 mm
Mounting pattern	M3 holes, 22.0 mm pattern diameter
Package	Color box

Test Data

RPM	Thrust (gf)	Torque (N*m)	Output Power (W)	Efficiency (gf/W)
463	118	0.0	1.6	76.04
969	506	0.2	18.3	27.75
1420	1316	0.5	68.1	19.32
1876	2204	0.7	131.0	16.82
2296	3384	1.1	267.4	12.66
2703	4753	1.5	436.0	10.90
3094	6219	2.0	639.0	9.73
3461	7489	2.4	856.5	8.75
3759	9055	2.9	1142.4	7.93
4071	10507	3.4	1432.5	7.33

Recommended Configuration

Propeller	ESC	Motor	Throttle	Thrust (g)
FLUXER Matt Pro 29x8.7 IN PROP	AMPX 40A HV / 60A HV	MAD M8 EEE / IPE KV85	50-60%	2000-2500g / Motor (12S)
FLUXER Matt Pro 29x8.7 IN PROP	AMPX 60A HV / 80A HV	MAD 8112 IPE KV100	50-60%	3500-4500g / Motor (12S)

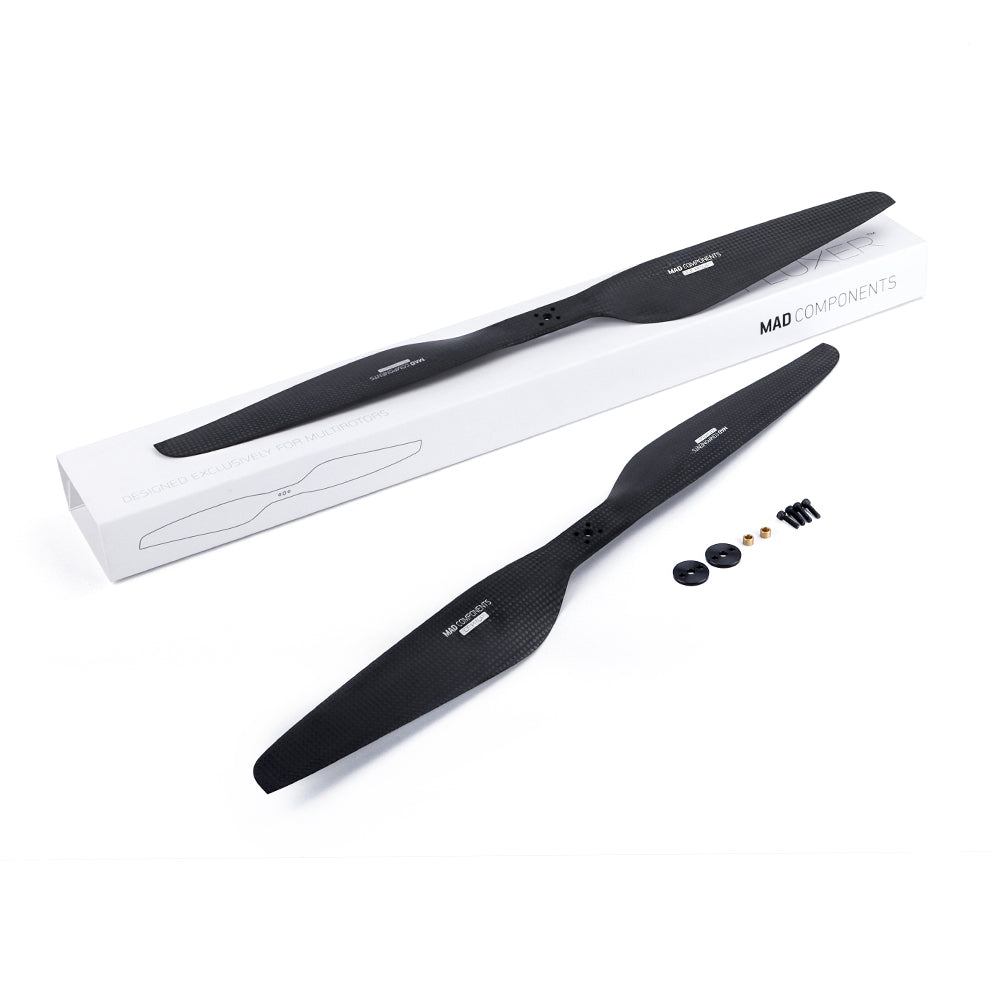

What’s Included

29x8.7 propellers: 2 pcs (one pair, CW + CCW)
Cover plate: 2 pcs
Hex socket cap head screw M3*14: 8 pcs

For installation compatibility questions (motor shaft size, mounting pattern, and drivetrain matching), contact support@rcdrone.top or visit https://rcdrone.top/.
