MAD FLUXER Pro 27x8.1 Inch Matte Carbon Fiber Propeller (CCW) - 685.8x205.7mm, 69g
MAD FLUXER Pro 27x8.1 Inch Matte Carbon Fiber Propeller (CCW) - 685.8x205.7mm, 69g
MAD
Regular price
$320.85 USD
Regular price
Sale price
$320.85 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview

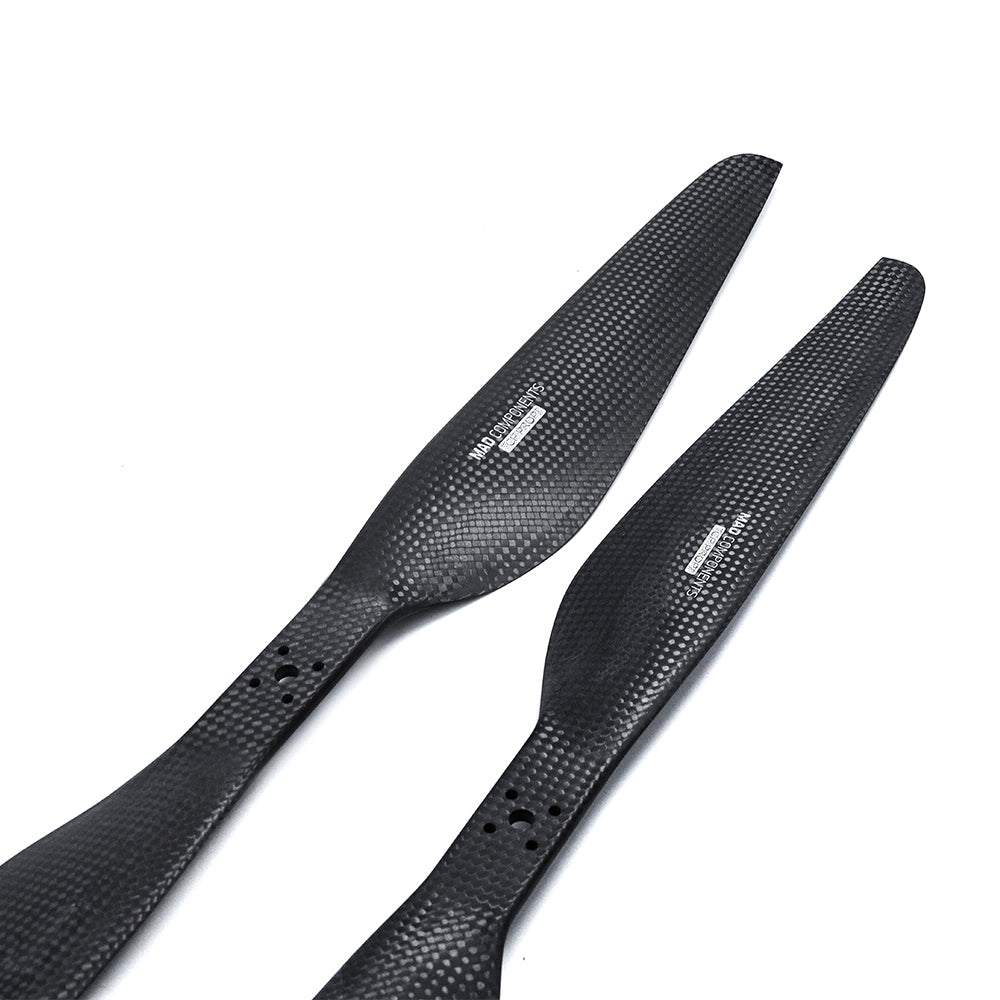

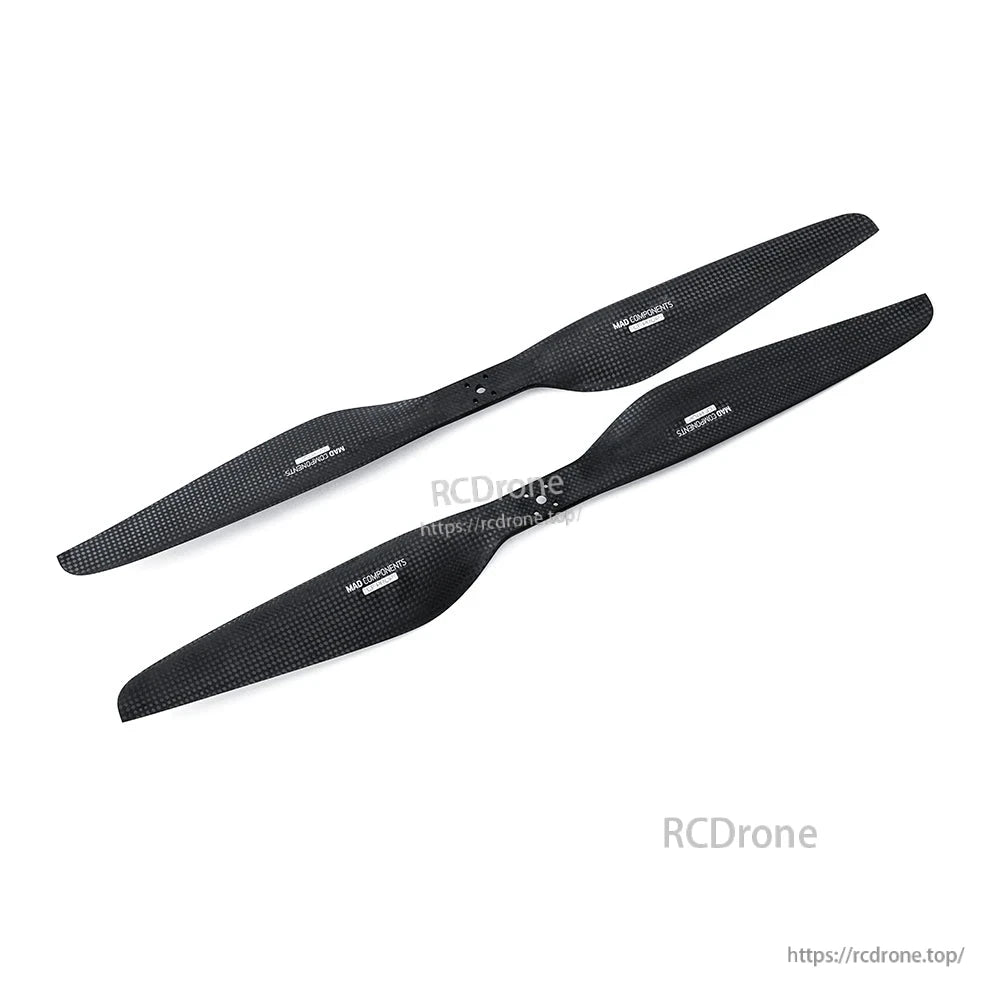

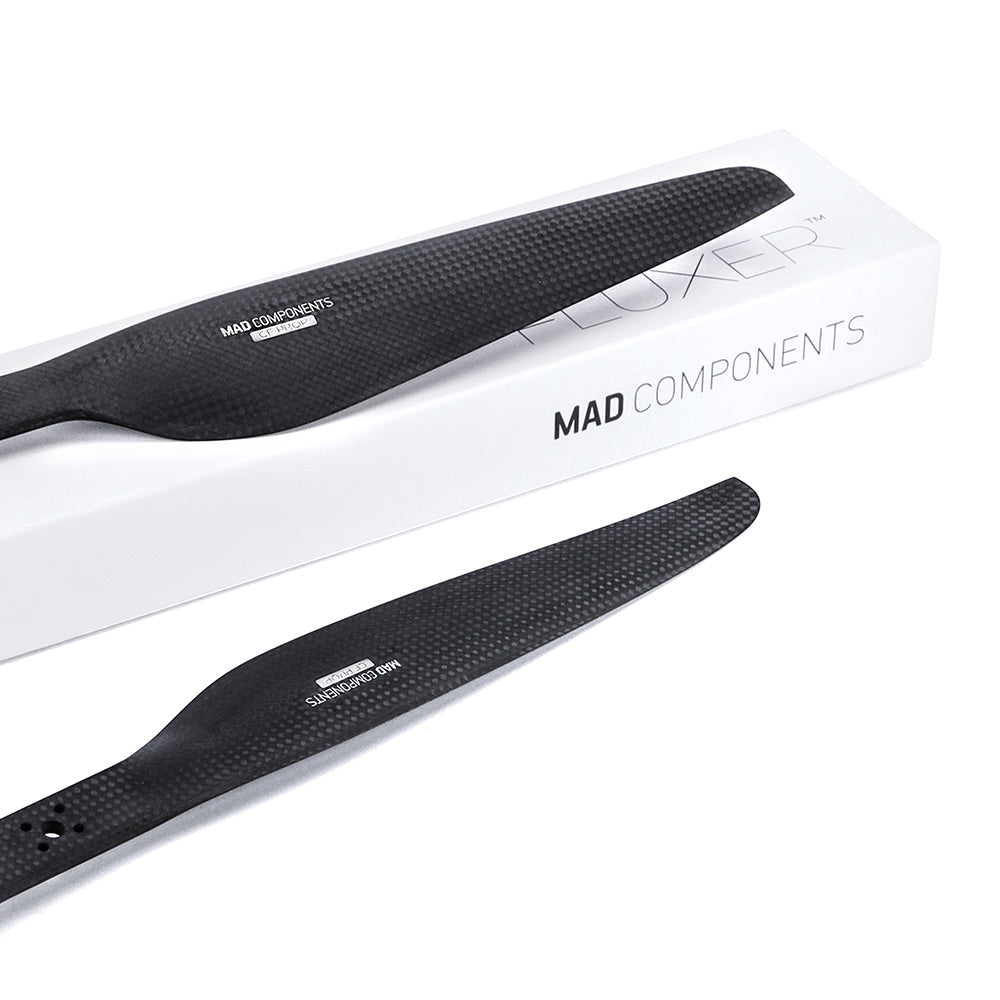

MAD FLUXER Pro 27x8.1 inch matte carbon fiber propeller for multi-rotor propulsion, designed for low inertia and stable control performance for exploration and inspection applications.
Key Features
- Matte finish
- Economical
- Excellent control performance
- Light weight, low inertia
For compatibility questions (motor/ESC, mounting, or installation), contact support@rcdrone.top or visit https://rcdrone.top/.
Specifications
| Model series | FLUXER Matt Pro |
| Prop size | 27 x 8.1 in |
| Size (mm) | 685.8 x 205.7 mm |
| Rotation marking | CCW |
| Single weight | 69 g |
| Material | High quality carbon fiber + Resin |
| Surface treatment | Polished/matt |
| Working temp | -40°C~65°C |
| Storage temp | -10°C~50°C |
| Storage humidity | <85% |
| Optimum RPM | 1900-3800RPM/min |
| Single thrust limitation | 20.5 kg |

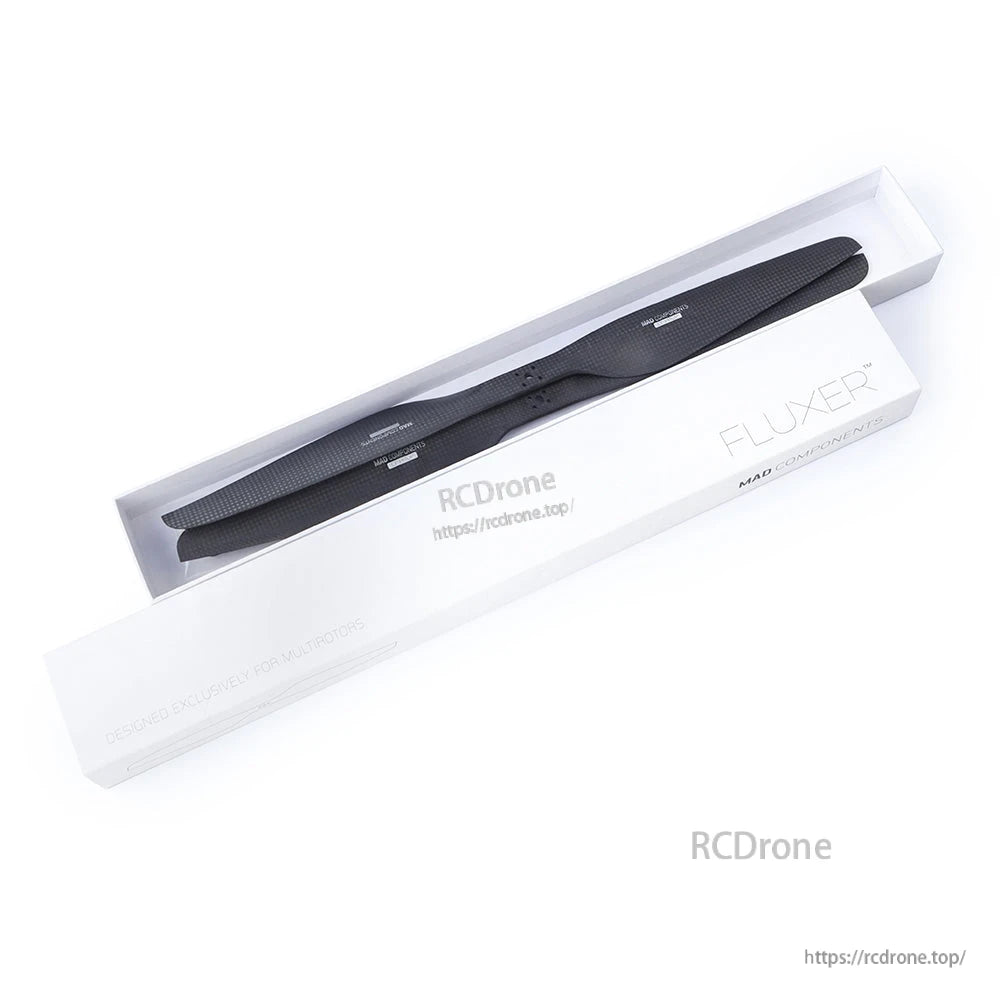

| Package | Color box |
| Other accessories | 8 x M3*14mm mounting screws, 2 x cover plate |
Test Data
| RPM | Thrust (gf) | Torque (N*m) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 1502 | 1118 | 0.4 | 74.8 | 15.1 |
| 1719 | 1460 | 0.5 | 107.1 | 13.7 |
| 1922 | 1863 | 0.6 | 147.4 | 12.7 |
| 2131 | 2343 | 0.7 | 198.9 | 11.8 |
| 2363 | 2853 | 0.9 | 267.2 | 10.9 |
| 2587 | 3399 | 1.1 | 344.1 | 10.1 |
| 2796 | 3976 | 1.2 | 437.4 | 9.3 |
| 2994 | 4490 | 1.4 | 533.4 | 8.6 |
| 3173 | 5032 | 1.6 | 640.9 | 8 |
| 3337 | 5584 | 1.8 | 762.4 | 7.4 |
| 3508 | 6146 | 1.9 | 890.3 | 7 |
| 3660 | 6793 | 2.1 | 1039.1 | 6.6 |
| 3809 | 7351 | 2.3 | 1183.7 | 6.3 |
| 3962 | 7806 | 2.5 | 1349.0 | 5.8 |
| 4082 | 8409 | 2.6 | 1540.9 | 5.5 |
Recommended Config
| Propeller | ESC | Motor | Throttle | Thrust (g) |
|---|---|---|---|---|
| FLUXER Matt Pro 27x8.1 IN PROP | AMPX 40A HV / 60A HV | MAD M8 EEE / IPE KV100 | 50-60% | 2000~2800g / Motor (12S) |
| FLUXER Matt Pro 27x8.1 IN PROP | AMPX 40A HV / 60A HV | MAD 8108 EEE / IPE KV100 | 50-60% | 2000~2800g / Motor (12S) |

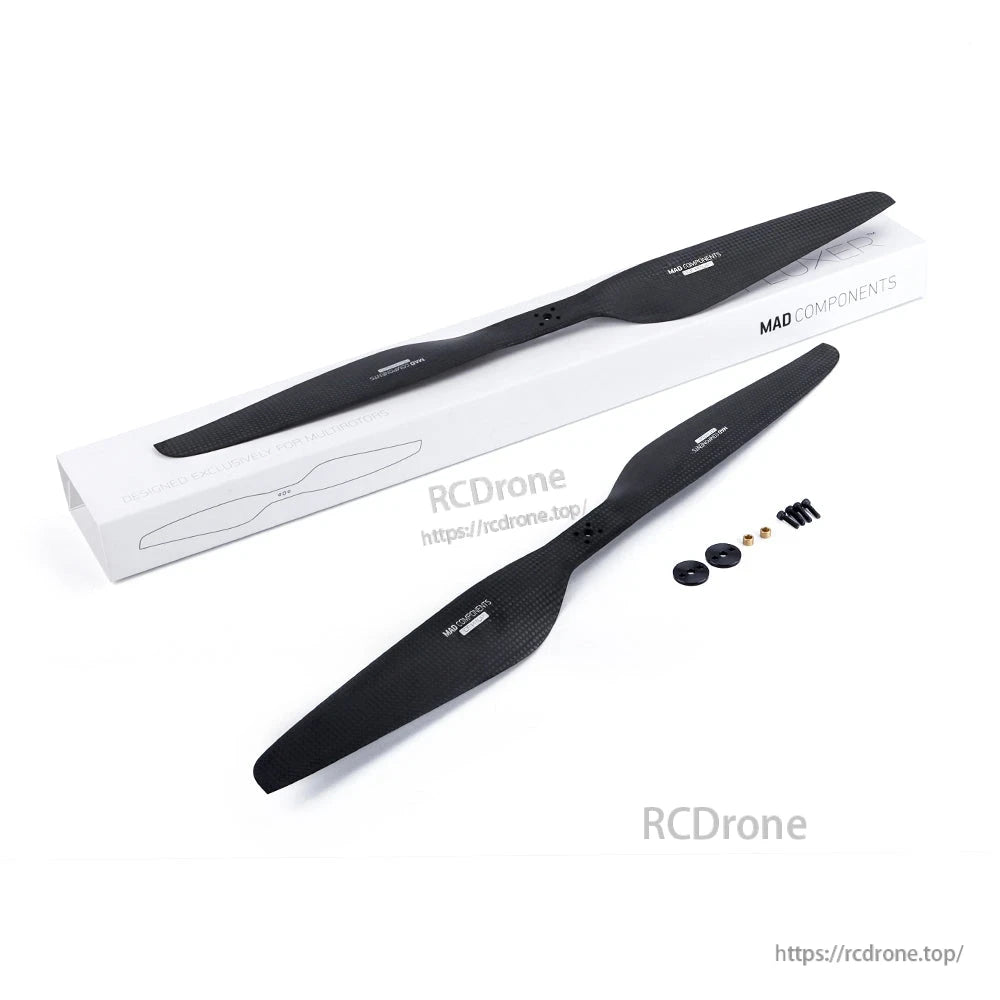

What’s Included
- 27x8.1 propeller: 2 pcs
- Cover plate: 2 pcs
- Hex socket cap head screw M3*14: 8 pcs
Description

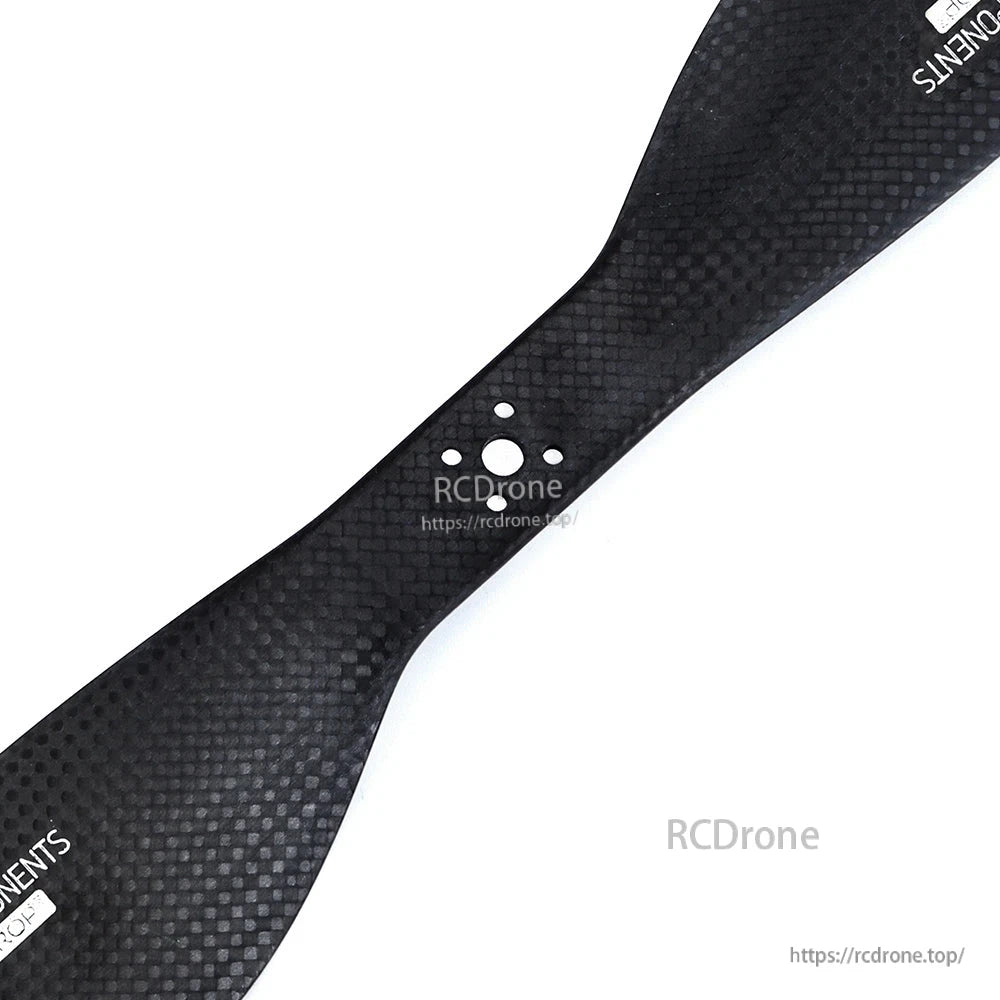

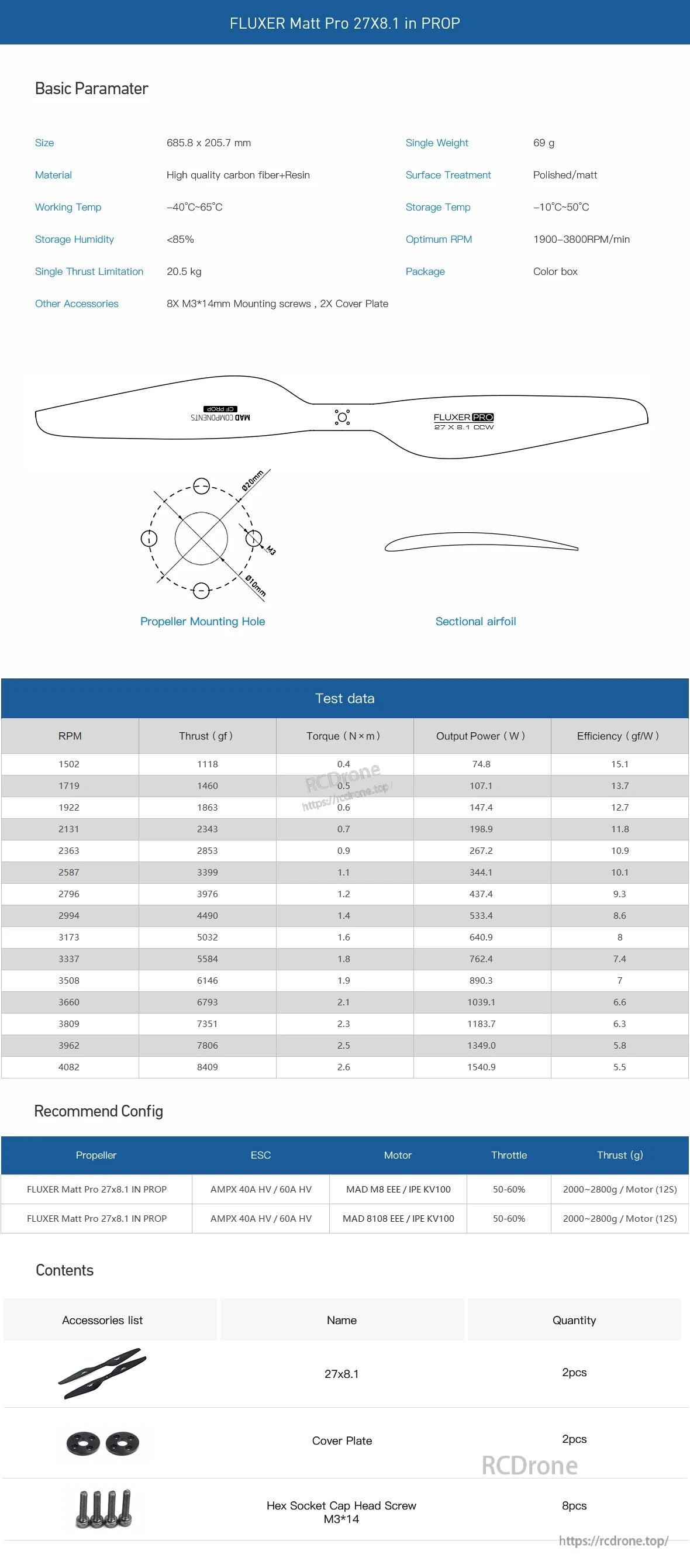

MAD FLUXER Pro 27x8.1 CCW propeller documentation includes key dimensions, a hub mounting-hole layout, and thrust/power test data for setup planning.
Details
MAD FLUXER Pro matte carbon fiber propeller documentation lists key dimensions, weight, and the mounting-hole layout to help with fitment.
