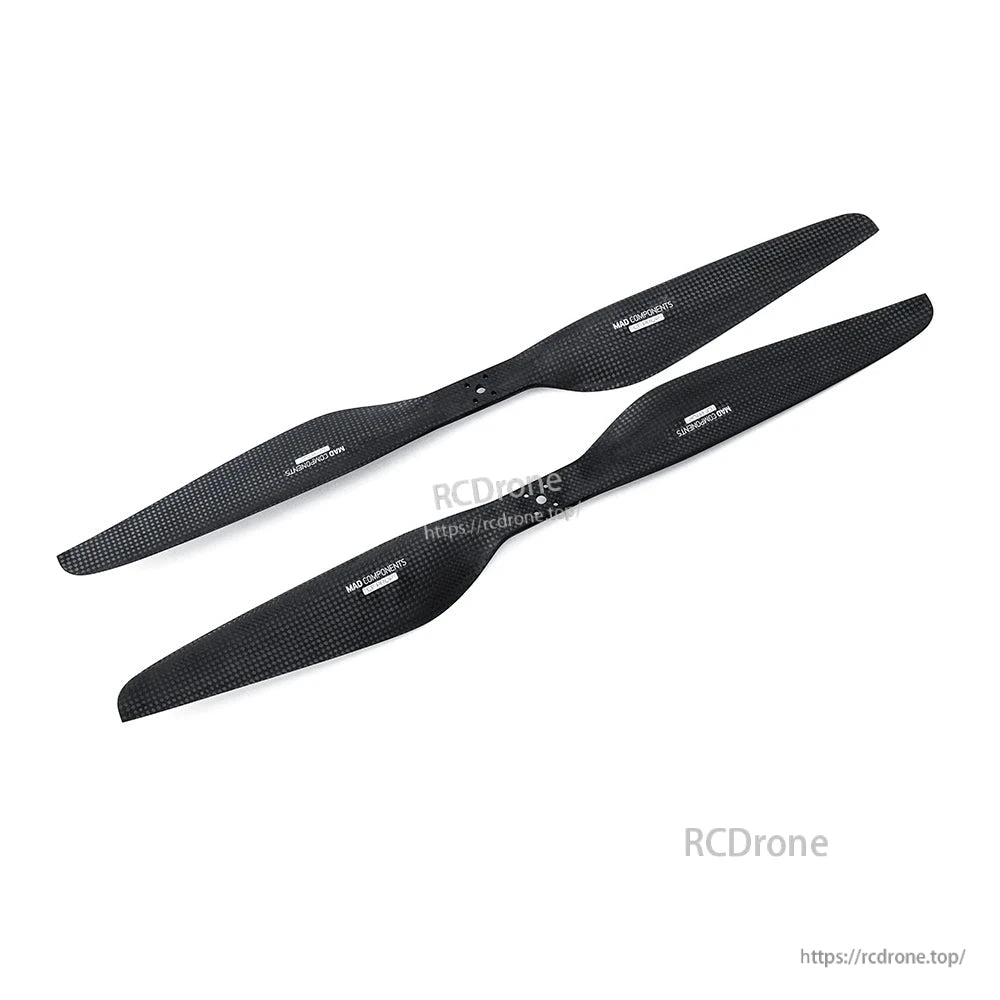

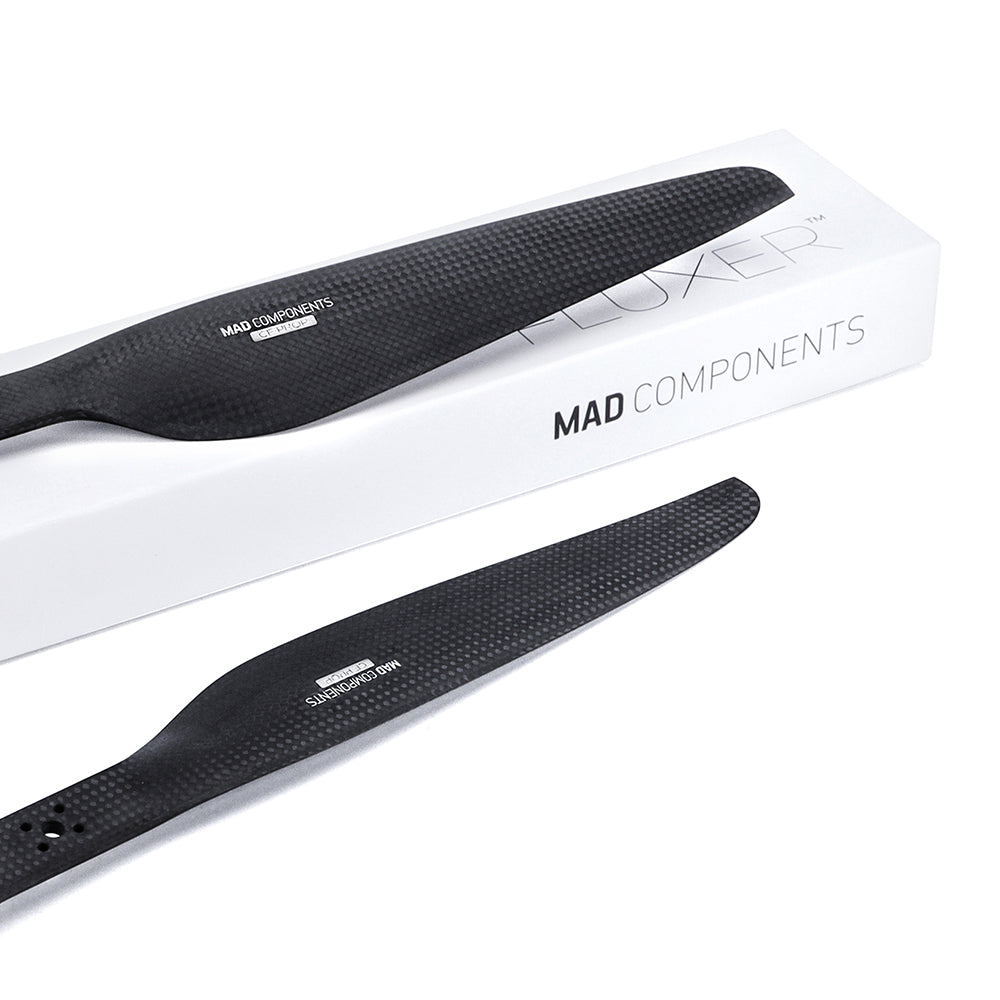

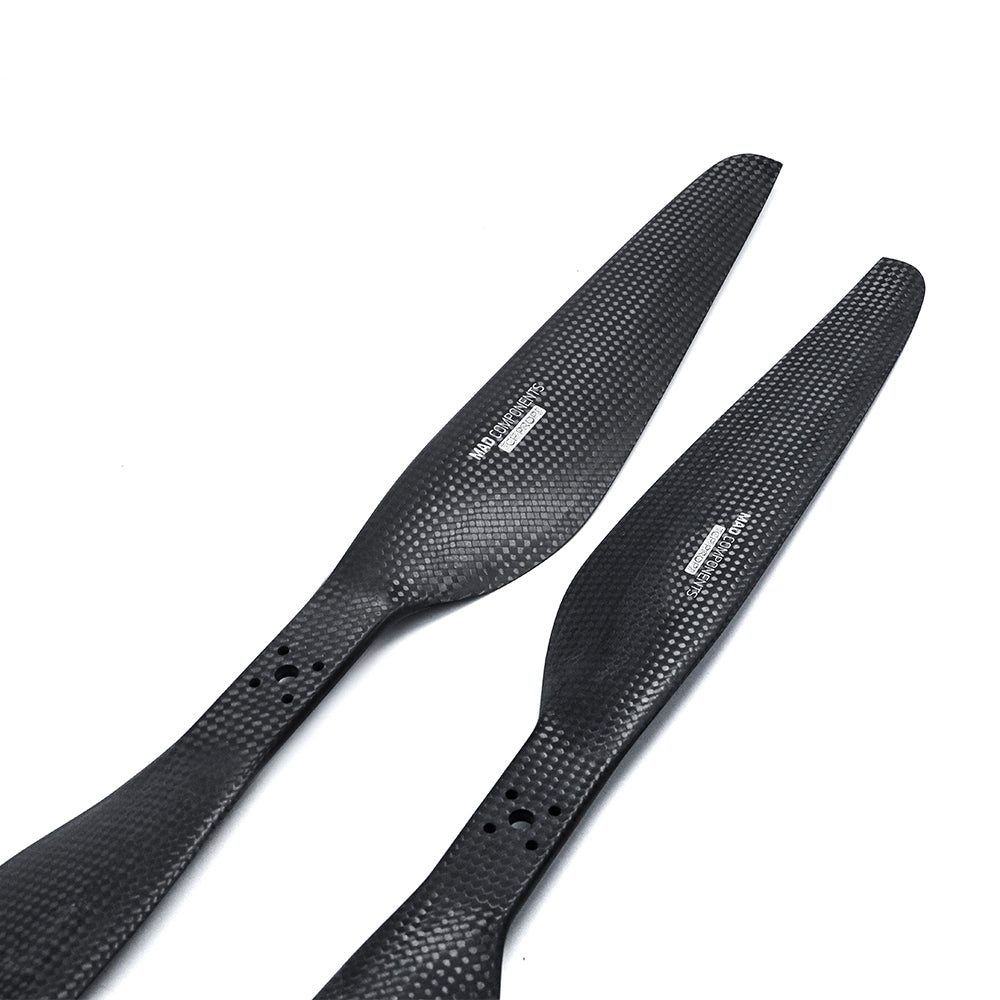

MAD FLUXER Pro Matt Carbon Fiber Propeller 24x7.2 in (609.6x182.9 mm), 60 g, 2400-4500RPM/min
MAD FLUXER Pro Matt Carbon Fiber Propeller 24x7.2 in (609.6x182.9 mm), 60 g, 2400-4500RPM/min
MAD
Regular price
$254.85 USD
Regular price
Sale price
$254.85 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
The MAD FLUXER Pro Matt carbon fiber propeller is a 24x7.2 inch propeller designed for light weight, low inertia, and excellent control performance.
- Matte finish
- Economical
- Excellent control performance
- Light weight and low inertia
Key Features
- Surface treatment: polished/matt
- High quality carbon fiber + resin construction
- Optimum RPM range specified for stable operating performance

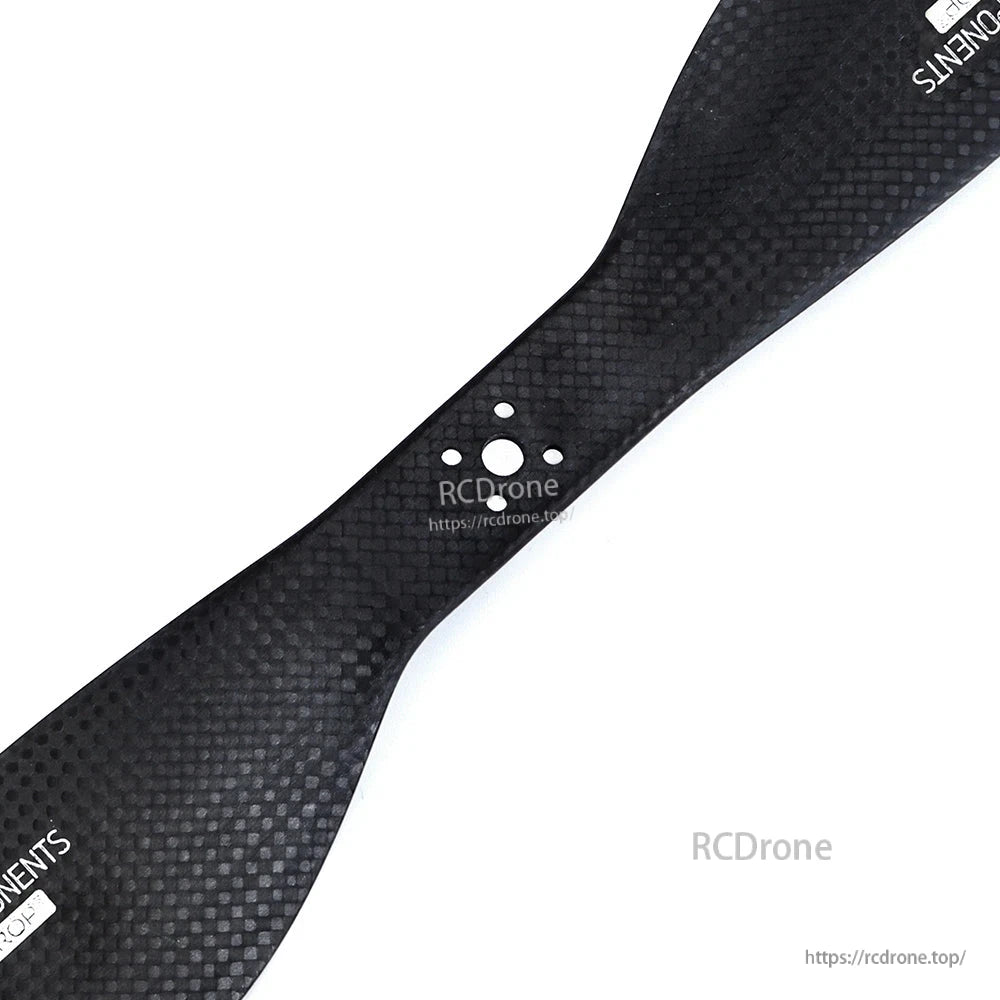

- Accessory packs available for different propeller mounting hole sizes
Specifications
| Model | FLUXER Matt Pro 24x7.2 in PROP |
| Size | 609.6 x 182.9 mm |
| Material | High quality carbon fiber+Resin |
| Single Weight | 60 g |
| Surface Treatment | Polished/matt |
| Working Temp | -40°C~65°C |
| Storage Temp | -10°C~50°C |
| Storage Humidity | <85% |
| Optimum RPM | 2400~4500RPM/min |
| Single Thrust Limitation | 15 kg |

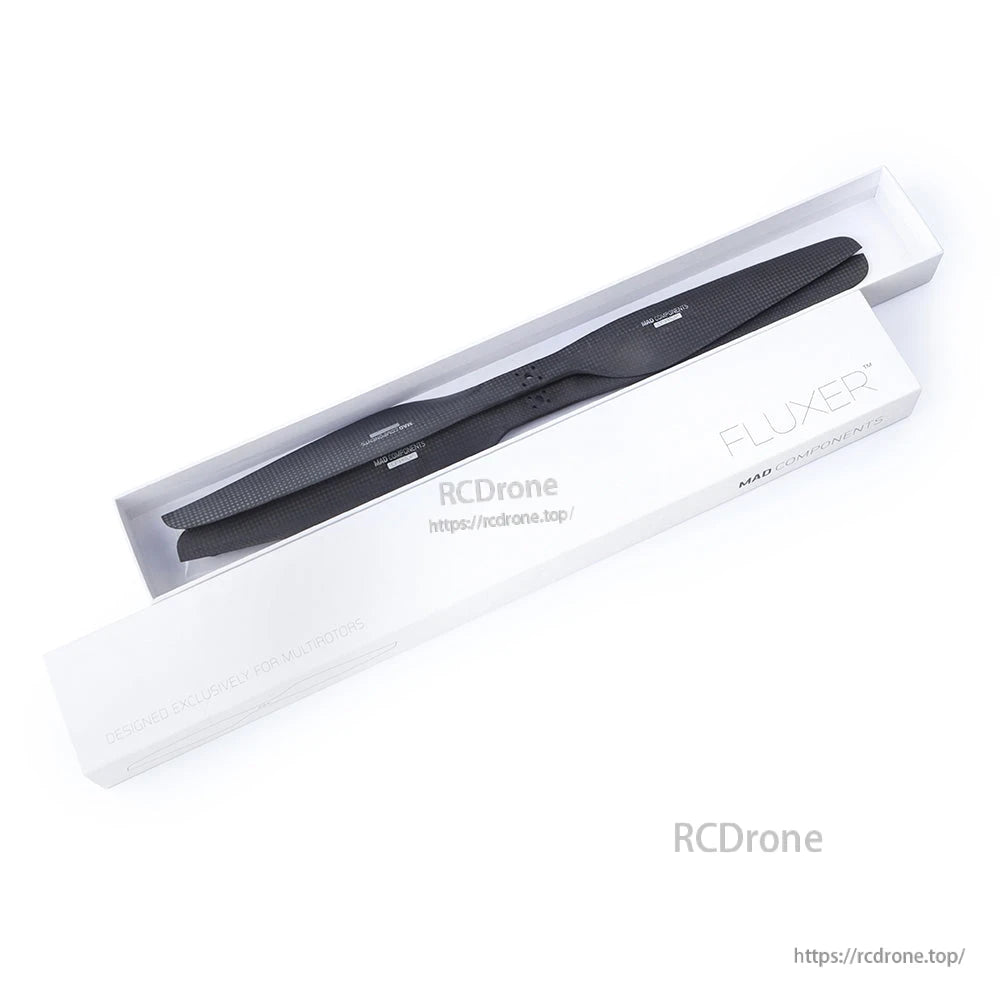

| Package | Color box |
| Other Accessories |
4X M3*12mm Mounting screws, 2X Cover Plate, 2X Ø6/Ø4 adapter ring 8X M3*12mm Mounting screws, 2X Cover Plate |
For compatibility questions (motor/ESC matching, mounting hole options, and accessory pack selection), contact support@rcdrone.top or https://rcdrone.top/.
Test Data
| RPM | Thrust (gf) | Torque (N*m) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 734 | 150 | 0.0 | 2.9 | 51.92 |
| 1437 | 630 | 0.2 | 26.2 | 23.93 |
| 2086 | 1320 | 0.4 | 81.1 | 16.29 |
| 2742 | 2330 | 0.6 | 183.9 | 12.66 |
| 3289 | 2380 | 0.9 | 319.0 | 10.61 |
| 3783 | 4480 | 1.2 | 489.7 | 9.16 |
| 4314 | 5880 | 1.6 | 731.4 | 8.04 |
| 4765 | 7220 | 2.0 | 990.7 | 7.29 |
| 5124 | 8390 | 2.3 | 1235.0 | 6.8 |
| 5184 | 8610 | 2.4 | 1281.5 | 6.72 |
Recommended Config
| Propeller | ESC | Motor | Throttle | Thrust (g) |
|---|---|---|---|---|
| FLUXER Matt Pro 24x7.2 IN PROP | AMPX 80A HV | MAD M6C12 IPE V3 KV280 | 50-60% | 2000~3000g / Motor (6S) |
| FLUXER Matt Pro 24x7.2 IN PROP | AMPX 40A HV / 60A HV | MAD M6C12 IPE V3 KV150 | 50-60% | 2500~3500g / Motor (12S) |

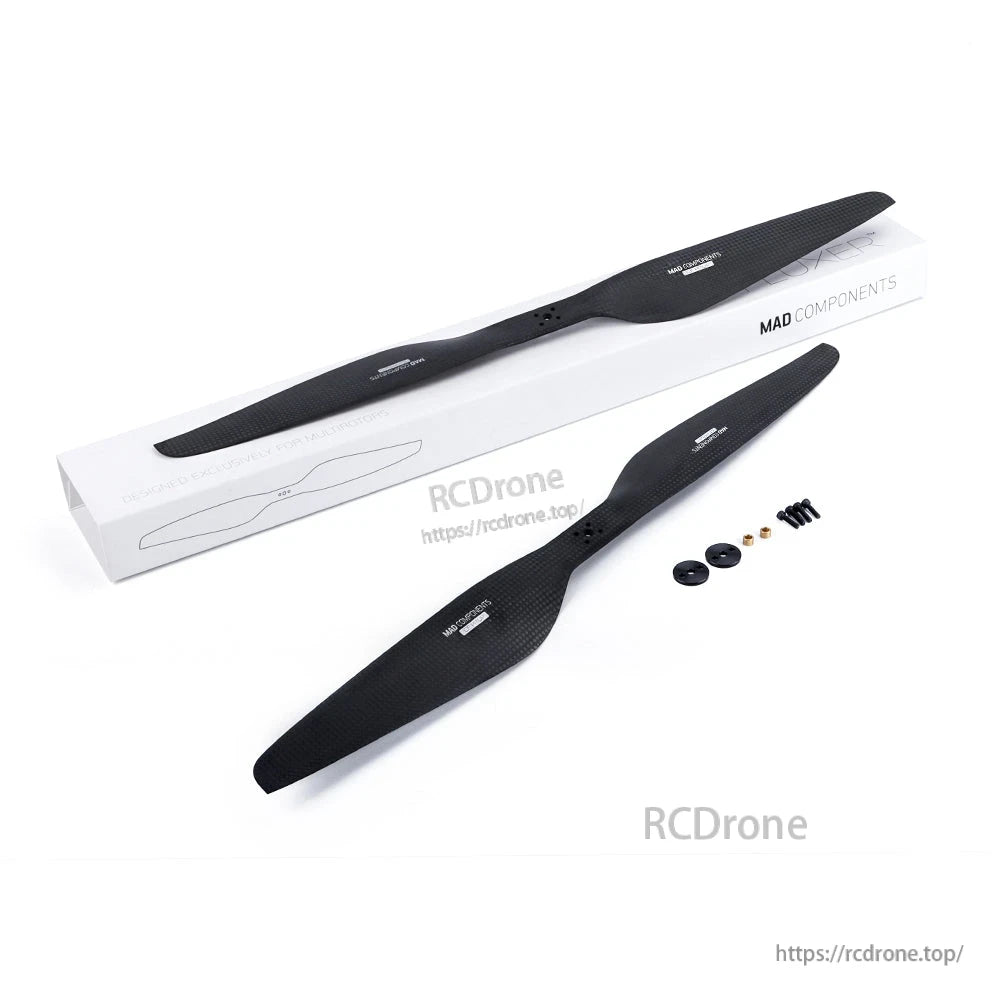

What's Included
- Note: 2 kinds of accessory packs available, depending on different propeller mounting hole sizes
- Contents (For 24x7.2 in D4-D12):
| Name | Quantity |
|---|---|
| 24x7.2 | 2pcs |
| Cover Plate | 2pcs |
| Ø6/Ø4 adapter ring | 2pcs |
| Hex Socket Cap Head Screw M3*12 | 4pcs |
Applications
- Explorations
- Inspection applications
Details

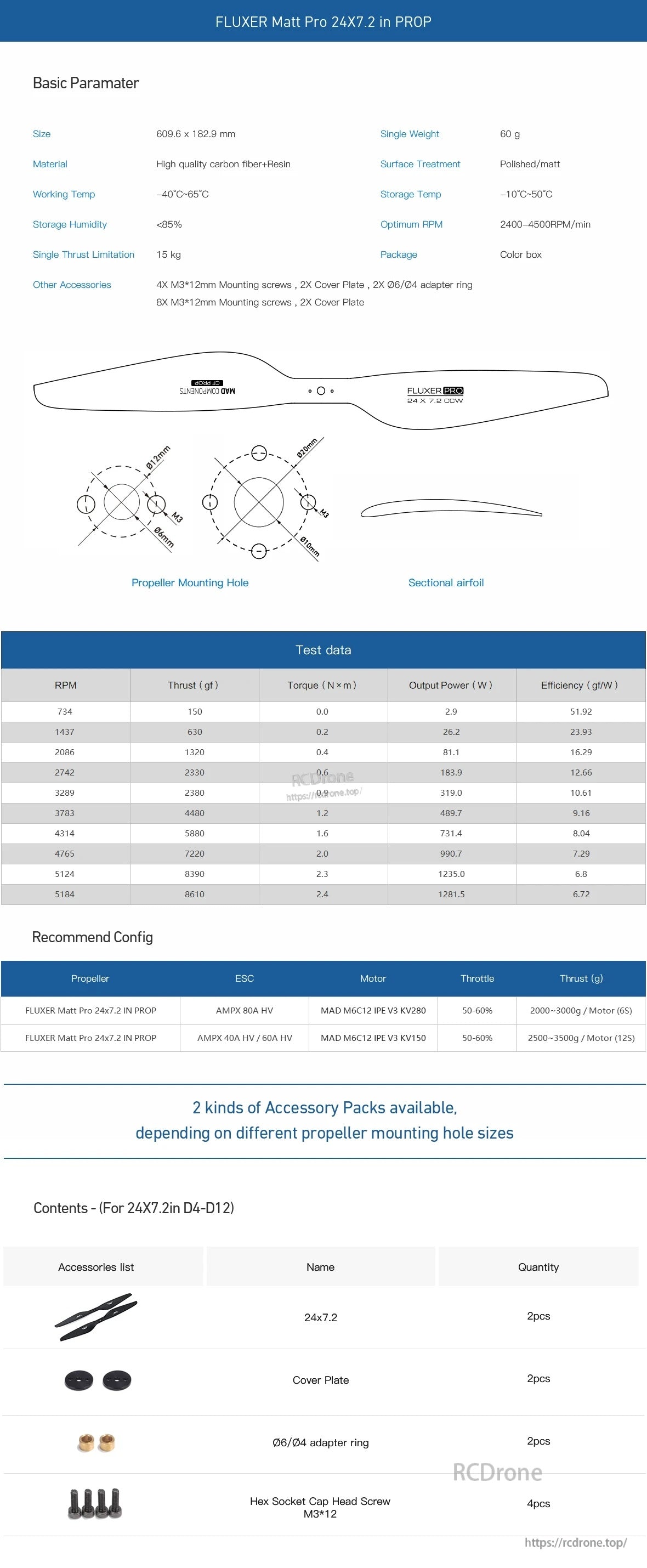

The detailed dimension diagram and pitch data help confirm fit and mounting-hole compatibility before ordering.
