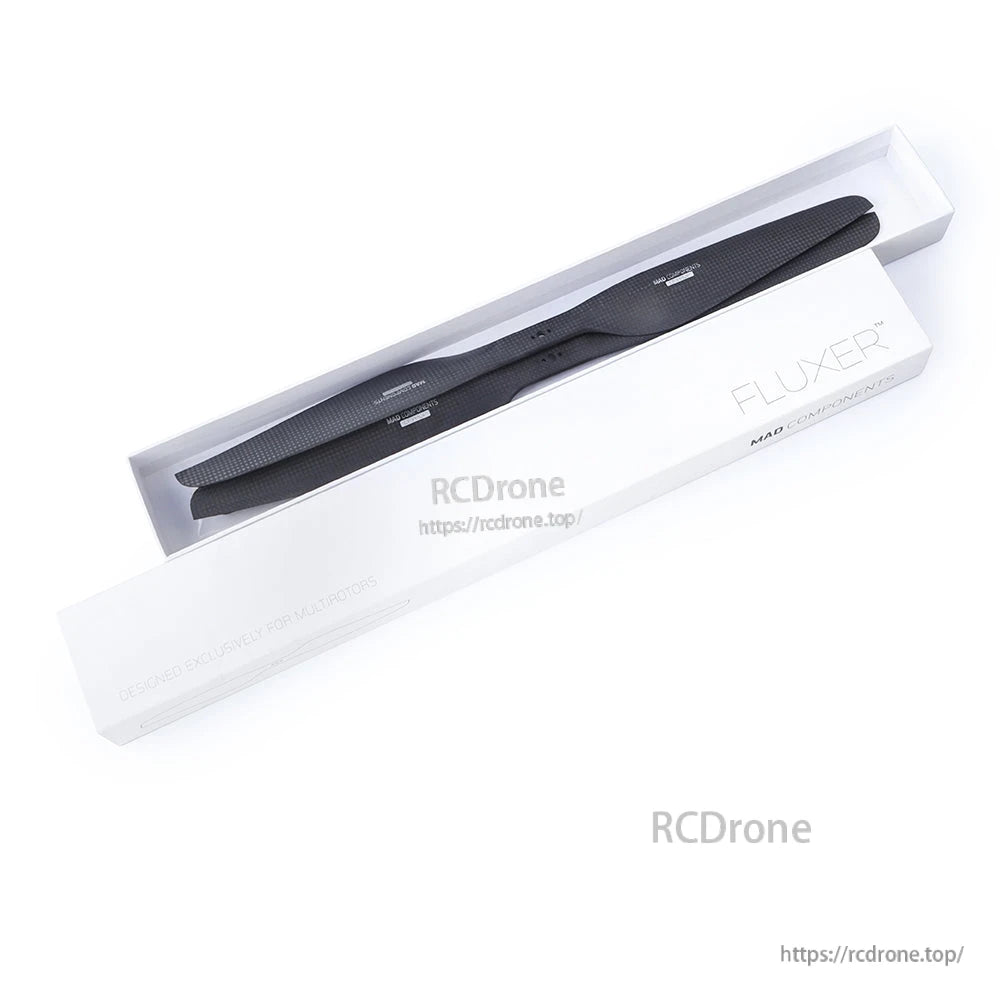

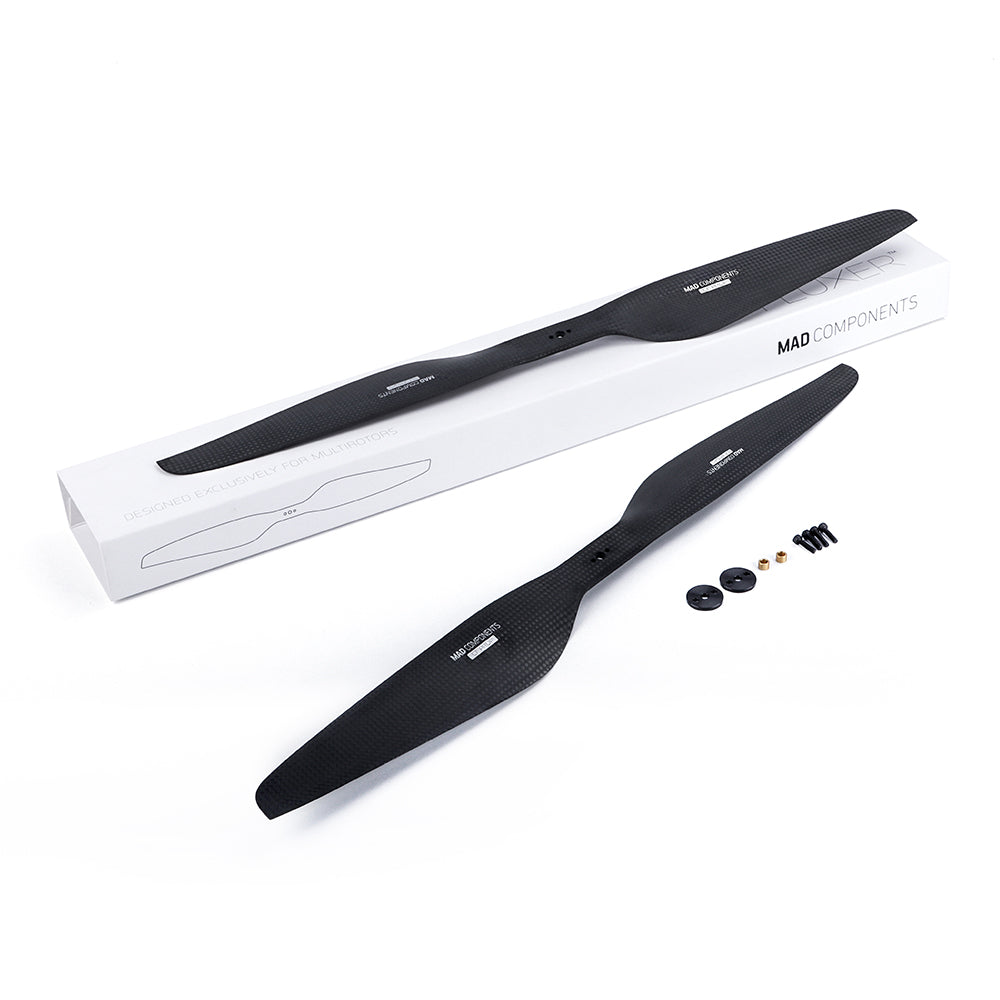

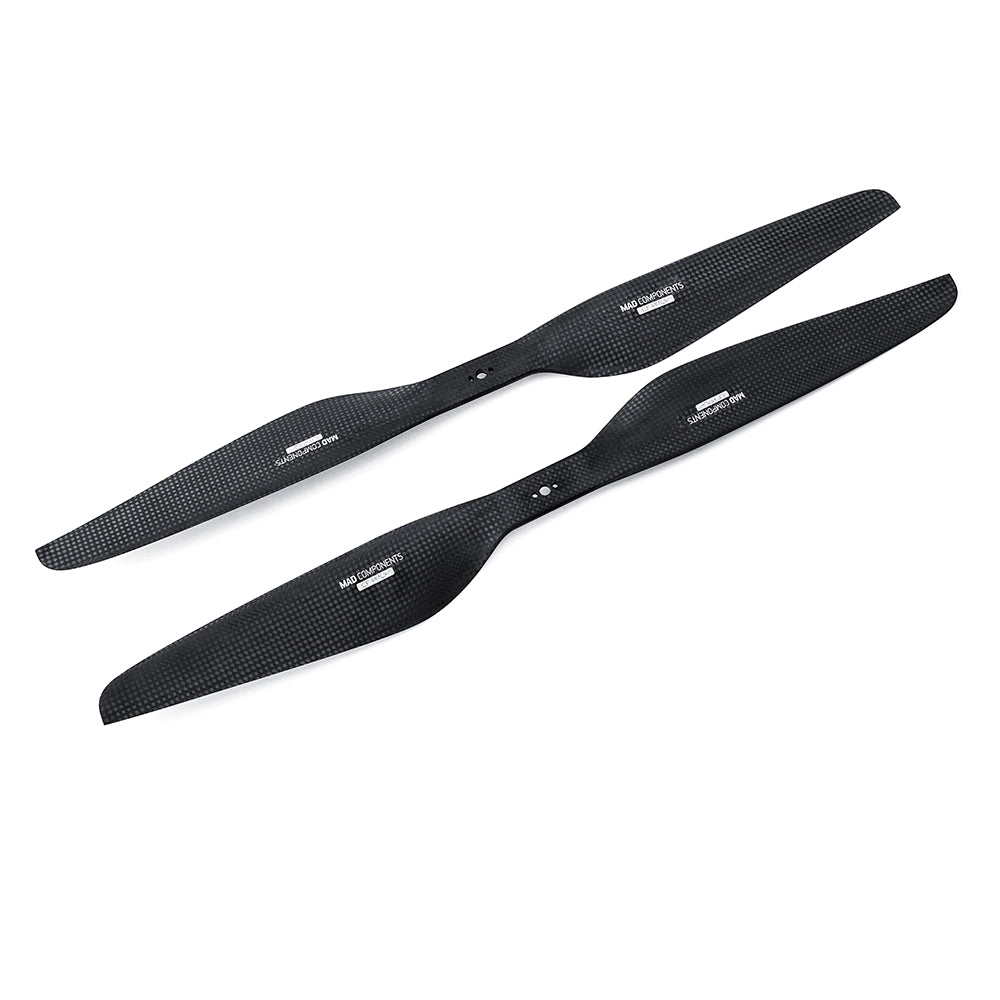

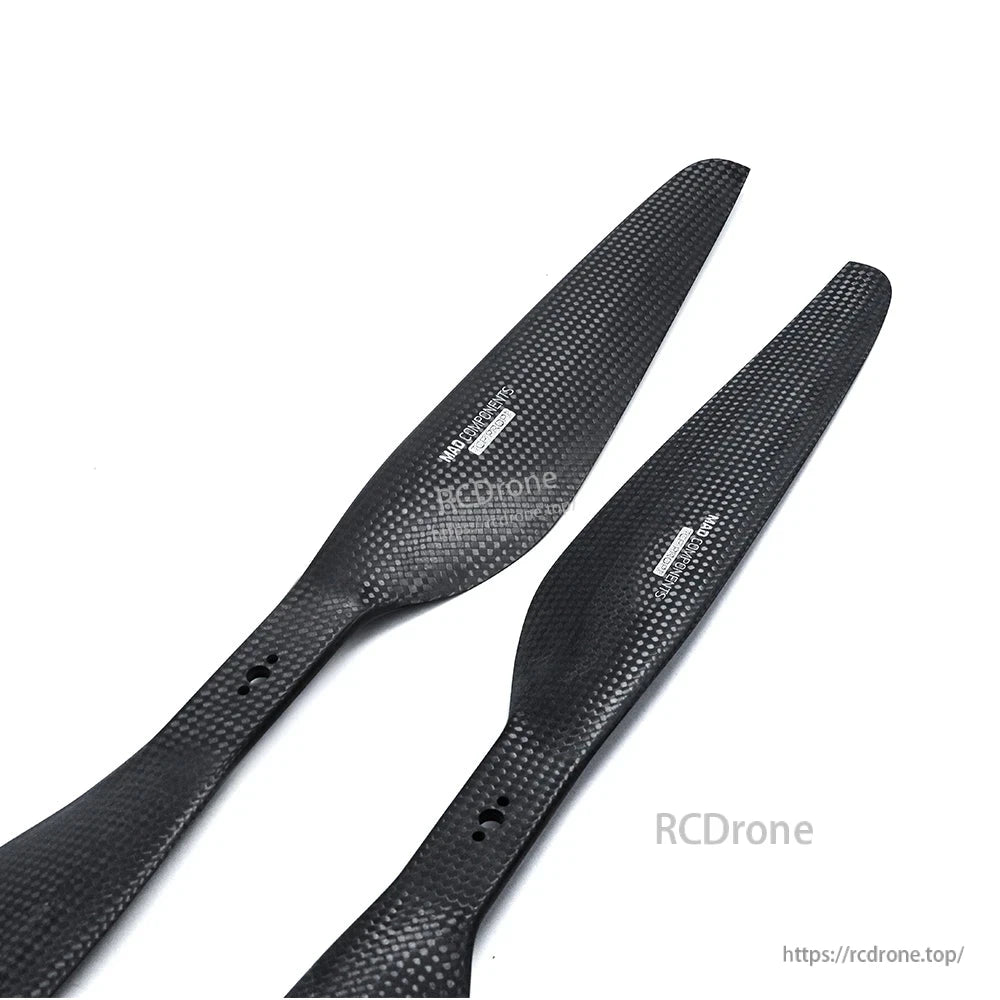

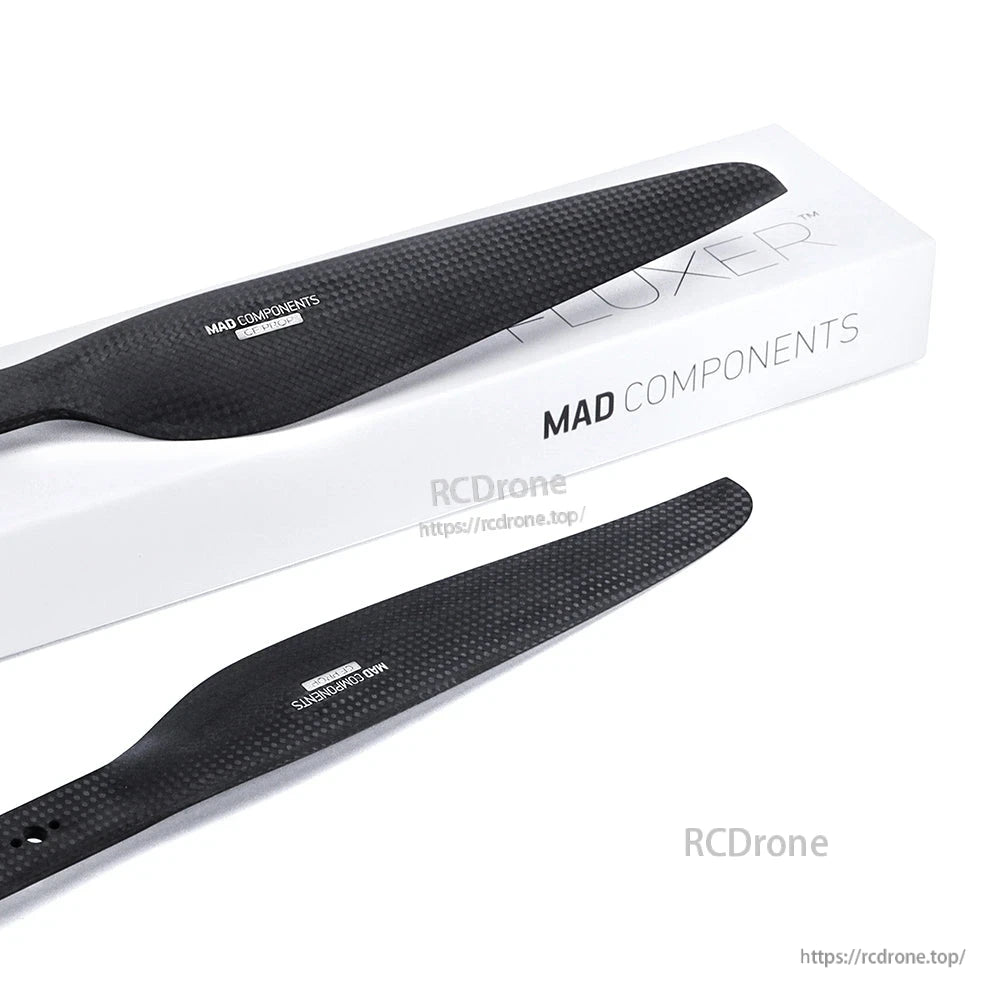

MAD FLUXER PRO 22x6.6 Carbon Fiber Propeller (Matte) 56g, 558.8x167.6mm, Polished/Matt

MAD

$194.85 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Holes position D6-D12(M3*2） customize

Quantity

View full details

Overview

MAD FLUXER PRO 22x6.6 inch matt carbon fiber propeller with polished/matt surface treatment. Designed for excellent control performance with light weight and low inertia, suitable for exploration and inspection applications.

Key Features

Matte finish
Economical
Excellent control performance
Light weight, low inertia

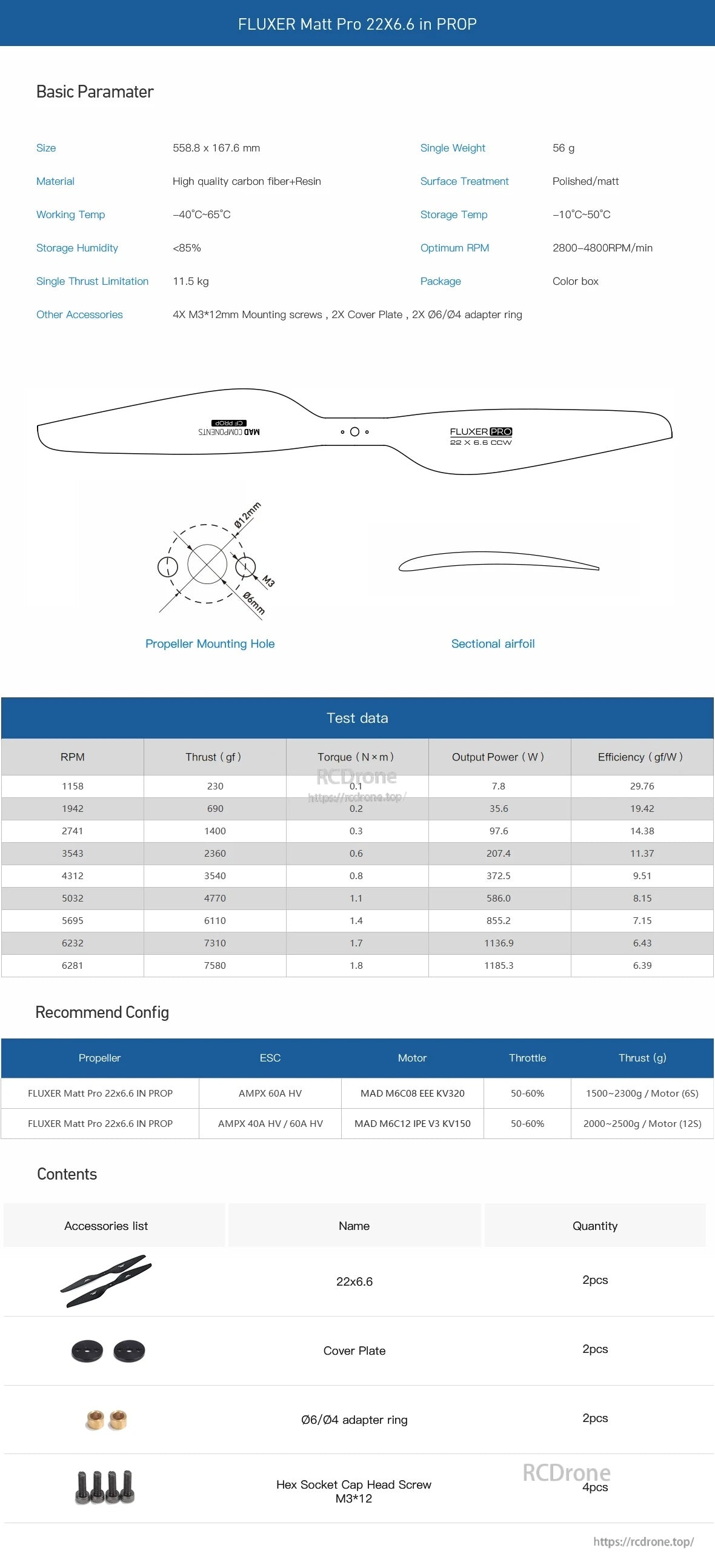

Specifications

Model	FLUXER Matt Pro 22x6.6 in prop
Size	558.8 x 167.6 mm
Single weight	56 g
Material	High quality carbon fiber + resin
Surface treatment	Polished/matt
Working temperature	-40°C~65°C
Storage temperature	-10°C~50°C
Storage humidity	<85%
Optimum RPM	2800-4800 RPM/min
Single thrust limitation	11.5 kg
Package	Color box

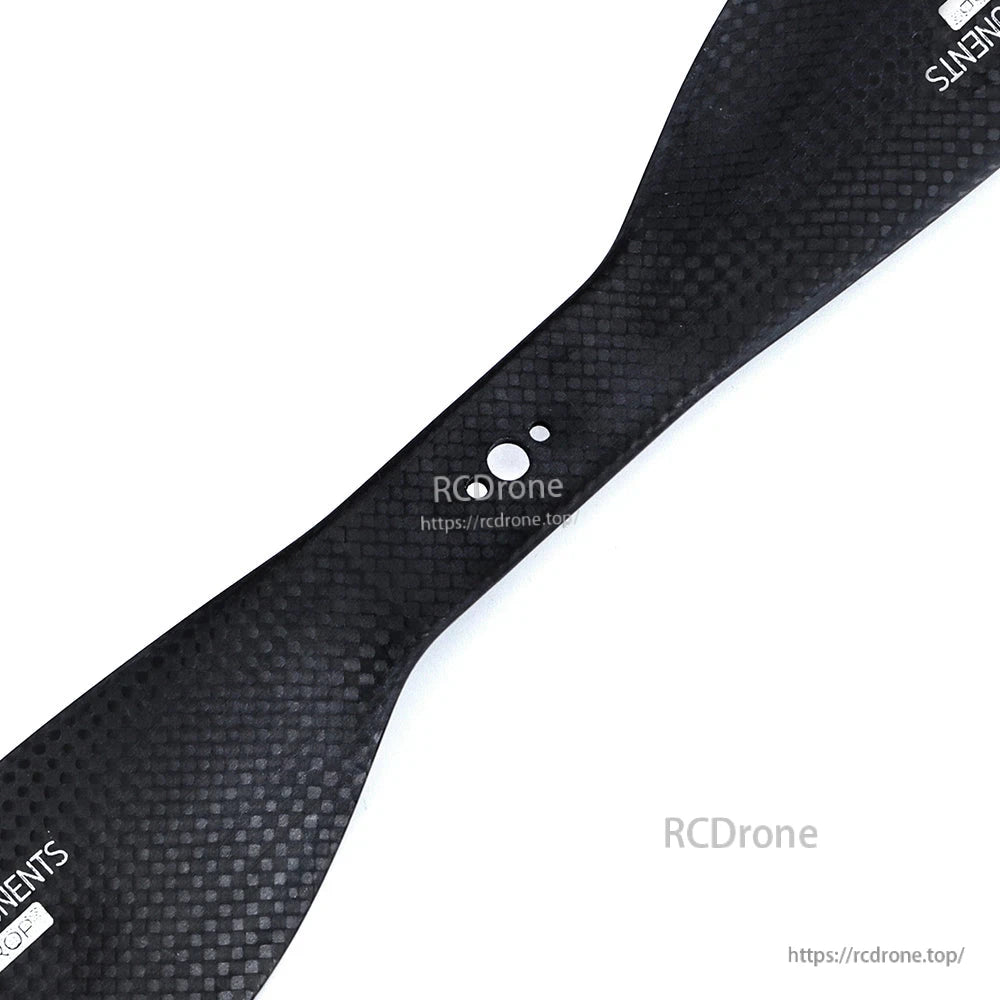

Propeller mounting hole	Ø12 mm, Ø6 mm, M3

For product selection help or after-sales support, contact https://rcdrone.top/ or email support@rcdrone.top.

Test Data

RPM	Thrust (gf)	Torque (N×m)	Output Power (W)	Efficiency (gf/W)
1158	230	0.1	7.8	29.76
1942	690	0.2	35.6	19.42
2741	1400	0.3	97.6	14.38
3543	2360	0.6	207.4	11.37
4312	3540	0.8	372.5	9.51
5032	4770	1.1	586.0	8.15
5695	6110	1.4	855.2	7.15
6232	7310	1.7	1136.9	6.43
6281	7580	1.8	1185.3	6.39

Recommended Config

Propeller	ESC	Motor	Throttle	Thrust (g)
FLUXER Matt Pro 22x6.6 IN PROP	AMPX 60A HV	MAD M6C08 EEE KV320	50-60%	1500-2300g / Motor (6S)
FLUXER Matt Pro 22x6.6 IN PROP	AMPX 40A HV / 60A HV	MAD M6C12 IPE V3 KV150	50-60%	2000-2500g / Motor (12S)
