MAD 24.2x7.9in FLUXER Pro Glossy Carbon Fiber Folding Propeller, 614.7×200.7mm, 93g
MAD 24.2x7.9in FLUXER Pro Glossy Carbon Fiber Folding Propeller, 614.7×200.7mm, 93g
MAD
Couldn't load pickup availability
Overview

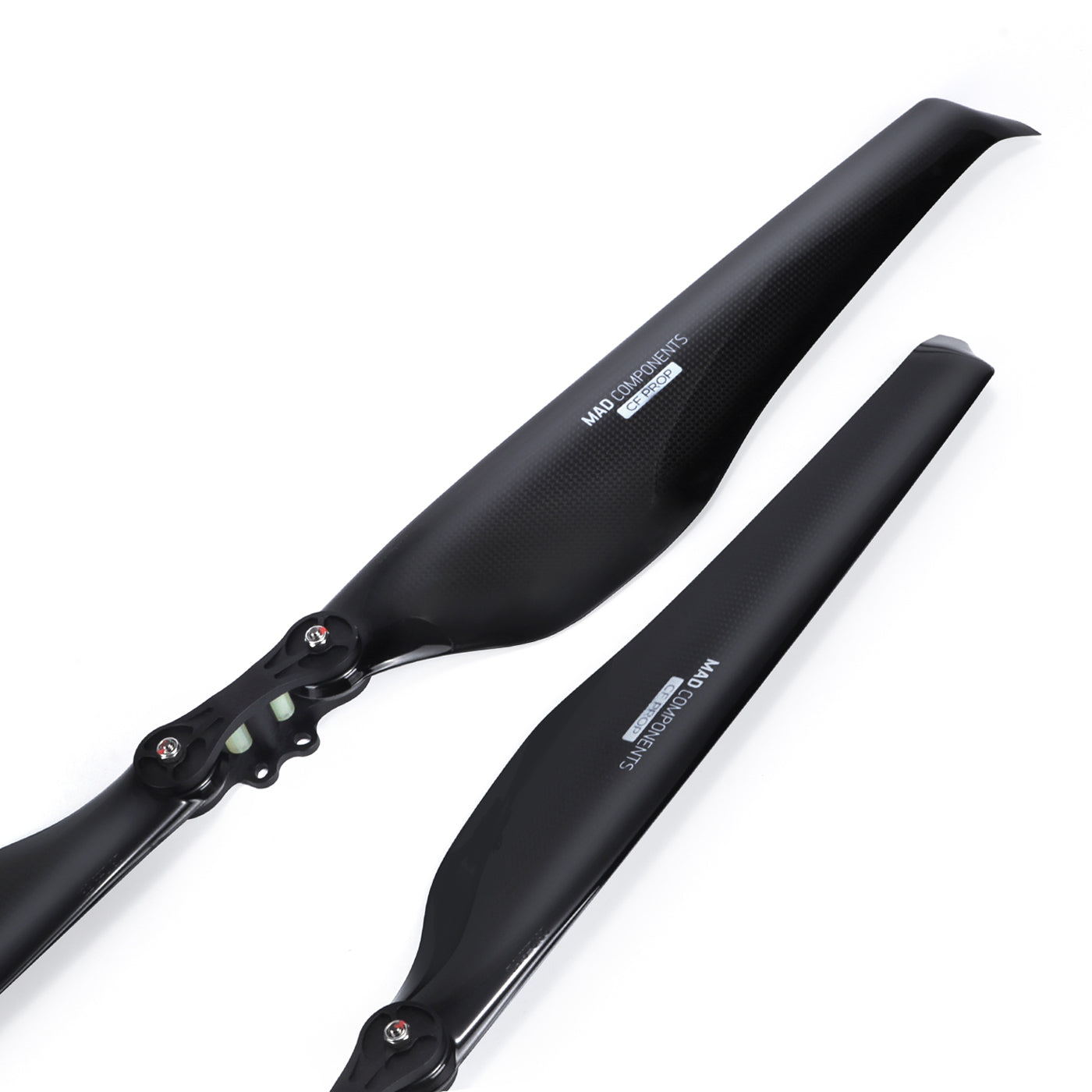

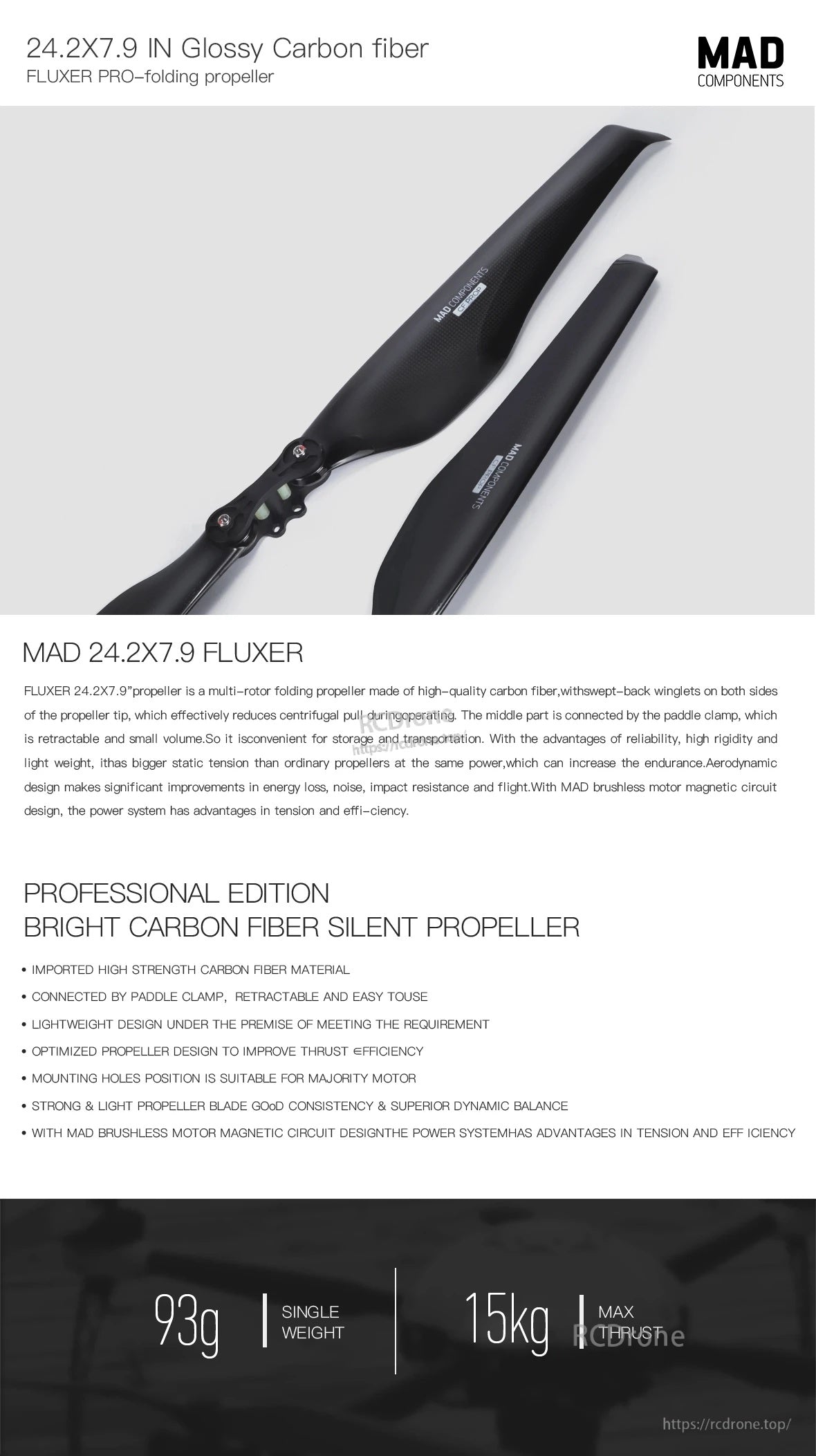

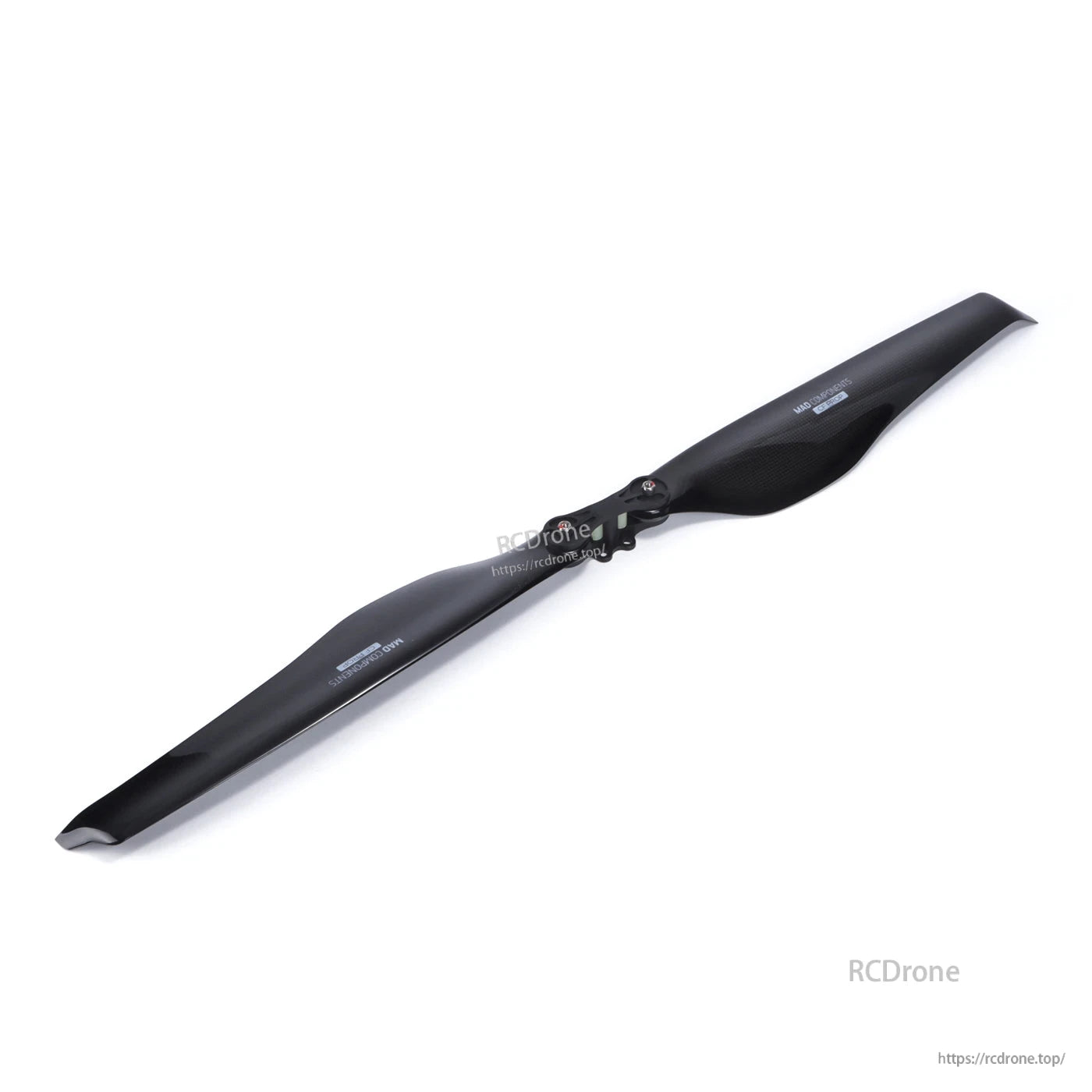

MAD FLUXER Pro is a glossy carbon fiber folding propeller in 24.2x7.9 in size, designed for multi-rotor drone propulsion requiring efficient thrust and stable operation under load. It uses a wingtip design to help reduce vortices, an optimized airfoil to reduce airflow interference, and a propeller lock mechanism intended to support safer flight.
Key Features
- Solid under high loads; designed for high efficiency and longer flight time for drones
- Special wingtip design to help reduce vortices
- Low noise at the same thrust level compared with other folding propellers
- Optimized airfoil design for reduced airflow interference
- Dynamic balance design
- Propeller lock mechanism
- Imported high-strength carbon fiber material

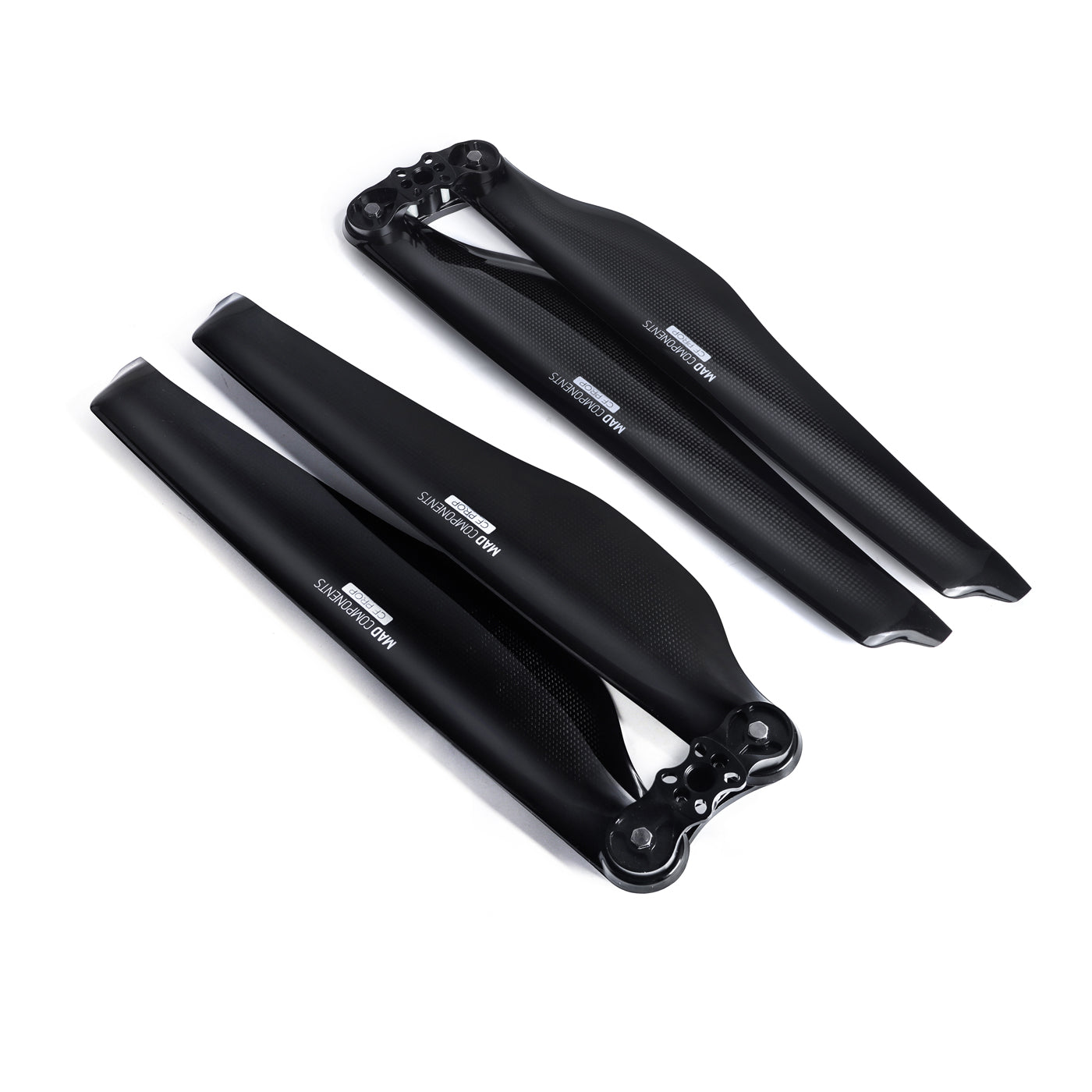

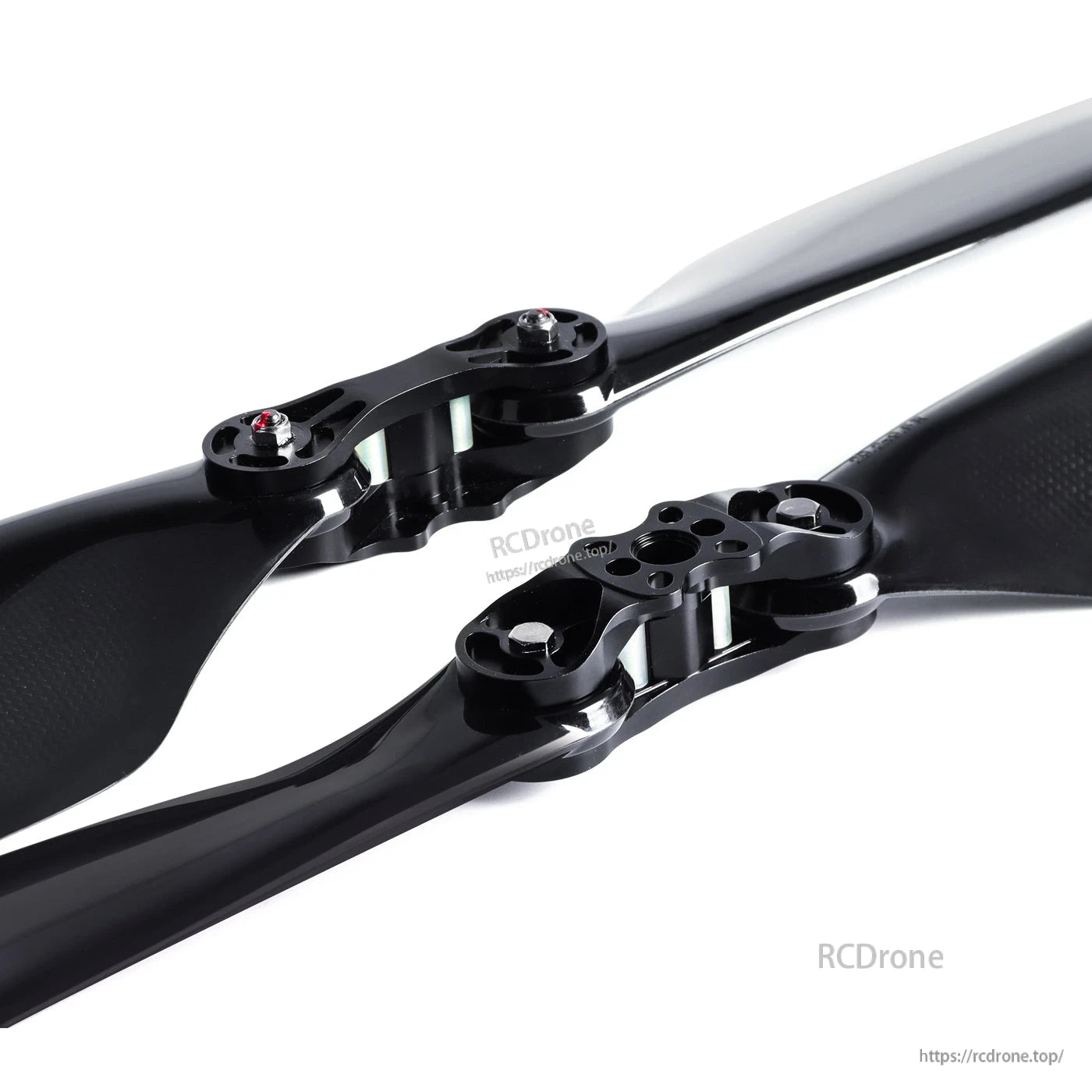

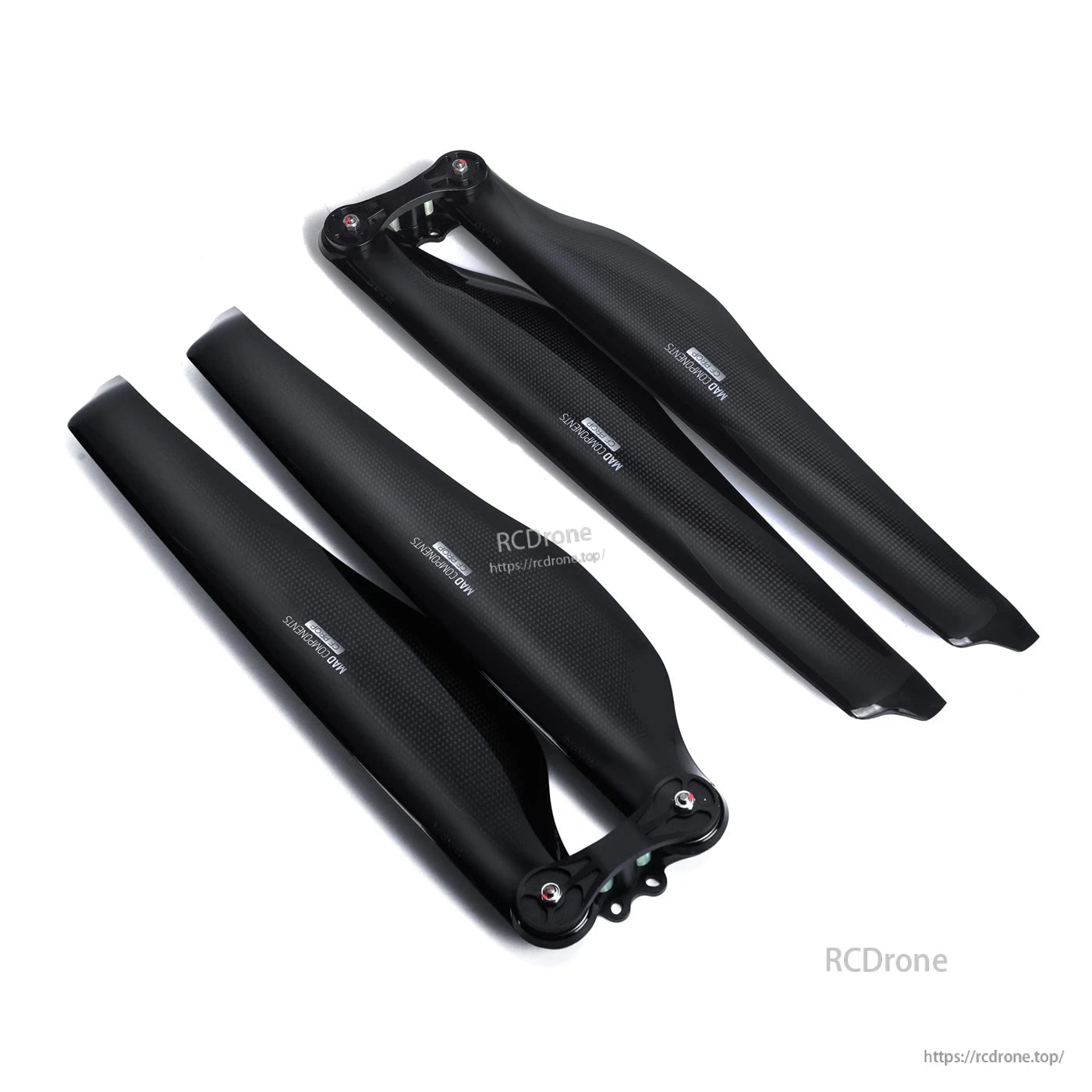

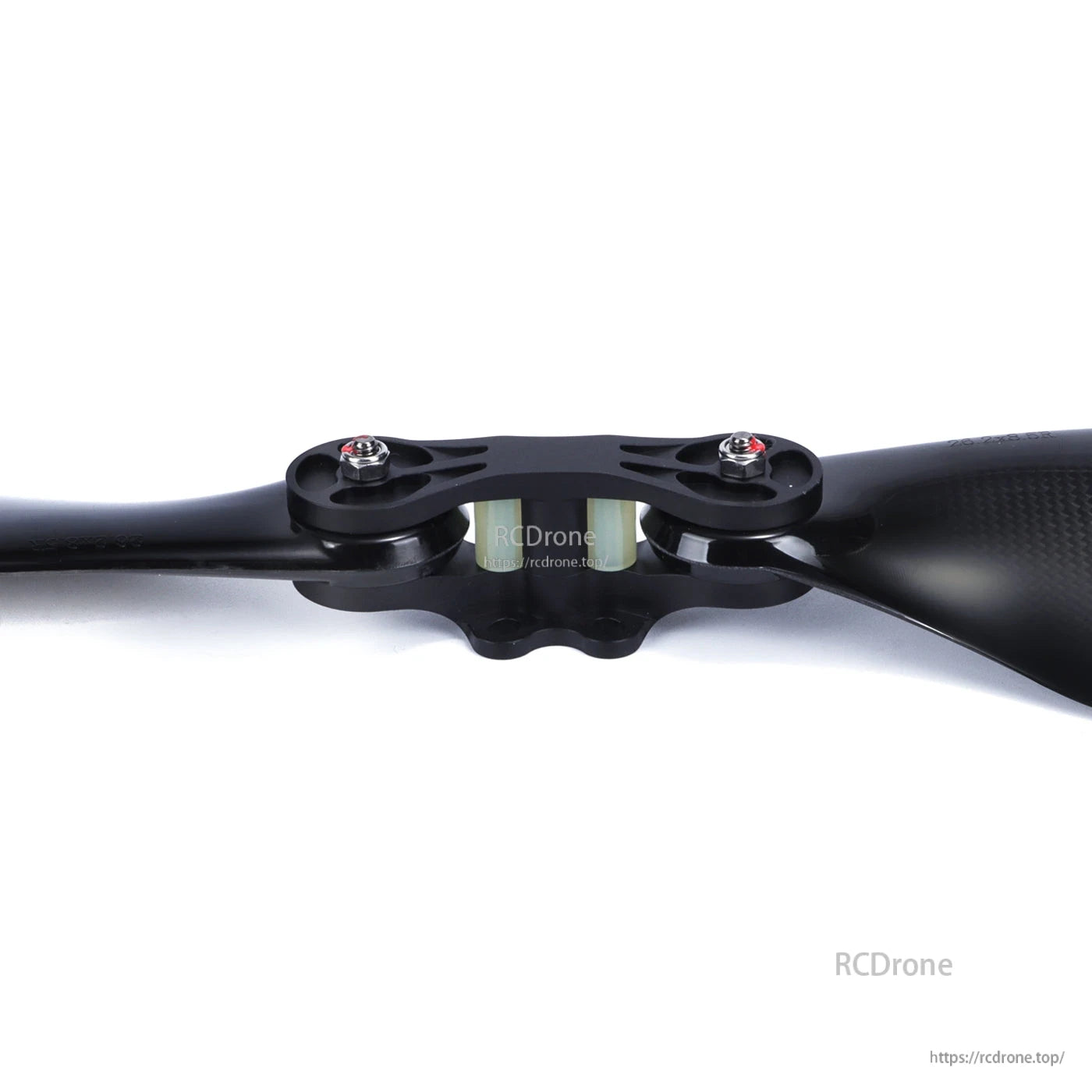

- Connected by paddle clamp; retractable for storage and transport
- Mounting hole positioning stated as suitable for the majority of motors

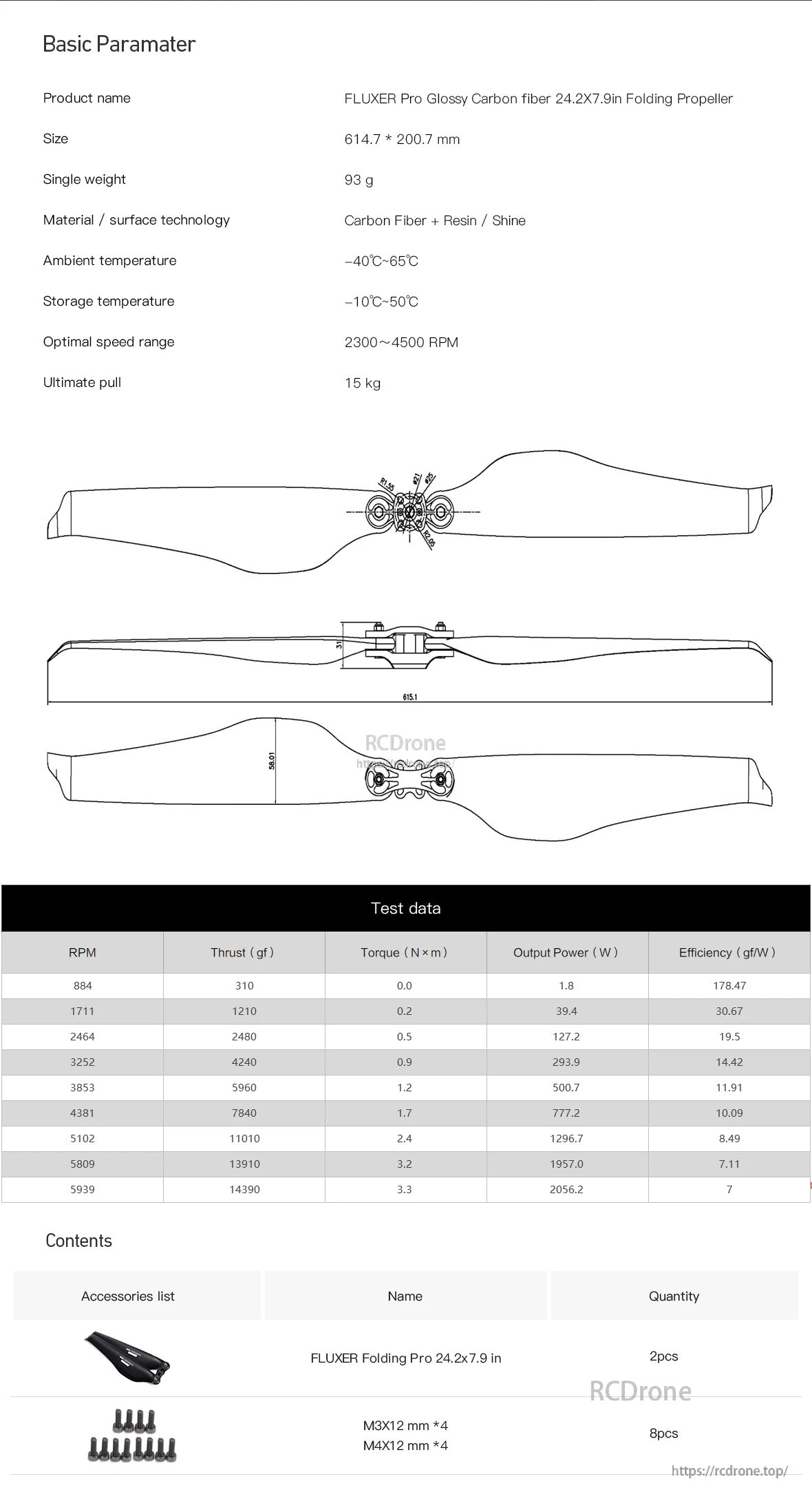

Specifications
| Product name | FLUXER Pro Glossy Carbon fiber 24.2X7.9in Folding Propeller |
| Size | 614.7 * 200.7 mm |
| Single weight | 93 g |
| Material / surface technology | Carbon Fiber + Resin / Shine |
| Ambient temperature | -40°C~65°C |
| Storage temperature | -10°C~50°C |
| Optimal speed range | 2300~4500 RPM |
| Ultimate pull | 15 kg |
Test Data
| RPM | Thrust (gf) | Torque (N×m) | Output Power (W) | Efficiency (gf/W) |
|---|---|---|---|---|
| 884 | 310 | 0.0 | 1.8 | 178.47 |
| 1711 | 1210 | 0.2 | 39.4 | 30.67 |
| 2464 | 2480 | 0.5 | 127.2 | 19.5 |
| 3252 | 4240 | 0.9 | 293.9 | 14.42 |
| 3853 | 5960 | 1.2 | 500.7 | 11.91 |
| 4381 | 7840 | 1.7 | 777.2 | 10.09 |
| 5102 | 11010 | 2.4 | 1296.7 | 8.49 |
| 5809 | 13910 | 3.2 | 1957.0 | 7.11 |
| 5939 | 14390 | 3.3 | 2056.2 | 7 |

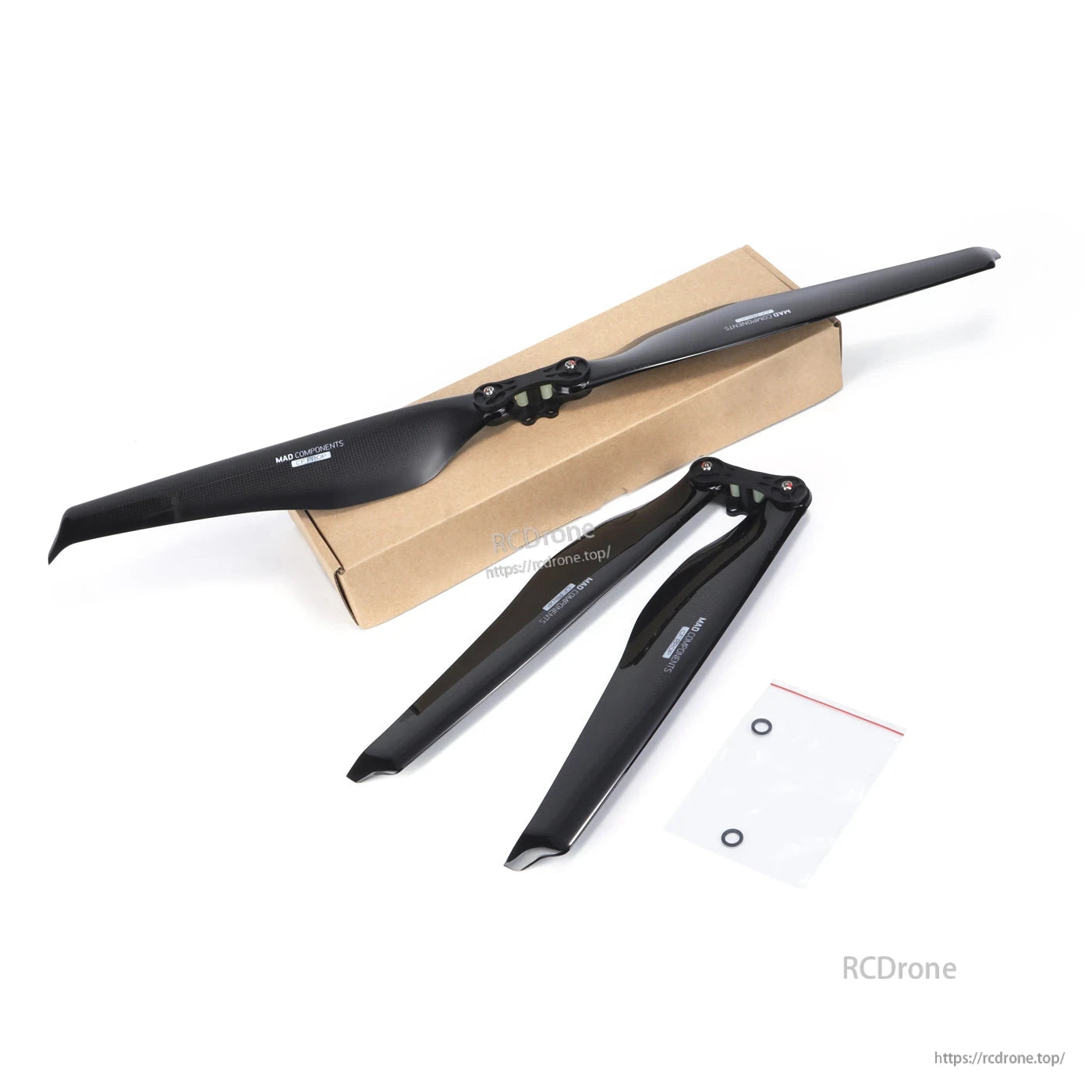

What’s Included
- FLUXER Folding Pro 24.2x7.9 in propeller: 2pcs
- M3X12 mm *4 and M4X12 mm *4: 8pcs
Applications
- Multi-rotor drones using folding propellers where compact storage/transport is needed
For compatibility and installation questions, contact support@rcdrone.top or visit https://rcdrone.top/.
Details
MAD FLUXER Pro 24.2x7.9in glossy carbon fiber folding propeller is listed at 93g single weight and up to 15kg max thrust.
The FLUXER Pro 24.2×7.9in glossy carbon fiber folding propeller is listed at 614.7×200.7mm and 93g, with included mounting hardware and RPM test data for setup reference.
