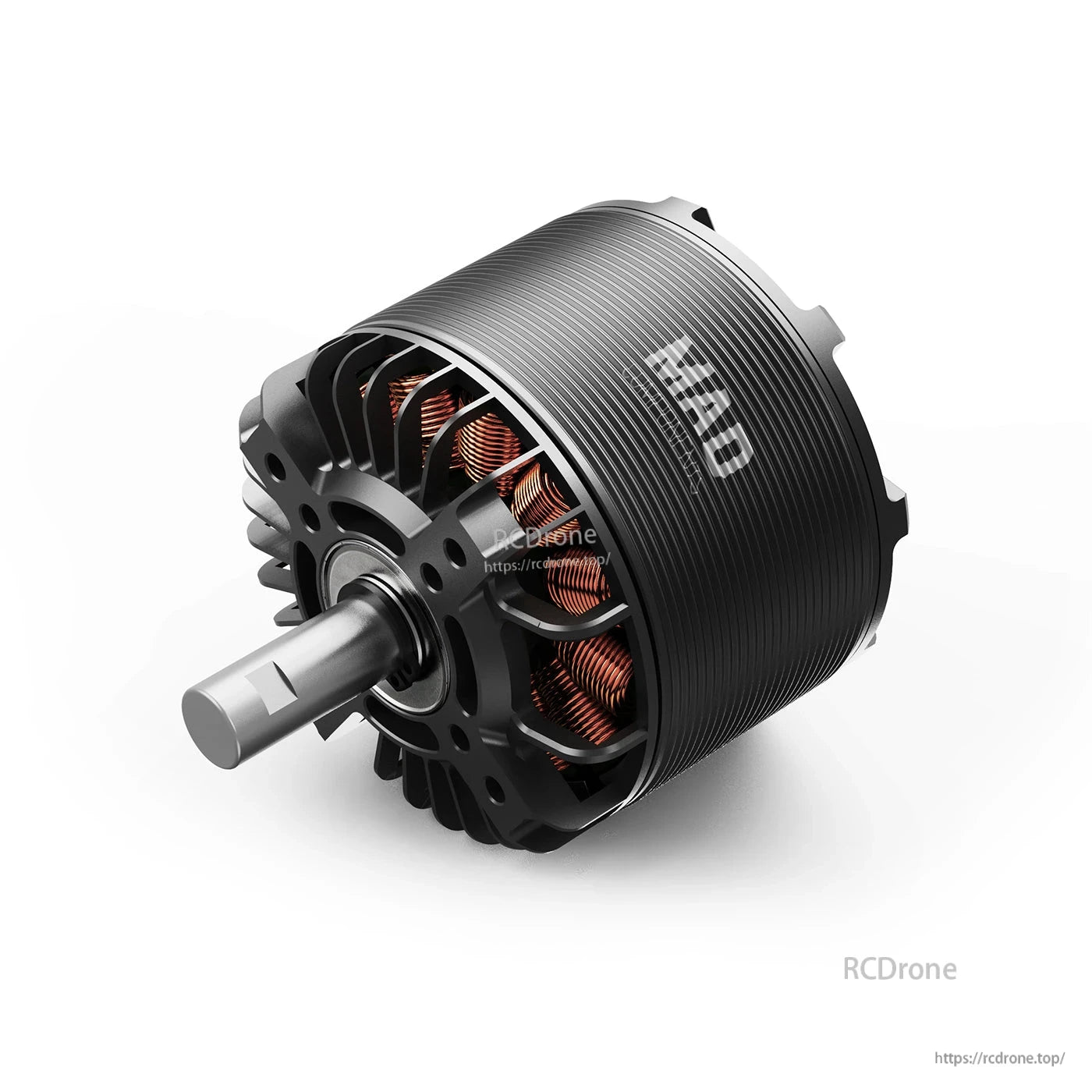

MAD VAX 5330 V2.0 Long Shaft eVTOL Airplane Drone Motor 220KV/260KV, 12S Support, 5330 EEE
MAD VAX 5330 V2.0 Long Shaft eVTOL Airplane Drone Motor 220KV/260KV, 12S Support, 5330 EEE
MAD
Couldn't load pickup availability
Overview
The MAD VAX 5330 V2.0 Long Shaft motor is an eVTOL airplane drone motor offered in 220KV and 260KV variants. It is designed for eVTOL, aircraft, and XCLASS platforms carrying 8–10 kg and supports 12S voltage. The long-shaft design can be used to drive pusher propellers where the motor is mounted in the middle of the fuselage and power is transmitted through an axle to the tail boom.
Key Features
- Long shaft design for pusher-prop drivetrain layouts
- Supports 12S voltage setups
- Rain protection
- Anticorrosive stator (Taiwan)
- Varnished wire temperature rating: 180°C; magnet temperature rating: 150°C
- Independent centrifugal heat dissipation
- Rotor balance: ≤5 mg; motor balance: ≤10 mg
- Disruptive test: 500 V
Specifications
Motor Data (General)
| Motor Model | MAD VAX 5330 EEE V2.0 Long Shaft |
| Number of pole pairs | 7 |
| Stator Size | TAIWAN / Anticorrosive |
| Varnished wire Degree | 180°C |
| Motor Size | D: 62.5 × 67.6mm |
| Magnet Degree | 150°C |
| Degree of Protection | Rain protection |
| Cable Length | 150 mm (14# black silicone wire) |
| Centrifugal Heat Dissipation | Independent |
| Rotor Balance | ≤5 mg |
| Motor Balance | ≤10 mg |
| Propeller Mounting Holes | D:31 M3×4, D:20 M3*4 |
| Shaft Diameter | IN: 10 mm |
| Motor Mounting Holes | D:30 M4×4, D:44 M4×4 |
| Bearing | EZO 6800ZZ*2 / EZO 6900ZZ*1 |
| Disruptive test | 500 V |
220KV Variant (Datasheet Summary)
- Recommended hover thrust: 3.0–4.0 kgf
- Maximum thrust (headline): 11.0 kgf
- Efficiency (headline): >81%
- Optimized weight (headline): 637 g
| RPM/V | 220KV |
| Nominal Voltage | 12S lipo battery |
| No Load Current | 2.2A / 20V |
| Internal resistance | 26mΩ |
| Motor Weight | 637 g |
| Product Boxed Weight | 940g (180 x 140 x 85 mm) |
| Maximum Current | 70.6 A |
| Maximum Power | 3012W |
| Maximum thrust | 11.1 kg |
| Maximum Torque | 3.0 Nm |
| Recommended ESC | MAD AMPX 80A (5-14S) |
| Recommended Propellers | 18x12, 19x11, 20x10 |
| UAV take-off weight | 12S-20"/14kg--Quadcopter; 21kg--Hexacopter; 28kg--Octocopter |
| Single rotor take-off weight | 3kg ~ 4kg |
260KV Variant (Datasheet Summary)
- Recommended hover thrust: 3.5–5.0 kgf
- Maximum thrust (headline): 11.5 kgf
- Efficiency (headline): >78%
- Optimized weight (headline): 625 g
| RPM/V | 260KV |
| Nominal Voltage | 12S lipo battery |
| No Load Current | 2.6A / 20V |
| Internal resistance | 20mΩ |
| Motor Weight | 625 g |
| Product Boxed Weight | 928g (180 x 140 x 85 mm) |
| Maximum Current | 98.07 A |
| Maximum Power | 4091W |
| Maximum thrust | 11.5 kg |
| Maximum Torque | 3.2 Nm |
| Recommended Propellers | 18x12, 19x11 |
| UAV take-off weight | 12S-19"/18kg--Quadcopter; 27kg--Hexacopter; 36kg--Octocopter |
| Single rotor take-off weight | 3.5kg ~ 5kg |
What’s Included
- Motor x1
- Prop adapter x1
- Locking shaft cover (plate) x1
- Support x1
- 4.0mm bullet connector x3
- Heat shrinkable tube x3
- M4*12 motor screws x4
- M3*8 prop adapter screws x4
- M4*5 machine screw x2
- M4*12 counterhead cross screws x4
- M8 nut x1
- Sticker x2
- Propeller plate x1
- Rotor propeller adapter x1
- M3*18mm propeller screws x4
Applications
- eVTOL aircraft and fixed-wing airplane drone propulsion (12S setups)
- XCLASS multirotors
- Pusher-prop configurations using a long shaft/axle drivetrain
For KV selection (220KV vs 260KV), propeller/ESC matching, or integration questions, contact support@rcdrone.top or visit https://rcdrone.top/.
Details

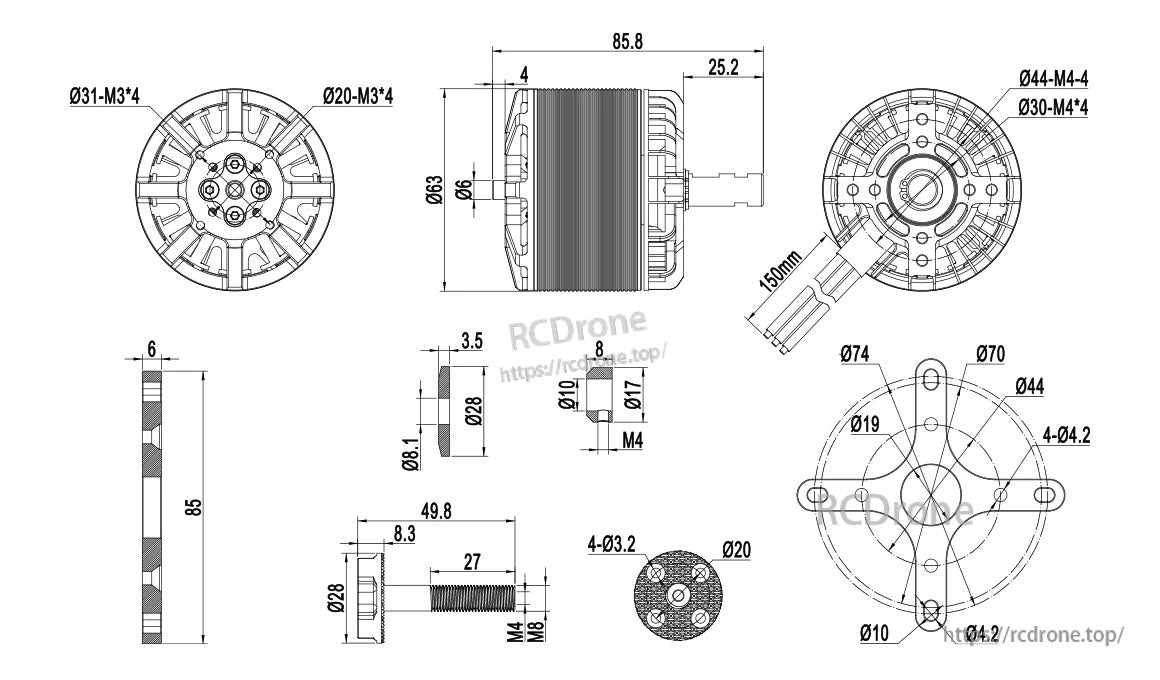

MAD VAX 5330 V2.0 motor drawings provide key dimensions, long-shaft length, and bolt-hole spacing for accurate mounting and clearances.

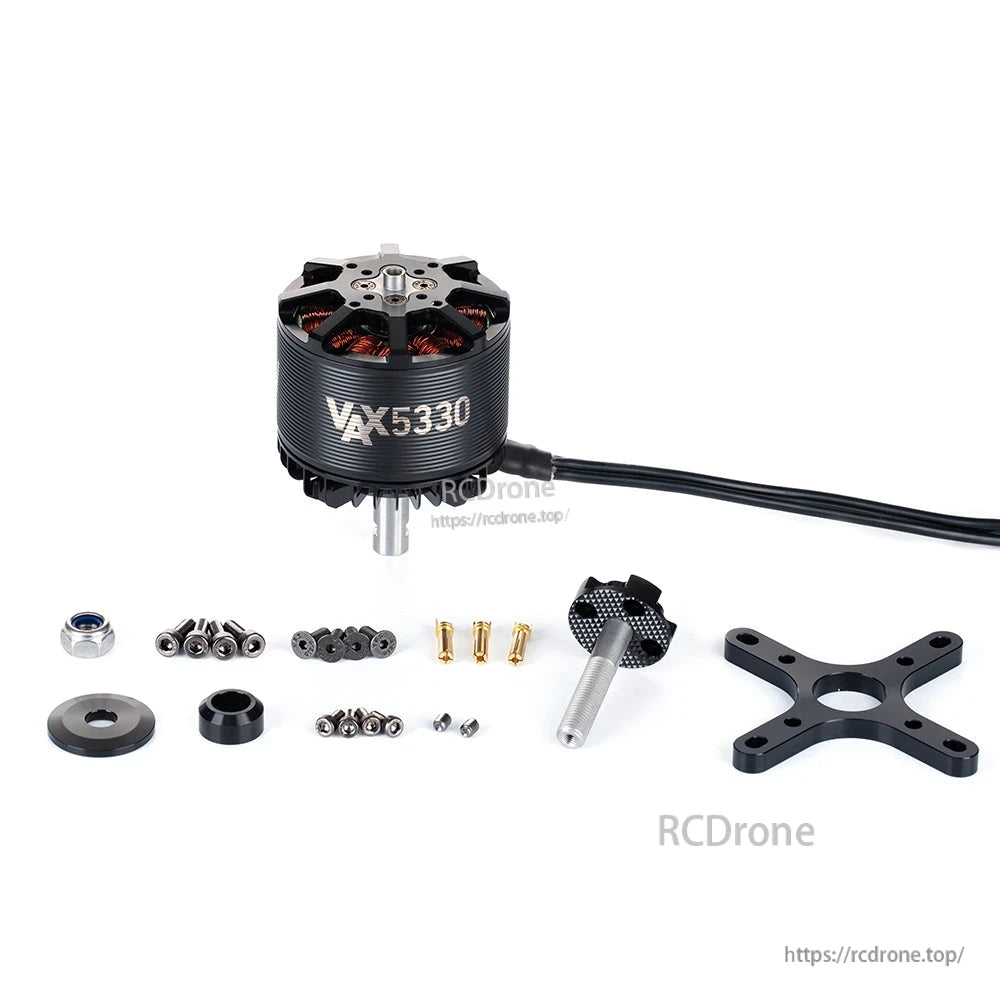

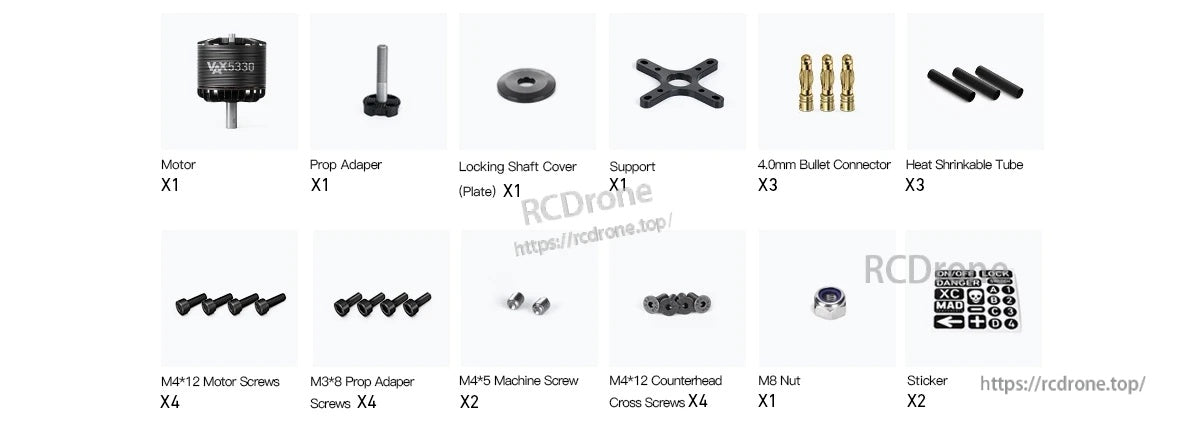

The MAD VAX 5330 V2.0 long-shaft motor kit includes a prop adapter, mounting hardware, 4.0mm bullet connectors, heat-shrink tubing, and stickers.
MAD VAX5330 220KV performance data includes thrust and power curves with detailed test tables for 30–40V (12S) operation.

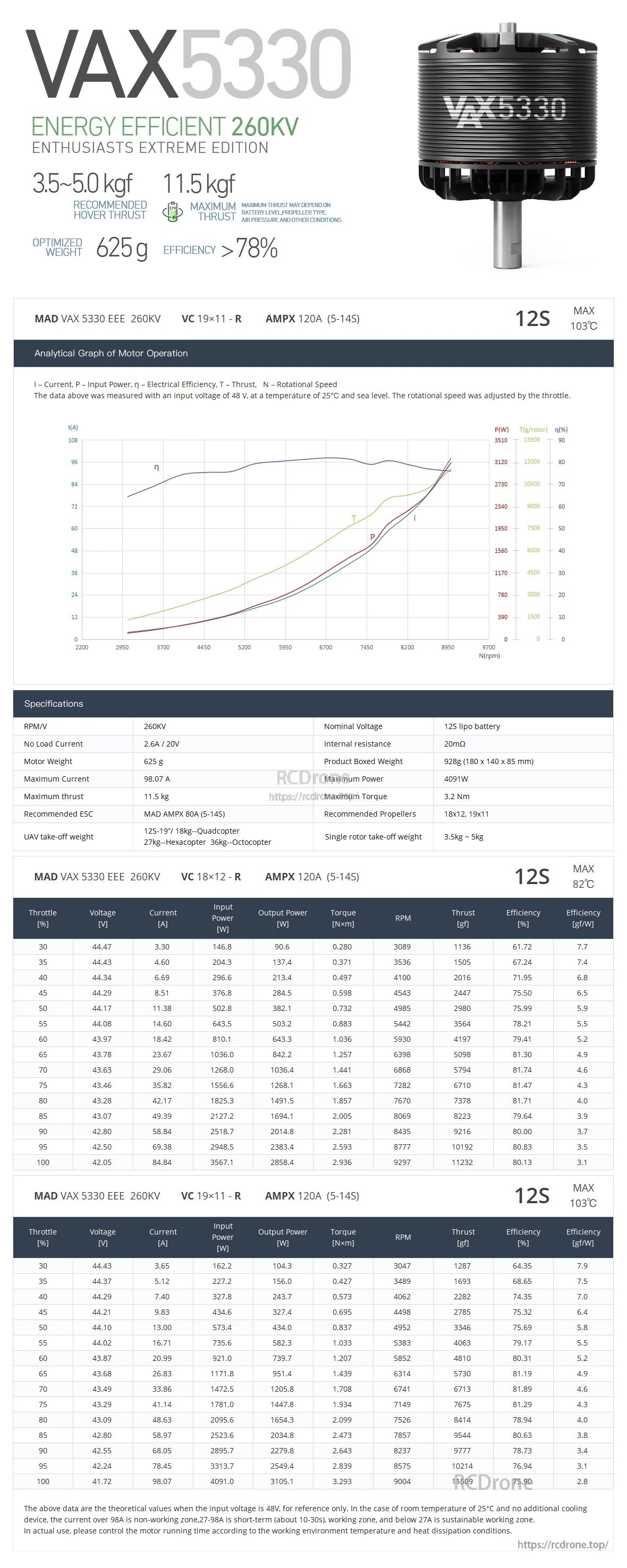

The MAD VAX5330 spec sheet outlines key performance details like 260KV rating, 12S voltage range, and thrust/efficiency data across prop setups.
