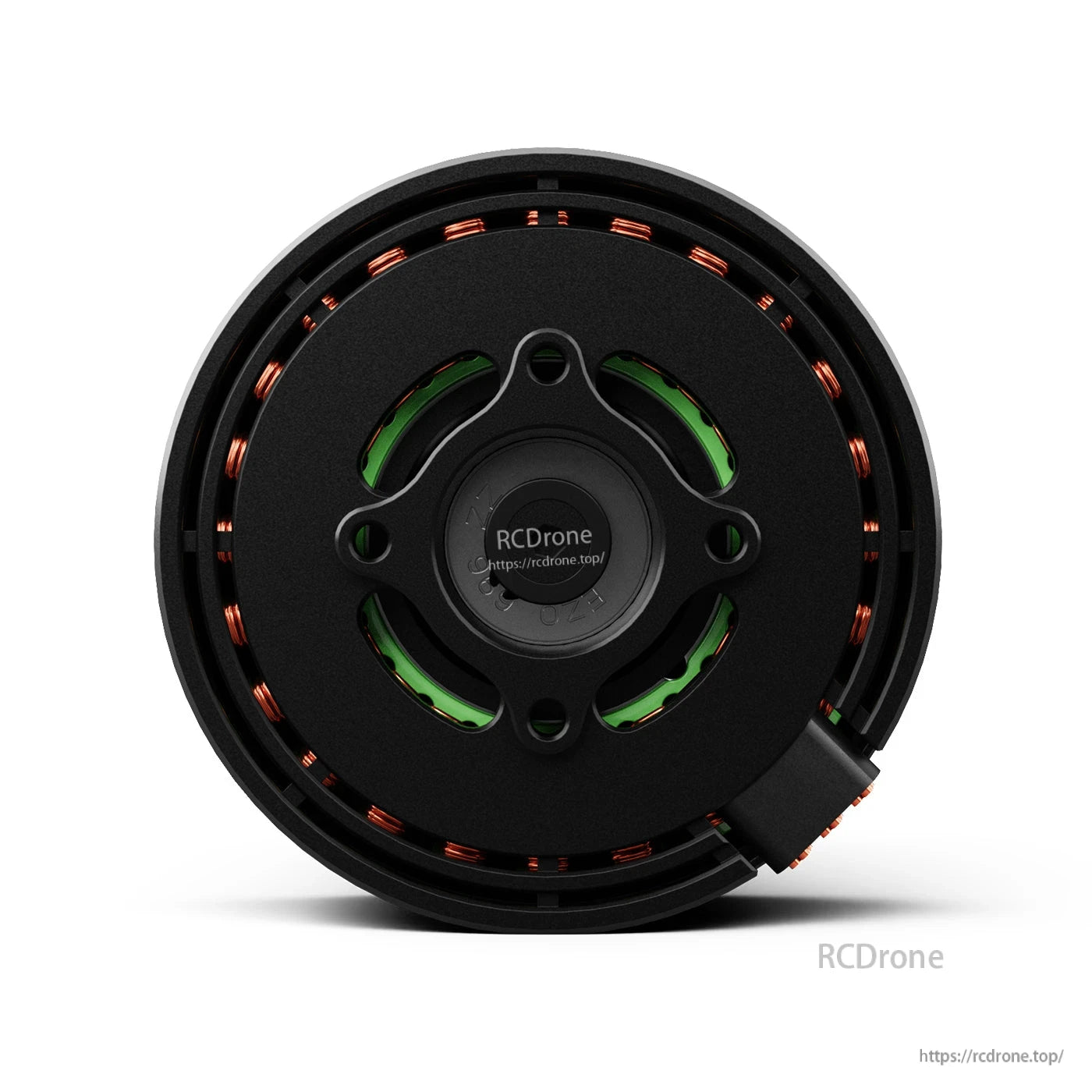

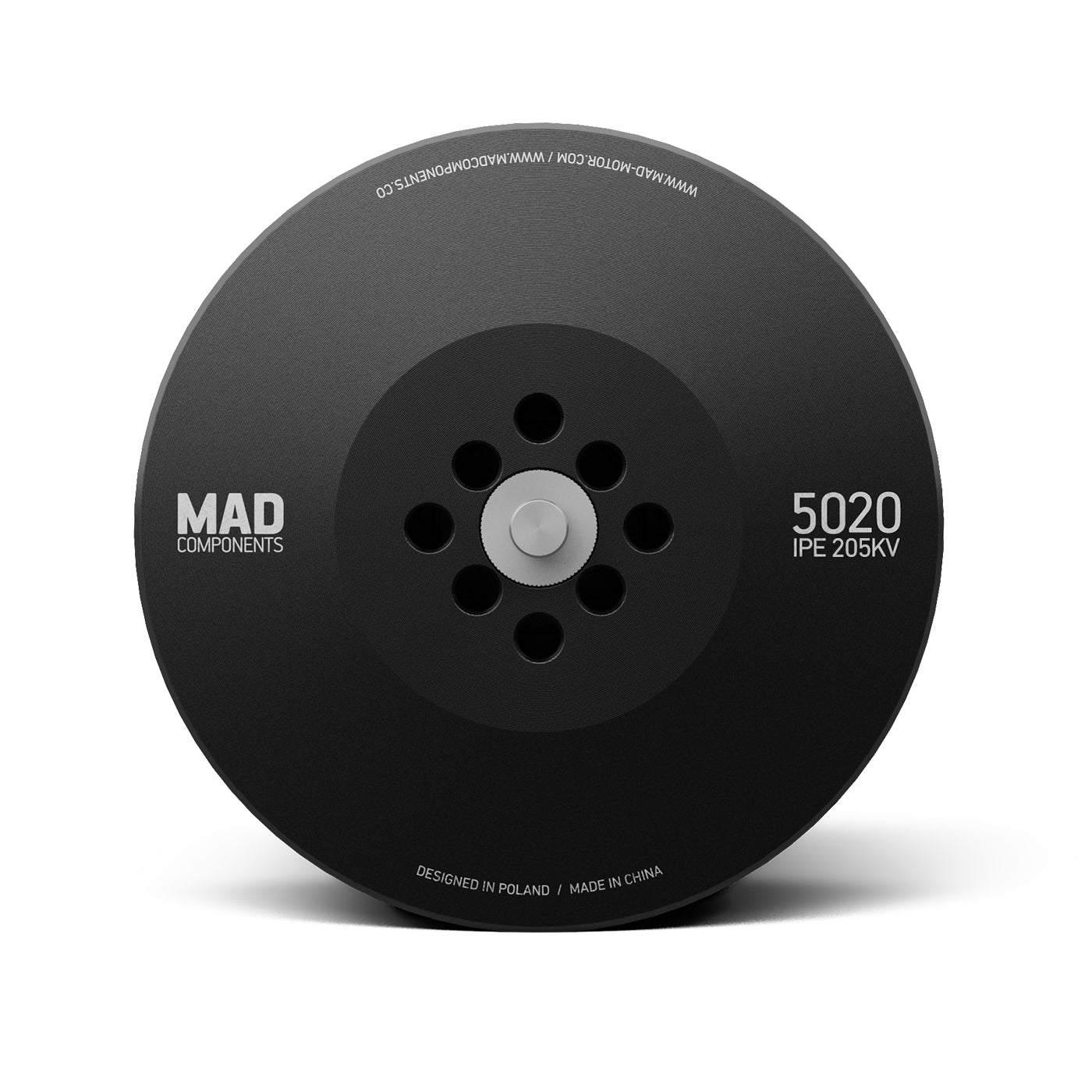

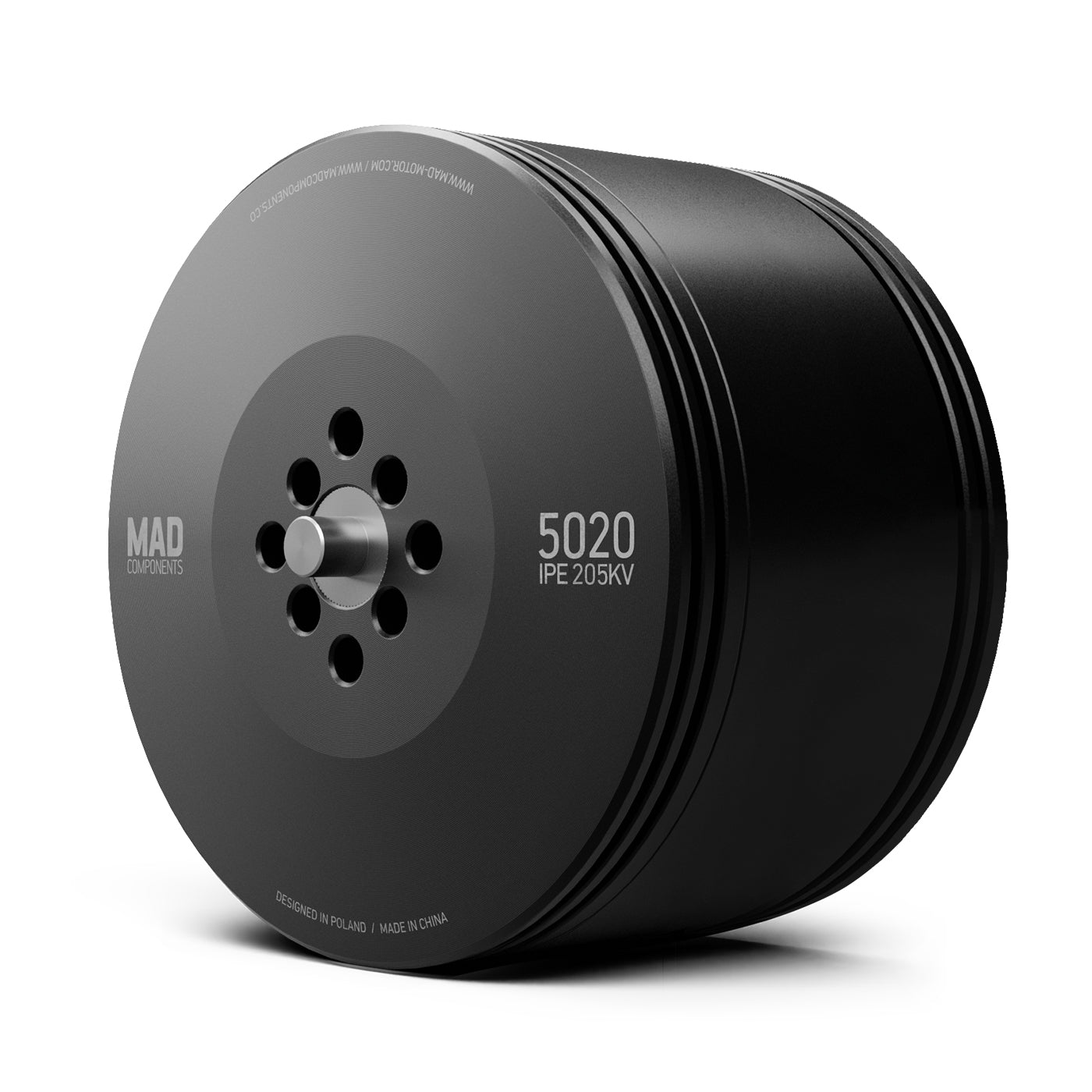

MAD 5020 IPE V3.0 205KV EVTOL Drone Motor, 12S, IP45, 8kg Max Thrust, 290g, AMPX 60A
MAD 5020 IPE V3.0 205KV EVTOL Drone Motor, 12S, IP45, 8kg Max Thrust, 290g, AMPX 60A
MAD
Couldn't load pickup availability
Overview
MAD 5020 IPE V3.0 is an EVTOL drone motor in the 205KV class, designed for 12S operation with up to 8 kg max thrust and a 290 g motor weight.
Key Features
- IP45 protection rating
- Anticorrosive stator
- Centrifugal heat dissipation: YES
- Rotor balance: ≤5 mg; Motor balance: ≤10 mg
Specifications
| Motor model | MAD 5020 IPE V3.0 |
| KV (RPM/V) | 205KV |
| Sustained thrust | 2~3.4 kg |
| Recommended hover thrust | 2.0~3.0 kgf |
| Max thrust | 8 kg |
| Support voltage / nominal voltage | 12S (LiPo battery) |
| Number of pole pairs | 14 |
| Motor size | D:56 × 41.3 mm |
| Weight | 290 g |
| Degree of protection | IP45 |
| Stator | Anticorrosive |
| Varnished wire degree | 180°C |
| Magnet degree | 150°C |
| Cable | 150 mm, 16# AWG (Black) silicone |
| Bearing | 696ZZ*2 |
| Disruptive test | 500 V |
| Propeller mounting holes | D:12 M3×4; D:15 M3×4 |
| Motor mounting holes | D:25 M3×4 |
| Shaft diameter | IN: 6 mm |
| No-load current | 1.2 A / 20V |
| Internal resistance | 43 mΩ |
| Maximum current | 40.7 A |
| Maximum power | 1905 W |
| Maximum torque | 1.94 N.m |
| Recommended ESC | MAD AMPX 60A (5-14S) |
| Recommended propellers | 16x8.0, 17x10.0, 18x8.0 |
| Product boxed weight | 466 g (110 x 110 x 50 mm) |
| UAV take-off weight | 11 kg (Quadcopter); 16.5 kg (Hexacopter); 22 kg (Octocopter) |
| Single rotor take-off weight | 2 kg ~ 3 kg |
| Efficiency | >78% |
Drawing & Mounting Dimensions
- Motor mounting pattern: Ø25-M3*4
- Prop mounting patterns: Ø12-M3*4; Ø15-M3*4
- Body diameter marking: Ø56
- Side-view length markings: 3.8; 35.5; 2
- Shaft/detail markings: M8*1; 27.5; 16.6; Ø24; Ø8
- Washer/spacer marking: 3.5
What’s Included
- Motor x1
- Propeller Plate x1
- Prop Adapter x1
- Ø4-6 Adapter Ring x1
- 3.5mm Bullet Connector x3
- Heat Shrinkable Tube x3
- M3*8 Motor Screws x4
- M3*10 Propeller Screws x2
- Sticker x2
Applications
- EVTOL and multirotor propulsion (12S)
- Builds requiring IP45-rated motor protection
For integration and compatibility questions (ESC, propellers, mounting), contact support@rcdrone.top or visit https://rcdrone.top/.
Reference Images
MAD 5020 IPE V3.0 205KV eVTOL motor drawings detail key dimensions and M3 mounting patterns to help plan fitment and hardware.

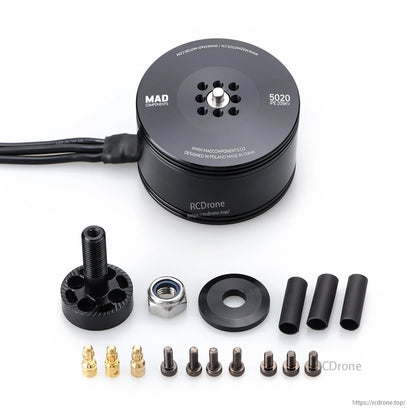

The MAD 5020 IPE V3.0 205KV motor package includes a prop adapter and plate, adapter ring, 3.5 mm bullet connectors, mounting screws, and heat-shrink tubes for wiring.
Details
The MAD 5020 IPE V3.0 205KV eVTOL drone motor drawing provides key dimensions and M3 mounting details to help with fitment and installation.
The MAD 5020 IPE V3.0 205KV EVTOL motor comes with a propeller plate, prop adapter, adapter ring, bullet connectors, screws, heat-shrink tubing, and a sticker.
MAD 5020 IPE V3.0 205KV eVTOL motor documentation includes a dimensioned motor render plus performance curves and test data tables for setup planning.
