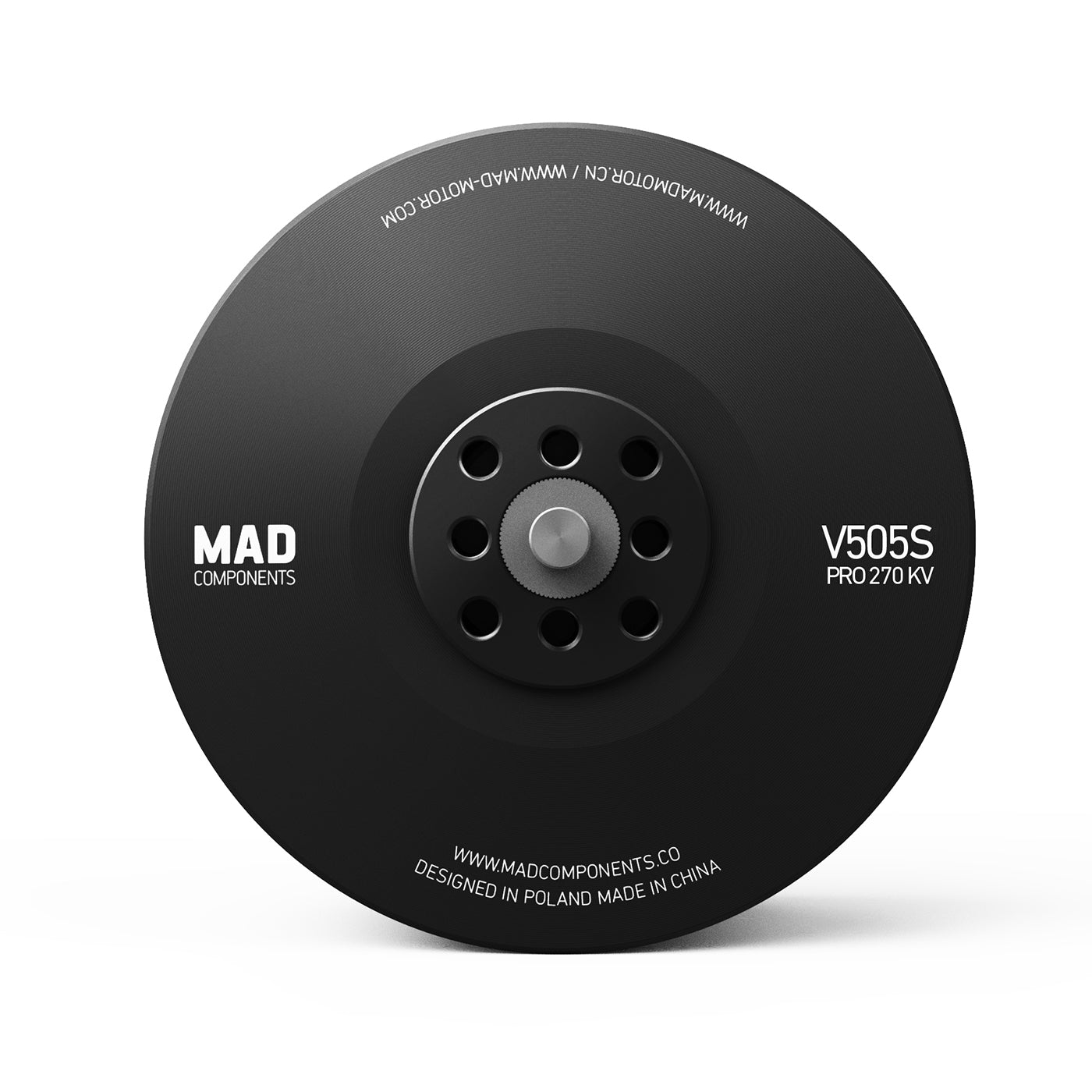

MAD V505S PRO IPE V3.0 Feathering Propeller Autocenter EVTOL Drone Motor 150KV-420KV IP45

Overview

MAD V505S PRO IPE V3.0 is an EVTOL drone motor designed for feathering propeller autocenter operation. The motor/propeller system is designed to automatically return to a horizontal position relative to the wing upon shutdown to support streamlined alignment.

The V505S PRO utilizes a mechanically feathering propeller propulsion system with a pitch direction set to the D12 position. This system is used for vertical lift power systems and helps reduce aerodynamic drag during flight.

Key Features

• Mechanically feathering propeller propulsion system (pitch direction set to the D12 position)
• Feathering propeller options: 90° feathering propeller; 180° feathering propeller
• IP45 degree of protection
• Centrifugal heat dissipation: YES

Specifications

Motor (common)

150KV (Energy Efficient 150KV)

• Recommended hover thrust: 2.0~3.0 kgf
• Maximum thrust: 6.4 kgf
• Optimized weight: 247 g
• Efficiency: >84%
• Nominal voltage: 12S lipo battery
• Max temperature: 120°C (spec header); 86°C (test header)

170KV (Energy Efficient 170KV)

• Recommended hover thrust: 1.5~2.0 kgf
• Maximum thrust: 5.7 kgf
• Optimized weight: 248 g
• Efficiency: >77%
• Nominal voltage: 12S lipo battery
• Max temperature: 120°C

270KV (Energy Efficient 270KV)

• Recommended hover thrust: 3.0~3.5 kgf
• Maximum thrust: 8.6 kgf
• Optimized weight: 247 g
• Efficiency: >76%
• Nominal voltage: 12S lipo battery
• Max temperature: 103°C

320KV (Energy Efficient 320KV)

• Recommended hover thrust: 2.0~3.0 kgf
• Maximum thrust: 7 kgf
• Optimized weight: 249 g
• Efficiency: >81%
• Nominal voltage: 6S lipo battery
• Max temperature: 89°C

380KV (Energy Efficient 380KV)

• Recommended hover thrust: 1.5~2.0 kgf
• Maximum thrust: 5.1 kgf
• Optimized weight: 243 g
• Efficiency: >80%
• Nominal voltage: 6S lipo battery
• Max temperature: 86°C

420KV (Energy Efficient 420KV)

• Recommended hover thrust: 2.0~3.0 kgf
• Maximum thrust: 6.3 kgf
• Optimized weight: 253 g
• Efficiency: >77%
• Nominal voltage: 6S lipo battery
• Max temperature: 94°C

Test notes (as provided)

• Analytical graph legend: I = Current; P = Input Power; η = Electrical Efficiency; T = Thrust; N = Rotational Speed.
• 12S datasets: data measured with an input voltage of 48 V, at a temperature of 25°C and sea level; rotational speed adjusted by the throttle.
• 6S datasets: data measured with an input voltage of 24 V, at a temperature of 25°C and sea level; rotational speed adjusted by the throttle.

For configuration help (ESC/prop matching) and after-sales support, contact support@rcdrone.top.

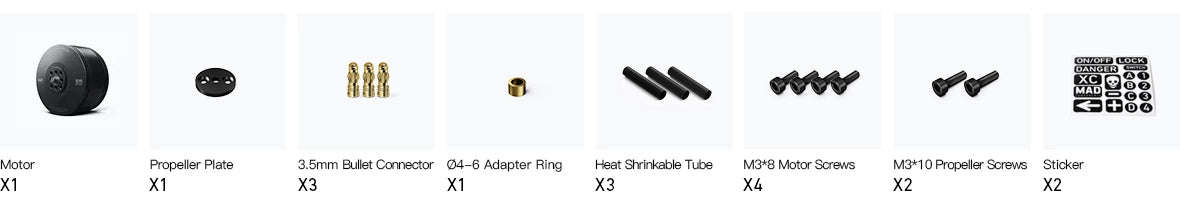

What’s Included

• Motor x1
• Propeller Plate x1
• 3.5mm Bullet Connector x3
• Ø4–6 Adapter Ring x1
• Heat Shrinkable Tube x3
• M3*8 Motor Screws x4
• M3*10 Propeller Screws x2
• Sticker x2

Applications

• EVTOL aircraft vertical lift power systems
• Multirotor UAV power systems (by KV selection and take-off weight targets listed in specifications)

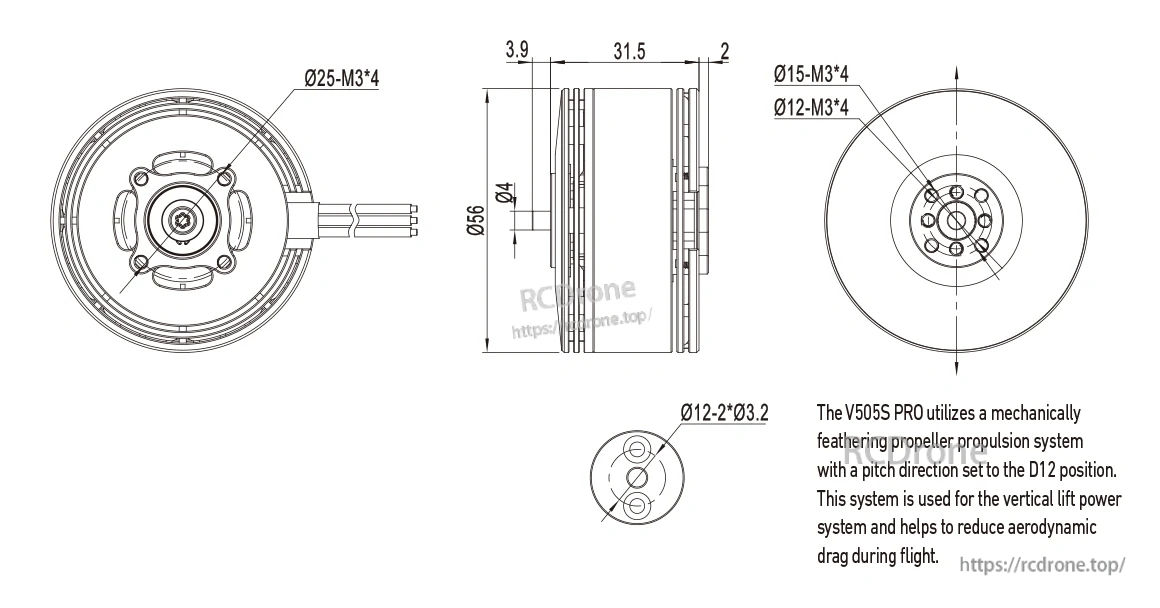

The V505S PRO motor uses a mechanically feathering propeller system with pitch direction set to the D12 position and includes an M3 mounting pattern for installation.

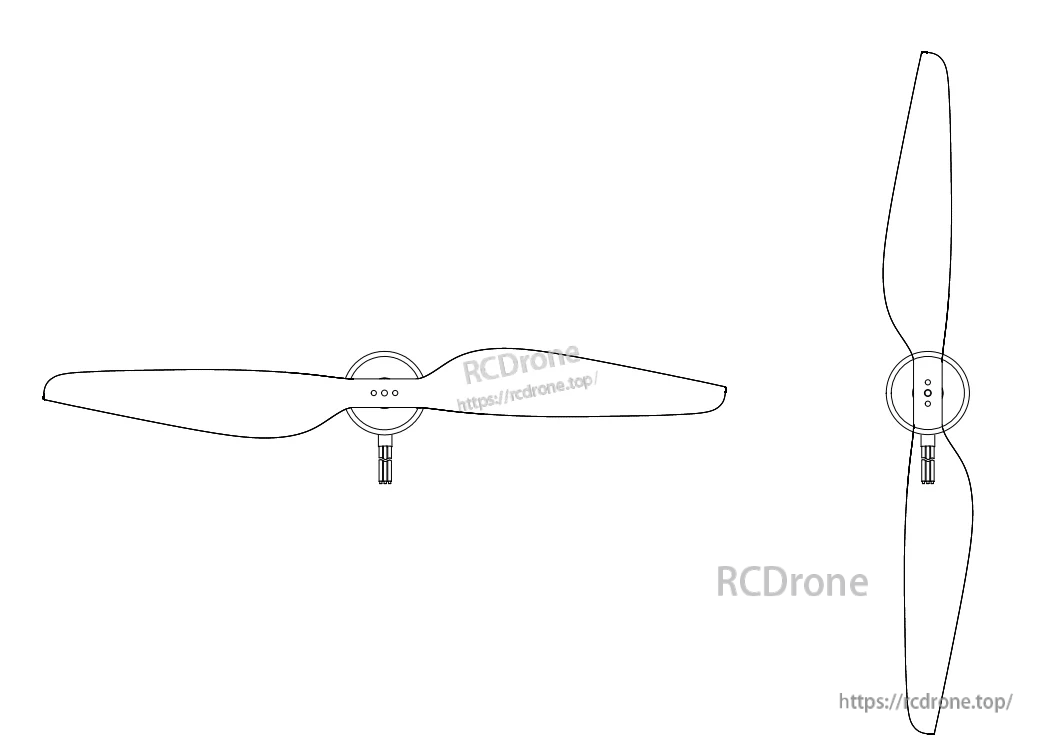

The MAD V505S PRO IPE V3.0 feathering propeller uses a hub-mounted blade design for EVTOL drone motor setups.

The MAD V505S PRO package includes the motor, propeller plate, 3.5mm bullet connectors, an adapter ring, screws, heat shrink tubing, and stickers for installation.

The MAD V505S PRO motor overview lists a 150KV option with 20–30kg thrust, 247g weight, and performance curves with test tables for setup planning.

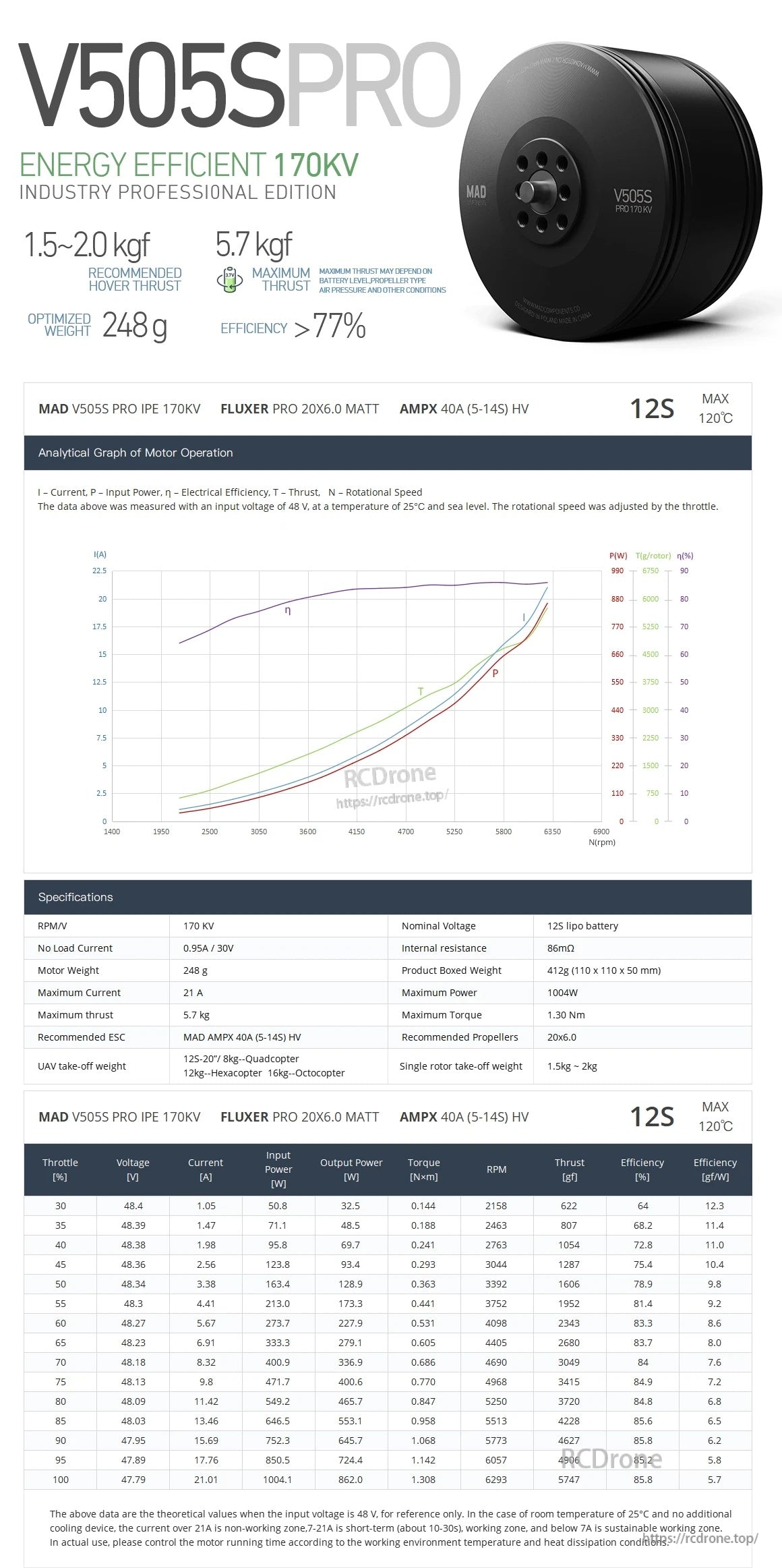

The V505S Pro 170KV motor is rated up to 12S and lists a 248 g weight with a thrust range of 1.5–2.0 kgf and 5.7 kgf max.

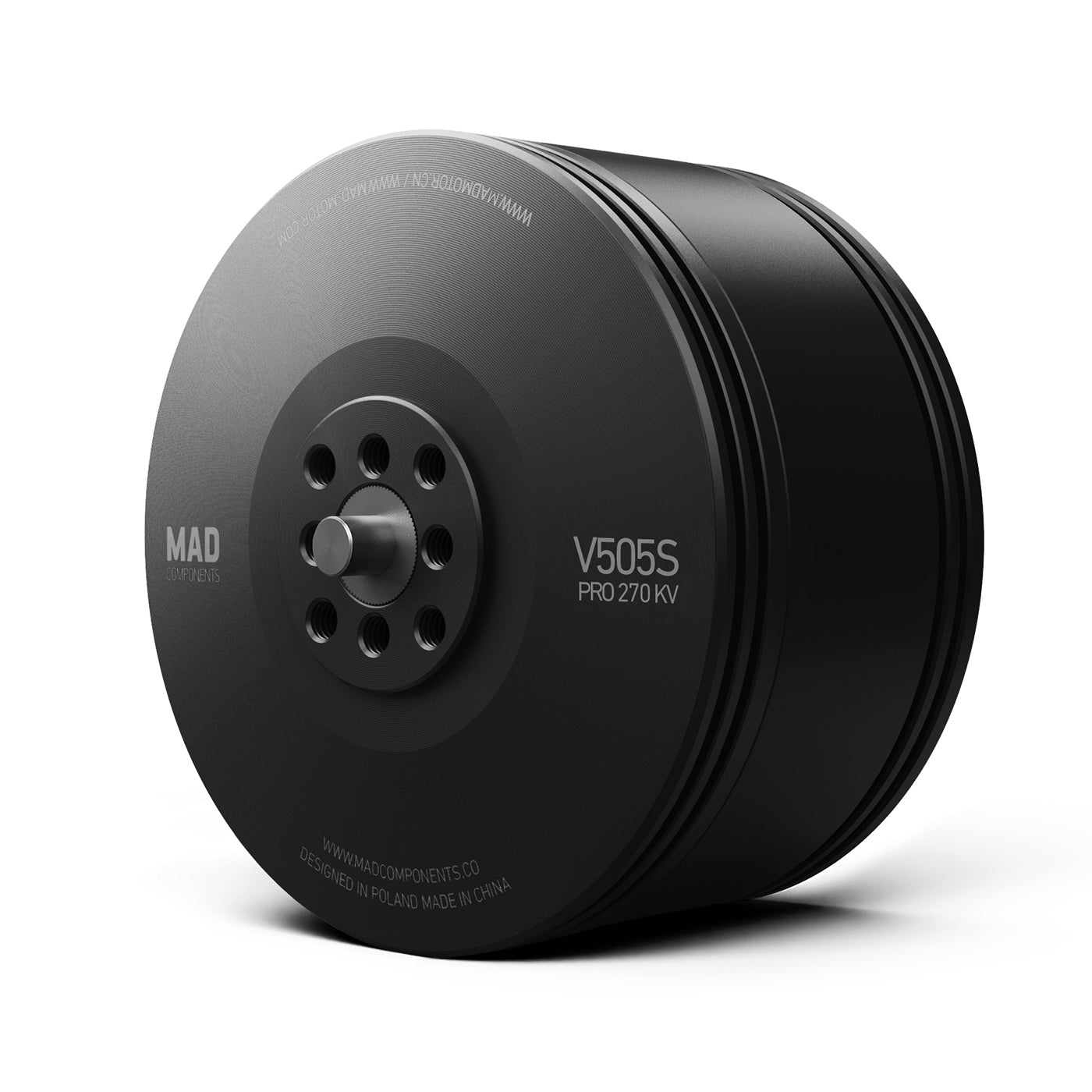

The MAD V505S PRO motor datasheet lists a 270KV version, 12S maximum input, and key performance curves alongside basic dimensions and weight.

The MAD V505S PRO motor performance sheet lists a 320KV option with 20–30 kgf thrust along with efficiency and temperature-rise data for setup planning.

The MAD V505S PRO eVTOL drone motor lists an energy-efficient 380KV option, 243g weight, and an IP45 rating for added ingress protection.

Details

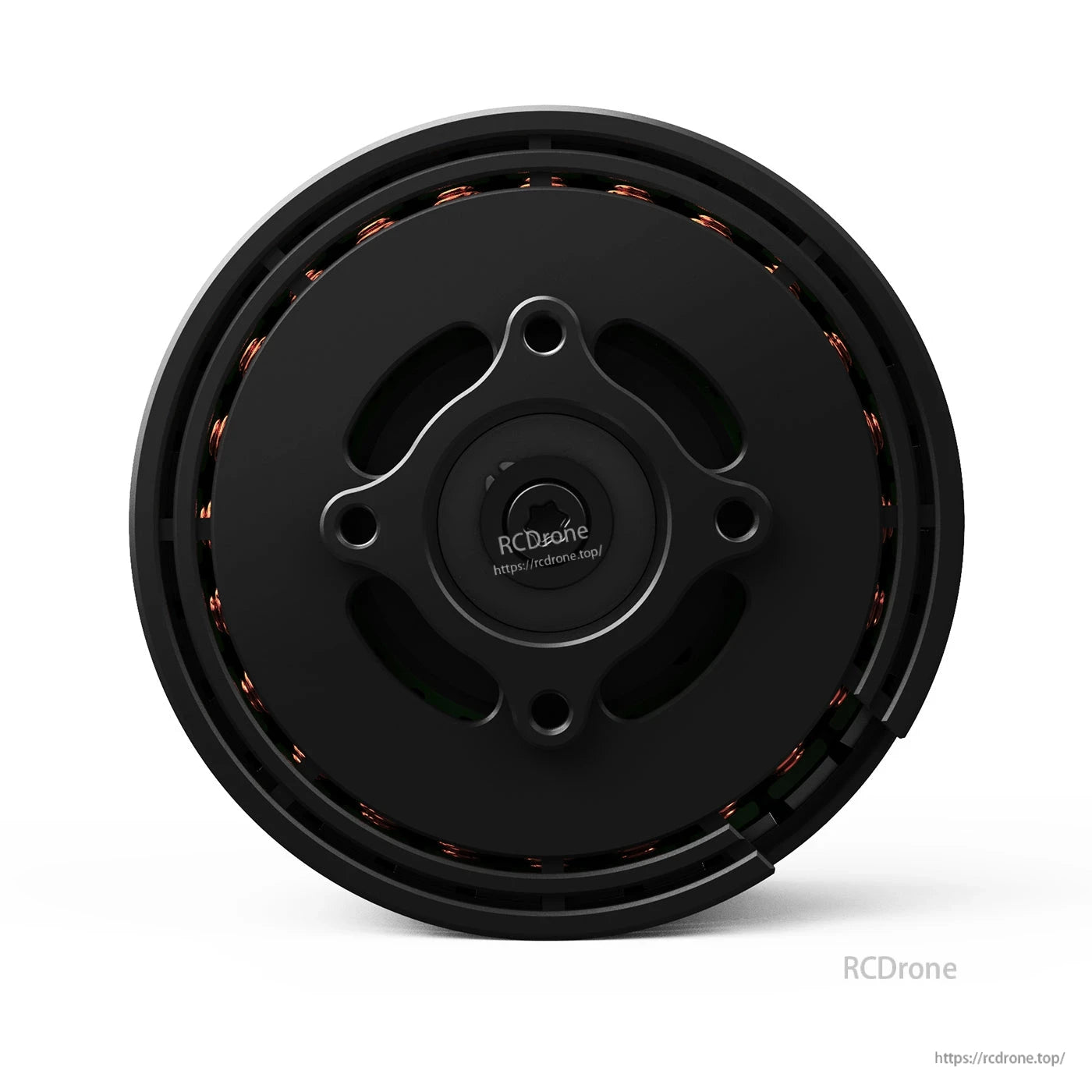

The V505S PRO motor uses a mechanically feathering propeller system with M3 mounting holes for straightforward integration.

The V505S PRO IPE V3.0 feathering propeller uses a compact hub with two-blade layout for eVTOL drone motor setups.

The MAD V505S PRO motor package includes a propeller plate, M3 mounting screws, 3.5mm bullet connectors, heat shrink, an adapter ring, and stickers for setup.

The MAD V505S PRO motor’s spec sheet lists a 150KV variant with 247 g weight and efficiency over 84% to support powertrain planning.

The V505PRO 170KV motor is paired with a 12S performance chart and spec table to help match thrust and efficiency to your setup.

MAD V505S PRO V3.0 motor documentation lists a 270KV option, 12S max input, and performance curves with an optimized weight of 247g.

The MAD V505S PRO motor datasheet provides key specifications and performance curves to help plan thrust, efficiency, and power setup.

The MAD V505S PRO motor datasheet lists a 380KV variant, 15–20 kgf thrust range, and a 243 g weight for planning your eVTOL drivetrain.

MAD V505S PRO 420KV eVTOL drone motor specs include a 253 g weight and an efficiency figure listed as over 77%.
