MAD BSC2810 V1.0 FPV Drone Motor 12N14P 2810 Brushless 1100KV 6S / 1350KV 5-6S
MAD BSC2810 V1.0 FPV Drone Motor 12N14P 2810 Brushless 1100KV 6S / 1350KV 5-6S
MAD
Couldn't load pickup availability
Overview
MAD BSC2810 V1.0 is a BSC series FPV drone motor (entry-level brushless motor) designed for balanced cost and quality. It is presented for 7–8" long-range FPV drone builds, with two KV options: 1100KV (6S) and 1350KV (5–6S). For a more durable and more aesthetic motor of the same type, the FS series is an alternative option.
Key Features
- Shock absorbing design intended to extend bearing life and reduce motor vibration
- High slot fill rate (described as saving power and delivering rapid response)
- N52H arc-shaped magnet
- Low-torque output described as linear, with faster response and more power at low throttle
Specifications
Motor Data
| Motor model | MAD BSC2810 V1.0 |
| Slots / poles | 12N14P |
| Motor size | D:33.6 × 39.7 mm |
| Drawing dimensions | 39.7; 16; Φ33.6 |
| Propeller mounting | M5 Nut |
| Mounting holes | Ø19-M3×4 |
| Rotor balance | ≤5 mg |
| Shaft diameter | IN: 5 mm |
| Cable length | 150 mm 18# Awg(Black) silicone |
1100KV (6S) Specifications
| RPM/V | 1100 KV |
| No load current | 1.45A / 10V |
| Internal resistance | 62mΩ |
| Maximum current | 48.6 A |
| Maximum power | 1215 W |
| Maximum thrust | 2.6 kgf |
| Motor weight | 67 g |
| Product boxed weight | 81 g |
| Test header temperature note | 6S MAX 101°C |
1350KV (5–6S) Specifications
| RPM/V | 1350 KV |
| No load current | 1.8A / 10V |
| Internal resistance | 43mΩ |
| Maximum current | 61.7 A |
| Maximum power | 1280 W |
| Maximum thrust | 2.5 kgf |
| Motor weight | 67 g |
| Product boxed weight | 81 g |
| Test header temperature note | 6S MAX 99°C |
Performance Data
Graph definitions shown: I = Current, P = Input Power, η = Electrical Efficiency, T = Thrust, N = Rotational Speed. Measurement note shown: data measured at input voltage of 24 V, temperature of 25°C, and sea level; rotational speed adjusted by the throttle. Maximum thrust may depend on battery level, propeller type, air pressure and other conditions.
1100KV (6S) – GF 7040-3 (MAX 91°C)
| Throttle [%] | Voltage [V] | Current [A] | Input Power [W] | RPM | Thrust [gf] | Efficiency [gf/W] |
|---|---|---|---|---|---|---|
| 30 | 25 | 2.48 | 62.0 | 9579 | 404 | 6.5 |
| 35 | 25 | 3.29 | 82.3 | 10451 | 477 | 5.8 |
| 40 | 25 | 4.11 | 102.8 | 11163 | 560 | 5.5 |
| 45 | 25 | 4.99 | 124.8 | 11910 | 630 | 5.1 |
| 50 | 25 | 5.98 | 149.5 | 12605 | 717 | 4.8 |
| 55 | 25 | 6.98 | 174.5 | 13323 | 789 | 4.5 |
| 60 | 25 | 7.86 | 196.5 | 13954 | 873 | 4.4 |
| 65 | 25 | 9.33 | 233.3 | 14777 | 974 | 4.2 |
| 70 | 25 | 11.38 | 284.5 | 15686 | 1107 | 3.9 |
| 75 | 25 | 13.91 | 347.8 | 16661 | 1255 | 3.6 |
| 80 | 25 | 16.36 | 409.0 | 17489 | 1402 | 3.4 |
| 85 | 25 | 18.82 | 470.5 | 18309 | 1526 | 3.2 |
| 90 | 25 | 21.69 | 542.3 | 19067 | 1679 | 3.1 |
| 95 | 25 | 24.99 | 624.8 | 19829 | 1872 | 3.0 |
| 100 | 25 | 28.5 | 712.5 | 20497 | 2036 | 2.9 |
1100KV (6S) – HQ 8045-3 (MAX 101°C)
| Throttle [%] | Voltage [V] | Current [A] | Input Power [W] | RPM | Thrust [gf] | Efficiency [gf/W] |
|---|---|---|---|---|---|---|
| 30 | 25 | 3.07 | 76.8 | 6943 | 520 | 6.8 |
| 35 | 25 | 4.35 | 108.8 | 7670 | 642 | 5.9 |
| 40 | 25 | 5.76 | 144.0 | 8397 | 770 | 5.3 |
| 45 | 25 | 8 | 200.0 | 9203 | 927 | 4.6 |
| 50 | 25 | 10.67 | 266.8 | 10007 | 1097 | 4.1 |
| 55 | 25 | 13.36 | 334.0 | 10752 | 1251 | 3.7 |
| 60 | 25 | 15.63 | 390.8 | 11489 | 1439 | 3.7 |
| 65 | 25 | 18.72 | 468.0 | 12132 | 1608 | 3.4 |
| 70 | 25 | 22.44 | 561.0 | 12800 | 1789 | 3.2 |
| 75 | 25 | 26.69 | 667.3 | 13307 | 1963 | 2.9 |
| 80 | 25 | 30.56 | 764.0 | 13785 | 2125 | 2.8 |
| 85 | 25 | 34.93 | 873.3 | 14279 | 2274 | 2.6 |
| 90 | 25 | 39.51 | 987.8 | 14573 | 2407 | 2.4 |
| 95 | 25 | 43.8 | 1095.0 | 14907 | 2501 | 2.3 |
| 100 | 25 | 48.61 | 1215.0 | 15183 | 2600 | 2.1 |
1350KV (6S) – GF 7040-3 (MAX 99°C)
| Throttle [%] | Voltage [V] | Current [A] | Input Power [W] | RPM | Thrust [gf] | Efficiency [gf/W] |
|---|---|---|---|---|---|---|
| 30 | 25 | 4.53 | 113.3 | 11275 | 552 | 4.9 |
| 35 | 25 | 6.03 | 150.8 | 12303 | 677 | 4.5 |
| 40 | 25 | 7.2 | 180.0 | 13150 | 781 | 4.3 |
| 45 | 25 | 8.85 | 221.3 | 14131 | 887 | 4.0 |
| 50 | 25 | 10.68 | 267.0 | 14971 | 1004 | 3.8 |
| 55 | 25 | 12.8 | 320.0 | 15856 | 1128 | 3.5 |
| 60 | 25 | 15.48 | 387.0 | 16885 | 1266 | 3.3 |
| 65 | 25 | 19.2 | 480.0 | 17767 | 1453 | 3.0 |
| 70 | 25 | 22.99 | 574.8 | 18815 | 1606 | 2.8 |
| 75 | 25 | 26.92 | 673.0 | 19490 | 1794 | 2.7 |
| 80 | 25 | 31.12 | 778.0 | 20325 | 2023 | 2.6 |
| 85 | 25 | 35.21 | 880.3 | 21277 | 2180 | 2.5 |
| 90 | 25 | 39.69 | 992.3 | 22186 | 2285 | 2.3 |
| 95 | 25 | 45.08 | 1127.0 | 22867 | 2439 | 2.2 |
| 100 | 25 | 51.2 | 1280.0 | 23605 | 2568 | 2.0 |
1350KV (5S) – HQ 8045-3 (MAX 97°C)
| Throttle [%] | Voltage [V] | Current [A] | Input Power [W] | RPM | Thrust [gf] | Efficiency [gf/W] |
|---|---|---|---|---|---|---|
| 30 | 20 | 4.47 | 89.4 | 7079 | 530 | 5.9 |
| 35 | 20 | 5.99 | 119.8 | 7850 | 653 | 5.5 |
| 40 | 20 | 8.32 | 166.4 | 8668 | 800 | 4.8 |
| 45 | 20 | 11.42 | 228.4 | 9479 | 960 | 4.2 |
| 50 | 20 | 14.91 | 298.2 | 10229 | 1118 | 3.7 |
| 55 | 20 | 18.62 | 372.4 | 10934 | 1287 | 3.5 |
| 60 | 20 | 21.64 | 432.8 | 11598 | 1469 | 3.4 |
| 65 | 20 | 25.61 | 512.2 | 12248 | 1618 | 3.2 |
| 70 | 20 | 30.39 | 607.8 | 12842 | 1797 | 3.0 |
| 75 | 20 | 35.79 | 715.8 | 13303 | 1975 | 2.8 |
| 80 | 20 | 40.41 | 808.2 | 13743 | 2100 | 2.6 |
| 85 | 20 | 45.43 | 908.6 | 14067 | 2220 | 2.4 |
| 90 | 20 | 50.58 | 1011.6 | 14487 | 2314 | 2.3 |
| 95 | 20 | 55.94 | 1118.8 | 14731 | 2403 | 2.1 |
| 100 | 20 | 61.68 | 1233.6 | 14904 | 2471 | 2.0 |

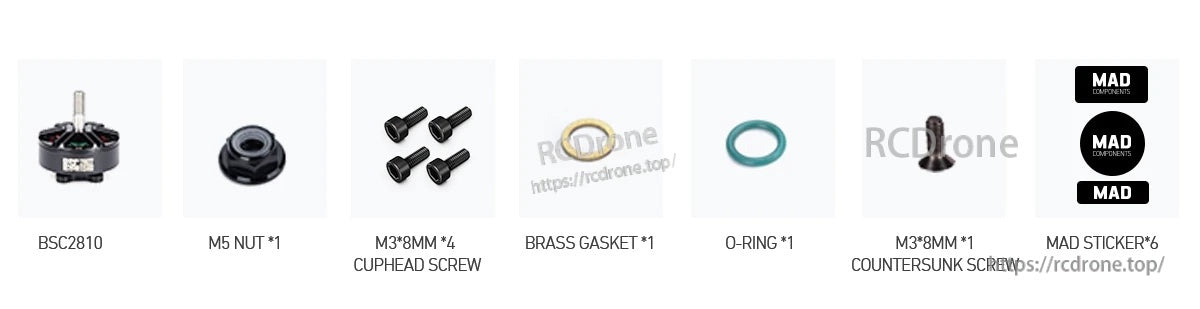

What’s Included
- BSC2810 motor ×1
- M5 nut ×1
- M3×8mm cuphead screw ×4
- Brass gasket ×1
- O-ring ×1
- M3×8mm countersunk screw ×1
- MAD sticker ×6
For configuration and compatibility questions (prop selection, wiring, and build setup), contact [email protected] or visit https://rcdrone.top/.
Details

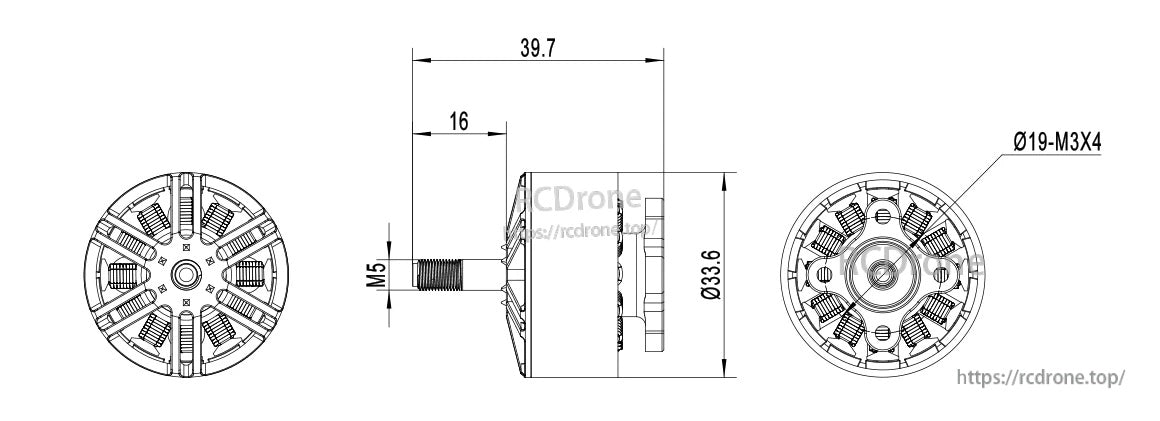

MAD BSC2810 V1.0 motor sizing and mounting details include a 39.7mm overall length, Ø33.6mm body, M5 shaft, and Ø19mm M3x4 mounting pattern.

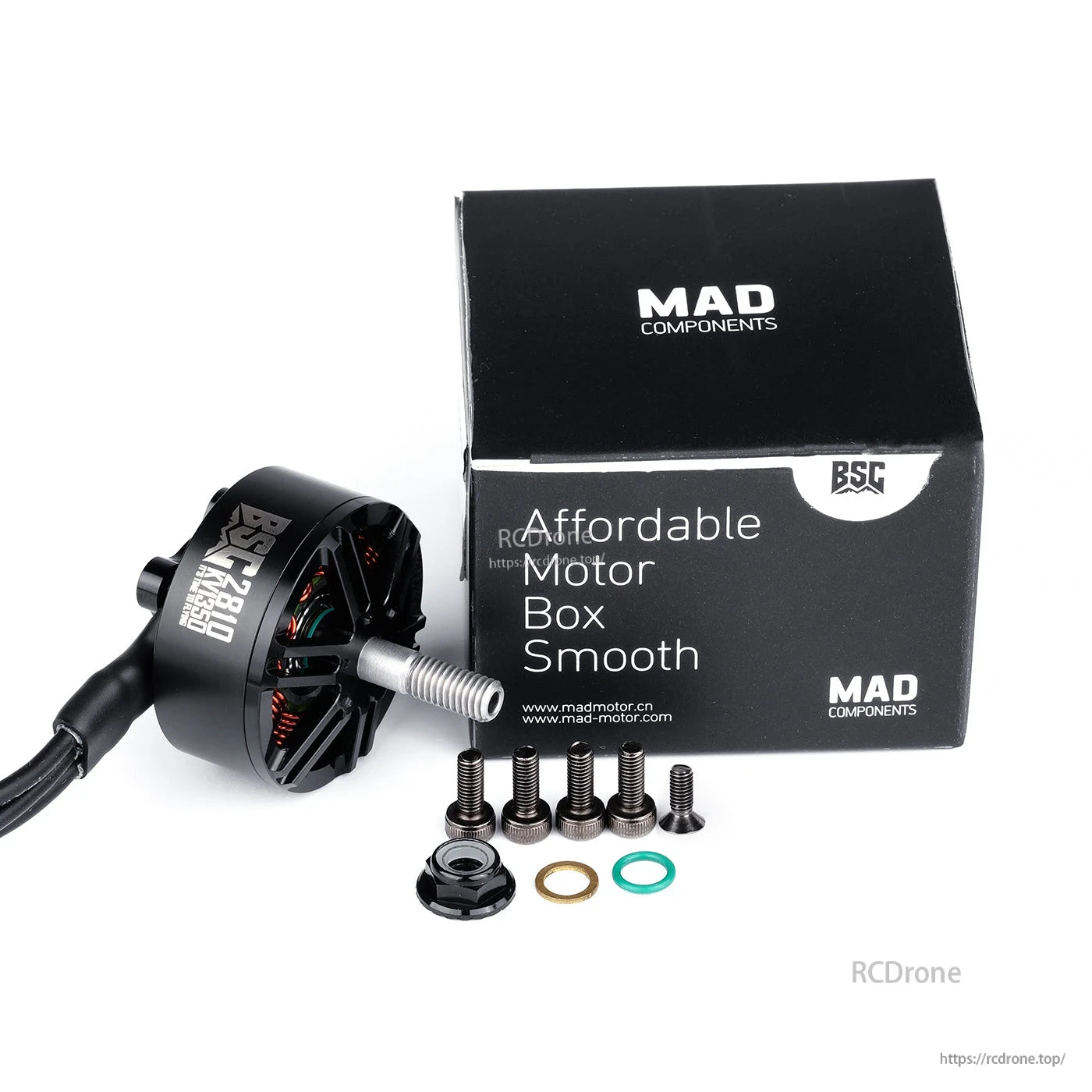

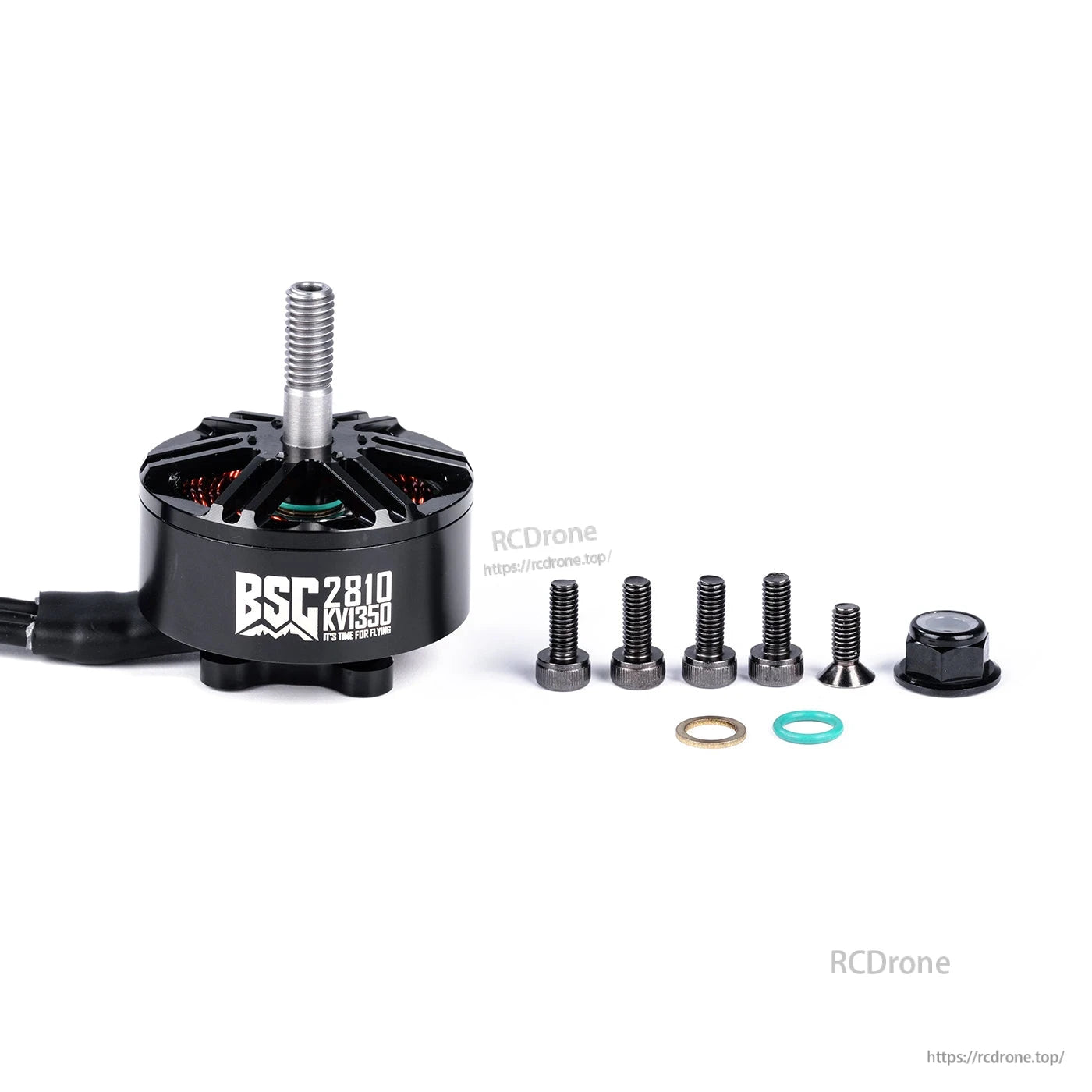

MAD BSC2810 V1.0 motor kit includes the motor along with a prop nut, mounting screws, a brass gasket, an O-ring, and MAD stickers.

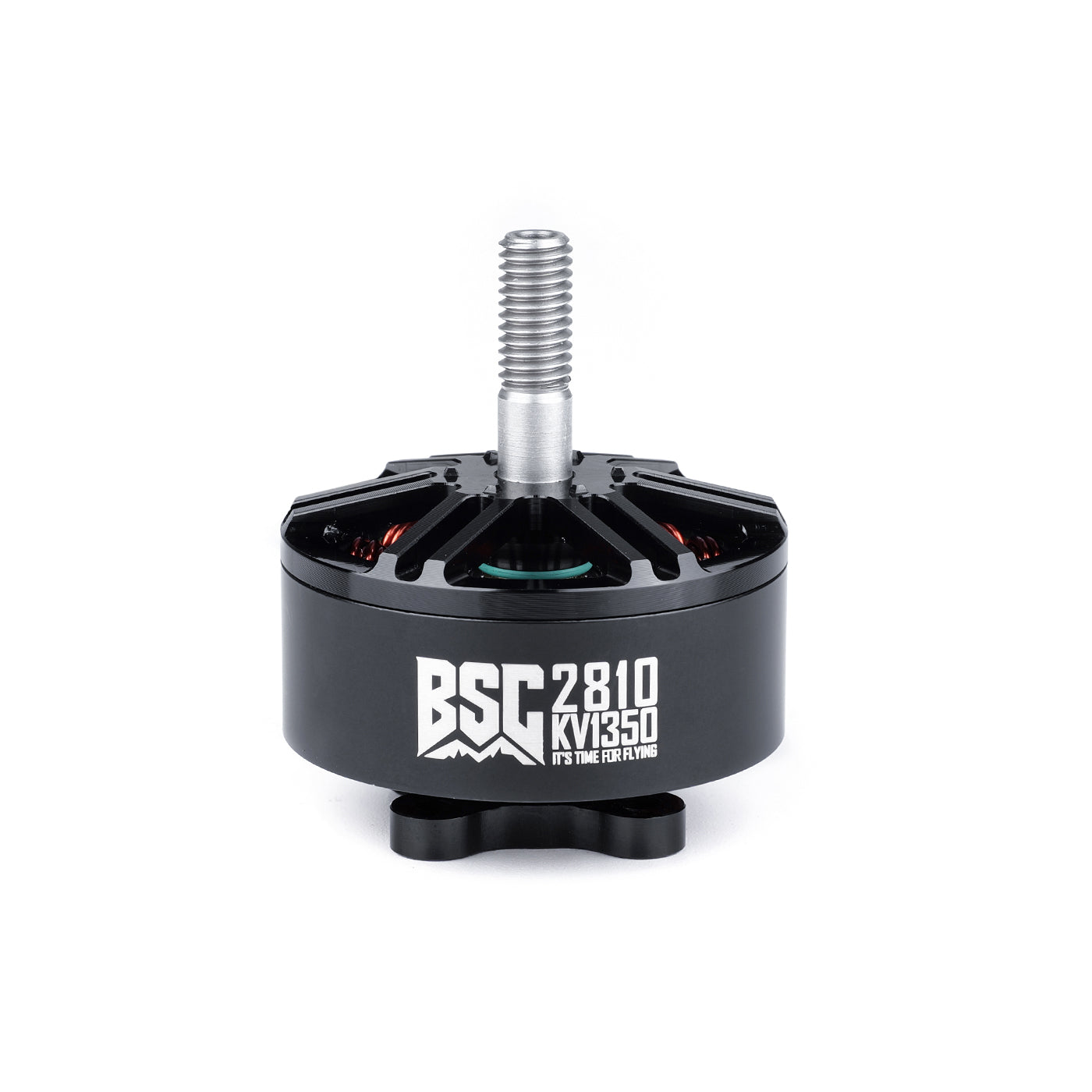

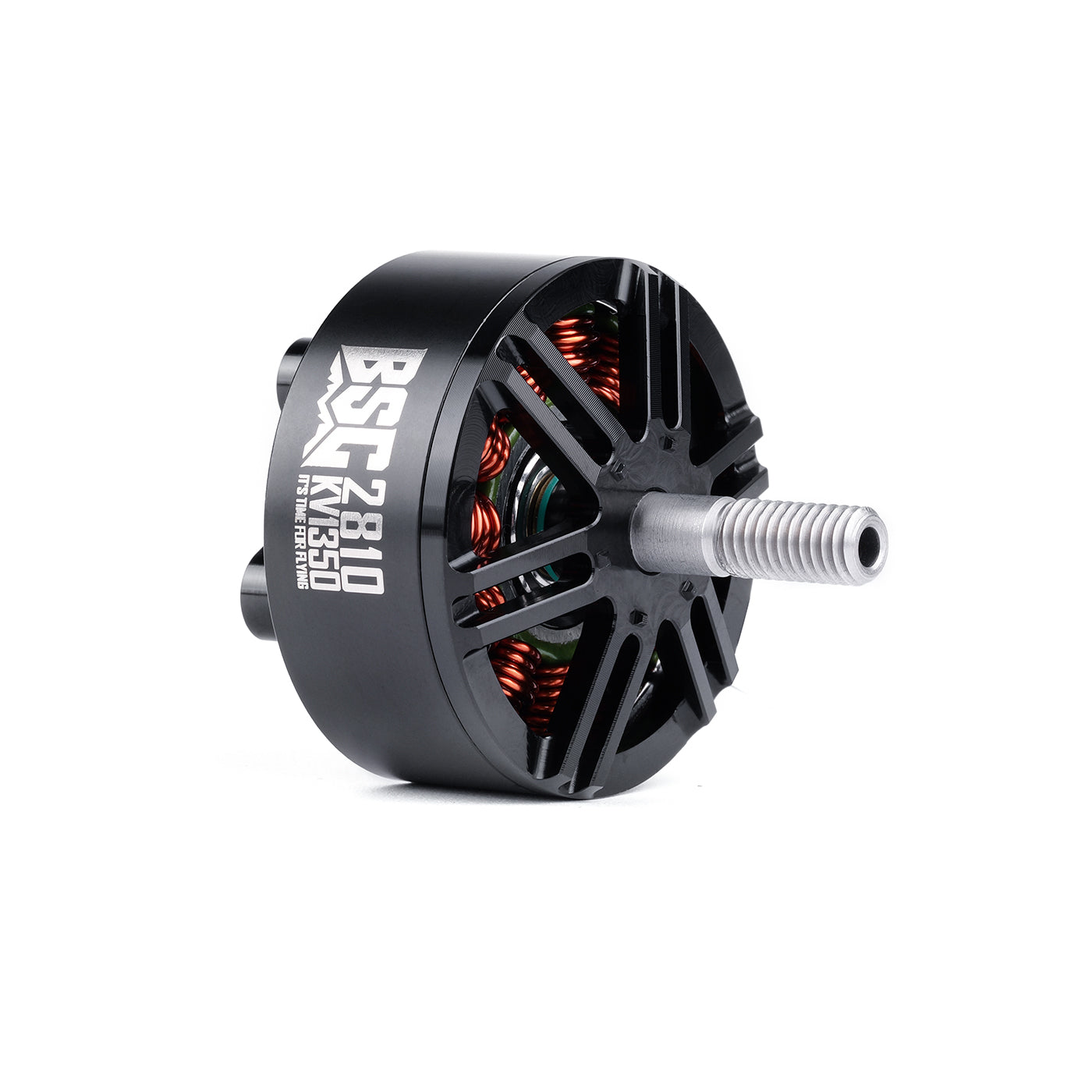

MAD Components BSC2810 FPV brushless motors feature a threaded shaft and 2810-size can for FPV drone builds.
MAD Components BSC2810 brushless motor is available in KV1100 and KV1350 options for FPV builds.
MAD Components brushless motor with a low-throttle power curve is aimed at 7–8 inch long-range FPV drone builds.

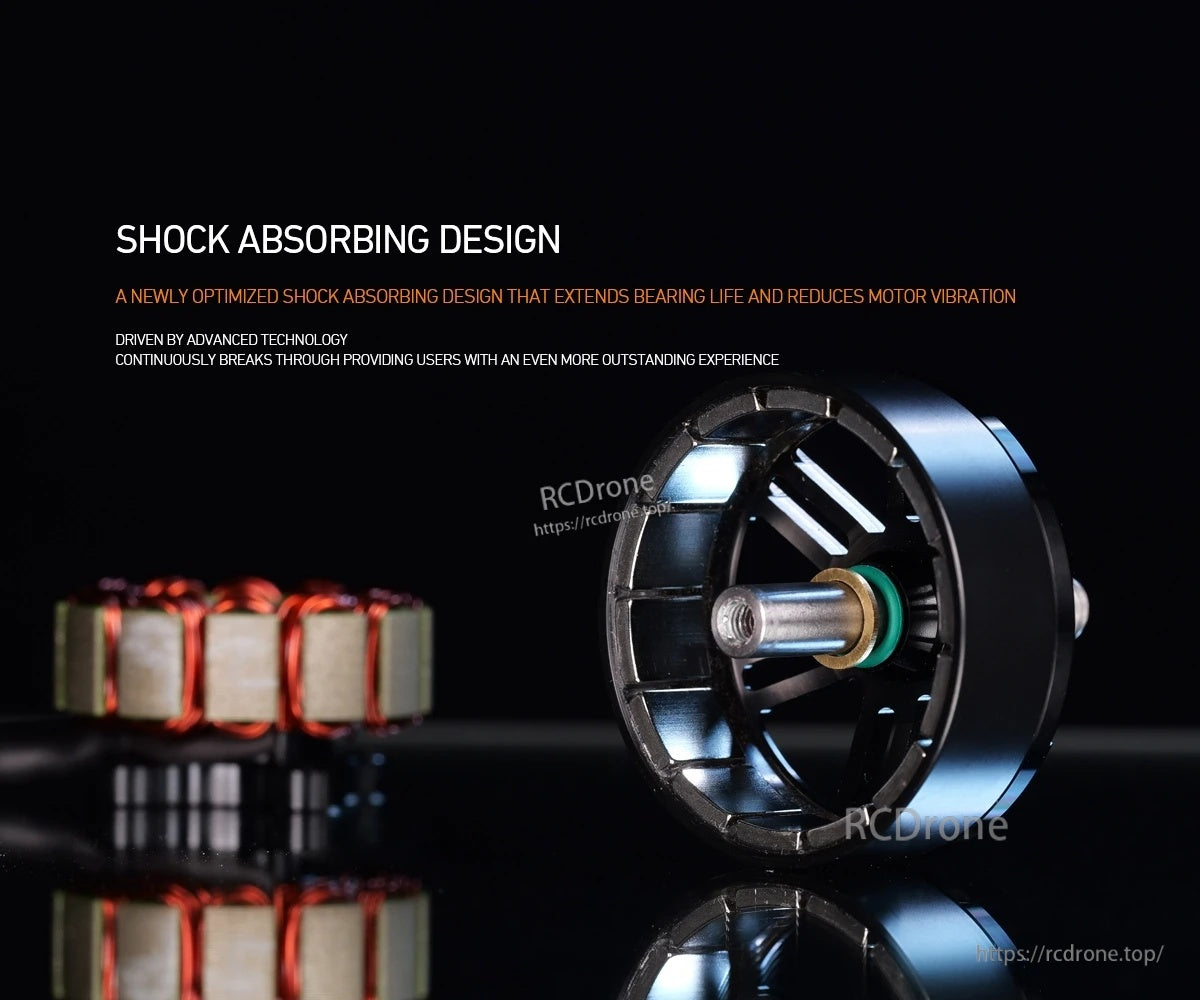

The MAD BSC2810 V1.0 brushless motor features a shock-absorbing design intended to help reduce vibration and extend bearing life.

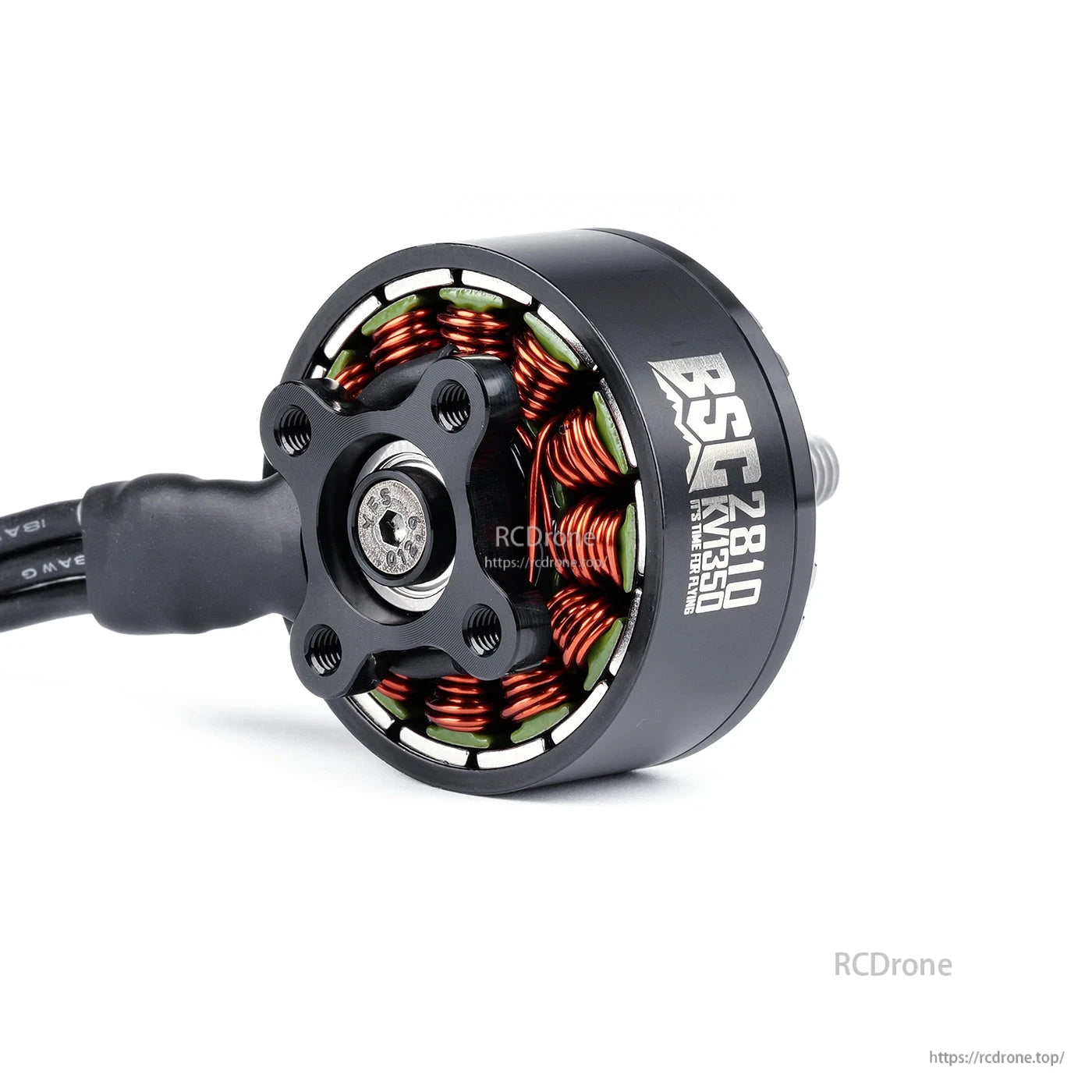

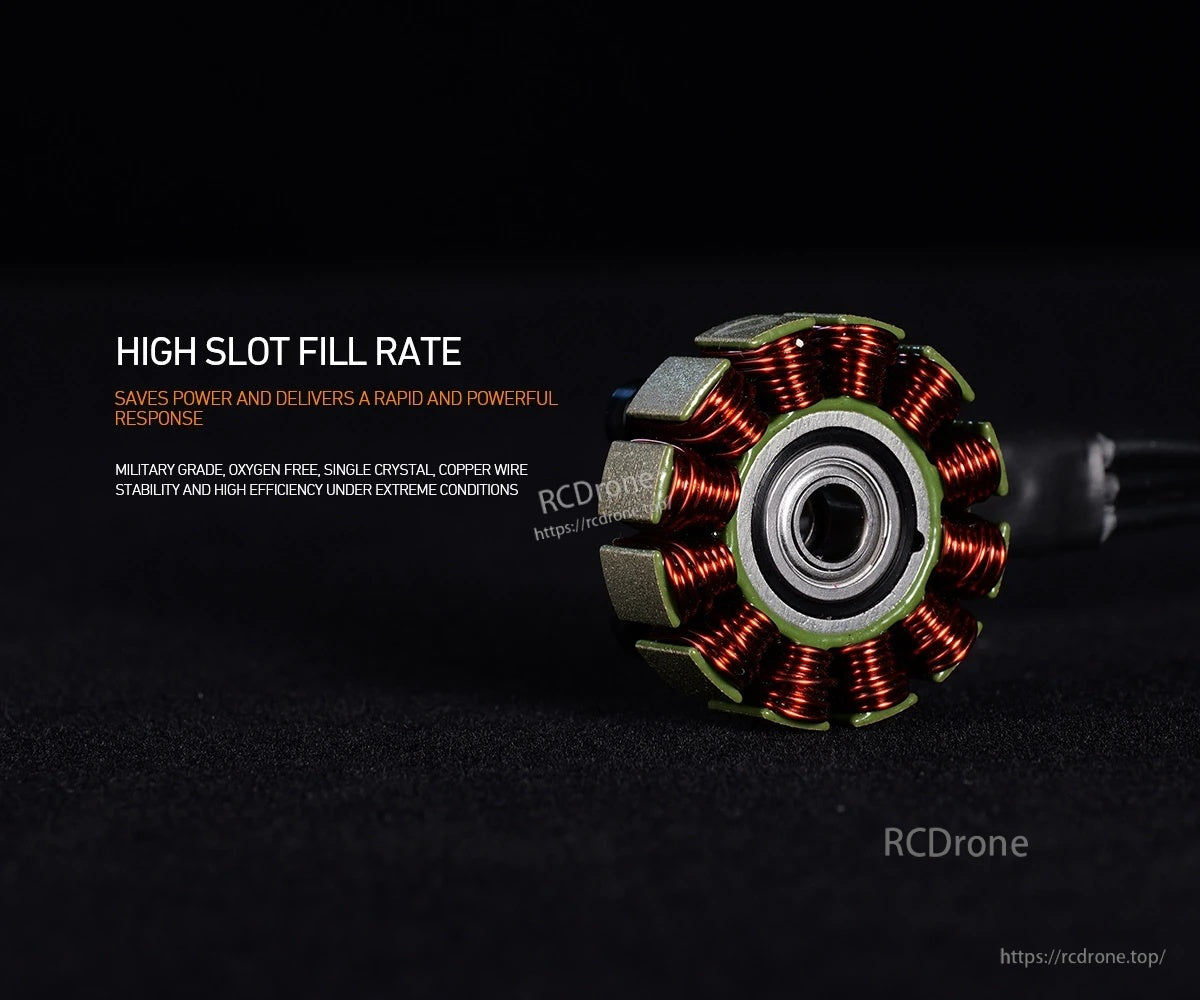

The MAD BSC2810 V1.0 2810 brushless motor uses a high slot fill stator with tightly wound copper coils for efficient power delivery.

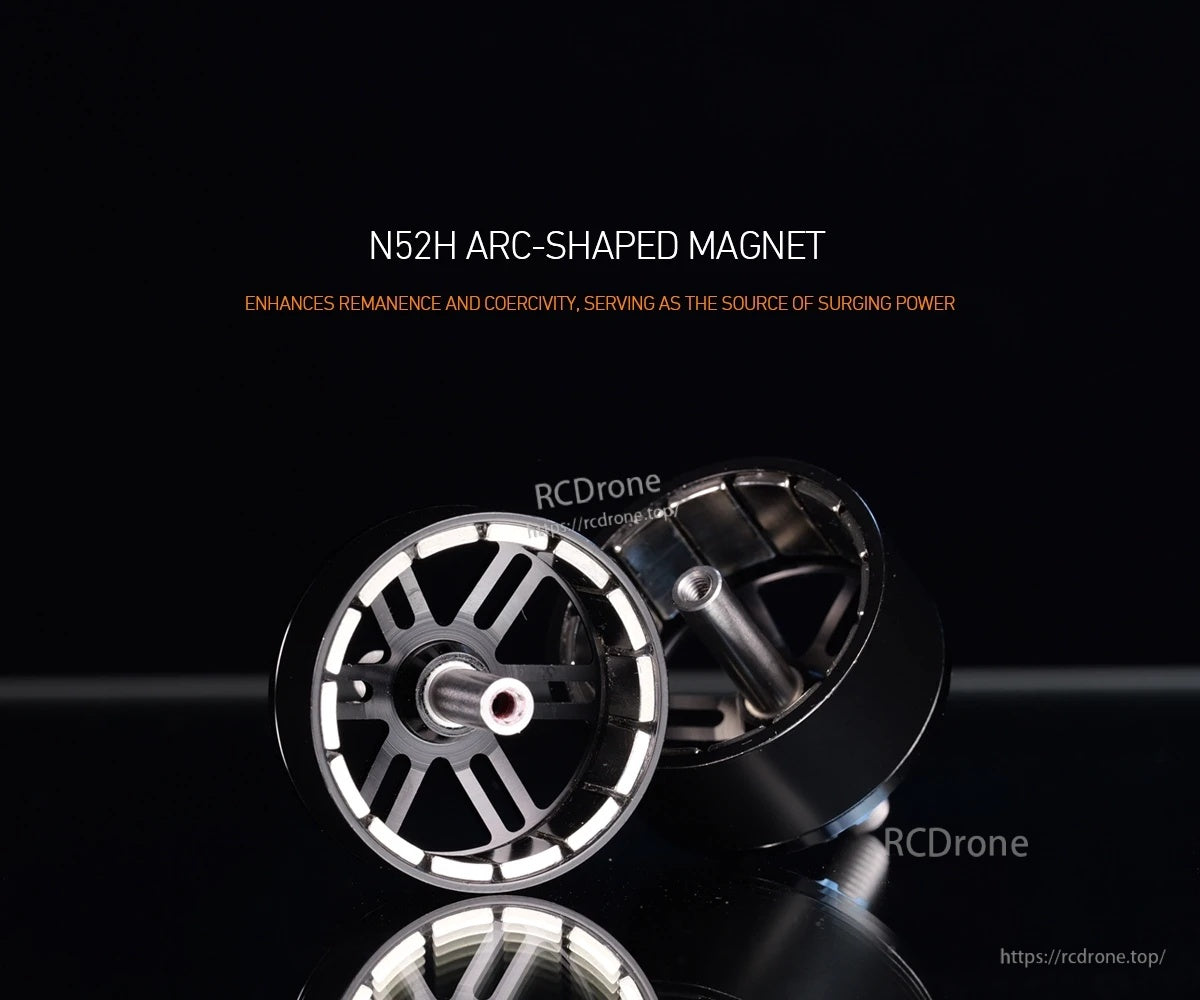

The MAD BSC2810 brushless motor uses N52H arc-shaped magnets inside the bell for a compact, high-energy rotor design.

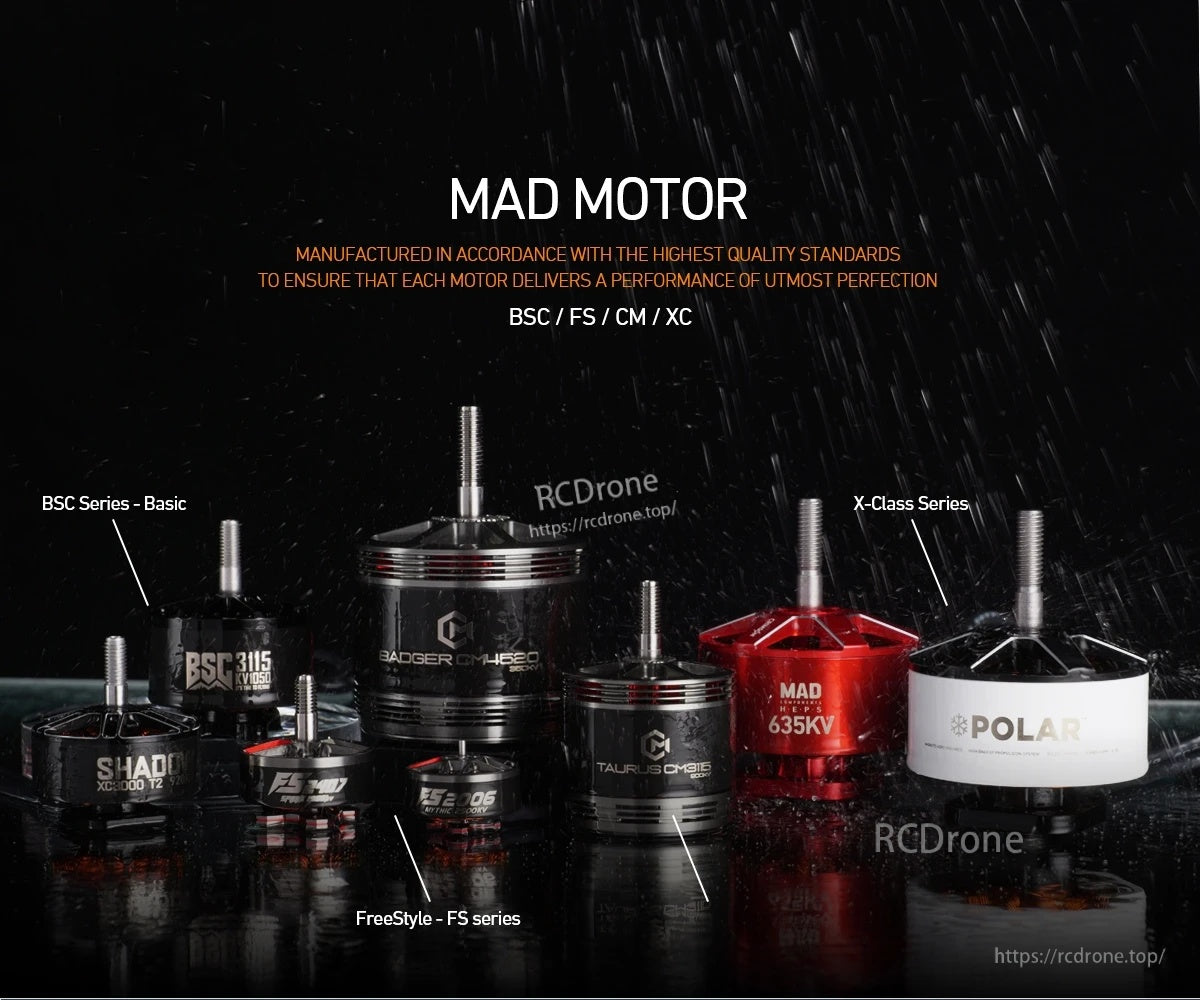

MAD Motor offers a range of brushless FPV motors across BSC, Freestyle FS, and X-Class series for different build styles.

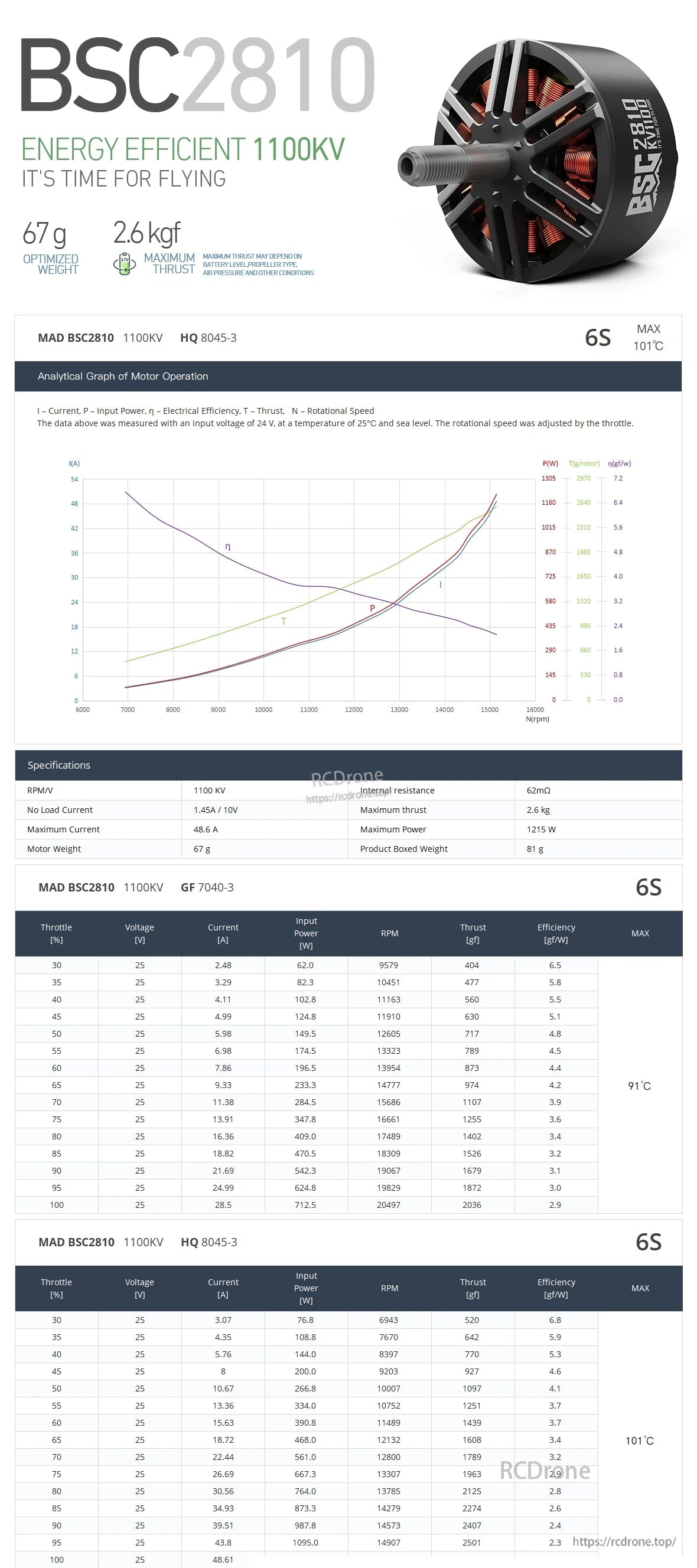

The MAD BSC2810 1100KV motor datasheet lists key details like 67 g weight and 6S performance figures to help with setup and prop selection.

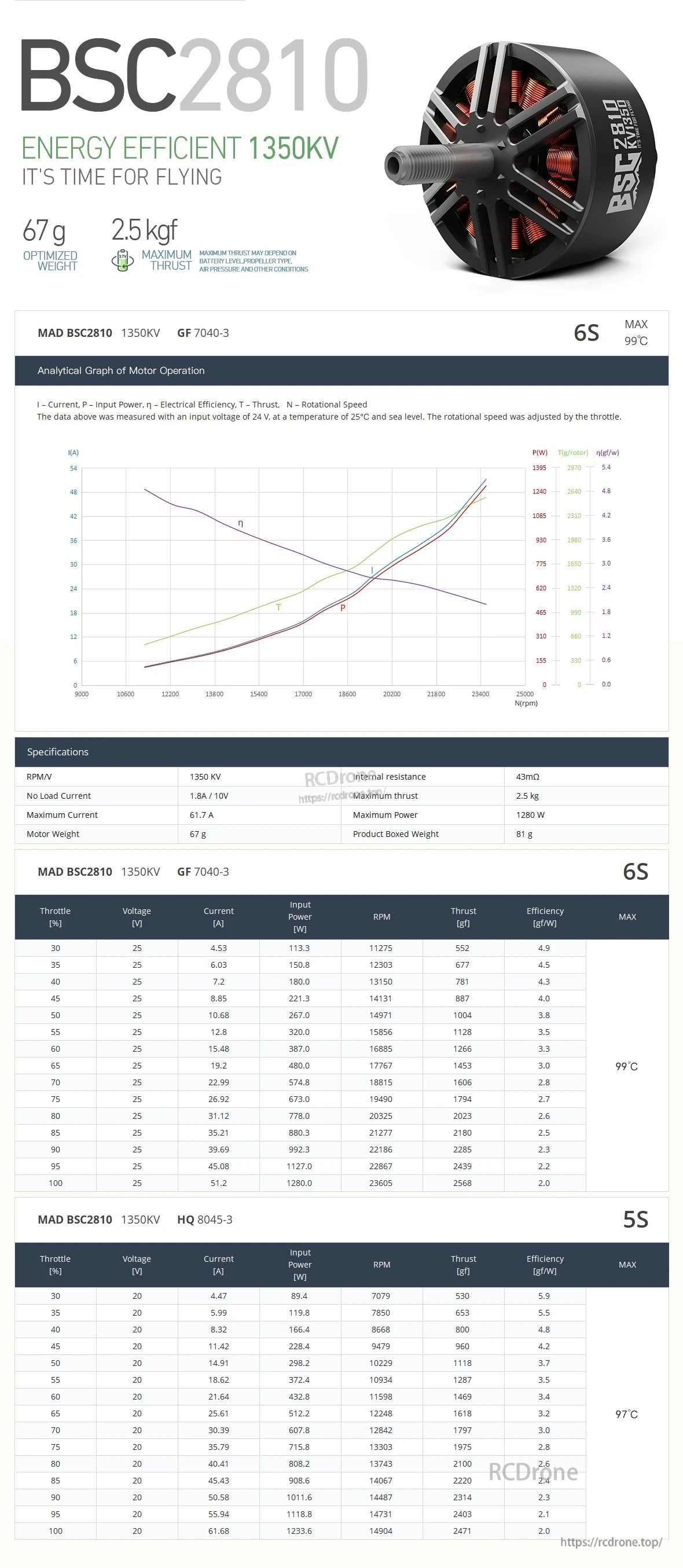

MAD BSC2810 motor specs include 1350KV rating, 67g weight, and test data tables for 6S and 5S setups.
