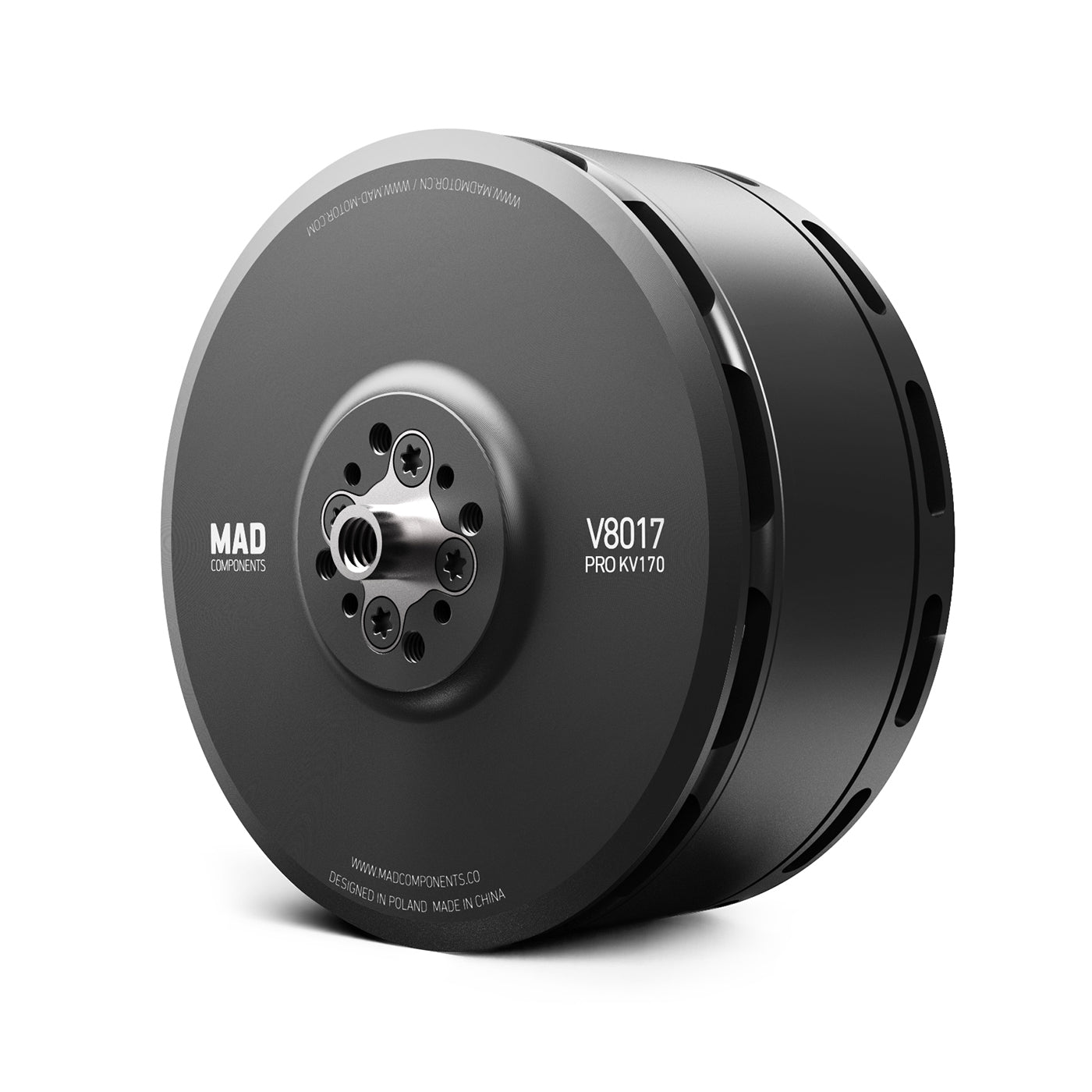

MAD V8017 PRO IPE V1.0 170KV Feathering Propeller Autocenter eVTOL Drone Motor, 12S IP35

MAD

$433.50 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

KV Option 170KV

Quantity

View full details

Overview

MAD V8017 PRO IPE feathering propeller autocenter eVTOL drone motor with propeller is designed to automatically return to a horizontal position relative to the wing upon shutdown, supporting streamlined alignment.

Key Features

Feathering propeller autocenter design for shutdown alignment
Centrifugal heat dissipation: YES
Anticorrosive stator
Degree of protection: IP35

Specifications

Motor Data

Motor model	MAD V8017 PRO IPE V1.0
KV (RPM/V)	170KV
Number of pole pairs	14
Stator	Anticorrosive
Varnished wire degree	180°C
Magnet degree	150°C
Motor size	D: 88.5 × 46.2 mm
Degree of protection	IP35
Cable length	1000 mm 14# Awg (Black) silicone
Centrifugal heat dissipation	YES
Rotor balance	≤5 mg
Motor balance	≤10 mg
Shaft diameter	IN: 12 mm
Bearing	6901ZZ*2
Disruptive test	500 V

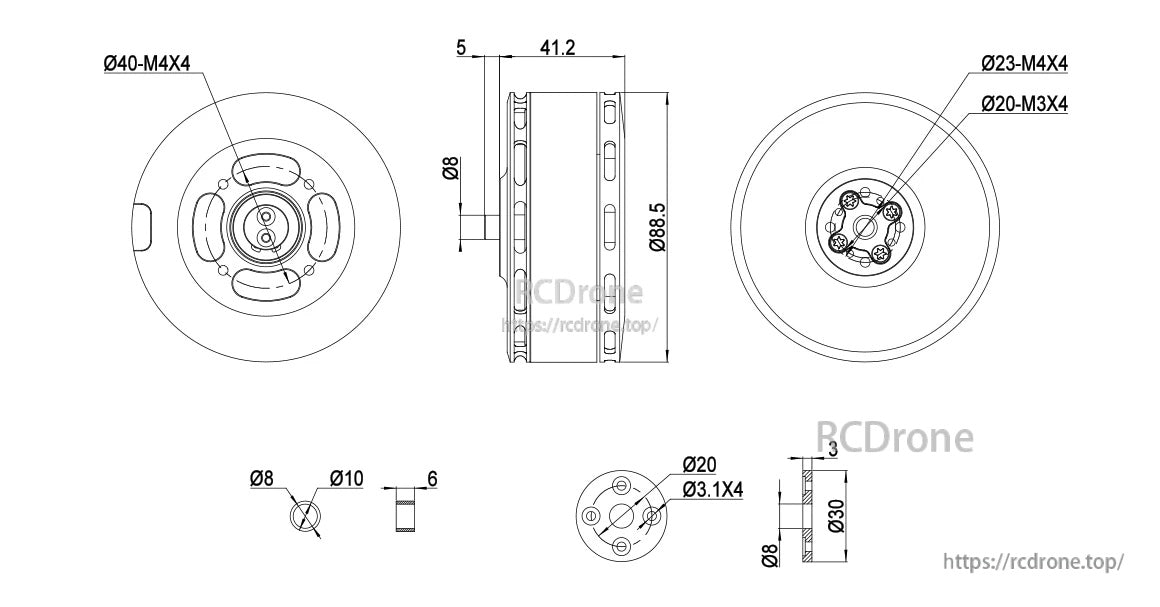

Mounting (Drawing Labels)

Motor mounting holes	D:40 M4×4 (also shown as Ø40-M4X4)
Propeller mounting holes	D:20 M3×4 (also shown as Ø20-M3X4); D:23 M4×4 (also shown as Ø23-M4X4)
Drawing dimensions shown	41.2; 5; Ø88.5; Ø8; Ø10; 6; Ø20; Ø3.1X4; 3; Ø30

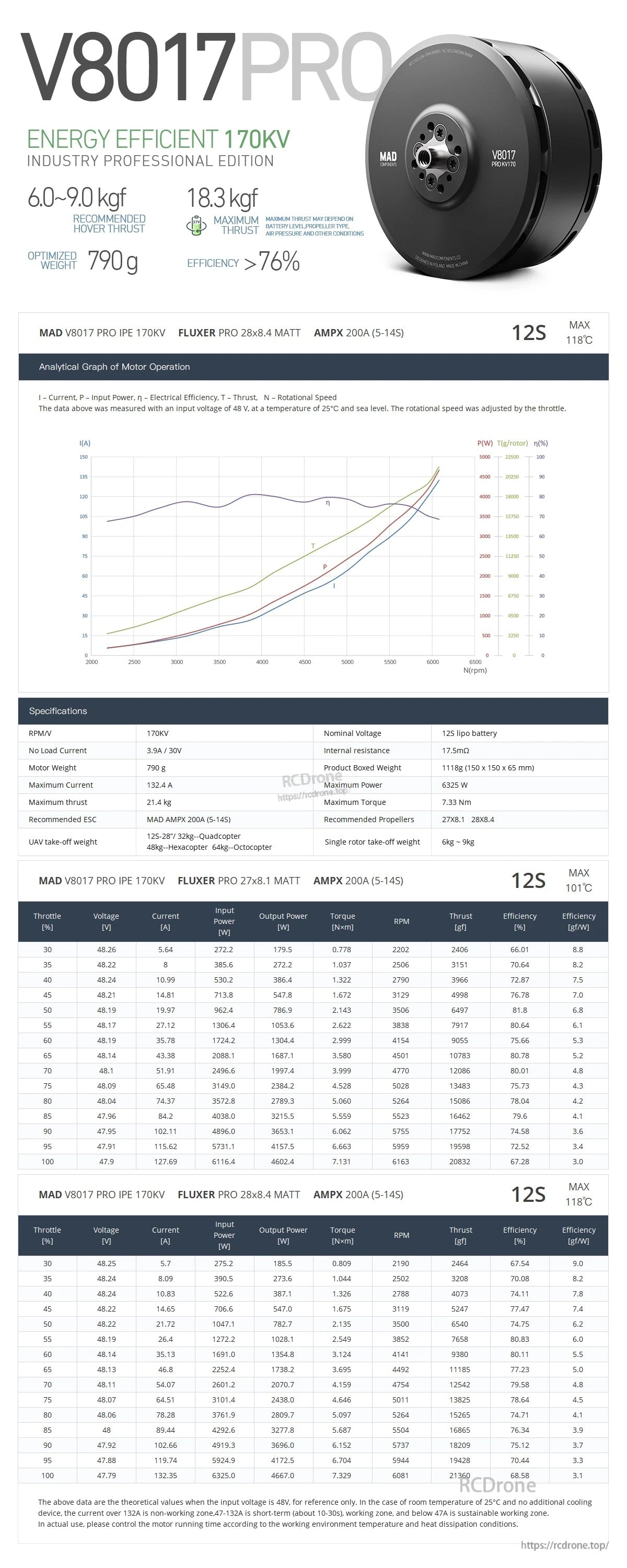

Performance / System (170KV Image Data)

Recommended hover thrust	6.0~9.0 kgf
Maximum thrust (headline)	18.3 kgf
Optimized weight	790 g
Efficiency	>76%
Nominal voltage	12S Lipo battery
No load current	3.9A / 30V
Internal resistance	17.5 mΩ
Maximum current	132.4 A
Maximum power	6325 W
Maximum torque	7.33 Nm
Maximum thrust (spec table)	21.4 kg
Recommended ESC	MAD AMPX 200A (5-14S)
Recommended propellers	27X8.1; 28X8.4
Product boxed weight	1118 g (150 x 150 x 65 mm)
UAV take-off weight	12S-28"/32kg - Quadcopter; 48kg - Hexacopter; 64kg - Octocopter
Single rotor take-off weight	6kg ~ 9kg

Note: Maximum thrust may depend on battery level, propeller type, air pressure, and other conditions. The analytical graph and tables were measured with an input voltage of 48 V at 25°C and sea level. Listed operating values are theoretical values at 48 V for reference; current over 132 A is a non-working zone, 47–132 A is short-term (about 10–30 s), and below 47 A is a sustainable working zone.

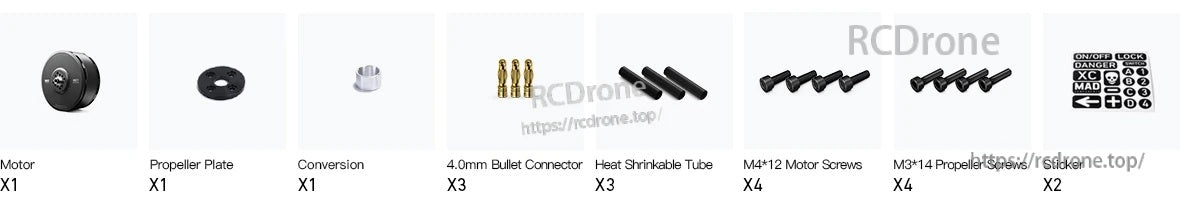

What’s Included

Motor x1
Propeller plate x1
Conversion x1
4.0 mm bullet connector x3
Heat shrinkable tube x3
M4*12 motor screws x4
M3*14 propeller screws x4
Sticker x2

Applications

eVTOL and fixed-wing platforms requiring feathering/autocenter shutdown alignment
UAV propulsion setups using 12S systems

For compatibility questions (ESC, propellers, mounting, or integration), contact support@rcdrone.top or visit https://rcdrone.top/.

Details

MAD V8017 PRO IPE Feathering propeller Autocenter eVTOL Drone Motor

MAD V8017 PRO IPE V1.0 motor dimensions show a 41.2 mm body length with Ø40 and Ø68.5 profiles and M3/M4 mounting hole patterns for easier fit checks.
