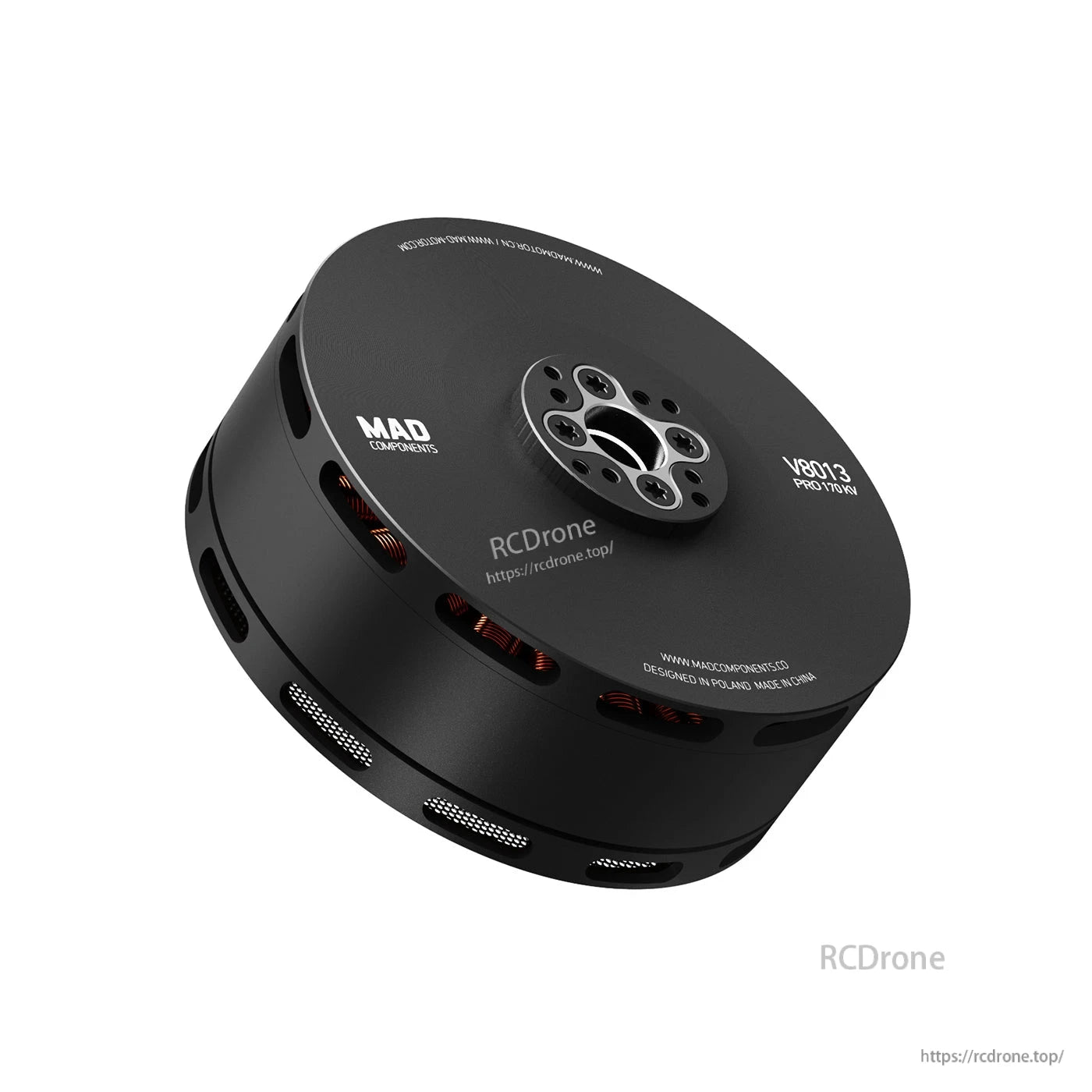

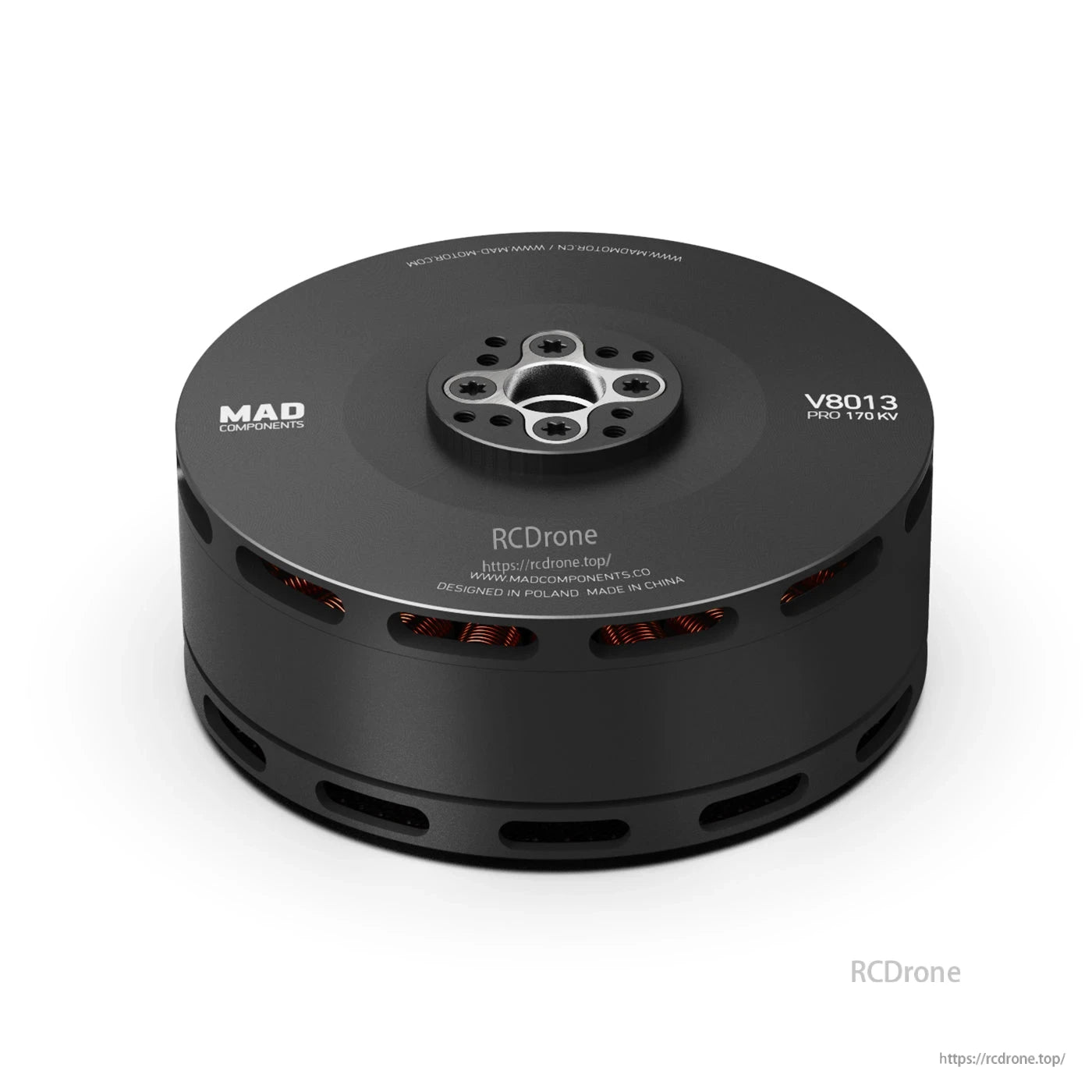

MAD V8013 PRO IPE Feathering Propeller Autocenter eVTOL Drone Motor, IP35, 135KV/150KV/170KV

Overview

MAD V8013 PRO IPE is an eVTOL drone motor with a feathering propeller autocenter design. When the motor shuts down, the motor/propeller assembly is designed to automatically return to a horizontal position relative to the wing for streamlined alignment.

Key Features

• Autocenter feathering propeller mechanism for eVTOL wing alignment after shutdown
• Anticorrosive stator
• Centrifugal heat dissipation: YES
• Protection rating: IP35
• Rotor balance: ≤25 mg; Motor balance: ≤10 mg

Specifications

Motor Data (Common)

135KV (Performance Summary)

• Recommended hover thrust: 4.5~6.5 kgf
• Maximum thrust: 14.5 kgf
• Optimized weight: 580 g
• Efficiency: >83%
• Nominal voltage: 12S lipo battery (test data measured with 48 V input)
• Recommended ESC: MAD AMPX 80A (5-14S)
• Recommended propellers: 26x7.8, 27x8.1, 28x8.4
• Internal resistance: 44 mΩ
• No load current: 1.7A / 25V
• Maximum current: 74 A
• Maximum power: 3388W
• Maximum torque: 4.8 Nm
• UAV take-off weight: 12S-26"/21kg-Quadcopter; 31.5kg-Hexacopter; 42kg-Octocopter
• Single rotor take-off weight: 4.5kg ~ 6.5kg
• Product boxed weight: 913g (150 x 150 x 65 mm)

150KV (Performance Summary)

• Recommended hover thrust: 4.5~6.5 kgf
• Maximum thrust: 15 kgf
• Optimized weight: 591 g
• Efficiency: >80%
• Nominal voltage: 12S lipo battery (test data measured with 48 V input)
• Recommended ESC: MAD AMPX 80A (5-14S)
• Recommended propellers: 26x7.8
• Internal resistance: 37 mΩ
• No load current: 2.35A / 30V
• Maximum current: 77.8 A
• Maximum power: 3569W
• Maximum torque: 4.67 Nm
• UAV take-off weight: 12S-26"/21kg-Quadcopter; 32kg-Hexacopter; 43kg-Octocopter
• Single rotor take-off weight: 4.5kg ~ 6.5kg
• Product boxed weight: 934g (150 x 150 x 65 mm)

170KV (Performance Summary)

• Recommended hover thrust: 6.0~8.0 kgf
• Maximum thrust: 16.3 kgf
• Optimized weight: 595 g
• Efficiency: >77%
• Nominal voltage: 12S lipo battery (test data measured with 48 V input)
• Recommended ESC: MAD AMPX 120A (5-14S)
• Recommended propellers: 26x7.8
• Internal resistance: 29.5 mΩ
• No load current: 2.4A / 25V
• Maximum current: 104 A
• Maximum power: 4577W
• Maximum torque: 5.2 Nm
• UAV take-off weight: 12S-26"/28kg-Quadcopter; 42kg-Hexacopter; 56kg-Octocopter
• Single rotor take-off weight: 6kg ~ 8kg
• Product boxed weight: 938g (150 x 150 x 65 mm)

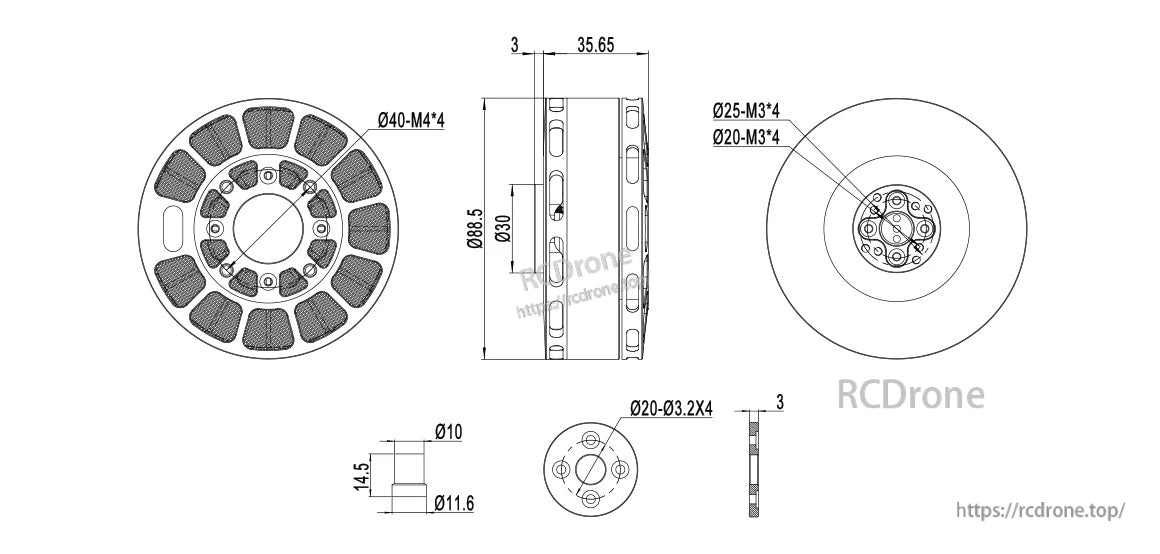

Drawing and Mount Holes

• Motor mounting holes: Ø40-M4*4
• Propeller mounting holes: Ø25-M3*4 and Ø20-M3*4
• Outer diameter reference: Ø88.5
• Length reference: 35.65; end thickness reference: 3
• Additional dimensions shown: Ø10, Ø11.6, 14.5; Ø20-Ø3.2X4

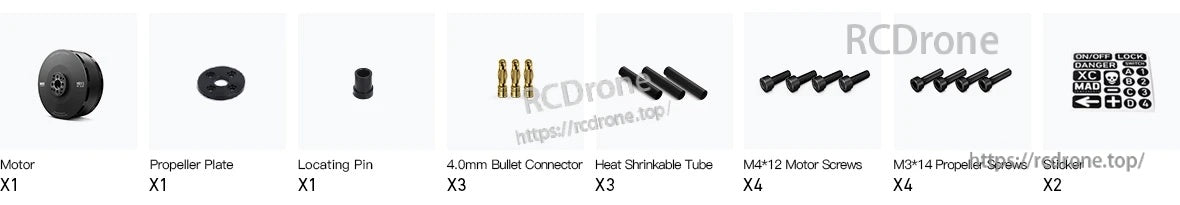

What’s Included

• Motor x1
• Propeller Plate x1
• Locating Pin x1
• 4.0mm Bullet Connector x3
• Heat Shrinkable Tube x3
• M4*12 Motor Screws x4
• M3*14 Propeller Screws x4
• Sticker x2

For compatibility and integration questions (propeller/ESC matching, installation), contact support@rcdrone.top or visit https://rcdrone.top/.

Applications

• eVTOL airframes requiring feathering propeller autocenter behavior after shutdown
• 12S UAV/multirotor propulsion setups (selection depends on KV option and propeller)

Test Charts

The following images contain the full analytical graphs and throttle test data for each KV option.

The MAD V8013 PRO IPE eVTOL motor drawing provides key mounting dimensions and M3/M4 bolt patterns for fitting the propeller hub and frame.

The MAD V8013 PRO motor includes a propeller plate, locating pin, 4.0mm bullet connectors with heat-shrink, and M4 mounting screws for installation.

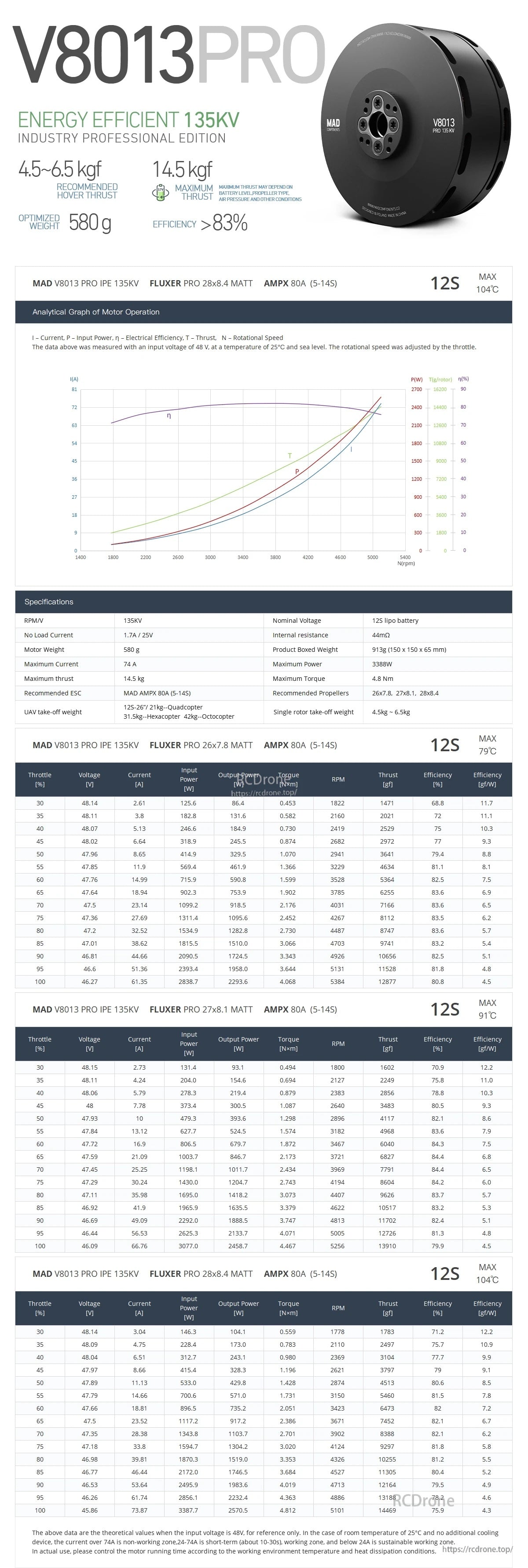

The MAD V8013 PRO eVTOL motor overview lists key figures like 135KV, a 45–65 kg operating range, and a 580 g motor weight for build planning.

MAD V8013 PRO 150KV motor specs list 591 g weight, 12S max input, >80% efficiency, and up to 4.5–6.5 kg max thrust.

Details

The MAD V8013 PRO motor drawing details the mounting pattern with Ø25 M3×4 and Ø20 M3×4 holes and overall dimensions for fit checks.

The MAD V8013 PRO motor kit includes a propeller plate, locating pin, 4.0 mm bullet connectors, heat-shrink tubing, and M4 mounting screws for straightforward installation.

MAD V8013 PRO eVTOL motor specs list 580 g weight, 145 V operation, and efficiency noted above 83%.

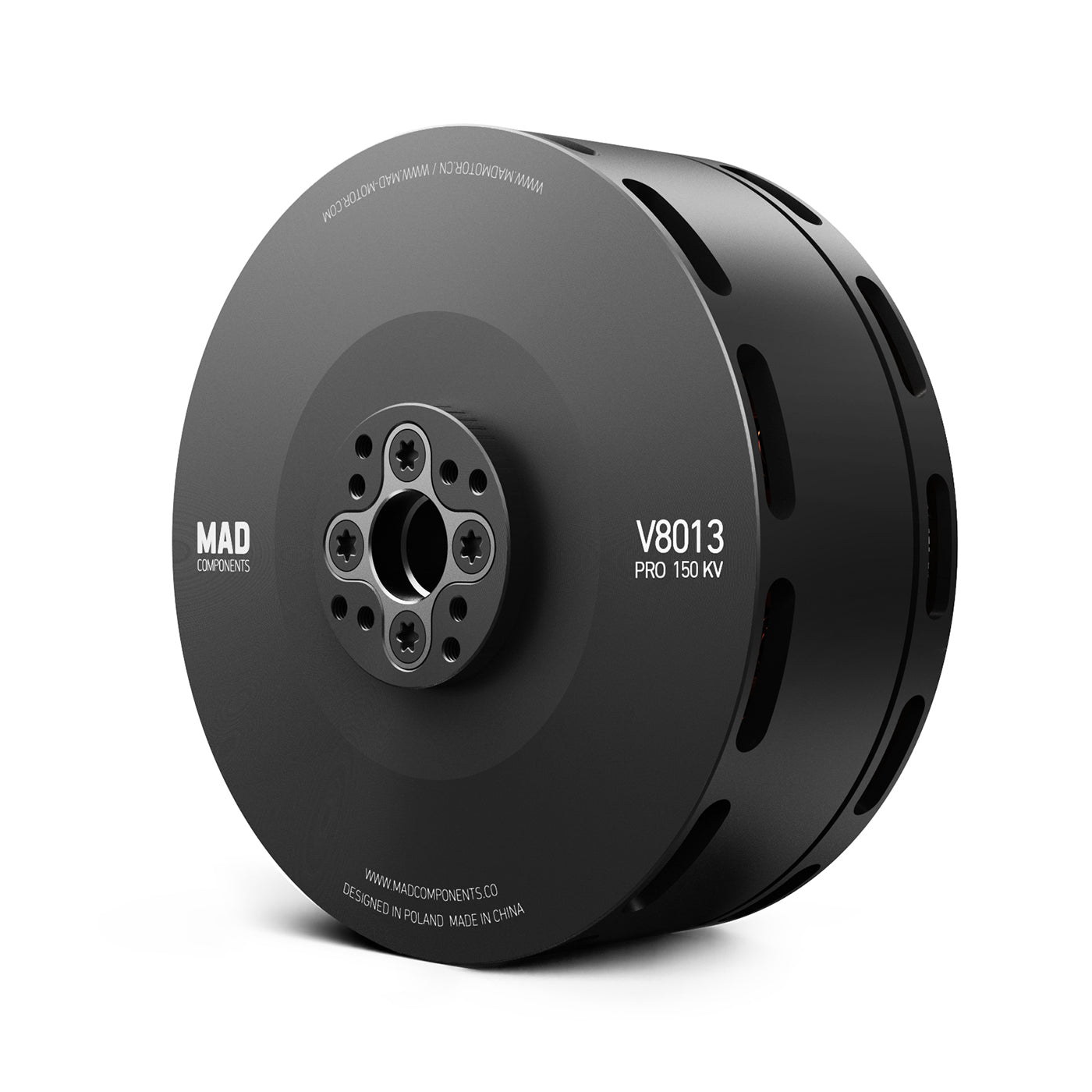

MAD V8013 PRO autocenter eVTOL motor pairs a 150KV rating with up to 15 kg max thrust, 591 g weight, and an IP35 ingress rating.

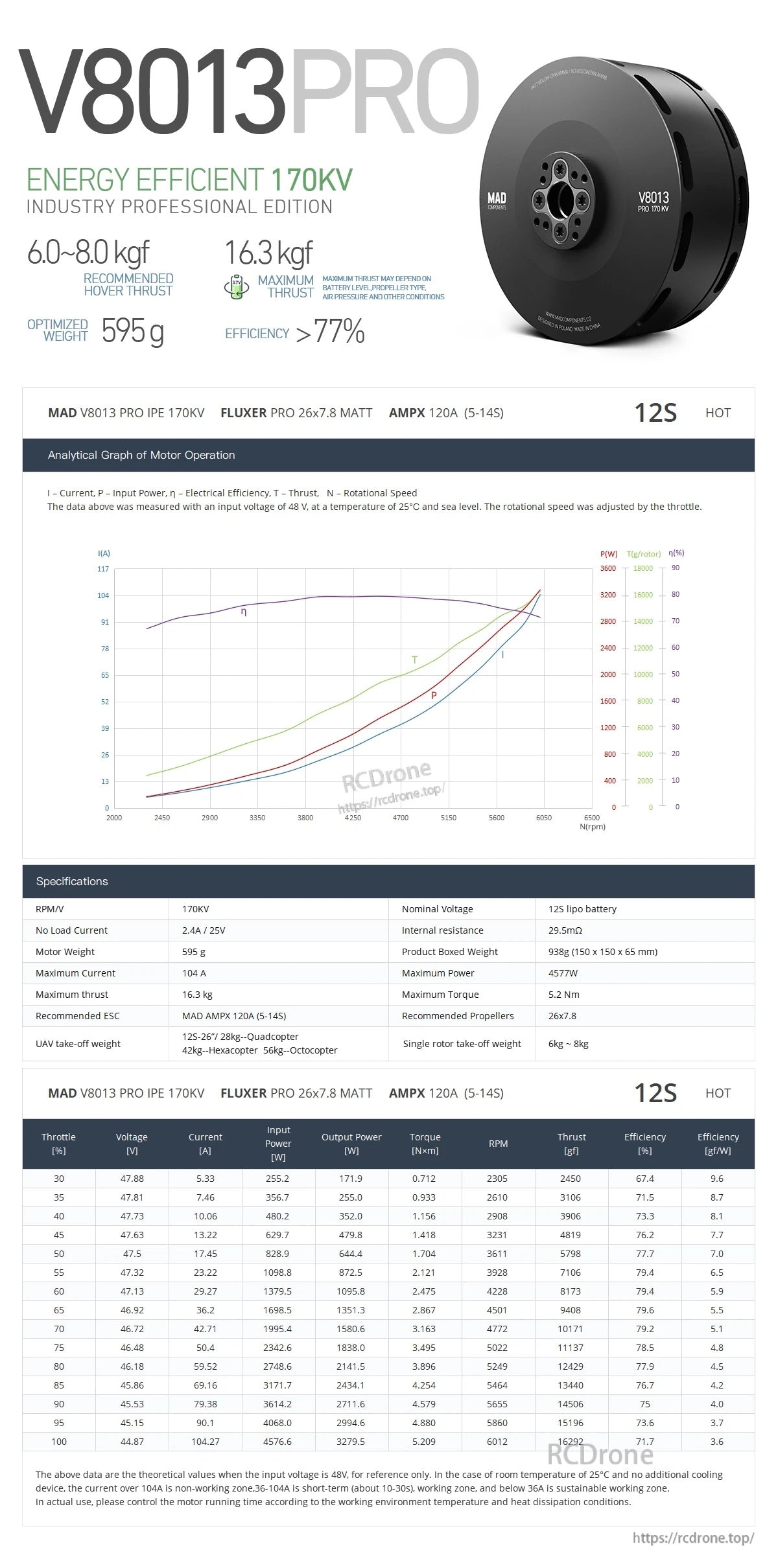

MAD V8013 PRO motor data lists 595 g weight, up to 13.6 kgf max thrust, and efficiency over 77% with a 12S setup.
