MAD X5230 IPE V1.0 230KV Long Shaft eVTOL Airplane Drone Motor, IP35, 575 g, 12 kgf Max Thrust
MAD X5230 IPE V1.0 230KV Long Shaft eVTOL Airplane Drone Motor, IP35, 575 g, 12 kgf Max Thrust
MAD
Couldn't load pickup availability
Overview
MAD X5230 (Long shaft) IPE eVTOL airplane drone motor (Motor Model: MAD X5230 IPE V1.0) is a 230KV motor with 14 pole pairs, IP35 protection, and centrifugal heat dissipation.
Key Features
- KV rating: 230KV (IPE 230KV label)
- Anticorrosive stator
- Centrifugal heat dissipation: YES
- Degree of protection: IP35
- Varnished wire degree: 220°C
- Motor balance: 180°C; ≤10 mg
- Rotor balance: ≤5 mg
Specifications
| Motor Model | MAD X5230 IPE V1.0 |
| KV (RPM/V) | 230 KV |
| Number of pole pairs | 14 |
| Stator | Anticorrosive |
| Varnished wire degree | 220°C |
| Motor size | D:60 x 116.5 mm |
| Degree of protection | IP35 |
| Cable length | 100 mm 14# AWG (Black) silicone |
| Propeller mounting holes | M8 Nut |
| Shaft diameter | IN: 10 mm |
| Motor mounting holes | D:30 M4x4, D:44 M4x4 |
| Bearing | EZO 6900ZZ x1; EZO 6800ZZ x2 |
| Disruptive test | 500 V |
| No-load current | 2.9A / 20V |
| Internal resistance | 22 mΩ |
| Nominal voltage | 10-12S lipo battery |
| Motor weight | 575 g |
| Maximum current | 82.8 A |
| Maximum power | 3445 W |
| Maximum torque | 3.38 Nm |
| Maximum thrust | 12 kgf (label); 12 kg (spec table) |
| Recommended ESC | MAD AMPX 80A (5-14S) |
| Recommended propellers | 20x10, 21x10, 22x10 |
| Single rotor take-off weight | 4 kg - 6 kg |
| Product boxed weight | — |

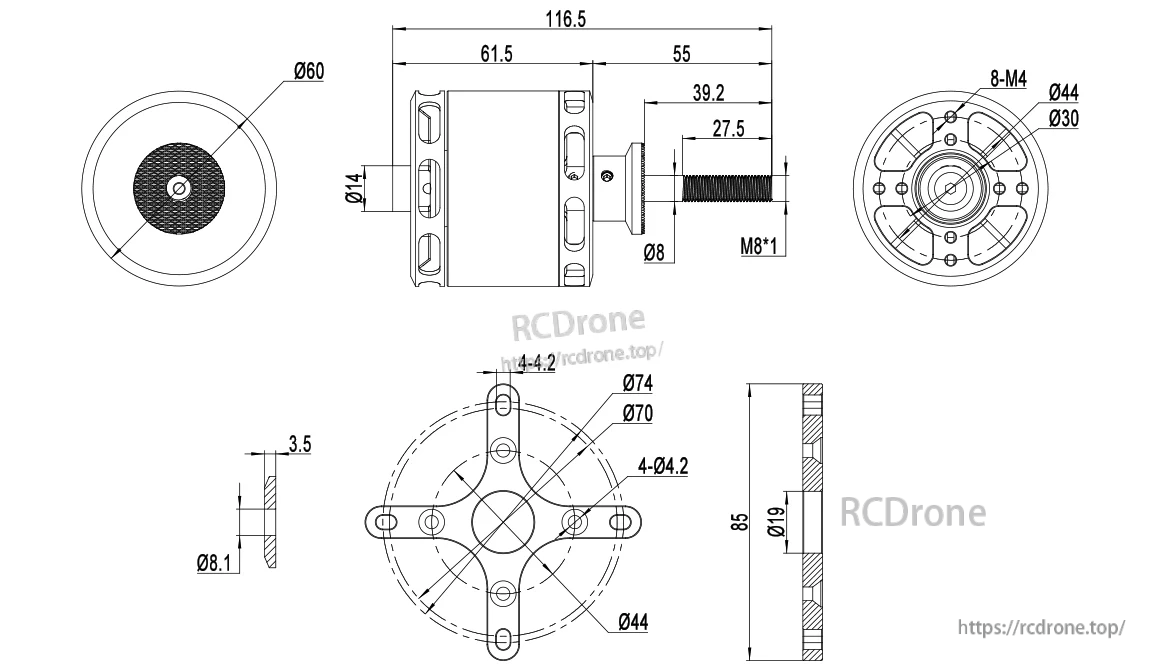

Drawing and Mount Holes
- Body diameter: Ø60
- Overall length: 116.5
- Additional dimensions shown: 61.5, 55, 39.2, 27.5
- Shaft/thread markings shown: Ø8, M8*1
- Mounting pattern shown: 8-M4, Ø44, Ø30
- Additional plate dimensions shown: Ø74, Ø70, 4-Ø4.2, Ø44, 3.5, Ø8.1, 85, Ø19
- Additional marking shown: Ø14

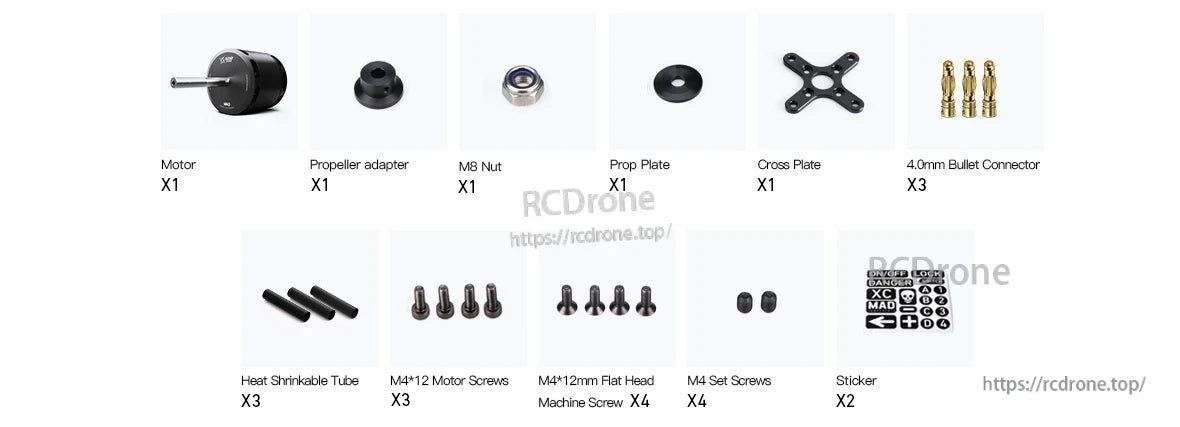

What’s Included
- Motor x1
- Propeller adapter x1
- M8 nut x1
- Prop plate x1
- Cross plate x1
- 4.0mm bullet connector x3
- Heat shrinkable tube x3
- M4*12 motor screws x3
- M4*12mm flat head machine screw x4
- M4 set screws x4
- Sticker x2
For compatibility checks (prop/ESC/battery matching) and build support, contact support@rcdrone.top.

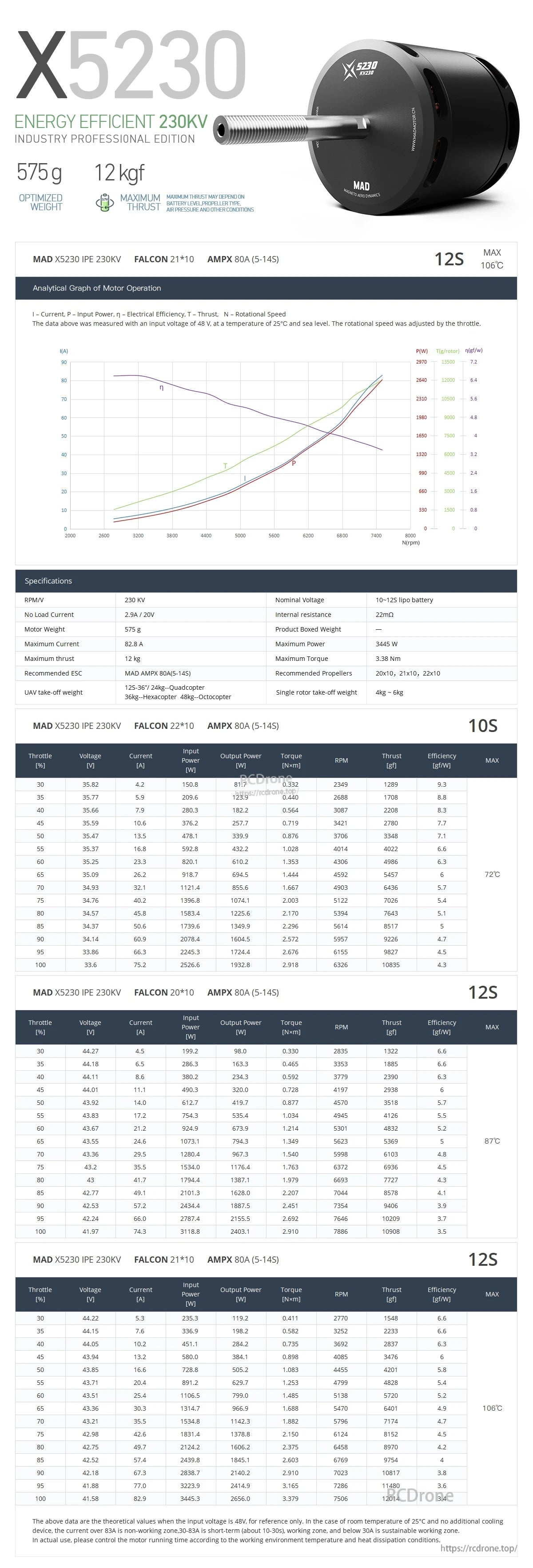

Performance Data (Datasheet)
- Test propeller/ESC combinations listed: FALCON 22*10 (10S), FALCON 20*10 (12S), FALCON 21*10 (12S) with AMPX 80A (5-14S)
- Datasheet notes: input voltage 48 V, temperature 25°C, sea level; rotational speed adjusted by throttle
- Working zone note: over 83A is non-working zone; 30-83A shorter term (about 10-30s) working zone; below 30A sustainable working zone
- Recorded maximum temperatures shown: 72°C (10S), 87°C (12S 20*10), 106°C (12S 21*10)
The MAD X5230 long-shaft motor uses an M8×1 shaft and an 8×M4 mounting pattern, with detailed dimensions for accurate installation.
MAD X5230 IPE V1.0 motor package includes a propeller adapter, mounting plates, bullet connectors, heat-shrink tube, hardware, and stickers for installation.
Details
The MAD X5230 long-shaft motor drawing provides key overall dimensions and the mounting-hole layout for accurate installation.
The MAD X5230 motor package includes a propeller adapter, cross plate mount, M8 nut, prop plate, bullet connectors, screws, heat-shrink tubing, and stickers for installation.
The MAD X5230 IPE 230KV long-shaft motor includes key operating data and specs such as 575 g weight and up to 12 kgf maximum thrust.
