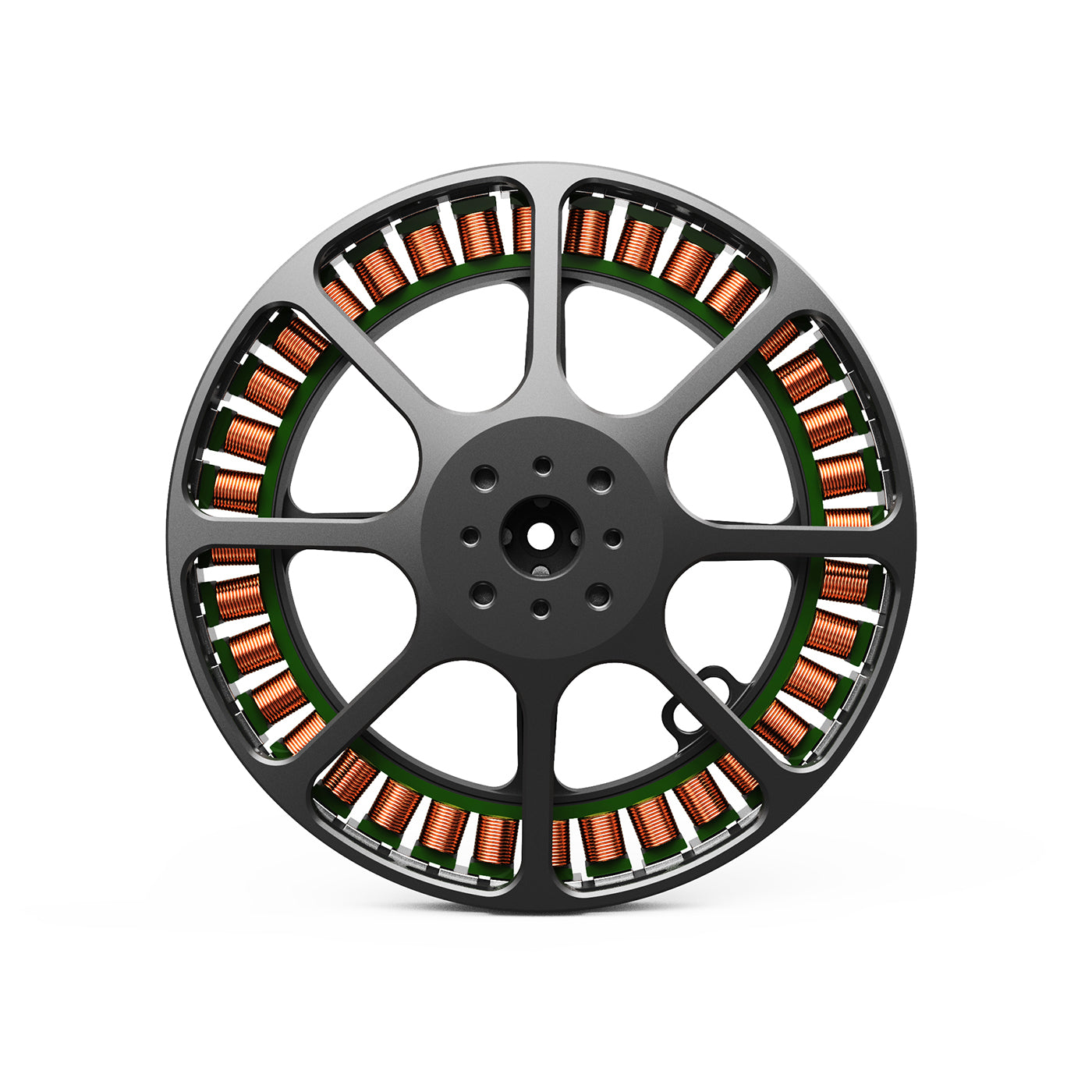

• MAD 1005 EEE 90KV drone motor with open-frame outrunner design and visible copper windings
  • Top view of MAD 1005 EEE 90KV drone motor with circular frame, exposed copper windings, and center mounting holes
  • MAD 1005 EEE 90KV drone motor top view with multi-spoke rotor and exposed copper windings
  • MAD 1005 EEE 90KV Drone Motor, MAD 1005 90KV drone motor with flat circular housing and visible copper windings around the perimeter
  • MAD 1005 EEE 90KV Drone Motor, MAD 1005 EEE 90KV drone brushless motor with black bell housing, exposed copper windings, and mounting holes

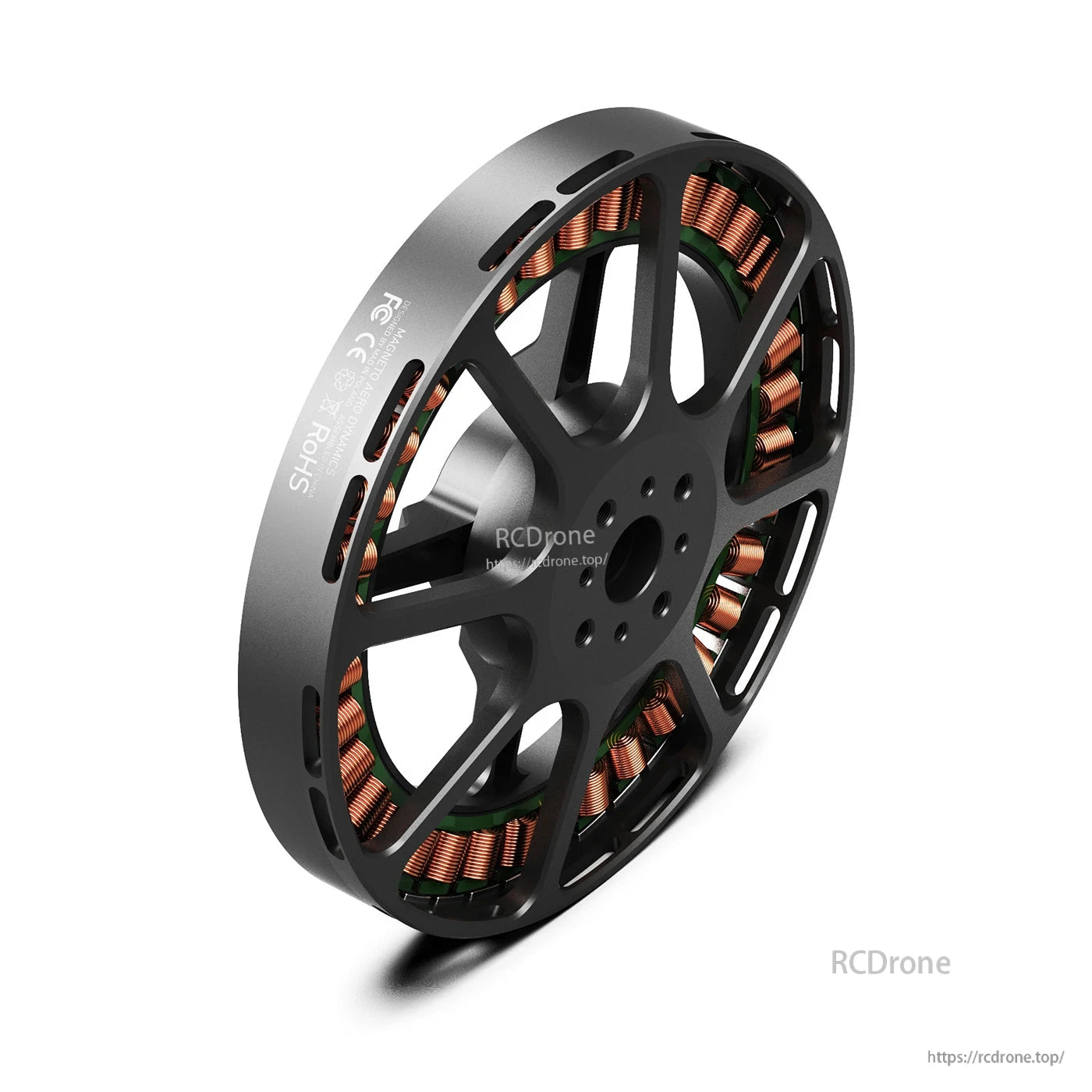

  • MAD 1005 EEE 90KV drone motor with black open-frame housing and exposed copper windings
1 6

MAD 1005 EEE 90KV Drone Motor for 12S, 10.1kg Max Thrust, 279g, 30–32in Prop Support

MAD 1005 EEE 90KV Drone Motor for 12S, 10.1kg Max Thrust, 279g, 30–32in Prop Support

MAD

$267.00 USD
$267.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
KV OPTION
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

MAD 1005 EEE is a 90KV drone motor designed for 12S power systems, targeting sustained thrust of 3.5~4.5kg and up to 10.1kg maximum thrust (test conditions can vary). The motor weight is 279g and it is intended for use with 30–32 inch propellers.

Sustained thrust 3.5~4.5kg
Max thrust 10.1kg
Support voltage 90KV/12S
Weight 279g

Key Features

  • Positioning: high-efficiency motor built for 3.5–4.5 kg single-axis payloads with 32-inch carbon fiber propellers
  • Up to 10.1 kg maximum thrust
  • 12 g/W efficiency at 3 kg thrust with 30–32 inch propellers
  • Motor weight: 279 g; imported aerospace-grade aluminum (as stated)
  • Service life: over 1000 hours (as stated)
  • Recommended ESC (as stated): FOC 60A 12S; MAD AMPX 40A (5-14S)
  • Label text: “ENERGY EFFICIENT 90KV”, “ENTHUSIASTS EXTREME EDITION”, “EFFICIENCY >82%”

Specifications

Motor model MAD1005 EEE
KV (RPM/V) 90 KV
Nominal voltage 12S
No load current 0.9A / 30V
Internal resistance 144mΩ
Motor weight 279 g
Product boxed weight 650 g (200 x 150 x 70mm)
Maximum current 34 A
Maximum power 1636 W
Maximum torque 3.9 Nm
Maximum thrust 10.1 kg
Single rotor take-off weight 3.5kg - 4.5kg
UAV take-off weight (as listed) 12S-32"/14kg-Quadcopter; 21kg-Hexacopter; 28kg-Octocopter
Number of pole pairs 21
Stator TAIWAN / Anticorrosive
Varnished wire degree 180°C
Magnet degree 150°C
Degree of protection Rain protection
Cable length 100 mm 16# Awg(Black) silicone
Centrifugal heat dissipation Independent
Rotor balance ≤5 mg
Motor balance ≤10 mg
Bearing EZO 6803ZZ*2; EZO 6706-2RU
Disruptive test 500 V
Recommended ESC MAD AMPX 40A (5-14S); (also stated: FOC 60A 12S)
Recommended propellers (as listed) 30x10; CB2 PRO 30x10.5; 32x9.6; CB2 PRO 32x11

Drawing and Mount Holes

Motor size D:107 × 22.5mm
Dimension marking 5.1
Dimension marking 100
Propeller mounting holes D:20 M3×4; D:23 M4×4
Motor mounting holes D:32 M4×4
Shaft diameter IN: 17mm
Additional hole/diameter marking Ø20-Ø3.2×4; Ø6
Additional dimensions shown 14.5; 10; 11.6

Performance Data (Reference)

Analytical graph label text: “Analytical Graph of Motor Operation”. Legend: I - Current, P - Input Power, η - Electrical Efficiency, T - Thrust, N - Rotational Speed. Measurement note: measured with an input voltage of 48 V, at a temperature of 25°C and at sea level; rotational speed adjusted by the throttle. Note: maximum thrust may depend on battery level, propeller type, air pressure and other conditions.

Operating note (as provided): The above data are the theoretical values when the input voltage is 48V, for reference only. In the case of room temperature of 25°C and no additional cooling device, the current over 34A is non-working zone, 8-34A is short-term (about 10-30s) working zone, and below 8A is sustainable working zone. In actual use, please control the motor running time according to the working environment temperature and heat dissipation conditions.

Test Table: FLUXER PRO 30x10 MATT + AMPX 40A (5-14S), 12S

Throttle [%] Voltage [V] Current [A] Input Power [W] Output Power [W] Torque [N*m] RPM Thrust [gf] Efficiency [%] Efficiency [gf/W]
30 48.23 1.50 72.5 55.7 0.440 1209 1209 76.80 16.7
32 48.24 1.86 89.6 65.9 0.490 1285 1356 73.57 15.1
34 48.26 2.03 97.7 73.9 0.520 1358 1465 75.67 15.0
36 48.24 2.33 112.5 86.8 0.580 1429 1613 77.11 14.3
38 48.22 2.58 124.3 98.8 0.630 1498 1747 79.52 14.1
40 48.22 3.01 145.0 113.1 0.690 1565 1960 78.01 13.5
42 48.21 3.35 161.7 128.9 0.750 1641 2104 79.71 13.0
44 48.23 3.74 180.5 146.9 0.820 1710 2317 81.37 12.8
46 48.24 4.30 207.2 167.9 0.900 1781 2571 81.03 12.4
48 48.18 4.83 232.8 190.0 0.980 1851 2765 81.61 11.9
50 48.21 5.19 250.1 205.8 1.020 1927 2877 82.31 11.5
52 48.18 5.80 279.5 230.2 1.100 1999 3104 82.38 11.2
54 48.17 6.44 310.2 253.4 1.170 2068 3319 81.70 10.7
56 48.16 7.05 339.5 289.8 1.300 2129 3704 85.37 10.9
58 48.18 7.64 368.1 311.8 1.350 2206 3807 84.72 10.3
60 48.17 8.30 400.0 342.1 1.440 2268 4069 85.52 10.2
62 48.14 9.21 443.6 373.2 1.530 2331 4361 84.18 9.8
64 48.15 9.72 468.2 395.3 1.570 2405 4429 84.45 9.5
66 48.12 10.69 514.5 432.5 1.680 2459 4795 84.07 9.3
68 48.12 11.53 554.9 467.4 1.770 2522 5056 84.23 9.1
70 48.12 12.43 598.2 507.7 1.880 2579 5357 84.87 9.0
80 48.08 17.39 836.1 707.6 2.360 2863 6797 84.63 8.1
90 48.03 22.62 1086.3 906.6 2.750 3149 7732 83.49 7.1
100 48.04 28.44 1366.4 1125.1 3.200 3358 9205 82.34 6.7

Test Table: CB2 PRO 30x10.5 MATT + AMPX 40A (5-14S), 12S

Throttle [%] Voltage [V] Current [A] Input Power [W] Output Power [W] Torque [N*m] RPM Thrust [gf] Efficiency [%] Efficiency [gf/W]
30 48.20 1.48 71.5 52.7 0.430 1170 1111 73.70 15.5
32 48.20 1.68 80.8 62.4 0.480 1241 1254 77.23 15.5
34 48.20 2.01 96.8 72.8 0.530 1312 1393 75.19 14.4
36 48.18 2.29 110.1 85.3 0.590 1381 1575 77.48 14.3
38 48.18 2.61 125.8 100.1 0.660 1449 1761 79.61 14.0
40 48.21 2.99 144.1 113.9 0.720 1511 1939 79.05 13.5
42 48.20 3.34 160.7 130.6 0.790 1579 2123 81.30 13.2
44 48.16 3.75 180.5 148.3 0.860 1647 2306 82.14 12.8
46 48.19 4.25 204.6 167.9 0.930 1717 2481 81.74 12.1
48 48.19 4.69 225.7 186.9 1.000 1785 2699 82.84 12.0
50 48.14 5.13 246.7 207.6 1.070 1853 2889 84.15 11.8
52 48.15 5.73 275.7 233.3 1.160 1921 3131 84.62 11.6
54 48.10 6.34 304.8 257.9 1.240 1986 3365 84.60 11.4
56 48.09 7.02 337.7 283.8 1.320 2053 3574 84.05 10.8
58 48.09 7.57 363.9 309.8 1.400 2113 3780 85.15 10.5
60 48.11 8.32 400.3 340.3 1.490 2181 4034 85.02 10.2
62 48.09 9.14 439.6 375.2 1.600 2240 4336 85.38 9.9
64 48.08 9.97 479.3 405.4 1.680 2304 4513 84.58 9.4
66 48.05 10.79 518.4 437.8 1.770 2362 4791 84.44 9.2
68 48.07 11.57 556.3 473.7 1.870 2419 5057 85.14 9.1
70 48.08 12.44 598.2 506.0 1.950 2478 5280 84.58 8.8
80 48.00 17.32 831.6 701.3 2.430 2756 6547 84.34 7.9
90 47.96 23.38 1121.5 926.8 2.950 3000 8014 82.64 7.1
100 47.93 29.14 1396.6 1130.5 3.370 3204 9177 80.95 6.6

Test Table: FLUXER PRO 32x9.6 MATT + AMPX 40A (5-14S), 12S

Throttle [%] Voltage [V] Current [A] Input Power [W] Output Power [W] Torque [N*m] RPM Thrust [gf] Efficiency [%] Efficiency [gf/W]
30 48.18 1.66 79.8 66.4 0.550 1154 1319 83.29 16.5
32 48.16 2.01 97.0 79.5 0.620 1225 1483 81.99 15.3
34 48.18 2.31 111.3 92.1 0.680 1293 1656 82.76 14.9
36 48.18 2.63 126.7 106.8 0.750 1360 1835 84.33 14.5
38 48.17 3.10 149.1 122.4 0.820 1426 2030 82.12 13.6
40 48.17 3.52 169.3 138.7 0.890 1488 2213 81.91 13.1
42 48.14 3.88 187.0 157.8 0.970 1553 2408 84.37 12.9
44 48.17 4.31 207.4 178.3 1.050 1619 2605 85.86 12.6
46 48.15 4.87 234.5 199.5 1.130 1686 2856 85.11 12.2
48 48.10 5.40 259.8 225.9 1.230 1753 3087 86.93 11.9
50 48.08 6.08 292.1 249.0 1.310 1815 3304 85.25 11.3
52 48.06 6.81 327.2 275.6 1.400 1880 3550 84.23 10.8
54 48.04 7.42 356.5 305.2 1.500 1943 3804 85.61 10.7
56 48.04 8.24 395.6 335.7 1.600 2004 4079 84.87 10.3
58 48.01 8.97 430.6 365.7 1.690 2066 4311 84.92 10.0
60 48.00 9.90 474.9 398.0 1.790 2123 4582 83.80 9.6
62 48.00 10.62 509.7 431.9 1.890 2182 4860 84.73 9.5
64 47.97 11.52 552.4 469.3 2.000 2241 5129 84.95 9.3
68 47.96 13.45 645.2 544.2 2.210 2352 5682 84.35 8.8
70 47.97 14.32 686.9 582.1 2.310 2406 5948 84.74 8.7
80 47.91 19.90 953.5 793.9 2.850 2660 7381 83.26 7.7
90 47.82 26.46 1265.4 1022.6 3.380 2889 8856 80.81 7.0
100 47.82 32.94 1575.2 1226.5 3.820 3066 10084 77.87 6.4

Test Table: CB2 PRO 32x11 MATT + AMPX 40A (5-14S), 12S

Throttle [%] Voltage [V] Current [A] Input Power [W] Output Power [W] Torque [N*m] RPM Thrust [gf] Efficiency [%] Efficiency [gf/W]
30 48.19 1.76 84.8 68.3 0.570 1145 1341 80.63 15.8
32 48.18 1.99 95.9 81.4 0.640 1214 1532 84.86 16.0
34 48.18 2.42 116.5 95.4 0.710 1284 1730 81.92 14.9
36 48.18 2.76 133.0 110.1 0.780 1349 1908 82.84 14.4
38 48.17 3.15 151.6 127.3 0.860 1413 2121 83.91 14.0
40 48.19 3.58 172.3 143.6 0.930 1474 2311 83.34 13.4
42 48.16 4.02 193.6 161.2 1.000 1540 2507 83.30 13.0
44 48.14 4.56 219.7 183.4 1.090 1607 2731 83.49 12.4
46 48.17 5.01 241.2 206.6 1.180 1672 2951 85.66 12.2
48 48.13 5.65 272.1 229.3 1.260 1738 3185 84.28 11.7
50 48.14 6.28 302.4 255.0 1.350 1803 3422 84.30 11.3
52 48.11 6.99 336.3 281.5 1.440 1867 3663 83.72 10.9
54 48.10 7.70 370.1 313.2 1.550 1929 3947 84.61 10.7
56 48.13 8.42 405.3 341.7 1.640 1990 4203 84.31 10.5
58 48.10 9.35 450.0 377.6 1.760 2049 4541 83.91 10.2
60 48.09 10.25 492.8 413.7 1.870 2112 4810 83.94 9.8
62 48.09 10.99 528.2 442.3 1.950 2168 4969 83.82 9.4
64 48.08 11.91 572.5 481.6 2.070 2222 5295 84.11 9.2
66 48.06 12.96 622.9 519.9 2.180 2277 5599 83.45 9.0
68 48.06 13.93 669.7 556.4 2.280 2330 5848 83.09 8.7
70 48.04 15.04 722.8 599.2 2.400 2384 6135 82.91 8.5
80 47.99 20.57 986.9 805.8 2.920 2635 7534 81.65 7.6
90 47.96 27.84 1335.2 1045.9 3.520 2837 9099 78.33 6.8
100 47.92 34.13 1635.6 1240.2 3.920 3021 10142 75.83 6.2

For product selection help or integration support (prop/ESC matching, power system setup), contact support@rcdrone.top or visit https://rcdrone.top/.

Applications

  • Long-endurance UAVs
  • Drones carrying mid-to-heavy payloads
  • Efficient, durable propulsion builds using 30–32 inch propellers

Details

MAD 1005 EEE Drone Motor

The MAD 1005 EEE 90KV motor uses a Ø107mm round housing with M4 and M3 mounting hole patterns for straightforward frame fitment.

MAD 1005 EEE Drone Motor

MAD 1005 Energy Efficient 90KV motor performance data includes a thrust curve, 12S max voltage, and detailed test tables for setup planning.

MAD 1005 EEE Drone Motor

MAD 1005 EEE 90KV motor test data lists throttle, voltage, current, RPM, thrust, and efficiency on 12S using a FUXLER PRO 32-96 prop and APMAX 40A ESC.

MAD 1005 EEE Drone Motor

MAD 1005 EEE 90KV motor performance data is listed across throttle settings with RPM, thrust, torque, and efficiency, tested on 12S.
