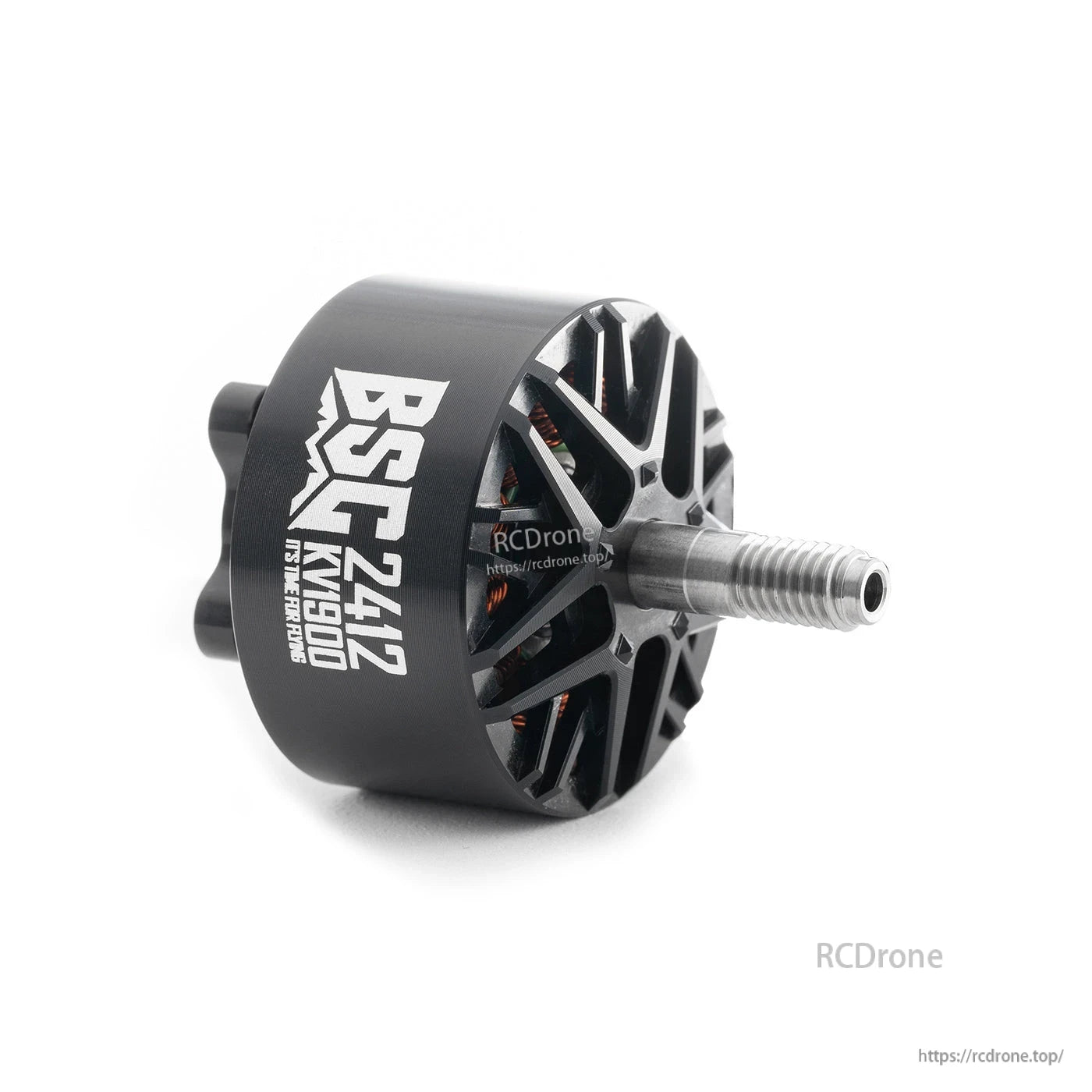

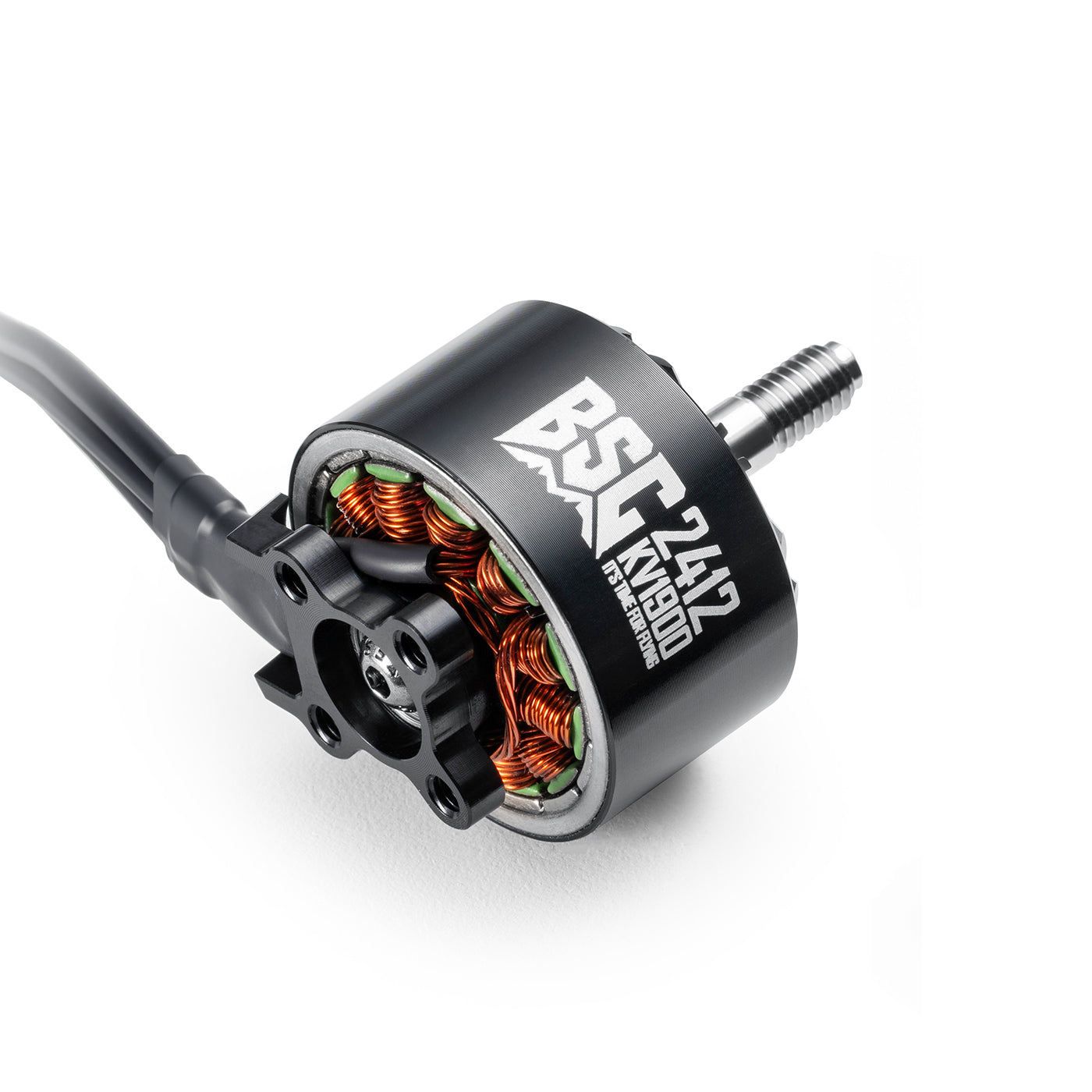

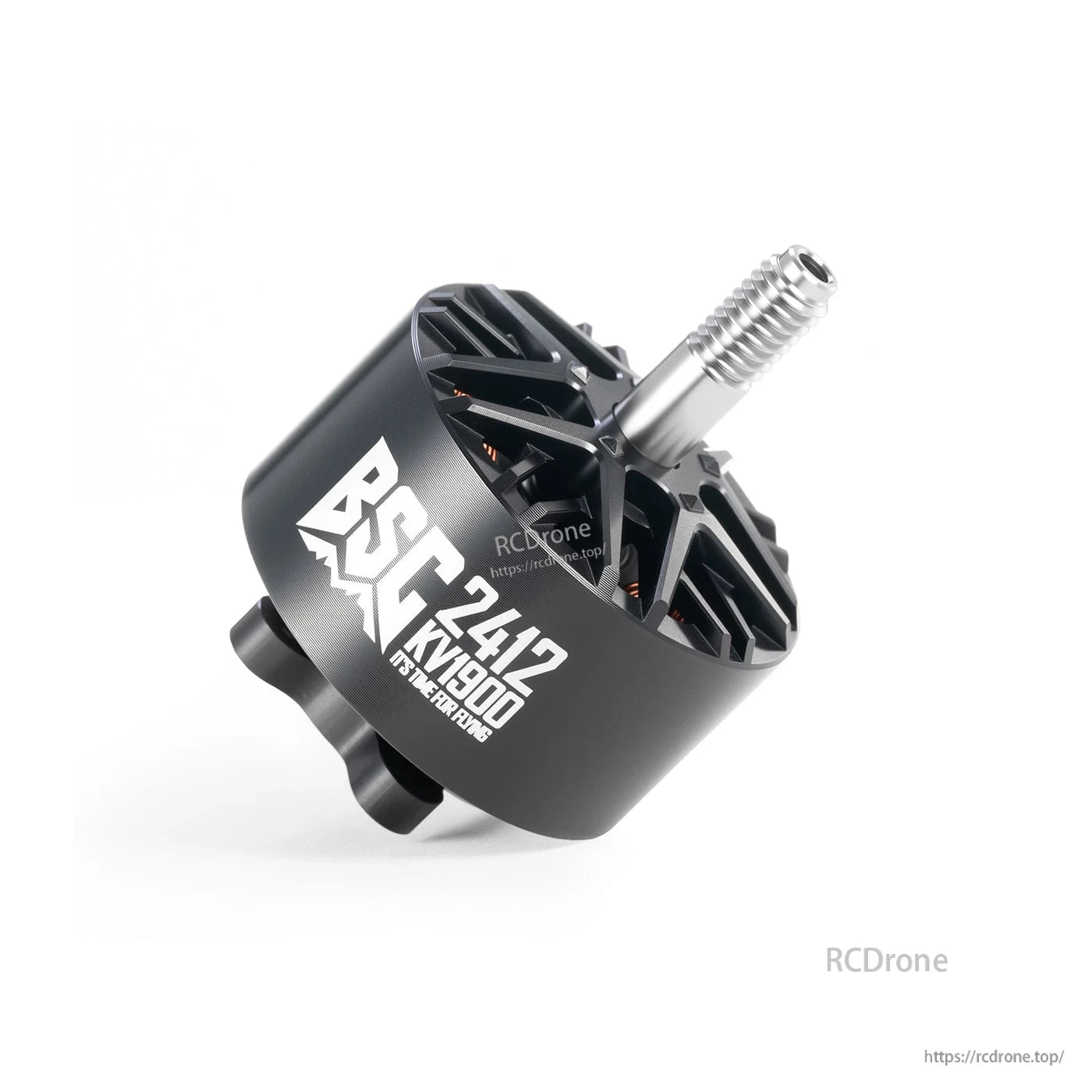

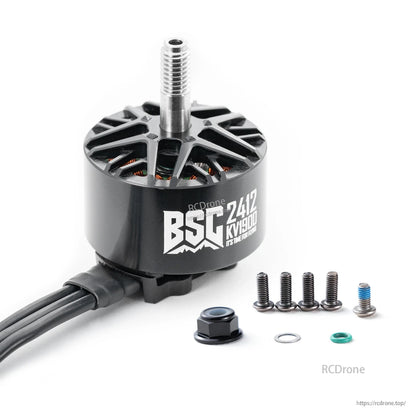

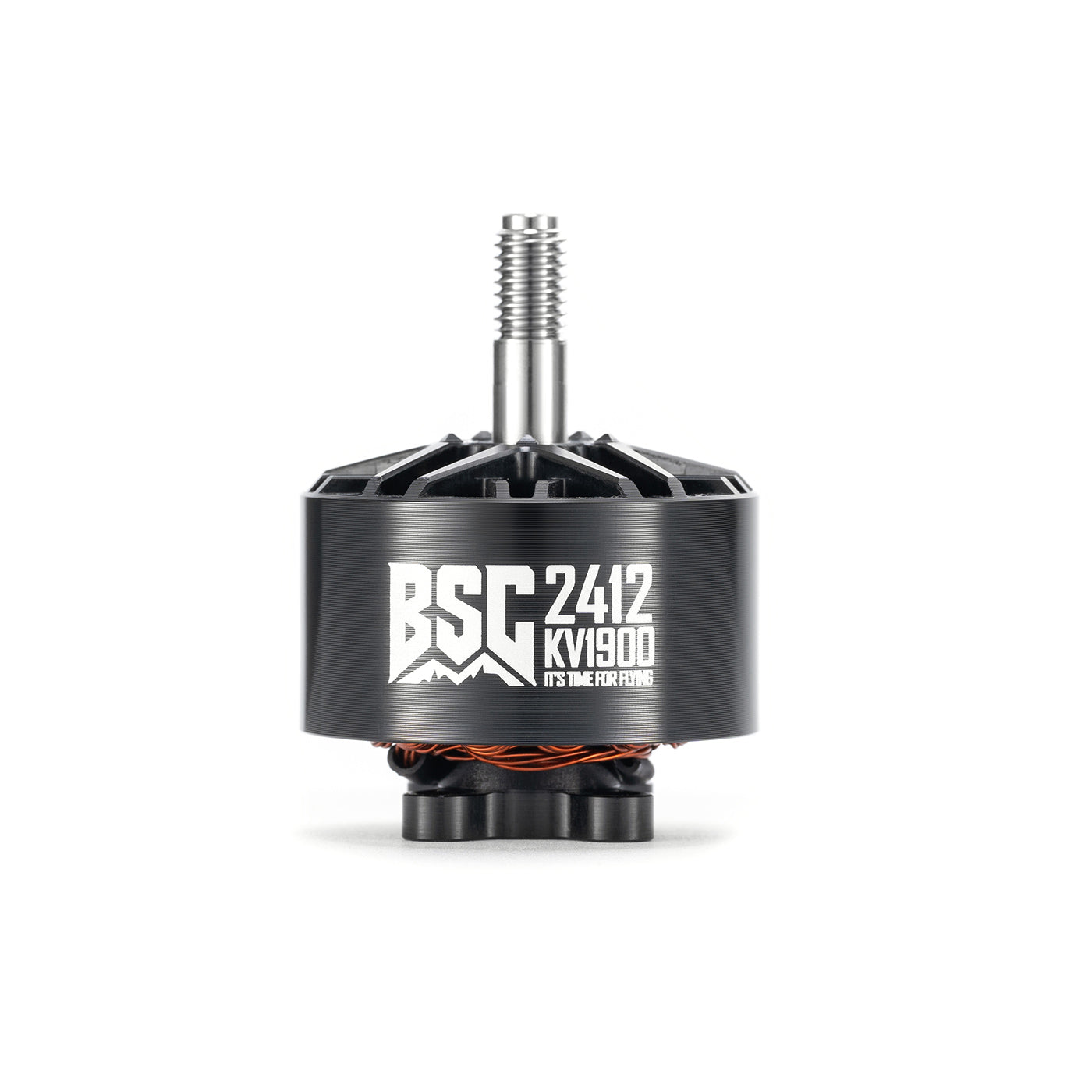

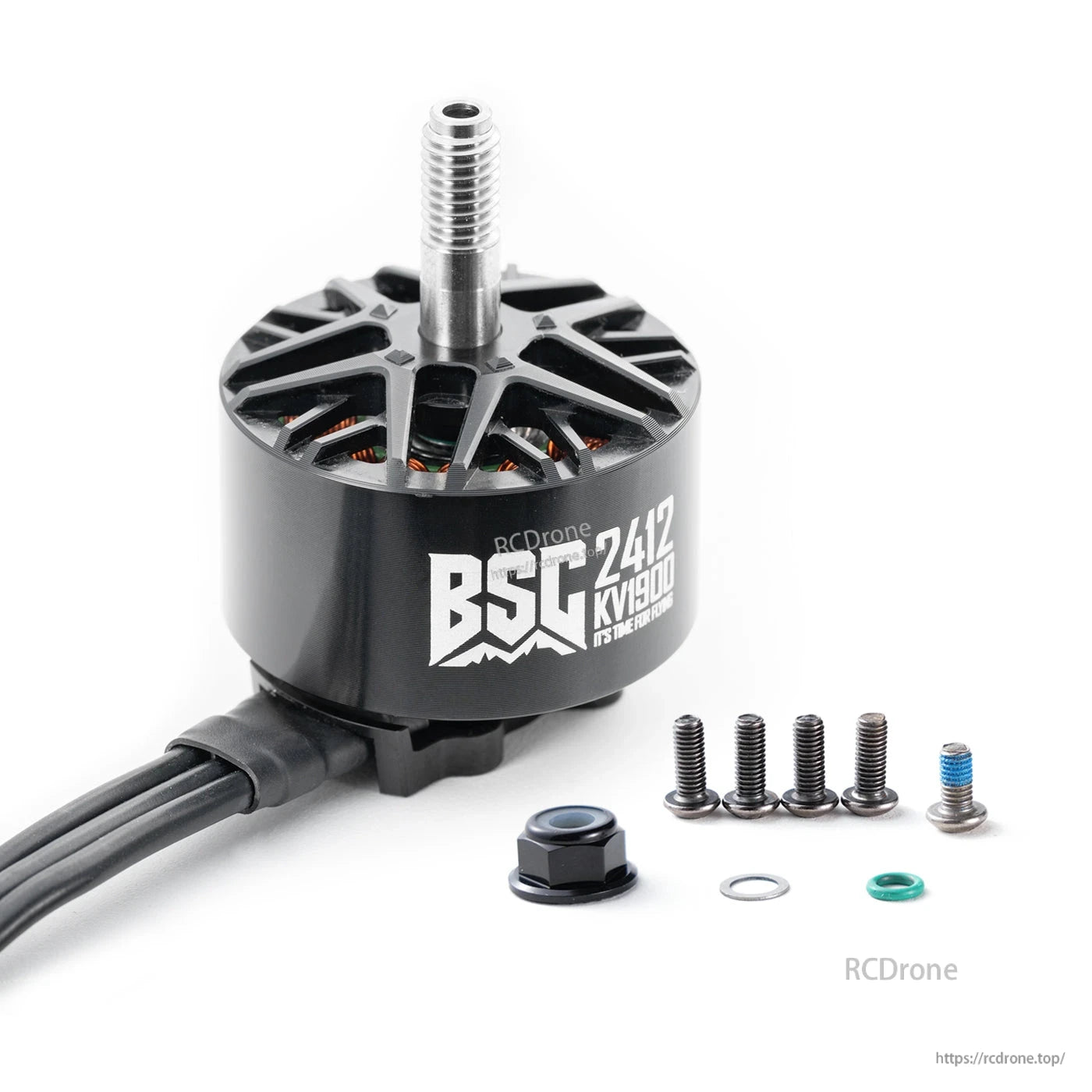

MAD BSC2412 V1.0 1900KV Brushless FPV Drone Motor (12N14P) M5 Nut, 4mm Shaft, 8S Test Data

MAD

$39.75 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

KV OPTION 1900KV

Quantity

View full details

Overview

MAD BSC2412 is a brushless FPV drone motor rated at 1900KV, designed for efficient power delivery. The motor weight is 61 g, with a stated maximum thrust up to 2.7 kgf (performance depends on setup and conditions).

Key Features

1900KV motor
Optimized weight: 61 g
Maximum thrust: up to 2.7 kgf (may depend on battery level, propeller type, air pressure, and other conditions)

Specifications

Motor model	MAD BSC2412 V1.0
KV (RPM/V)	1900 KV
Motor number of slots	12N14P
Motor size	D: 30 x 40.3 mm
Rotor balance	<= 5 mg
Propeller mounting holes	M5 Nut
Motor balance	D:16 M3 x 4
Shaft diameter	IN: 4 mm
Cable length	200 mm 18# Awg (Black) silicone
No load current	2.4A / 10V
Maximum current	75 A
Internal resistance	20.5 mΩ
Maximum thrust	2.7 kg
Maximum power	2212 W
Motor weight	61 g
Product boxed weight	74 g

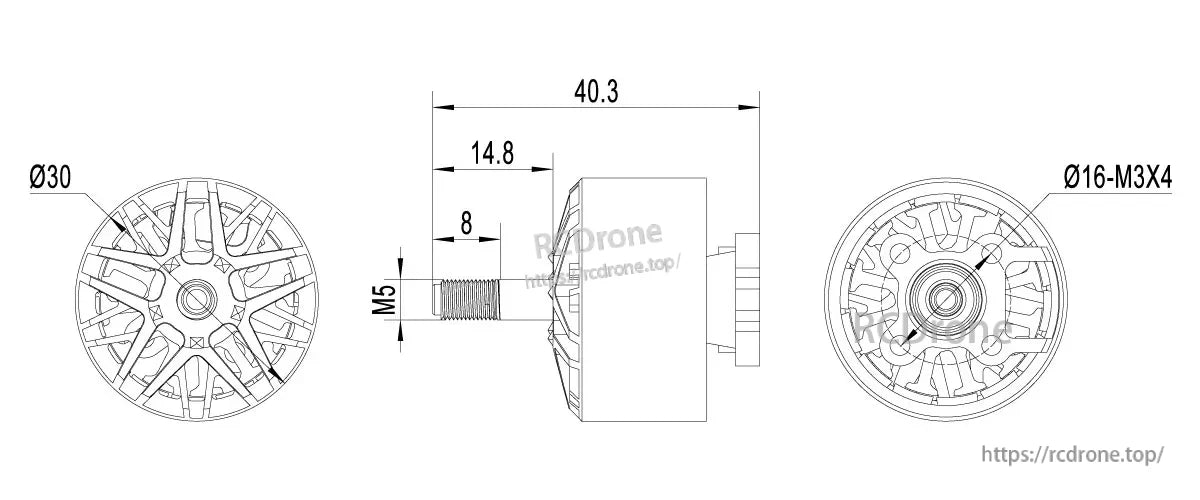

Drawing Dimensions (as labeled)

Ø30
40.3
14.8
8
M5
Ø16-M3X4

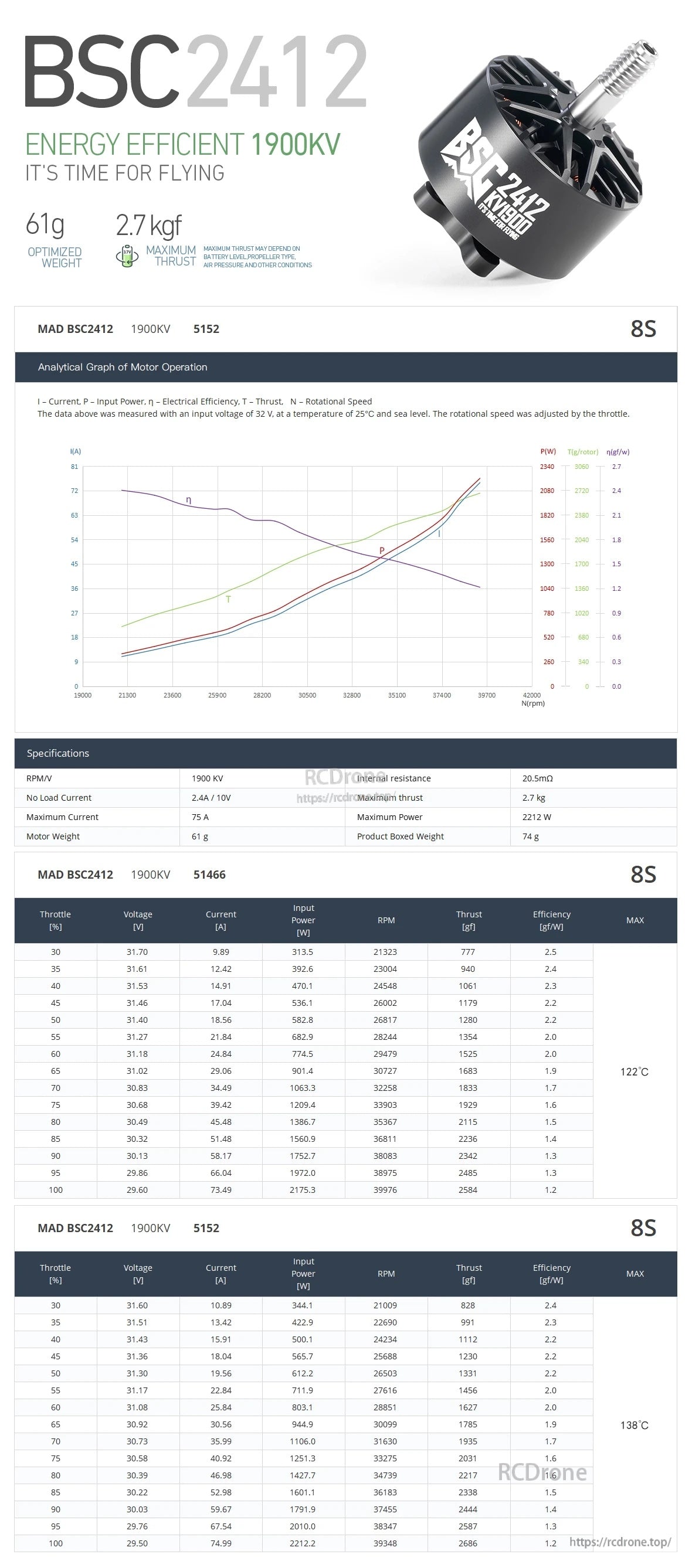

8S Test Notes

Analytical graph legend: I = Current, P = Input Power, η = Electrical Efficiency, T = Thrust, n = Rotational Speed. Measurement conditions: input voltage 32 V, temperature 25°C, sea level. Rotational speed was adjusted by the throttle.

8S Performance Data (MAD BSC2412 1900KV 51466)

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	RPM	Thrust [gf]	Efficiency [gf/W]
30	31.70	9.89	313.5	21323	777	2.5
35	31.61	12.42	392.6	23004	940	2.4
40	31.53	14.91	470.1	24548	1061	2.3
45	31.46	17.04	536.1	26002	1179	2.2
50	31.40	18.56	582.8	26817	1280	2.2
55	31.27	21.84	682.9	28244	1354	2.0
60	31.18	24.84	774.5	29479	1525	2.0
65	31.02	29.06	901.4	30727	1683	1.9
70	30.83	34.49	1063.3	32258	1833	1.7
75	30.68	39.42	1209.4	33903	1929	1.6
80	30.49	45.48	1386.7	35367	2115	1.5
85	30.32	51.48	1560.9	36811	2236	1.4
90	30.13	58.17	1752.7	38083	2342	1.3
95	29.86	66.04	1972.0	38975	2485	1.3
100	29.60	73.49	2175.3	39976	2584	1.2

MAX: 122°C

8S Performance Data (MAD BSC2412 1900KV 5152)

Throttle [%]	Voltage [V]	Current [A]	Input Power [W]	RPM	Thrust [gf]	Efficiency [gf/W]
30	31.60	10.89	344.1	21009	828	2.4
35	31.51	13.42	422.9	22690	991	2.3
40	31.43	15.91	500.1	24234	1112	2.2
45	31.36	18.04	565.7	25688	1230	2.2
50	31.30	19.56	612.2	26503	1331	2.2
55	31.17	22.84	711.9	27616	1456	2.0
60	31.08	25.84	803.1	28851	1627	2.0
65	30.92	30.56	944.9	30099	1785	1.9
70	30.73	35.99	1106.0	31630	1935	1.7
75	30.58	40.92	1251.3	33275	2031	1.6
80	30.39	46.98	1427.7	34739	2217	1.5
85	30.22	52.98	1601.1	36183	2338	1.5
90	30.03	59.67	1791.9	37455	2444	1.4
95	29.76	67.54	2010.0	38347	2587	1.3
100	29.50	74.99	2212.2	39348	2686	1.2
