MAD VC Voyager Carbon Series Carbon Fiber Propeller 18x12-R / 18x14-R (Right) CF+Epoxy - 1pc

MAD

$90.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Rotation Direction R

Pitch 18x12 18x14

Quantity

View full details

Overview

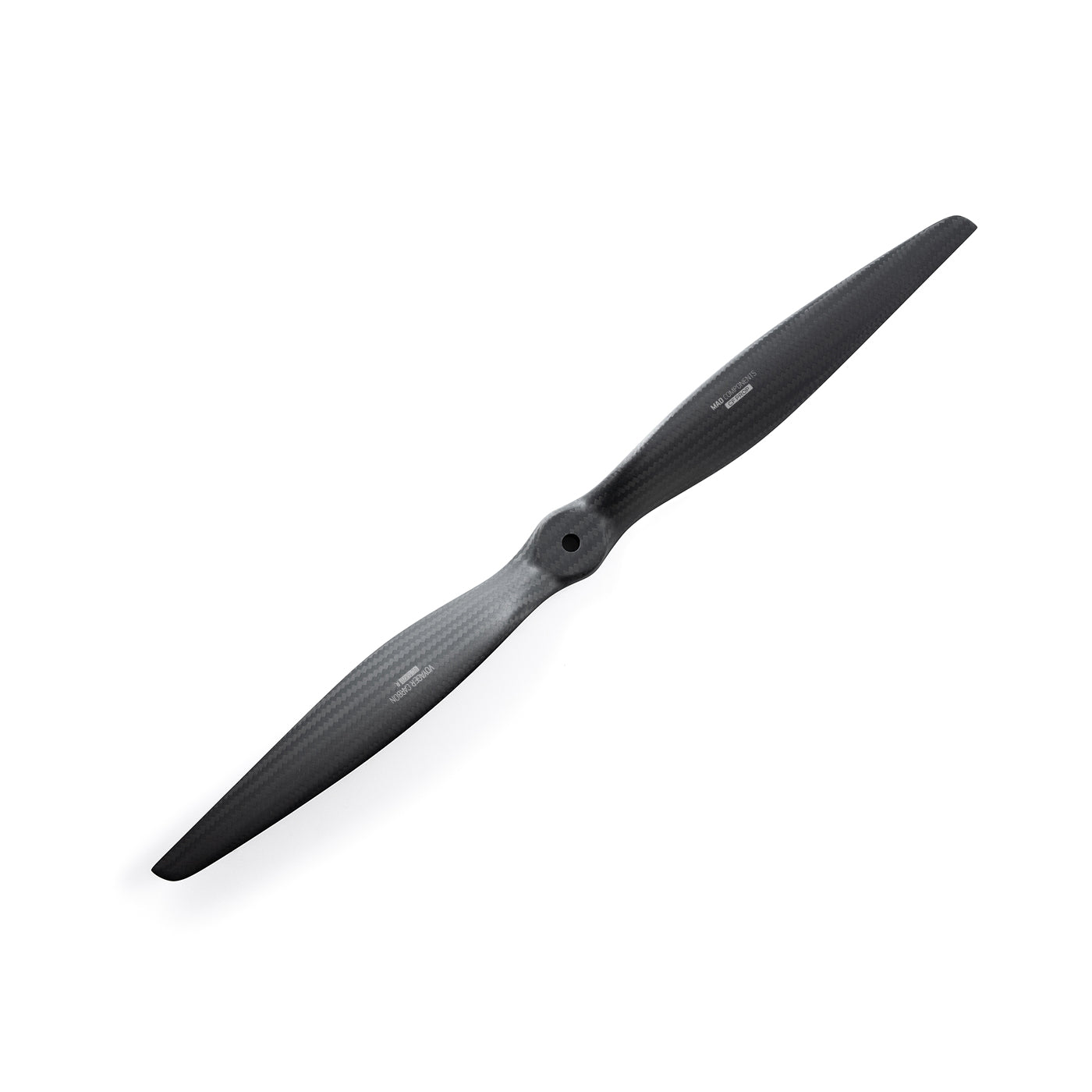

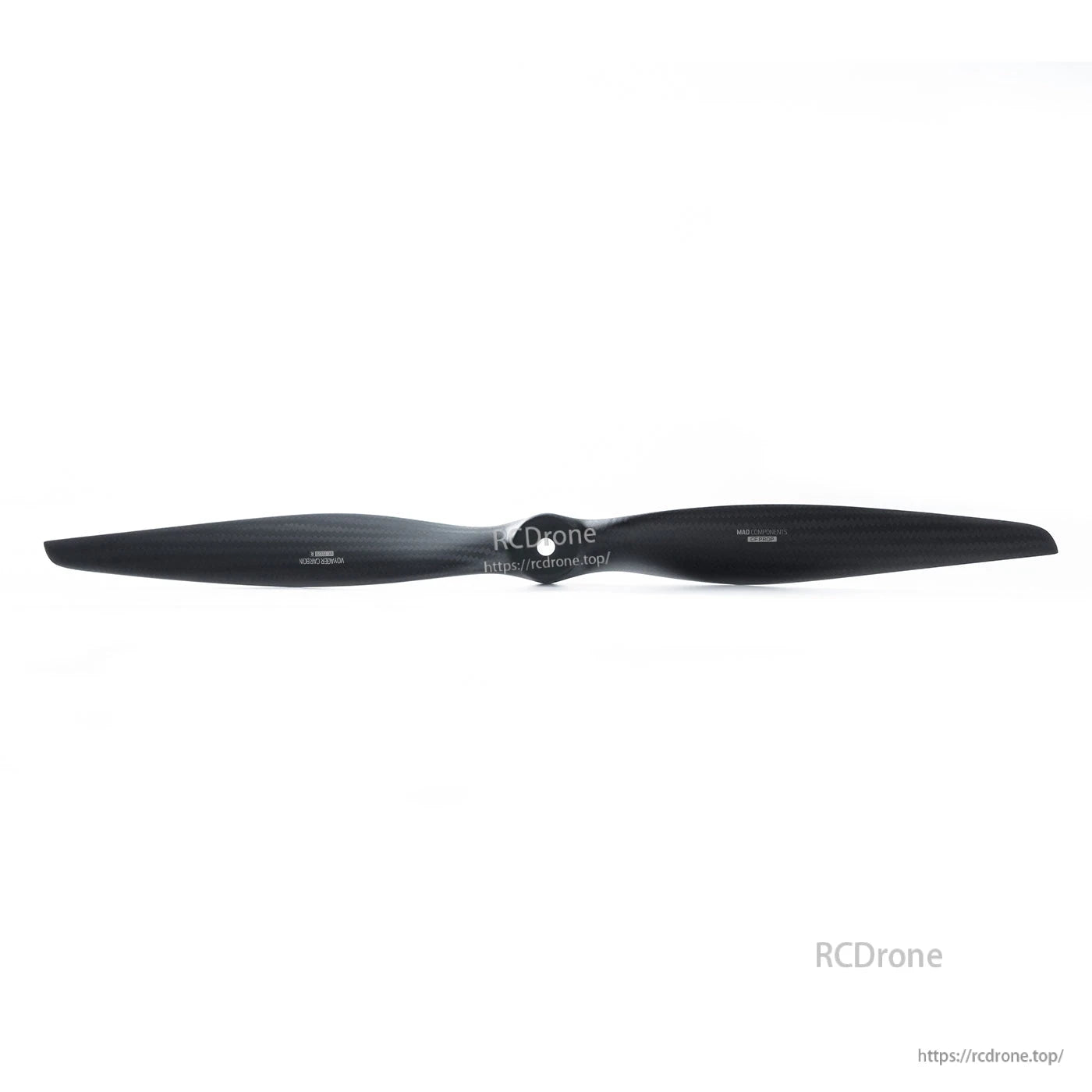

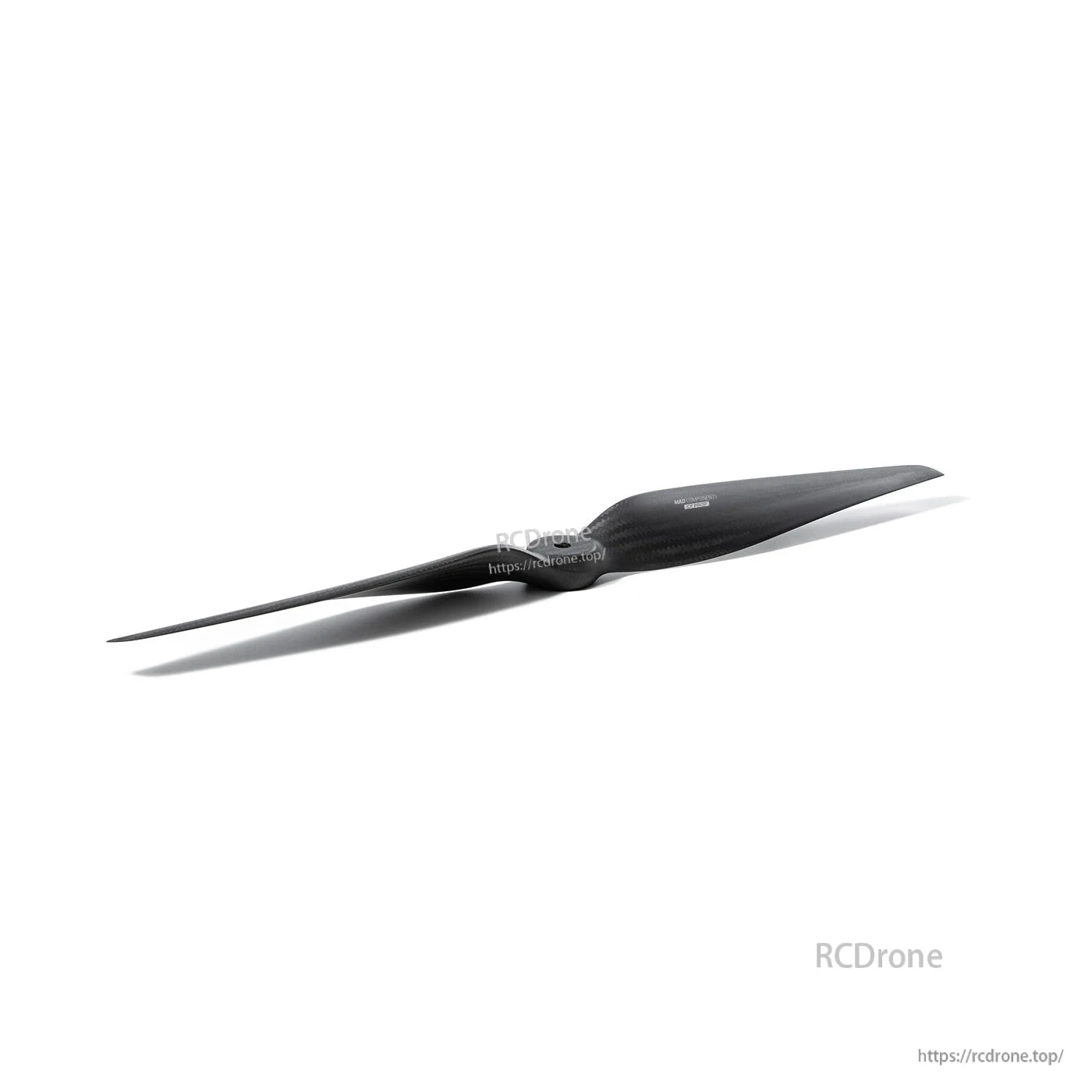

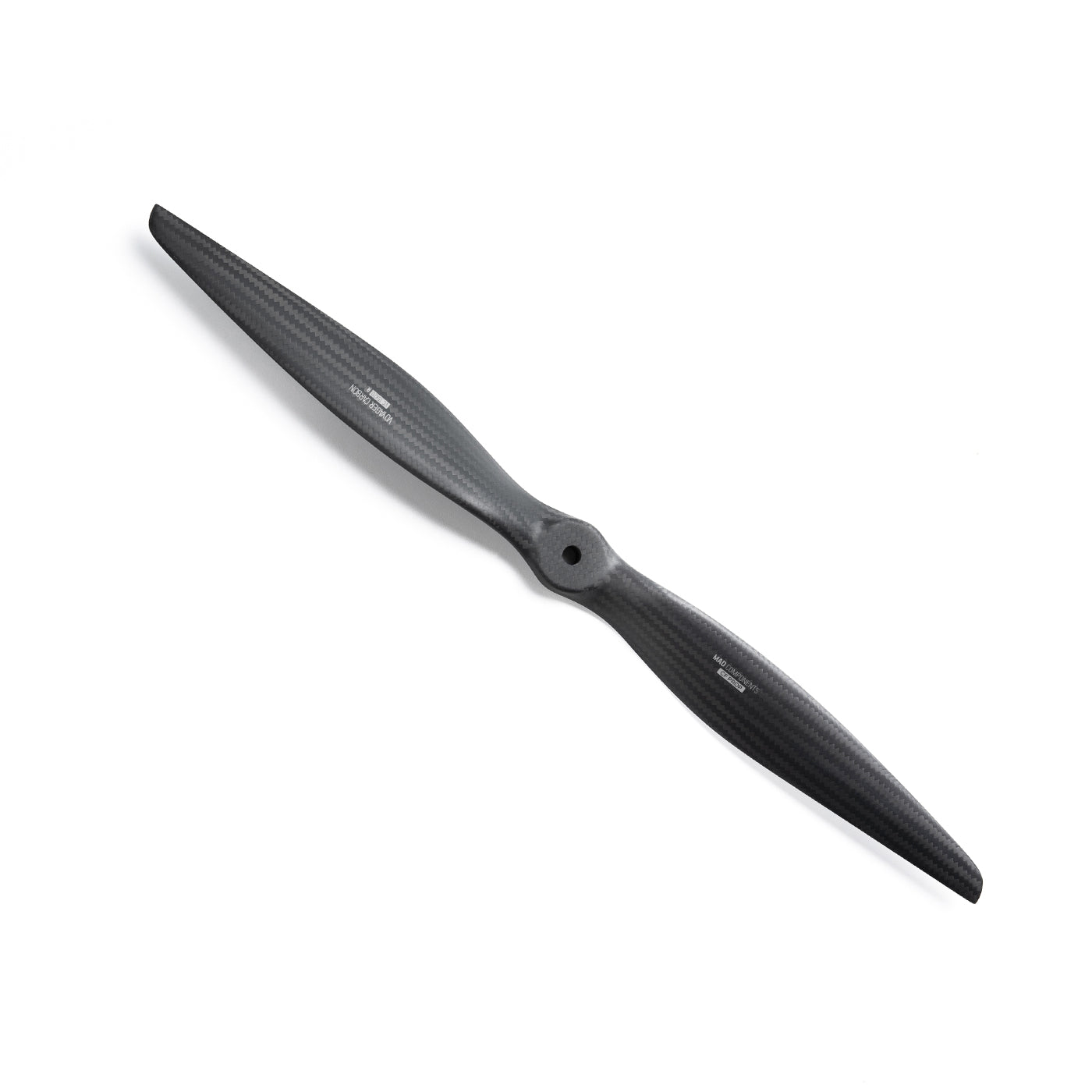

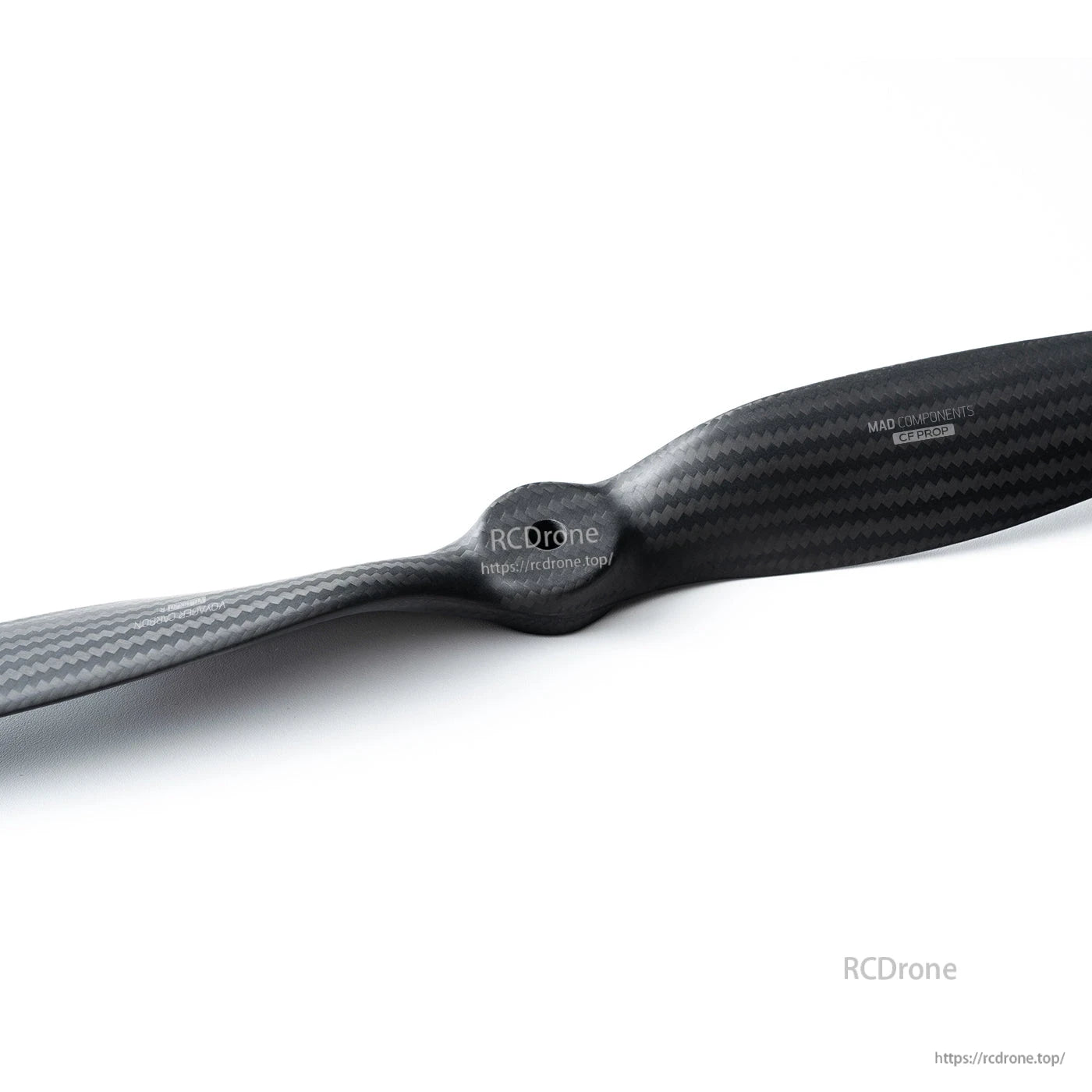

MAD VC Voyager Carbon Series carbon fiber propeller options in 18x12-R and 18x14-R sizes. Built with CF+Epoxy and a matte frosting surface treatment for a professional matte fiber finish.

Key Features

Voyager Carbon Series propeller: 18X12-R IN or 18X14-R IN
Material: CF+Epoxy
Surface treatment: Matte frosting
Working temperature: -400C~650C
Storage temperature: -100C~500C; storage humidity: <85%

For compatibility questions before ordering, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

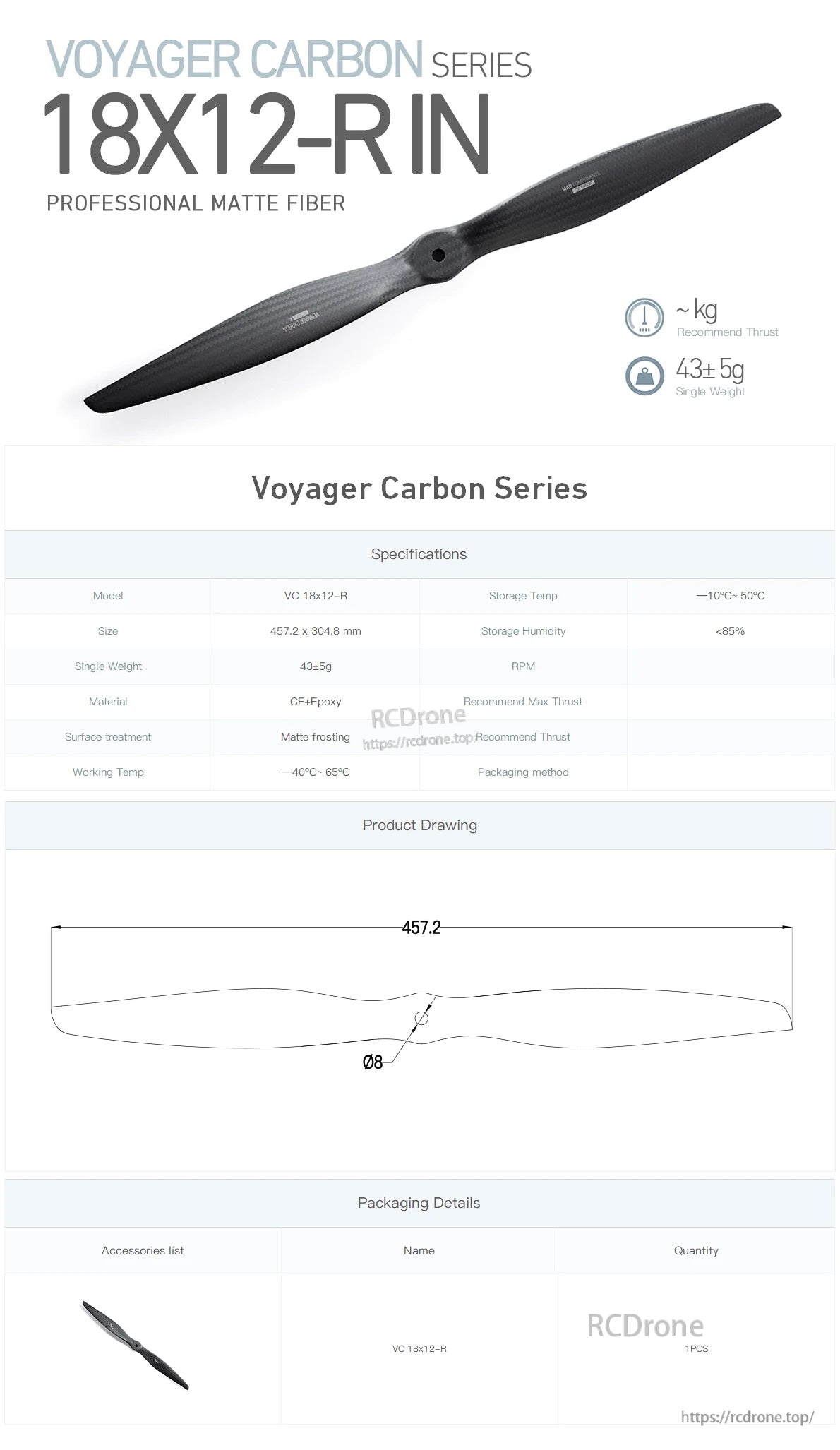

VC 18x12-R

Series	Voyager Carbon Series
Model	VC 18x12-R
Size	457.2 x 304.8 mm
Single weight	43g
Material	CF+Epoxy
Surface treatment	Matte frosting
Working temp	-400C~650C
Storage temp	-100C~500C
Storage humidity	<85%
Recommend thrust	~ kg
Drawing (length)	457.2
Drawing (center hole)	8

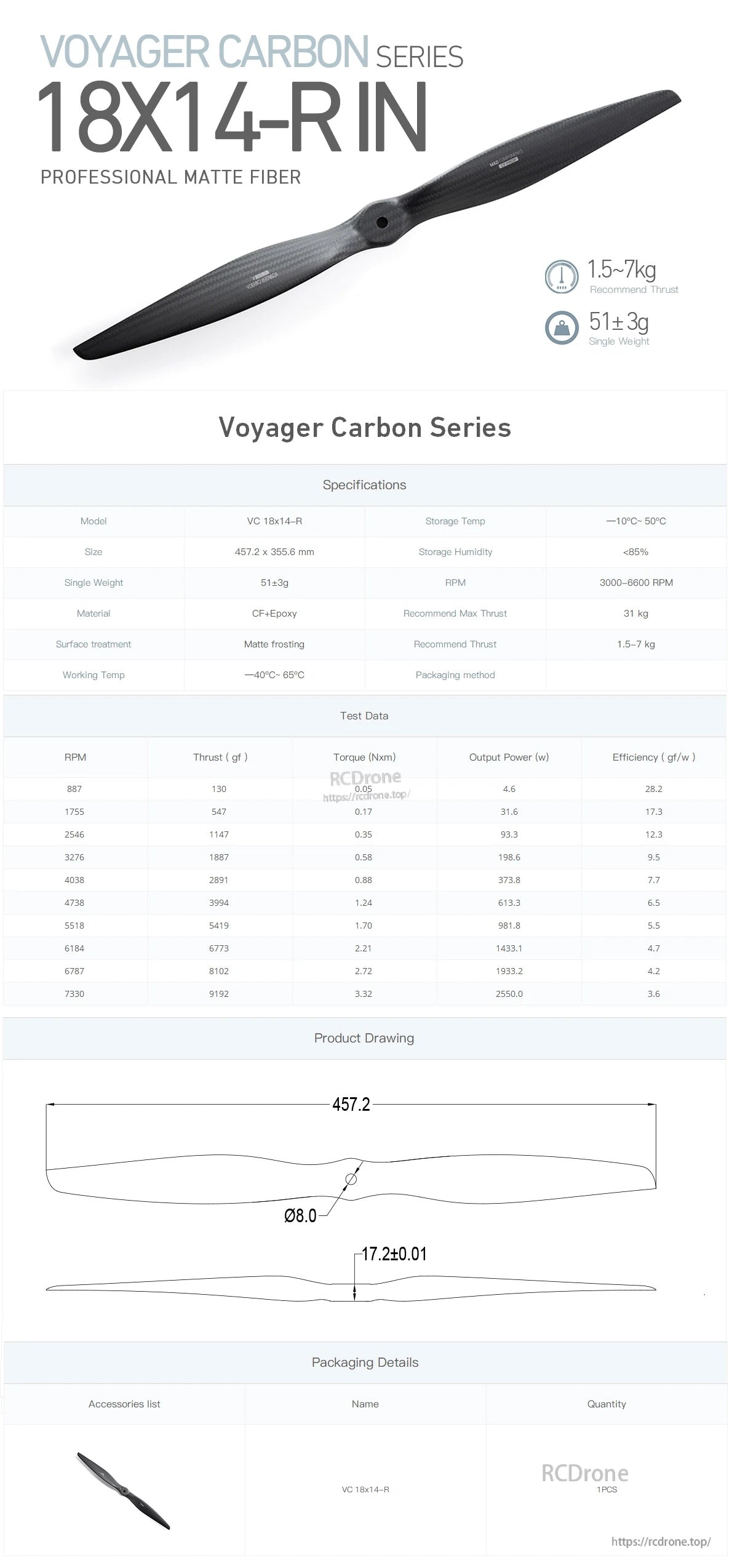

VC 18x14-R

Series	Voyager Carbon Series
Model	VC 18x14-R
Size	457.2 x 355.6 mm
Single weight	51g
Material	CF+Epoxy
Surface treatment	Matte frosting
Working temp	-400C~650C
Storage temp	-100C~500C
Storage humidity	<85%
RPM	3000~6600 RPM
Recommend max thrust	31 kg
Recommend thrust	1.5~7 kg
Drawing (length)	457.2
Drawing (center hole)	8.0
Drawing (thickness)	17.210.01

Test Data (VC 18x14-R)

RPM	Thrust (gf)	Torque (Nxm)	Output Power (w)	Efficiency (gf/w)
887	130	0.05	4.6	28.2
1755	547	0.17	31.6	17.3
2546	1147	0.35	93.3	12.3
3276	1887	0.58	198.6	9.5
4038	2891	0.88	373.8	7.7
4738	3994	1.24	613.3	6.5
5518	5419	1.70	981.8	5.5
6184	6773	2.21	1433.1	4.7
6787	8102	2.72	1933.2	4.2
7330	9192	3.32	2550.0	3.6
