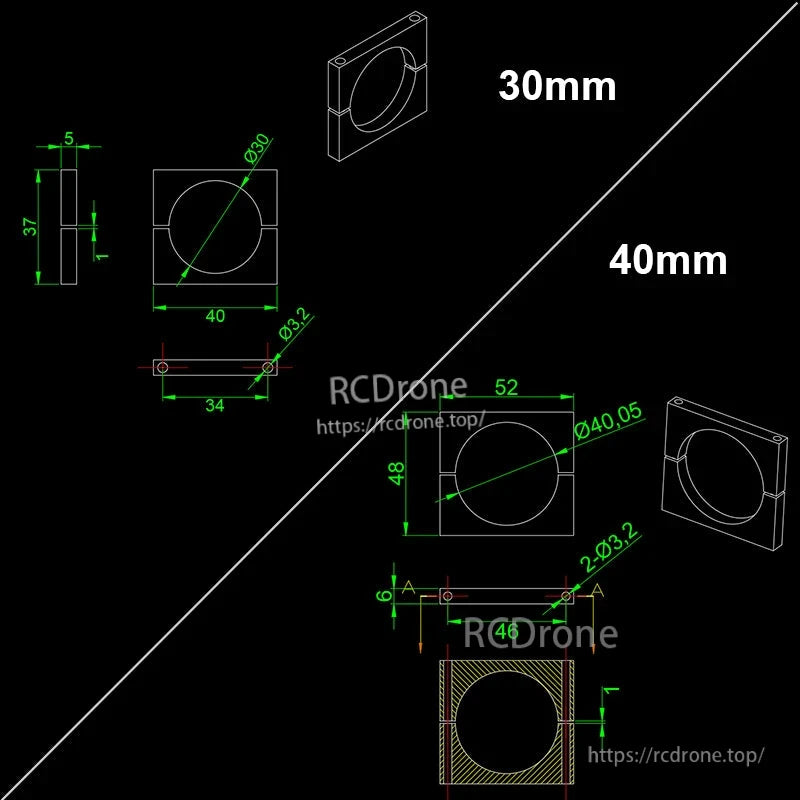

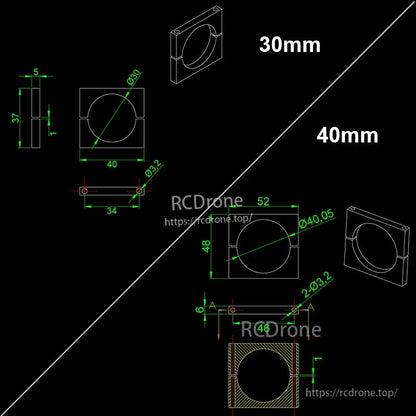

  • Dimensioned drawing of RJXHOBBY black anodized aluminum pipe clamp, split-ring style in 30mm and 40mm sizes

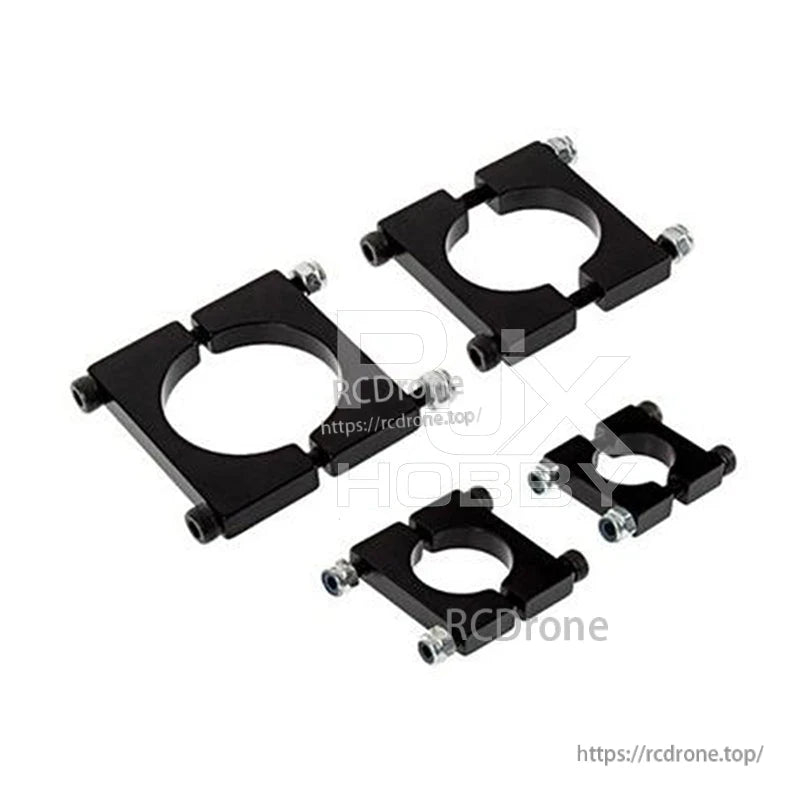

  • RJXHOBBY black anodized aluminum pipe clamps with bolt hardware, shown in multiple sizes

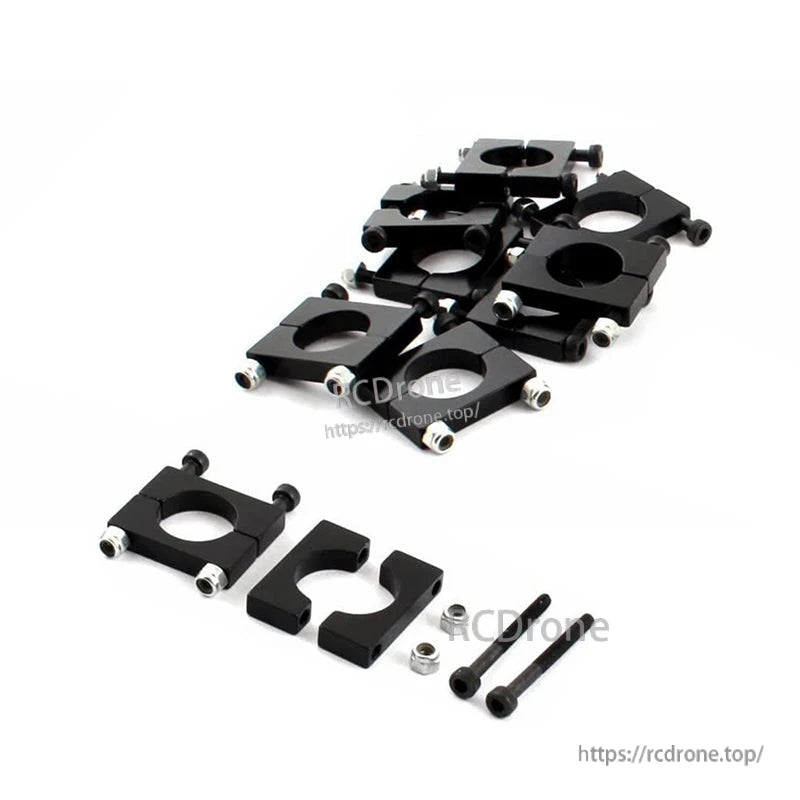

  • RJXHOBBY Black Anodized Aluminum Pipe Clamp, Black anodized aluminum split pipe clamp set with bolts and nuts, multiple sizes for round tube mounting

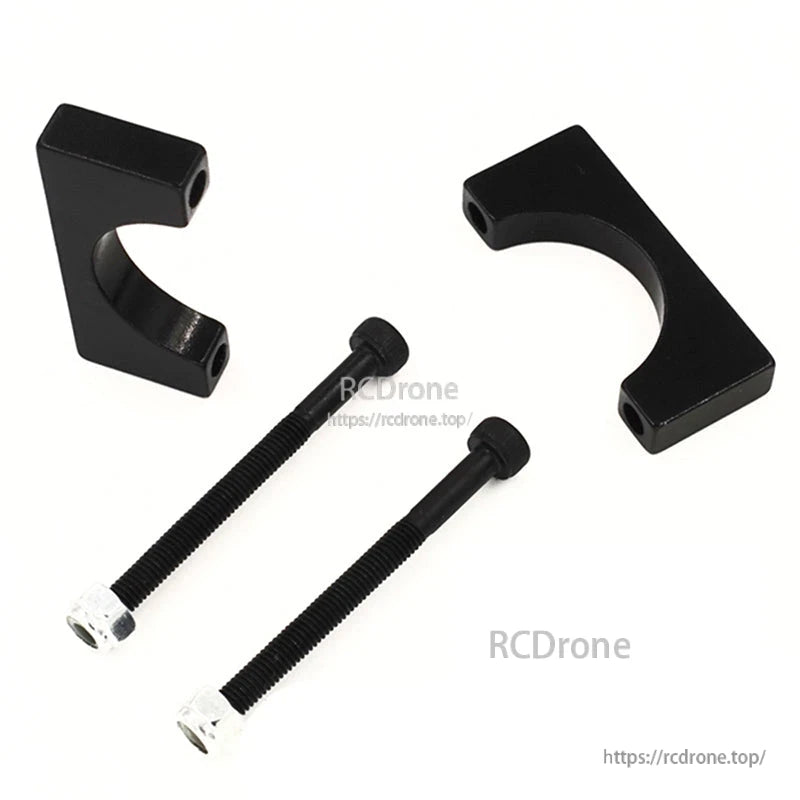

  • RJXHOBBY Black Anodized Aluminum Pipe Clamp, Black anodized aluminum pipe clamp set with two half clamps and two bolts with nuts
  • RJXHOBBY Black Anodized Aluminum Pipe Clamp, Dimension diagram for RJXHOBBY aluminum pipe clamp blocks in 10mm and 14mm sizes with 3.2mm mounting holes

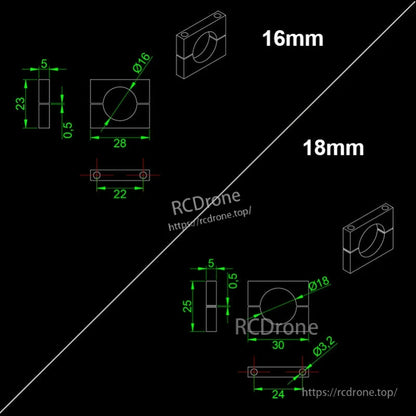

  • Dimension diagram of RJXHOBBY black anodized aluminum pipe clamp for 16mm and 18mm tubes with mounting hole spacing
  • Dimensional drawing of RJXHOBBY black anodized aluminum pipe clamps in 25 mm and 28 mm sizes with detailed measurements.

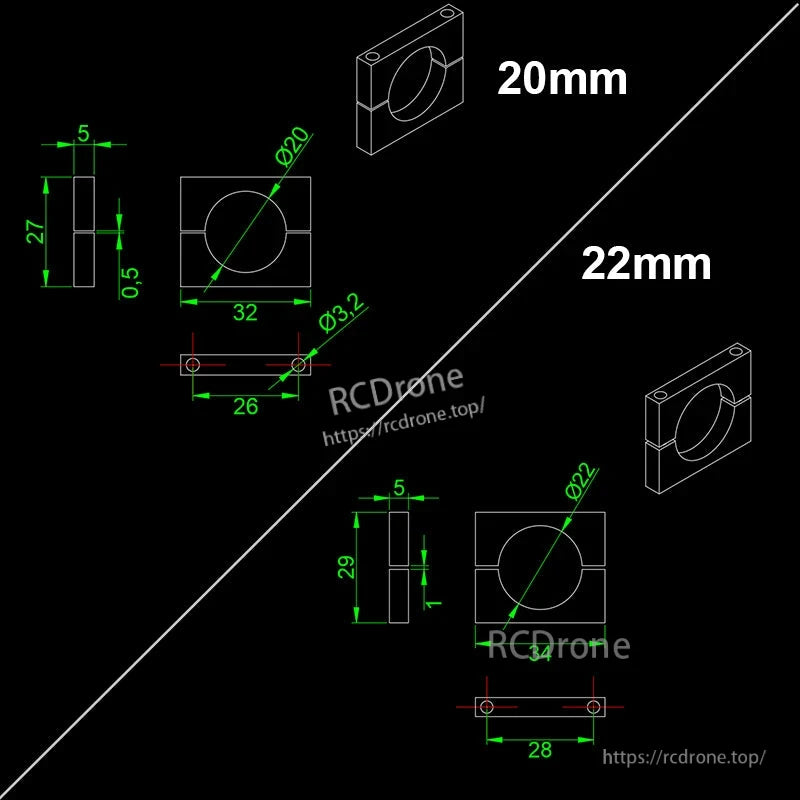

  • Technical drawing of RJXHOBBY black anodized aluminum pipe clamp showing dimensions for 20 mm and 22 mm tube sizes.

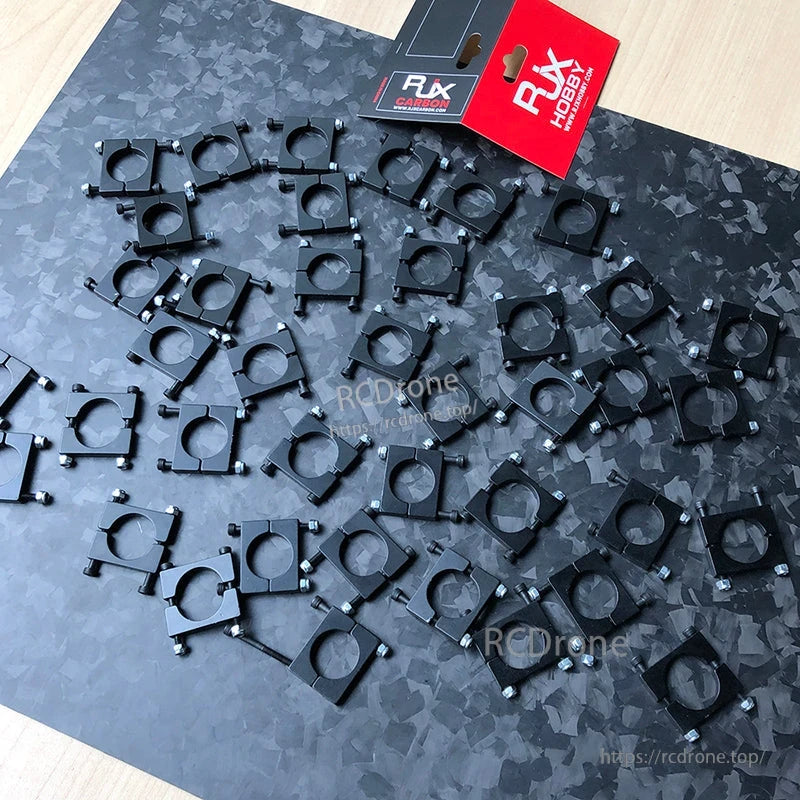

  • Collection of RJXHOBBY black anodized aluminum pipe clamps with mounting screws on a patterned surface
1 11

RJXHOBBY Black Anodized Aluminum Pipe Clamp Tube Clip, ID 8-40mm, for Carbon Fiber/Aluminum Tubes (1pc)

RJXHOBBY Black Anodized Aluminum Pipe Clamp Tube Clip, ID 8-40mm, for Carbon Fiber/Aluminum Tubes (1pc)

RJXHobby

$5.03 USD
$5.03 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
size
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

RJXHOBBY anodized aluminum pipe clamp (tube clip) for securing carbon fiber tube or aluminum tube. Available inside diameter (ID) options: 8/10/12/14/16/18/20/22/25/28/30/35/40mm. Color: black.

Key Features

  • Material: anodized aluminum
  • CNC aluminum non-threaded spacer with steel socket head bolts and locking nuts
  • Multiple ID options from 8mm to 40mm

Specifications

Material Anodized Aluminum
Color Black
Inside Diameter (ID) Options 8/10/12/14/16/18/20/22/25/28/30/35/40mm

Size Details (by ID)

ID Installation Hole Distance Screws & Nuts Width Height Thickness Weight
8mm 14mm M3 * 25mm anti-skid screws and nuts 20mm 14mm 5mm 3.6g

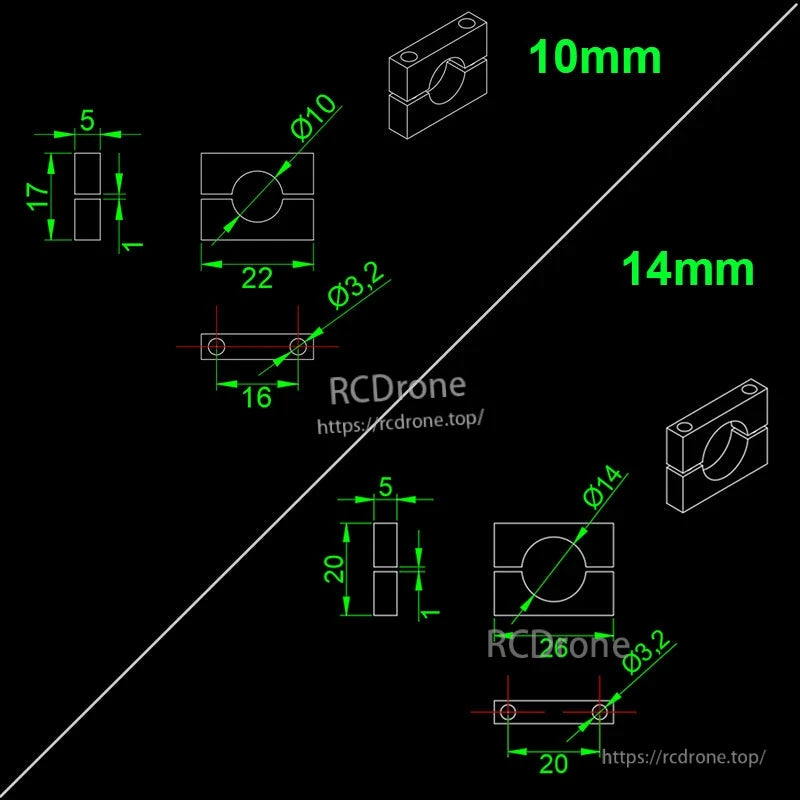

10mm 16mm M3 * 25mm anti-skid screws and nuts 22mm 17mm 5mm 3.8g
12mm 18mm M3 * 25mm anti-skid screws and nuts 24mm 19mm 5mm 4g
14mm 20mm M3 * 30mm anti-skid screws and nuts 21mm 26mm 5mm 4.4g

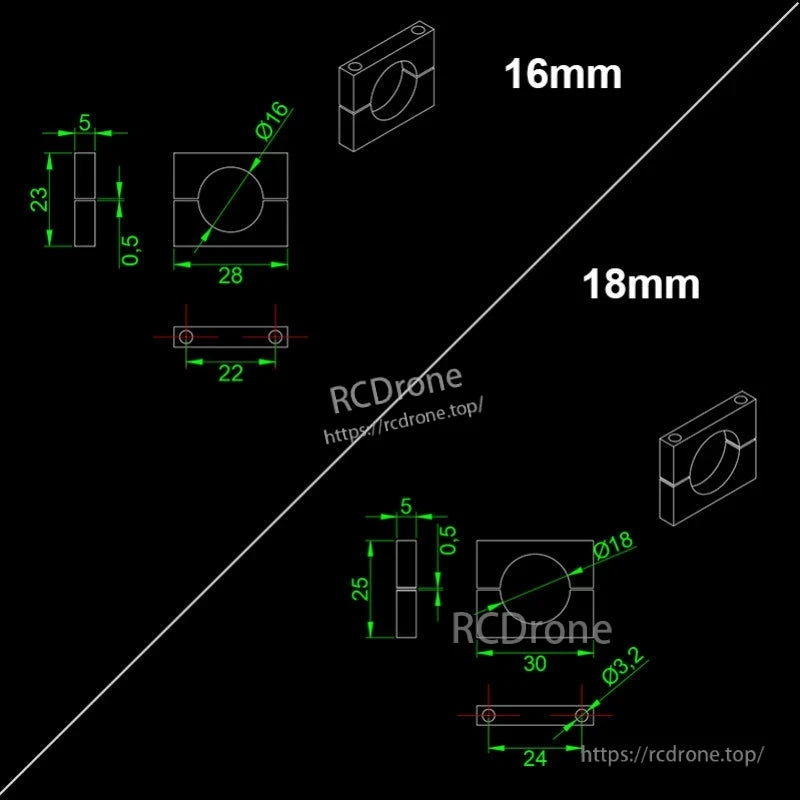

16mm 22mm M3 * 30mm anti-skid screws and nuts 28mm 23mm 5mm 4.7g
18mm 24mm M3 * 35mm anti-skid screws and nuts 30mm 25mm 5mm 5.1g

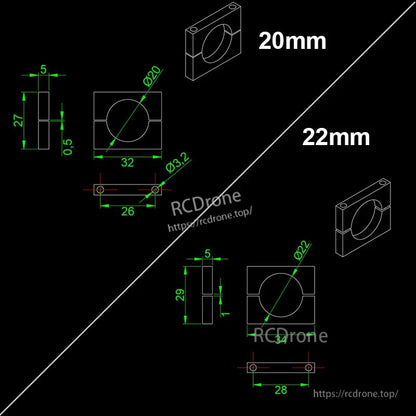

20mm 26mm M3 * 35mm anti-skid screws and nuts 32mm 27mm 5mm 6g
22mm 28mm M3 * 40mm anti-skid screws and nuts 34mm 29mm 5mm 6.6g

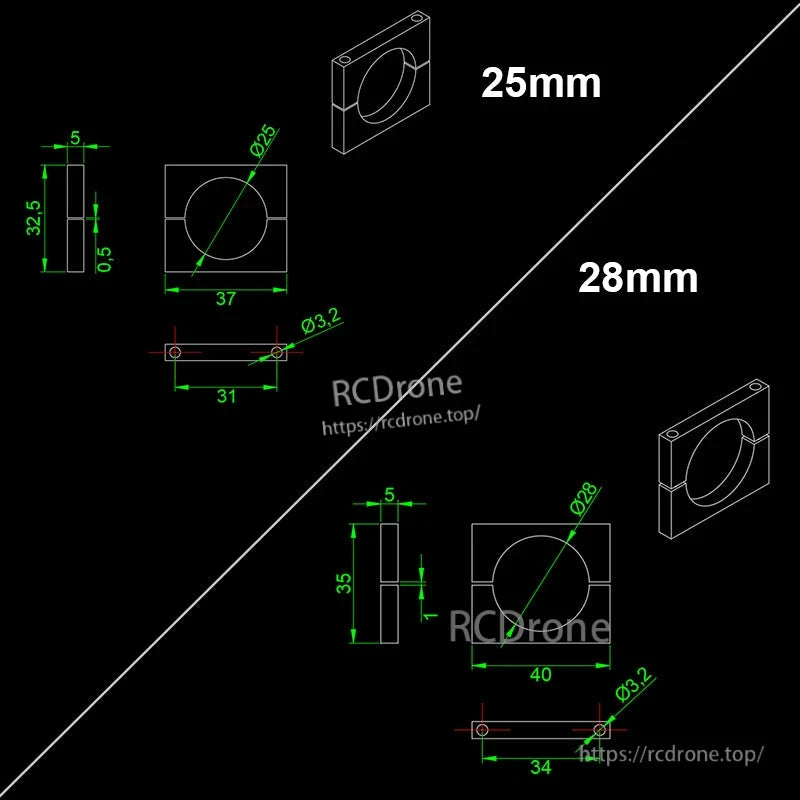

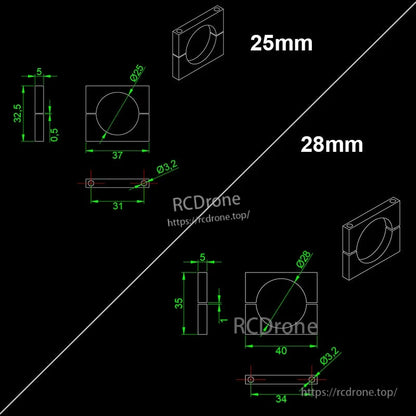

25mm 31mm M3 * 40mm anti-skid screws and nuts 37mm 32mm 5mm 7.7g
28mm 34mm M3 * 40mm anti-skid screws and nuts 40mm 34mm 5mm 8.6g
30mm 34mm M3 * 45mm anti-skid screws and nuts 40mm 36.5mm 5mm 8.8g

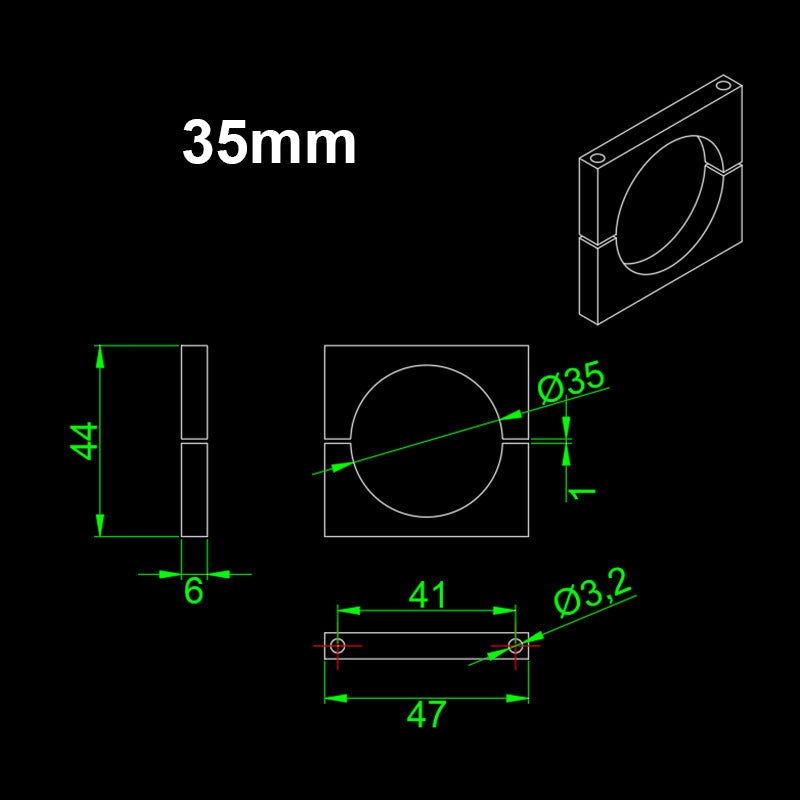

35mm 41mm M3 * 55mm anti-skid screws and nuts 47mm 44mm 5mm 16g
40mm 46mm M3 * 60mm anti-skid screws and nuts 52mm 48mm 6mm 17.1g

What’s Included

  • 1x Aluminum tube clamps

Applications

  • Clamping and mounting carbon fiber tubes or aluminum tubes on RC frames, drone/robot structures, and DIY assemblies
