RJXHOBBY 25T Futaba/Savox Aluminum Servo Horn (1pc) Blue CNC Alloy, M3 Holes, 20/30/40/50mm

RJXHobby

$25.19 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

size 20mm 30mm 40mm 50mm

Quantity

View full details

Overview

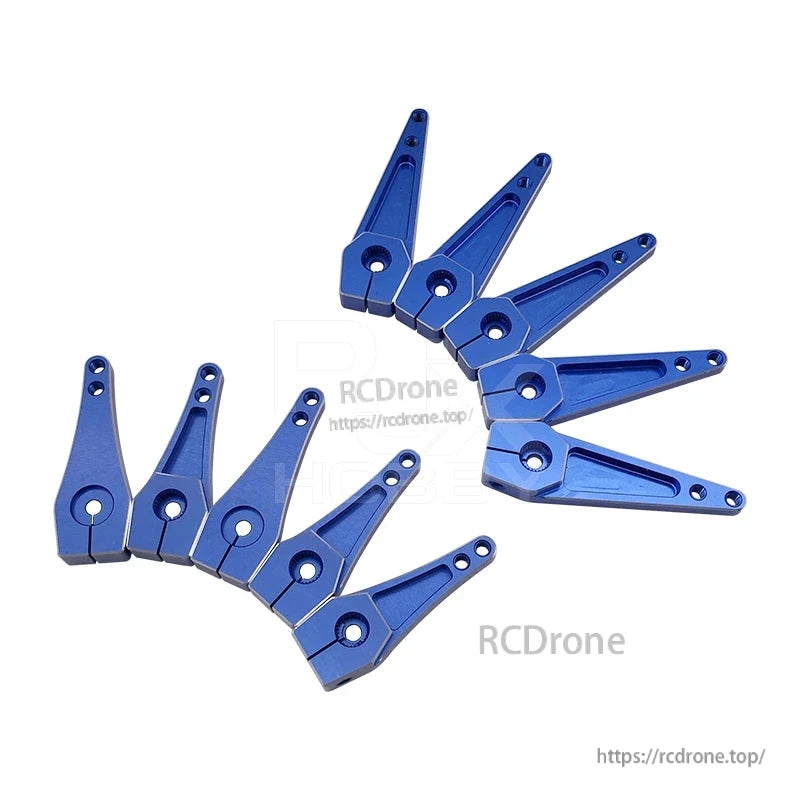

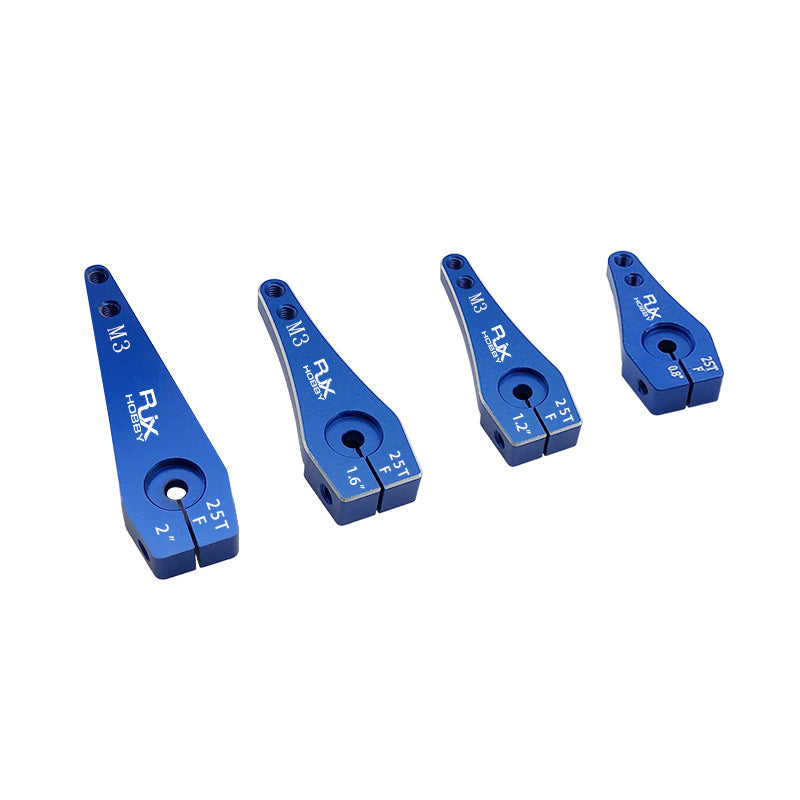

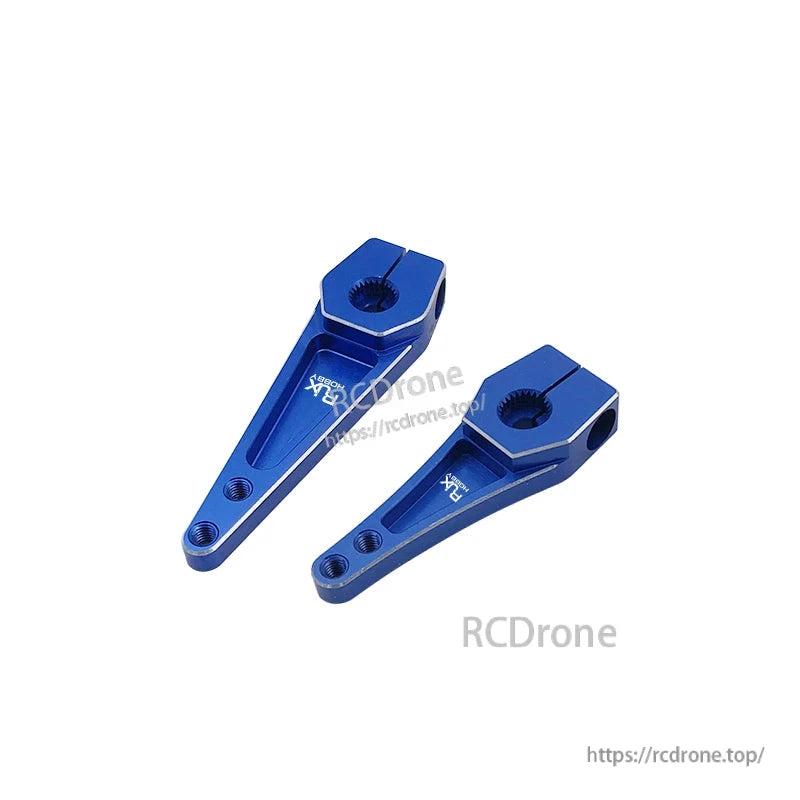

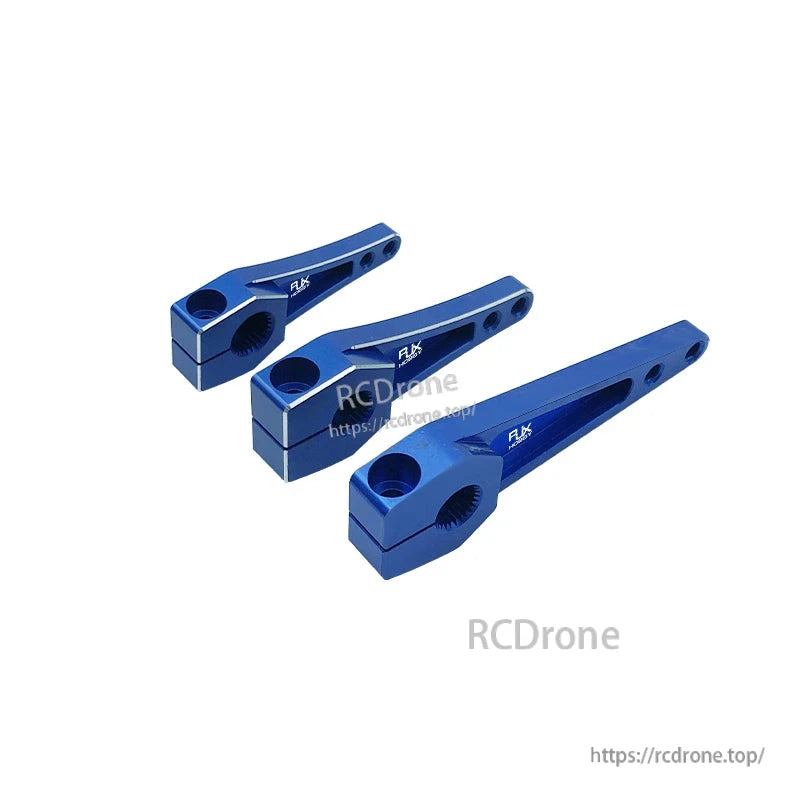

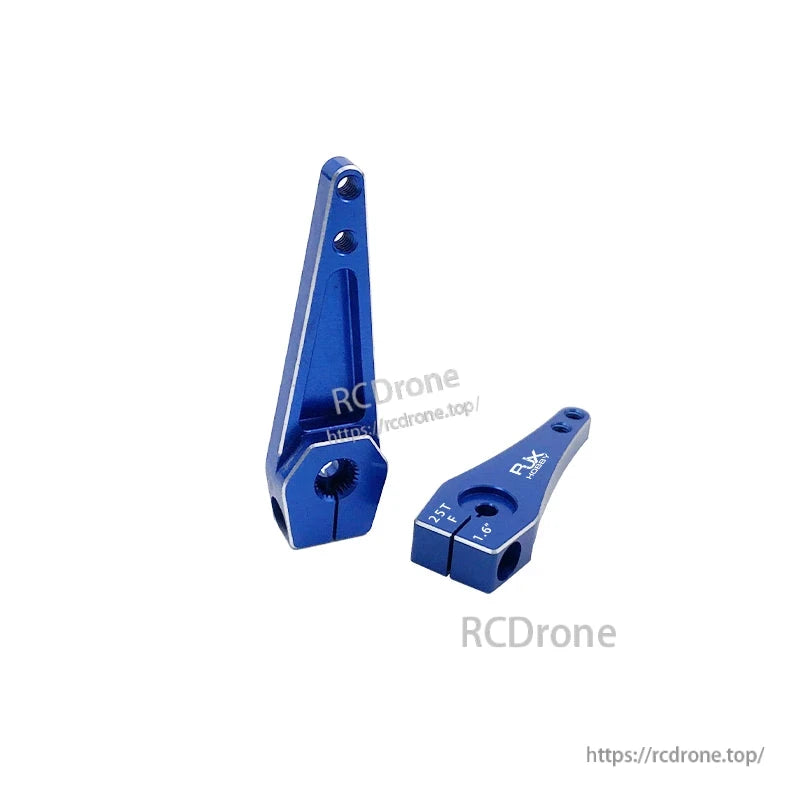

The RJXHOBBY aluminum servo horn is a 25T (Futaba/Savox) CNC-machined servo arm for RC servo output shafts. It is finished in blue and uses M3 mounting hardware with a Ø3.1 center bore as shown in the drawings.

Key Features

25T spline interface for Futaba/Savox servos
CNC aluminium construction
Blue color
M3 mounting holes

Specifications

Brand	RJXHOBBY
Product	Aluminum servo horn
Spline	25T (Futaba/Savox)
Material	CNC Aluminium
Color	Blue
Mounting thread	M3
Center bore	Ø3.1

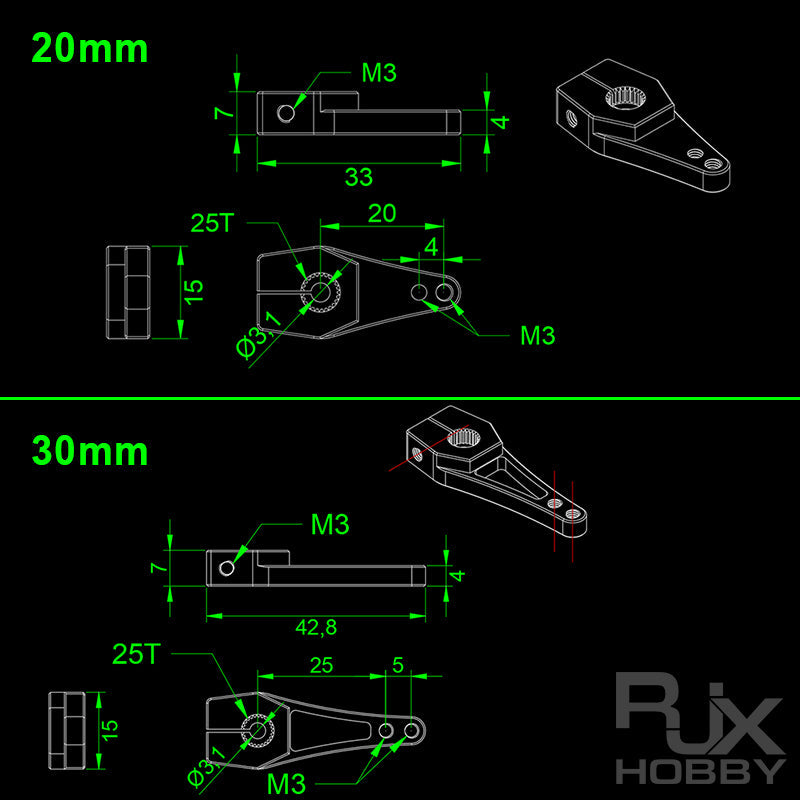

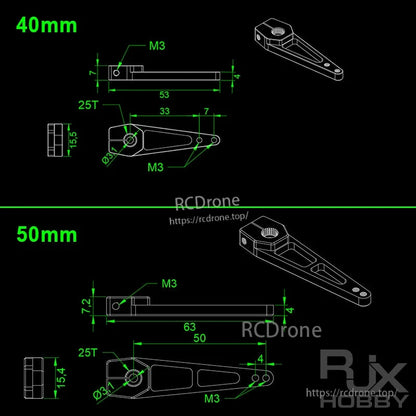

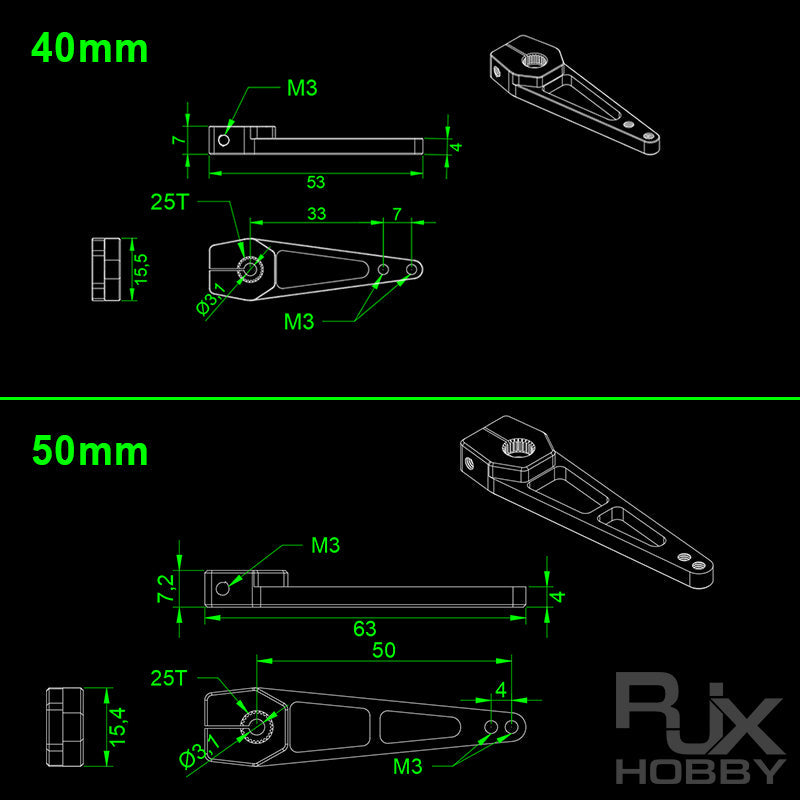

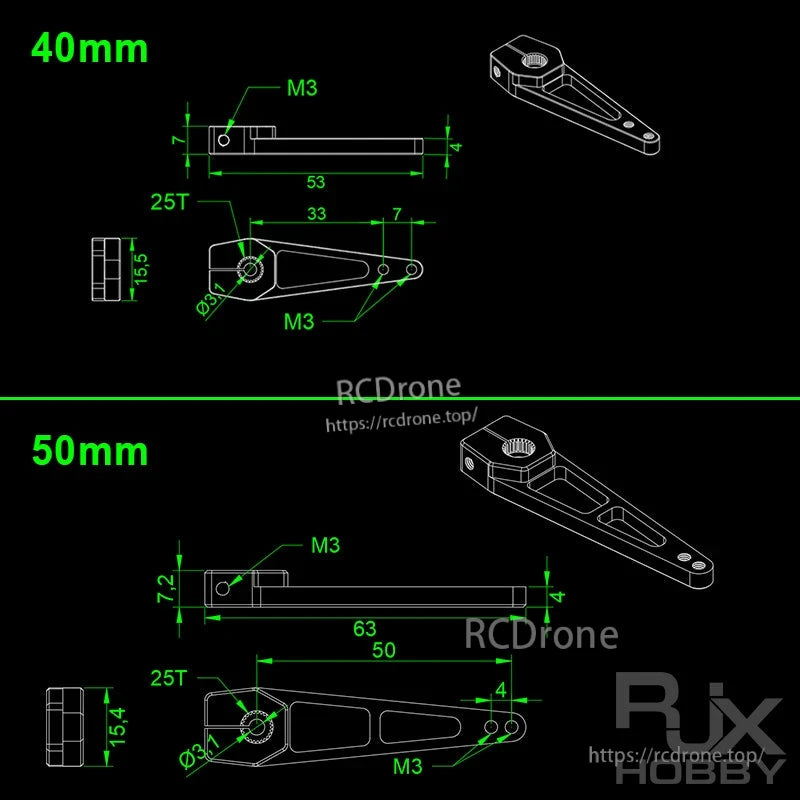

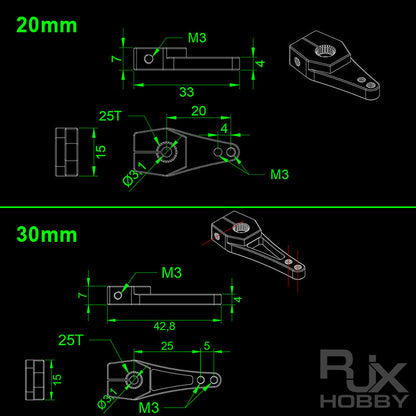

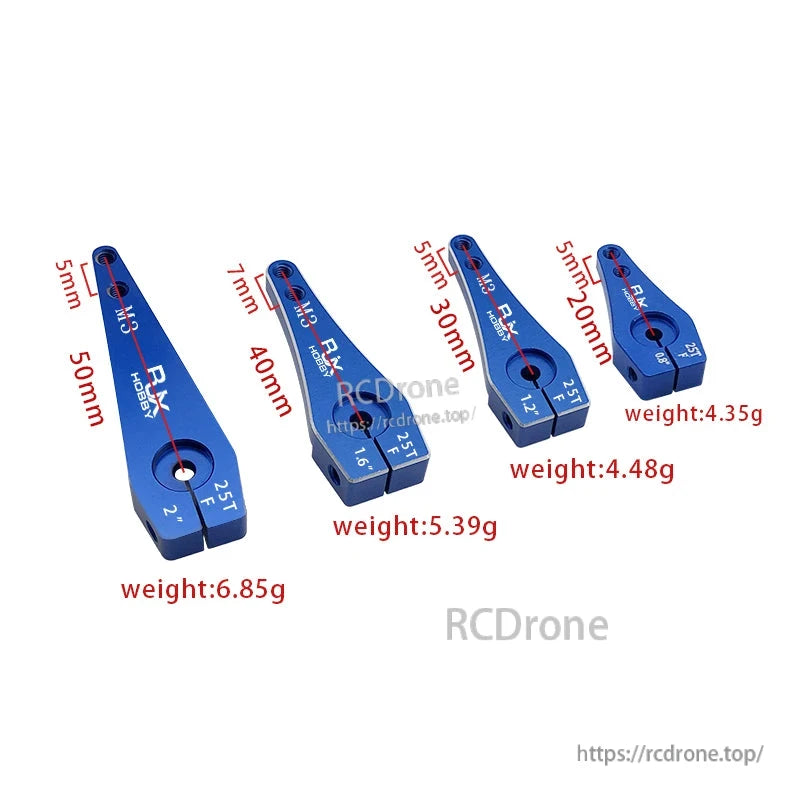

Dimensions (by length option)

Option	Overall length	Arm length	Other marked dimensions
20mm	33	20	Hub height: 7; End thickness: 4; Side height: 15; End offset: 4
30mm	42.8	25	Hub height: 7; End thickness: 4; Side height: 15; End offset: 5
40mm	53	33	Hub height: 7; End thickness: 4; Side height: 15.5; End offset: 7
50mm	63	50	Hub height: 7.2; End thickness: 4; Side height: 15.4; End offset: 4

What’s Included

1 x RJXHOBBY 25T aluminum servo horn (blue)

For compatibility questions (servo spline fit, linkage hardware, or choosing the correct length), contact support@rcdrone.top or visit https://rcdrone.top/.
