RJXHOBBY 3K Carbon Fiber Motor Fixed Mount Plate Bracket for 12/16/20/22/25/30mm Tube Clamp (1pc)

Overview

The RJXHOBBY 3K carbon fiber plate is a motor fixed mount clip holder bracket designed for tube clamp RC drone DIY builds. It is offered in multiple tube clamp sizes (12/16/20/22/25/30mm) and uses a 2mm-thick carbon fiber plate in black.

Key Features

• 3K carbon fiber plate construction
• Multiple tube clamp size options: 12mm, 16mm, 20mm, 22mm, 25mm, 30mm
• Plate thickness: 2mm
• Drawing indicates mounting hole diameter: Ø3.2
• Drawing indicates center hole diameter: Ø11

Specifications

Whats Included

• 1pcs 3K Carbon Fiber Plate Motor Fixed Mount Clip Holder Bracket

Applications

• Tube clamp RC drone DIY assemblies
• Carbon fiber plate motor mounting/fixture projects

For compatibility questions (tube clamp size selection, mounting fit), contact https://rcdrone.top/ or support@rcdrone.top.

Details

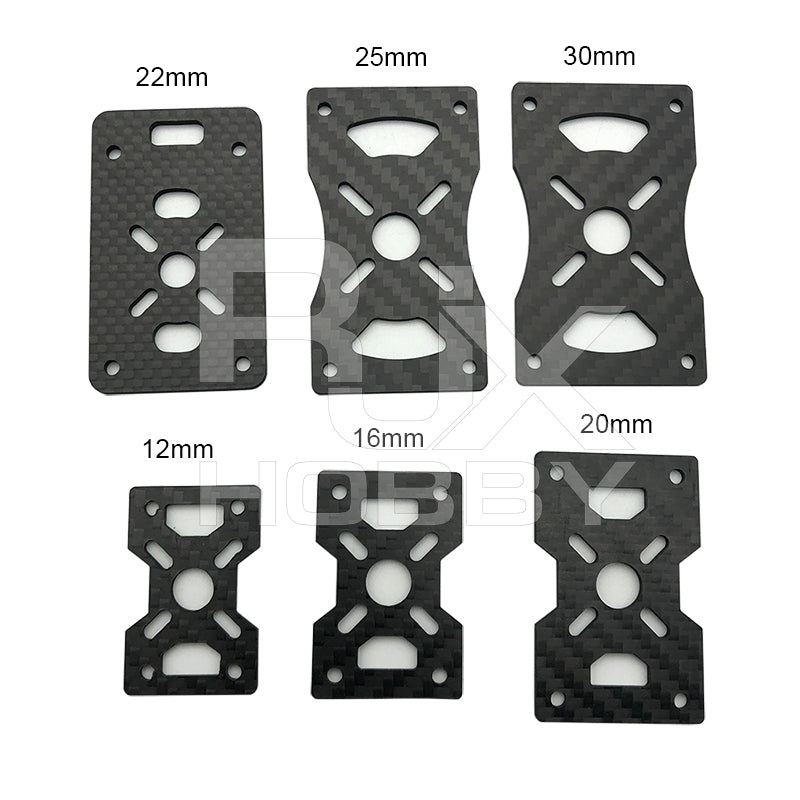

The 3K carbon fiber motor mount plate uses a slotted hole pattern and is available for 12mm, 16mm, 20mm, 22mm, 25mm, or 30mm tube clamps.

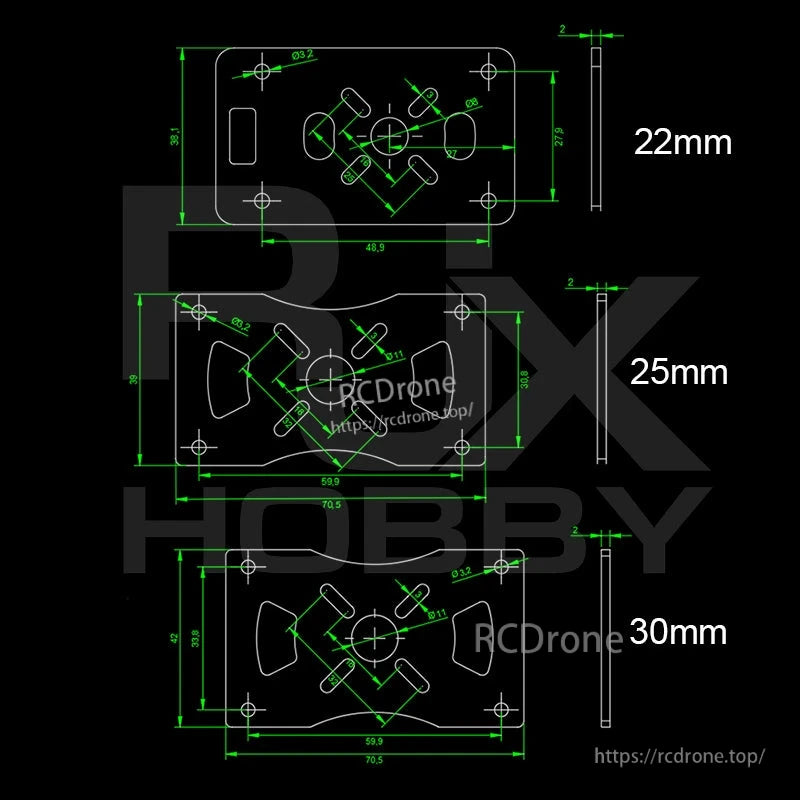

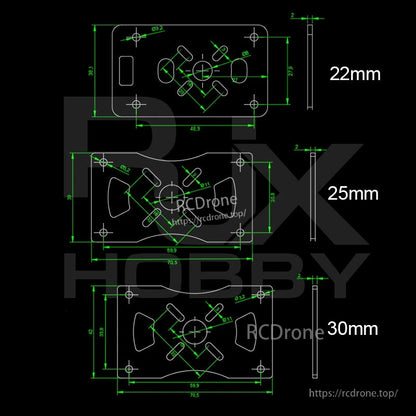

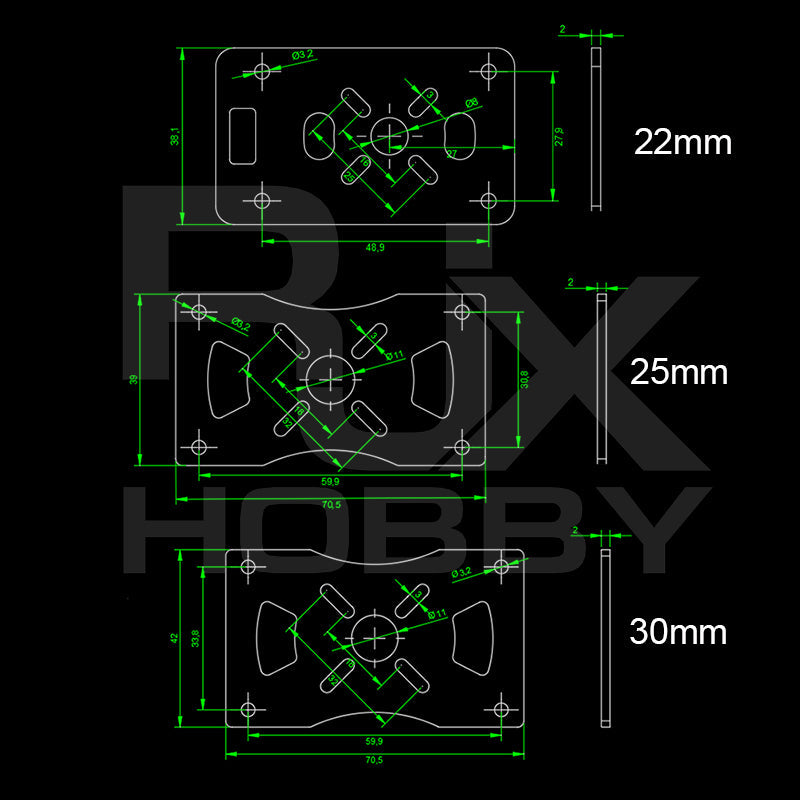

Motor fixed mount plates are sized for 22mm, 25mm, and 30mm tube clamps, with a 2mm plate thickness and clearly marked mounting hole spacing.

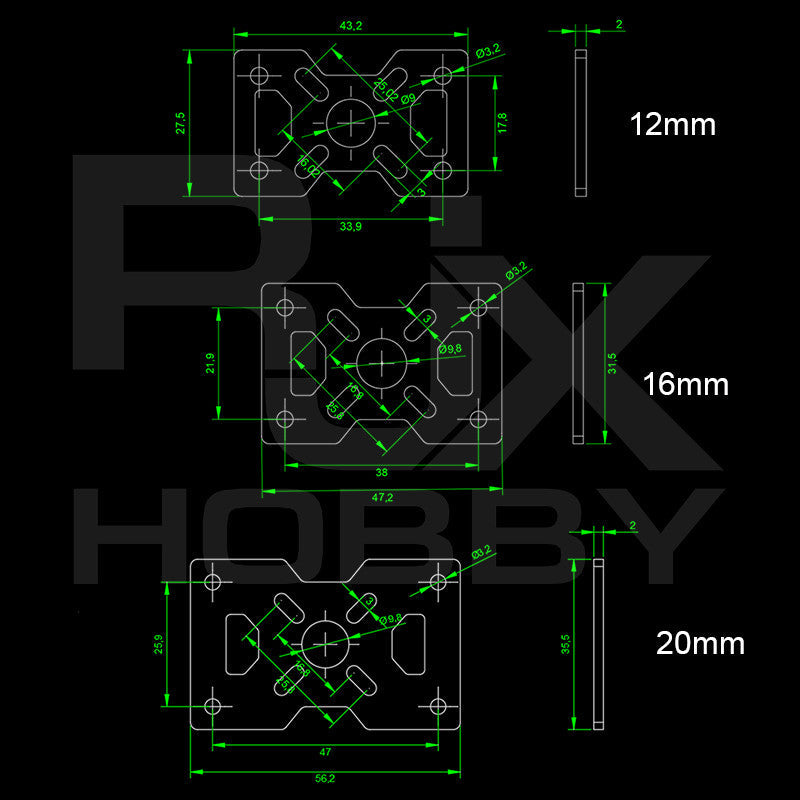

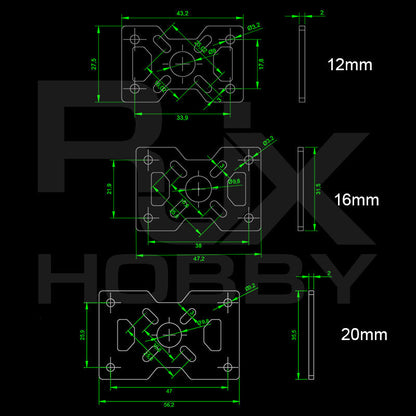

The carbon fiber motor mount plate layout provides clear hole spacing and overall dimensions for 12mm, 16mm, and 20mm tube clamp setups.
